Gorise 10pcs SF169E 10A 250V Metal Thermal Fuses 172 Degree with GT-1 Crimp Connector Silicone Fiberglass Jacket for Household Electrical Appliances

Gorise 10pcs SF169E 10A 250V Metal Thermal Fuses 172 Degree with GT-1 Crimp Connector Silicone Fiberglass Jacket for Household Electrical Appliances

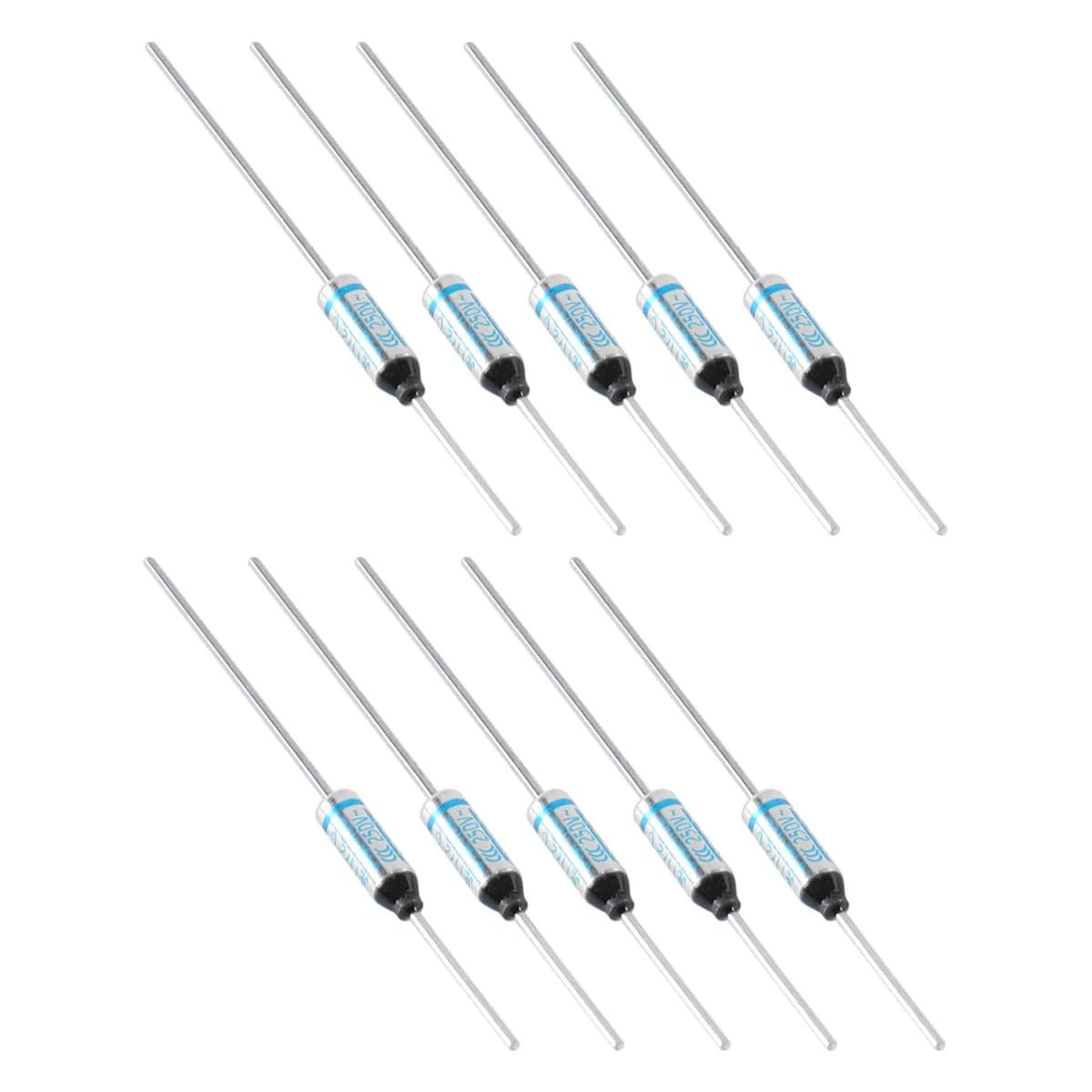

Features: Thermal fuse: It consists of a sliding contact, a spring and an electrically non-conductive thermopellet. Before the thermal fuse is activated, current flows from the left connection to the sliding contact and through the metal housing to the right connection. When the outside temperature reaches a predetermined value, the organic matter melts and the compression spring releases. The spring expands and the sliding contact is disconnected from the left connector. Specifications: Thermal fuse. Colour: blue. Rated Operating Temperature: 172°C Rated current: 10 A. Rated voltage: 250 V / AC. Size: SF169E Package includes: Pack of 10 thermal fuses

Product Features

• How it works: The SF169E thermal fuse is widely used in electrical equipment as heat protection. When the temperature exceeds the specified TF value, the electrical contacts open.
• Advantage:One-shot operation, stable and precise, compact, durable and reliable due to hermetic sealing structure, excellent sensitivity to ambient temperature.
• Principle: It consists of a sliding contact, a spring and an electrically non-conductive thermopellet. Before the thermal fuse is activated, current flows from the left connection to the sliding contact and through the metal housing to the right connection.

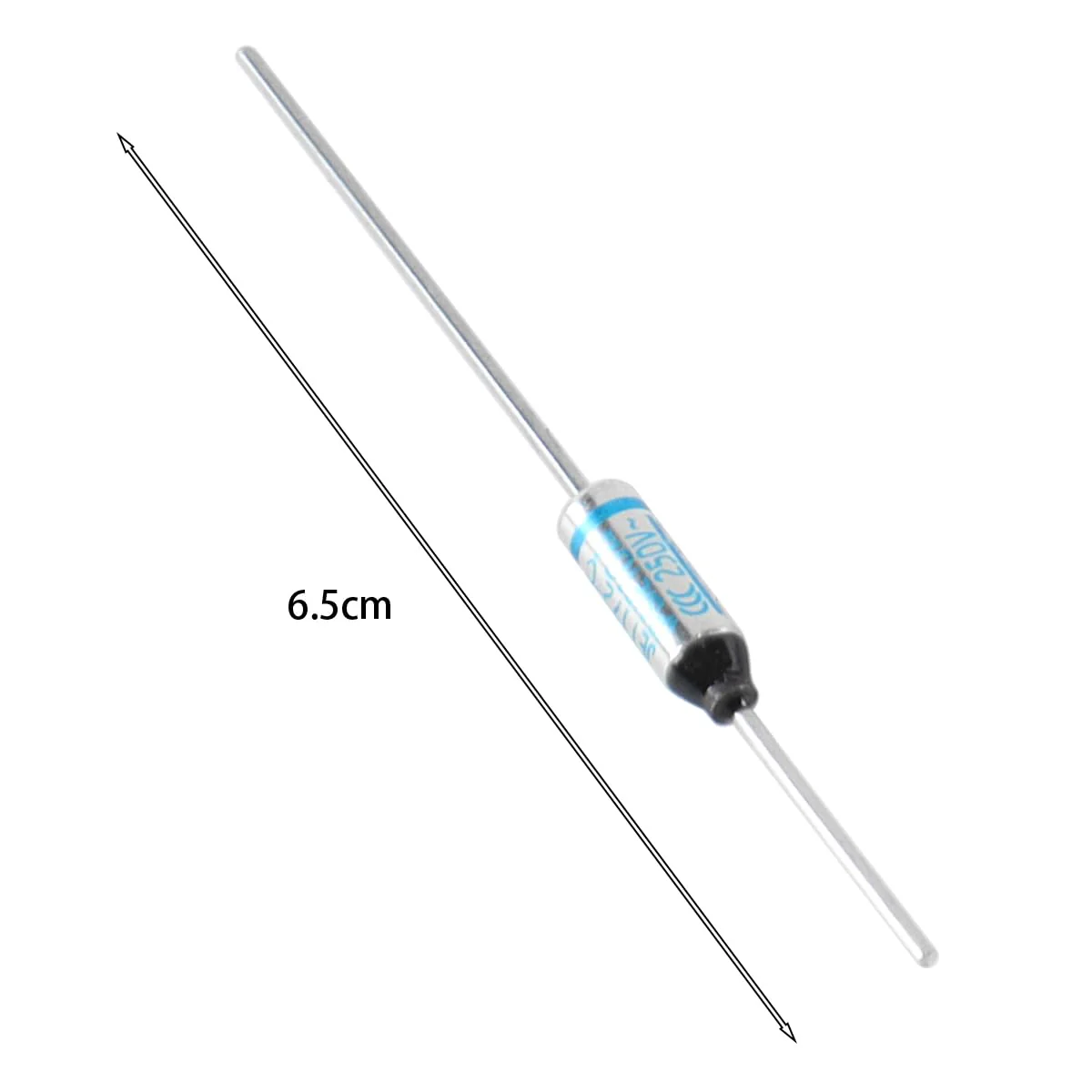

• Parameters: Model: SF169E, Rated current: 10A, Rated voltage: 250V, Rated operating temperature: 172 degrees.
• Applications Suitable for household electrical appliances, industrial electrical equipment, office automation equipment, plain paper copiers, transformers, motors, etc.
