FS-iA6B Receiver 6 Channels 2.4GHz Support PWM PPM i.Bus for FS-i6 FS-i6S FS-i6X RC Transmitter Radio Remote Control，Compatible with Flysky AFHDS2A TX Black
FS-iA6B Receiver 6 Channels 2.4GHz Support PWM PPM i.Bus for FS-i6 FS-i6S FS-i6X RC Transmitter Radio Remote Control，Compatible with Flysky AFHDS2A TX Black
FS-iA6B Receiver 6 Channels 2.4GHz Support PWM PPM i.Bus for FS-i6 FS-i6S FS-i6X RC Transmitter Radio Remote Control，Compatible with Flysky AFHDS2A TX Black

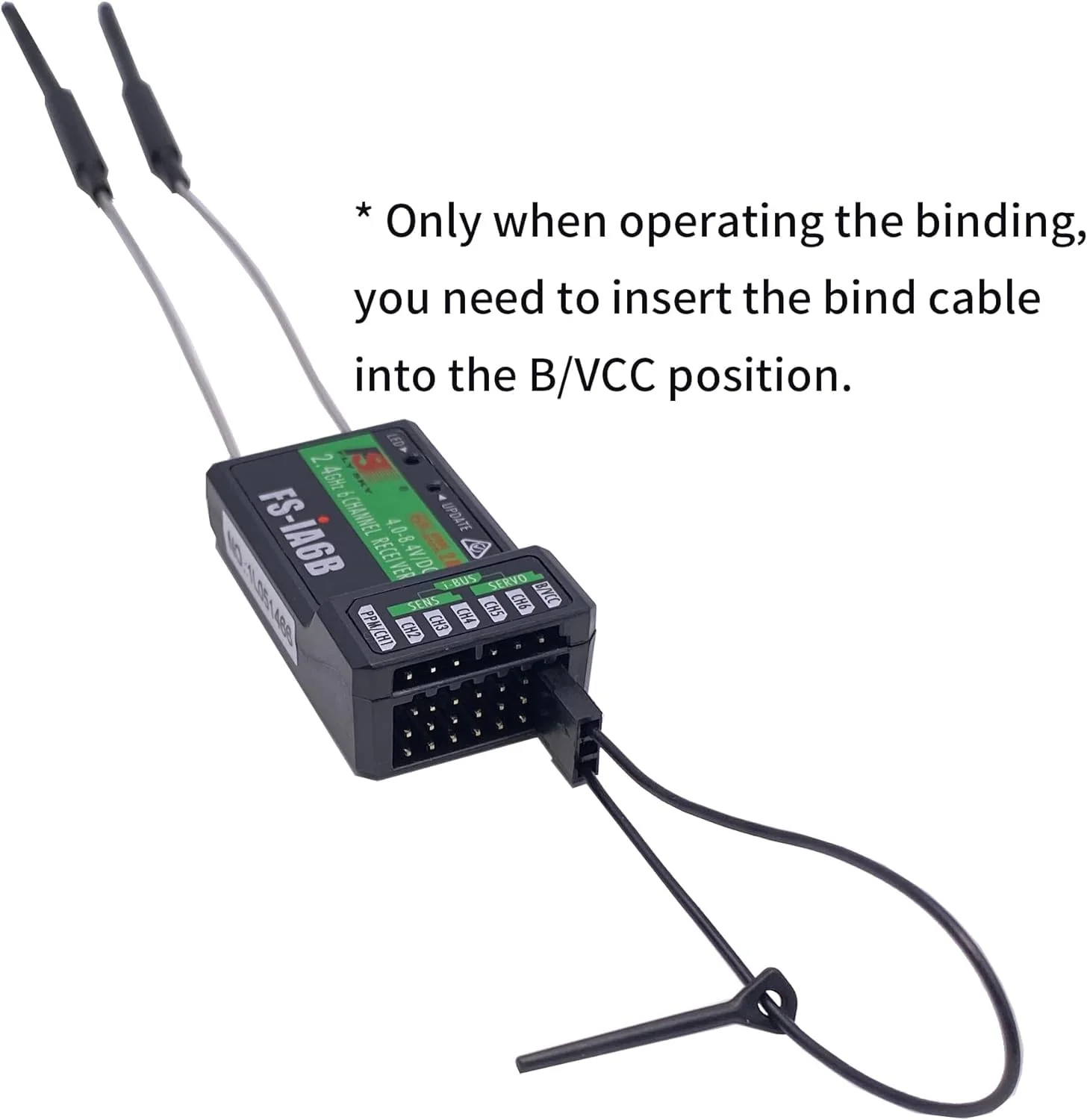

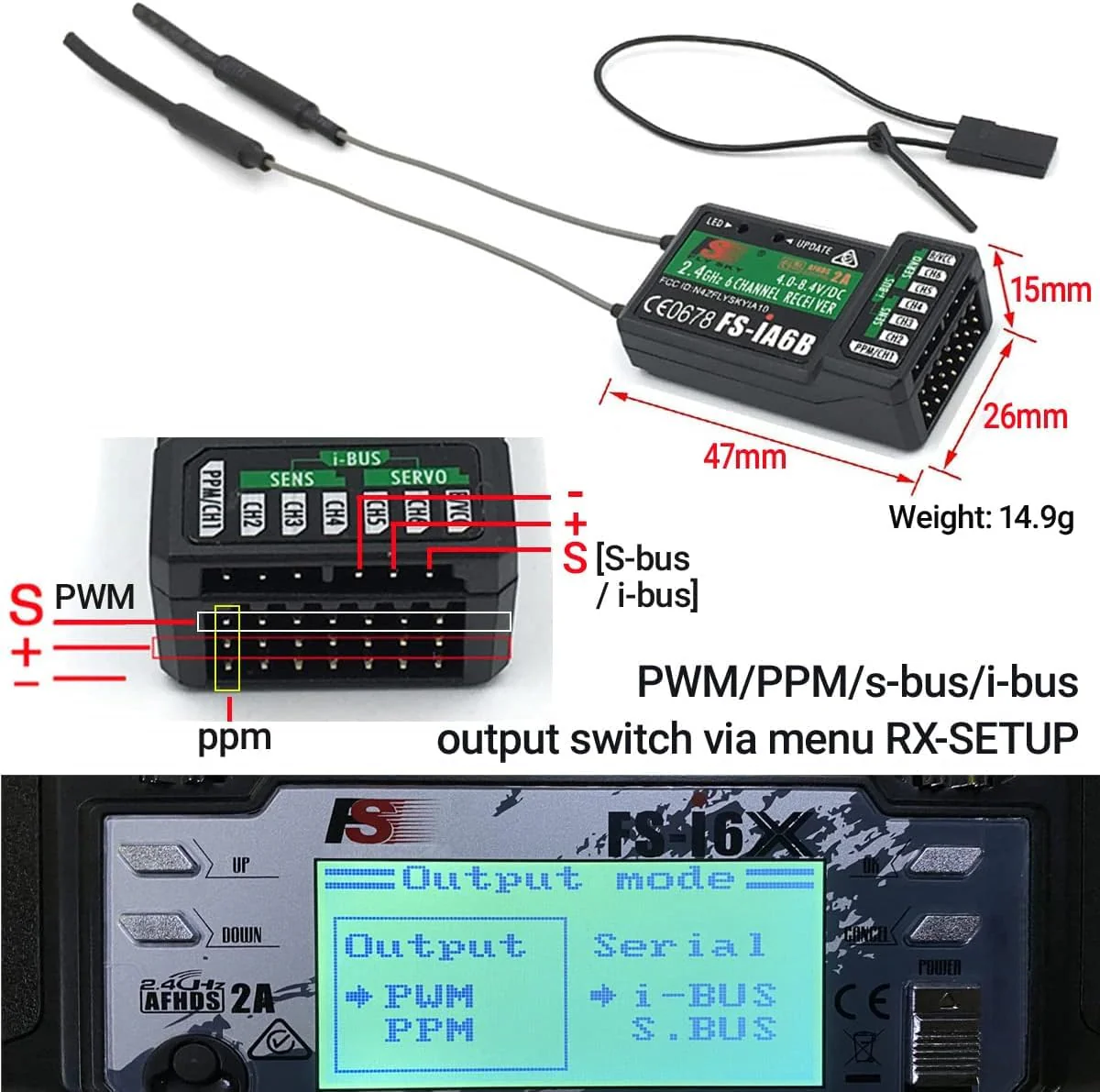

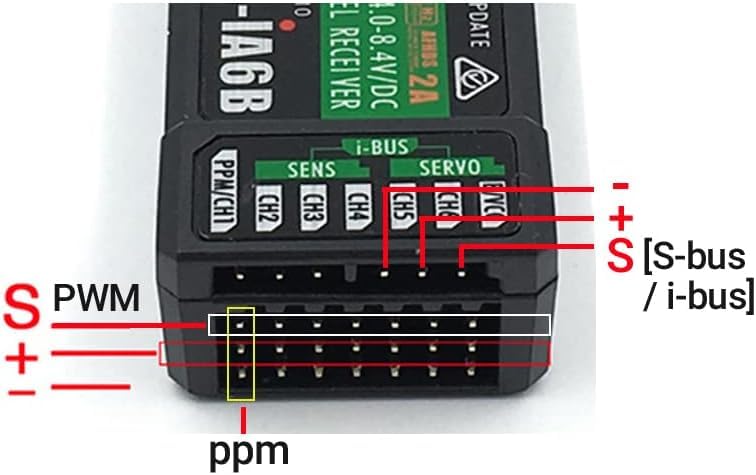

Binding method between FS-iA6B receiver and transmitter: 1, Connect the included binding cable to the receiver's B/VCC port. 2, Plug the DC 4V-6.5V power supply into other ports, the positive and negative poles cannot be wrongly connected. 3, Keep pressing the "BIND KEY", and then turn on the transmitter to enter the binding mode. 4, The transmitter will display the RX voltage, that means the binding is successful. 5, Remove binding wire, Check the operation of the servos. If something doesn't work as expected, start this process from the beginning. Note: After the receiver and transmitter are successfully bound, FS-iA6B does not need to insert a "Bind plug" during normal use. FS-iA6B Specifications: Item: FS-iA6B Receiver Channels: PWM 6CH/ PPM 8CH/ s.bus 10CH / i.bus 10CH (Select from transmitter menu 'SYSTEN-RX setup-Outprt mode') 2.4GHz System: AFHDS 2A Model Type: Fixed- Wing/Glider/Helicopter/Quadcopter/Car/Boat RF Range: 2.4055-2.475GHz RF Receiver Sensitivity: -105dBm Bandwidth: 500KHz Modulation Type: GFSK Power: 4.2-8.4V DC Antenna Length:1.02inch 26mm (Dual Antenna). Antenna Total length:150mm2 Weight: 0.53oz / 14.9g Size: 1.851.030.59inch / 4726.214.9mm i-BUS Port: Yes Data Acquisition Port: Yes Color: Black Certificate: CE,FCC Package Included: 1x FS-iA6b Receiver 1x Bind plug
Product Features
Original: $83.30
-65%$83.30
$29.15More Images
FS-iA6B Receiver 6 Channels 2.4GHz Support PWM PPM i.Bus for FS-i6 FS-i6S FS-i6X RC Transmitter Radio Remote Control，Compatible with Flysky AFHDS2A TX Black
FS-iA6B Receiver 6 Channels 2.4GHz Support PWM PPM i.Bus for FS-i6 FS-i6S FS-i6X RC Transmitter Radio Remote Control，Compatible with Flysky AFHDS2A TX Black
Binding method between FS-iA6B receiver and transmitter: 1, Connect the included binding cable to the receiver's B/VCC port. 2, Plug the DC 4V-6.5V power supply into other ports, the positive and negative poles cannot be wrongly connected. 3, Keep pressing the "BIND KEY", and then turn on the transmitter to enter the binding mode. 4, The transmitter will display the RX voltage, that means the binding is successful. 5, Remove binding wire, Check the operation of the servos. If something doesn't work as expected, start this process from the beginning. Note: After the receiver and transmitter are successfully bound, FS-iA6B does not need to insert a "Bind plug" during normal use. FS-iA6B Specifications: Item: FS-iA6B Receiver Channels: PWM 6CH/ PPM 8CH/ s.bus 10CH / i.bus 10CH (Select from transmitter menu 'SYSTEN-RX setup-Outprt mode') 2.4GHz System: AFHDS 2A Model Type: Fixed- Wing/Glider/Helicopter/Quadcopter/Car/Boat RF Range: 2.4055-2.475GHz RF Receiver Sensitivity: -105dBm Bandwidth: 500KHz Modulation Type: GFSK Power: 4.2-8.4V DC Antenna Length:1.02inch 26mm (Dual Antenna). Antenna Total length:150mm2 Weight: 0.53oz / 14.9g Size: 1.851.030.59inch / 4726.214.9mm i-BUS Port: Yes Data Acquisition Port: Yes Color: Black Certificate: CE,FCC Package Included: 1x FS-iA6b Receiver 1x Bind plug
Product Features
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
FS-iA6B Receiver 6 Channels 2.4GHz Support PWM PPM i.Bus for FS-i6 FS-i6S FS-i6X RC Transmitter Radio Remote Control，Compatible with Flysky AFHDS2A TX Black
Binding method between FS-iA6B receiver and transmitter: 1, Connect the included binding cable to the receiver's B/VCC port. 2, Plug the DC 4V-6.5V power supply into other ports, the positive and negative poles cannot be wrongly connected. 3, Keep pressing the "BIND KEY", and then turn on the transmitter to enter the binding mode. 4, The transmitter will display the RX voltage, that means the binding is successful. 5, Remove binding wire, Check the operation of the servos. If something doesn't work as expected, start this process from the beginning. Note: After the receiver and transmitter are successfully bound, FS-iA6B does not need to insert a "Bind plug" during normal use. FS-iA6B Specifications: Item: FS-iA6B Receiver Channels: PWM 6CH/ PPM 8CH/ s.bus 10CH / i.bus 10CH (Select from transmitter menu 'SYSTEN-RX setup-Outprt mode') 2.4GHz System: AFHDS 2A Model Type: Fixed- Wing/Glider/Helicopter/Quadcopter/Car/Boat RF Range: 2.4055-2.475GHz RF Receiver Sensitivity: -105dBm Bandwidth: 500KHz Modulation Type: GFSK Power: 4.2-8.4V DC Antenna Length:1.02inch 26mm (Dual Antenna). Antenna Total length:150mm2 Weight: 0.53oz / 14.9g Size: 1.851.030.59inch / 4726.214.9mm i-BUS Port: Yes Data Acquisition Port: Yes Color: Black Certificate: CE,FCC Package Included: 1x FS-iA6b Receiver 1x Bind plug
