forM8N USB GPS Module 56 Channels Supports GPS GLONASS Beidou GPS Receiver with 28dB GPS Active Antenna (GPS Module with Antenna) GPS Module with Antenna

forM8N USB GPS Module 56 Channels Supports GPS GLONASS Beidou GPS Receiver with 28dB GPS Active Antenna (GPS Module with Antenna)

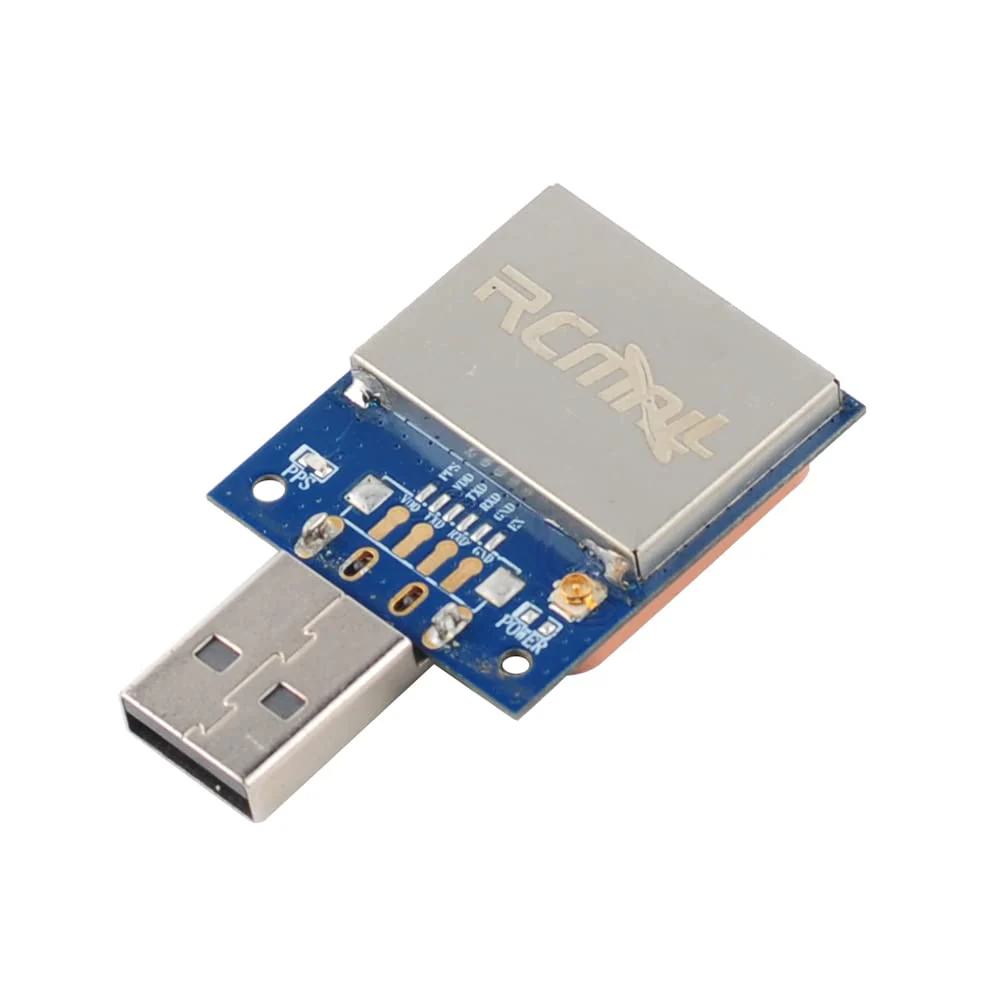

RCmall for M8N USB GPS Module 56 Channels Supports GPS GLONASS Beidou Built-in Flash with 28dB GPS Active Antenna Description: Chip: U-BLOX UBX-M8030 Size: 28 x 48 x 8.5 mm Product comes with high sensitivity ceramic antenna; with IPEX antenna socket, you can use external active antenna too Supports GPS+GLONASS (default); GPS+Beidou; GLONASS+ BeiDou multiple modes Built-in LNA signal amplifier Built-in Flash, free configuration product baud rate, output statement, output rate, second pulse and other parameters Built-in TCXO Crystal and Farad Capacitors for Faster Hot Start 1-10Hz update rate Frequency: L1, 1575.42MHz Baud rate: 4800,9600,19200,38400,57600,112500bps Channel: 56 Sensitivity Tracking: -164dBm Capture: -159dBm Cold Start -147dBm Cold start: average 26 seconds Warm start: Average 24 seconds Hot start: average 1 second Accuracy: HorizontalPosition:Autonomous<2.5maverage SBAS <2.0m average Timepulse signal: RMS 30 ns The maximum height: 50000 meters Speed: 500 m/s Acceleration: ≦4G Update frequency: 1-10 Hz Operating Temperature: -40°C to 85°C Storage temperature: -40°C to 85°C Package Includes: 1 X USB GPS Module Antenna GLONASS U-blox UBX-M8030 1 X GPS Antenna

Product Features

• Supports Multiple Modes -- GPS+GLONASS (default) ; GPS+Beidou ; GLONASS+ BeiDou .

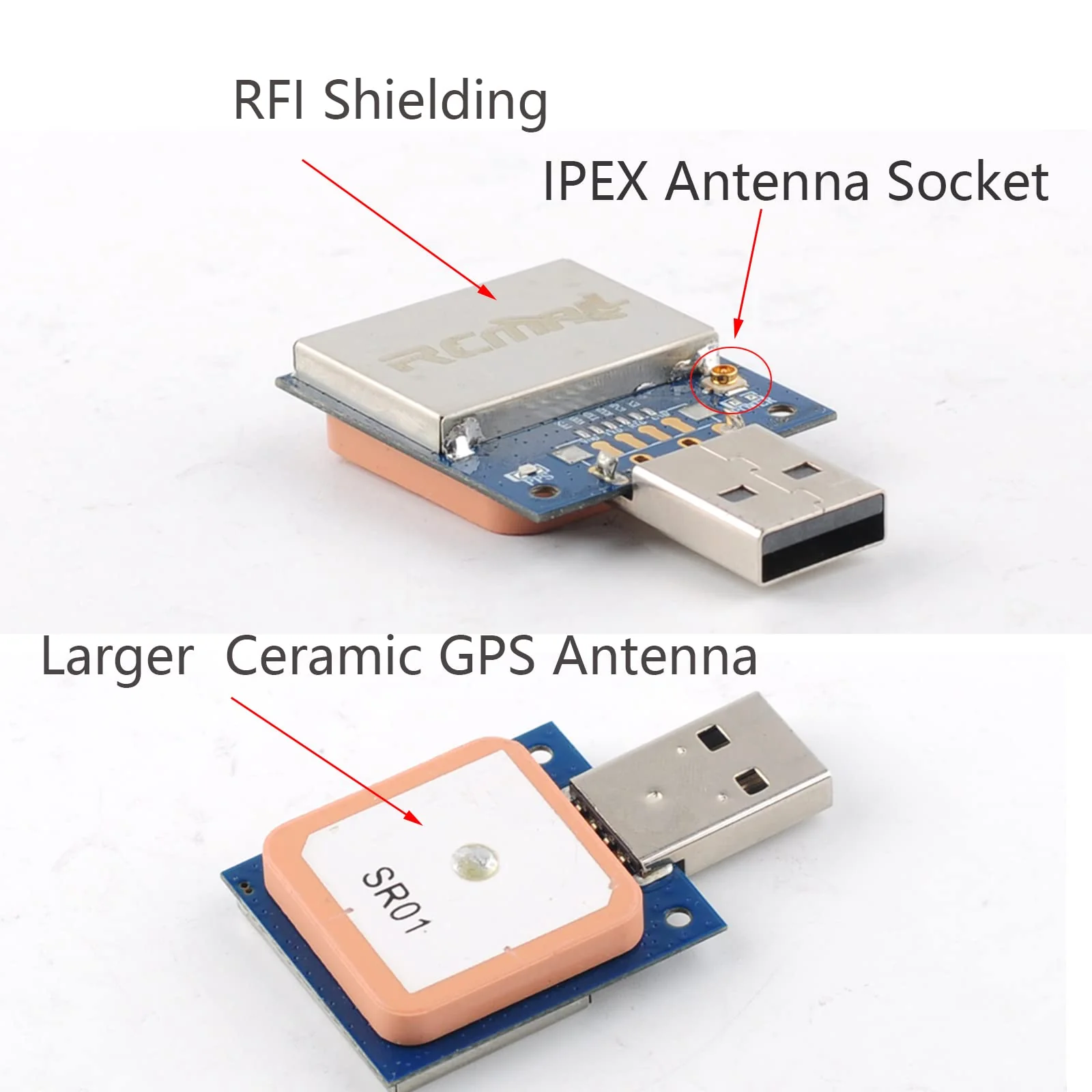

• Comes with high sensitivity ceramic antenna. The side of ceramic antenna need face to the sky .
• Built-in TCXO Crystal and Farad Capacitors for Faster Hot Start .

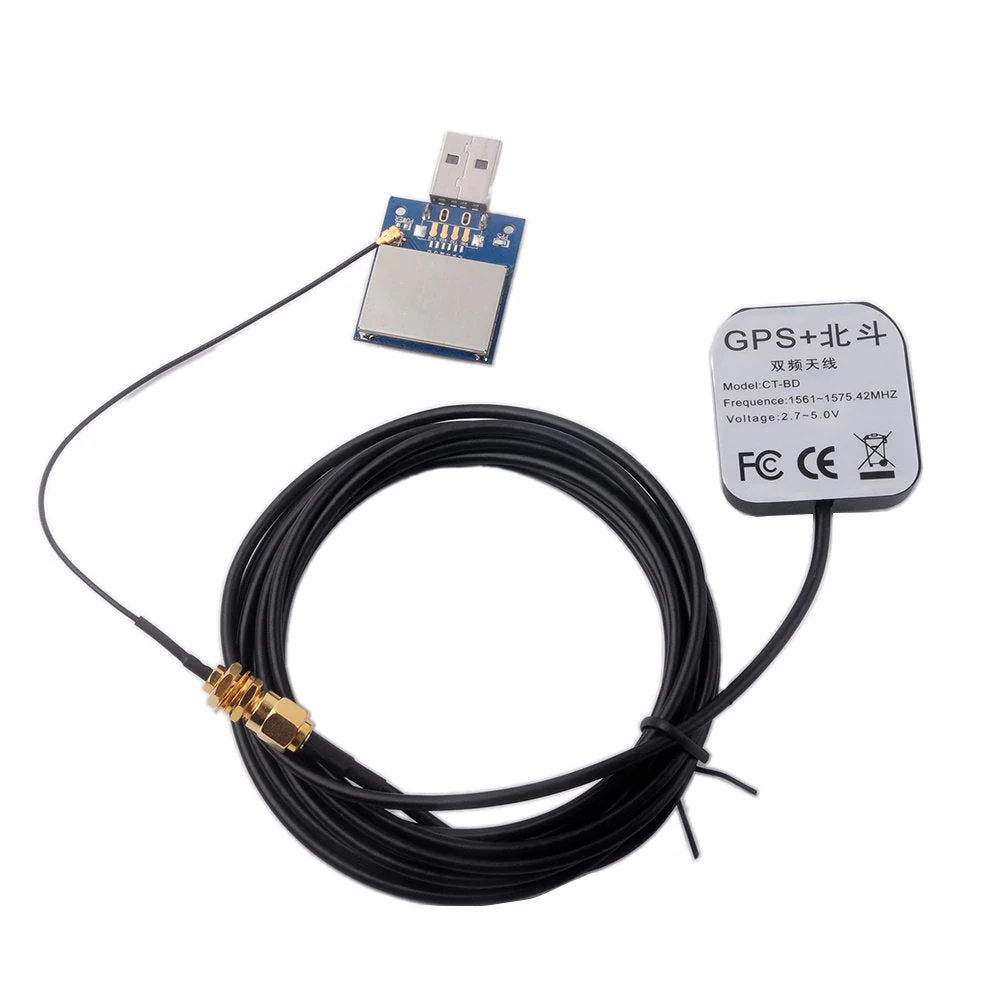

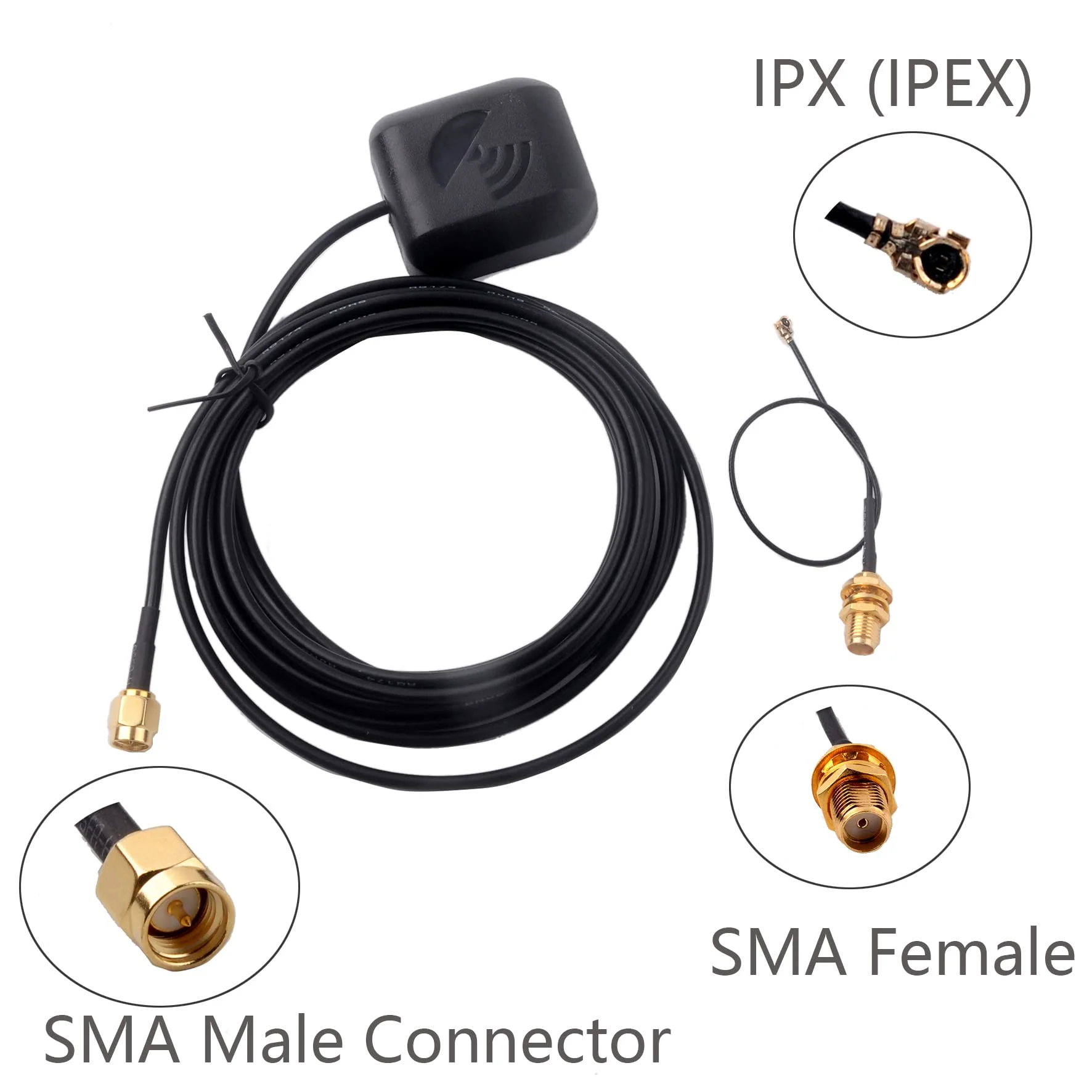

• GPS + Beidou Dual-Band Waterproof Active GPS Antenna . GPS frequency: 1575.425MHz ; Beidou frequency: 1561.0985MHz .

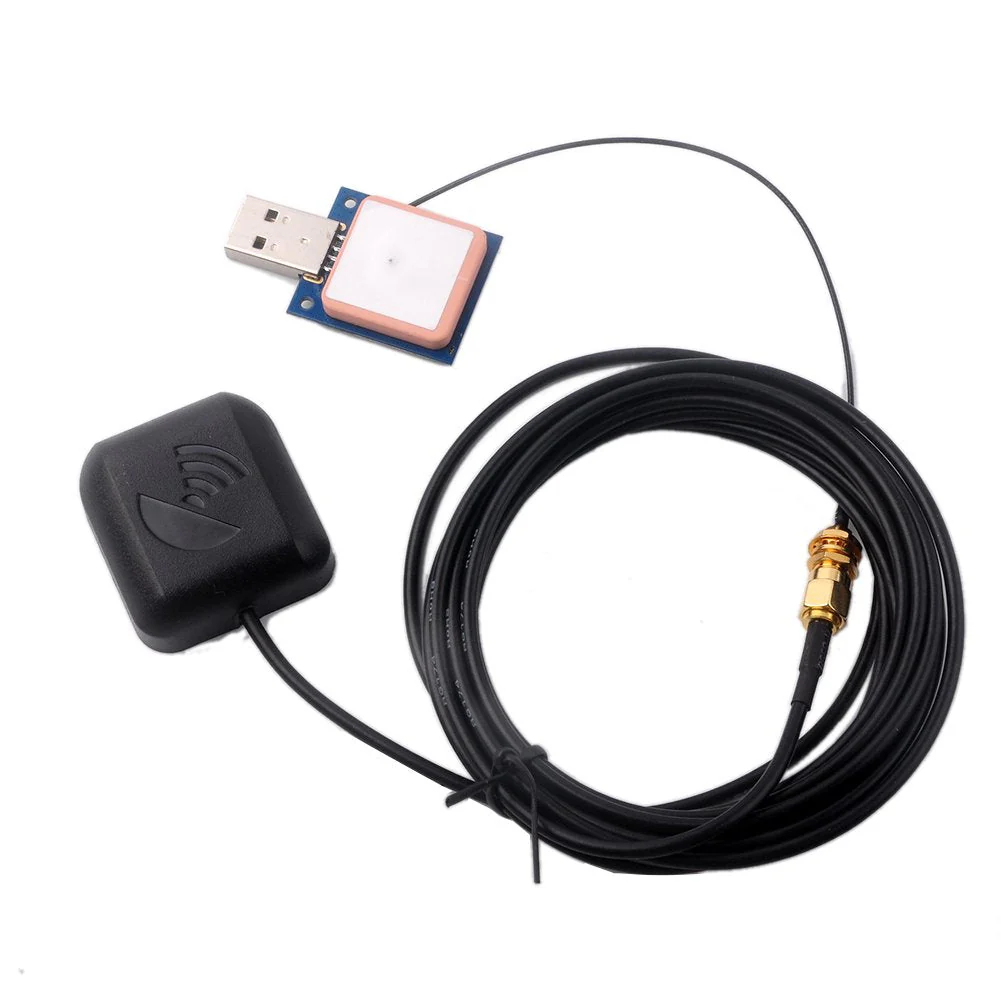

• Package List : 1 X forM8N USB GPS Module ; 1 X Dual-Band Active GPS Antenna .
