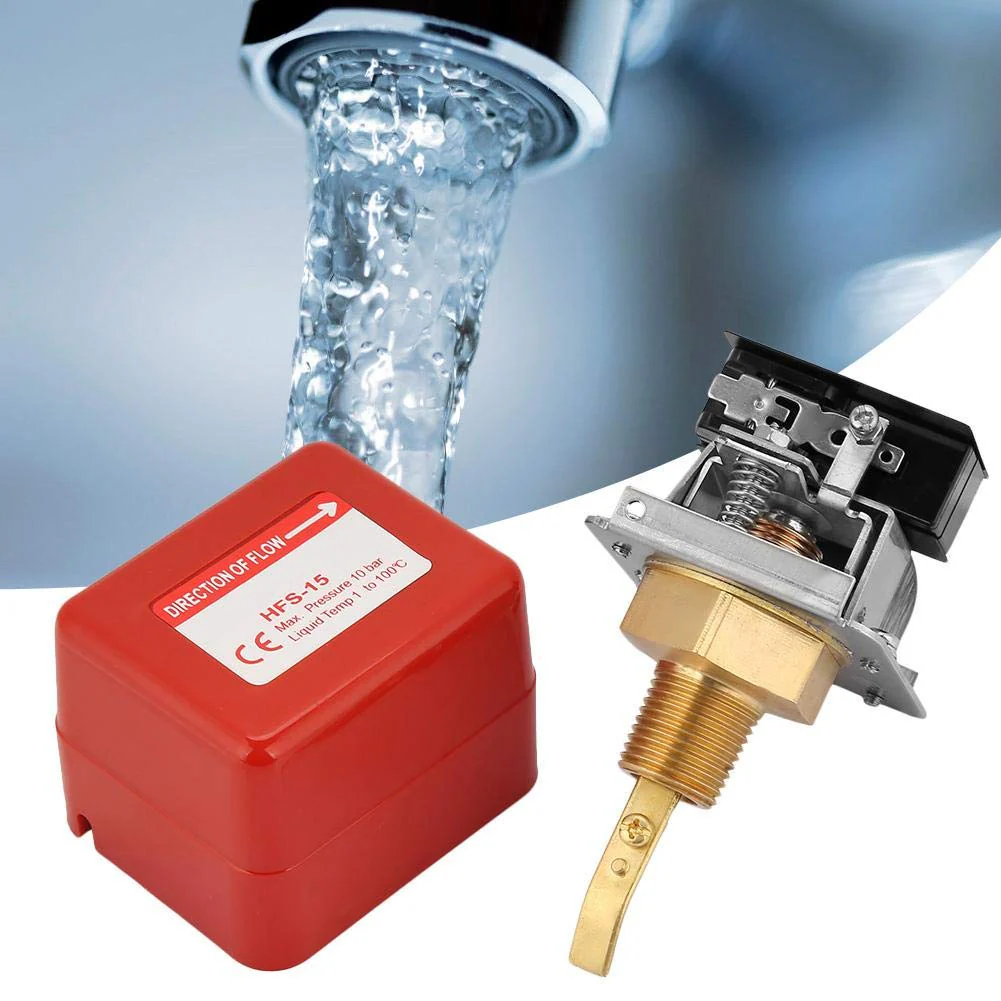

Flow Monitor, 1/2 Inch Adjustable Thread Connection SPDT Contacts Water Paddle Flow Valve Switch 1.0MPa Flow Regulator for Water Treatment System, Central Air Conditioning etc. (Red)
Flow Monitor, 1/2 Inch Adjustable Thread Connection SPDT Contacts Water Paddle Flow Valve Switch 1.0MPa Flow Regulator for Water Treatment System, Central Air Conditioning etc. (Red)
Flow Monitor, 1/2 Inch Adjustable Thread Connection SPDT Contacts Water Paddle Flow Valve Switch 1.0MPa Flow Regulator for Water Treatment System, Central Air Conditioning etc. (Red)

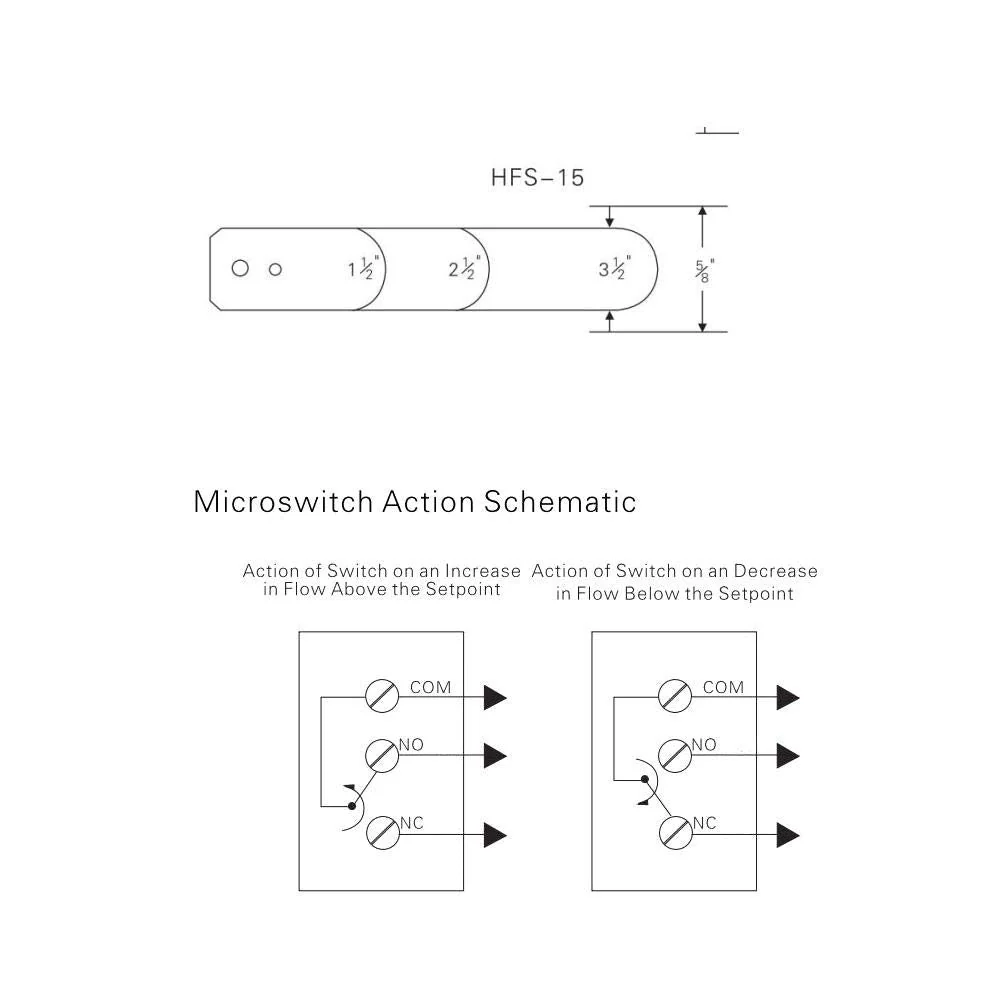

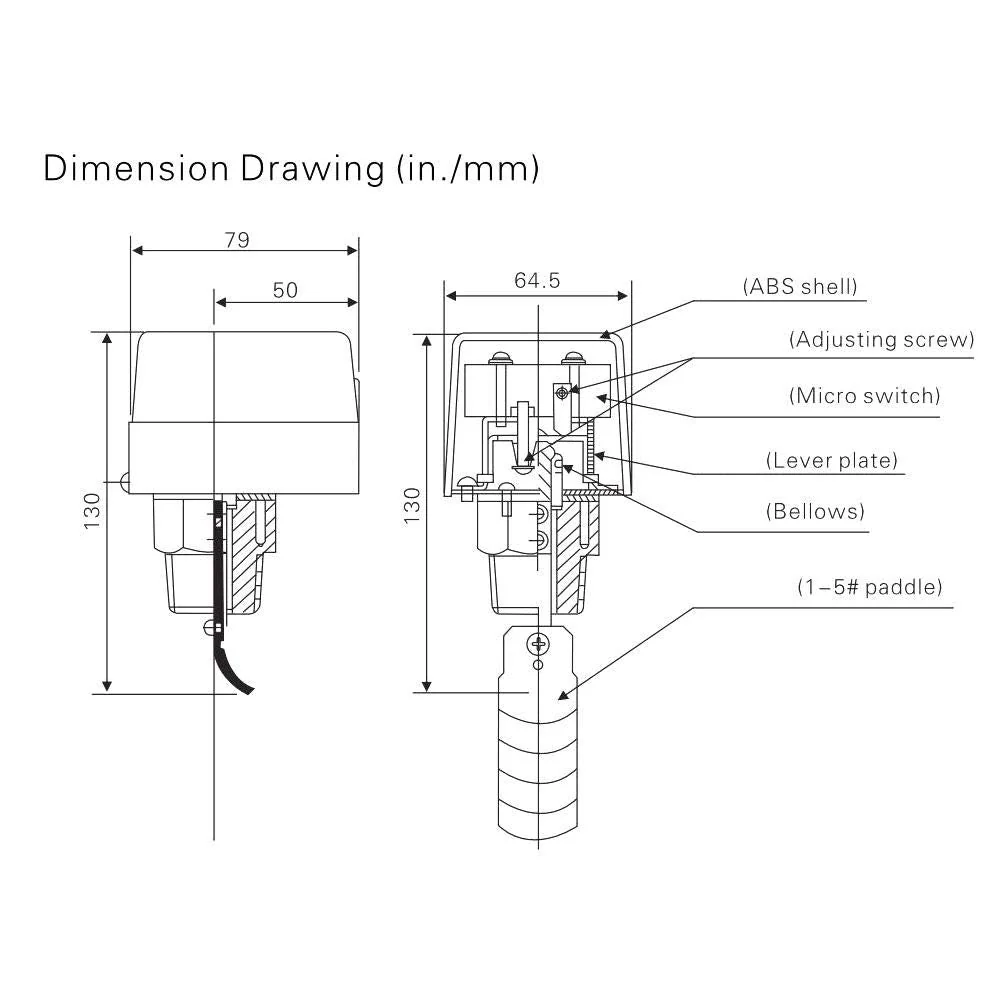

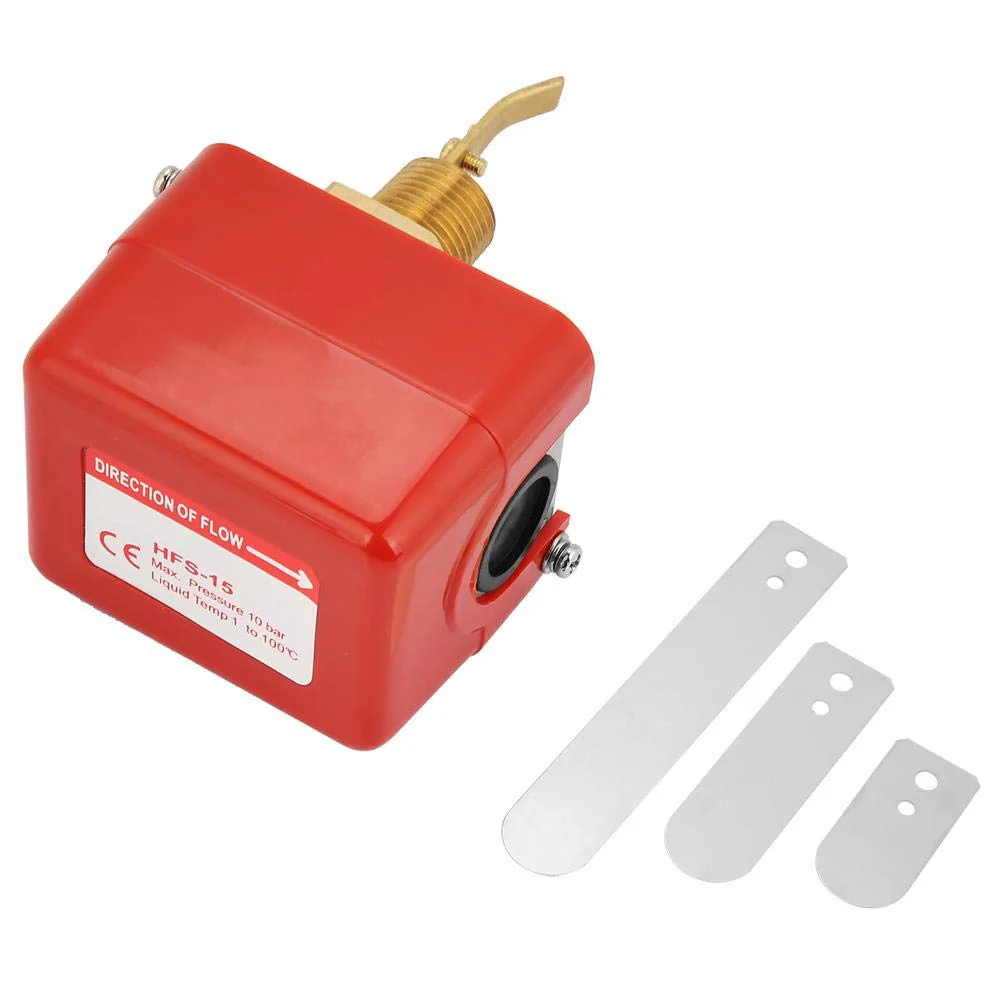

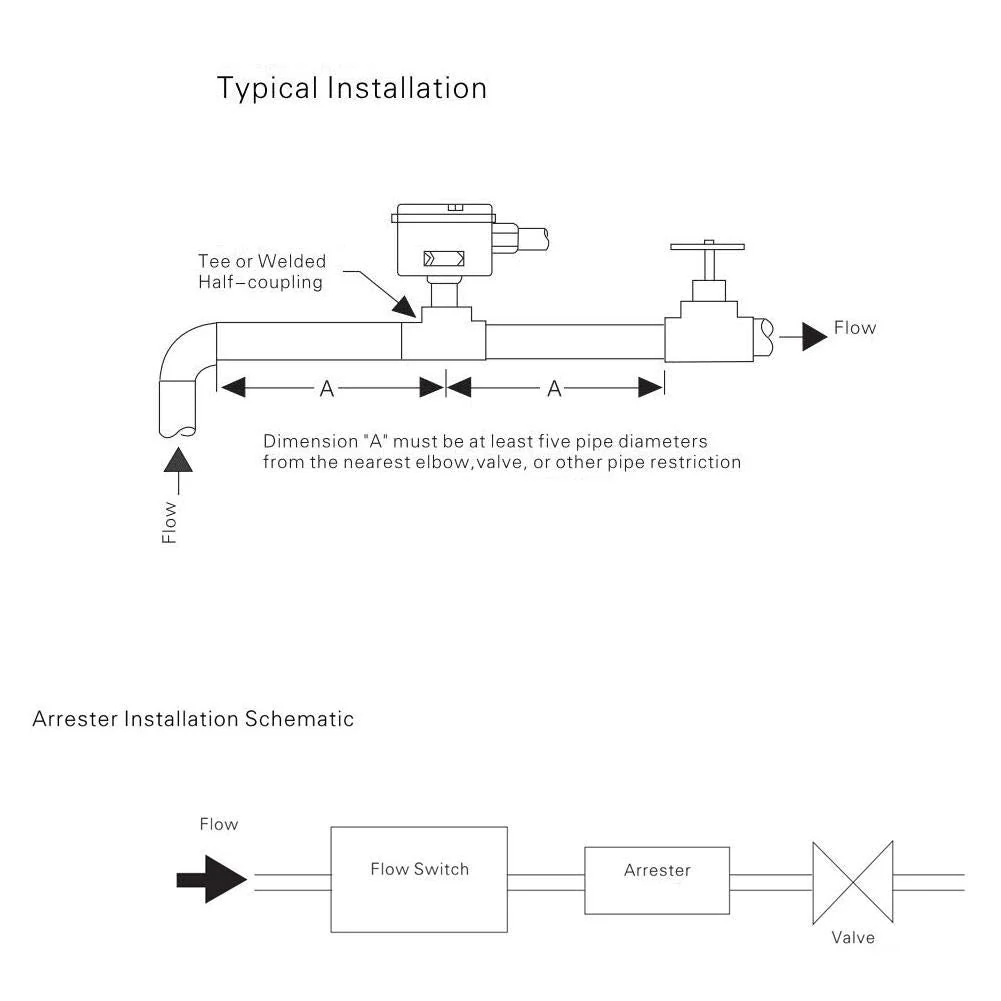

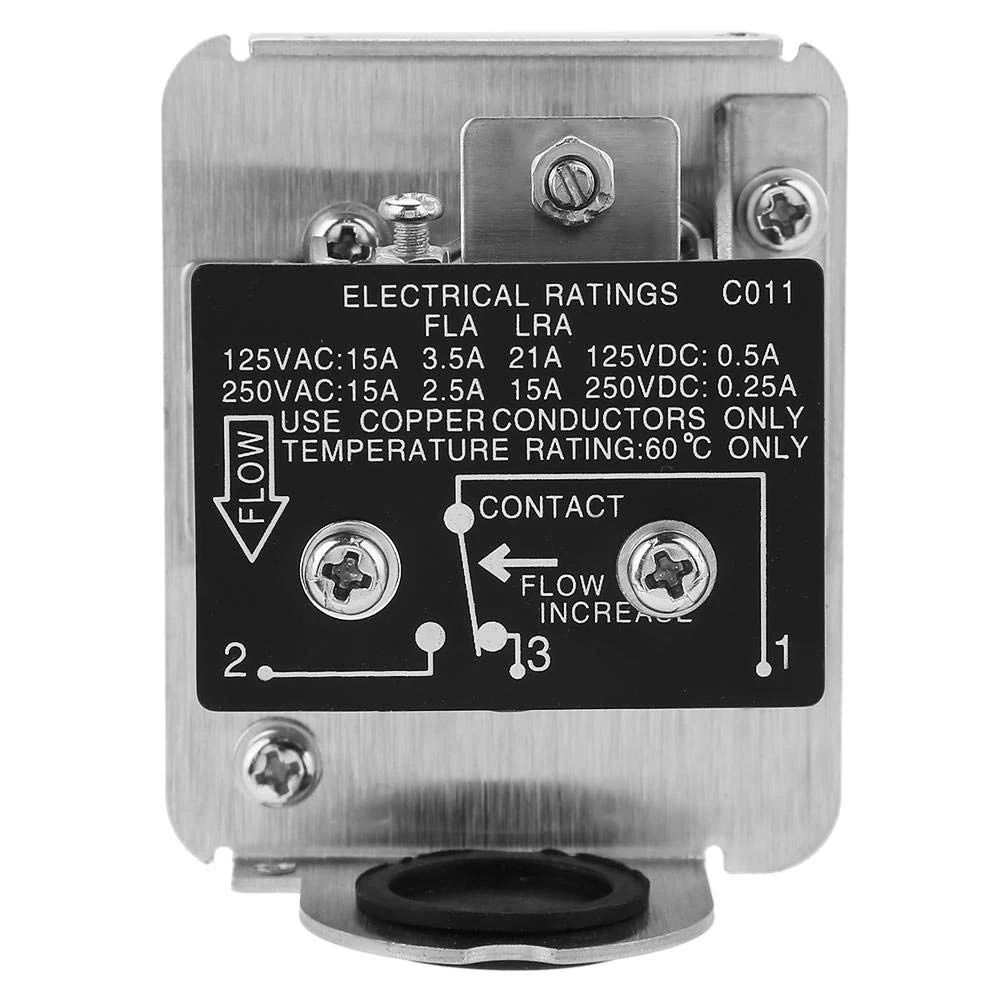

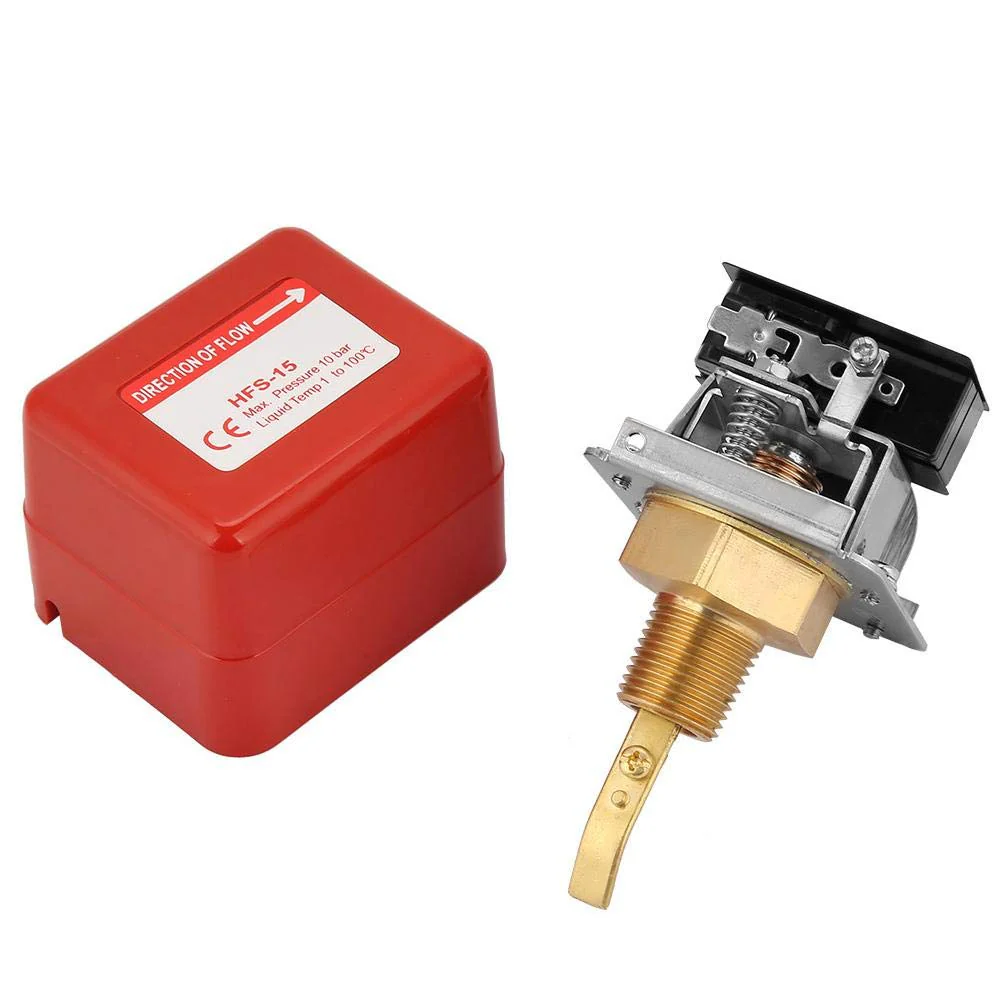

Specification: Material: brass and stainless steel (case), stainless steel (leaf blade), plastic (bowl). Interface dimensions: 1/2 inch (HFS-15). Control mode: knife type Max. working pressure: 1.0 Mpa. Ambient temperature: 0 °C ~ 60 °C. Liquid temperature: -10 ~ 100 ℃ (not freezing). Micro Switch: Single Pole Double Switch (SPDT) Contact life: 100,000 cycles. Electrical parameters of the micro switch: 220 VAC, 15 A. Weight: approx. 407 g. Package list: 1 x flow switch. 1 x Chinese and English user manual. 3 x paddles. Installation and adjustment: 1. Open the flow switch housing. 2. The switch is factory set to the minimum flow. Increase the flow adjustment value and turn the adjustment screw counterclockwise. 3. Press the target to check if the micro switch works normally. Excessive rotation of the adjustment screw clockwise can lead to the failure of the flow switch4. After installation, press the lever of the flow switch several times to check this. Once it is found that no click noise is heard when resetting the lever, turn it counterclockwise. Adjust the screws until a click is heard. 5. The adjustment screw of the paint seal is only for factory adjustment of the flow switch. Please do not change or adjust 6. Observe three working cycles, make sure the switch and the associated system are in normal operation, and cover the switch housing in time.
Product Features
- 100% brand new and
- The product is used to measure the dynamic state of the liquid flowing through the pipeline, e.g. B. Water, ethylene, ethylene glycol and other liquids that have no corrosive effect on copper
- Application: water treatment system, central air conditioning, water cooling system, fire protection system and other areas.
- Adopts first-class material, with strong temperature adaptability of 0 C ~ 120 C, and can withstand high pressure of 1.0 MPa.
- The flow control value is adjustable and the action repeat point is stable.
Original: $148.50
-65%$148.50
$51.97More Images
Flow Monitor, 1/2 Inch Adjustable Thread Connection SPDT Contacts Water Paddle Flow Valve Switch 1.0MPa Flow Regulator for Water Treatment System, Central Air Conditioning etc. (Red)
Flow Monitor, 1/2 Inch Adjustable Thread Connection SPDT Contacts Water Paddle Flow Valve Switch 1.0MPa Flow Regulator for Water Treatment System, Central Air Conditioning etc. (Red)
Specification: Material: brass and stainless steel (case), stainless steel (leaf blade), plastic (bowl). Interface dimensions: 1/2 inch (HFS-15). Control mode: knife type Max. working pressure: 1.0 Mpa. Ambient temperature: 0 °C ~ 60 °C. Liquid temperature: -10 ~ 100 ℃ (not freezing). Micro Switch: Single Pole Double Switch (SPDT) Contact life: 100,000 cycles. Electrical parameters of the micro switch: 220 VAC, 15 A. Weight: approx. 407 g. Package list: 1 x flow switch. 1 x Chinese and English user manual. 3 x paddles. Installation and adjustment: 1. Open the flow switch housing. 2. The switch is factory set to the minimum flow. Increase the flow adjustment value and turn the adjustment screw counterclockwise. 3. Press the target to check if the micro switch works normally. Excessive rotation of the adjustment screw clockwise can lead to the failure of the flow switch4. After installation, press the lever of the flow switch several times to check this. Once it is found that no click noise is heard when resetting the lever, turn it counterclockwise. Adjust the screws until a click is heard. 5. The adjustment screw of the paint seal is only for factory adjustment of the flow switch. Please do not change or adjust 6. Observe three working cycles, make sure the switch and the associated system are in normal operation, and cover the switch housing in time.
Product Features
- 100% brand new and
- The product is used to measure the dynamic state of the liquid flowing through the pipeline, e.g. B. Water, ethylene, ethylene glycol and other liquids that have no corrosive effect on copper
- Application: water treatment system, central air conditioning, water cooling system, fire protection system and other areas.
- Adopts first-class material, with strong temperature adaptability of 0 C ~ 120 C, and can withstand high pressure of 1.0 MPa.
- The flow control value is adjustable and the action repeat point is stable.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Flow Monitor, 1/2 Inch Adjustable Thread Connection SPDT Contacts Water Paddle Flow Valve Switch 1.0MPa Flow Regulator for Water Treatment System, Central Air Conditioning etc. (Red)
Specification: Material: brass and stainless steel (case), stainless steel (leaf blade), plastic (bowl). Interface dimensions: 1/2 inch (HFS-15). Control mode: knife type Max. working pressure: 1.0 Mpa. Ambient temperature: 0 °C ~ 60 °C. Liquid temperature: -10 ~ 100 ℃ (not freezing). Micro Switch: Single Pole Double Switch (SPDT) Contact life: 100,000 cycles. Electrical parameters of the micro switch: 220 VAC, 15 A. Weight: approx. 407 g. Package list: 1 x flow switch. 1 x Chinese and English user manual. 3 x paddles. Installation and adjustment: 1. Open the flow switch housing. 2. The switch is factory set to the minimum flow. Increase the flow adjustment value and turn the adjustment screw counterclockwise. 3. Press the target to check if the micro switch works normally. Excessive rotation of the adjustment screw clockwise can lead to the failure of the flow switch4. After installation, press the lever of the flow switch several times to check this. Once it is found that no click noise is heard when resetting the lever, turn it counterclockwise. Adjust the screws until a click is heard. 5. The adjustment screw of the paint seal is only for factory adjustment of the flow switch. Please do not change or adjust 6. Observe three working cycles, make sure the switch and the associated system are in normal operation, and cover the switch housing in time.
Product Features
- 100% brand new and
- The product is used to measure the dynamic state of the liquid flowing through the pipeline, e.g. B. Water, ethylene, ethylene glycol and other liquids that have no corrosive effect on copper
- Application: water treatment system, central air conditioning, water cooling system, fire protection system and other areas.
- Adopts first-class material, with strong temperature adaptability of 0 C ~ 120 C, and can withstand high pressure of 1.0 MPa.
- The flow control value is adjustable and the action repeat point is stable.
