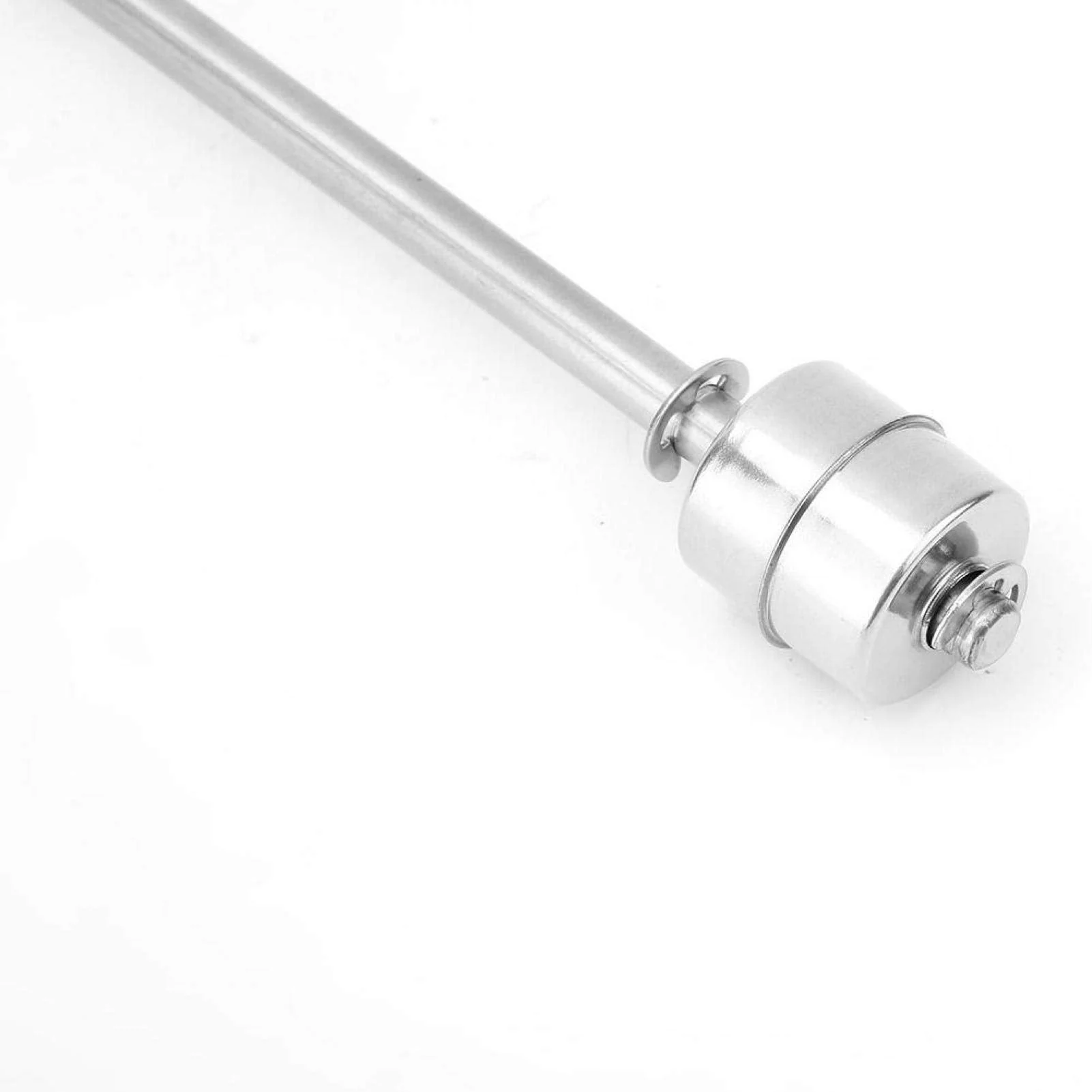

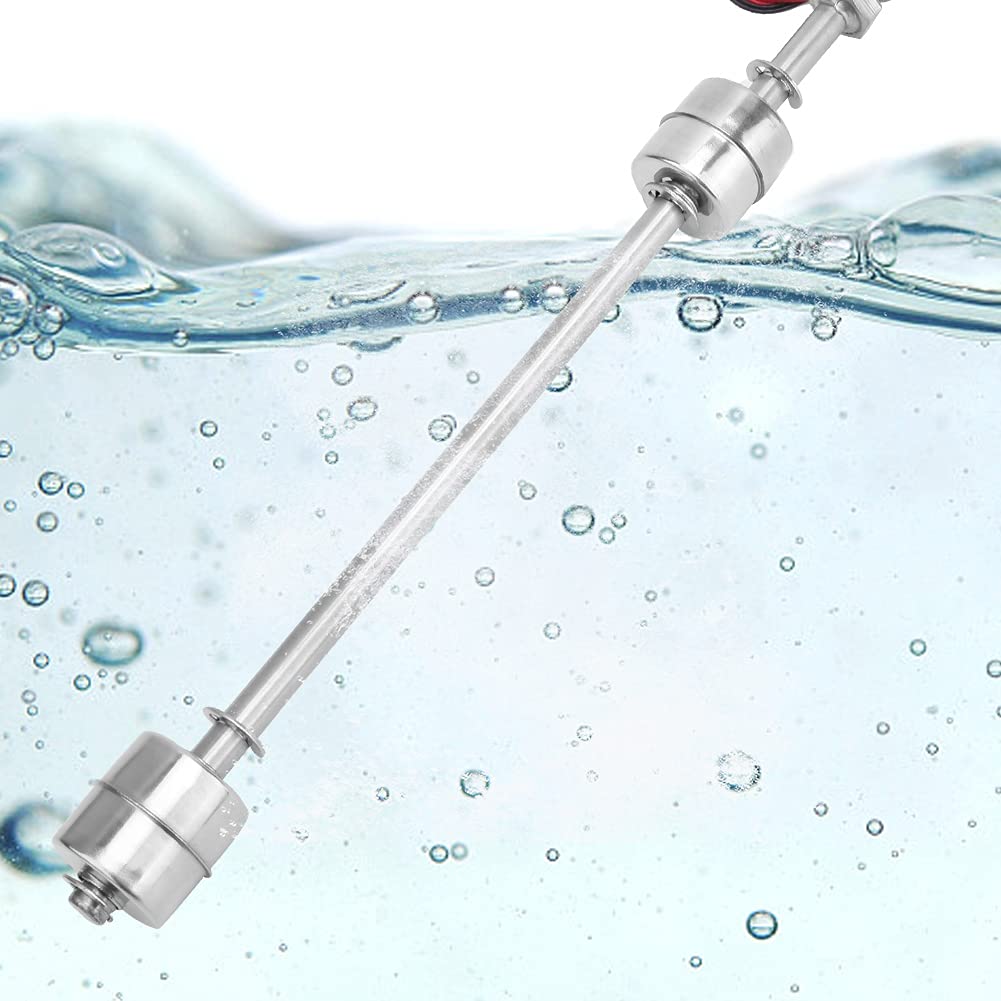

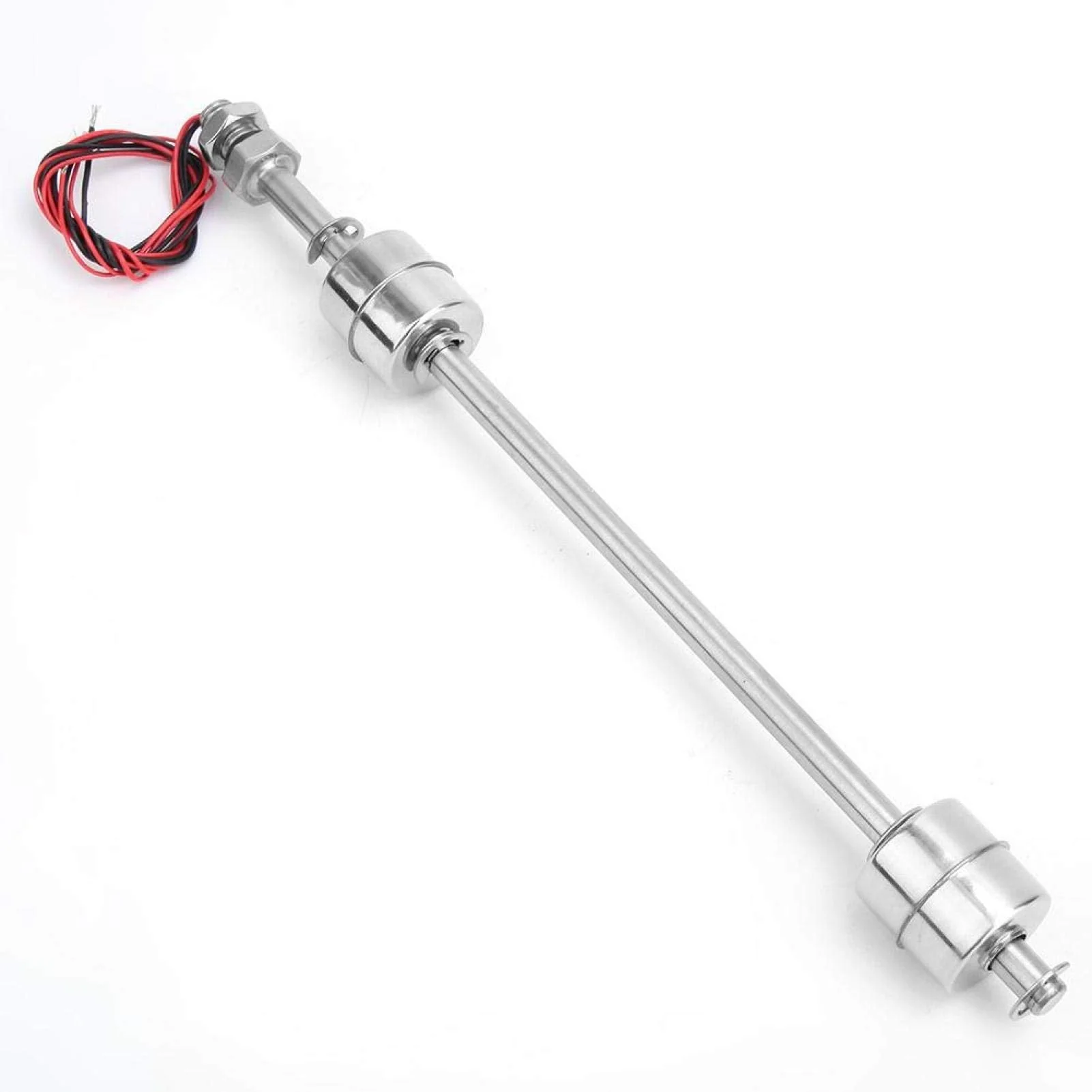

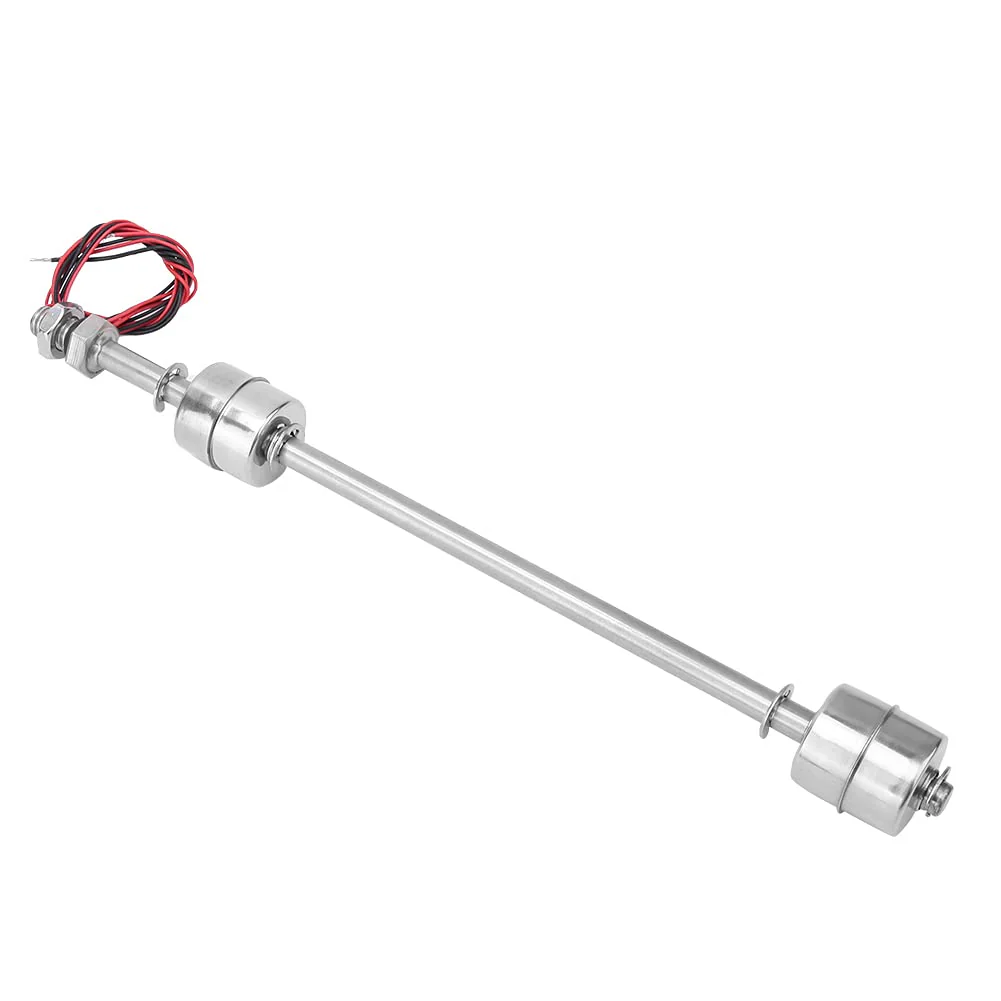

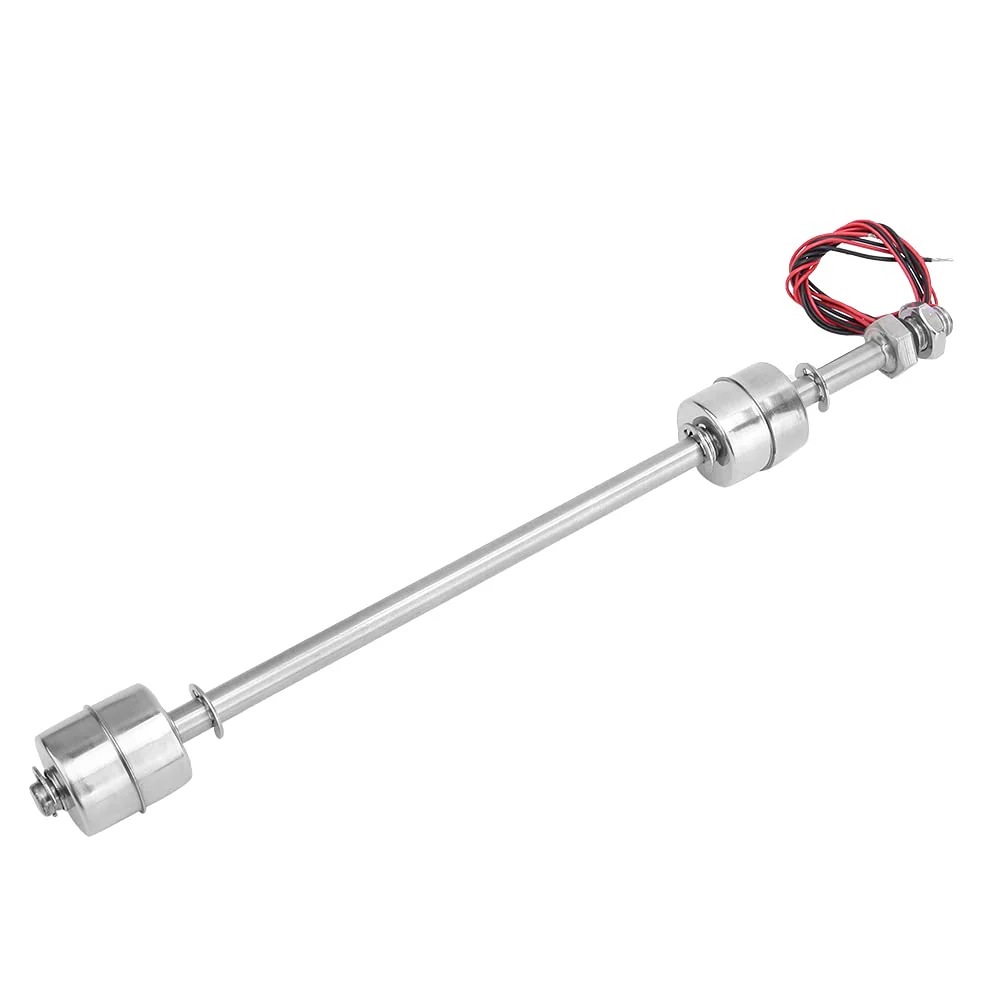

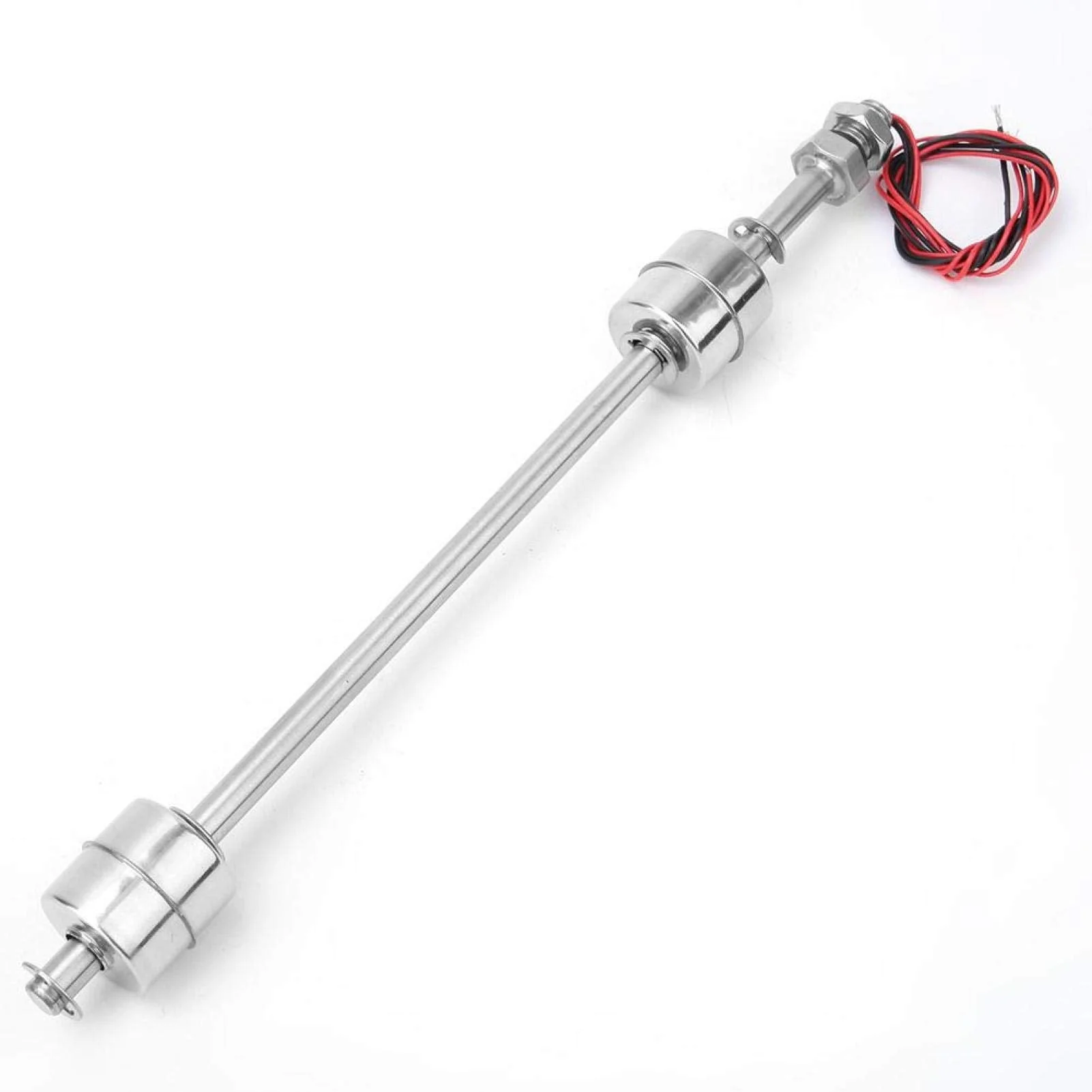

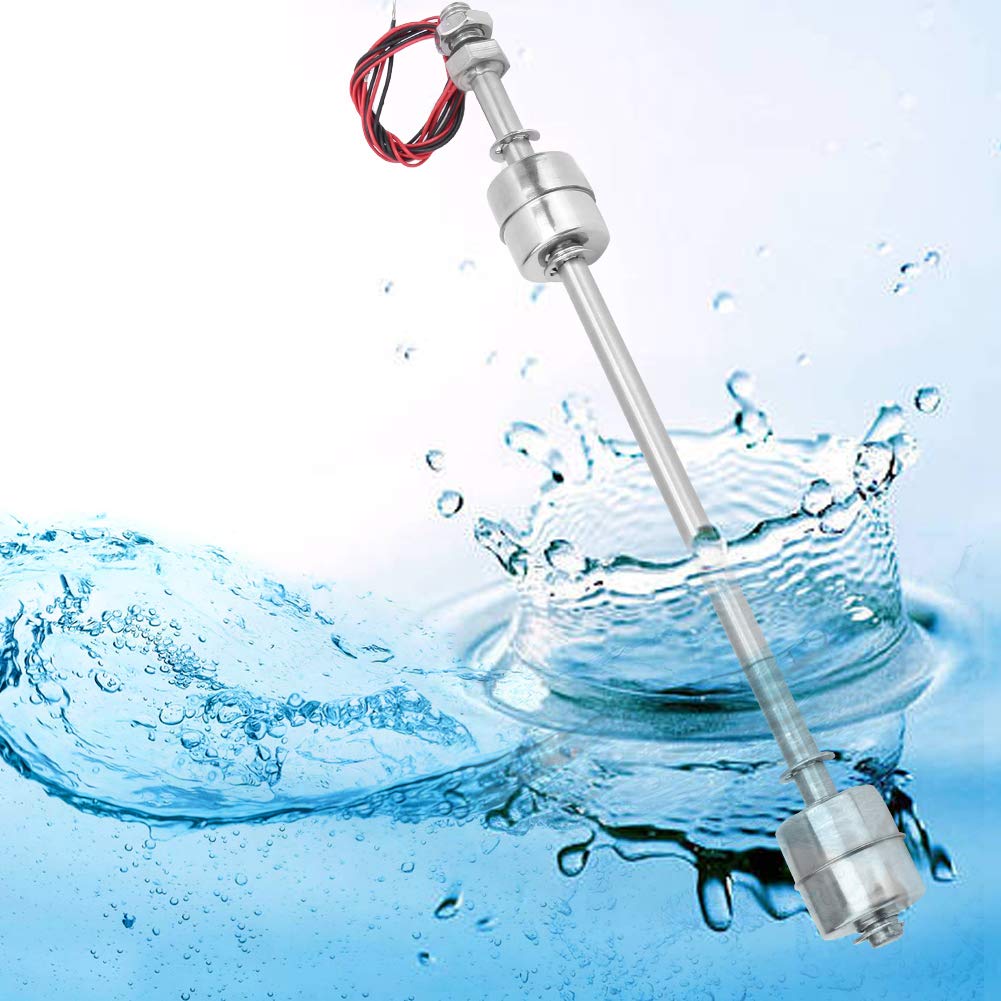

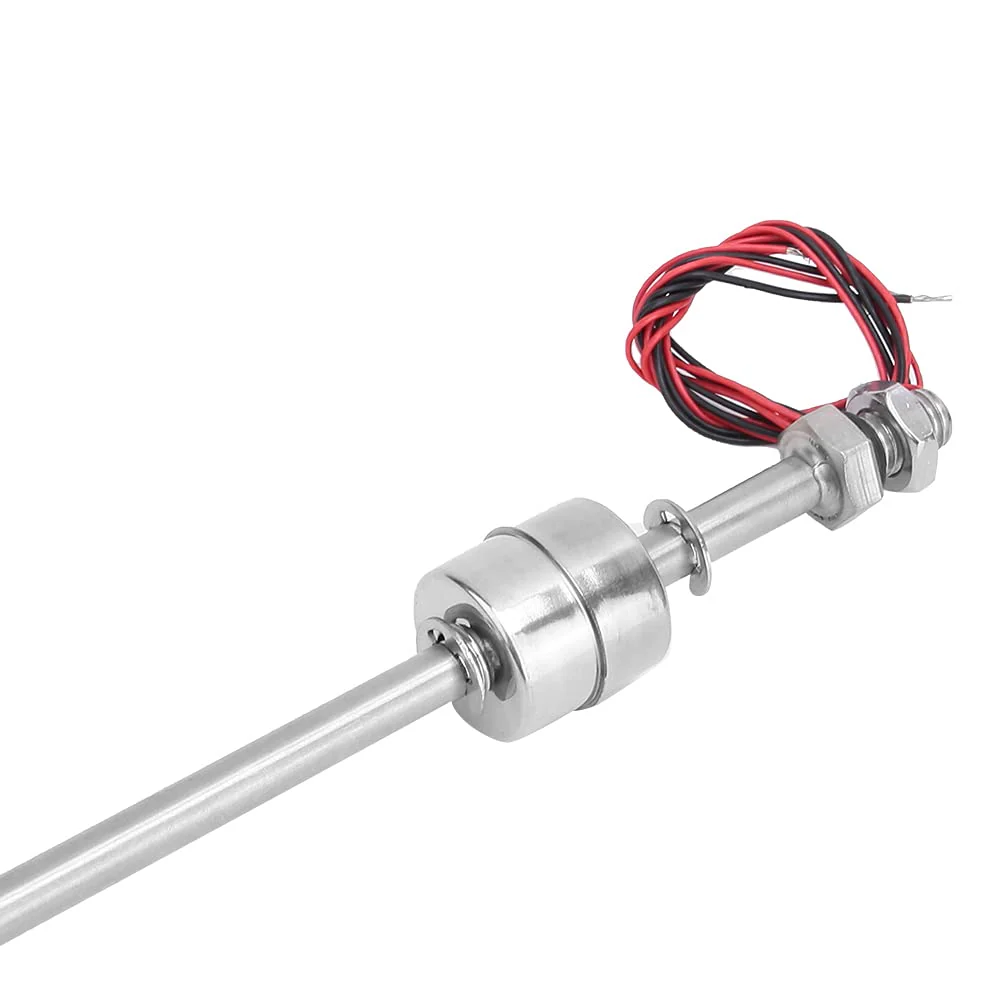

Float Switch Stainless Steel 250 mm, Wired Water Level Sensor, Double Ball Float Switch Made of Stainless Steel for Tank Basins

Float Switch Stainless Steel 250 mm, Wired Water Level Sensor, Double Ball Float Switch Made of Stainless Steel for Tank Basins

Specification: Voltage: DC 0 ~ 110 V. Material: 304 stainless steel. Size (float length): (optional). 100 mm / 3.94 inches. 150 mm / 5.91 inches. 200 mm / 7.87 inches. 250 mm / 9.84 inches. Package list: 1 x Double Ball Float Switch

Product Features

• High performance relay: the float switch cannot directly control solenoid valves or high-performance relays, AC contactors, etc. A small relay (such as HH54P) is required for the transition.
• Liquid level control: the double float switch can be used to control the liquid level of the water tank, pool, sink, aquarium, etc. (drain or water) or activate the upper and lower alarm switch of the liquid level.
• High sensitivity: the contacts inside consist of a reed switch with very high sensitivity.
• Description: The action range of the two floats of the double float switch is 10 mm. With a large demand control range, two float switch combinations can be used, so that a large stroke is available so that the pump does not start too frequently.
• Float switch bottom: the normal water absorption process is activated by the lower float switch and the upper float switch no longer works. The drain is activated by the top float switch and the lower float switch stops working.
