Fasizi RDM6300 125KHz EM4100 RFID Reader Module UART Output Access Control System for Arduino
Fasizi RDM6300 125KHz EM4100 RFID Reader Module UART Output Access Control System for Arduino
Fasizi RDM6300 125KHz EM4100 RFID Reader Module UART Output Access Control System for Arduino
Specifications: Frequency: 125 kHz. Baud rate: 9600bps (TTL RS232 format). Operating voltage: DC 5 V (± 5%). Relative humidity: 0-95%. Working temperature: -10°C to +70°C. Storage temperature: -20°C to +80°C. Cable Size: 46mm x 32mm x 3mm Module Size: 38.5mm x 19mm x 9mm Support Card: EM/TK 4100, EM/TK4102, EM4200 or Compatible Reception range: 20-50mm (depends on antenna, card and surrounding environment) Package includes: 1 x Fasizi RDM6300 125KHz EM4100 RFID Reader Module UART Output Access Control System for Arduino
Product Features
- The 125 kHz mini module is suitable for reading codes from 125 kHz card compatible bookmarks and read/write cards.
- It can be used in office/home security, personal identification, access control, anti-counterfeiting, interactive toy and production control systems, etc.

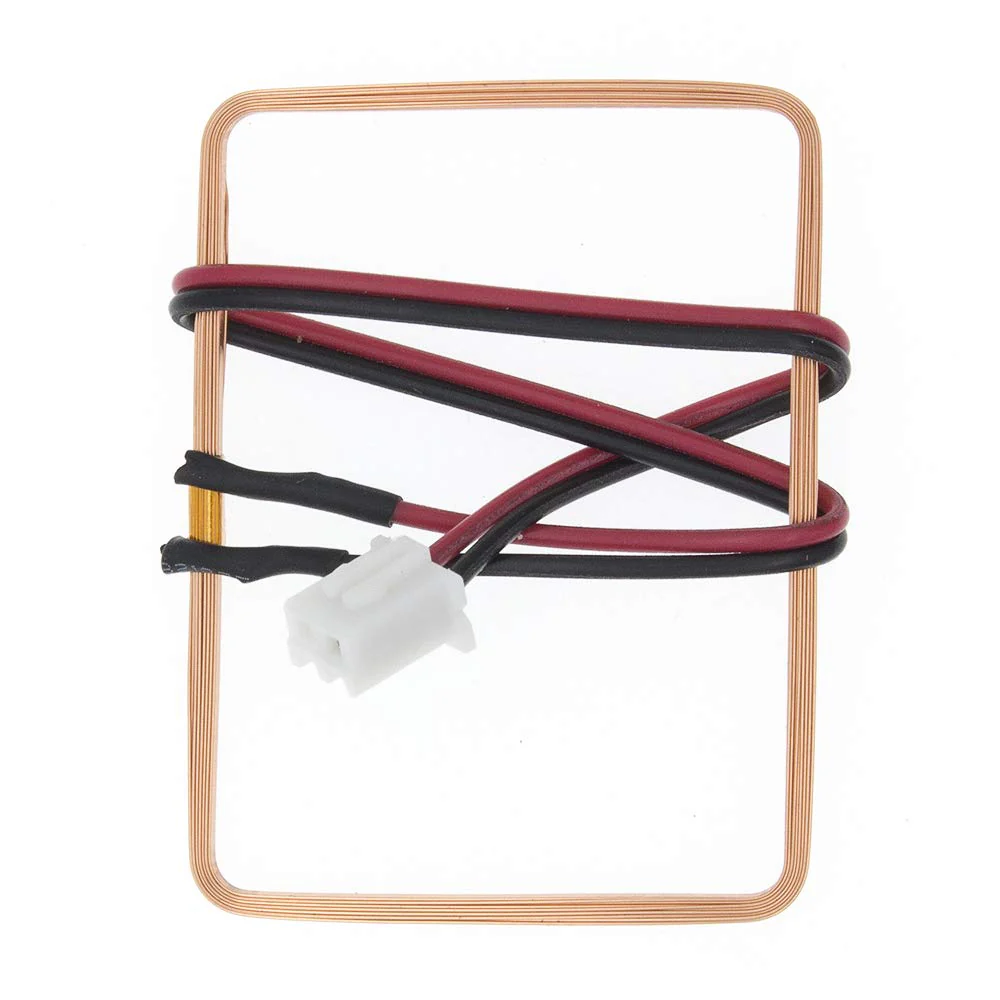

- Supports external antenna. Maximum effective distance up to 50mm.
- Less than 100ms decoding time. UART interface
- Supports EM4100 compatible, only for reading or writing labels.
Original: $75.34
-65%$75.34
$26.37More Images
Fasizi RDM6300 125KHz EM4100 RFID Reader Module UART Output Access Control System for Arduino
Fasizi RDM6300 125KHz EM4100 RFID Reader Module UART Output Access Control System for Arduino
Specifications: Frequency: 125 kHz. Baud rate: 9600bps (TTL RS232 format). Operating voltage: DC 5 V (± 5%). Relative humidity: 0-95%. Working temperature: -10°C to +70°C. Storage temperature: -20°C to +80°C. Cable Size: 46mm x 32mm x 3mm Module Size: 38.5mm x 19mm x 9mm Support Card: EM/TK 4100, EM/TK4102, EM4200 or Compatible Reception range: 20-50mm (depends on antenna, card and surrounding environment) Package includes: 1 x Fasizi RDM6300 125KHz EM4100 RFID Reader Module UART Output Access Control System for Arduino
Product Features
- The 125 kHz mini module is suitable for reading codes from 125 kHz card compatible bookmarks and read/write cards.
- It can be used in office/home security, personal identification, access control, anti-counterfeiting, interactive toy and production control systems, etc.
- Supports external antenna. Maximum effective distance up to 50mm.
- Less than 100ms decoding time. UART interface
- Supports EM4100 compatible, only for reading or writing labels.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fasizi RDM6300 125KHz EM4100 RFID Reader Module UART Output Access Control System for Arduino
Specifications: Frequency: 125 kHz. Baud rate: 9600bps (TTL RS232 format). Operating voltage: DC 5 V (± 5%). Relative humidity: 0-95%. Working temperature: -10°C to +70°C. Storage temperature: -20°C to +80°C. Cable Size: 46mm x 32mm x 3mm Module Size: 38.5mm x 19mm x 9mm Support Card: EM/TK 4100, EM/TK4102, EM4200 or Compatible Reception range: 20-50mm (depends on antenna, card and surrounding environment) Package includes: 1 x Fasizi RDM6300 125KHz EM4100 RFID Reader Module UART Output Access Control System for Arduino
Product Features
- The 125 kHz mini module is suitable for reading codes from 125 kHz card compatible bookmarks and read/write cards.
- It can be used in office/home security, personal identification, access control, anti-counterfeiting, interactive toy and production control systems, etc.
- Supports external antenna. Maximum effective distance up to 50mm.
- Less than 100ms decoding time. UART interface
- Supports EM4100 compatible, only for reading or writing labels.
