Fasizi 1.3" TFT LCD Screen Module 240x240 IPS 65K Full Color 3.3V with SPI Interface ST7789 IC Driver for 51 STM32
Fasizi 1.3" TFT LCD Screen Module 240x240 IPS 65K Full Color 3.3V with SPI Interface ST7789 IC Driver for 51 STM32
Fasizi 1.3" TFT LCD Screen Module 240x240 IPS 65K Full Color 3.3V with SPI Interface ST7789 IC Driver for 51 STM32

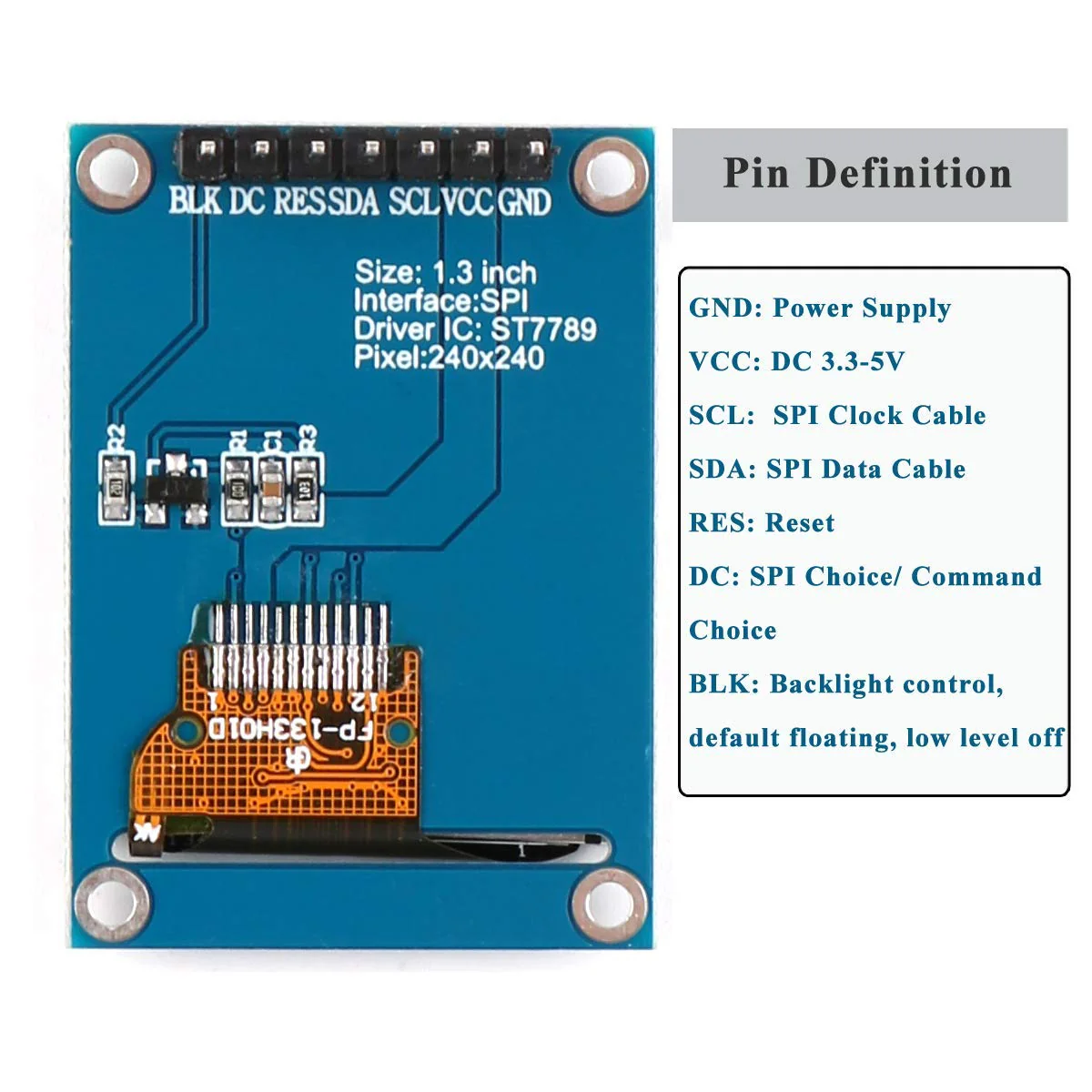

Description: The TFT display offers a semiconductor switch for each pixel and each pixel is controlled directly by pulse. Therefore, each node is relatively independent and can be controlled continuously, which not only improves the response speed of the display, but can also be precisely controlled. The colour level is displayed to make the TFT LCD colour more realistic, the brightness is good, the contrast is high, the layering is strong and the colour is bright. Specification: Viewing Direction: IPS LCD Size: 1.3" Point size: 240 x 240 (there are two display types: horizontal and vertical display, you can adjust the display direction). Interface: SPI interface 7 pin LED Color: 65K Full Color IC Driver:ST7789 Operating temperature: -20 to 70 °C. Working Voltage: 3.3V Display area: 23.423.4mm TFT Module Size:27.7839.22mm Pin: GND: Power Supply VCC: DC 3.3-5V SCL: SPI Watch Cable SDA: SPI Data Cable RES: Reset. DC: SPI Choice/Command Choice BLK: backlight control, standard floating, low level off. Package includes: 1 x 1.3 inch TFT LCD display module
Product Features
- The TFT display offers a semiconductor switch for each pixel and each pixel is controlled directly by pulse.
- Point size: 240 x 240 (there are two display types: horizontal display and vertical display, you can adjust the display direction)
- Operating Voltage: 3.3V; Operating Temperature: -20-70C; Interface: SPI Interface

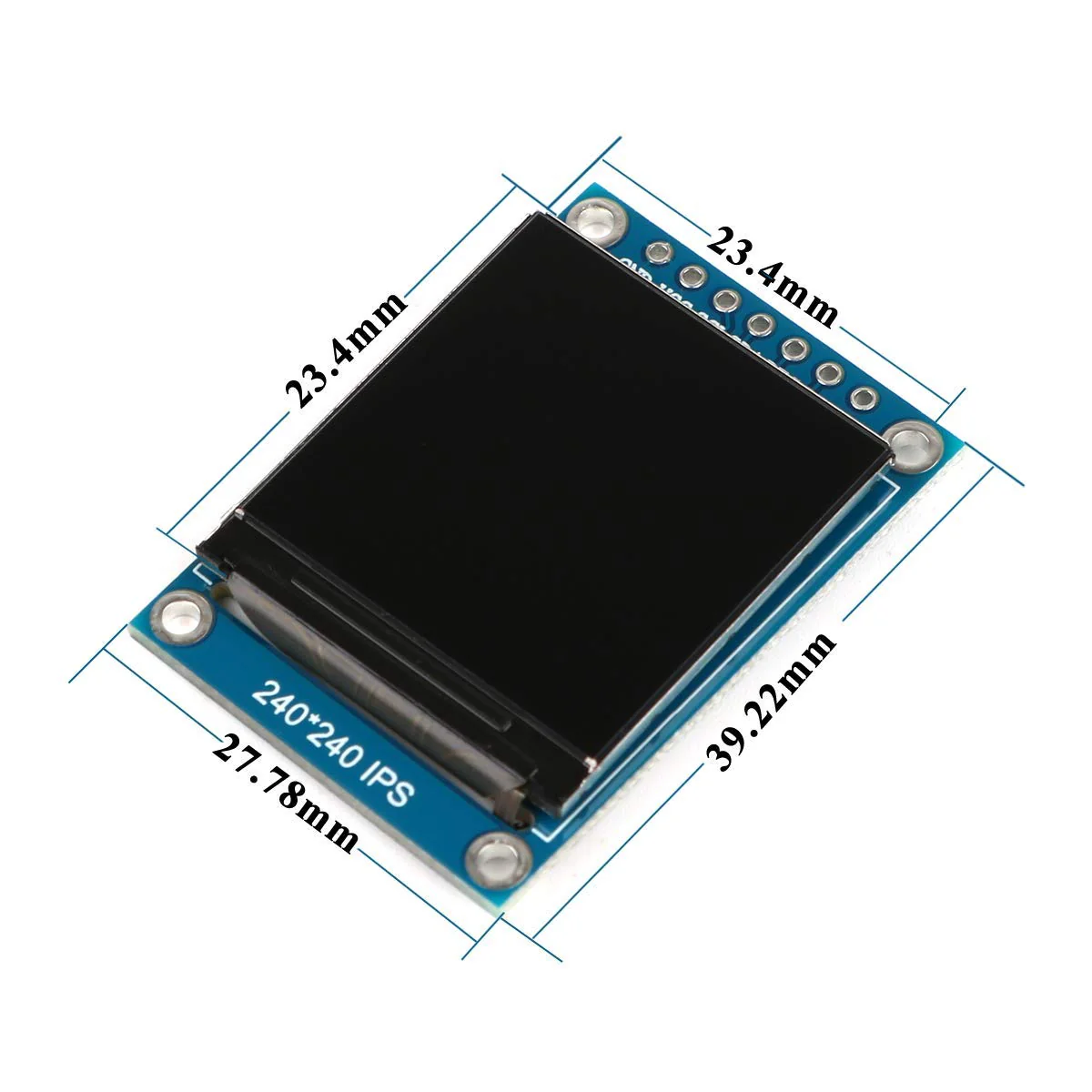

- IC Driver: ST7789; Viewing Direction: IPS; Display Area: 23.4 x 23.4mm; TFT Module Size: 27.78 x 39.22mm
- All products are tested for stability, consistency and reliability.
