EXLECO Stainless Steel Float Switch 45 mm Vertical Water Level Sensor M10 Water Level Regulator Level Sensor Liquid Level Sensor for Water Pump Pool Pond Aquarium
EXLECO Stainless Steel Float Switch 45 mm Vertical Water Level Sensor M10 Water Level Regulator Level Sensor Liquid Level Sensor for Water Pump Pool Pond Aquarium
EXLECO Stainless Steel Float Switch 45 mm Vertical Water Level Sensor M10 Water Level Regulator Level Sensor Liquid Level Sensor for Water Pump Pool Pond Aquarium
Easy to use: the liquid level sensor is a device for level control and requires no power supply and no complex circuits are required. 2. It is extremely sensitive and can be widely used for level control, level indicator and overflow protection in dirt pumps, water tanks, fish tanks, domestic waste water pools and more. 3. The swimming ball can be switched to achieve different functions for filling and draining (use a tool to remove the spring clamp and change the order of the swimming ball - with the tip of the swimming ball up, the filling is done, with the tip down, the drain is done). Note: 1. The control stroke of this liquid level switch is 10 mm and should be used in a clean water environment without deposits or floating objects. 2. If a significant difference in liquid level needs to be controlled, you can combine two liquid level switches (install one long and one short). 3. The liquid level switch cannot directly control solenoid valves or high-performance relays, AC contactors, etc. It is required to add a small relay for bridging. Specifications: Material: 304 stainless steel. Max. Switching voltage: 0~230V AC/200V DC. Max. Switching current: 0.5 A. Max. Temperature range: 120°C. Protection class: IP67. Thread size: M10. Box contents: 1 x 45 mm liquid level switch
Product Features
- Warning: 1. The level switch has a control stroke of 10 mm and should be used in a clean water environment without dirt or floating objects. 2. The water level switch cannot be connected directly to a solenoid valve or a high-performance relay, AC contactor, etc., but must be used with a low power relay.
- Wide application: the water level sensor is mainly made of 304 stainless steel, is corrosion resistant and temperature resistant up to 120 C. The water level switch is extremely sensitive and can be widely used for level control, level indicator and overflow protection in automatic irrigation systems, domestic water tanks, industrial water towers, fish tanks, domestic sewage tanks, submersible pumps and so on.
- Installation: the liquid level sensor is a device for level control with a simple structure that does not require power supply or complex circuits. Compared to conventional mechanical switches, the level sensor is smaller and has a longer service life. If you need to control a large level difference, you can use two level switches combined (one long and one short install).
- Working principle: Our float limit switch for liquid levels consists of a magnetic spring contact switch and a float with magnetic material inside. When the liquid level rises or falls, the magnetic material inside the float interacts with the magnetic spring contact switch to control and display the liquid level.

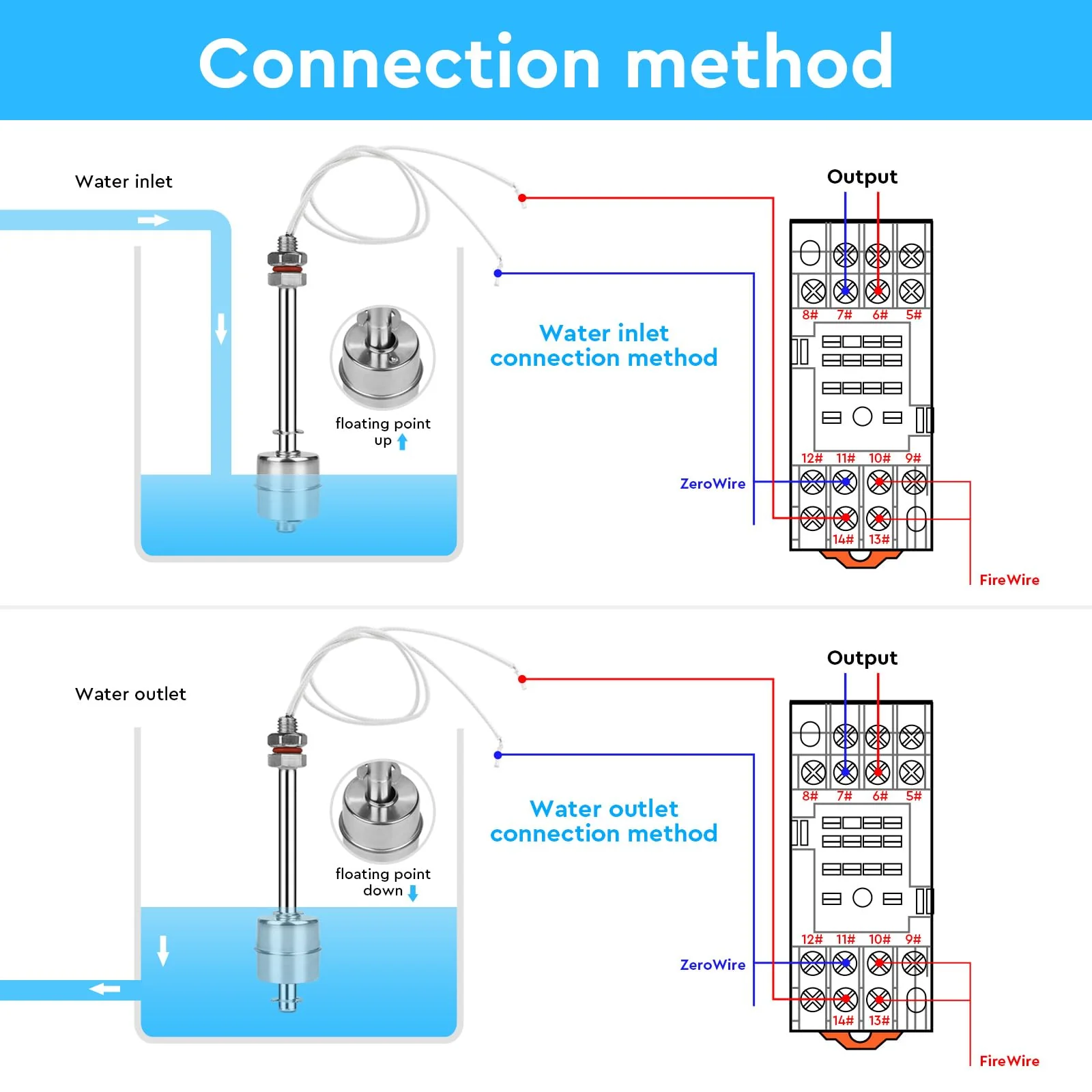

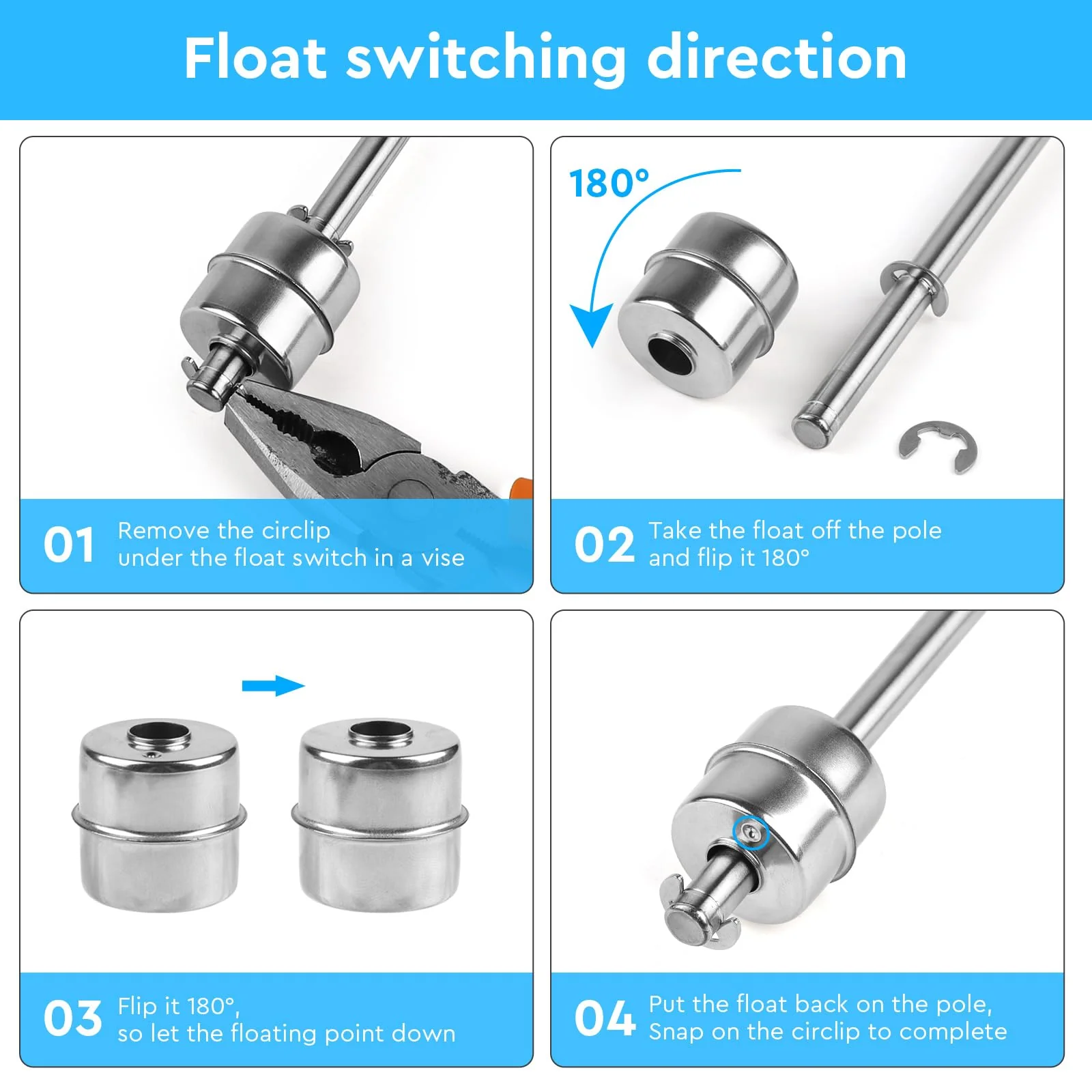

- Adjustable float: The float in this level switch can be repositioned. If the marked end of the float is facing up, it is the filling opening (NC). It opens when rising and closes when sinking. If the float is smooth and the unmarked end is facing up, it is the drain opening (NO). It closes when rising and opens when sinking.
Original: $106.48
-65%$106.48
$37.27More Images
EXLECO Stainless Steel Float Switch 45 mm Vertical Water Level Sensor M10 Water Level Regulator Level Sensor Liquid Level Sensor for Water Pump Pool Pond Aquarium
EXLECO Stainless Steel Float Switch 45 mm Vertical Water Level Sensor M10 Water Level Regulator Level Sensor Liquid Level Sensor for Water Pump Pool Pond Aquarium
Easy to use: the liquid level sensor is a device for level control and requires no power supply and no complex circuits are required. 2. It is extremely sensitive and can be widely used for level control, level indicator and overflow protection in dirt pumps, water tanks, fish tanks, domestic waste water pools and more. 3. The swimming ball can be switched to achieve different functions for filling and draining (use a tool to remove the spring clamp and change the order of the swimming ball - with the tip of the swimming ball up, the filling is done, with the tip down, the drain is done). Note: 1. The control stroke of this liquid level switch is 10 mm and should be used in a clean water environment without deposits or floating objects. 2. If a significant difference in liquid level needs to be controlled, you can combine two liquid level switches (install one long and one short). 3. The liquid level switch cannot directly control solenoid valves or high-performance relays, AC contactors, etc. It is required to add a small relay for bridging. Specifications: Material: 304 stainless steel. Max. Switching voltage: 0~230V AC/200V DC. Max. Switching current: 0.5 A. Max. Temperature range: 120°C. Protection class: IP67. Thread size: M10. Box contents: 1 x 45 mm liquid level switch
Product Features
- Warning: 1. The level switch has a control stroke of 10 mm and should be used in a clean water environment without dirt or floating objects. 2. The water level switch cannot be connected directly to a solenoid valve or a high-performance relay, AC contactor, etc., but must be used with a low power relay.
- Wide application: the water level sensor is mainly made of 304 stainless steel, is corrosion resistant and temperature resistant up to 120 C. The water level switch is extremely sensitive and can be widely used for level control, level indicator and overflow protection in automatic irrigation systems, domestic water tanks, industrial water towers, fish tanks, domestic sewage tanks, submersible pumps and so on.
- Installation: the liquid level sensor is a device for level control with a simple structure that does not require power supply or complex circuits. Compared to conventional mechanical switches, the level sensor is smaller and has a longer service life. If you need to control a large level difference, you can use two level switches combined (one long and one short install).
- Working principle: Our float limit switch for liquid levels consists of a magnetic spring contact switch and a float with magnetic material inside. When the liquid level rises or falls, the magnetic material inside the float interacts with the magnetic spring contact switch to control and display the liquid level.
- Adjustable float: The float in this level switch can be repositioned. If the marked end of the float is facing up, it is the filling opening (NC). It opens when rising and closes when sinking. If the float is smooth and the unmarked end is facing up, it is the drain opening (NO). It closes when rising and opens when sinking.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
EXLECO Stainless Steel Float Switch 45 mm Vertical Water Level Sensor M10 Water Level Regulator Level Sensor Liquid Level Sensor for Water Pump Pool Pond Aquarium
Easy to use: the liquid level sensor is a device for level control and requires no power supply and no complex circuits are required. 2. It is extremely sensitive and can be widely used for level control, level indicator and overflow protection in dirt pumps, water tanks, fish tanks, domestic waste water pools and more. 3. The swimming ball can be switched to achieve different functions for filling and draining (use a tool to remove the spring clamp and change the order of the swimming ball - with the tip of the swimming ball up, the filling is done, with the tip down, the drain is done). Note: 1. The control stroke of this liquid level switch is 10 mm and should be used in a clean water environment without deposits or floating objects. 2. If a significant difference in liquid level needs to be controlled, you can combine two liquid level switches (install one long and one short). 3. The liquid level switch cannot directly control solenoid valves or high-performance relays, AC contactors, etc. It is required to add a small relay for bridging. Specifications: Material: 304 stainless steel. Max. Switching voltage: 0~230V AC/200V DC. Max. Switching current: 0.5 A. Max. Temperature range: 120°C. Protection class: IP67. Thread size: M10. Box contents: 1 x 45 mm liquid level switch
Product Features
- Warning: 1. The level switch has a control stroke of 10 mm and should be used in a clean water environment without dirt or floating objects. 2. The water level switch cannot be connected directly to a solenoid valve or a high-performance relay, AC contactor, etc., but must be used with a low power relay.
- Wide application: the water level sensor is mainly made of 304 stainless steel, is corrosion resistant and temperature resistant up to 120 C. The water level switch is extremely sensitive and can be widely used for level control, level indicator and overflow protection in automatic irrigation systems, domestic water tanks, industrial water towers, fish tanks, domestic sewage tanks, submersible pumps and so on.
- Installation: the liquid level sensor is a device for level control with a simple structure that does not require power supply or complex circuits. Compared to conventional mechanical switches, the level sensor is smaller and has a longer service life. If you need to control a large level difference, you can use two level switches combined (one long and one short install).
- Working principle: Our float limit switch for liquid levels consists of a magnetic spring contact switch and a float with magnetic material inside. When the liquid level rises or falls, the magnetic material inside the float interacts with the magnetic spring contact switch to control and display the liquid level.
- Adjustable float: The float in this level switch can be repositioned. If the marked end of the float is facing up, it is the filling opening (NC). It opens when rising and closes when sinking. If the float is smooth and the unmarked end is facing up, it is the drain opening (NO). It closes when rising and opens when sinking.
