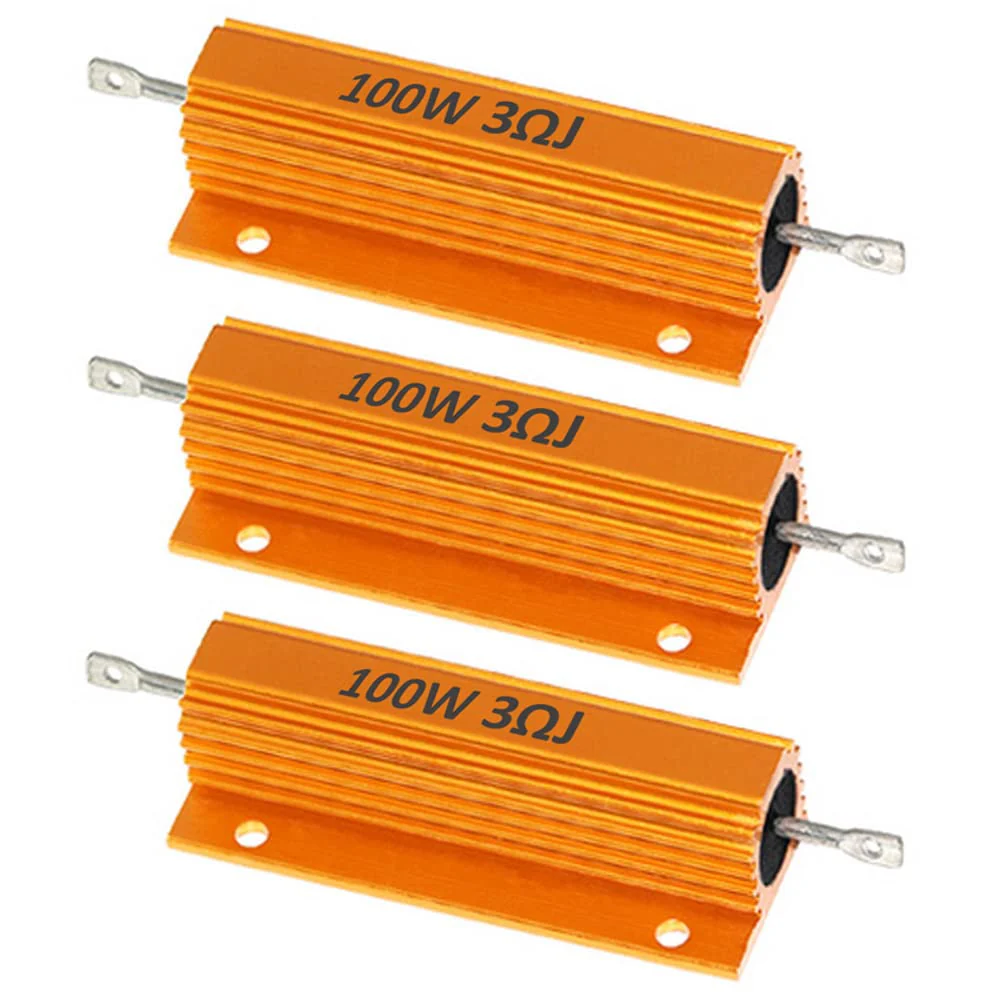

ETOPARS 3 Pcs 100W 3 Ohm 5% Aluminium Casing Wirewound Resistor Load Resistors Tap Resistor Chassis Mounting Wirewound Golden Housing Resistor 3 Ohm 100W gold 100w

ETOPARS 3 Pcs 100W 3 Ohm 5% Aluminium Casing Wirewound Resistor Load Resistors Tap Resistor Chassis Mounting Wirewound Golden Housing Resistor

Functions: 1. Aluminium shell strength. The shell is made of aluminium alloy. 2. With the compact structure and heat dissipation design, an overload capacity has been created. Small size of great power. 3. The insulated cover of the wounded wires would block the heat, promising the high performance of a resistance. 4. Wire wound resistance with high stability, high accuracy, high precision, low standard induction resistance, strong architecture. 5. Good flexibility, multiple choice, good for machine protection, more convenient for users to install. 6. Fit for transformer, power supply, car, ransducer, audio, frequency converter, elevator and other automation devices. Specification: Material: aluminium. Colour: glod tone. Power rating: 100 W. Tolerance: 5%. Maximum voltage: 200 V. Mounting points: 2 Technology: Wirewund. Operating temperature: -55 °C to +125 °C. Package includes: 3 x aluminium resistors

Product Features

• Aluminium clad power resistors: The shell is made of aluminium alloy with heat dissipation groove on the surface. High temperature resistant, vibration resistance, long-term stability.

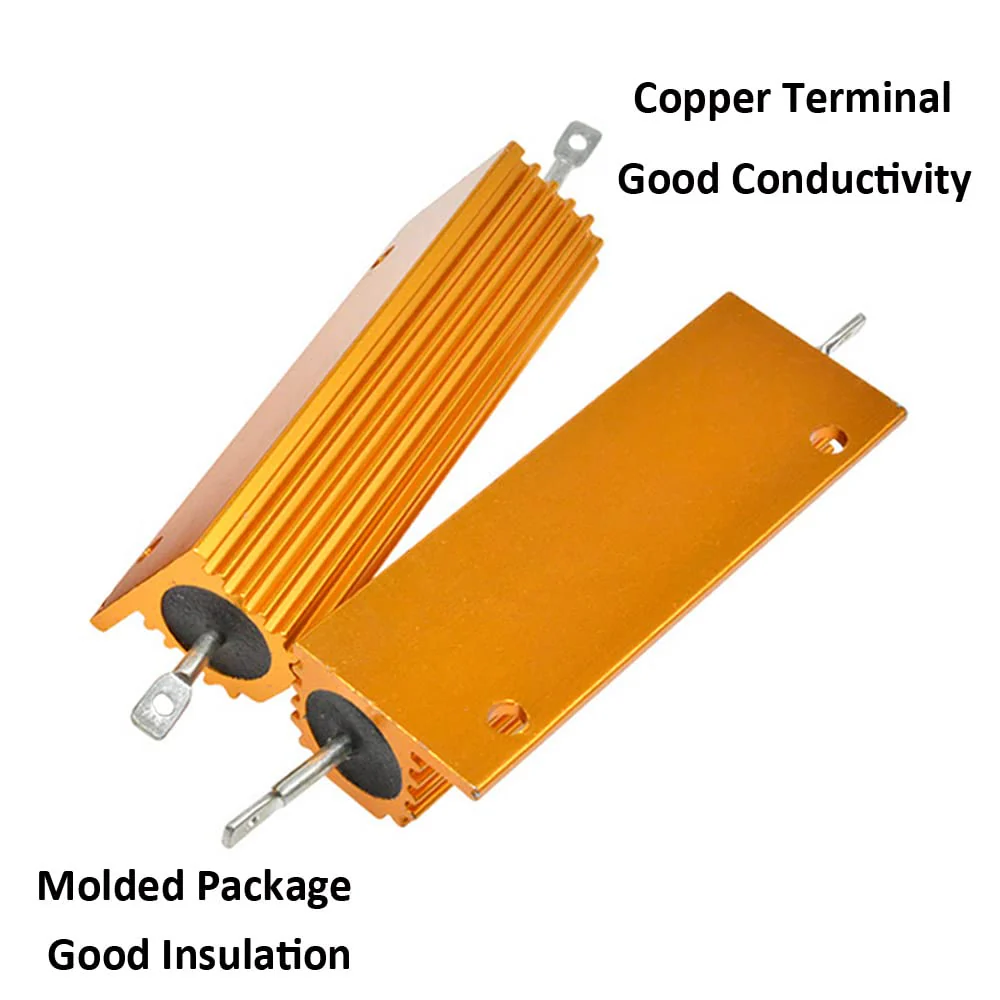

• Parameters Power Rating: 100W, Resistance Value: 3 Ohm, Tolerance: 5%, Shell Material: Aluminium, Colour: Gold Tone, Technics: WireWound, Terminal: Copper, Mounting Type: Chassis Mounted. Working temperature: -55 - +125 degrees

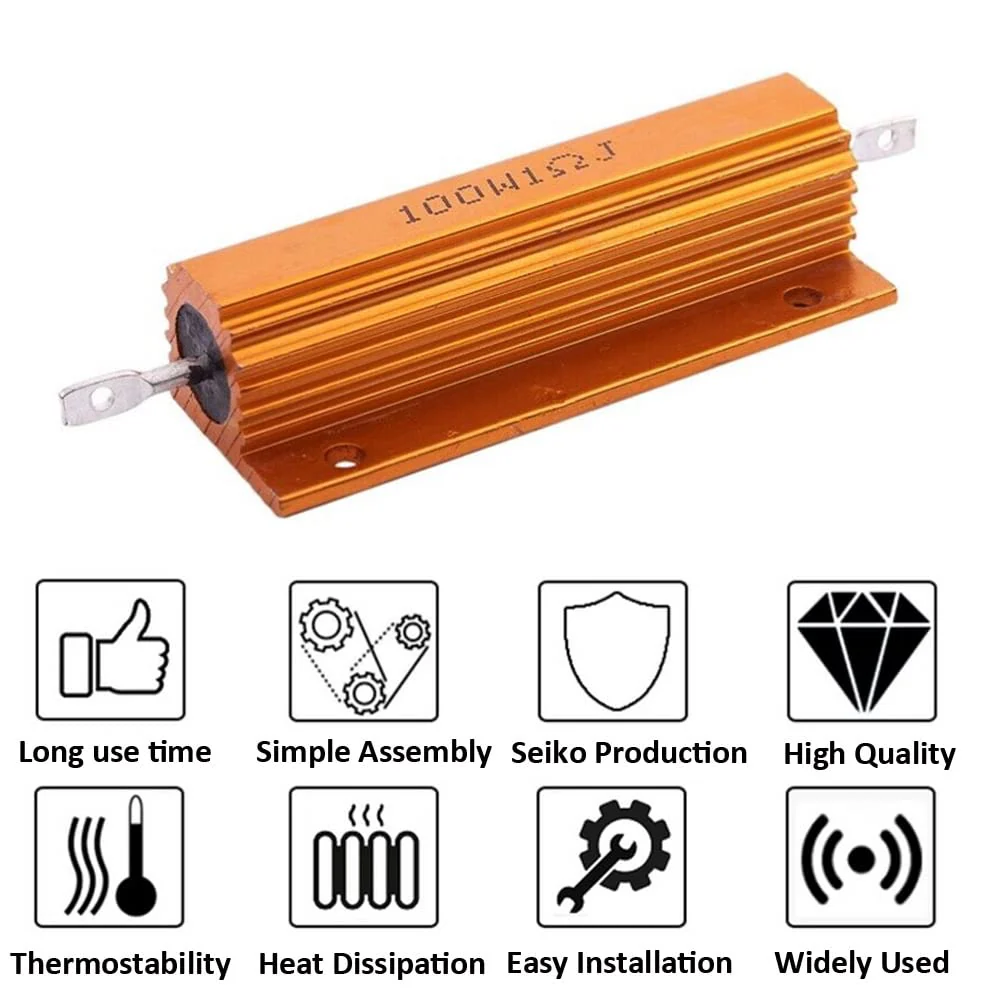

• High performance: High precision, high load capacity, high insulation capacity, low standard induction resistance, high stability, strong architecture. Small size of great power. Good reliability in operation

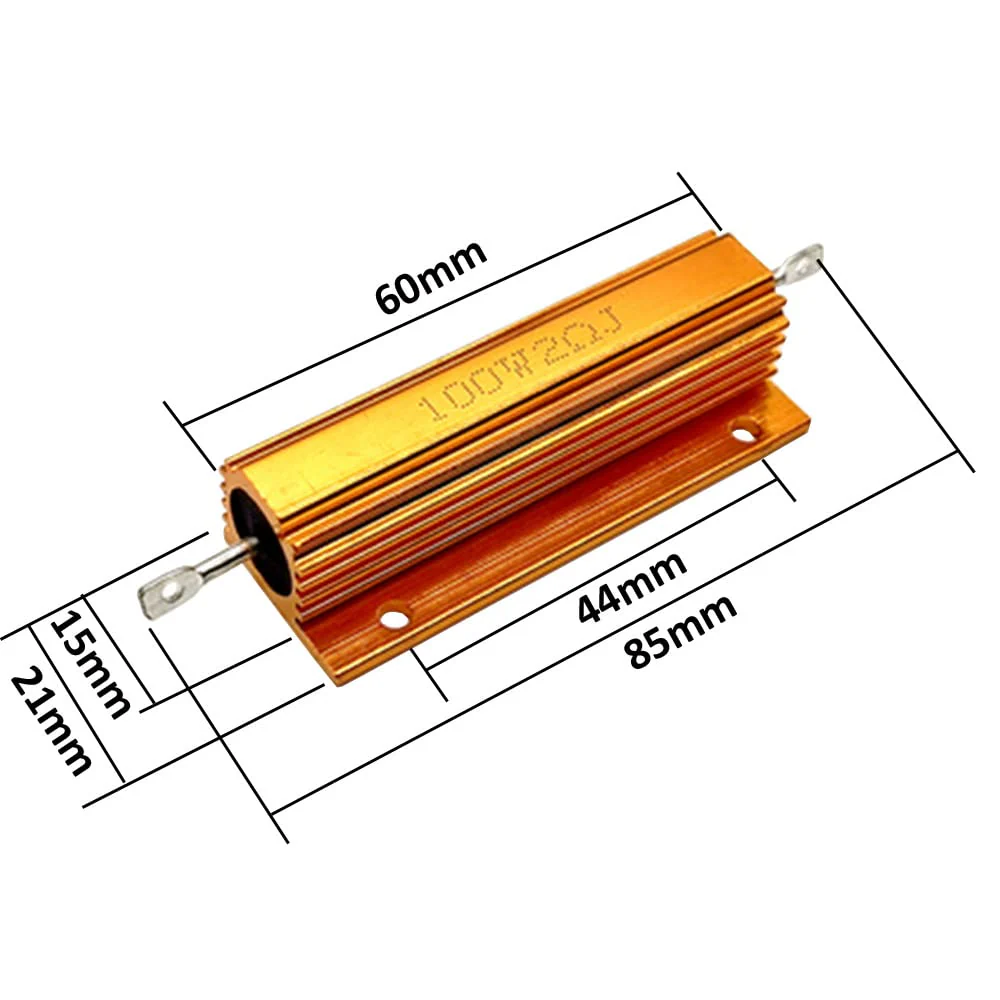

• Easy to Install Size: 60mm x 21mm x 15mm. Designed for chassis mounting. Suitable for installing heat sink. Screw Fabrics Different connection methods for convenient installation.
• Wide ApplicationGood flexibility, good for machine protection. Applicable to industrial machinery, load testing, aging test supply, automatic controls, etc. (such as inverters, speakers, elevators, cranes, audio, winches, generators)
