EPLZON DC 6V 9V 12V 24V to DC 5V 5A Step-Down Converter Module V-36V Step-Down Converter to DC 5V-5.3V 5.2V 3.5-6A Transformer Voltage Regulator Power Module with Two Outputs (Pack of 2)
EPLZON DC 6V 9V 12V 24V to DC 5V 5A Step-Down Converter Module V-36V Step-Down Converter to DC 5V-5.3V 5.2V 3.5-6A Transformer Voltage Regulator Power Module with Two Outputs (Pack of 2)
EPLZON DC 6V 9V 12V 24V to DC 5V 5A Step-Down Converter Module V-36V Step-Down Converter to DC 5V-5.3V 5.2V 3.5-6A Transformer Voltage Regulator Power Module with Two Outputs (Pack of 2)

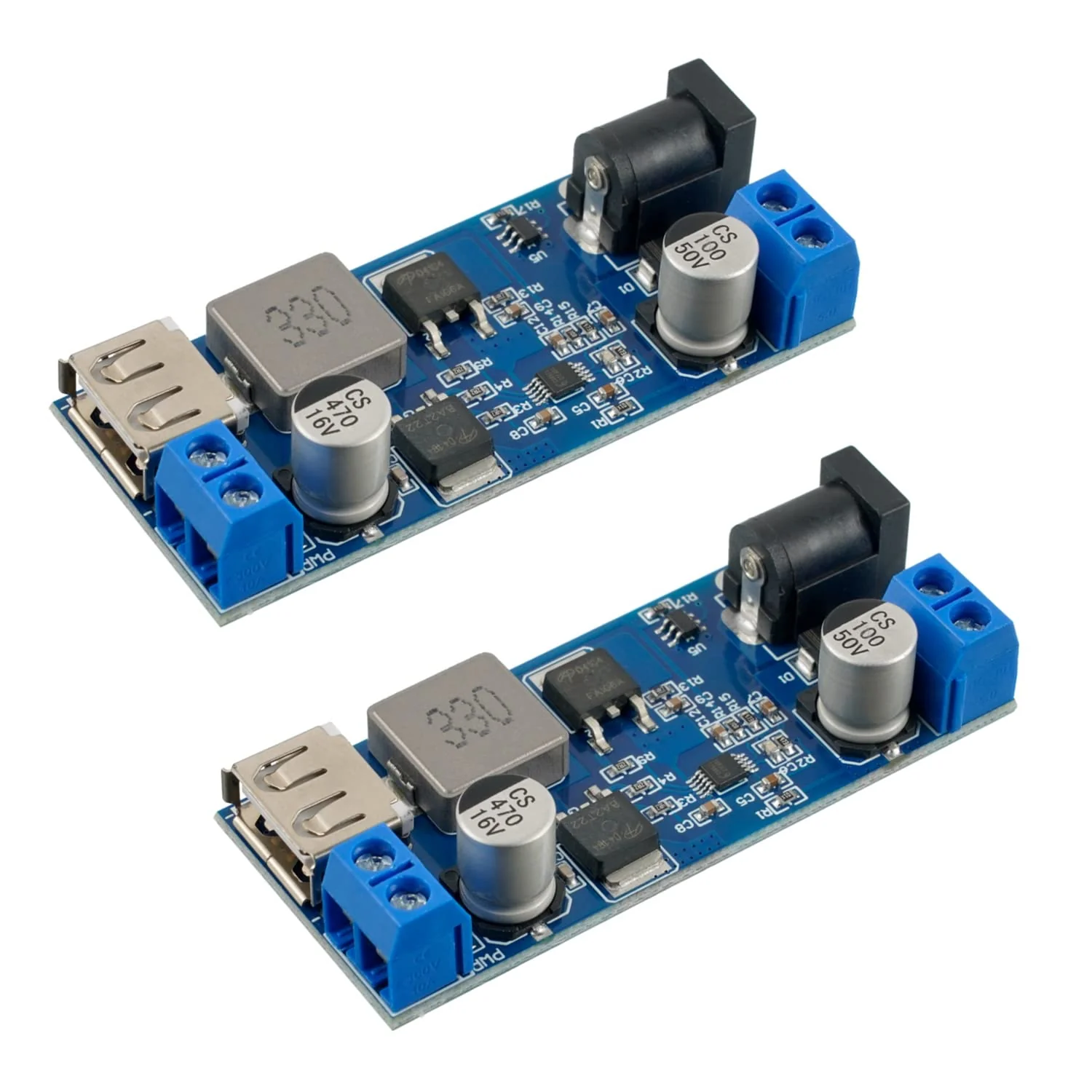

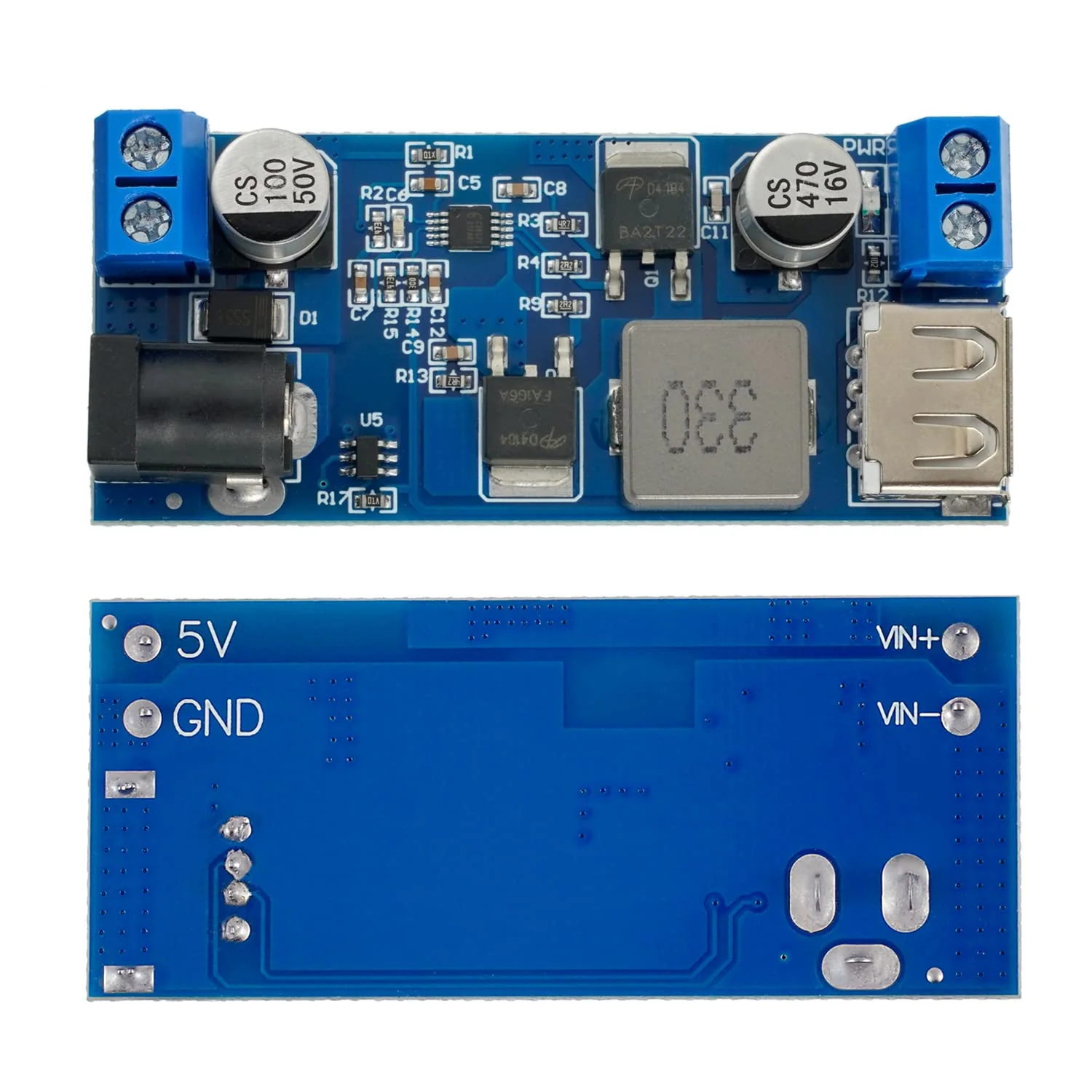

EPLZON DC 5V 5A step-down converter module. It is safer to use power converter modules with reverse polarity protection diodes. DC plug. There are connection terminals and a DC plug, which makes the converter very easy to use. Synchronous rectification scheme, wide voltage, high current, high efficiency. With USB port and fast charging identification chip, which is compatible with Android and iPhone. Different input for different outputs: ▶Input DC 9-24V, Output 5.2V/6A/30W; ▶Input DC 24-32V, Output 5.2V/5A/25W; ▶Input DC 32-36V, Output 5.2V/3.5A/18W USB output DC 5.0 V/5 A. Package Content: 2 x DC 5 V 5 A step-down converter module. Please note: the input voltage must not exceed 36 V, otherwise there is a risk of burns
Product Features
- Working Voltage: DC 9-36V; Output Voltage: 5-5.3V/5A/25W; (Input DC 9-24V, Output 5.2V/6A/30W; Input DC 24-32V, Output 5.2V/5A/25W; Input DC 32-36V, Output 5.2V/3.5A/18W)

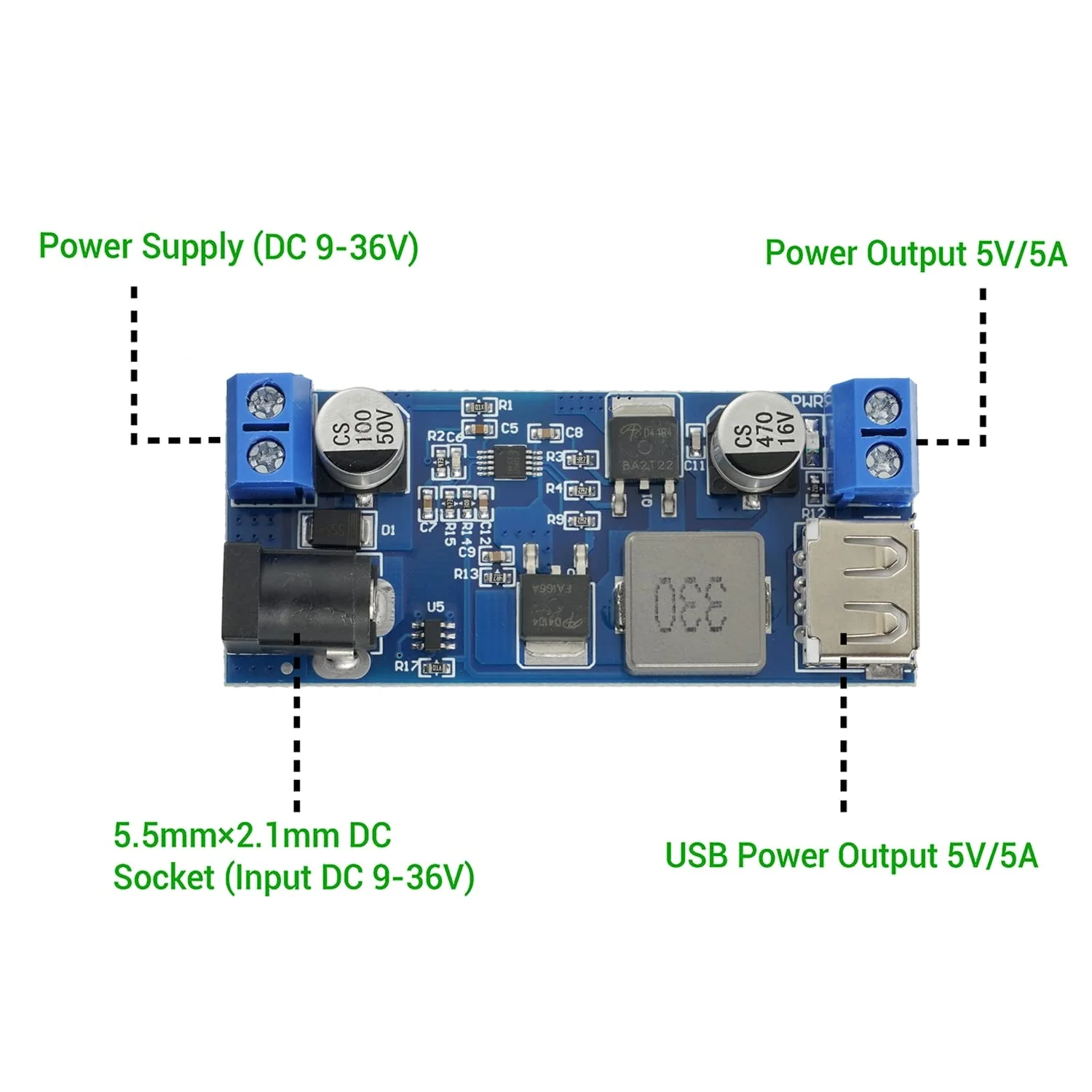

- Input port: 5.5mm2.1mm DC female and terminal block, each channel ensures the module works and can also be connected at the same time; Output port: USB and terminal block, can output power at the same time

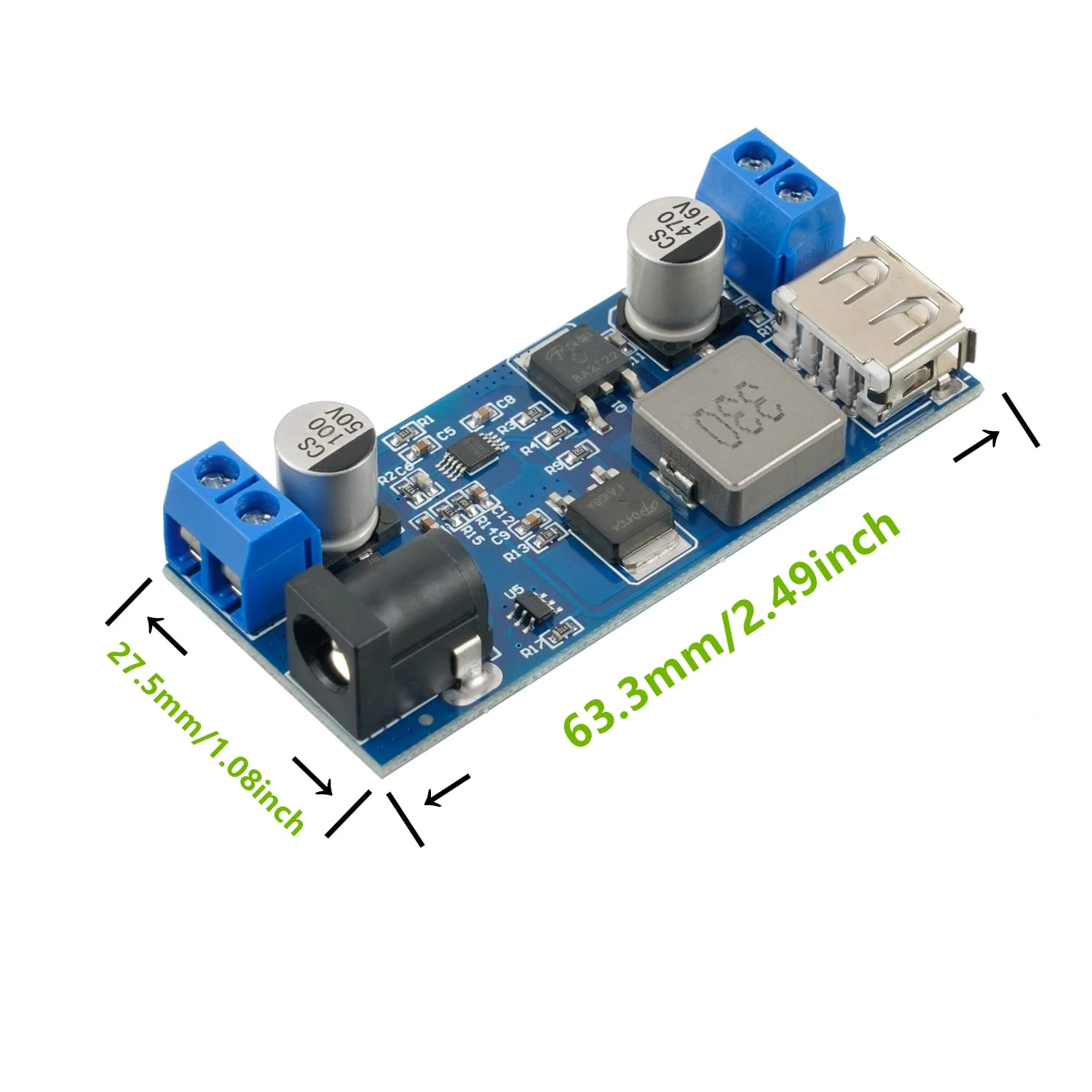

- Mini Portable: 63 x 27 x 10 mm, suitable for all kinds of tight installation spaces and small enclosures
- High Efficiency Transformer The module uses a new technology of synchronous rectification, which greatly improves the conversion efficiency and expands the working voltage and working current
- Application: as USB 5V buck converter, with USB port, with fast charging identification chip, DIY mobile phone charger, modified car charger
More Images
EPLZON DC 6V 9V 12V 24V to DC 5V 5A Step-Down Converter Module V-36V Step-Down Converter to DC 5V-5.3V 5.2V 3.5-6A Transformer Voltage Regulator Power Module with Two Outputs (Pack of 2)
EPLZON DC 6V 9V 12V 24V to DC 5V 5A Step-Down Converter Module V-36V Step-Down Converter to DC 5V-5.3V 5.2V 3.5-6A Transformer Voltage Regulator Power Module with Two Outputs (Pack of 2)
EPLZON DC 5V 5A step-down converter module. It is safer to use power converter modules with reverse polarity protection diodes. DC plug. There are connection terminals and a DC plug, which makes the converter very easy to use. Synchronous rectification scheme, wide voltage, high current, high efficiency. With USB port and fast charging identification chip, which is compatible with Android and iPhone. Different input for different outputs: ▶Input DC 9-24V, Output 5.2V/6A/30W; ▶Input DC 24-32V, Output 5.2V/5A/25W; ▶Input DC 32-36V, Output 5.2V/3.5A/18W USB output DC 5.0 V/5 A. Package Content: 2 x DC 5 V 5 A step-down converter module. Please note: the input voltage must not exceed 36 V, otherwise there is a risk of burns
Product Features
- Working Voltage: DC 9-36V; Output Voltage: 5-5.3V/5A/25W; (Input DC 9-24V, Output 5.2V/6A/30W; Input DC 24-32V, Output 5.2V/5A/25W; Input DC 32-36V, Output 5.2V/3.5A/18W)
- Input port: 5.5mm2.1mm DC female and terminal block, each channel ensures the module works and can also be connected at the same time; Output port: USB and terminal block, can output power at the same time
- Mini Portable: 63 x 27 x 10 mm, suitable for all kinds of tight installation spaces and small enclosures
- High Efficiency Transformer The module uses a new technology of synchronous rectification, which greatly improves the conversion efficiency and expands the working voltage and working current
- Application: as USB 5V buck converter, with USB port, with fast charging identification chip, DIY mobile phone charger, modified car charger
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
EPLZON DC 6V 9V 12V 24V to DC 5V 5A Step-Down Converter Module V-36V Step-Down Converter to DC 5V-5.3V 5.2V 3.5-6A Transformer Voltage Regulator Power Module with Two Outputs (Pack of 2)
EPLZON DC 5V 5A step-down converter module. It is safer to use power converter modules with reverse polarity protection diodes. DC plug. There are connection terminals and a DC plug, which makes the converter very easy to use. Synchronous rectification scheme, wide voltage, high current, high efficiency. With USB port and fast charging identification chip, which is compatible with Android and iPhone. Different input for different outputs: ▶Input DC 9-24V, Output 5.2V/6A/30W; ▶Input DC 24-32V, Output 5.2V/5A/25W; ▶Input DC 32-36V, Output 5.2V/3.5A/18W USB output DC 5.0 V/5 A. Package Content: 2 x DC 5 V 5 A step-down converter module. Please note: the input voltage must not exceed 36 V, otherwise there is a risk of burns
Product Features
- Working Voltage: DC 9-36V; Output Voltage: 5-5.3V/5A/25W; (Input DC 9-24V, Output 5.2V/6A/30W; Input DC 24-32V, Output 5.2V/5A/25W; Input DC 32-36V, Output 5.2V/3.5A/18W)
- Input port: 5.5mm2.1mm DC female and terminal block, each channel ensures the module works and can also be connected at the same time; Output port: USB and terminal block, can output power at the same time
- Mini Portable: 63 x 27 x 10 mm, suitable for all kinds of tight installation spaces and small enclosures
- High Efficiency Transformer The module uses a new technology of synchronous rectification, which greatly improves the conversion efficiency and expands the working voltage and working current
- Application: as USB 5V buck converter, with USB port, with fast charging identification chip, DIY mobile phone charger, modified car charger
