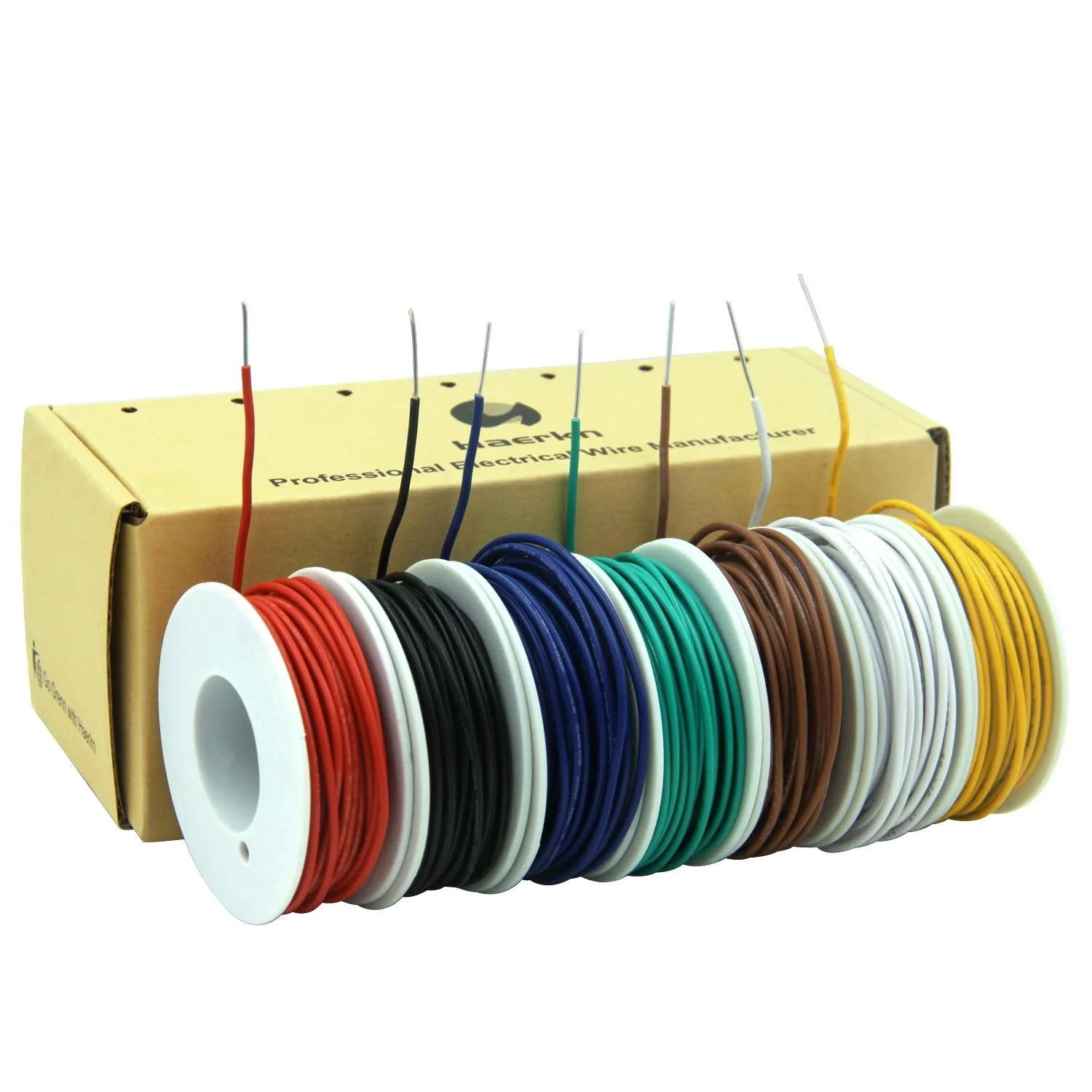

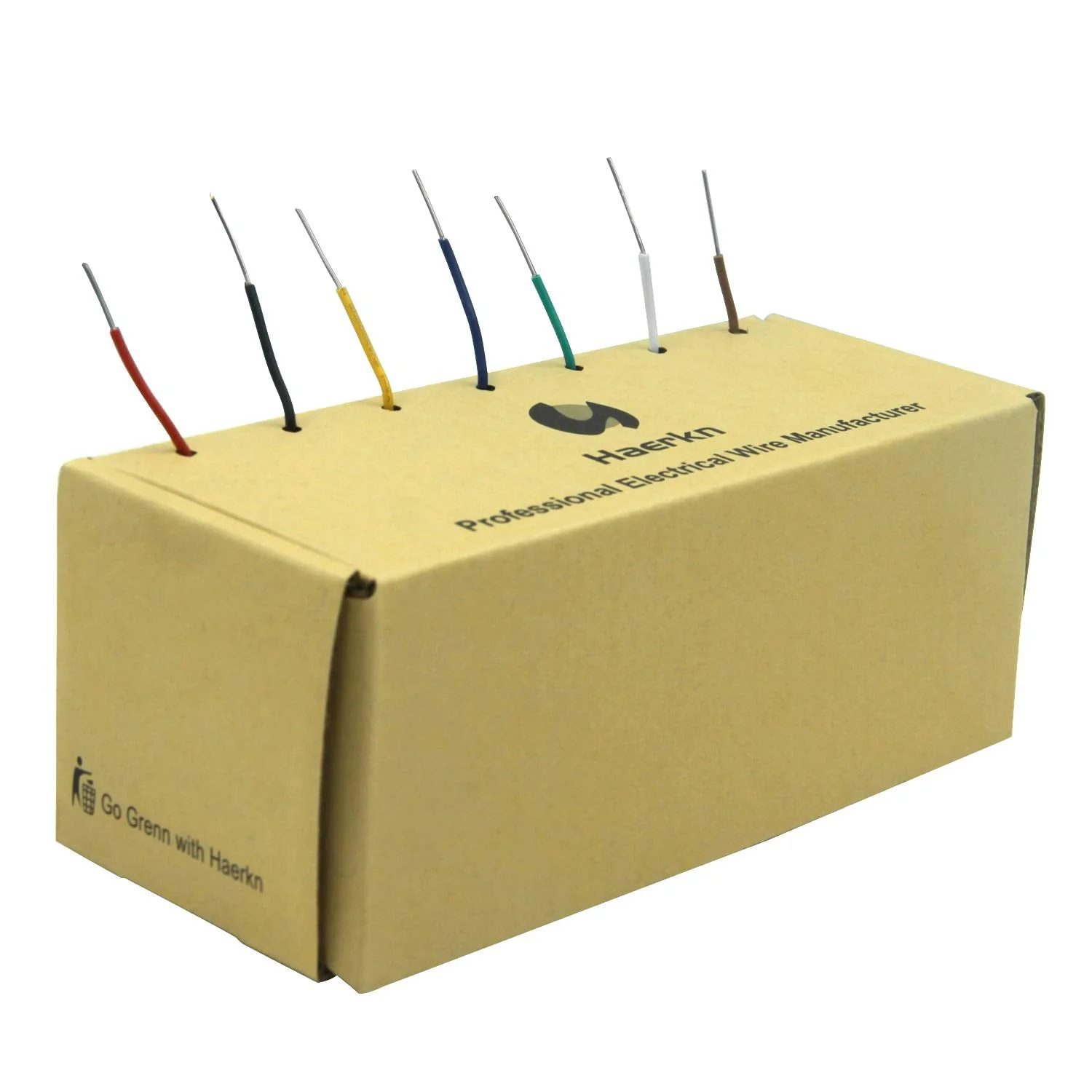

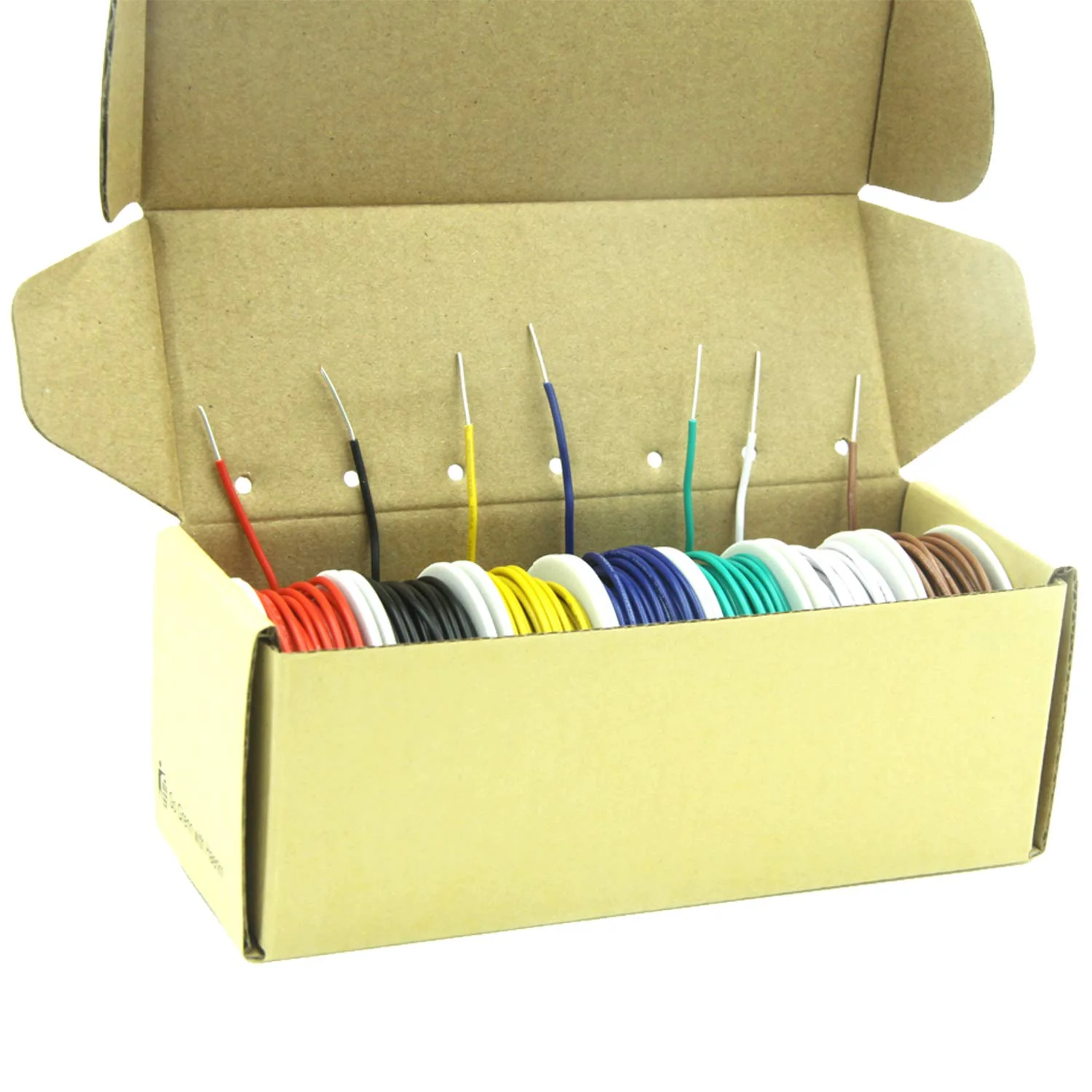

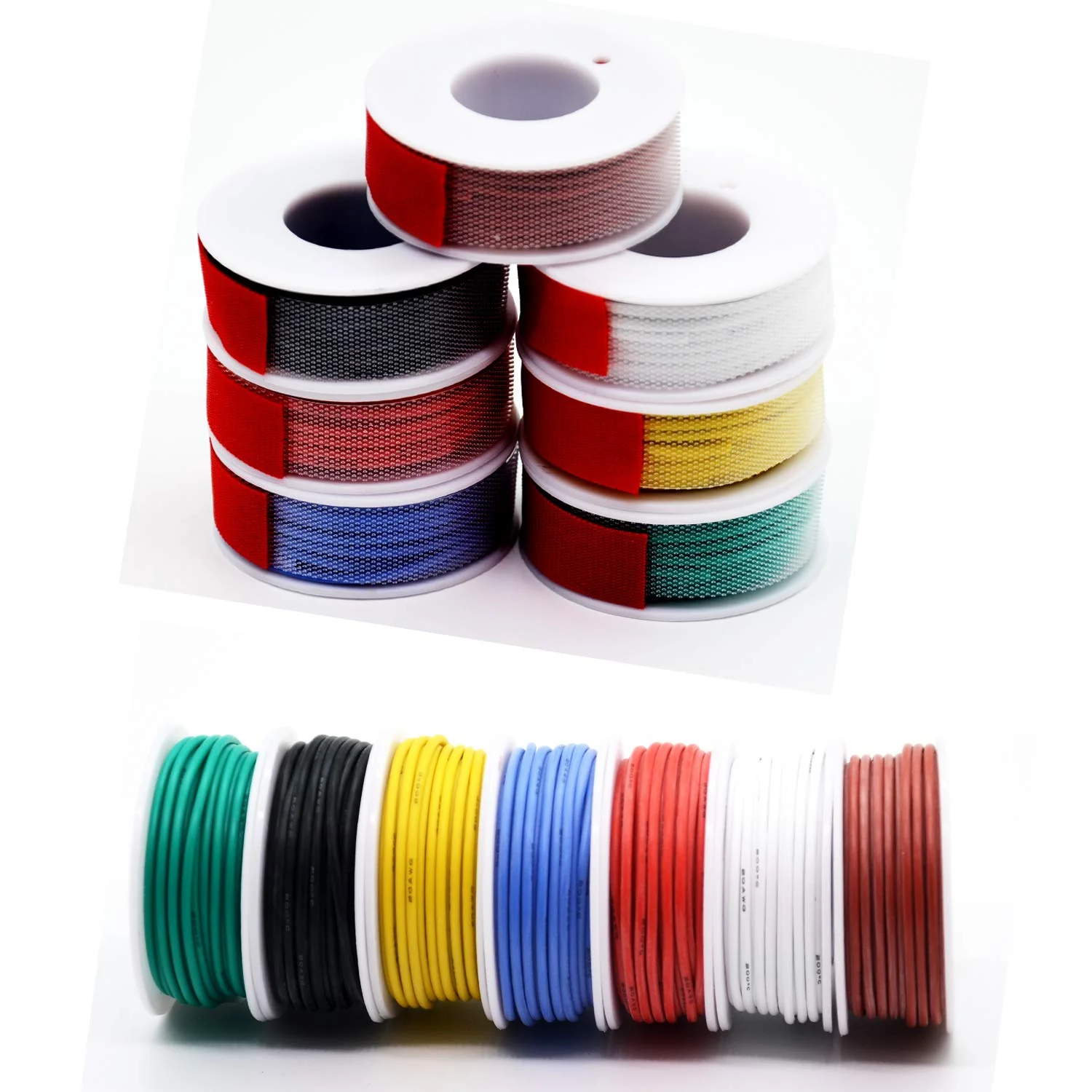

Electric Wire Kit, 0.82 mm² - 0.05 mm², 18awg-30awg, Electronic, Silicone Wires, Tinned Copper Cable, 7 Colours 0.2 mm²/24awg-Solide-7 colour
Electric Wire Kit, 0.82 mm² - 0.05 mm², 18awg-30awg, Electronic, Silicone Wires, Tinned Copper Cable, 7 Colours 0.2 mm²/24awg-Solide-7 colour
Electric Wire Kit, 0.82 mm² - 0.05 mm², 18awg-30awg, Electronic, Silicone Wires, Tinned Copper Cable, 7 Colours
Total 7 colours: black, red, yellow, green, blue, white, brown. Length: each colour 9 metres/spool. Nominal voltage: 300 V. Test voltage: 3 kV. Temperature range: -20 °C to 80 °C. Conductor: high-purity, oxygen-free copper sheet. External tolerance: ± 0.1 mm. Insulator: PVC. Conductor: (1) Track: 24AWG (0.2 mm²). (2) Copper number / wire diameter: 1/0.5 mm. (3) Diameter: 0.5 mm ± 0.03 mm. Insulator: (1) Sheath thickness: 0.38 mm. (2) Over diameter: 1.3 mm. Load capacity: 2.0 A. Tag content: E300956 AWM 1007 24AWG 80℃ 300V VW—1 GUANGDONG HAERKN NEW ENERGY CO.,LTD c AWM 24AWG 80℃ 300V I A FT1 ROHS
Product Features
- Material: PVC + 0.2 mm2 high-purity oxygen-free solid tinned copper wire
- Rated voltage: 300 V; temperature range: -20 C to 80 C; load current: 2.0 A; fire protection: VW-1 and FT1
- Length: each colour 9 metres per spool
- Total 7 colours: black, red, yellow, green, blue, white, brown
- This wire is waterproof, oil resistant, easy to handle, easy to strip and connect, low power consumption, the copper wire is tin-plated, protects it from corrosion and makes soldering easier
More Images
Electric Wire Kit, 0.82 mm² - 0.05 mm², 18awg-30awg, Electronic, Silicone Wires, Tinned Copper Cable, 7 Colours 0.2 mm²/24awg-Solide-7 colour
Electric Wire Kit, 0.82 mm² - 0.05 mm², 18awg-30awg, Electronic, Silicone Wires, Tinned Copper Cable, 7 Colours
Total 7 colours: black, red, yellow, green, blue, white, brown. Length: each colour 9 metres/spool. Nominal voltage: 300 V. Test voltage: 3 kV. Temperature range: -20 °C to 80 °C. Conductor: high-purity, oxygen-free copper sheet. External tolerance: ± 0.1 mm. Insulator: PVC. Conductor: (1) Track: 24AWG (0.2 mm²). (2) Copper number / wire diameter: 1/0.5 mm. (3) Diameter: 0.5 mm ± 0.03 mm. Insulator: (1) Sheath thickness: 0.38 mm. (2) Over diameter: 1.3 mm. Load capacity: 2.0 A. Tag content: E300956 AWM 1007 24AWG 80℃ 300V VW—1 GUANGDONG HAERKN NEW ENERGY CO.,LTD c AWM 24AWG 80℃ 300V I A FT1 ROHS
Product Features
- Material: PVC + 0.2 mm2 high-purity oxygen-free solid tinned copper wire
- Rated voltage: 300 V; temperature range: -20 C to 80 C; load current: 2.0 A; fire protection: VW-1 and FT1
- Length: each colour 9 metres per spool
- Total 7 colours: black, red, yellow, green, blue, white, brown
- This wire is waterproof, oil resistant, easy to handle, easy to strip and connect, low power consumption, the copper wire is tin-plated, protects it from corrosion and makes soldering easier
