ElecGear Desoldering Heating Plate for Joystick, Desoldering Control Stick from Controller Board with Soldering Iron, Repair Tool for Analog and Hall Thumbstick - (Model UniB) Model: Unib

ElecGear Desoldering Heating Plate for Joystick, Desoldering Control Stick from Controller Board with Soldering Iron, Repair Tool for Analog and Hall Thumbstick - (Model UniB)

The repair tools kit was designed for desoldering the joystick module off PCB with a normal soldering iron. The CNCed heating plate melts all the 14 solder joints simultaneously. Some helping tools included Important Notes 1. There're 3 different models for different joysticks. Please dismantle your controller and measure the joystick to choose the correct model 2. Your soldering iron should be more than 60W, choose a bigger iron tip and set the temperature high 3. Make sure the entire joystick unit should be replaced. In many cases, replacing the potentiometer alone can solve most joystick problems. Please go to the potentiometers at product ID: B09KVG19C1 4. Also take a look at the replacement analogue joystick in UniA dimension modeled from EL1 to EL7 at ID: B09KVG7DGY Compatible Example Lists UniA Examples: PS5 and DSE, PS4, PS3 (3pin version); Xbox One and Elite 1/2, Series S|X Steam Deck, Switch Pro Most 3rd party PC and console controllers: Google Stadia, Nacon, Razer Wolverine V2, 8-Bitdo SNES, Scuf Impact, ASTRO C40 TR, Victrix Pro BFG. and more UniB Examples: PDP Rematch 049-023 Some IINE, BDA, Hori And more X360 Examples: Xbox 360 wired and wireless Logi-tech F710. Hori Mini wired And more What's in Package: 1 x heating plate. 1 x Teflon pad. 1 x solder remover wire. 4 x PCB clamps. Note: Your soldering station should be more than 60 watts and with a big tip. The soldering iron and other soldering materials are required but NOT included! We may fail to upload the video, please refer to the same product ID of U.S. Amazon for the demonstration

Product Features

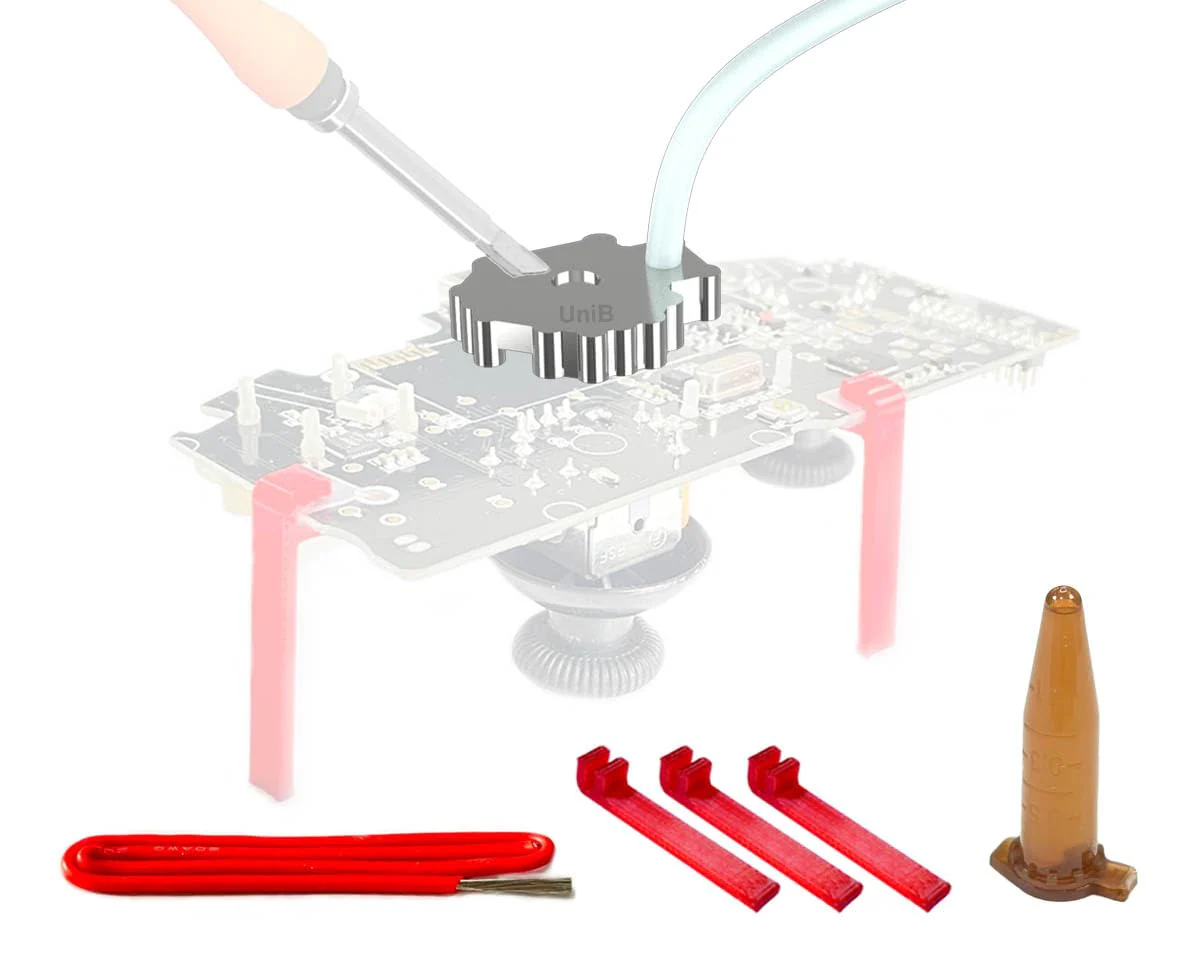

• [Joystick Heating Plate] - Solder the entire thumbsticks module from the controller board with a normal soldering iron. With up to 14 prongs, removing the problem stick is the most difficult task. A CNC machined copper plate melts all solder joints simultaneously. This makes it possible to remove the entire joystick at once. There are 3 different models for sticks in different sizes: UniA, UniB and X360

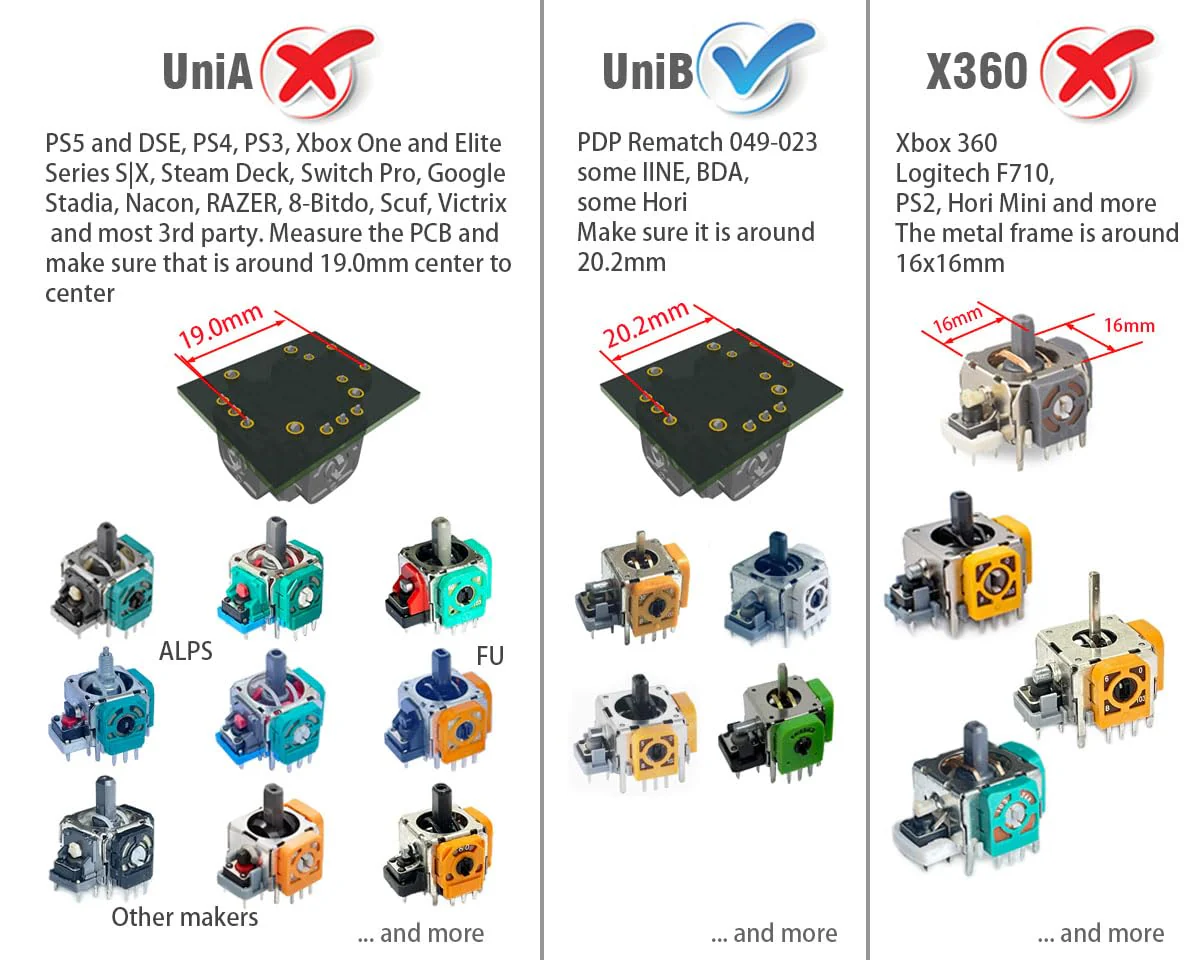

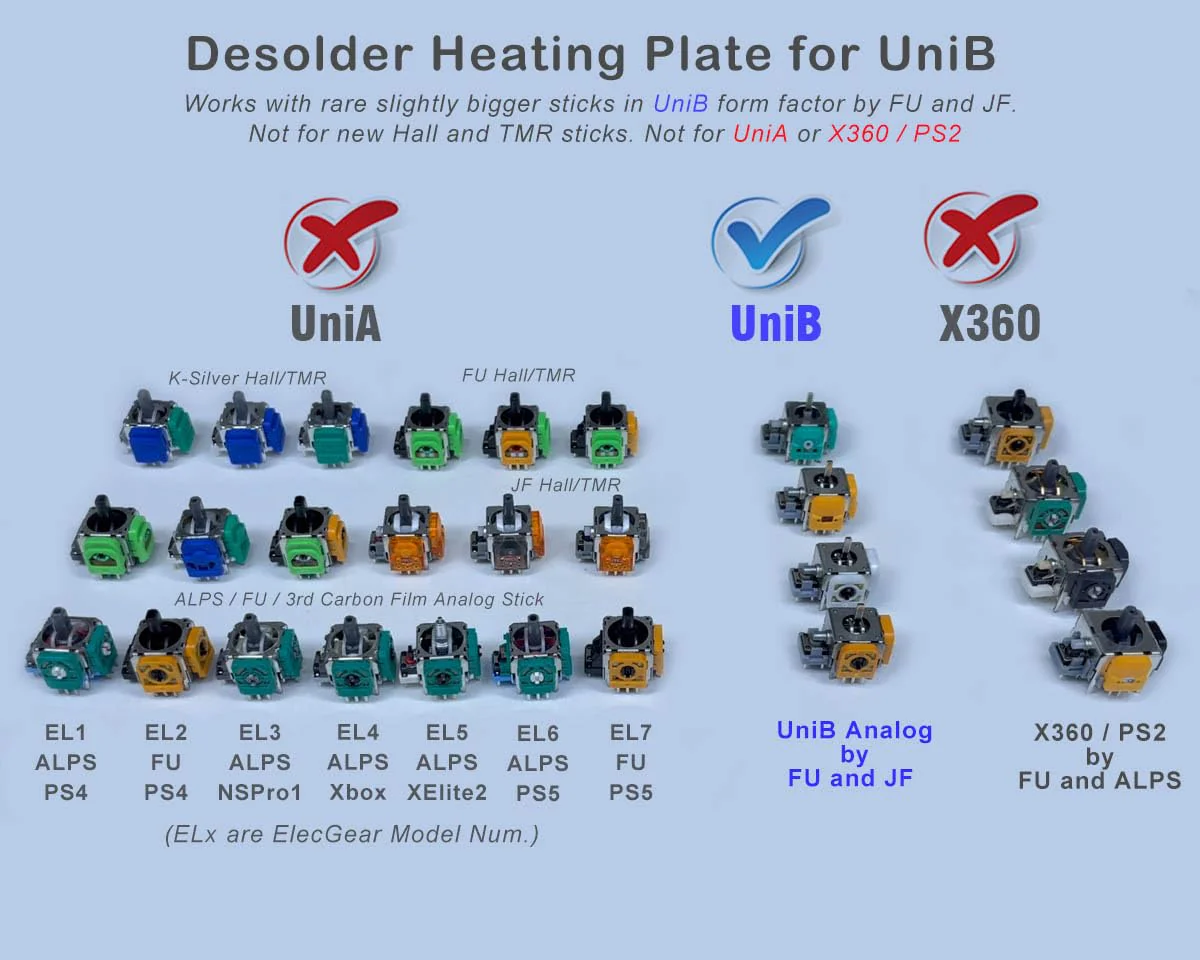

• [Choose the right model] - UniA is for the normal joysticks of ALPS, FU and other third party suppliers used in most wired and wireless controllers: PS5, PS4, Xbox One and Elite and Series S|X, Switch Pro and most others. UniB is slightly larger than UniA and has been used in some PDP, Power-A, Hori and BDA controllers. X360 is much larger and has been used in Xbox 360 and some Logittech controllers. Please study the pictures and disassemble your controller. Measure the stick before you order

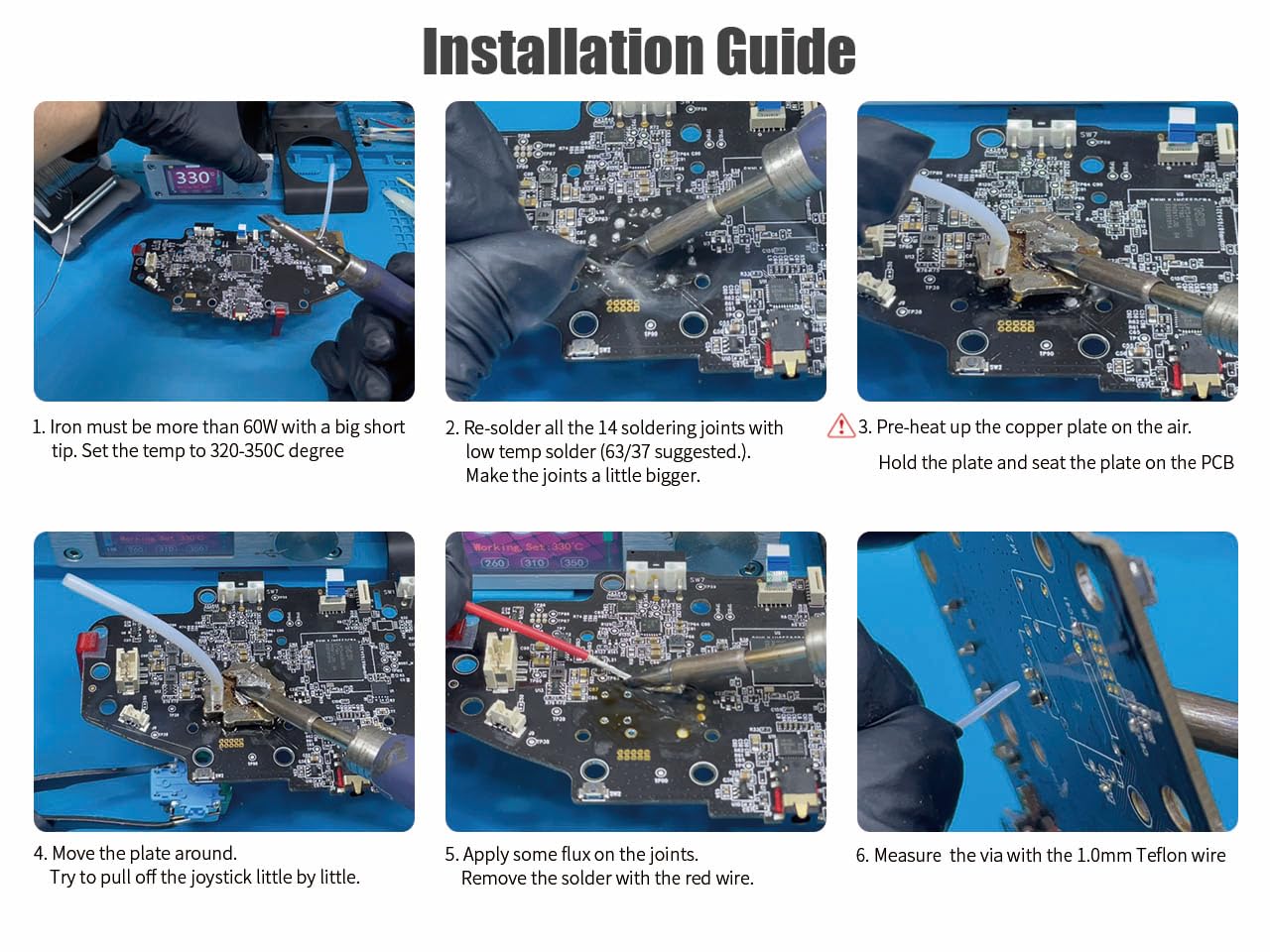

• [Some Auxiliary Tools Included] - Multi-thickness wires included that work better than typical soldering strands. Tin the wire, cut it to a sharp point and pierce the tip into the small hole to suck the solder into the small holes. Also included are the simple PCB terminals that help support the PCB on the workbench. Note: Do not place the clamps near a hot joystick, otherwise it will melt.
