DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS DY-180
HomeStore

DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS DY-180

DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS DY-180

DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS

Description: Support GPS+GLONASS (default); GPS+ Beidou; GLONASS+ Beidou multi-mode output Built-in LNA signal amplifier Built-in TCXO crystal and Fara capacitor for faster hot start 1-10Hz positioning update rate Baud rate 4800bps-921600bps (default 9600bps) Channel: 72CH Horizontal accuracy: 2.0m Output level TTL level Output Protocol NMEA0183 Standard Protocol Update frequency 1-10 Hz (default 1Hz) Connector: 4Pin 1.0mm Pitch Package Includes: 1 X DY-180TTL GPS Module 3 X 4P 1.0mm Pitch Cable

Product Features

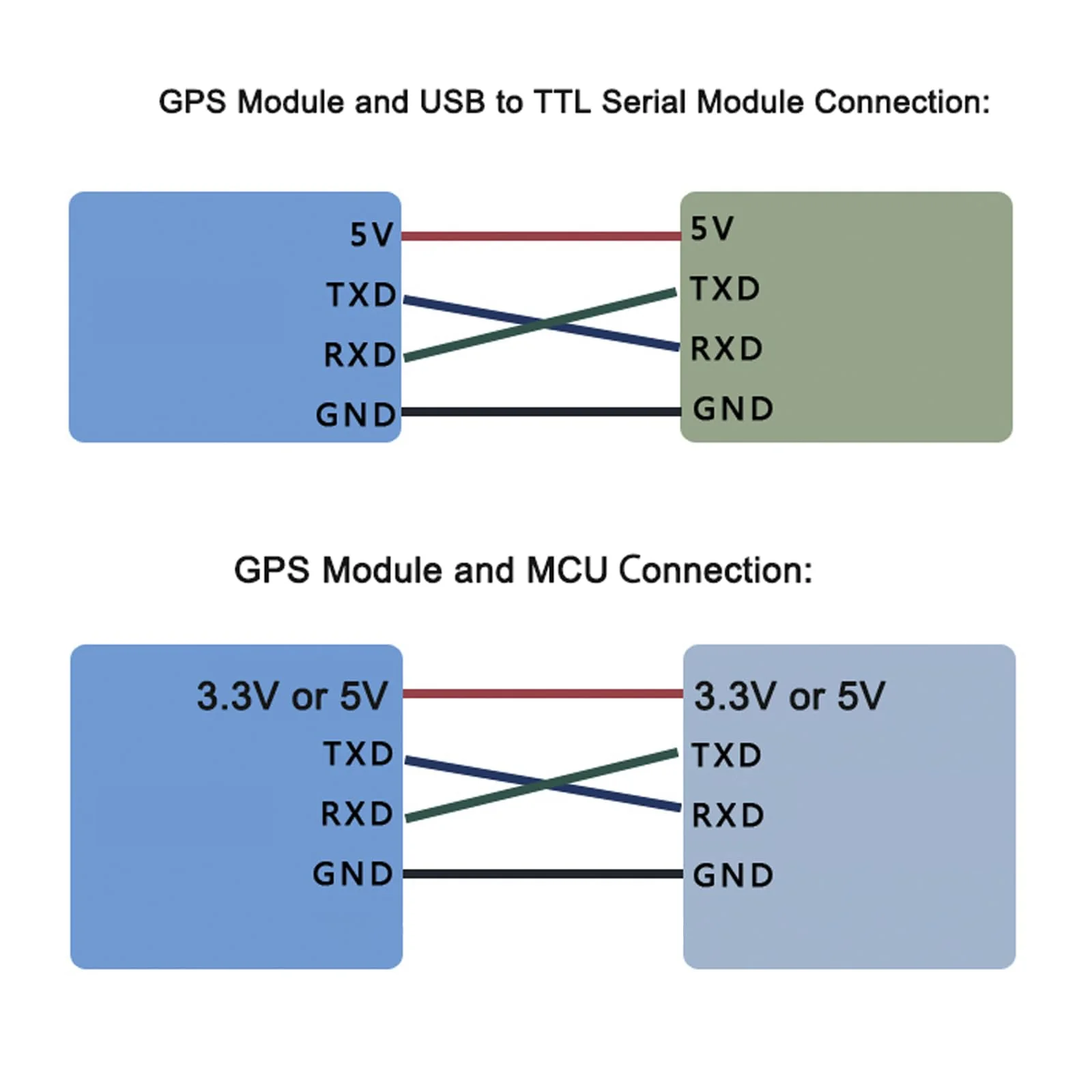

  • This DY-180 TTL GPS Module can show your speed. When you use it for Raspberry Pi, there is no driver needed. Here is connection with RPi, red to 3.3v, black to gnd, green to txd, white to rxd

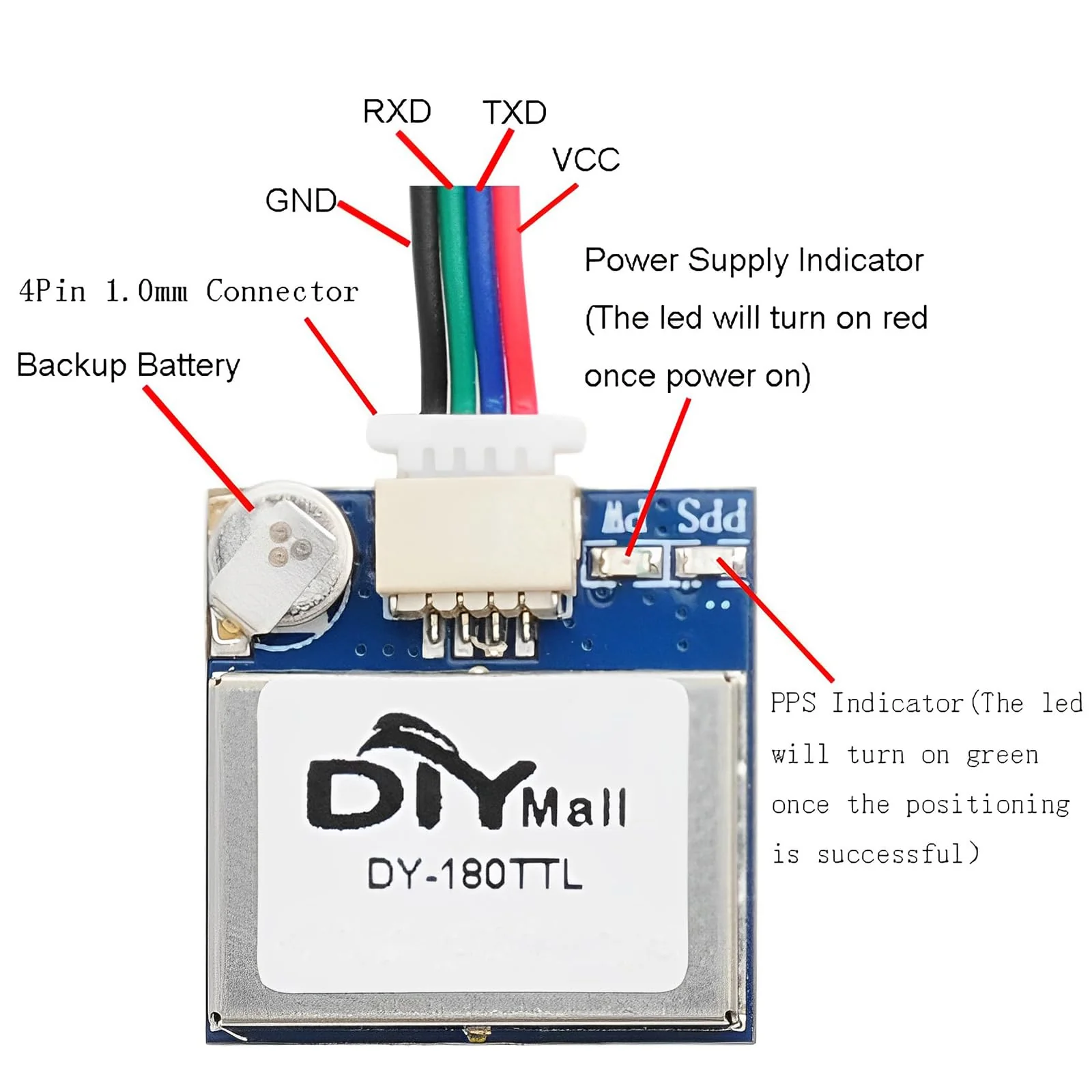

  • The PW LED flash means gps module output normally. The PPS LED flash means gps module locate your place. Note: without PPS output, only PPS indicator
  • Data Level : TTL or RS-232, Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable
  • This DY-180TTL GPS Module does not have FLASH and cannot be saved. 72 Searching Channel Support Rate : 4800bps to 921600bps, Default 9600bps

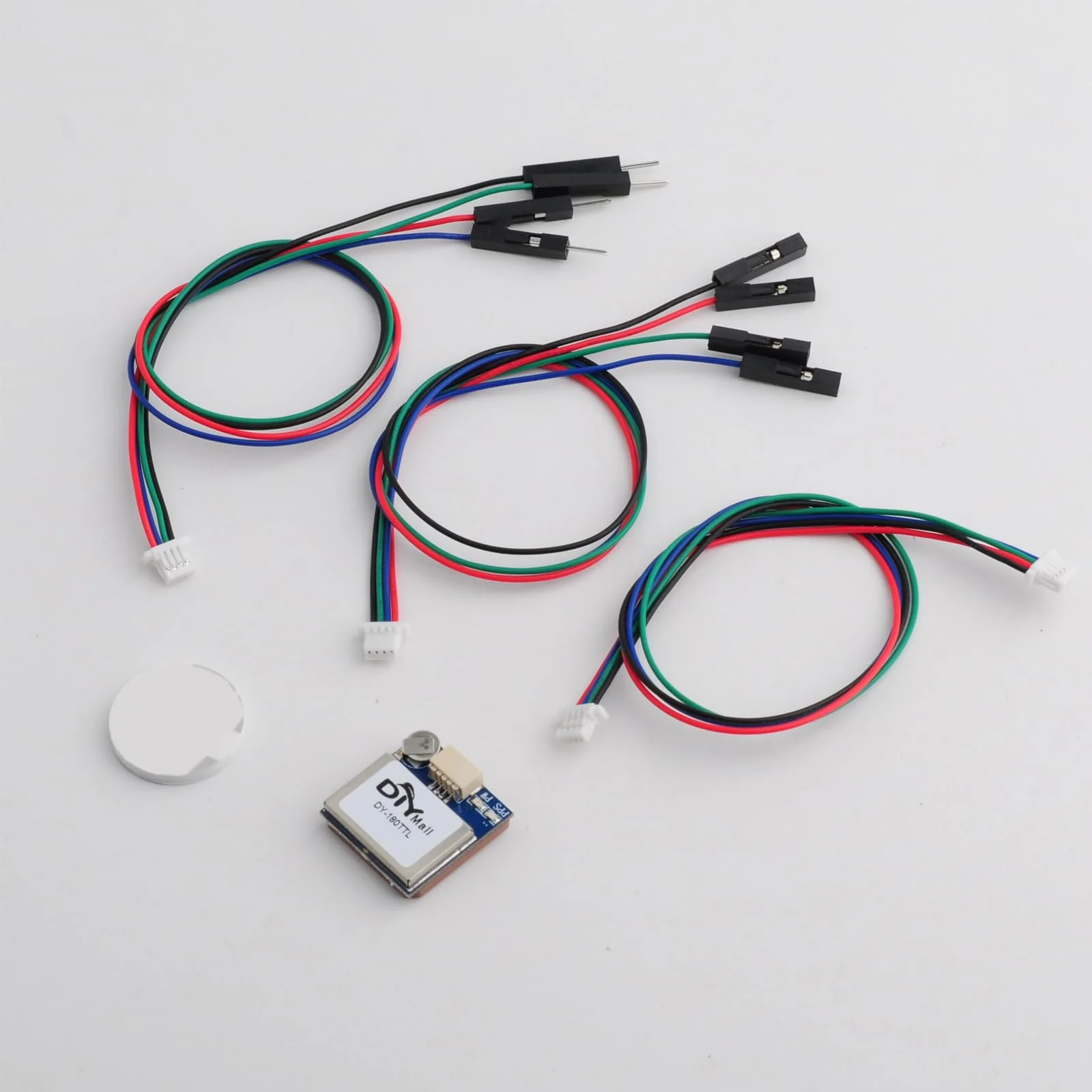

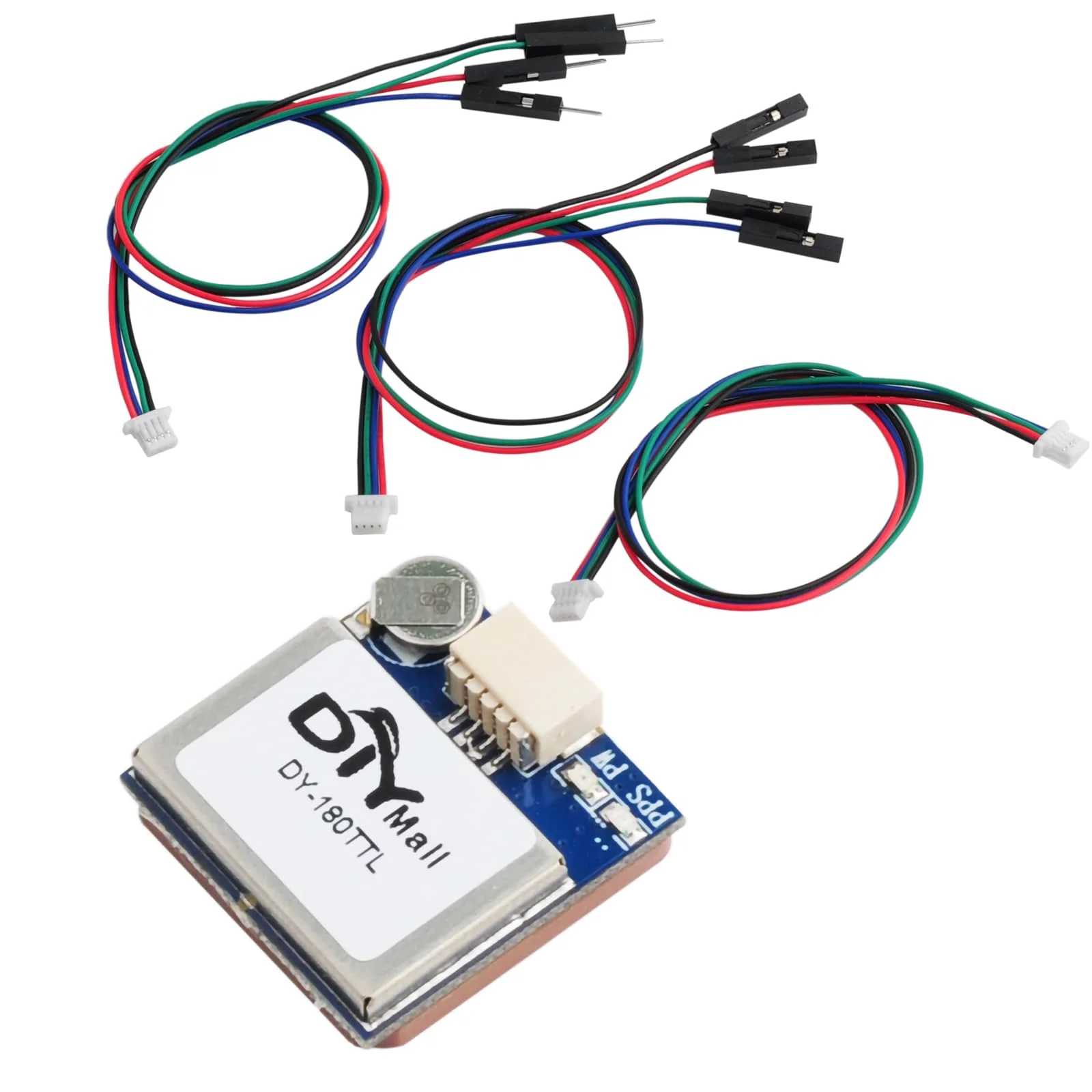

  • What you will get: 1 X DY-180TTL GPS Module, 3 X 4P 1.0mm Pitch Cable
$31.69

Original: $90.55

-65%
DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS DY-180—

$90.55

$31.69

More Images

DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS DY-180 - Image 2
DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS DY-180 - Image 3
DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS DY-180 - Image 4
DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS DY-180 - Image 5

DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS DY-180

DY-180TTL GPS Receiver Module Dual Glonass GPS Navigation Module TTL Level 9600bps with GPS Antenna for Arduino FPV Aircraft,Replace BN-180 GPS

Description: Support GPS+GLONASS (default); GPS+ Beidou; GLONASS+ Beidou multi-mode output Built-in LNA signal amplifier Built-in TCXO crystal and Fara capacitor for faster hot start 1-10Hz positioning update rate Baud rate 4800bps-921600bps (default 9600bps) Channel: 72CH Horizontal accuracy: 2.0m Output level TTL level Output Protocol NMEA0183 Standard Protocol Update frequency 1-10 Hz (default 1Hz) Connector: 4Pin 1.0mm Pitch Package Includes: 1 X DY-180TTL GPS Module 3 X 4P 1.0mm Pitch Cable

Product Features

  • This DY-180 TTL GPS Module can show your speed. When you use it for Raspberry Pi, there is no driver needed. Here is connection with RPi, red to 3.3v, black to gnd, green to txd, white to rxd
  • The PW LED flash means gps module output normally. The PPS LED flash means gps module locate your place. Note: without PPS output, only PPS indicator
  • Data Level : TTL or RS-232, Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable
  • This DY-180TTL GPS Module does not have FLASH and cannot be saved. 72 Searching Channel Support Rate : 4800bps to 921600bps, Default 9600bps
  • What you will get: 1 X DY-180TTL GPS Module, 3 X 4P 1.0mm Pitch Cable
