DUBEUYEW Display Module TM1637 0.36 Inch 4 Character 7 Segment 4 Bits Red Digital Tube for Arduino Driver Board (Pack of 4)
DUBEUYEW Display Module TM1637 0.36 Inch 4 Character 7 Segment 4 Bits Red Digital Tube for Arduino Driver Board (Pack of 4)
DUBEUYEW Display Module TM1637 0.36 Inch 4 Character 7 Segment 4 Bits Red Digital Tube for Arduino Driver Board (Pack of 4)

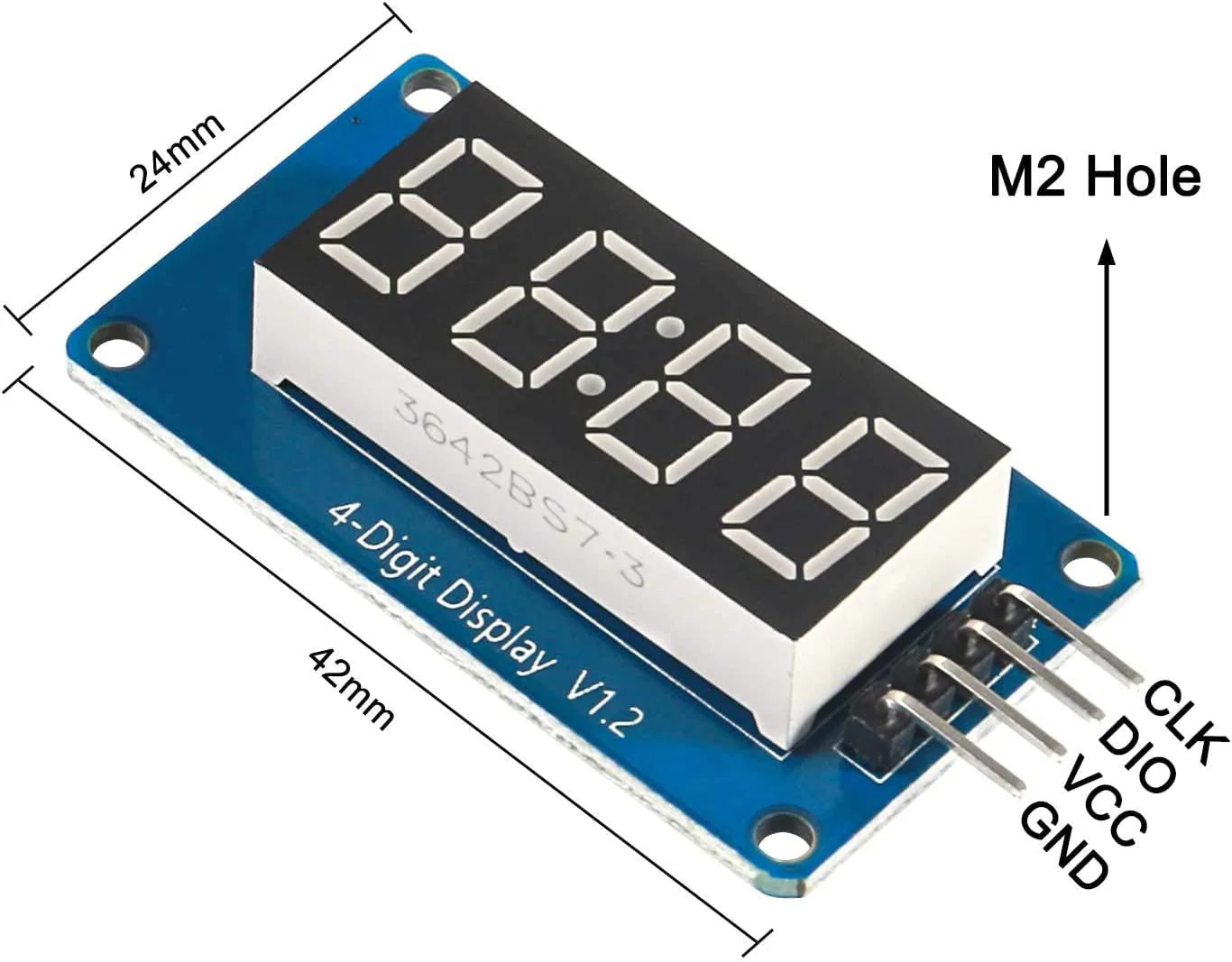

- The module is a 12 foot clock with 4 points of positive digital (0.36 inch) display module driver IC TM1637, SCM four 8-segment LED can be controlled by two signal lines - Display common anode for the four red LEDs. - Digital tube 8 grey adjustable. - Level control interface for 5V or 3.3V - Size: 42 x 24 x 12 mm. - 4 M2 screws positioning holes for easy installation. Features - Control interface: Total four pins (GND, VCC, DIO, CLK), GND to ground, VCC is the power supply, DIO is the data input and output pin, CLK is the clock signal pin - Digital tube 4 common anode points with 0.36 inch LED, bright red. - Positioning holes. 4 M2 screws positioning hole diameter is 2.2 mm, the positioning of the module is easy to install to achieve the combination between modules Package includes: 4 x 4-bit LED digital tube module.
Product Features
- 4-digit LED display module, red glowing with adjustable LED brightness and clock point, can display decimals, letters, etc.

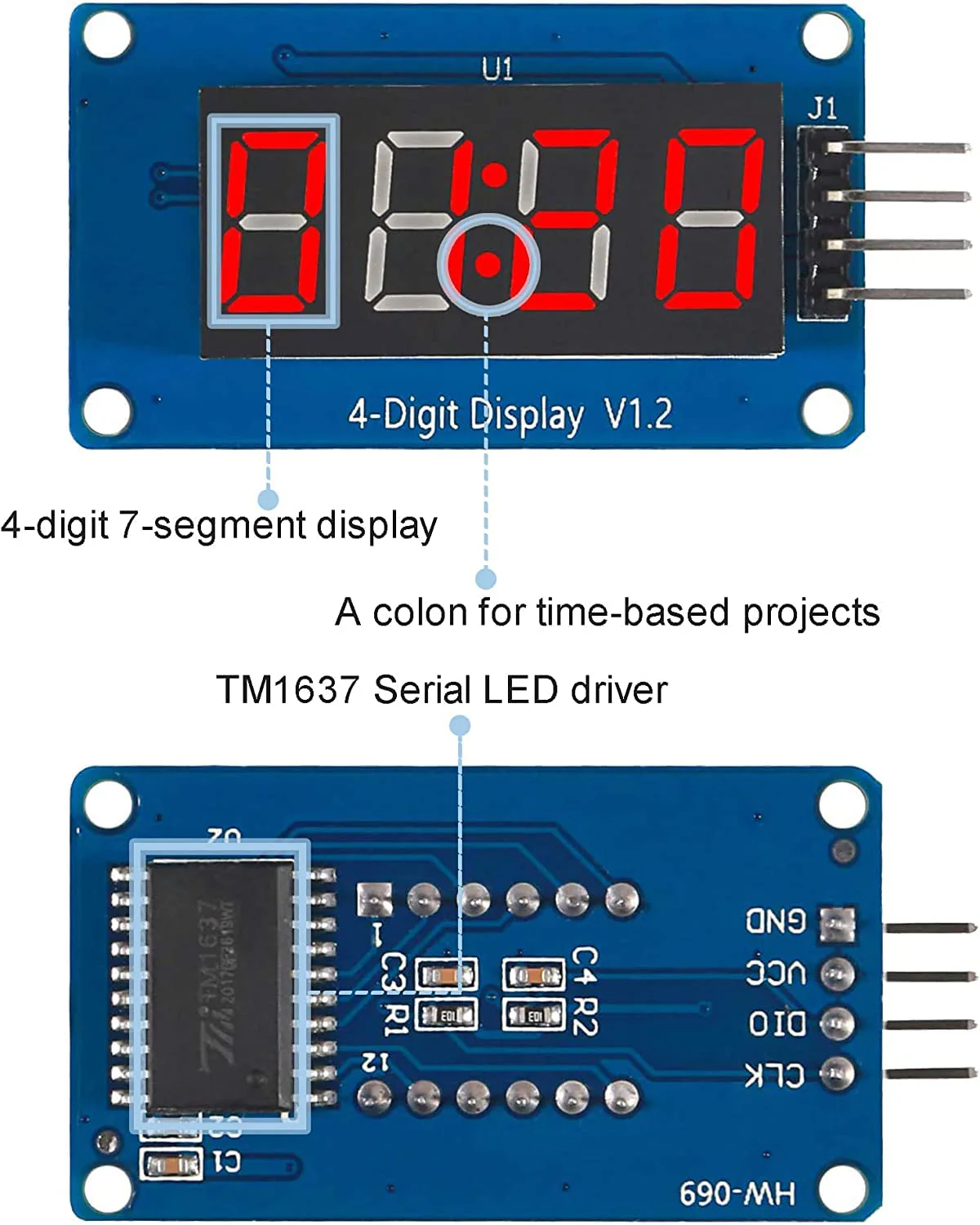

- The driver IC is TM1637, compatible with Arduino.
- The digital display tube can be controlled with only two signal lines, simple and easy to use.

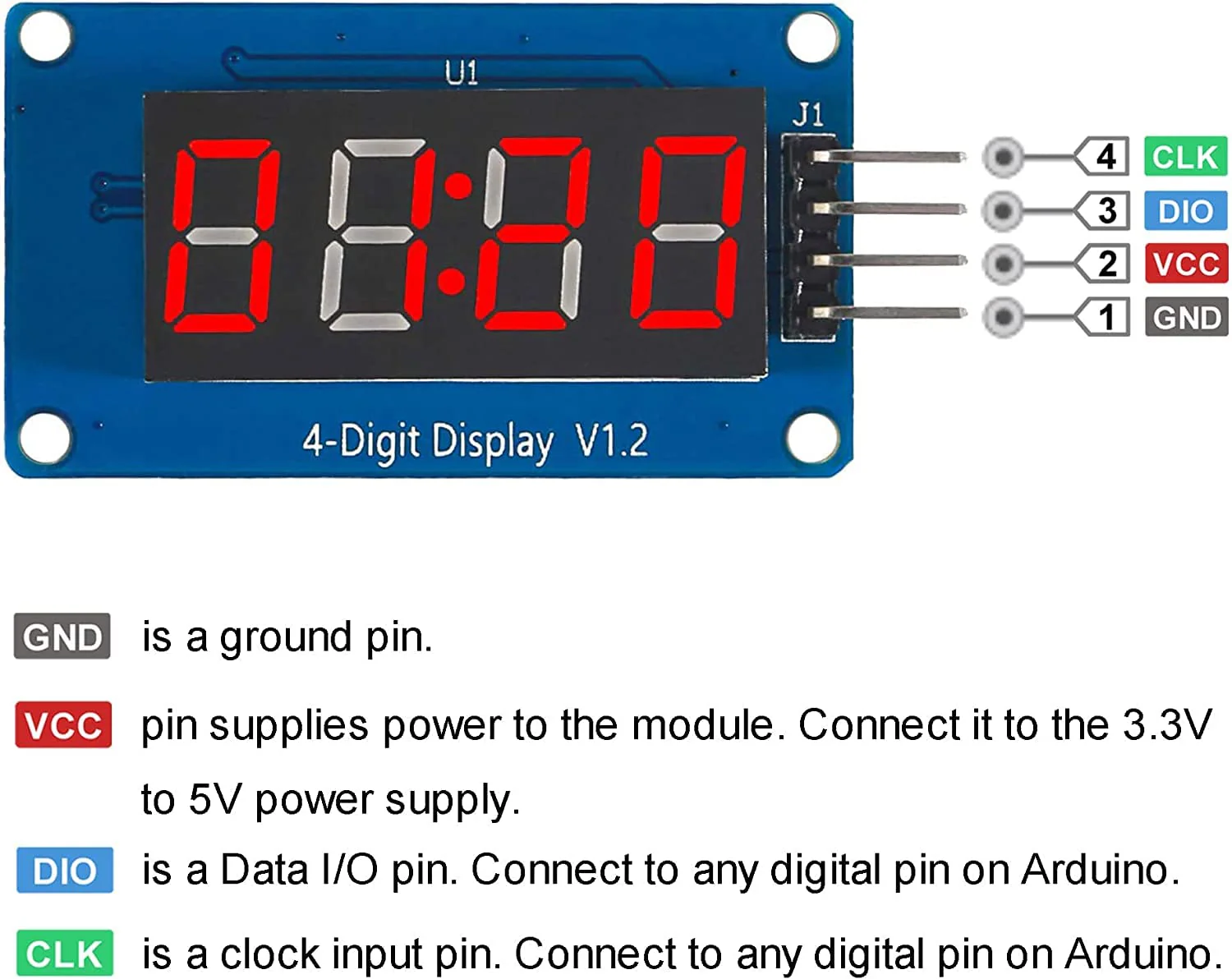

- Control interface: total 4 pins (GND, VCC, DIO, CLK), GND for ground, VCC for the power supply, DIO for the data input and output pins, CLK for the clock signal pin.
- 4 M2 screw holes, easy to install, locate and combine modules.
More Images
DUBEUYEW Display Module TM1637 0.36 Inch 4 Character 7 Segment 4 Bits Red Digital Tube for Arduino Driver Board (Pack of 4)
DUBEUYEW Display Module TM1637 0.36 Inch 4 Character 7 Segment 4 Bits Red Digital Tube for Arduino Driver Board (Pack of 4)
- The module is a 12 foot clock with 4 points of positive digital (0.36 inch) display module driver IC TM1637, SCM four 8-segment LED can be controlled by two signal lines - Display common anode for the four red LEDs. - Digital tube 8 grey adjustable. - Level control interface for 5V or 3.3V - Size: 42 x 24 x 12 mm. - 4 M2 screws positioning holes for easy installation. Features - Control interface: Total four pins (GND, VCC, DIO, CLK), GND to ground, VCC is the power supply, DIO is the data input and output pin, CLK is the clock signal pin - Digital tube 4 common anode points with 0.36 inch LED, bright red. - Positioning holes. 4 M2 screws positioning hole diameter is 2.2 mm, the positioning of the module is easy to install to achieve the combination between modules Package includes: 4 x 4-bit LED digital tube module.
Product Features
- 4-digit LED display module, red glowing with adjustable LED brightness and clock point, can display decimals, letters, etc.
- The driver IC is TM1637, compatible with Arduino.
- The digital display tube can be controlled with only two signal lines, simple and easy to use.
- Control interface: total 4 pins (GND, VCC, DIO, CLK), GND for ground, VCC for the power supply, DIO for the data input and output pins, CLK for the clock signal pin.
- 4 M2 screw holes, easy to install, locate and combine modules.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DUBEUYEW Display Module TM1637 0.36 Inch 4 Character 7 Segment 4 Bits Red Digital Tube for Arduino Driver Board (Pack of 4)
- The module is a 12 foot clock with 4 points of positive digital (0.36 inch) display module driver IC TM1637, SCM four 8-segment LED can be controlled by two signal lines - Display common anode for the four red LEDs. - Digital tube 8 grey adjustable. - Level control interface for 5V or 3.3V - Size: 42 x 24 x 12 mm. - 4 M2 screws positioning holes for easy installation. Features - Control interface: Total four pins (GND, VCC, DIO, CLK), GND to ground, VCC is the power supply, DIO is the data input and output pin, CLK is the clock signal pin - Digital tube 4 common anode points with 0.36 inch LED, bright red. - Positioning holes. 4 M2 screws positioning hole diameter is 2.2 mm, the positioning of the module is easy to install to achieve the combination between modules Package includes: 4 x 4-bit LED digital tube module.
Product Features
- 4-digit LED display module, red glowing with adjustable LED brightness and clock point, can display decimals, letters, etc.
- The driver IC is TM1637, compatible with Arduino.
- The digital display tube can be controlled with only two signal lines, simple and easy to use.
- Control interface: total 4 pins (GND, VCC, DIO, CLK), GND for ground, VCC for the power supply, DIO for the data input and output pins, CLK for the clock signal pin.
- 4 M2 screw holes, easy to install, locate and combine modules.
