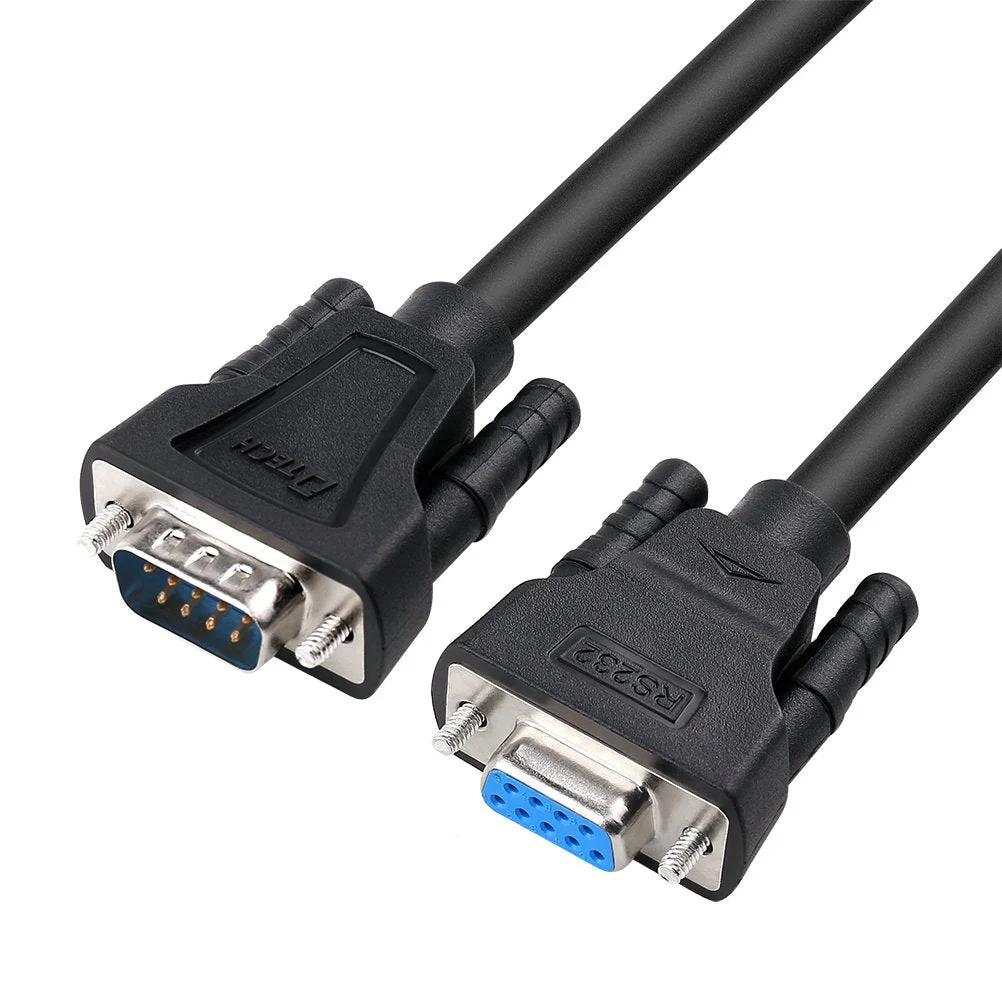

DTech DB9 RS232 Serial Cable Male to Female Null Modem Cord Full Handshaking 7 Wire Crossover for Data Communication Computer Switch Router (1.5 Feet, Black) 1.5ft

DTech DB9 RS232 Serial Cable Male to Female Null Modem Cord Full Handshaking 7 Wire Crossover for Data Communication Computer Switch Router (1.5 Feet, Black)

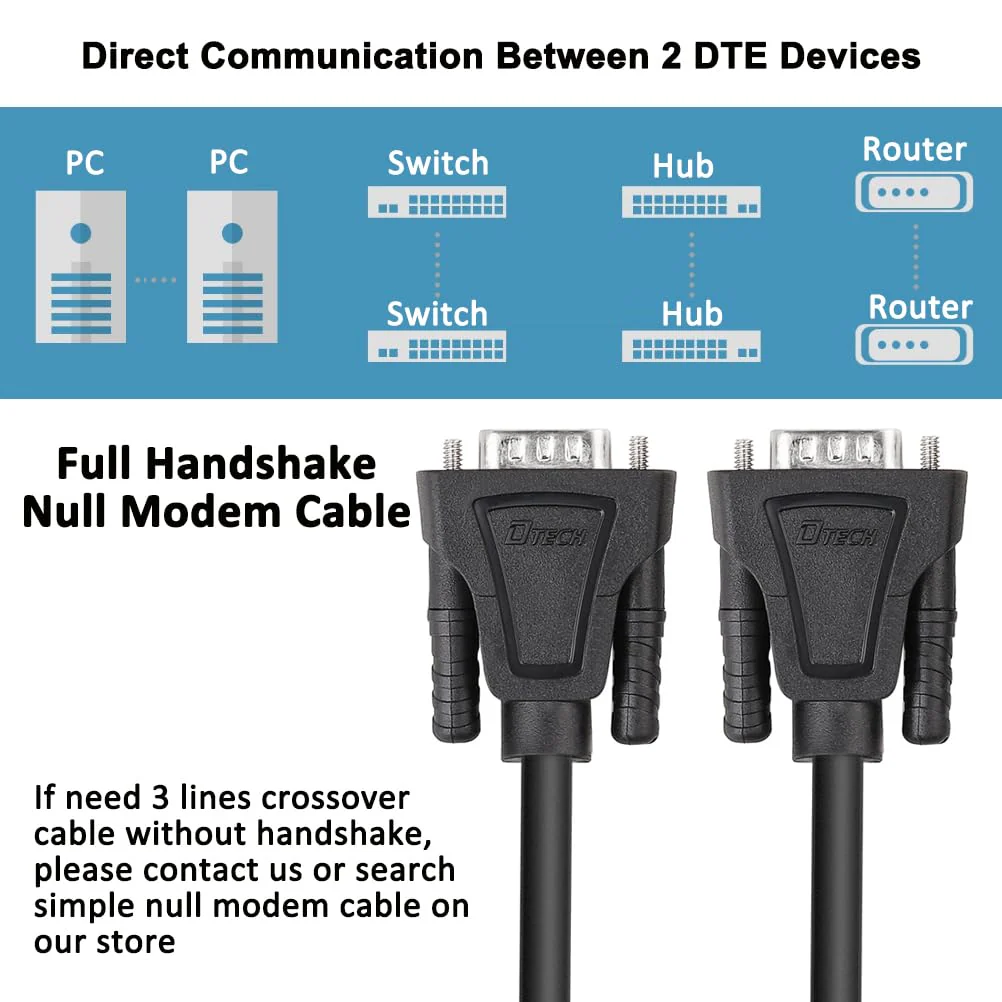

Full Handshaking Signal RS-232 Cross over Cord (7 wires are present), Serial Female to Male Extension Communication transfer data between 2 Data Terminal Equipment DTE devices using RS-232 serial communication protocol. If you need a 9 prong 2 row DB9 full wire null modem serial extension cable long enough to control the legacy equipment, 1.5ft 9 pin serial null modem cable can extend original serial to serial cord. (Note: this is a male to female crossover cable null modem with full handshaking, not simple null modem cable, neither a loopback handshake null modem cable) For RS-232C devices serial console access:the proxySG, MS-DOS PC, advanced secure gateway, content analysis, reporter, management center hardware devices, network equipment, etc. Black 1.5 ft serial DB9 cable male to female is with gold plated pins for superior corrosion resistance, ensuring a solid basic null modem cable connection. The 9 prong 2 row DB-9 connectors are equipped with a pair of thumbscrews for securing the plug to the female socket. DB9 RS232 cable is shielded with Foil- Al layer shielding as most crossover serial cables do, it fits for most of jobs. But if there are big mess of interference at your work area, you may need a special heavy duty DB9 cable that features copper braided + AL-foil double shielded layer. Note: 1. A short RS232 serial crossover cable male to female port, DO NOT perform straight through function. 2. Not 15 pin 3 row VGA cable to connects computer to monitor for video, is only for 9 pin 2 row RS 232 communication. Connectors: DB9 to DB9 Male-Female Interface Surface: Nickel-plated Pins Surface: Gold-plated Wire Gauge: 30 AWG Cord Diameter: 6mm Cord Length: 1.5 ft (0.5 meter) What’s Included: 1 x Serial to Serial Cable Null Modem M/F

Product Features

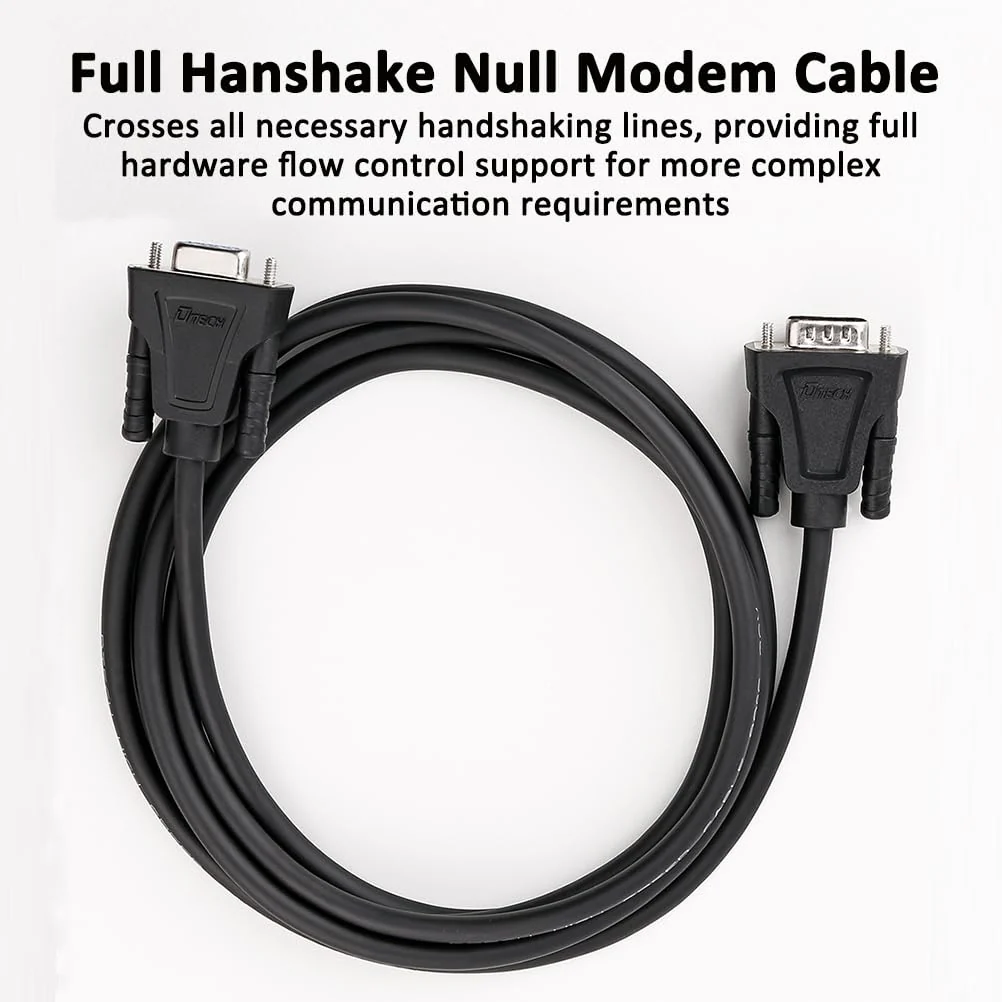

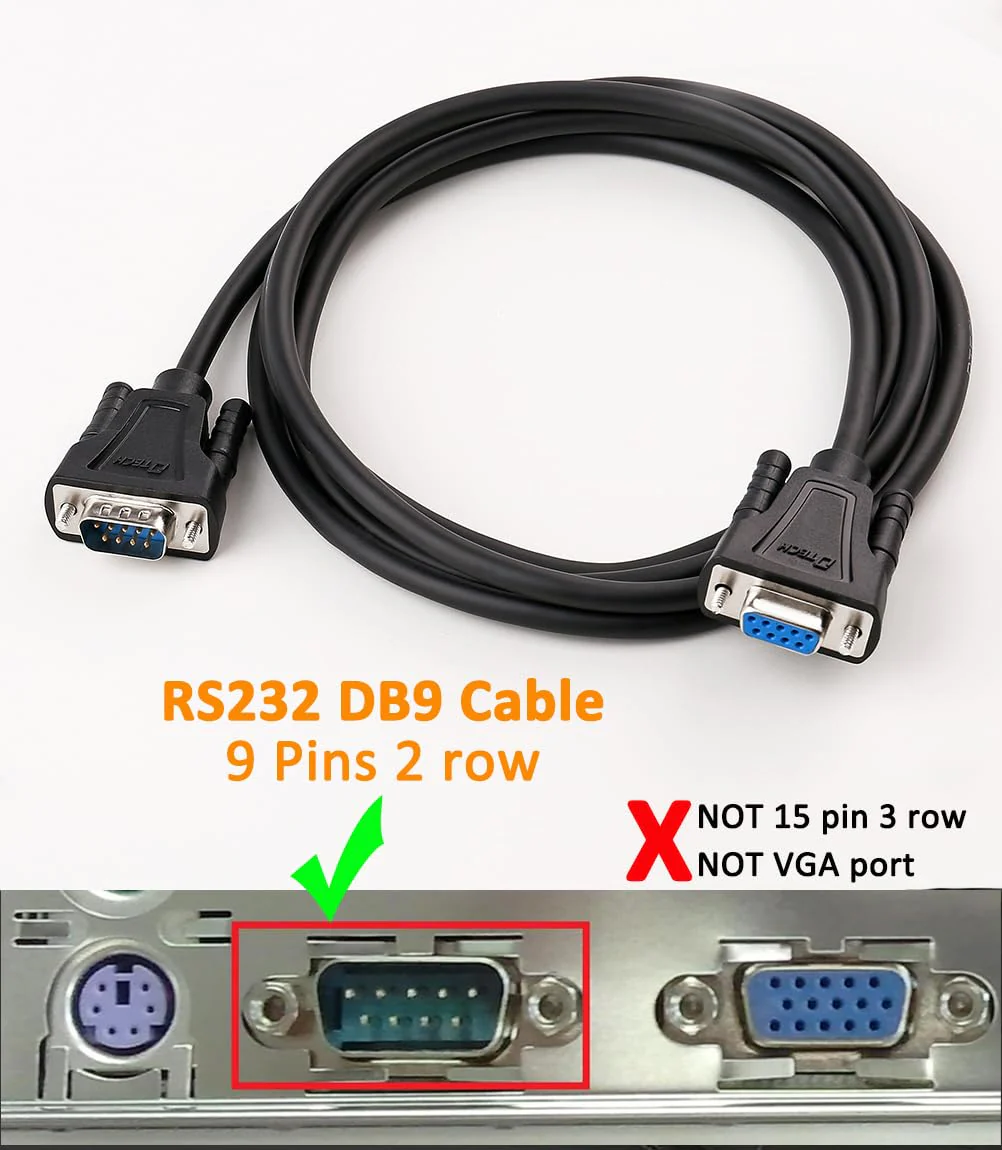

• 5ft male to female serial null modem cable (7 wire present full handshaking) Male to Female connect 2 DTE devices with 9 prong 2 row COM port RS-232 compatible interface (NOT 15 pin 3 row VGA video)

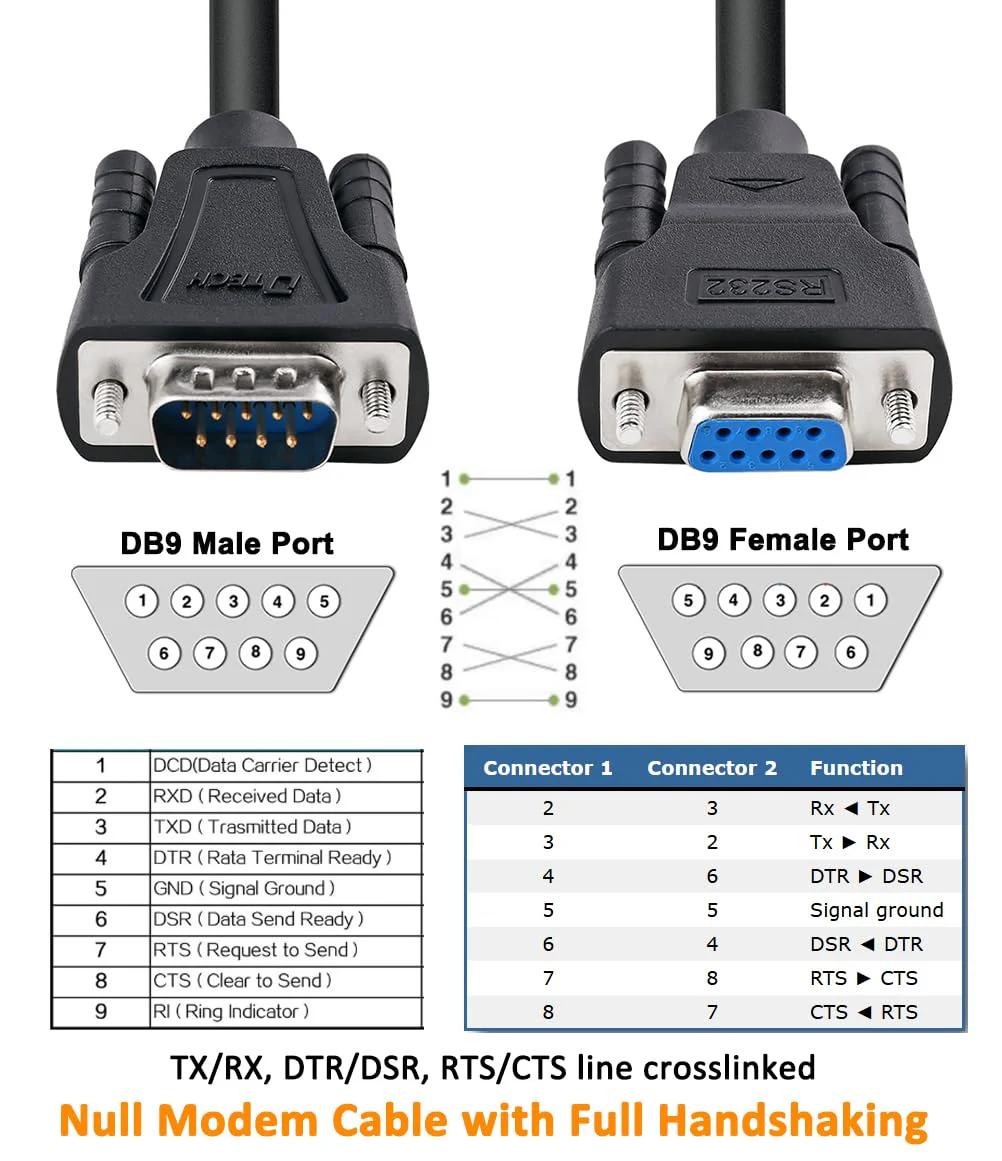

• RS232 cable is wired as 9 pin serial port Null-Modem cord that 2-3, 4-6, 7-8 line are cross linked (TX,RX,RTS, CTS, DTR,DSR wires are connected); AL foil shielded crossover rs232 cable male to female

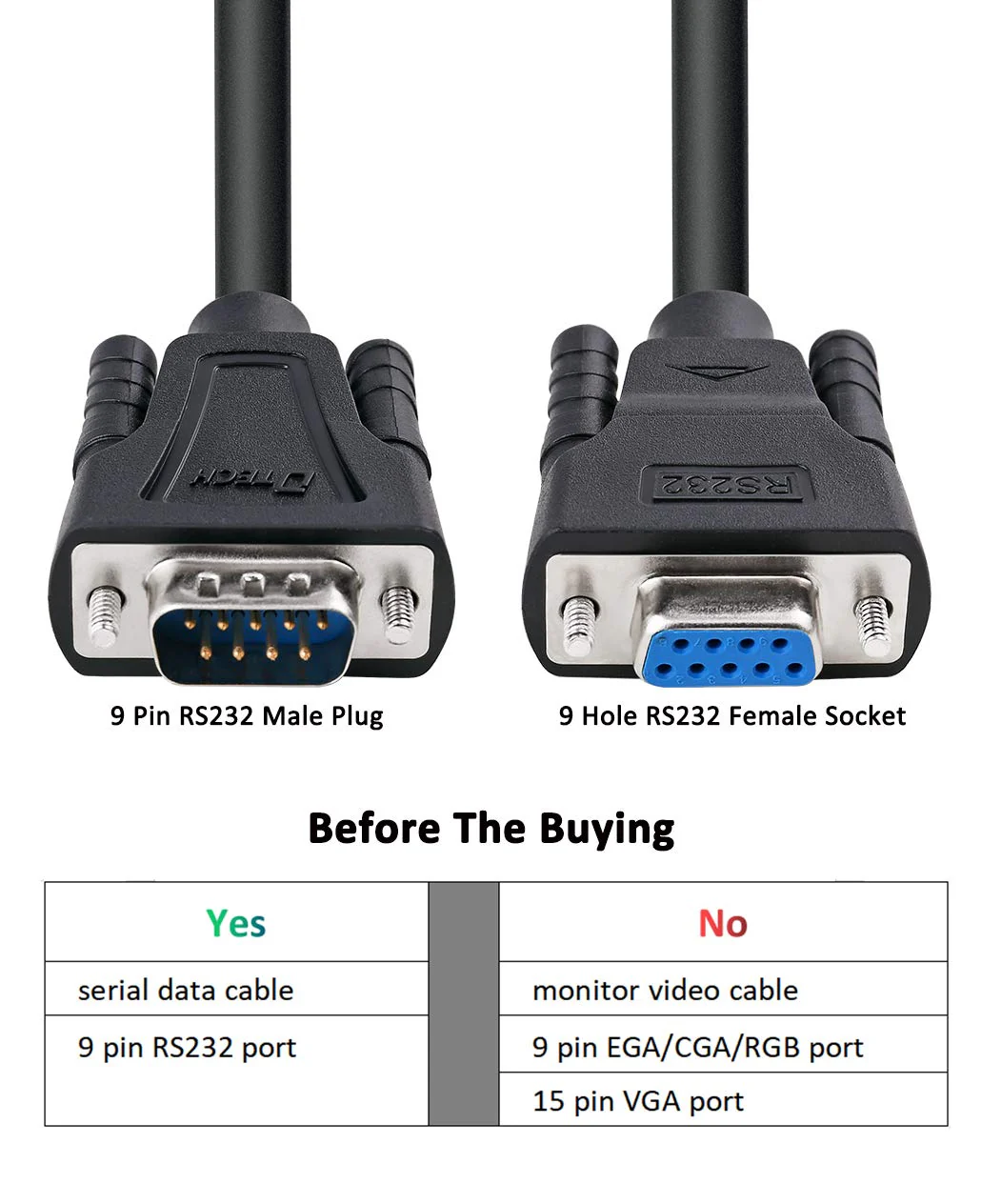

• 9 pin 2 row DB9 female to male connector on each end equipped with screws to ensure an easy and solid serial extension connection for stable data communication
• The wires inside are of 30AWG gauge and easy to solder to, and they connect to the pins in the order of the standard wire color code (RS-232 serial cable, not computer monitor DB15 VGA-cable)
• 1.5 feet short null serial adapter m/f for hooking up RS232C PC laptop, desktop computer, switch hub, router to transfer file, share resource, direct serial communication link, debugging , testing
