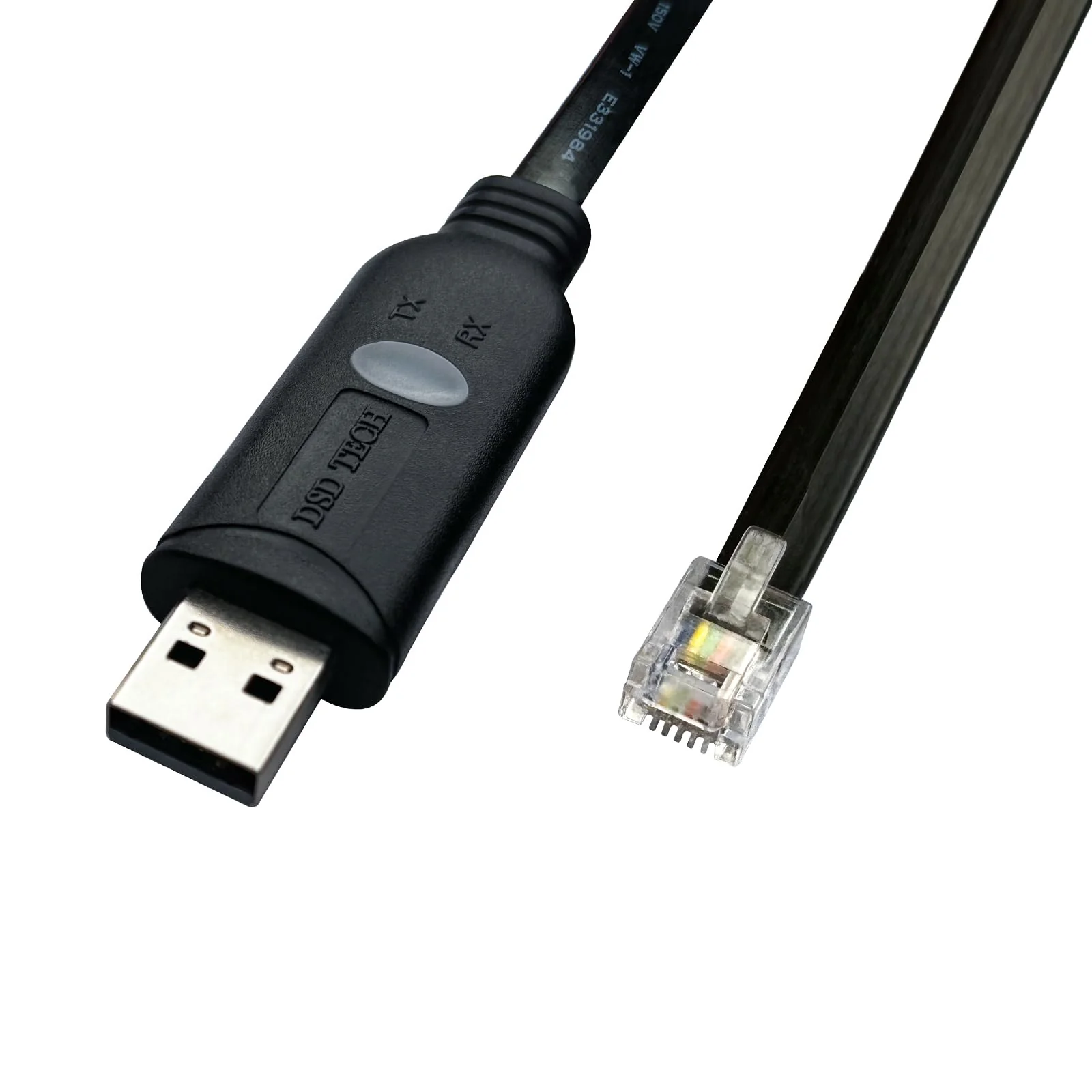

DSD TECH SH-RJ12C USB to RJ12 6P4C RS232 Serial Cable for APC PDU ATS(5.9FT/1.8M)
DSD TECH SH-RJ12C USB to RJ12 6P4C RS232 Serial Cable for APC PDU ATS(5.9FT/1.8M)

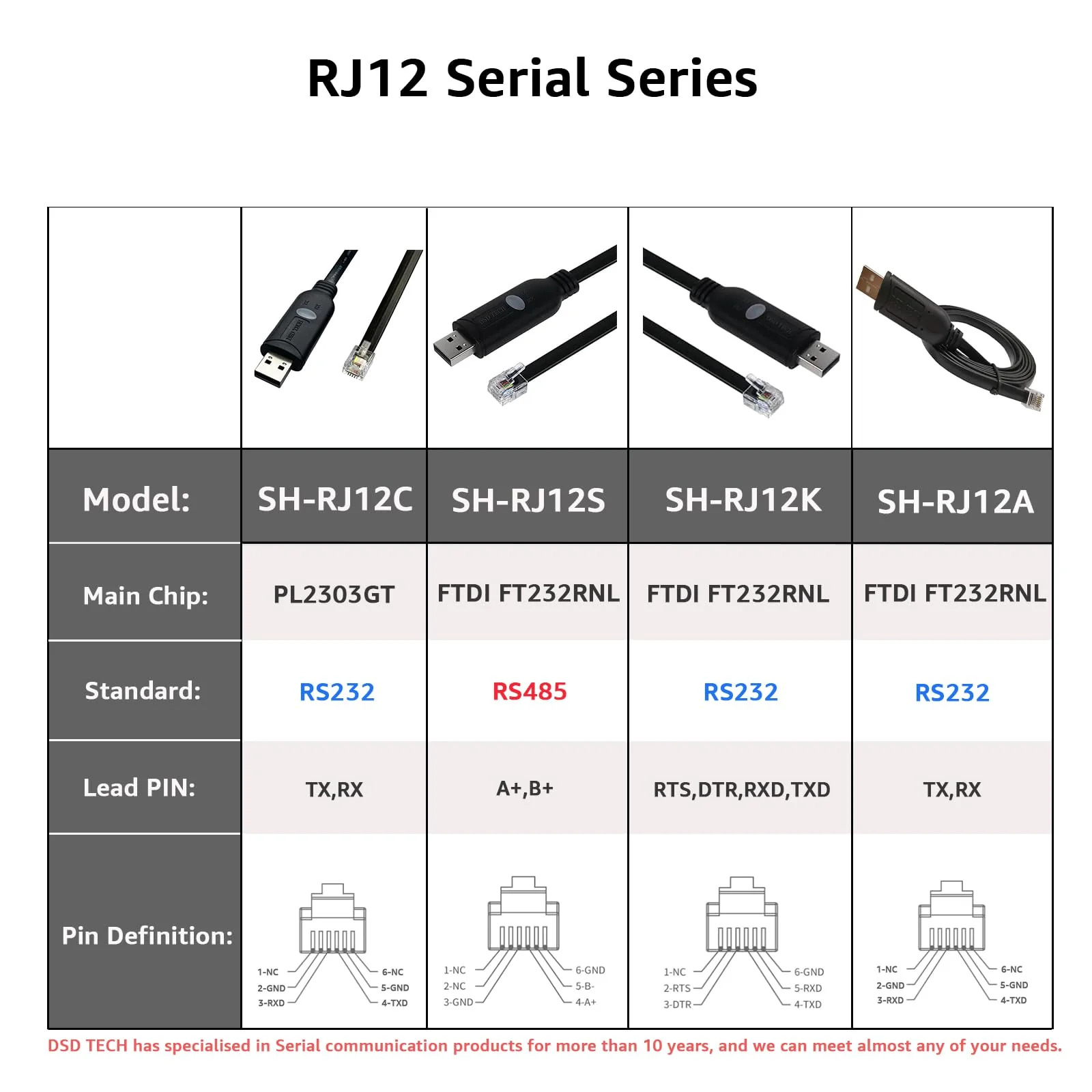

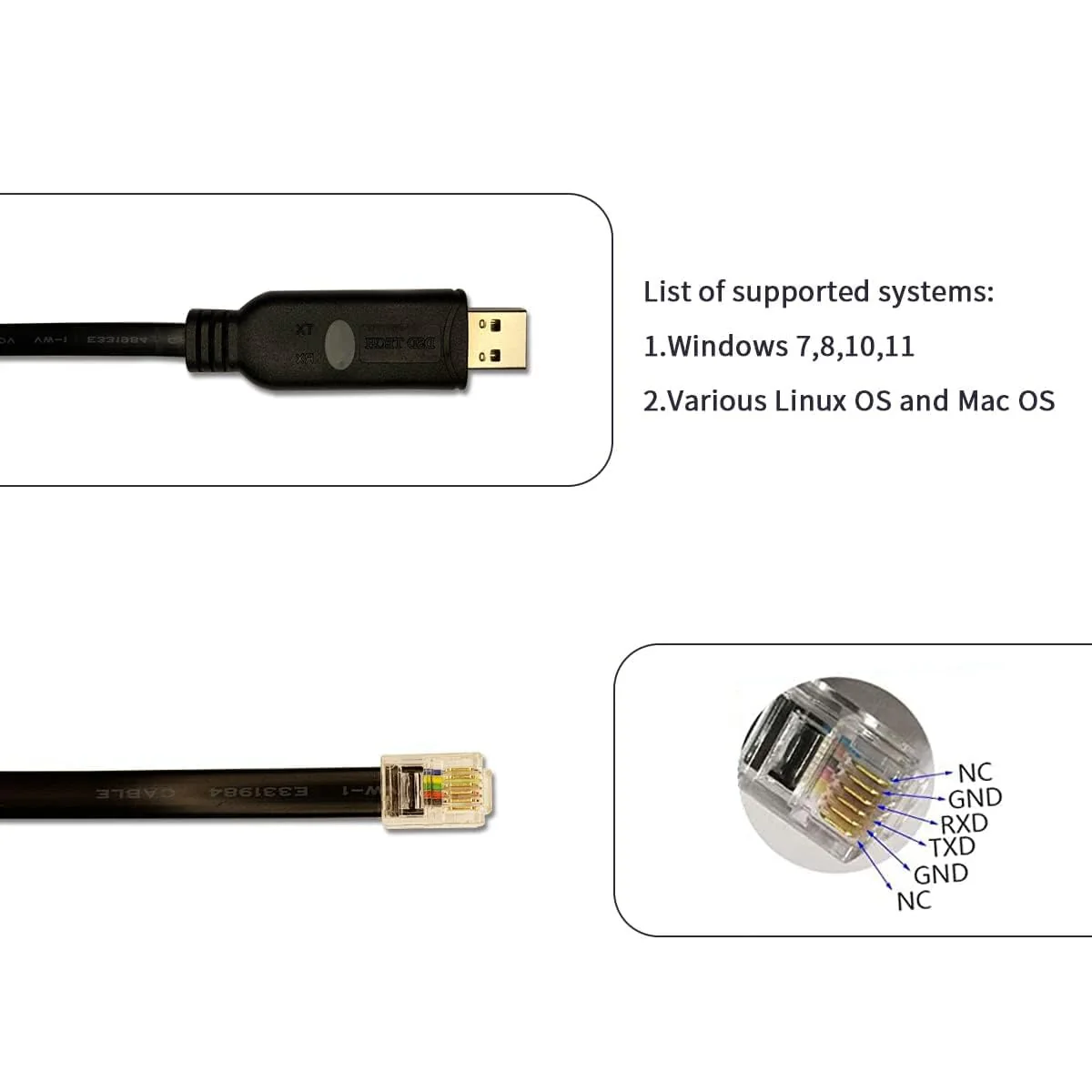

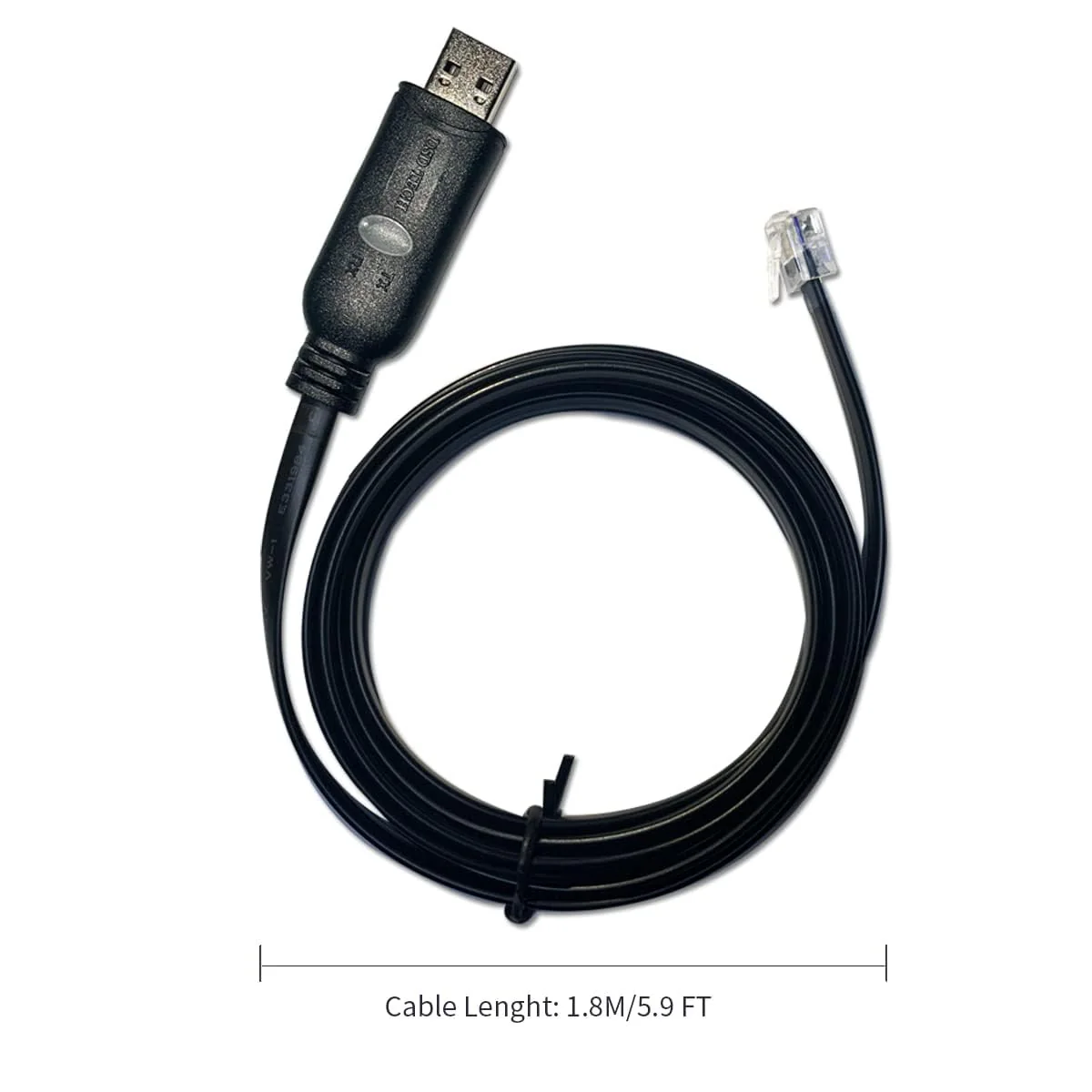

SH-RJ12C is the replacement of APC part 940-0144 and 940-0144A, used for APC switched or metered PDU unit.When your APC PDU or ATS needs to be debugged or configured, you can use this USB to RJ12 Serial Cable to communicate with it. Compatible for most of APC PDU units that have a RJ12 port like APC metered and switched PDU AP78xx, AP79xx, AP86xx, AP88xx, AP89xx, and etc. Specification: Model:SH-RJ12C Main chip:PL2303GT Pin Definition: Gnd,Tx,Rx,Gnd Communication Protocol: RS232 Connectors: USB Type A, RJ12/RJ11 (6P4C) The Maximum Speed: 1 Mbps Cable Lenght: 1.8M/5.9 FT Plug & Play after one time driver installation; Precautions: Although this data cable can transmit RS232 signals, it may not be compatible with your device. Because the line sequence of this data line is: NULL, Gnd, Tx, Rx, GND, NULL (please refer to the picture) Different devices have different requirements for compatible data lines. You can adjust it manually or contact us for customization. Applicable Equipment: APC Automatic Transfer Switch: AP7721, AP7723, AP7730, AP7732, AP7752 APC Rack PDU: P78xx, AP79xx, AP86xx, AP88xx, AP89xx Metered-by-Outlet with Switching Rack PDU: AP8632, AP8641, AP8653, AP8659, AP8659EU3, AP8659NA3, AP8661, AP8681 Metered Rack PDU: AP7152, AP7155, AP7175,AP7800, AP7801, AP7802, AP7802J, AP7811, AP7820 Metered-by-Outlet Rack PDU: AP8441, AP8453,AP8459EU3, AP8459NA3, AP8459WW, AP8461, SPD10K Switched Rack PDU: AP7900, AP7901, AP7902, AP7902J, AP8930J, AP8931, AP8932, AP8930 List of supported systems: 1,Windows 7,8,10,11 2, various Linux OS and Mac OS Packing list: 1 X SH-RJ12C USB to RJ12/RJ11 Serial Cable(5.9 Feet) 1 X User Manual Customer Support: DSD TECH offers a 1-year Replacement service and lifetime technical support for this USB to RJ12/RJ11 Serial Console Cable.If you meet any questions, Please contact us, We will fix your issue within 24 hours.
Product Features
- DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan.
- USB to RJ12/RJ11: RJ12 and RJ11 are the same on the physical interface. The difference is that RJ12 uses 6 data lines, while RJ11 uses 4 data lines.This cable leads to 4 signals: GND, TX, RX, GND.

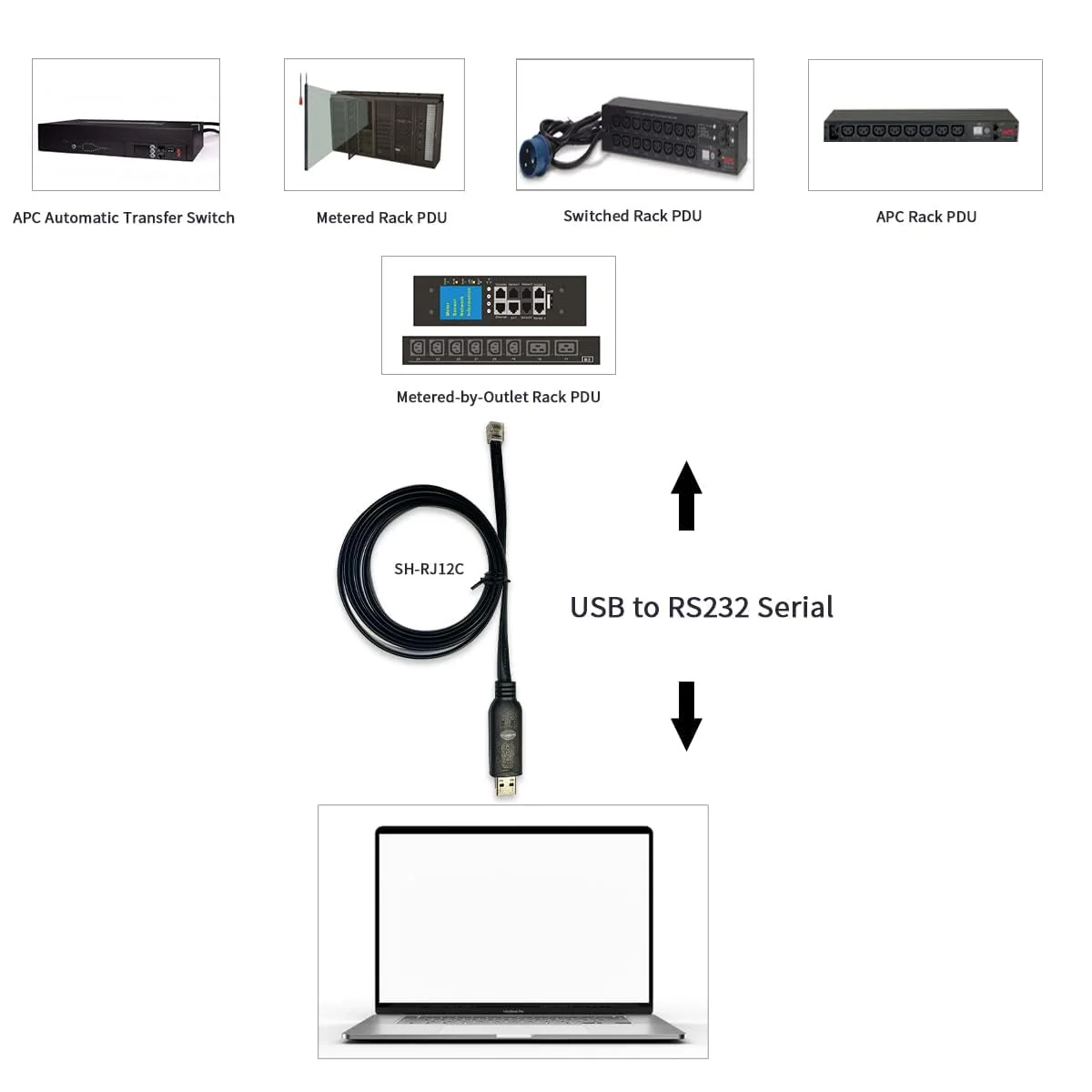

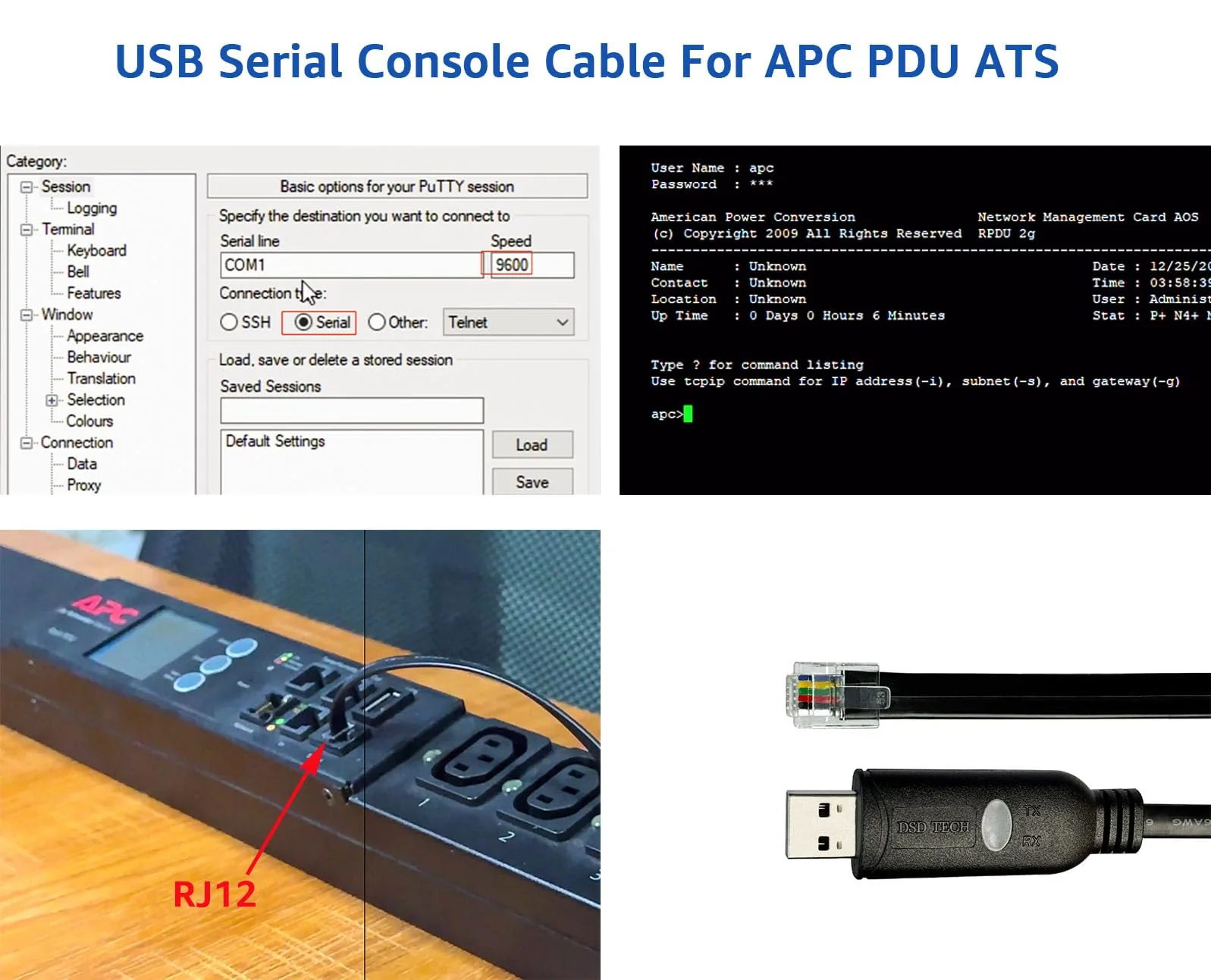

- Manage your APC PDU/ATS:When your APC PDU or ATS needs to be debugged or configured, you can use this USB to RJ12 Serial Cable to communicate with it.
- Replacement for APC Part# 940-0144A. Suitable for the following APC models: AP77XX AP78XX AP79XX AP86XX AP88XX AP89XX.
- Customer Support:Offering permanent technical support and a 1-Year Product Replacement service. All questions will be answered for you within 1 business day
More Images
DSD TECH SH-RJ12C USB to RJ12 6P4C RS232 Serial Cable for APC PDU ATS(5.9FT/1.8M)
DSD TECH SH-RJ12C USB to RJ12 6P4C RS232 Serial Cable for APC PDU ATS(5.9FT/1.8M)
SH-RJ12C is the replacement of APC part 940-0144 and 940-0144A, used for APC switched or metered PDU unit.When your APC PDU or ATS needs to be debugged or configured, you can use this USB to RJ12 Serial Cable to communicate with it. Compatible for most of APC PDU units that have a RJ12 port like APC metered and switched PDU AP78xx, AP79xx, AP86xx, AP88xx, AP89xx, and etc. Specification: Model:SH-RJ12C Main chip:PL2303GT Pin Definition: Gnd,Tx,Rx,Gnd Communication Protocol: RS232 Connectors: USB Type A, RJ12/RJ11 (6P4C) The Maximum Speed: 1 Mbps Cable Lenght: 1.8M/5.9 FT Plug & Play after one time driver installation; Precautions: Although this data cable can transmit RS232 signals, it may not be compatible with your device. Because the line sequence of this data line is: NULL, Gnd, Tx, Rx, GND, NULL (please refer to the picture) Different devices have different requirements for compatible data lines. You can adjust it manually or contact us for customization. Applicable Equipment: APC Automatic Transfer Switch: AP7721, AP7723, AP7730, AP7732, AP7752 APC Rack PDU: P78xx, AP79xx, AP86xx, AP88xx, AP89xx Metered-by-Outlet with Switching Rack PDU: AP8632, AP8641, AP8653, AP8659, AP8659EU3, AP8659NA3, AP8661, AP8681 Metered Rack PDU: AP7152, AP7155, AP7175,AP7800, AP7801, AP7802, AP7802J, AP7811, AP7820 Metered-by-Outlet Rack PDU: AP8441, AP8453,AP8459EU3, AP8459NA3, AP8459WW, AP8461, SPD10K Switched Rack PDU: AP7900, AP7901, AP7902, AP7902J, AP8930J, AP8931, AP8932, AP8930 List of supported systems: 1,Windows 7,8,10,11 2, various Linux OS and Mac OS Packing list: 1 X SH-RJ12C USB to RJ12/RJ11 Serial Cable(5.9 Feet) 1 X User Manual Customer Support: DSD TECH offers a 1-year Replacement service and lifetime technical support for this USB to RJ12/RJ11 Serial Console Cable.If you meet any questions, Please contact us, We will fix your issue within 24 hours.
Product Features
- DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan.
- USB to RJ12/RJ11: RJ12 and RJ11 are the same on the physical interface. The difference is that RJ12 uses 6 data lines, while RJ11 uses 4 data lines.This cable leads to 4 signals: GND, TX, RX, GND.
- Manage your APC PDU/ATS:When your APC PDU or ATS needs to be debugged or configured, you can use this USB to RJ12 Serial Cable to communicate with it.
- Replacement for APC Part# 940-0144A. Suitable for the following APC models: AP77XX AP78XX AP79XX AP86XX AP88XX AP89XX.
- Customer Support:Offering permanent technical support and a 1-Year Product Replacement service. All questions will be answered for you within 1 business day
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DSD TECH SH-RJ12C USB to RJ12 6P4C RS232 Serial Cable for APC PDU ATS(5.9FT/1.8M)
SH-RJ12C is the replacement of APC part 940-0144 and 940-0144A, used for APC switched or metered PDU unit.When your APC PDU or ATS needs to be debugged or configured, you can use this USB to RJ12 Serial Cable to communicate with it. Compatible for most of APC PDU units that have a RJ12 port like APC metered and switched PDU AP78xx, AP79xx, AP86xx, AP88xx, AP89xx, and etc. Specification: Model:SH-RJ12C Main chip:PL2303GT Pin Definition: Gnd,Tx,Rx,Gnd Communication Protocol: RS232 Connectors: USB Type A, RJ12/RJ11 (6P4C) The Maximum Speed: 1 Mbps Cable Lenght: 1.8M/5.9 FT Plug & Play after one time driver installation; Precautions: Although this data cable can transmit RS232 signals, it may not be compatible with your device. Because the line sequence of this data line is: NULL, Gnd, Tx, Rx, GND, NULL (please refer to the picture) Different devices have different requirements for compatible data lines. You can adjust it manually or contact us for customization. Applicable Equipment: APC Automatic Transfer Switch: AP7721, AP7723, AP7730, AP7732, AP7752 APC Rack PDU: P78xx, AP79xx, AP86xx, AP88xx, AP89xx Metered-by-Outlet with Switching Rack PDU: AP8632, AP8641, AP8653, AP8659, AP8659EU3, AP8659NA3, AP8661, AP8681 Metered Rack PDU: AP7152, AP7155, AP7175,AP7800, AP7801, AP7802, AP7802J, AP7811, AP7820 Metered-by-Outlet Rack PDU: AP8441, AP8453,AP8459EU3, AP8459NA3, AP8459WW, AP8461, SPD10K Switched Rack PDU: AP7900, AP7901, AP7902, AP7902J, AP8930J, AP8931, AP8932, AP8930 List of supported systems: 1,Windows 7,8,10,11 2, various Linux OS and Mac OS Packing list: 1 X SH-RJ12C USB to RJ12/RJ11 Serial Cable(5.9 Feet) 1 X User Manual Customer Support: DSD TECH offers a 1-year Replacement service and lifetime technical support for this USB to RJ12/RJ11 Serial Console Cable.If you meet any questions, Please contact us, We will fix your issue within 24 hours.
Product Features
- DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan.
- USB to RJ12/RJ11: RJ12 and RJ11 are the same on the physical interface. The difference is that RJ12 uses 6 data lines, while RJ11 uses 4 data lines.This cable leads to 4 signals: GND, TX, RX, GND.
- Manage your APC PDU/ATS:When your APC PDU or ATS needs to be debugged or configured, you can use this USB to RJ12 Serial Cable to communicate with it.
- Replacement for APC Part# 940-0144A. Suitable for the following APC models: AP77XX AP78XX AP79XX AP86XX AP88XX AP89XX.
- Customer Support:Offering permanent technical support and a 1-Year Product Replacement service. All questions will be answered for you within 1 business day
