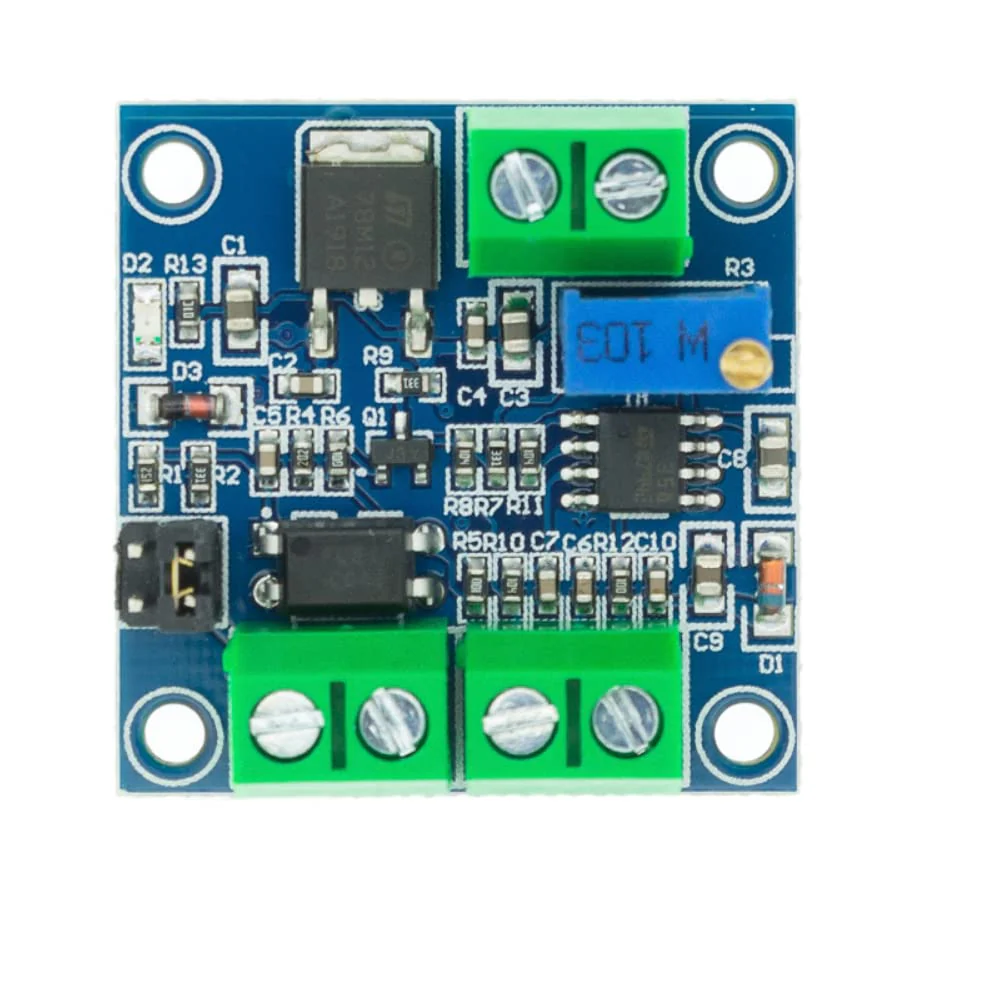

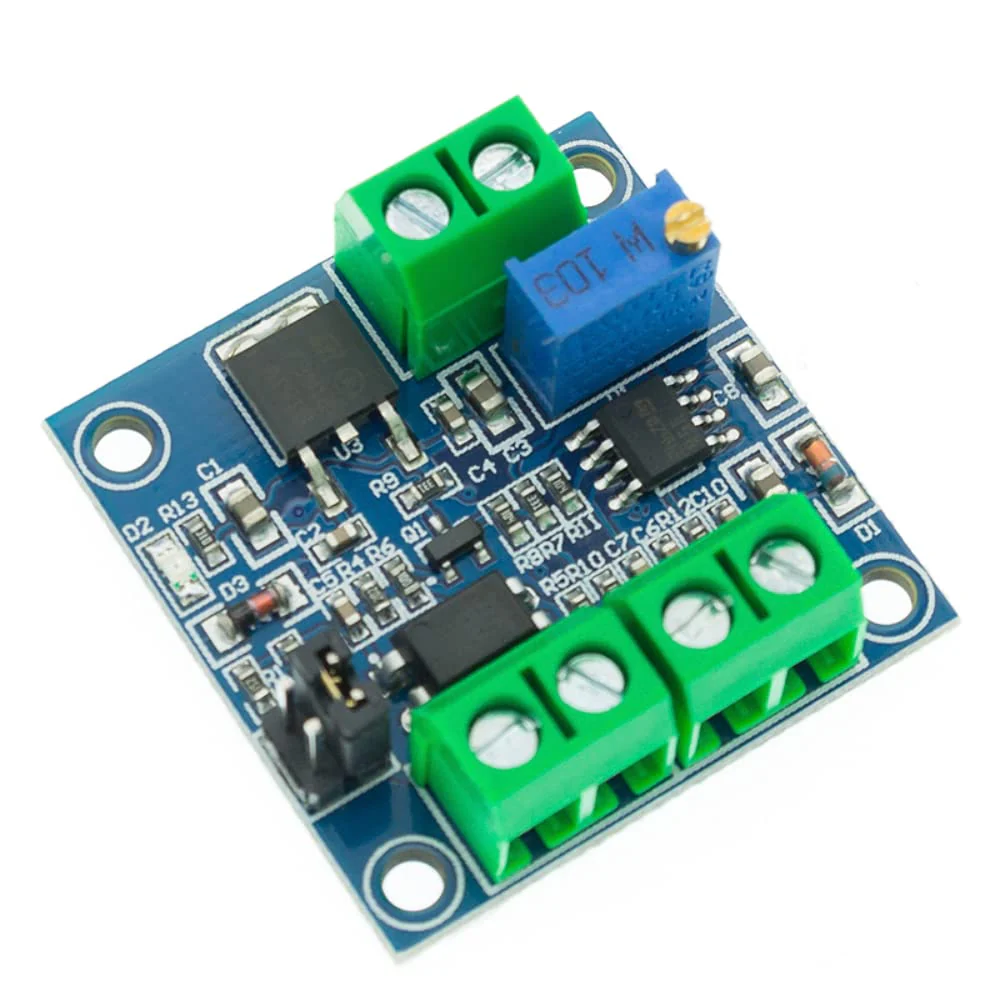

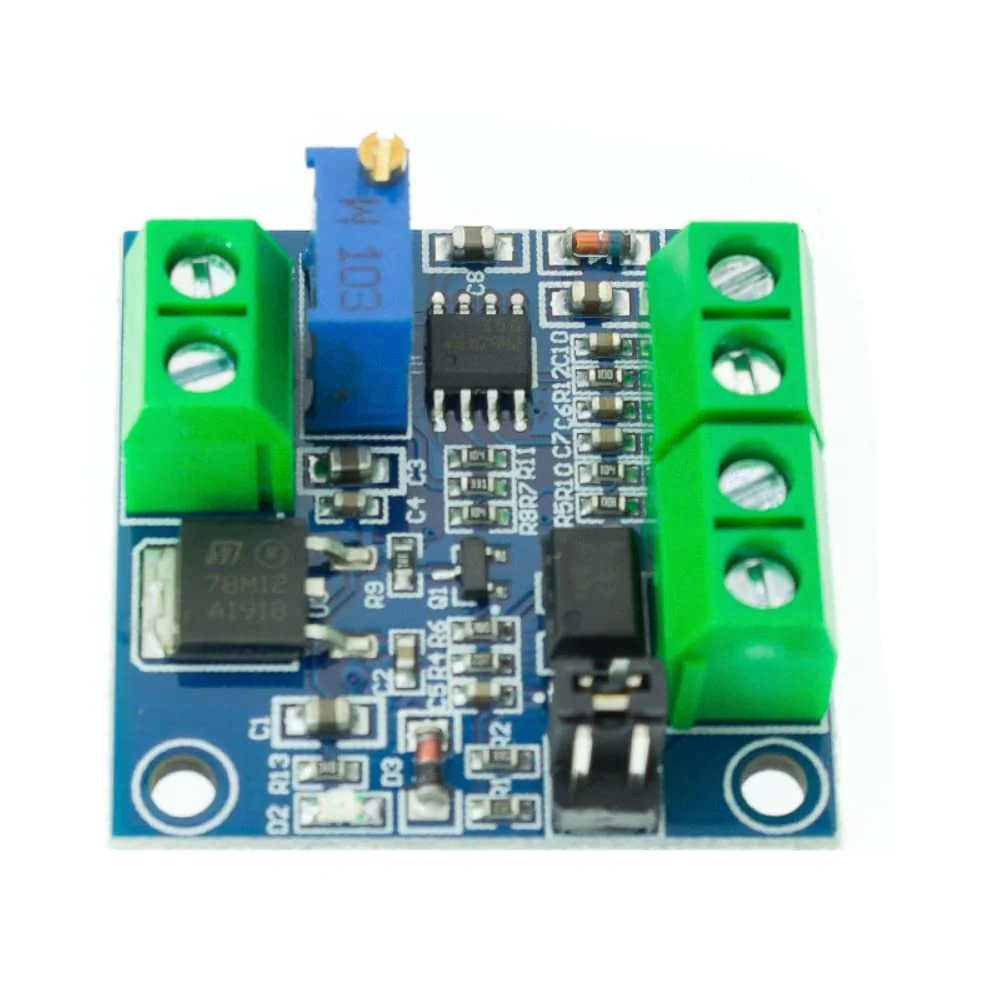

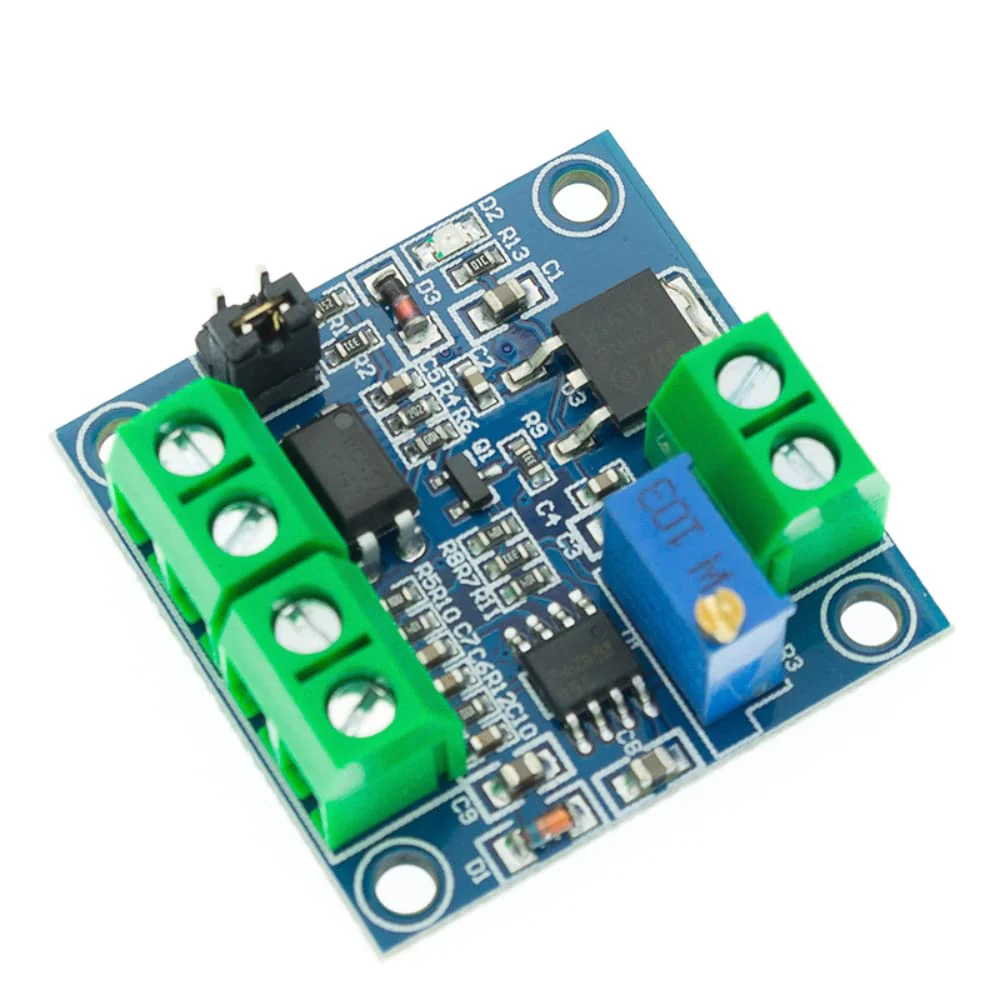

DollaTek PWM Rotary Voltage Module 0% -100% PWM Turn to 0V-10V Voltage
DollaTek PWM Rotary Voltage Module 0% -100% PWM Turn to 0V-10V Voltage

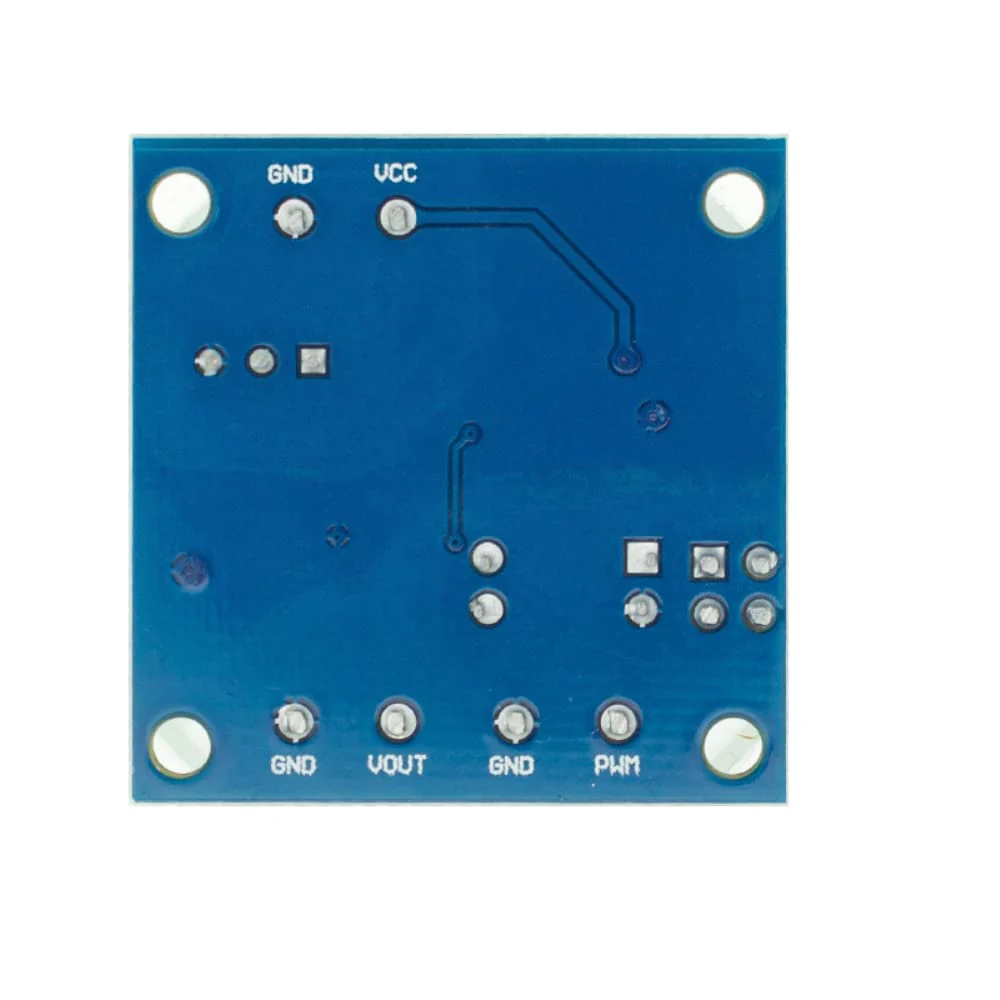

DollaTek trademark Reg.NO:013726393 DollaTek PWM rotary voltage module 0% -100% PWM turn to 0V-10V voltage. Summary: PWM rotary voltage module LC- LM358-PWM2V can convert PWM digital signal into 0 to 10V analog signals. Can be used in the PLC or other industrial panel switch signal interface. By adjusting the PWM duty cycle to adjust the output voltage. Module size is small, easy to use in different places. Technical parameters: Module operating voltage: DC 12V-30V (power requirement: more than 100mA) PWM signal reception frequency range: 1KHz - 3KHz; PWM signal input level range: Feng value from 4.5V to 10V level, jump needle at 5V. Class level signal mainly for conventional industrial control CARDS (e.g. MACH3 cards), 5V CPU interface; Fengfeng value between 12V and 24V level, jump needle at 24V. Class level signal mainly for conventional PLC interface. PWM conversion range: 0% - 100% PWM conversion 0 to 10 V. Introductions: VCC: working power 12V-30V.GND: working power.PWM: input PWM signal positive pole. GND: the input signal is negative end.VOUT: 0 to 10V output voltage.GND: output voltage. Instructions: After power on, there is no input signal, the output is 0V. Electricity for the first time it is best to perform a calibration debugging: find a 50% duty cycle of access to the PWM signal GND, according to the relative amplitude jump needle. The output voltage can be adjusted by adjusting the duty cycle. The precision could be controlled by adjusting the potentiometer. Box contents: 1 x DollaTek PWM rotary voltage module 0% -100% PWM turn to 0V-10V voltage
Product Features
- MCU embedded technology.
- Easy to use, can be passed to fine tuning potentiometer.
- By short circuit, select the PWM signal input level range.
- Module is small, portable and easy to use.
- The frequency in 1 kHz - 3 kHz Vout is measured with a multimeter, GND two ports, the table displays at approx. 5V, adjust the potentiometer on the board, output in 5.00V on the multimeter.
More Images
DollaTek PWM Rotary Voltage Module 0% -100% PWM Turn to 0V-10V Voltage
DollaTek PWM Rotary Voltage Module 0% -100% PWM Turn to 0V-10V Voltage
DollaTek trademark Reg.NO:013726393 DollaTek PWM rotary voltage module 0% -100% PWM turn to 0V-10V voltage. Summary: PWM rotary voltage module LC- LM358-PWM2V can convert PWM digital signal into 0 to 10V analog signals. Can be used in the PLC or other industrial panel switch signal interface. By adjusting the PWM duty cycle to adjust the output voltage. Module size is small, easy to use in different places. Technical parameters: Module operating voltage: DC 12V-30V (power requirement: more than 100mA) PWM signal reception frequency range: 1KHz - 3KHz; PWM signal input level range: Feng value from 4.5V to 10V level, jump needle at 5V. Class level signal mainly for conventional industrial control CARDS (e.g. MACH3 cards), 5V CPU interface; Fengfeng value between 12V and 24V level, jump needle at 24V. Class level signal mainly for conventional PLC interface. PWM conversion range: 0% - 100% PWM conversion 0 to 10 V. Introductions: VCC: working power 12V-30V.GND: working power.PWM: input PWM signal positive pole. GND: the input signal is negative end.VOUT: 0 to 10V output voltage.GND: output voltage. Instructions: After power on, there is no input signal, the output is 0V. Electricity for the first time it is best to perform a calibration debugging: find a 50% duty cycle of access to the PWM signal GND, according to the relative amplitude jump needle. The output voltage can be adjusted by adjusting the duty cycle. The precision could be controlled by adjusting the potentiometer. Box contents: 1 x DollaTek PWM rotary voltage module 0% -100% PWM turn to 0V-10V voltage
Product Features
- MCU embedded technology.
- Easy to use, can be passed to fine tuning potentiometer.
- By short circuit, select the PWM signal input level range.
- Module is small, portable and easy to use.
- The frequency in 1 kHz - 3 kHz Vout is measured with a multimeter, GND two ports, the table displays at approx. 5V, adjust the potentiometer on the board, output in 5.00V on the multimeter.
