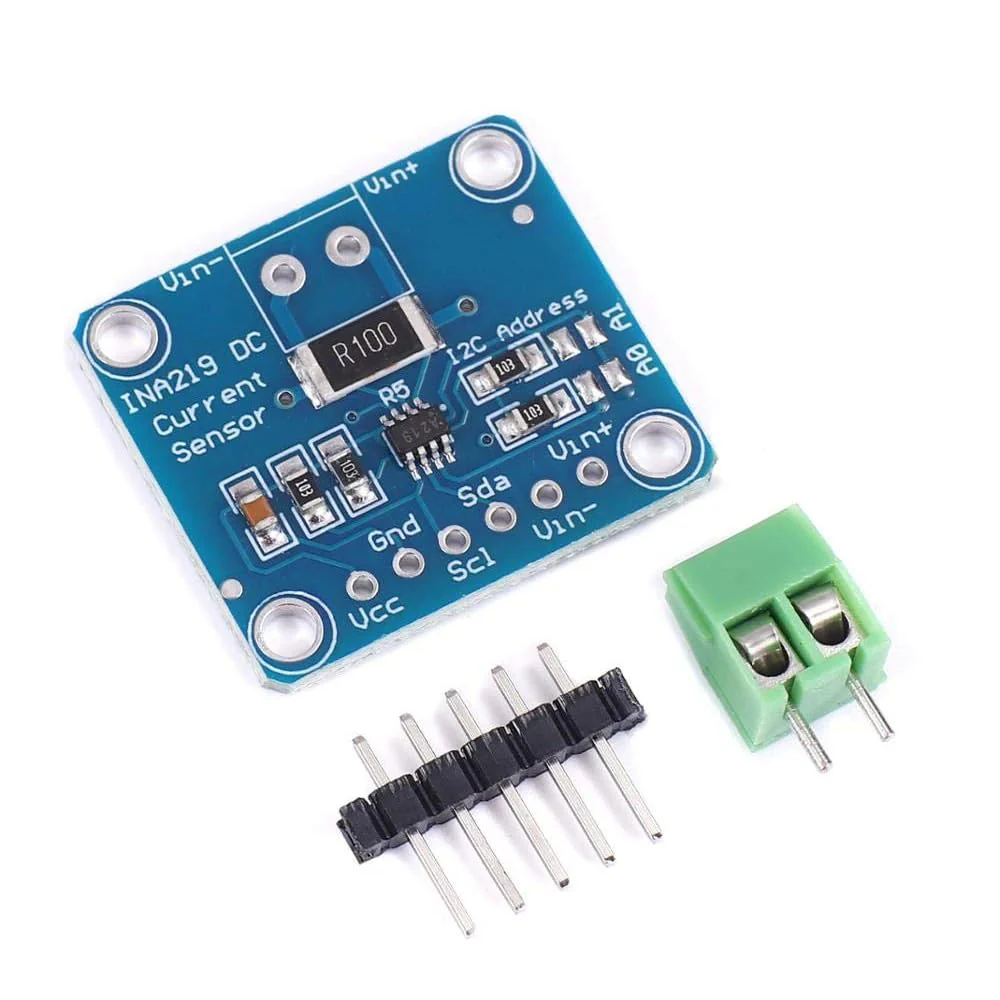

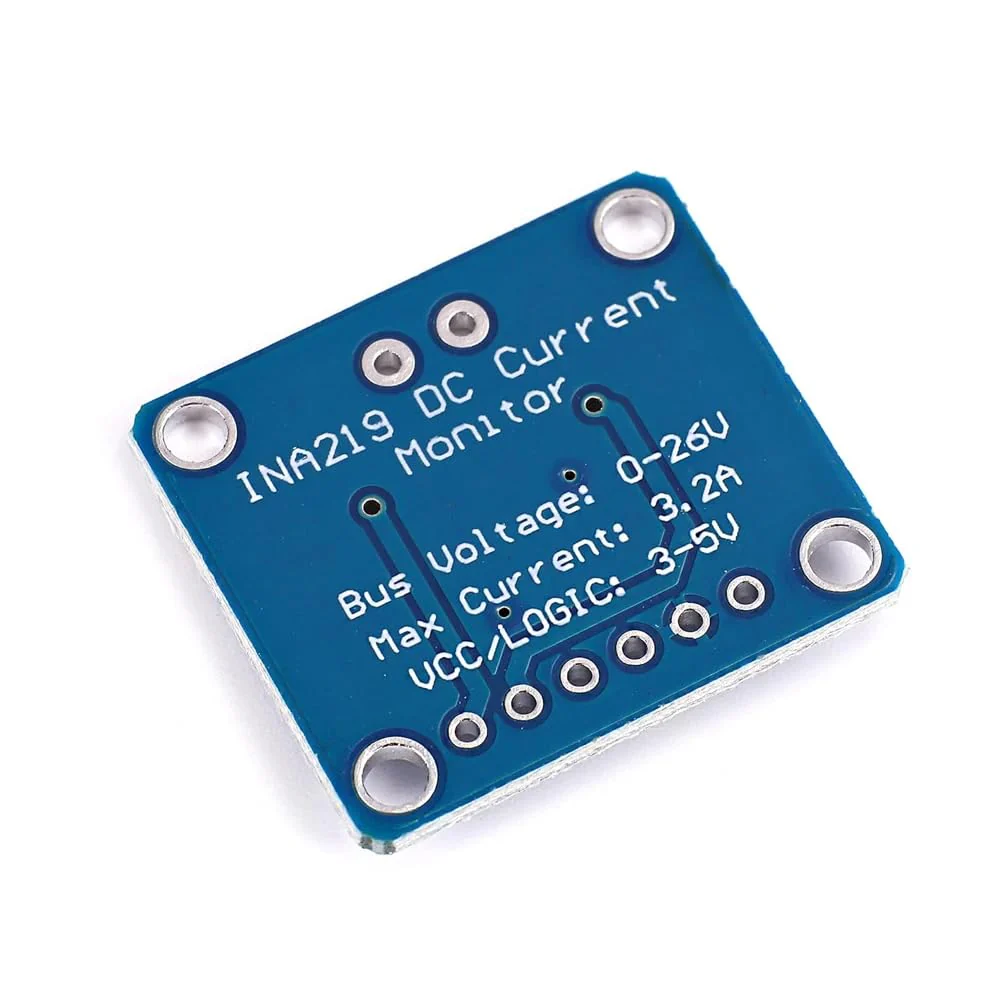

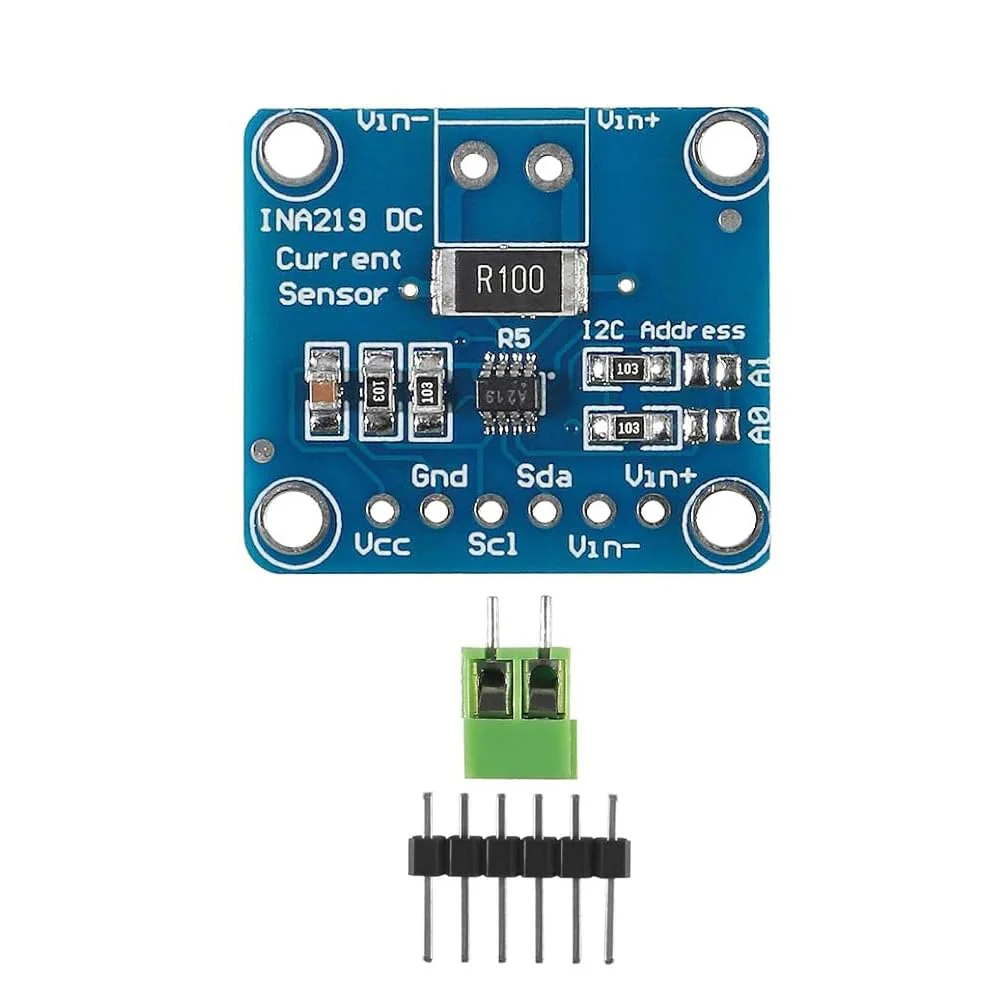

DollaTek INA219 I2C Zero Point Drift Bidirectional Current Monitoring Sensor Module Sensor Breakout Monitoring Modules
DollaTek INA219 I2C Zero Point Drift Bidirectional Current Monitoring Sensor Module Sensor Breakout Monitoring Modules
DollaTek INA219 I2C Zero Point Drift Bidirectional Current Monitoring Sensor Module Sensor Breakout Monitoring Modules

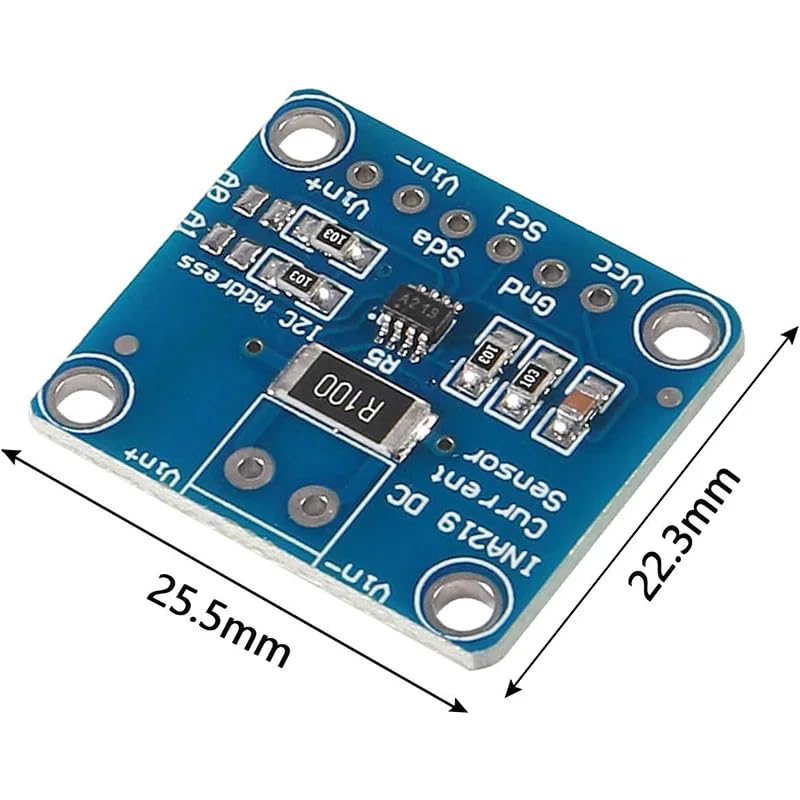

Description: NA21 se puede lograr dentro del rango máximo de 85C de precisión de error de temperatura de -40C a + 1%, el desplazamiento máximo es de 100 uV. Los productos de alta precisión combinan las ventajas de la resolución de 12 bits. Este módulo se puede detectar el voltaje del bus es de 0 V a +26 V. Huella: SOT23. Tensión de trabajo 3 ~ 5V. Size: 25.5 x 22.3 mm. Utilizado para el módulo de sensor de monitoreo de corriente / corriente bidireccional de derivación / cero de puerto I2C Package includes: 1 x INA219 Módulo de sensor bidireccional de corriente continua de corriente continua
Product Features
- HIGH PRECISION The MCU-219 module is a drift-free, bi-directional current/power monitoring IC with an I2C interface that allows high-precision monitoring of voltage drops across shunt resistors, supply voltage and current.
- WIDE TEMPERATURE RANGE & HIGH ACCURACY The INA219 can operate in a temperature range from -40C to +85C with an accuracy of 1% and offset of only 100uV. Its high accuracy combined with a 12-bit resolution allows customers to reduce power loss and power consumption while saving board space.
- Programmable Calibration Register The device has a programmable calibration register that can read current in amps and power in watts, making it versatile and highly customizable for various applications.
- Averaging & Filtering Functions The INA219 can average up to 128 samples to achieve filtering in noisy environments, making it ideal for use in a variety of environments.
- Flexible I2C Interface The I2C interface has timeout settings and high-speed mode, and supports communication rates up to 3.4MHz. All these functions are software programmable and allow a high degree of flexibility in operation.
Original: $84.03
-65%$84.03
$29.41More Images
