DollaTek 5Pcs PCF8574 IO Expansion Board I/O Expander I2C-Bus Evaluation Development Module
DollaTek 5Pcs PCF8574 IO Expansion Board I/O Expander I2C-Bus Evaluation Development Module
DollaTek 5Pcs PCF8574 IO Expansion Board I/O Expander I2C-Bus Evaluation Development Module

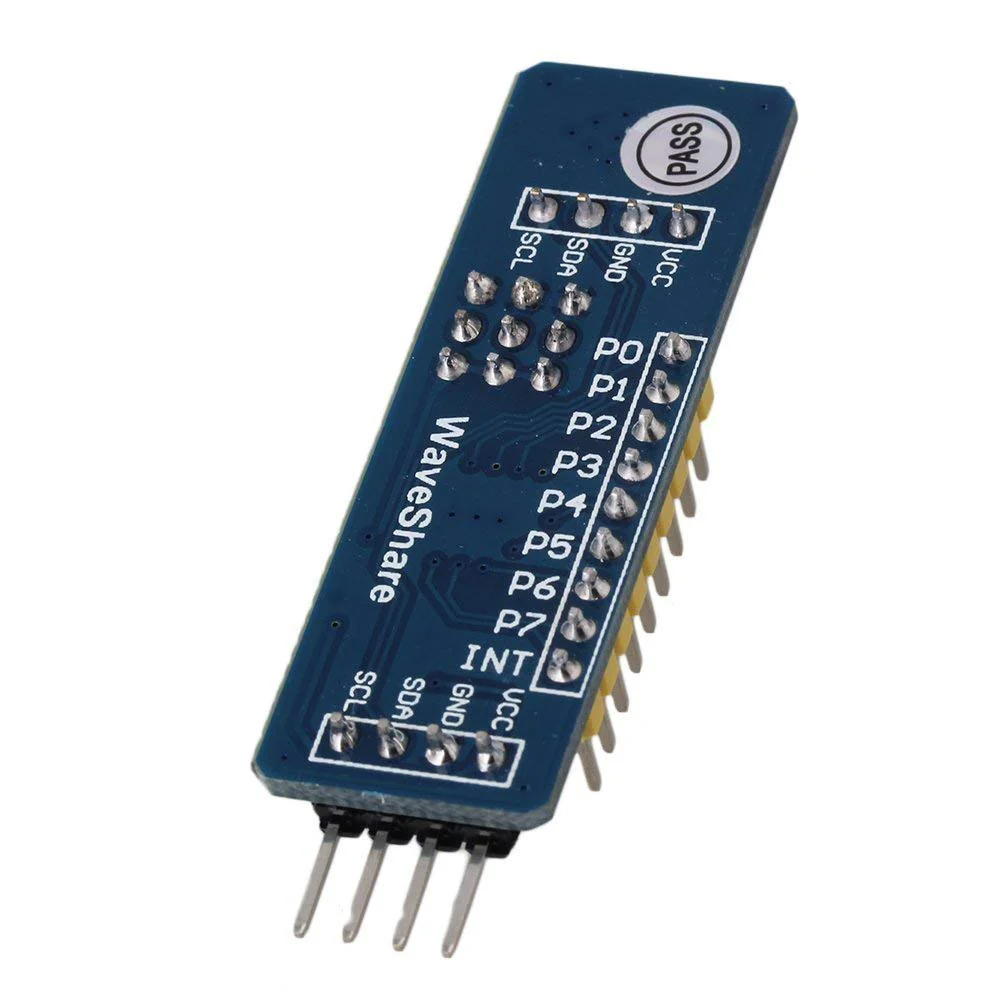

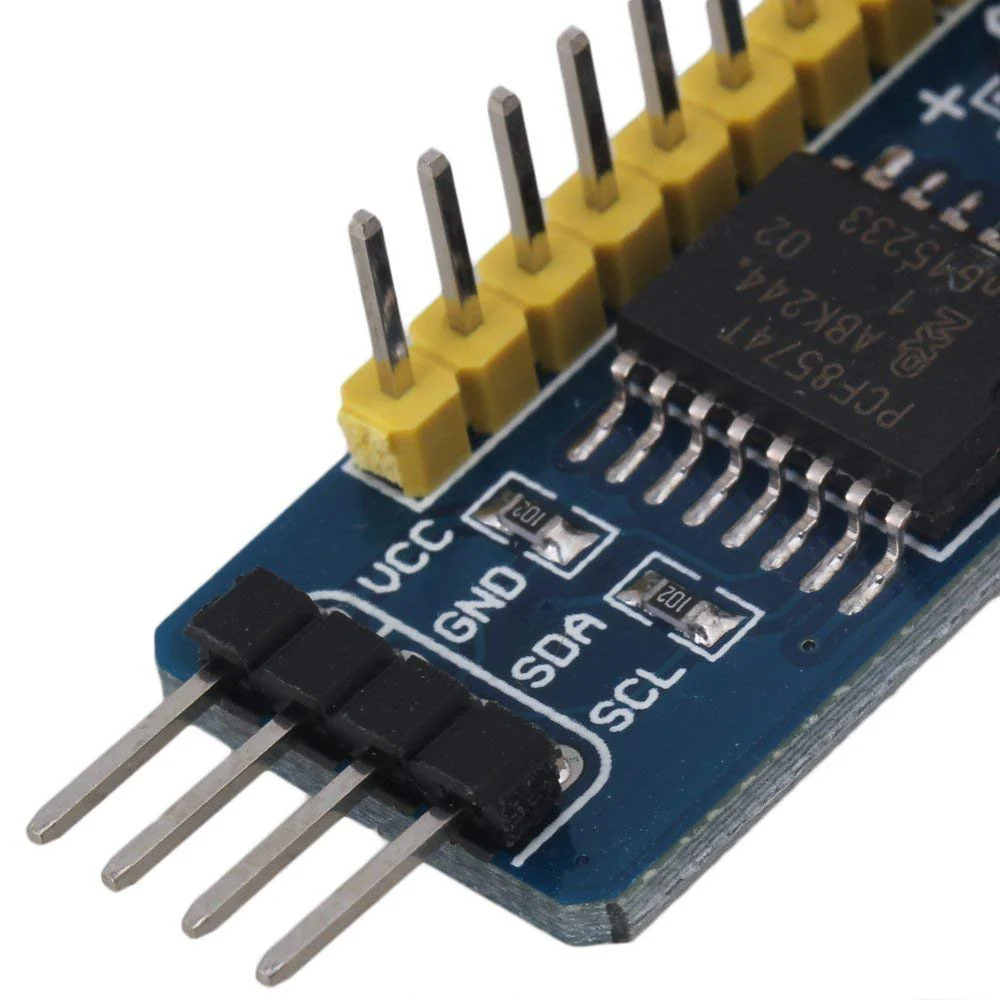

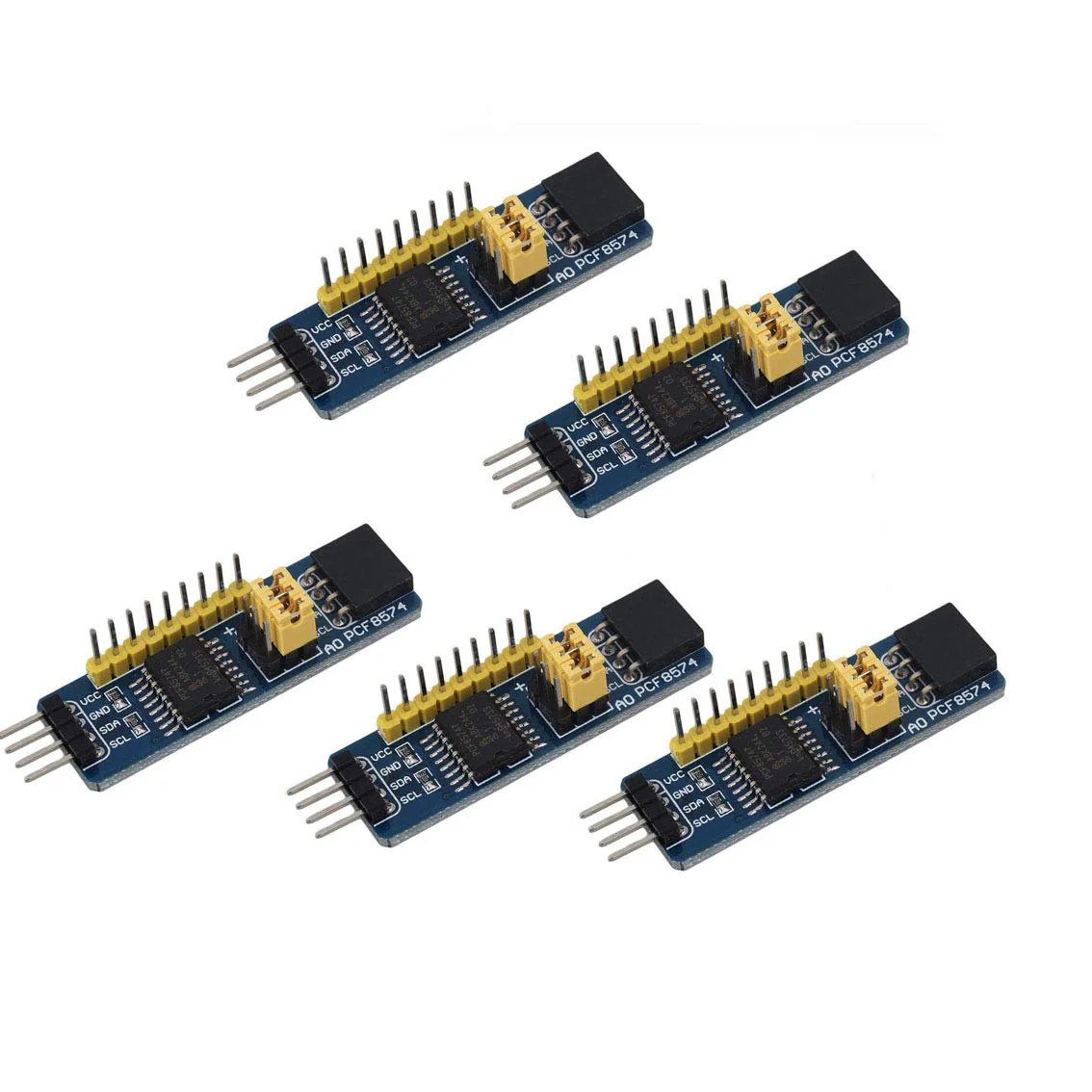

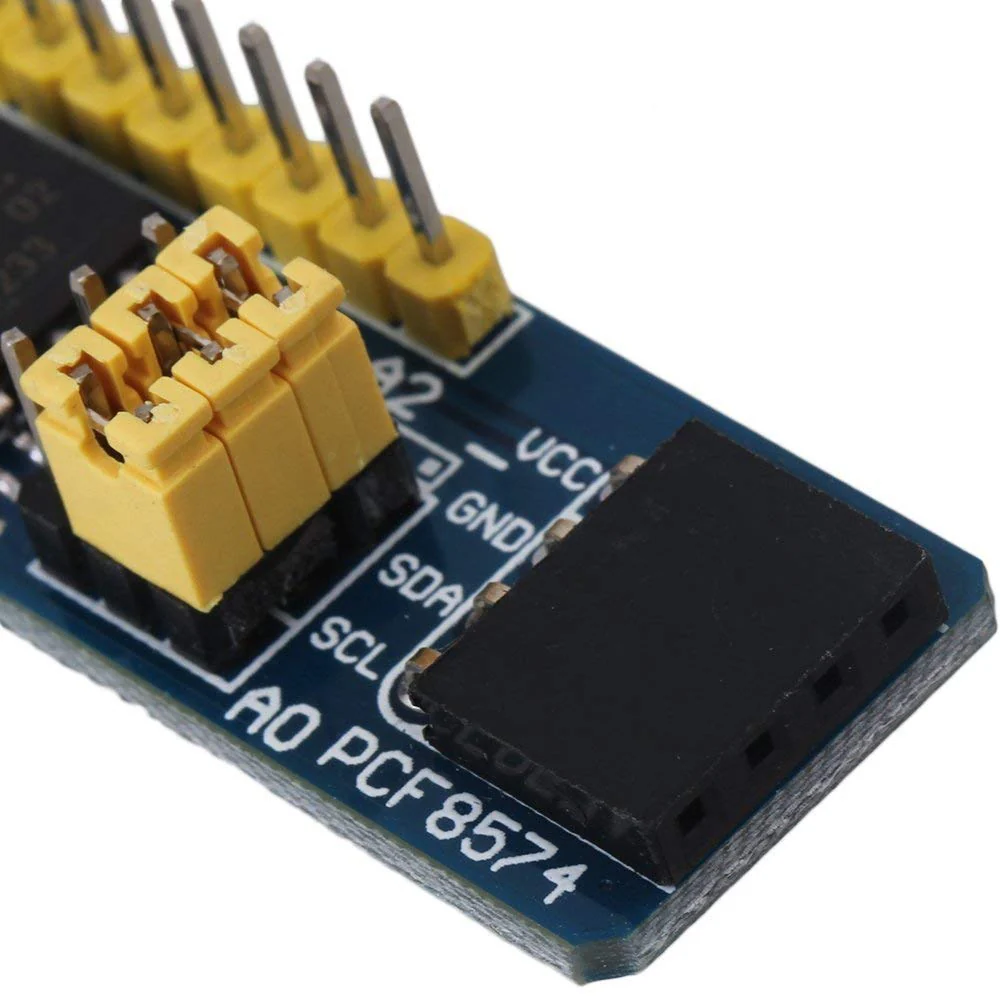

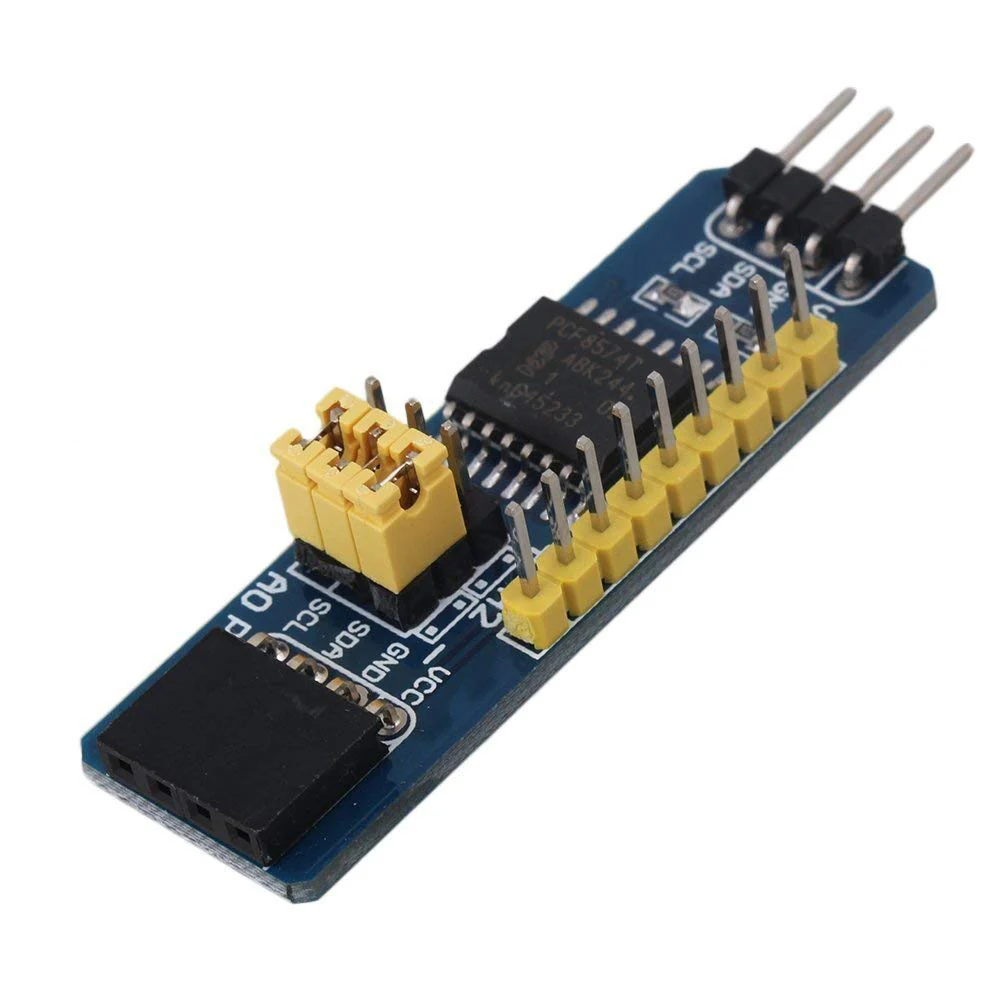

DollaTek trademark Reg.NO:013726393 Features: Based on the I2C interface I / O expansion modules, using two I / O can be extended to eight I / O (up to simultaneous use 8 PCF8574, expanded to 64 I / O) Maximum Features: supports two types of Interface, access to the target board : Pin or row seat 2 supports I2C bus cascade (via pin, row seat docking methods can be used simultaneously multiple I2C modules) Product Properties: Type: Modular/ Components and parts Band : none Interface: I2C Board Type: Pin or row seat Specifications: Typical applications: for I / O resource constraints the MCU I / O expansion The main resources: PCF8574, I2C interface, the 8-bit parallel Size:5415mm Net Weight: 7g Package Included: 5x DollaTek PCF8574 PCF8574T Communication Module
Product Features
- Standard interface that can be expanded in a variety of development boards
- I2C Serial port to 8-bit parallel port , support expand into 88 = 64 at most
- PCF8574 IO expansion chip with I2C interface, 8-bit parallel port output
- Applicable to a variety of platforms including Arduino / AVR / ARM
- 0
