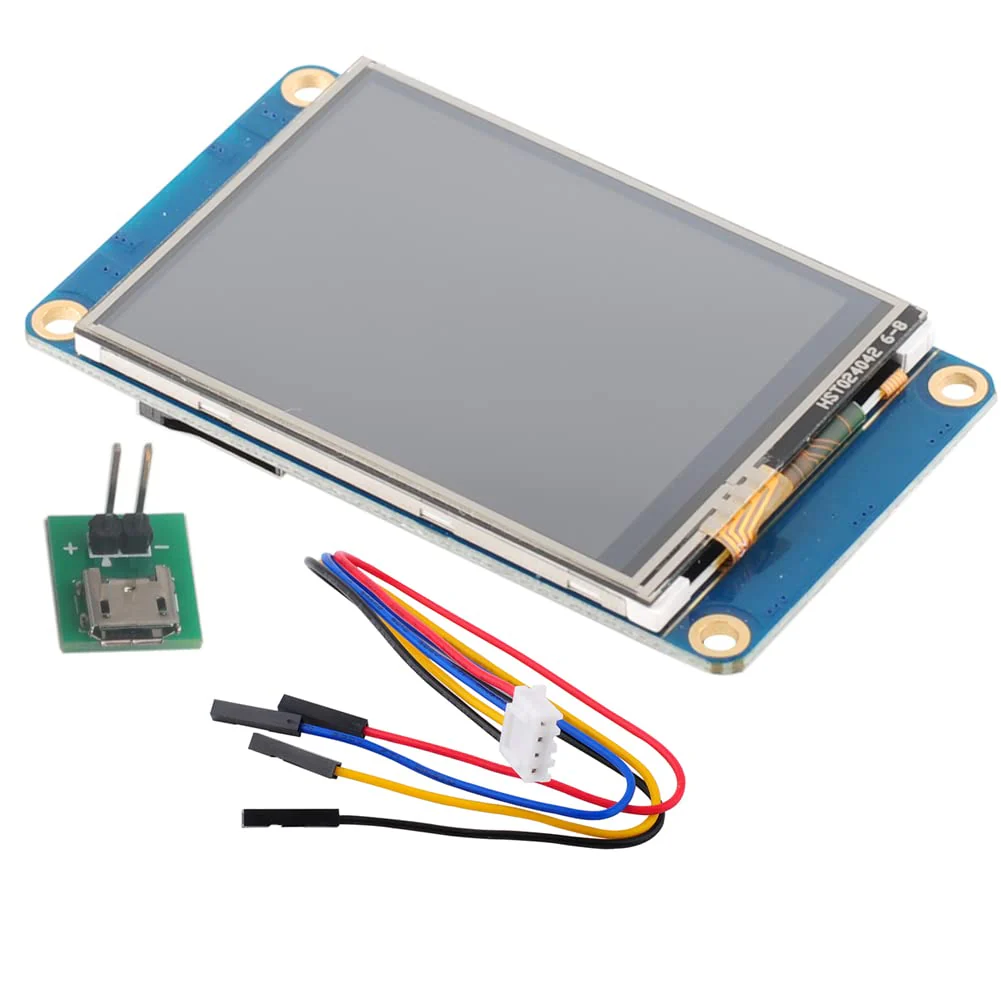

DIYmalls Nextion 2.4 Inch HMI Display Resistive Touchscreen 5V TFT LCD 320x240 for Arduino ESP32 (NX3224T024)
DIYmalls Nextion 2.4 Inch HMI Display Resistive Touchscreen 5V TFT LCD 320x240 for Arduino ESP32 (NX3224T024)
DIYmalls Nextion 2.4 Inch HMI Display Resistive Touchscreen 5V TFT LCD 320x240 for Arduino ESP32 (NX3224T024)
Product Features

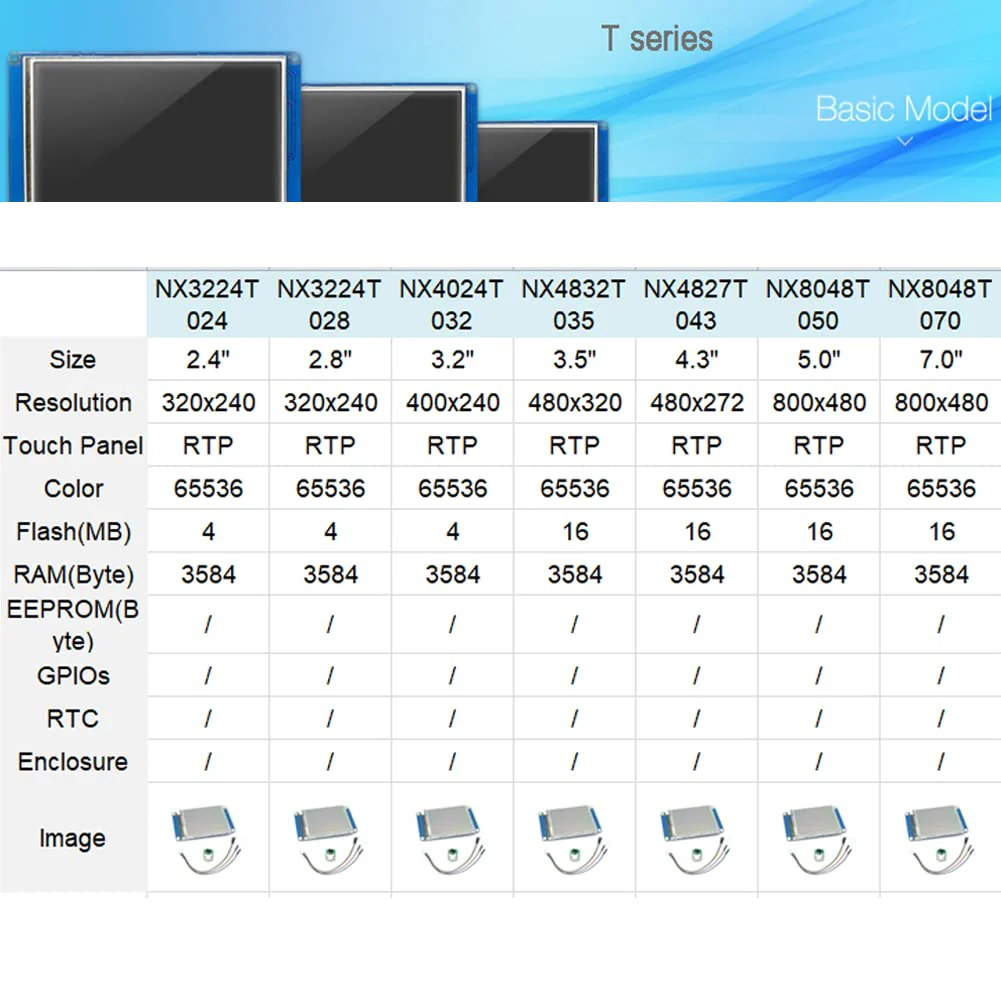

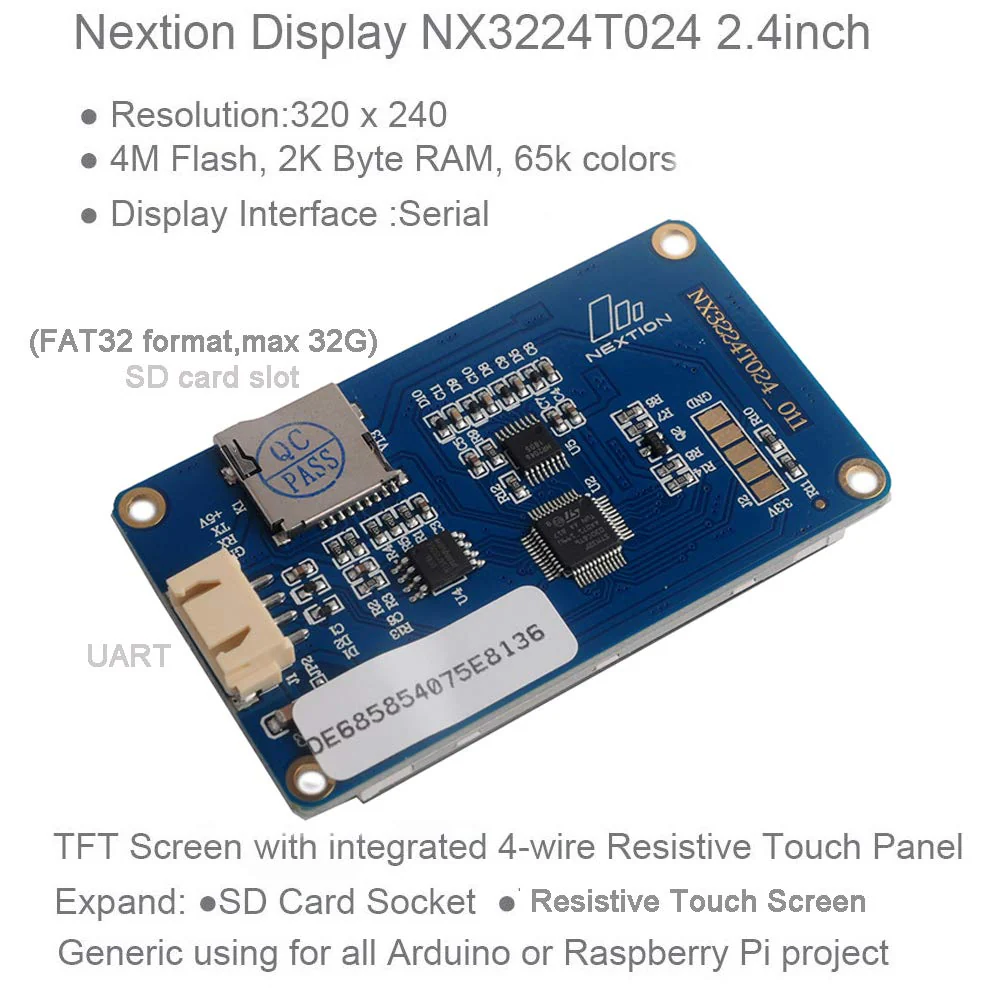

- -A member of Nextion's basic series, NX2432T024 is a powerful 2.4" HMI: a 2.4" TFT 320x240 touchscreen display, 4MB flash, 2KB RAM, 65,000 colors.
- -The Next 2.4 display is a 5V device, but many development boards have 3.3V, so the display won't turn on.

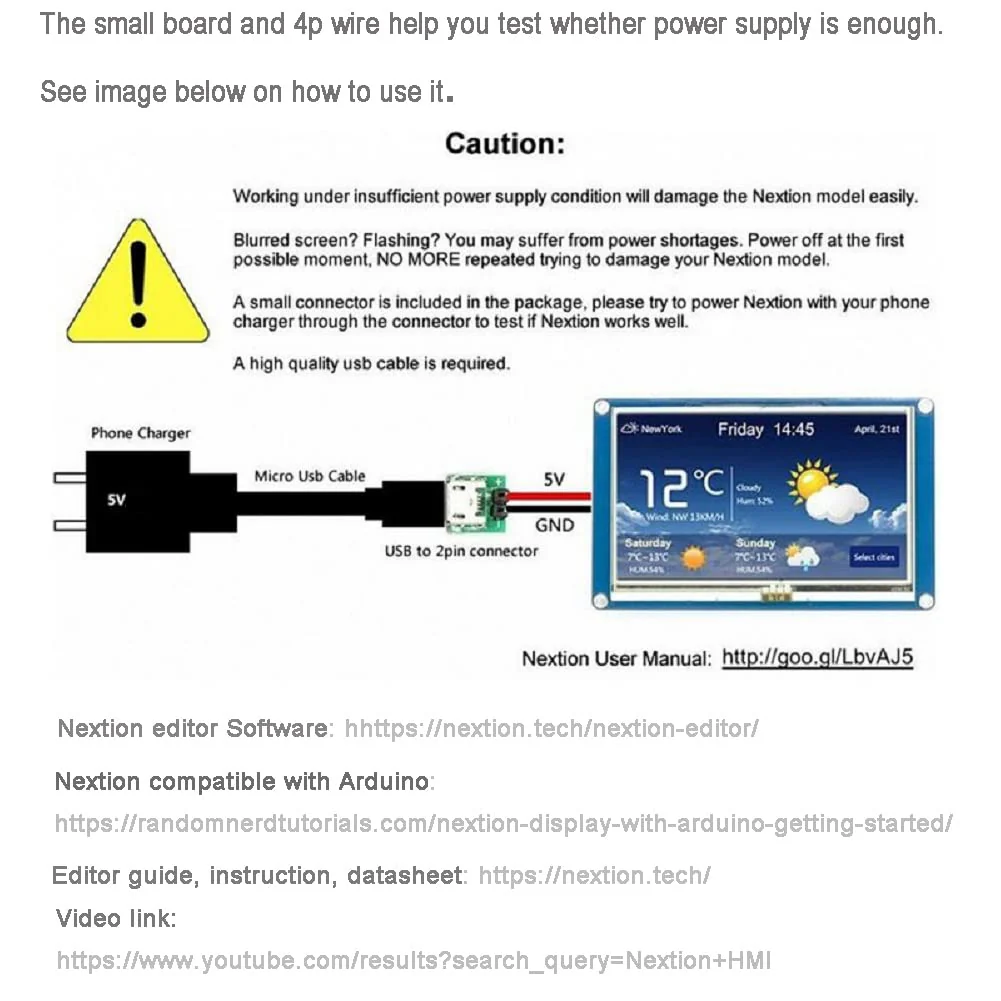

- - To ensure Nextion's 2.4" display works as expected, it is recommended to supply power from the power supply and not USB to TTL or boards.
- - Uploading a TFT file via SD card is faster than USB to TTL, but please make sure the card is in FAT32 format, only a TFT file (no folder) and no more than 32 GB.
- -If your HMI project was developed with Nextion Editor 0.53 or earlier, we recommend that you use the LTS version for project maintenance as the latest version is not fully compatible with your existing source code and GUI design.
$64.90
Original: $185.44
-65%DIYmalls Nextion 2.4 Inch HMI Display Resistive Touchscreen 5V TFT LCD 320x240 for Arduino ESP32 (NX3224T024)—
$185.44
$64.90More Images
DIYmalls Nextion 2.4 Inch HMI Display Resistive Touchscreen 5V TFT LCD 320x240 for Arduino ESP32 (NX3224T024)
DIYmalls Nextion 2.4 Inch HMI Display Resistive Touchscreen 5V TFT LCD 320x240 for Arduino ESP32 (NX3224T024)
Product Features
- -A member of Nextion's basic series, NX2432T024 is a powerful 2.4" HMI: a 2.4" TFT 320x240 touchscreen display, 4MB flash, 2KB RAM, 65,000 colors.
- -The Next 2.4 display is a 5V device, but many development boards have 3.3V, so the display won't turn on.
- - To ensure Nextion's 2.4" display works as expected, it is recommended to supply power from the power supply and not USB to TTL or boards.
- - Uploading a TFT file via SD card is faster than USB to TTL, but please make sure the card is in FAT32 format, only a TFT file (no folder) and no more than 32 GB.
- -If your HMI project was developed with Nextion Editor 0.53 or earlier, we recommend that you use the LTS version for project maintenance as the latest version is not fully compatible with your existing source code and GUI design.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DIYmalls Nextion 2.4 Inch HMI Display Resistive Touchscreen 5V TFT LCD 320x240 for Arduino ESP32 (NX3224T024)
Product Features
- -A member of Nextion's basic series, NX2432T024 is a powerful 2.4" HMI: a 2.4" TFT 320x240 touchscreen display, 4MB flash, 2KB RAM, 65,000 colors.
- -The Next 2.4 display is a 5V device, but many development boards have 3.3V, so the display won't turn on.
- - To ensure Nextion's 2.4" display works as expected, it is recommended to supply power from the power supply and not USB to TTL or boards.
- - Uploading a TFT file via SD card is faster than USB to TTL, but please make sure the card is in FAT32 format, only a TFT file (no folder) and no more than 32 GB.
- -If your HMI project was developed with Nextion Editor 0.53 or earlier, we recommend that you use the LTS version for project maintenance as the latest version is not fully compatible with your existing source code and GUI design.
