DieseRC 4 Channels WiFi Smart Switch with Bluetooth Transmitter, DC 5V 12V 24V 36V Passive Output Relay Module Ewelink APP WiFi Control Compatible with Alexa/Google Home, Inching/Self-Locking Switch TEW-4CHx1

DieseRC 4 Channels WiFi Smart Switch with Bluetooth Transmitter, DC 5V 12V 24V 36V Passive Output Relay Module Ewelink APP WiFi Control Compatible with Alexa/Google Home, Inching/Self-Locking Switch

Package Include: 1x WIFI Controller Module 1x Bluetooth transmitter 1x Product manual Controller Module Parameter: -Working Voltage: DC 5V or DC 7V~48V - Relay max current: 10A -Output type: passive output/ clean relay -Channel: 4 channels - WiFi: IEEE 802.11 b/g/n 2.4GHz - Support Remote Control: RM2.4G Bluetooth remote control -Size: 654817 mm (2.61.90.7 in) - Working temperature: -30~+80 APP pairing: 1. Your phone has been connected to 2.4GHz Wi-Fi. And turn on the Bluetooth. 2. Long press pairing button for more than 5 seconds until blue LED indicator blinks twice quickly and keeps on once to enter pairing state. 3. Open eWelink APP, tap【+】 at the bottom of the screen, select “Bluetooth Pairing”, click “Next”, it will automatically scan device. And then operate according to the prompts on the APP interface.

Product Features

• Excellence designWireless WIFI smart switch relay module. Stable and reliable performance with high reception sensitivity(2.4GHz WIFI). You can remotely operate every machine connect with the relay receiver through the Internet from wherever on the earth.
• Easy to UseThere are 2 operating mode(inching/toggle mode) can be setup. It can work as a pulse switch(a button) or a switch(a toggle switch). You can easily program by yourself depends on your needs. The operating mode of the smart switch is adjustable.

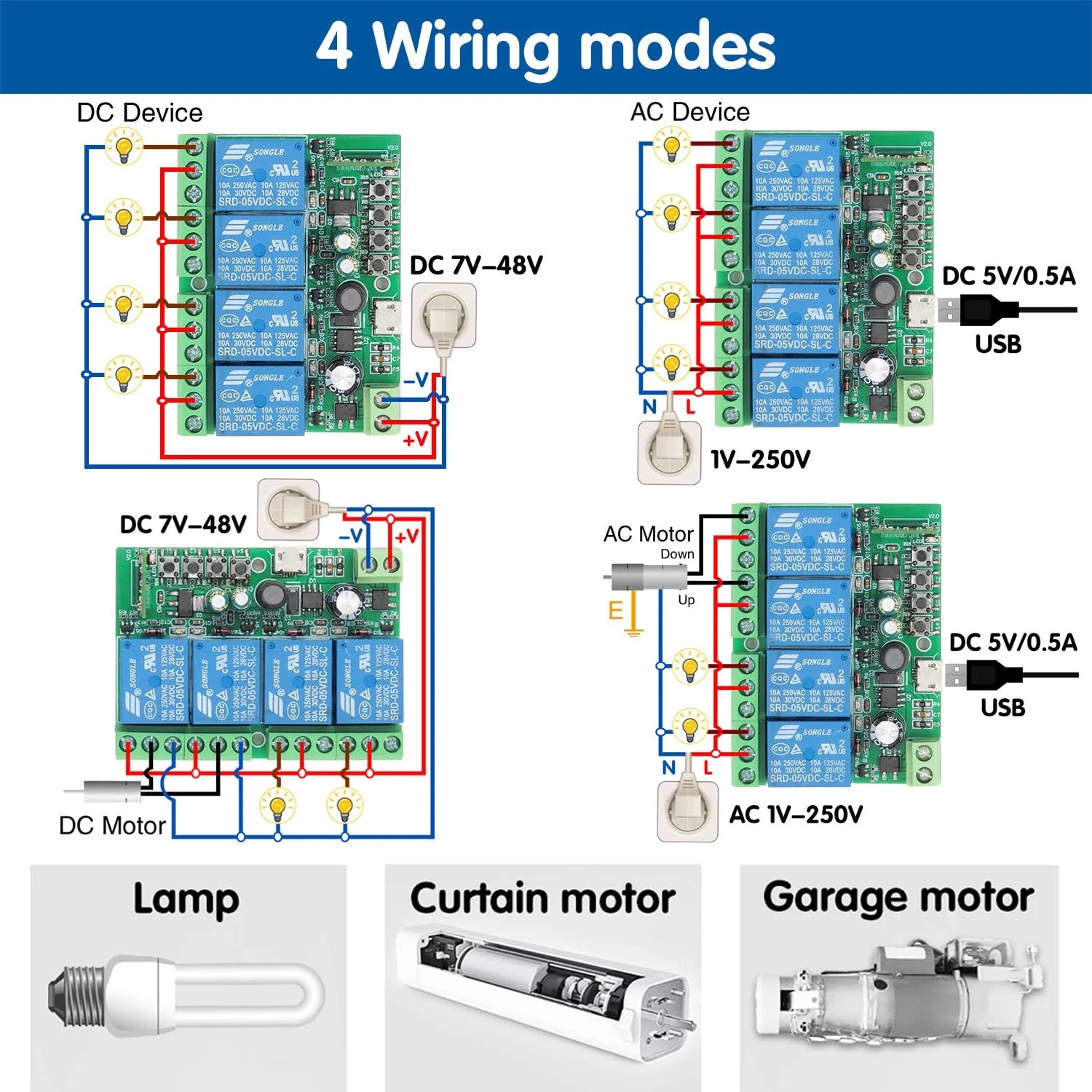

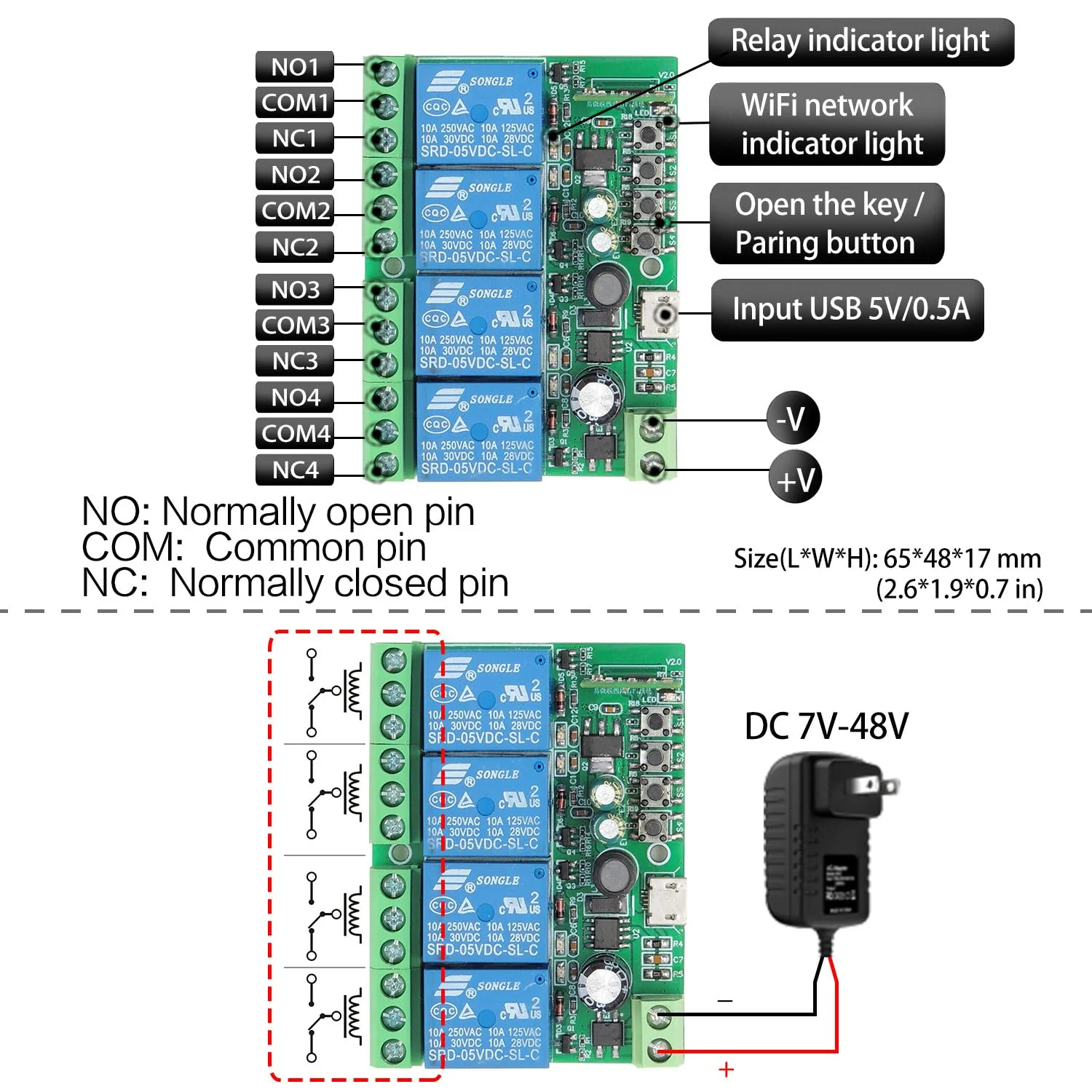

• More FlexibilityThere are 4 independent relays on the controller, so that you can control each of them independently. This controller adopts 10A high-quality relay. Let it to be more long-lasting and stable to use. There are 3 terminals(normally open pin, common pin, normally closed pin) for the relay. This is a potential-free contacts relay. Passive output. Dry contacts. The relay is cean. The receiver is suitable for DC 5V or DC 7V~48V voltage, so DC 5V/ 12V/ 24V/ 36V/ 48V is OK.
• Wide ApplicationProducts can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.You can remotely operate every device connect with the WIFI smart switch through your phone. such as, garage door opener system, electric lock, Electromagnetic door, lamp, lighting, contactor, signal transmission and DIY remote control switch.
• Easy to installThe size of smart switch is 65*48*17 mm (2.6*1.9*0.7 in). It can be easily hidden in most electrical boxes or junction boxes. You can easily install it.
• APP FunctionIt can achieve most intelligent controls. Setting Schedule and Timer. You can share control of the connected smart switch with the whole family.

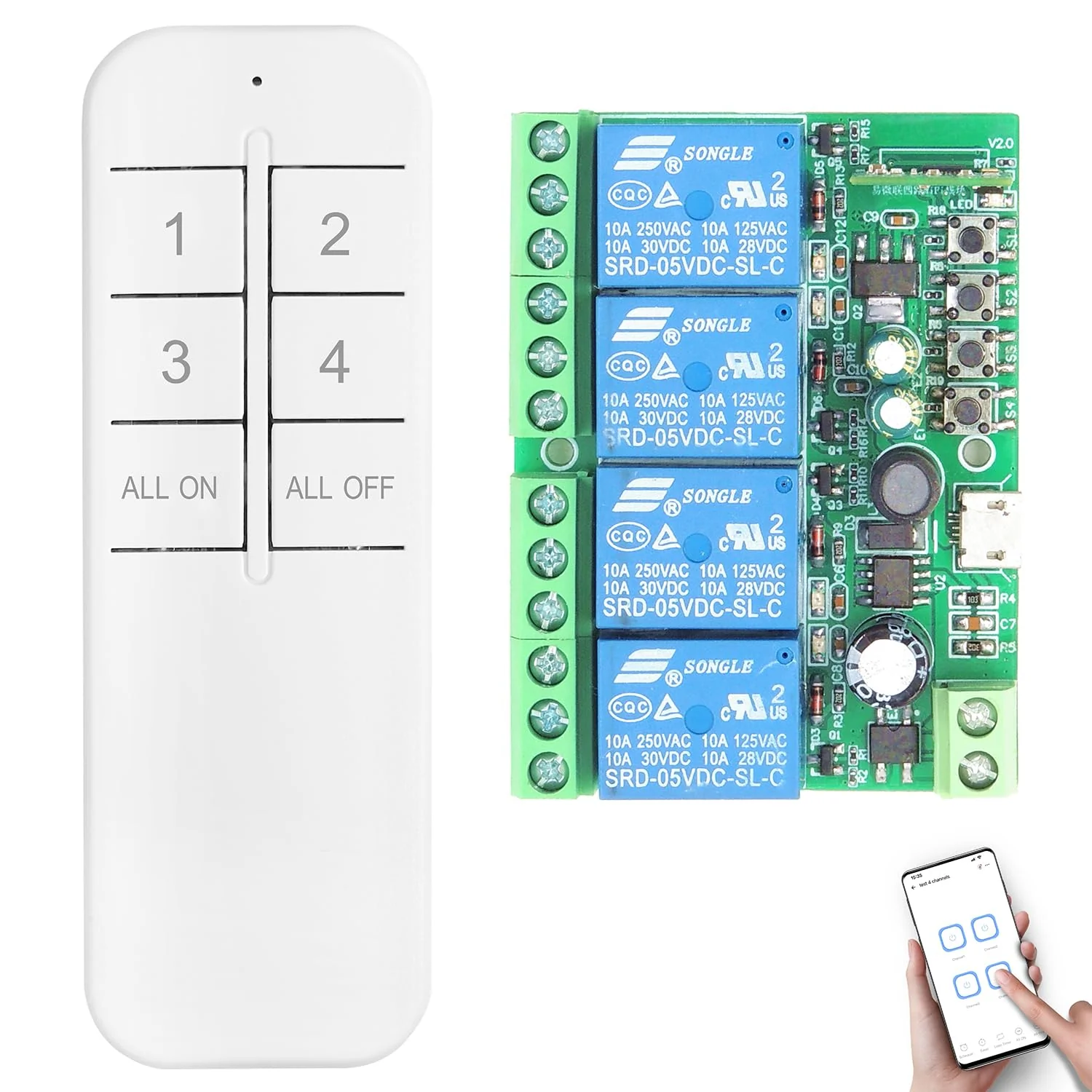

• Add Bluetooth Remote ControlThis smart switch is compatible with RM2.4G Bluetooth remote control(include in the parcel).
