DF9-40 Force Sensor, Pressure Sensor, Thin Film Pressure Sensors, Force Sensitive Resistance, Diameter 10 mm, High-Precision Resistance Sensor for Pressure Detection (30 g - 10 kg), Pack of 2
DF9-40 Force Sensor, Pressure Sensor, Thin Film Pressure Sensors, Force Sensitive Resistance, Diameter 10 mm, High-Precision Resistance Sensor for Pressure Detection (30 g - 10 kg), Pack of 2
DF9-40 Force Sensor, Pressure Sensor, Thin Film Pressure Sensors, Force Sensitive Resistance, Diameter 10 mm, High-Precision Resistance Sensor for Pressure Detection (30 g - 10 kg), Pack of 2
Specifications: Name: Pressure Sensor Measuring range: 30 g - 10 kg. Thickness: approx. 0.3 mm. Response point: ≤ 20 g. Durability: >1 million times. Initial resistance: >10MΩ (without load). Test voltage: typical DC 3.3 V. Response time: <1ms. Recovery time: <15 ms. Operating temperature: -20°C ~ 60°C. Electromagnetic interference EMI: No Electrostatic discharge ESD: insensitive Package includes: 2 x pressure sensors. Note: 1. Please allow small errors in dimensions due to random inaccurate manual measurement. 2. The colour of the item you receive may be slightly different from that shown in the photos as the brightness and colour vary in different computer screens
Product Features
- High sensitivity: highly sensitive flexible nanometer materials can realize highly sensitive pressure detection
- Resistance change: when the sensor detects the external pressure, the resistance of the sensor changes
- Bending Resistance This sensor can withstand frequent bends without compromising performance or accuracy, resulting in a longer service life

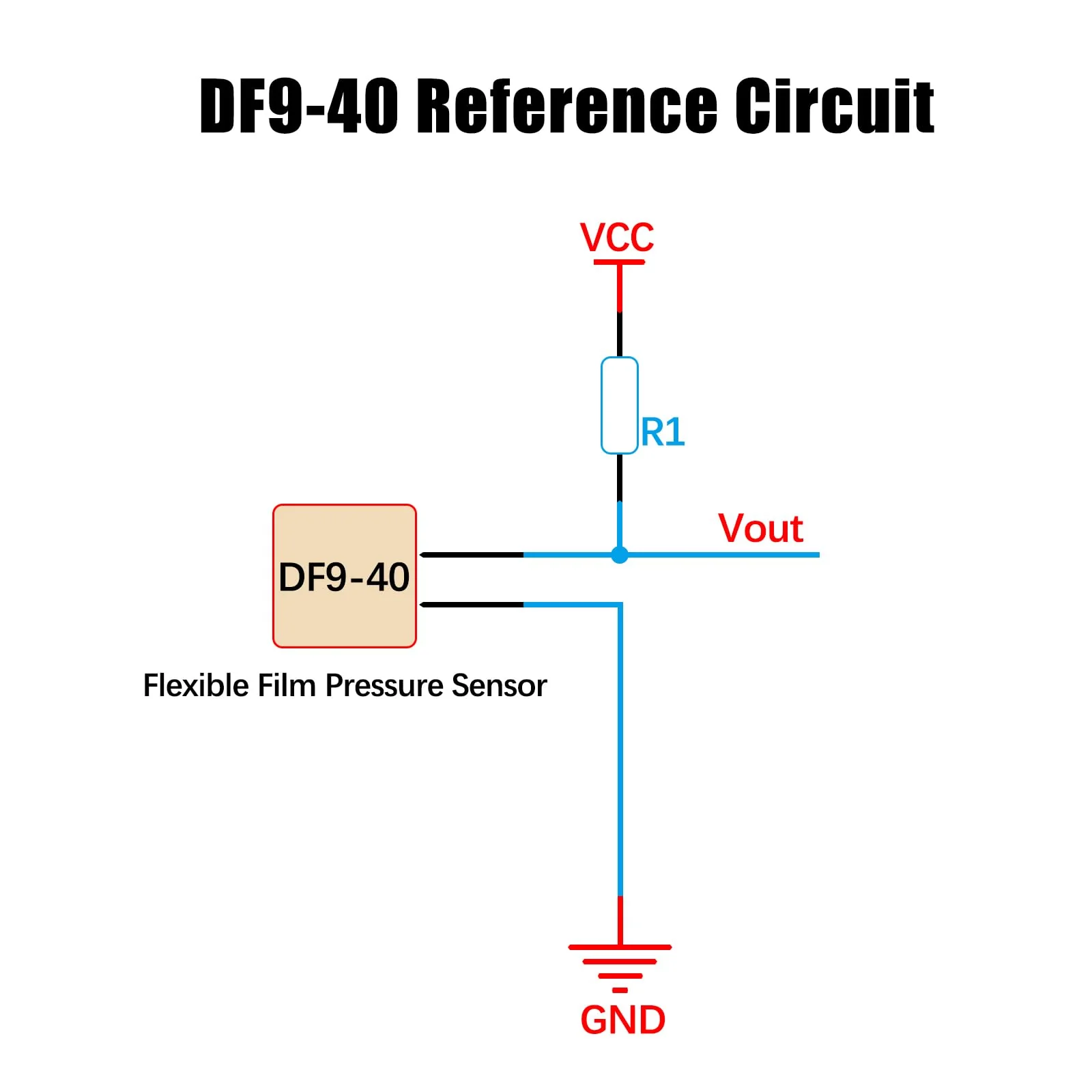

- Practical: the pressure can be converted to a corresponding electrical output with a simple circuit
- Wide Usage: force sensitive resistance is widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical devices
Original: $96.34
-65%$96.34
$33.72More Images
DF9-40 Force Sensor, Pressure Sensor, Thin Film Pressure Sensors, Force Sensitive Resistance, Diameter 10 mm, High-Precision Resistance Sensor for Pressure Detection (30 g - 10 kg), Pack of 2
DF9-40 Force Sensor, Pressure Sensor, Thin Film Pressure Sensors, Force Sensitive Resistance, Diameter 10 mm, High-Precision Resistance Sensor for Pressure Detection (30 g - 10 kg), Pack of 2
Specifications: Name: Pressure Sensor Measuring range: 30 g - 10 kg. Thickness: approx. 0.3 mm. Response point: ≤ 20 g. Durability: >1 million times. Initial resistance: >10MΩ (without load). Test voltage: typical DC 3.3 V. Response time: <1ms. Recovery time: <15 ms. Operating temperature: -20°C ~ 60°C. Electromagnetic interference EMI: No Electrostatic discharge ESD: insensitive Package includes: 2 x pressure sensors. Note: 1. Please allow small errors in dimensions due to random inaccurate manual measurement. 2. The colour of the item you receive may be slightly different from that shown in the photos as the brightness and colour vary in different computer screens
Product Features
- High sensitivity: highly sensitive flexible nanometer materials can realize highly sensitive pressure detection
- Resistance change: when the sensor detects the external pressure, the resistance of the sensor changes
- Bending Resistance This sensor can withstand frequent bends without compromising performance or accuracy, resulting in a longer service life
- Practical: the pressure can be converted to a corresponding electrical output with a simple circuit
- Wide Usage: force sensitive resistance is widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical devices
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DF9-40 Force Sensor, Pressure Sensor, Thin Film Pressure Sensors, Force Sensitive Resistance, Diameter 10 mm, High-Precision Resistance Sensor for Pressure Detection (30 g - 10 kg), Pack of 2
Specifications: Name: Pressure Sensor Measuring range: 30 g - 10 kg. Thickness: approx. 0.3 mm. Response point: ≤ 20 g. Durability: >1 million times. Initial resistance: >10MΩ (without load). Test voltage: typical DC 3.3 V. Response time: <1ms. Recovery time: <15 ms. Operating temperature: -20°C ~ 60°C. Electromagnetic interference EMI: No Electrostatic discharge ESD: insensitive Package includes: 2 x pressure sensors. Note: 1. Please allow small errors in dimensions due to random inaccurate manual measurement. 2. The colour of the item you receive may be slightly different from that shown in the photos as the brightness and colour vary in different computer screens
Product Features
- High sensitivity: highly sensitive flexible nanometer materials can realize highly sensitive pressure detection
- Resistance change: when the sensor detects the external pressure, the resistance of the sensor changes
- Bending Resistance This sensor can withstand frequent bends without compromising performance or accuracy, resulting in a longer service life
- Practical: the pressure can be converted to a corresponding electrical output with a simple circuit
- Wide Usage: force sensitive resistance is widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical devices
