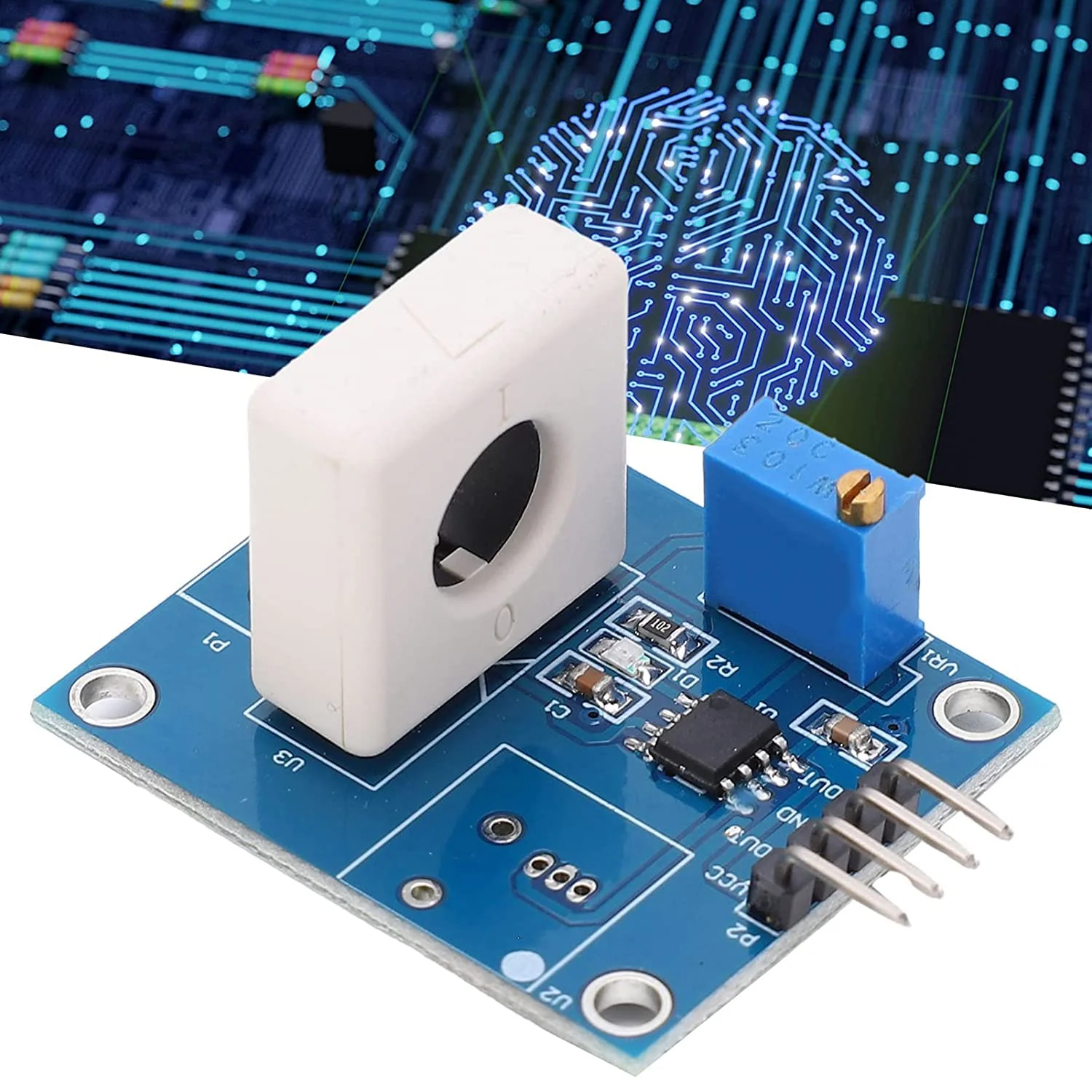

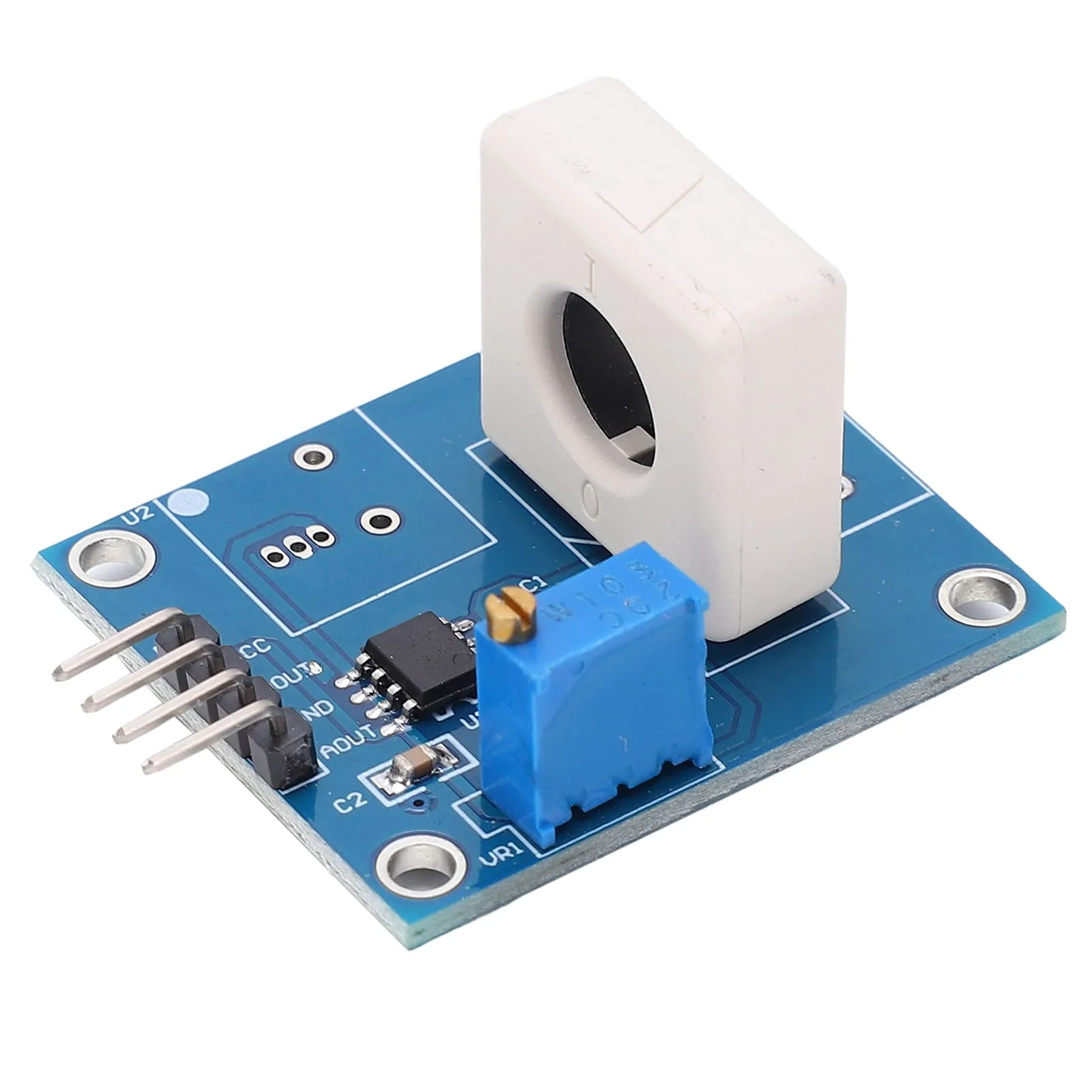

Deror Hall Current Sensor DC 5V Hall Current Detection Sensor Module 35A Short Circuit Overcurrent Protection Detector WCS1800

Deror Hall Current Sensor DC 5V Hall Current Detection Sensor Module 35A Short Circuit Overcurrent Protection Detector WCS1800

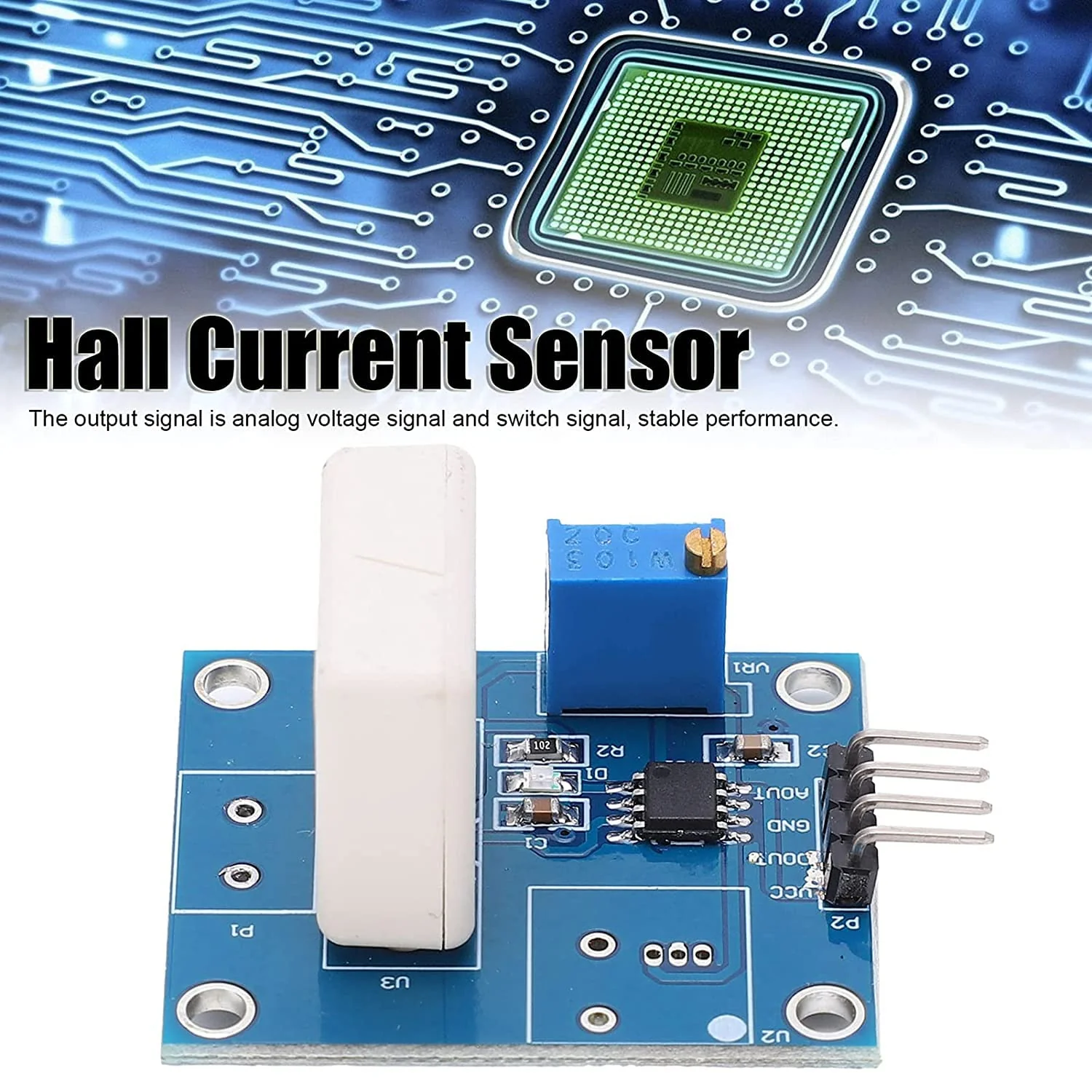

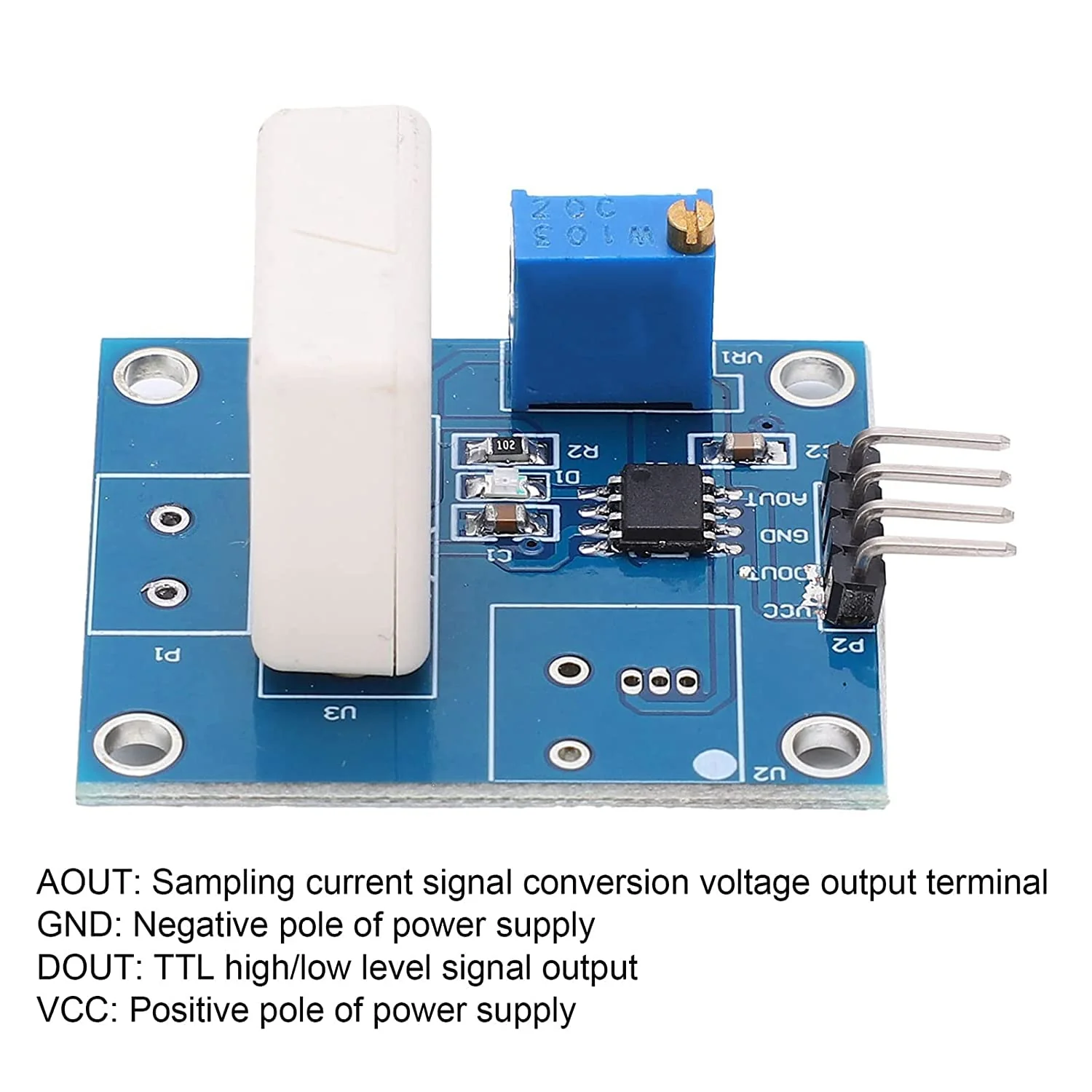

Specification: Item type: Hall current sensor Material: PCB Working voltage: DC5V Current detection range: DC: ±35A; AC current: 25A (applies to analog output) Current limiting current range: 0.5A-35A (applies to switching output) Output signal: Analog voltage signal, switching signal Purpose: The first function is an analog signal followed by an operational amplifier, which is used for the A/. Suitable is suitable The second function is the switching signal, with which the current limit value can be set in advance. If the current value is greater than the preset current value, the switching signal changes from low to high level and is indicated by an LED display. Package list: 1 x Hall current sensor

Product Features

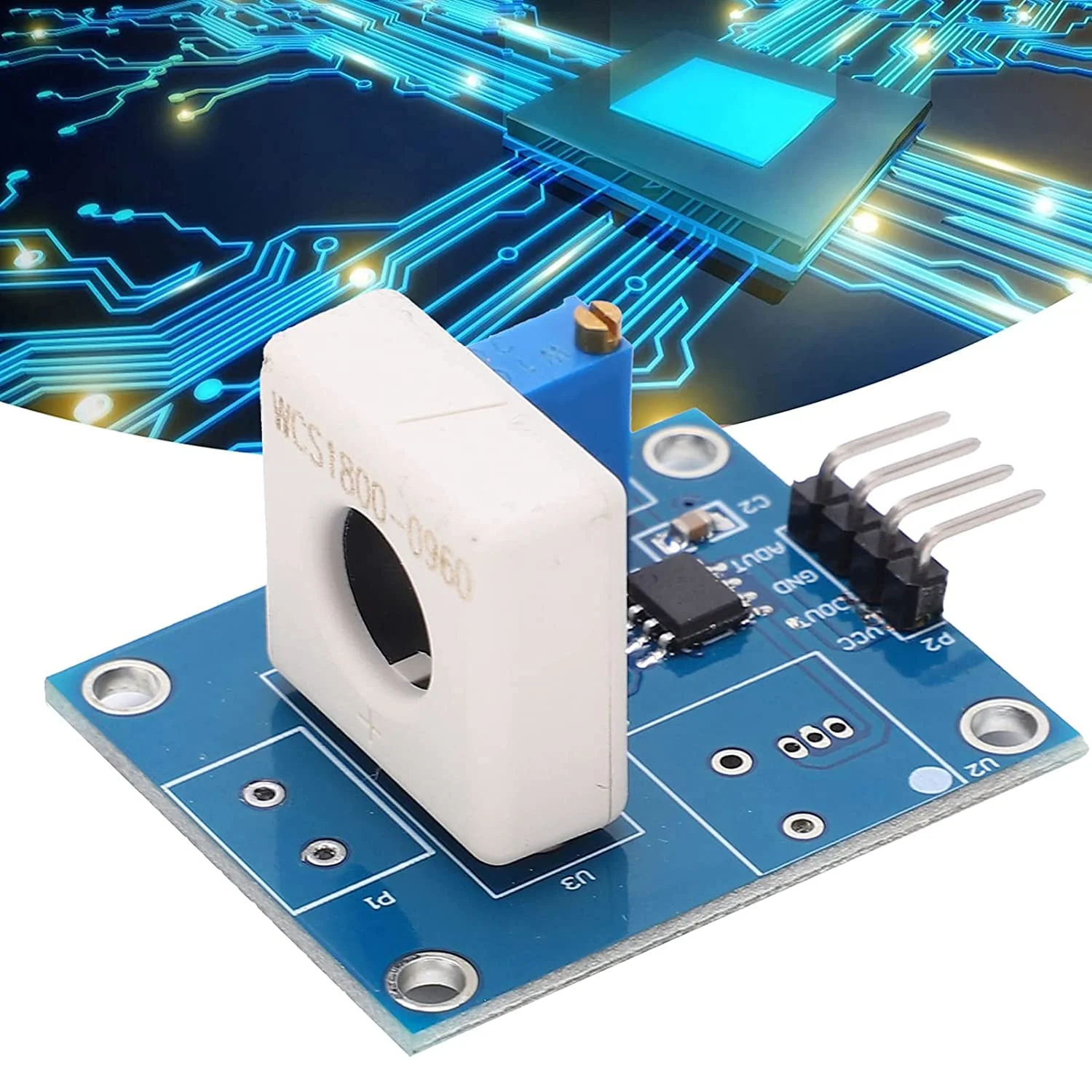

• WCS1800 Hall Current Sensor has two main functions. The first function is an analog signal, followed by the operative amplifier, which is suitable for A/D conversion. The second function is the switching signal, which can set the current limit value in advance. If the actual current value is greater than the preset current value, the switching signal changes from low level to high level and is indicated by an LED indicator. Easy to use.
• Specifications - Working voltage: DC5V Electrical correction: DCT35A; AC: 25a Current limit current range: 05A-35A (suitable for switching output); The output signal is: analogue voltage signal and switching signal board size: 37*31mm;
• Application: intelligent trolley motor overcurrent detection, stable protection current detection, detection of short circuit protection, demonstration experiment, etc., convenient for secondary development

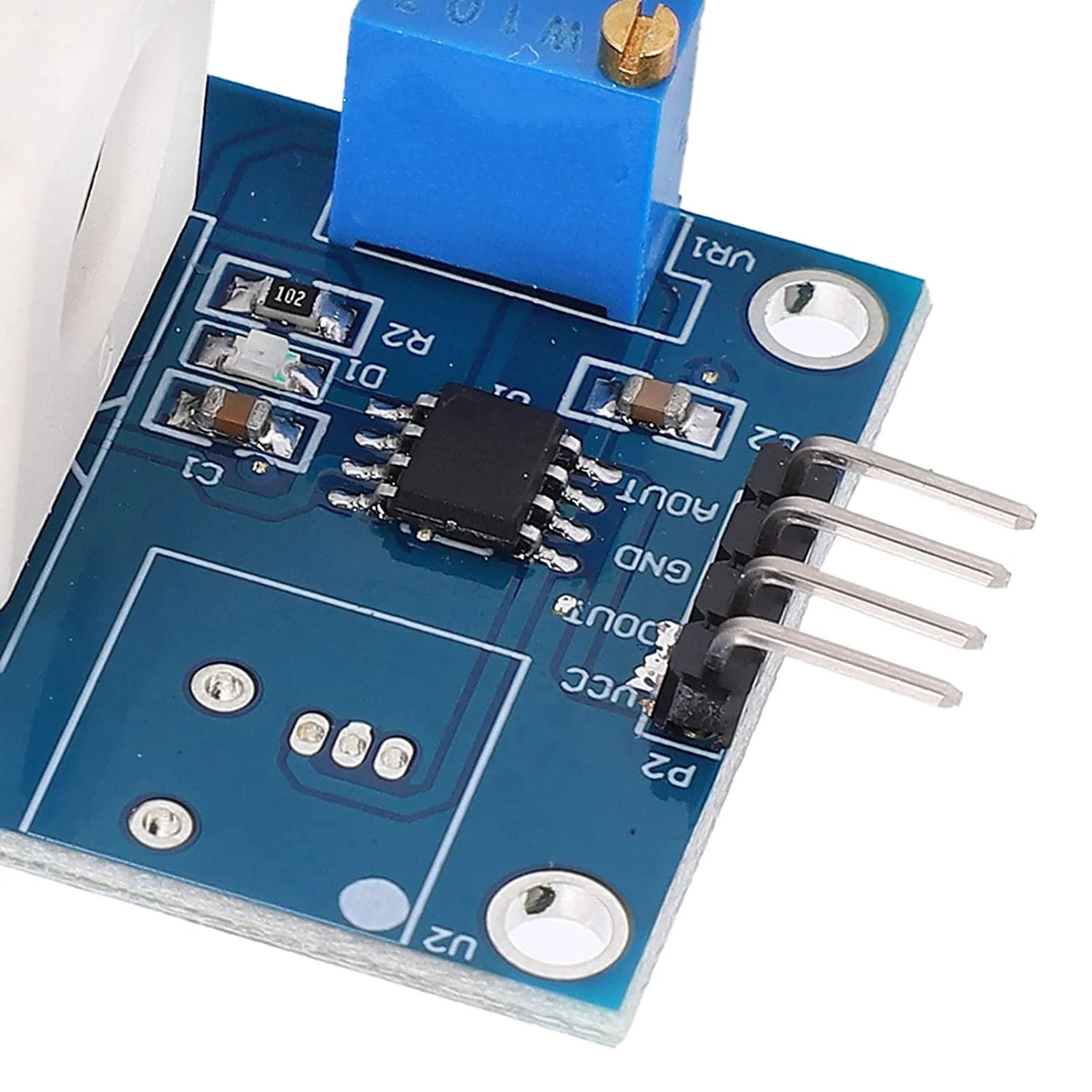

• Features: Size 37 mm x 31 mm x 16.5 mm. Main chip LM393 OP AMP, WCS1800 working voltage DC DC5V
• Current detection range: DC: 35A; AC: 25A, suitable for analog output. Current limit range: 0.5A-35A, with mounting holes, convenient for firmware installation, save time and effort.
