Dealikee High Power Vehicle Driver Module Current Limiting, Semiconductor Cooling for Smart Car Motor Drive Pack of 2
Dealikee High Power Vehicle Driver Module Current Limiting, Semiconductor Cooling for Smart Car Motor Drive Pack of 2
Dealikee High Power Vehicle Driver Module Current Limiting, Semiconductor Cooling for Smart Car Motor Drive Pack of 2

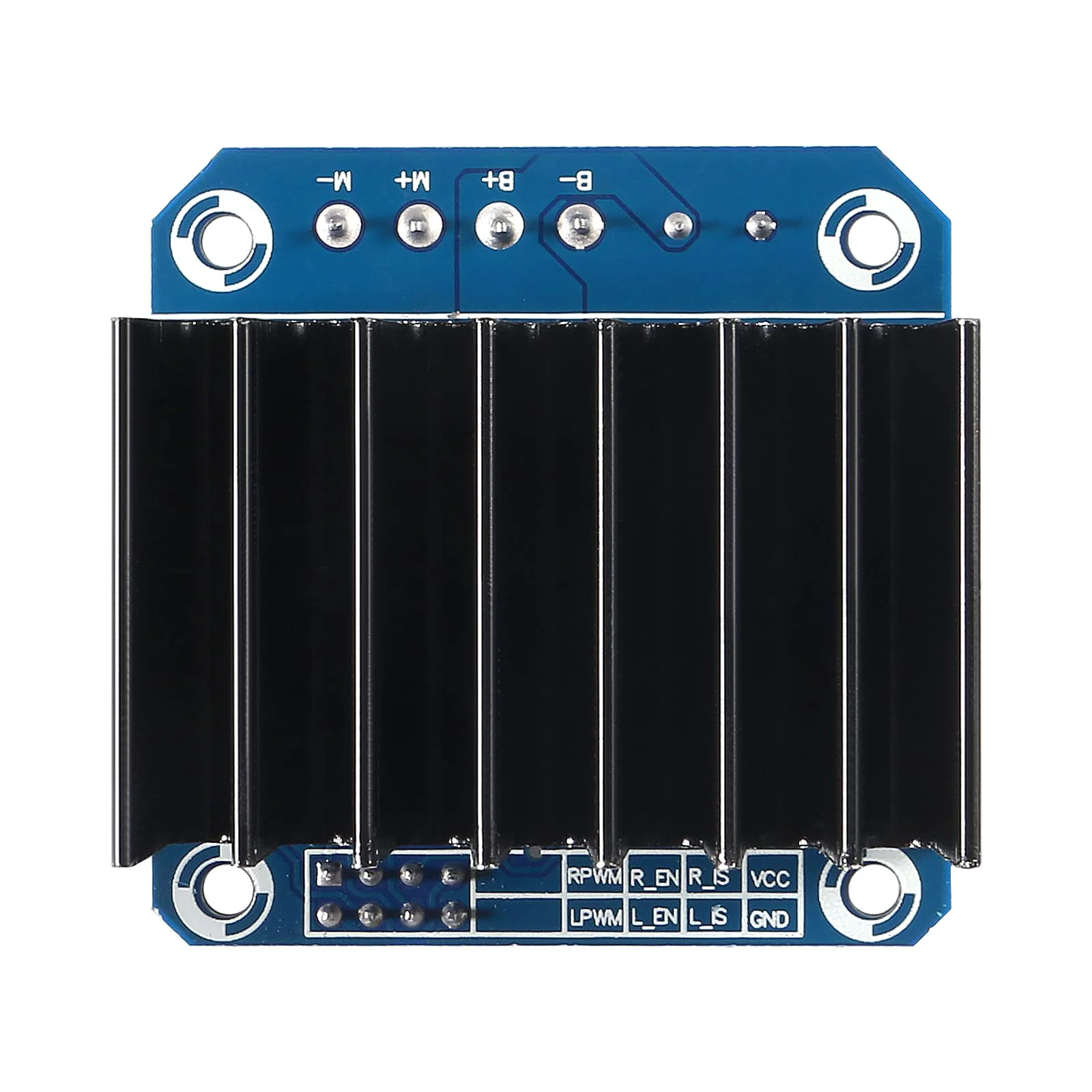

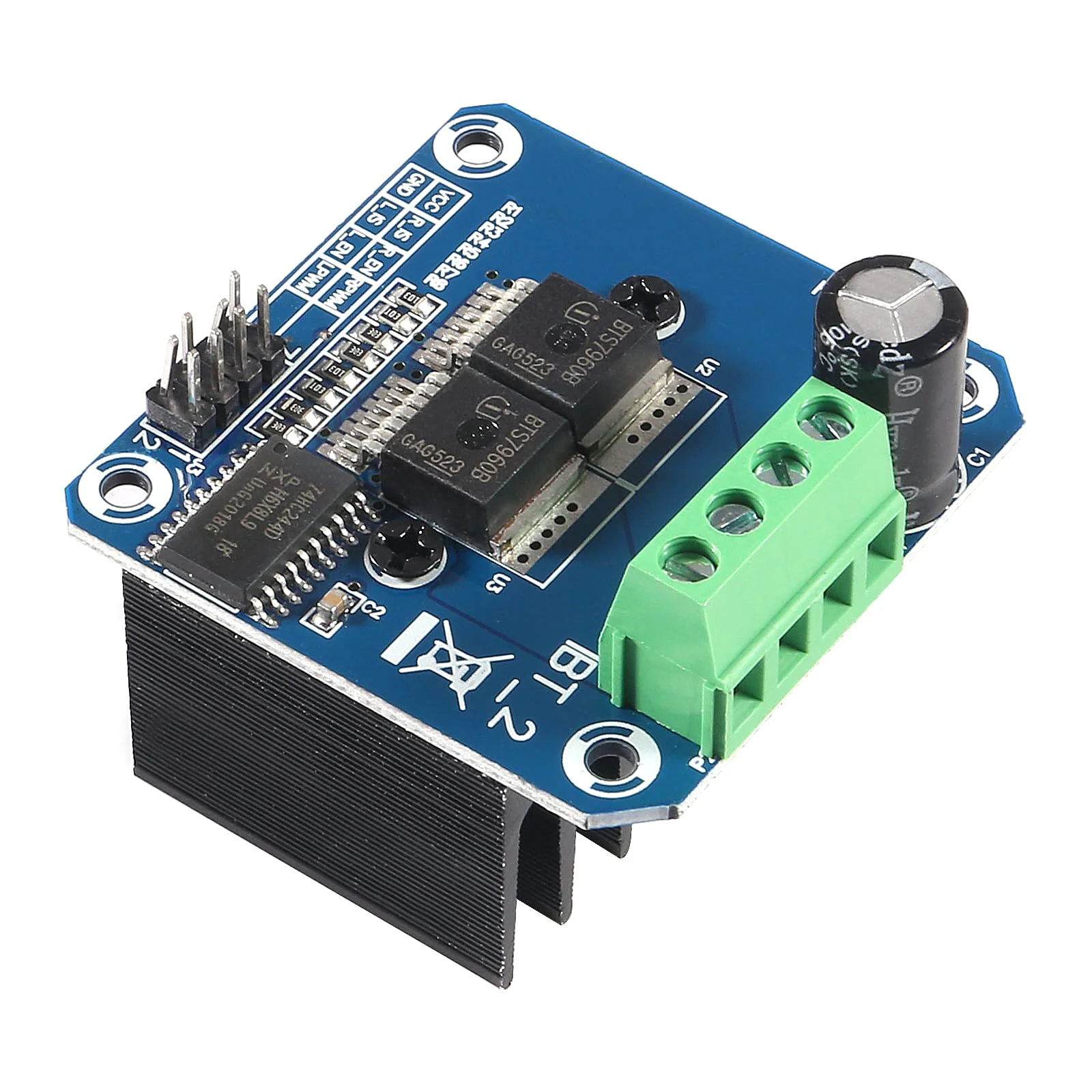

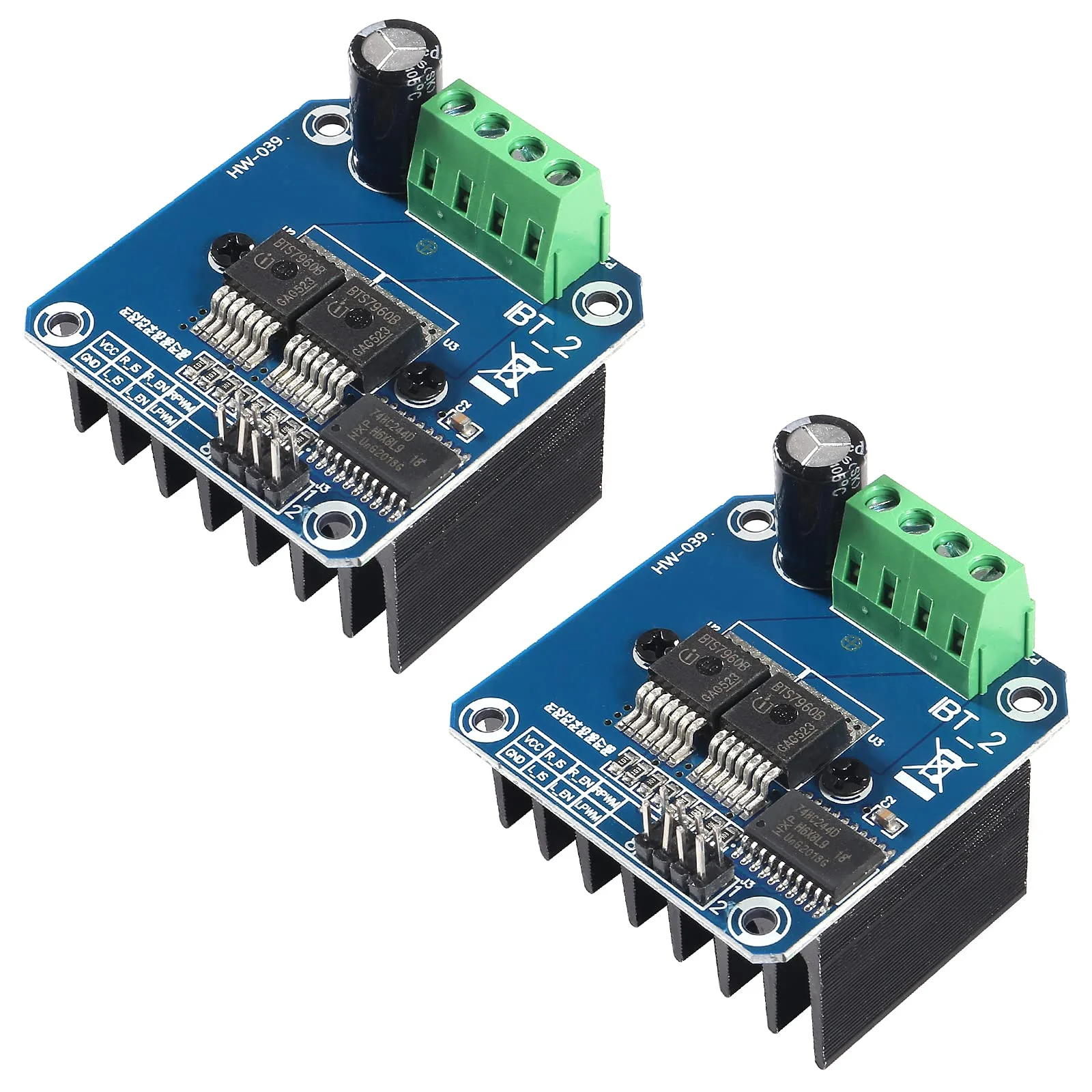

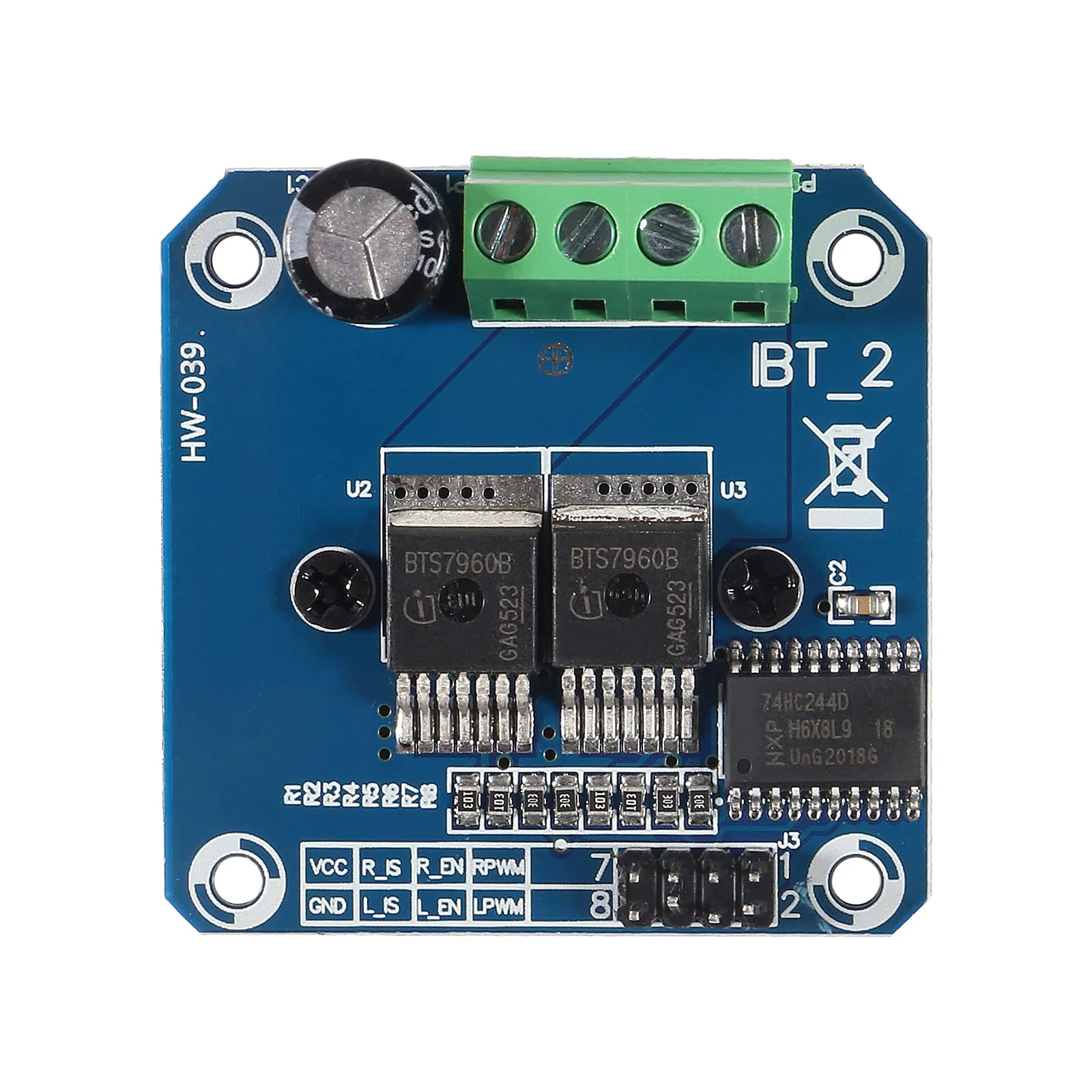

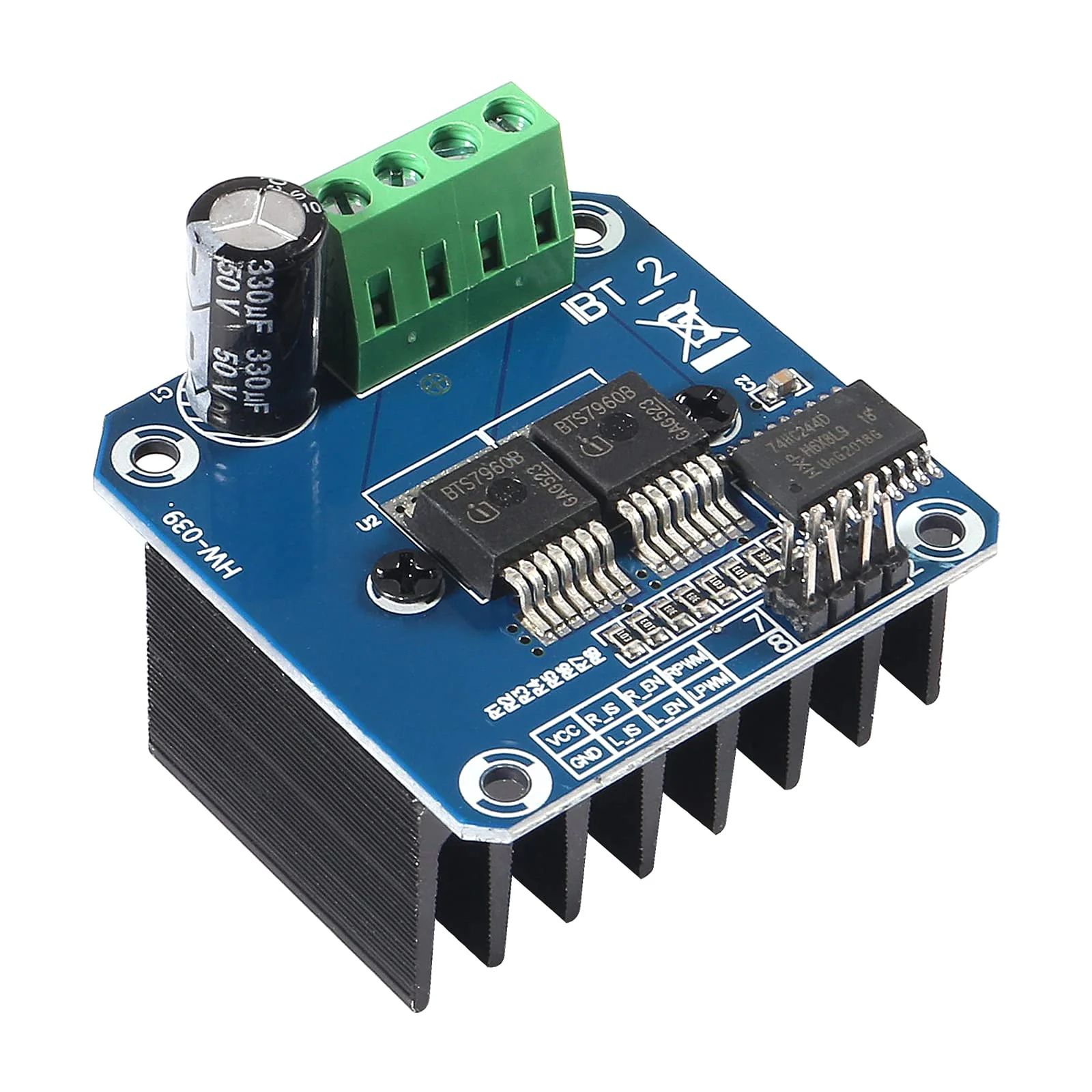

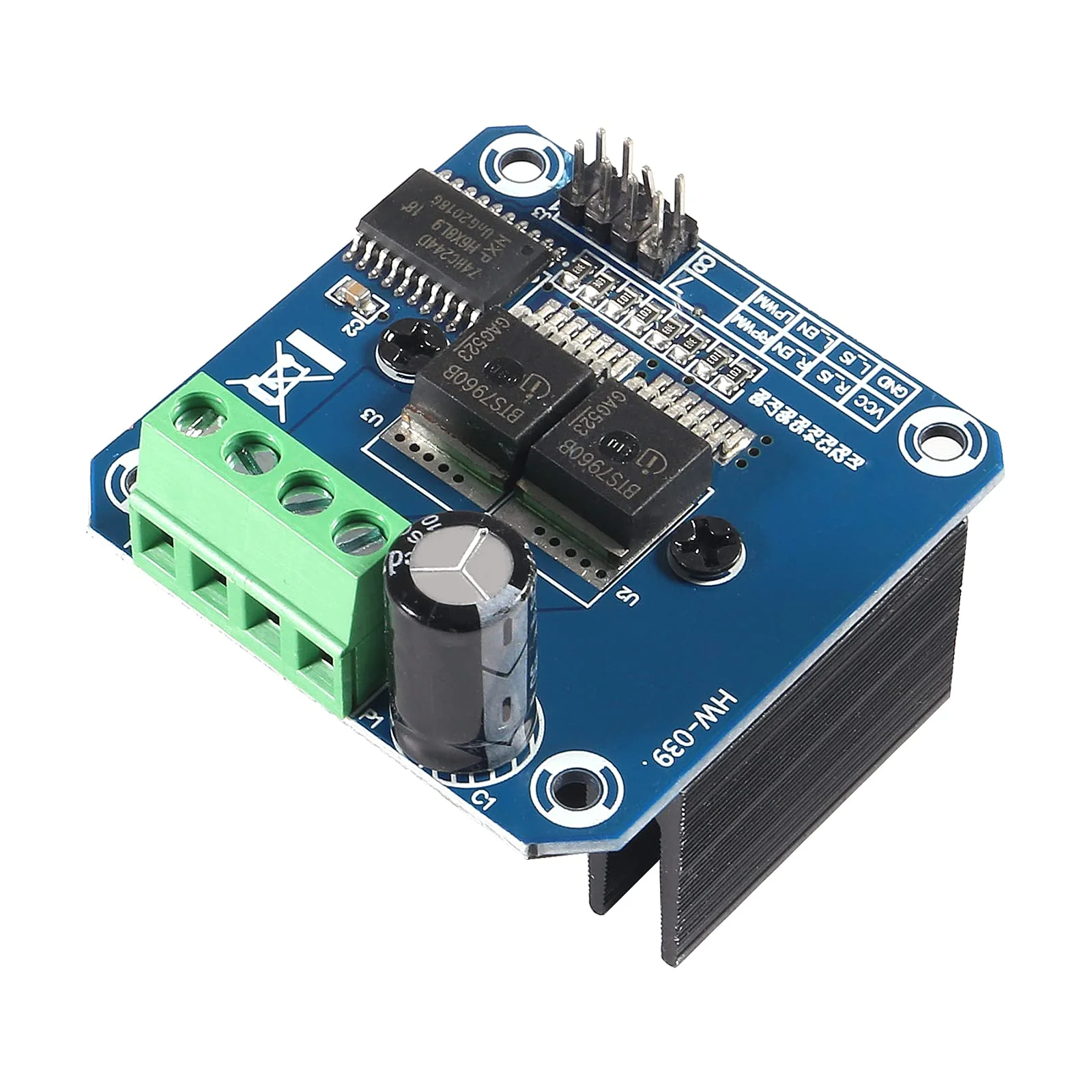

Description: This driver uses Infineon chips BTS7960 made of high performance drive full driver module with thermal overcurrent protection. Double BTS7960 H-bridge driver circuit, with a strong drive and brakes, effective insulation of the microcontroller and motorist! High Current 43A Electrical Power: Model: IBT-2 Input Voltage: 6V-27V Maximum Current: 43A. Input Power: 3.3 -- 5V. Control: PWM or Level Duty Cycle: 0-100% Input Connection: 1. RPWM: forward level or PWM signal input, active high. 2. LPWM: reverse level or PWM signal input, active high. 3. R_DE: Activate forward drive, high level, low level off. 4. L_DE: Reverse drive allows input, high level activable, low level off 5. R_IS: forward running current alarm output 6.L_IS: reverse alarm output 7.VCC: +5V output, 5V power supply connection with the microcontroller 8.GND: signal common low end Package includes: 2 x BTS7960 43A high performance motor driver module/smart car driver module.
Product Features

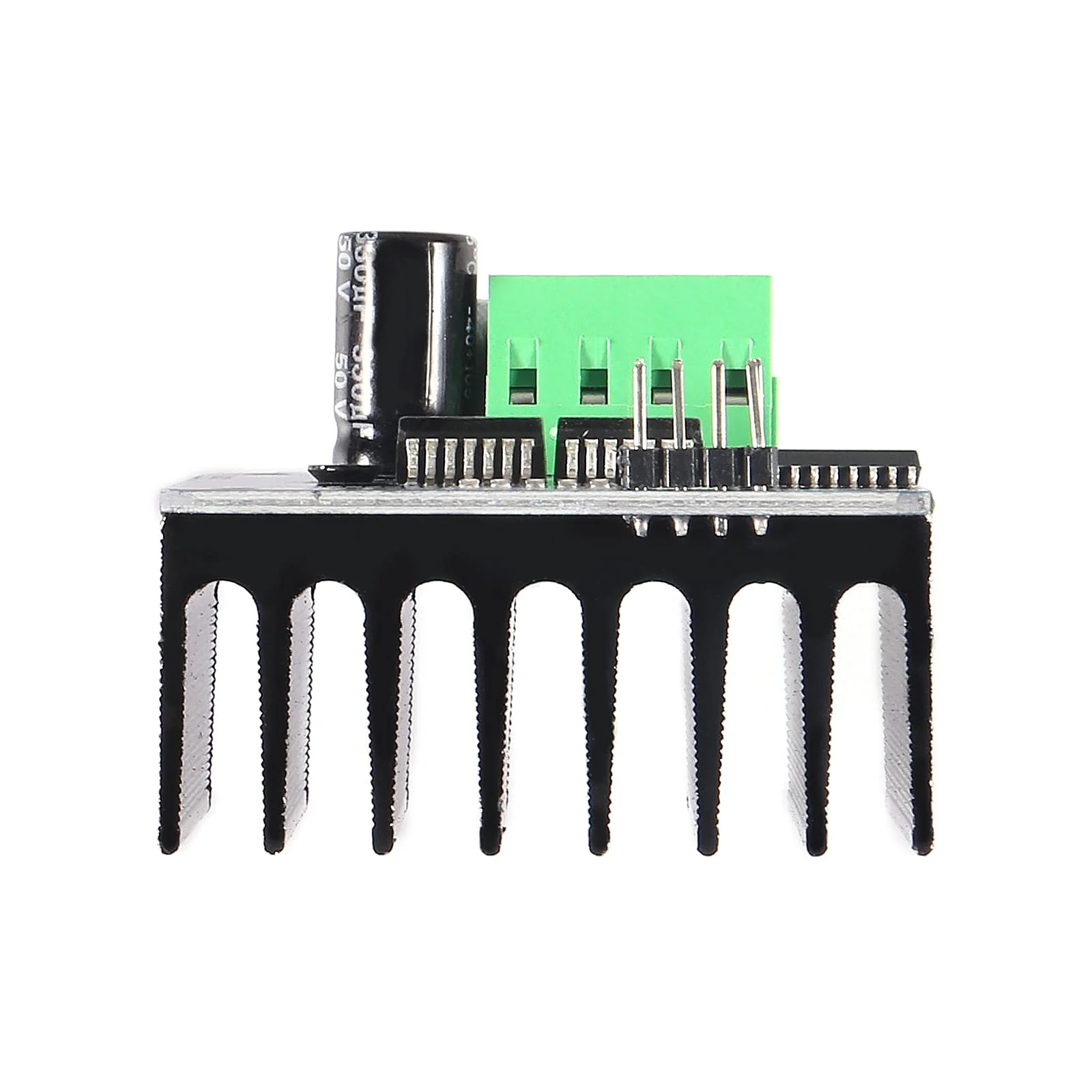

- 5V isolation with MCU, effectively protect MCU; 5V power indicator on board. Voltage display of the motor driver output end, can solder heat sink.
- BTS7960 43A Dual H-Bridge Stepper Motor Drive Current Limiting Semiconductor Cooling.
- You only need four lines from MCU to the driver module (GND. 5V PWM1 PWM2); insulation chip 5V power supply (can share with MCU 5V).
- Can turn the motor forward backward, two PWM input frequencies up to 25kHZ; two heat currents passed through an error signal output.
- Isolated chip 5V power supply (can be shared with the MCU 5V), can also be integrated 5V supply, the supply voltage 5.5V to 27V.
Original: $110.11
-65%$110.11
$38.54More Images
Dealikee High Power Vehicle Driver Module Current Limiting, Semiconductor Cooling for Smart Car Motor Drive Pack of 2
Dealikee High Power Vehicle Driver Module Current Limiting, Semiconductor Cooling for Smart Car Motor Drive Pack of 2
Description: This driver uses Infineon chips BTS7960 made of high performance drive full driver module with thermal overcurrent protection. Double BTS7960 H-bridge driver circuit, with a strong drive and brakes, effective insulation of the microcontroller and motorist! High Current 43A Electrical Power: Model: IBT-2 Input Voltage: 6V-27V Maximum Current: 43A. Input Power: 3.3 -- 5V. Control: PWM or Level Duty Cycle: 0-100% Input Connection: 1. RPWM: forward level or PWM signal input, active high. 2. LPWM: reverse level or PWM signal input, active high. 3. R_DE: Activate forward drive, high level, low level off. 4. L_DE: Reverse drive allows input, high level activable, low level off 5. R_IS: forward running current alarm output 6.L_IS: reverse alarm output 7.VCC: +5V output, 5V power supply connection with the microcontroller 8.GND: signal common low end Package includes: 2 x BTS7960 43A high performance motor driver module/smart car driver module.
Product Features
- 5V isolation with MCU, effectively protect MCU; 5V power indicator on board. Voltage display of the motor driver output end, can solder heat sink.
- BTS7960 43A Dual H-Bridge Stepper Motor Drive Current Limiting Semiconductor Cooling.
- You only need four lines from MCU to the driver module (GND. 5V PWM1 PWM2); insulation chip 5V power supply (can share with MCU 5V).
- Can turn the motor forward backward, two PWM input frequencies up to 25kHZ; two heat currents passed through an error signal output.
- Isolated chip 5V power supply (can be shared with the MCU 5V), can also be integrated 5V supply, the supply voltage 5.5V to 27V.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Dealikee High Power Vehicle Driver Module Current Limiting, Semiconductor Cooling for Smart Car Motor Drive Pack of 2
Description: This driver uses Infineon chips BTS7960 made of high performance drive full driver module with thermal overcurrent protection. Double BTS7960 H-bridge driver circuit, with a strong drive and brakes, effective insulation of the microcontroller and motorist! High Current 43A Electrical Power: Model: IBT-2 Input Voltage: 6V-27V Maximum Current: 43A. Input Power: 3.3 -- 5V. Control: PWM or Level Duty Cycle: 0-100% Input Connection: 1. RPWM: forward level or PWM signal input, active high. 2. LPWM: reverse level or PWM signal input, active high. 3. R_DE: Activate forward drive, high level, low level off. 4. L_DE: Reverse drive allows input, high level activable, low level off 5. R_IS: forward running current alarm output 6.L_IS: reverse alarm output 7.VCC: +5V output, 5V power supply connection with the microcontroller 8.GND: signal common low end Package includes: 2 x BTS7960 43A high performance motor driver module/smart car driver module.
Product Features
- 5V isolation with MCU, effectively protect MCU; 5V power indicator on board. Voltage display of the motor driver output end, can solder heat sink.
- BTS7960 43A Dual H-Bridge Stepper Motor Drive Current Limiting Semiconductor Cooling.
- You only need four lines from MCU to the driver module (GND. 5V PWM1 PWM2); insulation chip 5V power supply (can share with MCU 5V).
- Can turn the motor forward backward, two PWM input frequencies up to 25kHZ; two heat currents passed through an error signal output.
- Isolated chip 5V power supply (can be shared with the MCU 5V), can also be integrated 5V supply, the supply voltage 5.5V to 27V.
