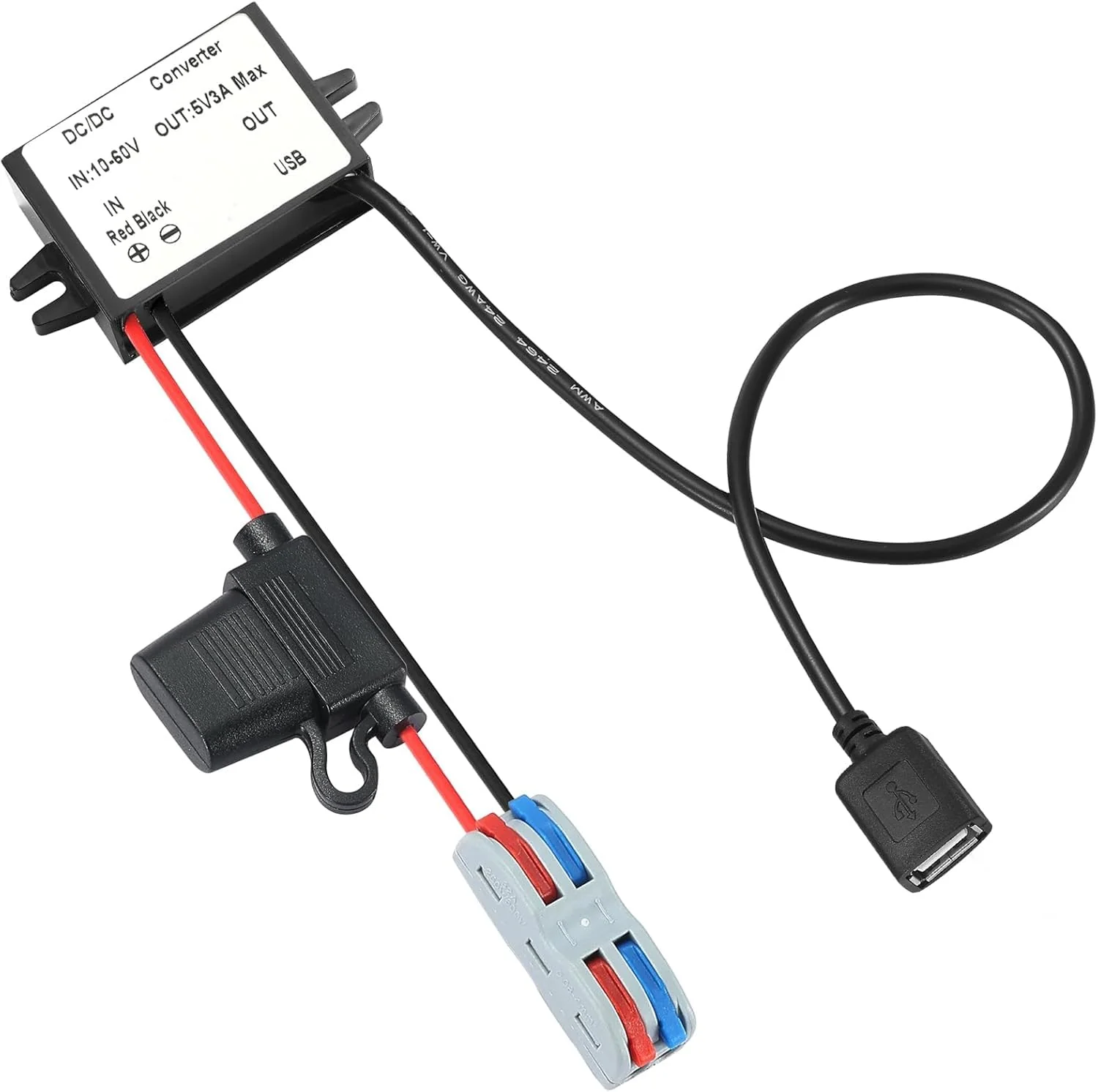

DC DC Buck USB A 10-60V to 5V Voltage Converter with Fuse 5V 3A 15W MAX 12V/24V/36V/48V/60V Power Transformer Waterproof Step Down Module for Automotive, LED Lights, Boat Docks, Instruments USB 10-60V to 5V 3A 15W

DC DC Buck USB A 10-60V to 5V Voltage Converter with Fuse 5V 3A 15W MAX 12V/24V/36V/48V/60V Power Transformer Waterproof Step Down Module for Automotive, LED Lights, Boat Docks, Instruments

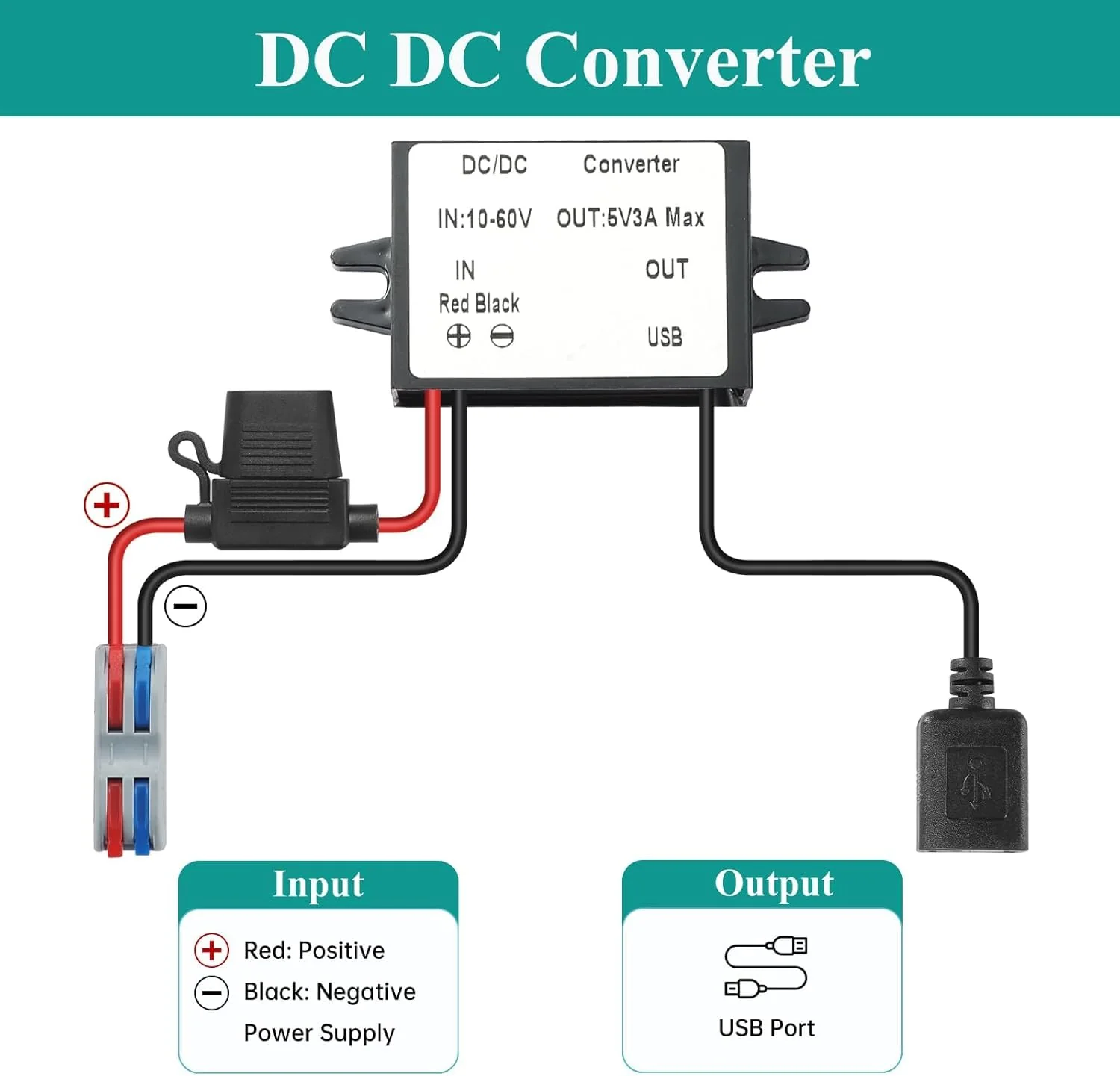

DC-DC USB A converter: 12/24/36/48/60V to 5V 3A 15W MAXInput parameters:1. rated input voltage: 10-60V2. transfer efficiency: 95%3, Input line: 15-16CM (R+ B-)Output parameters:1, Output voltage: 5V2. output: 3A MAX3, Maximum output power: 15W MAX4. idle adjustment rate 2%5. load regulation 3%6. quiescent current loss ≤20MA7. output line 15-16CM(Y+ B-)Environmental parameters:1. working temperature -20-65°2. storage temperature -40-85°3. working humidity 10%-90%RH°Defense function:1. waterproof classification IP672. short circuit protection YES3. overheating protection YES4. overcurrent protection YESPlease read the safety instructions carefully to avoid leakage, explosion or fire1. do not use the appliance near a heat source such as a fire or heater2. do not connect the input cable to 220V electricity3. do not place the product in a fire or heat it up4. do not short-circuit the positive or negative pole of the device with wires or other metal objects5. non- professional personnel must not disassemble and repair the device themselves6. the product is not equipped with protection against reverse polarity of the input. Note that the positive and negative poles of the input must not be reversed and that reversing the polarity will result in permanent damage to the product7. storage: store the product in a dry and cool place with a temperature of -40℃ to 80℃, avoid contact with corrosive substances, and keep it away from fire and heat sources8. heat dissipation method：natural heat dissipation, no other equipment is required to assistPackage includes:1 x converter

Product Features

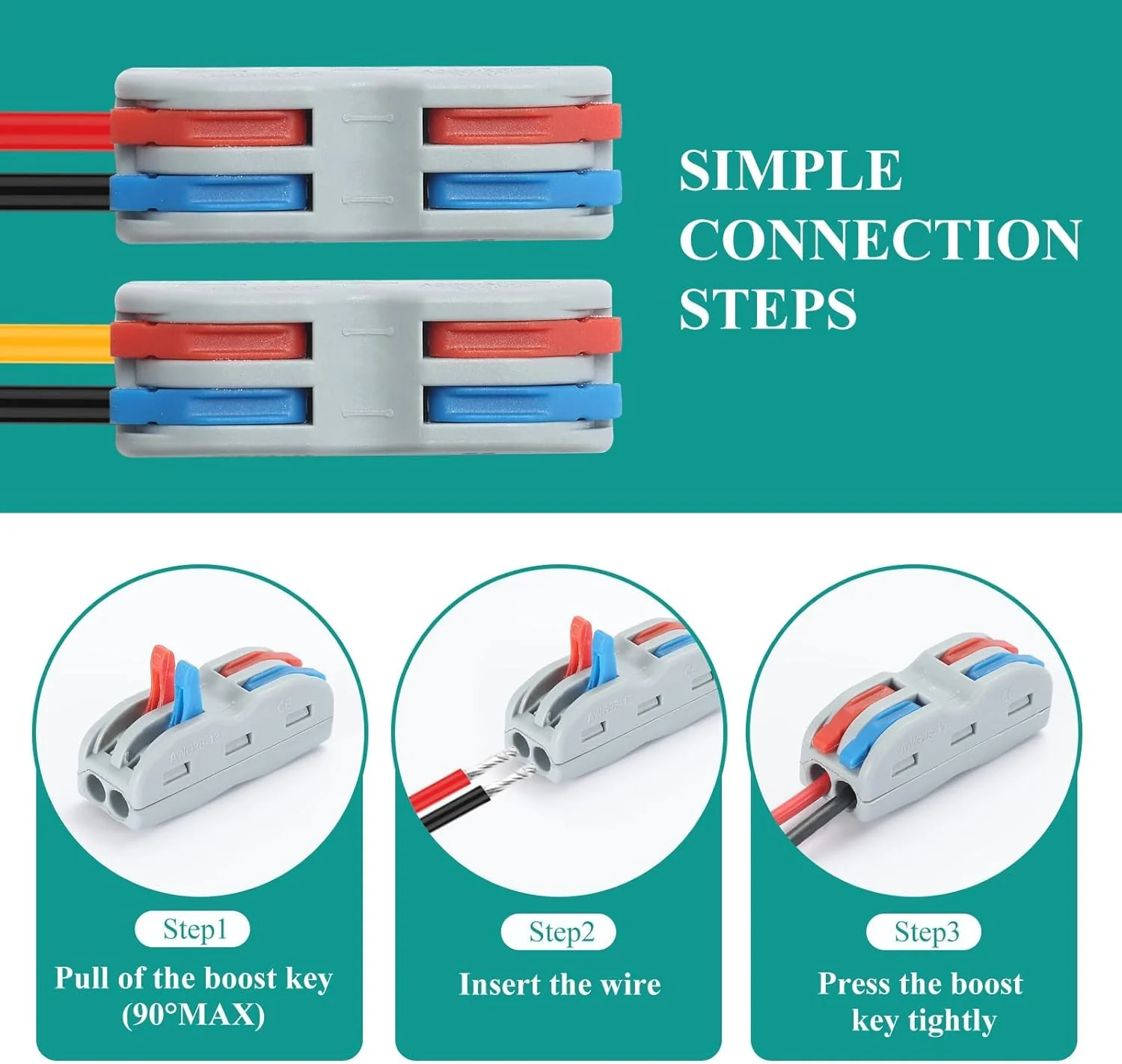

• 10-60V to 5V DC step down USB A Transformer: Input range: 10V to 60V; output voltage: 5V fixed output; output current: 3A; output power: 15W MAX; Be sure to insulate the wire 0.4 inches and insert it into the plug when installing

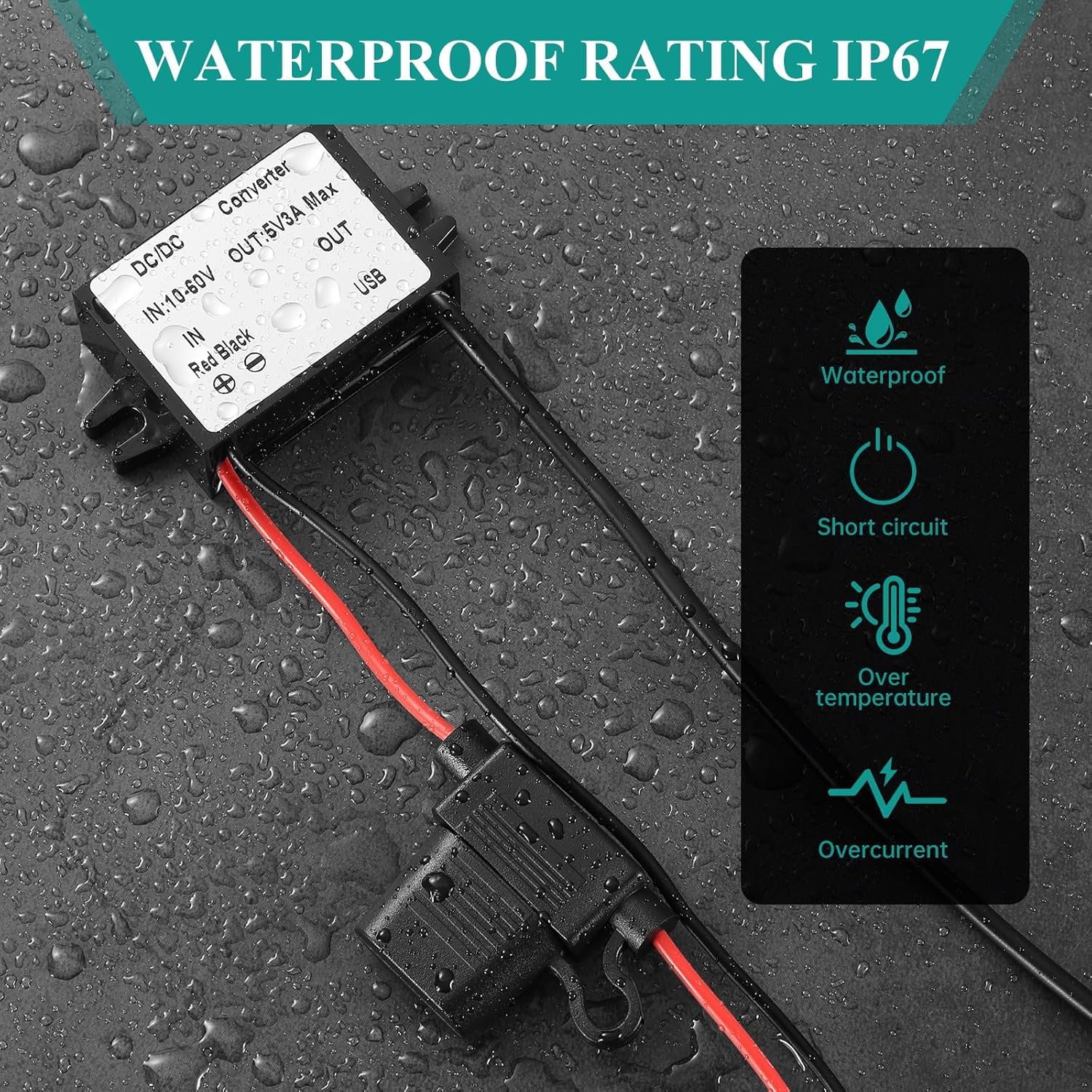

• Heat Dissipation Performance: The 10-60V to 5V voltage boost regulator has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance

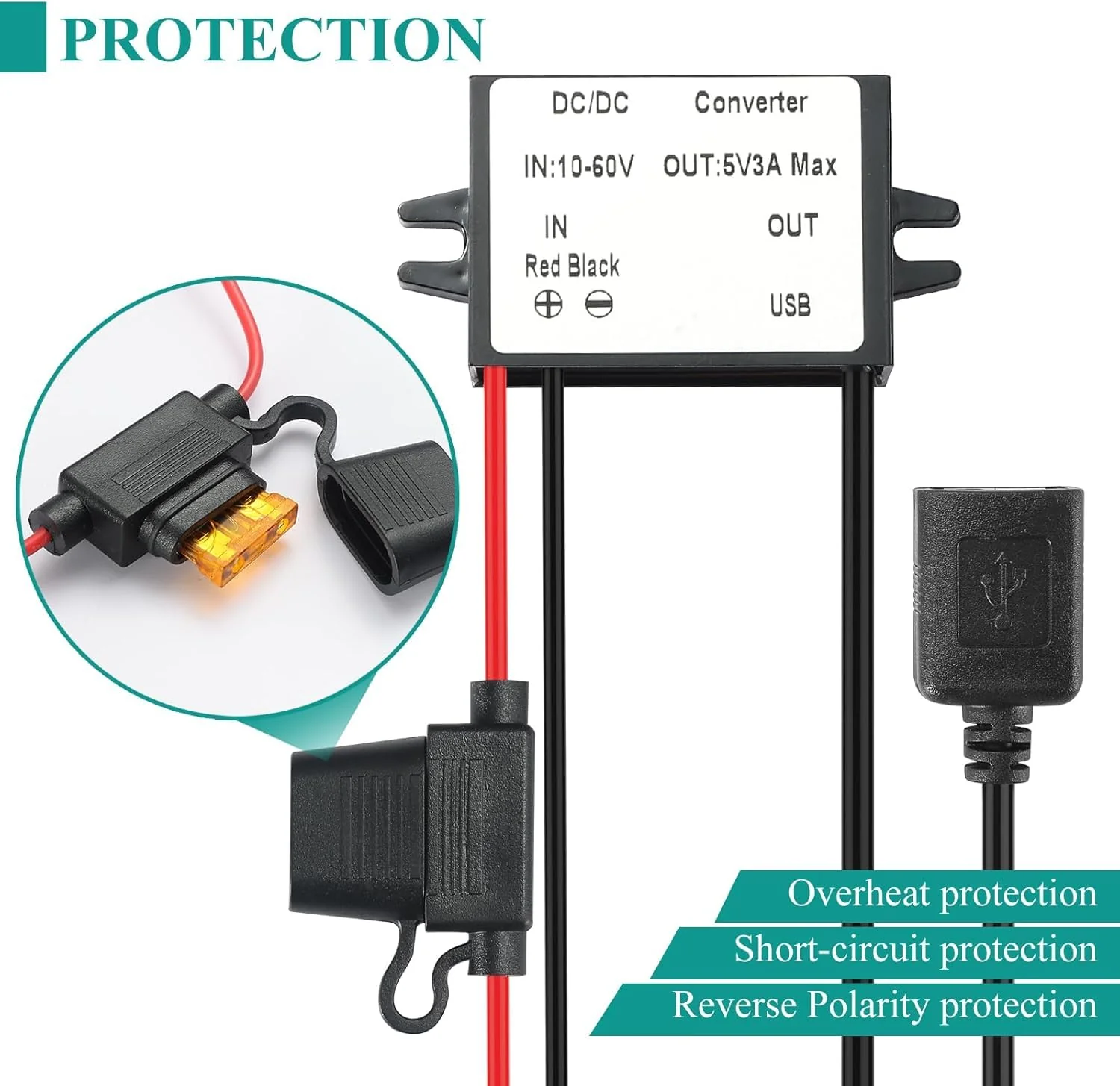

• Intelligent Protection: Assembled with smart chip, equipped with intelligent overcurrent overload low load short circuit overheat protection by using the 10-60V to 5V boost power transfomer voltage
• Widely Application: The 10-60V to 5V DC voltage boost converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc
• Please Note: The load connected to the transformer converter output should not exceed the specified maximum load. Any greater load will damage the transform booster. The 10-60V to 5V DC power converter adapter does NOT have input reverse protection, pay attention to the input correct, negative reverse, will lead to permanent damage to the product
