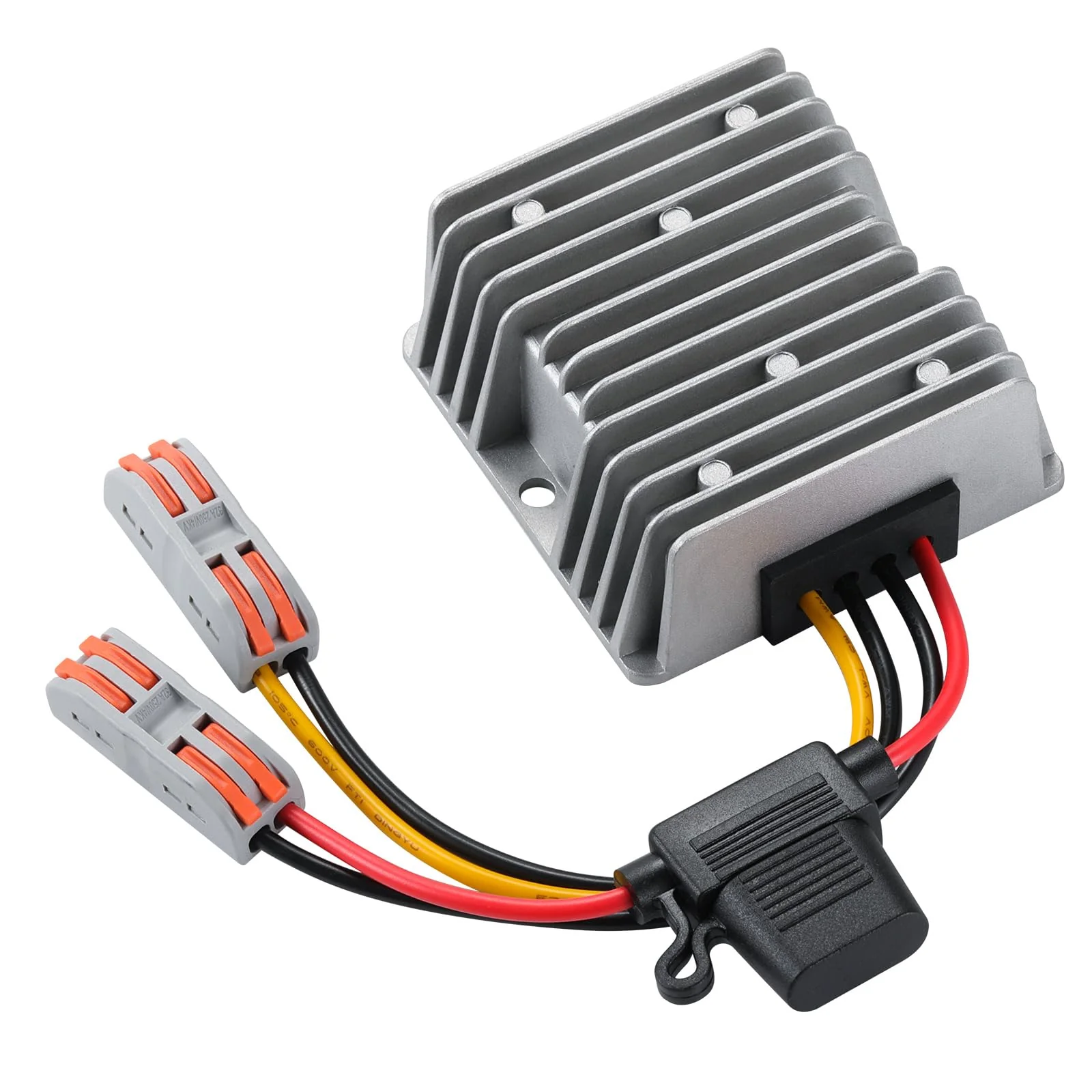

DC 9V-32V to 12V10A Voltage Converter, 24V Step Down to 12V 120W Buck With Safety Fuse and Clamps, Voltage Regulator, Power Supply Adapter, Truck Step-Down Volt Gray-DC 9-32V to 12V 10A

DC 9V-32V to 12V10A Voltage Converter, 24V Step Down to 12V 120W Buck With Safety Fuse and Clamps, Voltage Regulator, Power Supply Adapter, Truck Step-Down Volt

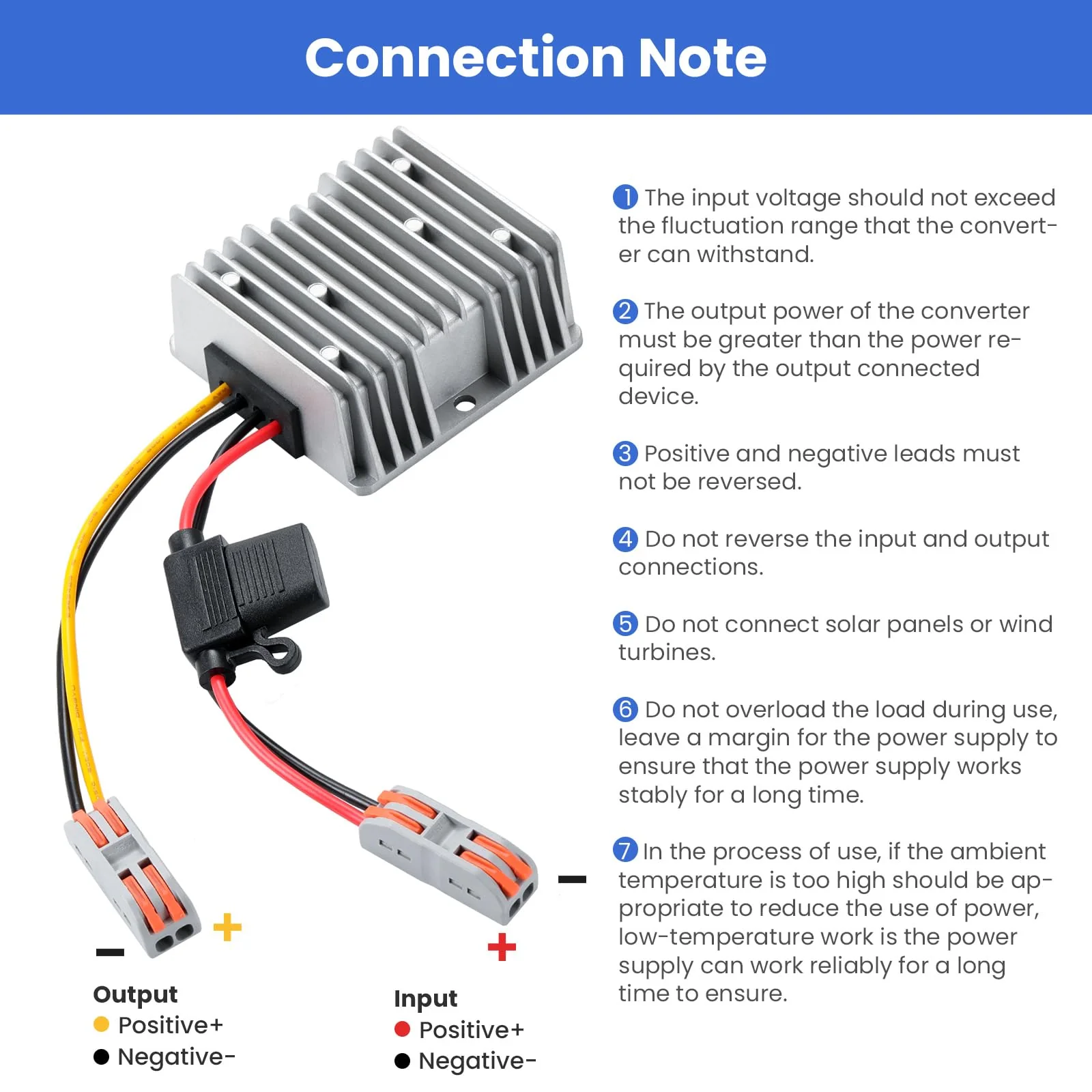

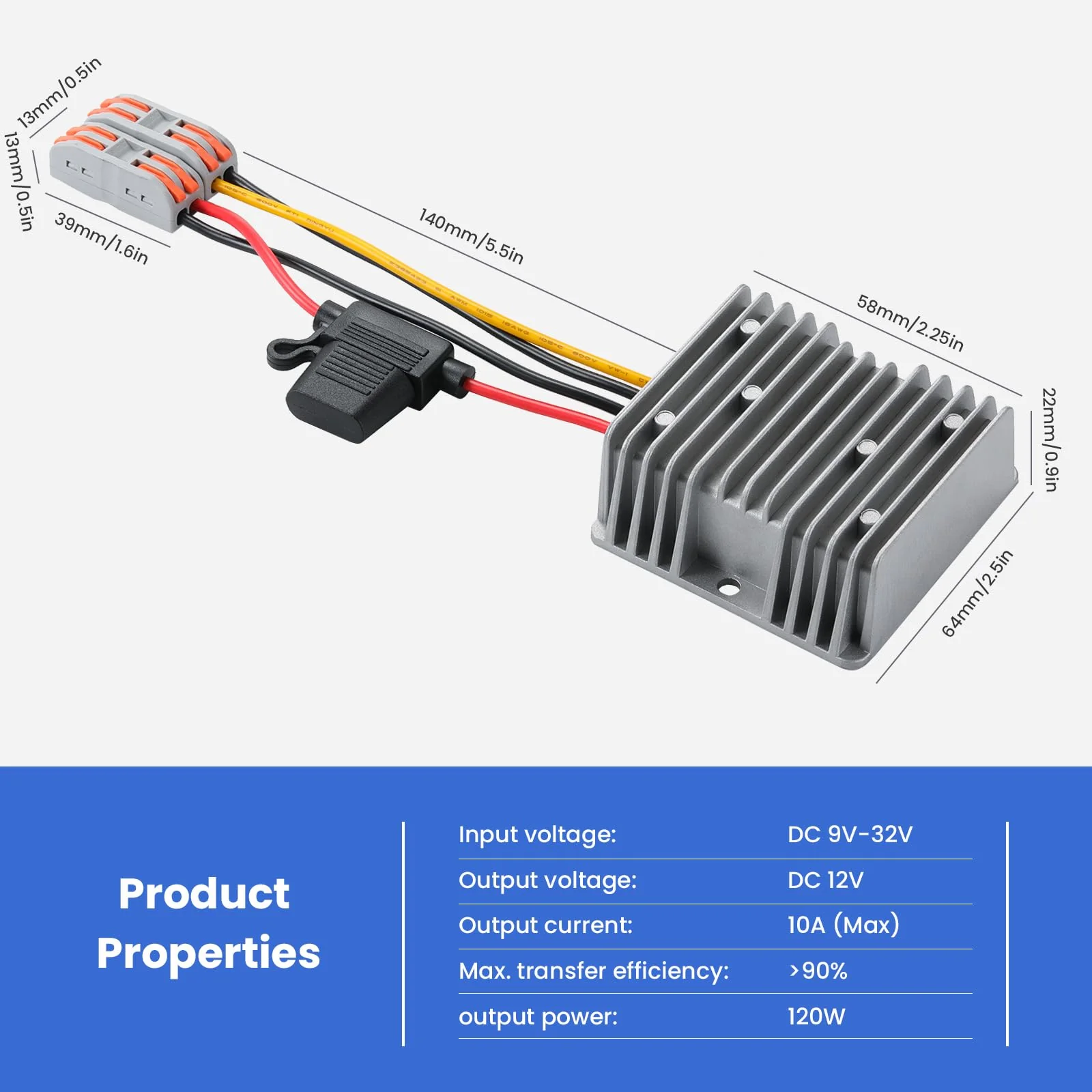

DC/DC 12V/10A DC regulator Parameters Brand: MZHOU Input Voltage: 12V DC Input Voltage Range: 9-32V DC Efficiency: Over 90%（When 24V input） Output voltage: 12V DC Output current: 10A Output power:120W Waterproof rating: IPX-7 LWH: 666022mm Length of cable: 5.8 in（14.8cm） Net weight: 250G 12V regulator connection: Input: red(+) black(-) Output: yellow(+) black(-) Protection against transient high voltage at input, protection against overcurrent at output, protection against overtemperature at chip. DC voltage regulator safety manual 1. the load connected to the output of the power regulator should not be higher than the MAX LISTED LOAD POWER, any higher load will cause damage to the power regulator. 2. in the process of use, if the ambient temperature is too high, should be appropriate to reduce the use of power, low-temperature operation is a guarantee that the power supply can work reliably for a long time. Cautions 1 Can not be reversed, the power supply does not have reverse connection protection,please connect the wires correctly, reverse connection will damage the power supply 2 The use of the process can not be overloaded load, leave a margin for the power supply to ensure long-term stability of the power supply work 3 In the process of use, if the ambient temperature is too high should be appropriate to reduce the power to use, low-temperature work is the power supply can be long-term reliable work to ensure that properly functioning. Package Includes 1x DC to DC Voltage Converter 9V-32V to 12V 10A Please feel free to contact us if you have any questions with installation or quality.

Product Features

• 9-32V to 12V Voltage Converter: This 12V voltage regulator can convert DC 9-32V to DC 12V. you don't need to worry about overvoltage/mismatch and other bad conditions. Voltage input: DC 9-32V, Output: DC 12V, Maximum current: 10A 120W.

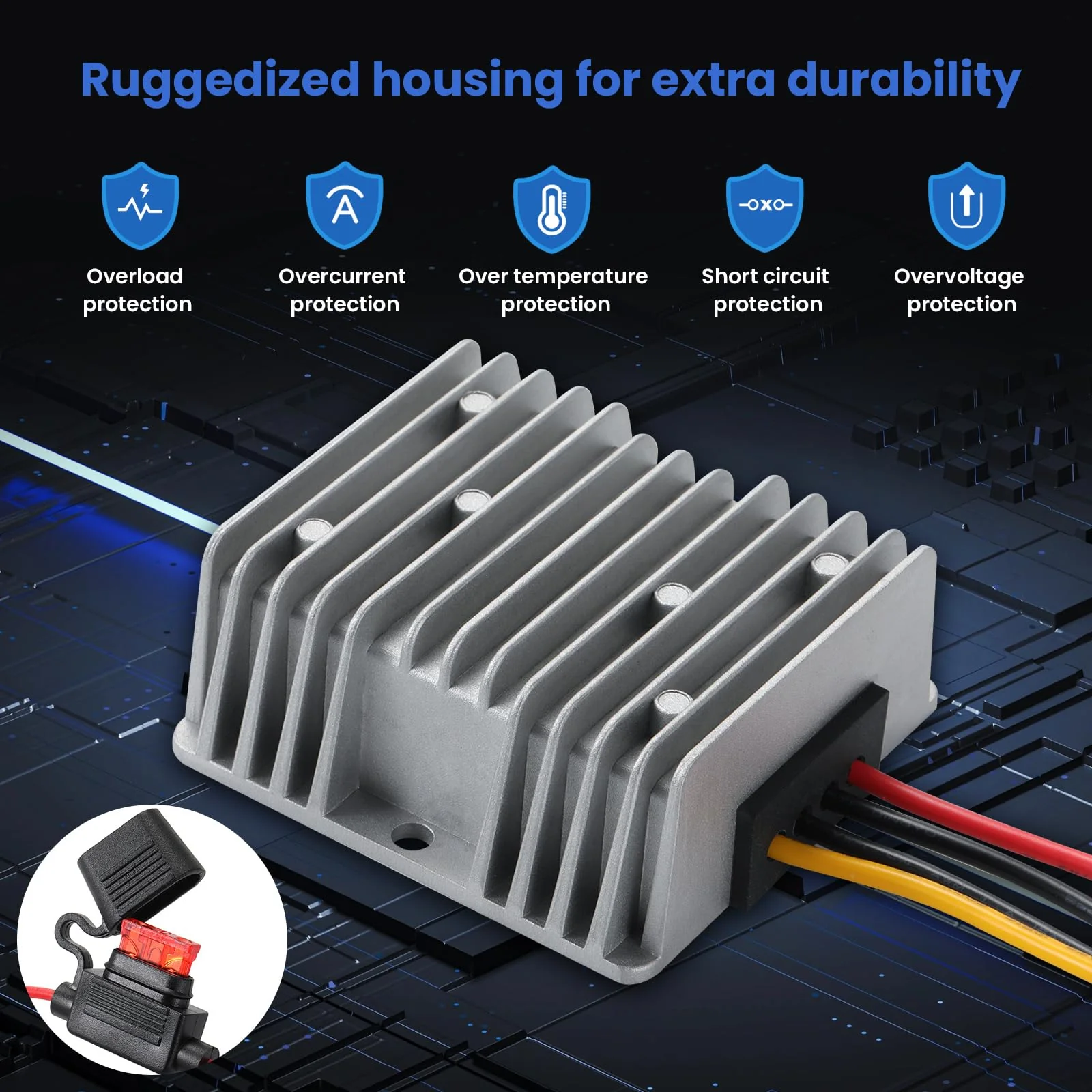

• Multiple protection:It adopts integrated IC design, featuring high conversion efficiency, small size, stability and reliability, and adopts potting process, which is dust-proof, water-proof and vibration-proof.
• Safe with fuse: For the safety of the user, our DC-DC voltage transformers are equipped with a fuse. If the voltage is too high, the circuit is faulty or abnormal, the fuse will blow and the transformer will stop working, protecting the device. It also reduces the risk of fire or explosion. Conversion rate of up to 96% or more with correct output. High quality, more durable performance and longer life.12V Automatic voltage regulator with non-isolated synchronous step-down technology, the conventer will not heat up when it works, which is safer.
• Wide application:Large trucks, Golf cart, Club car, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, electronic systems and DIY etc.

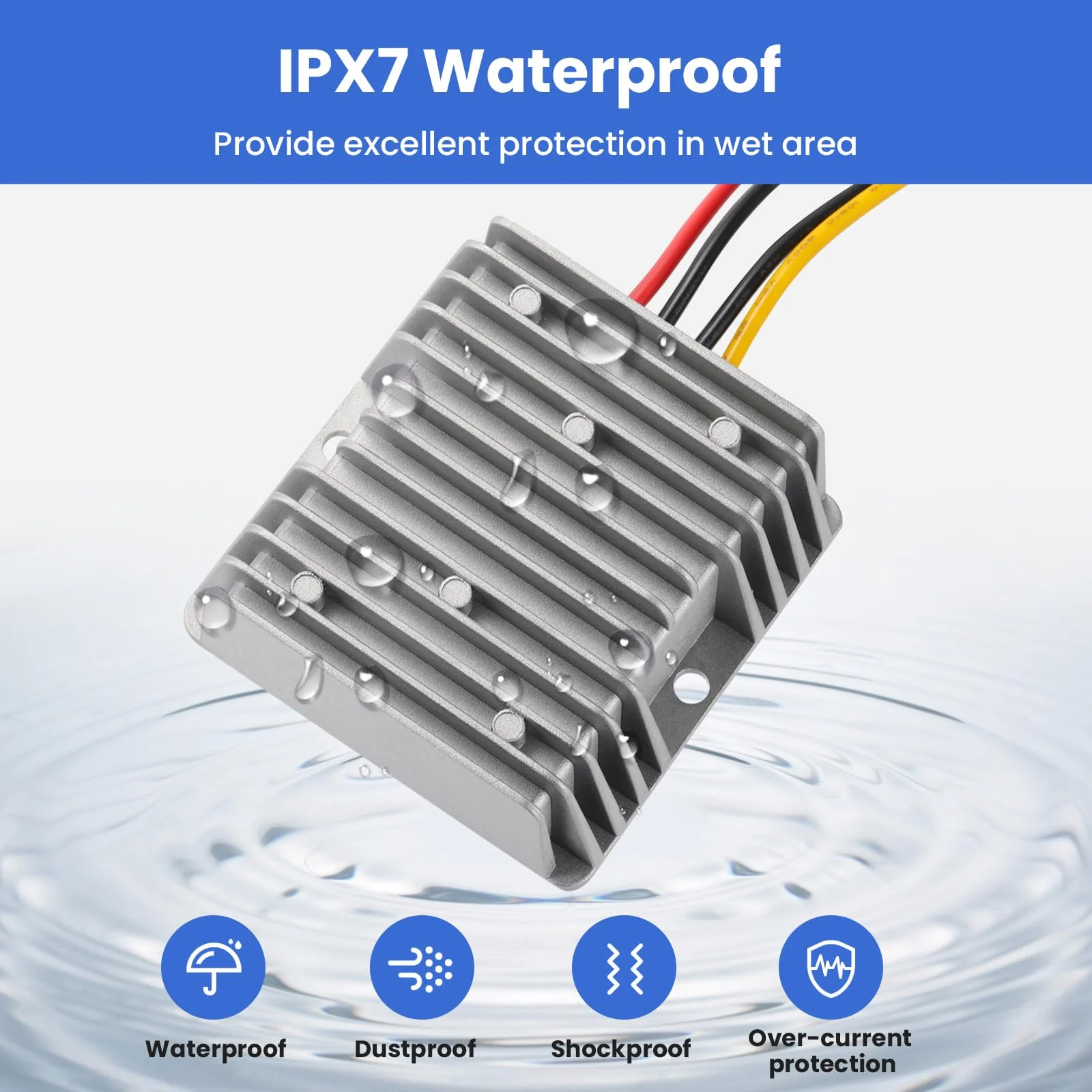

• IPX-7 waterproof rating: The DC-DC step-down converter is molded with a dustproof, waterproof and vibration-proof function, which ensures that the internal electronic components are isolated from the external environment, and at the same time it can withstand the heavy rain or bad weather outdoors.
