DB9 Serial Cable RS232/RS485/RS422 Extension Cable, DB9 Male to Bare Wire Cable Marked 10 Foot, D-USB 9-pin Port Terminal Male Adapter Connector Distribution Board, No Soldering Required - Black 10FT

DB9 Serial Cable RS232/RS485/RS422 Extension Cable, DB9 Male to Bare Wire Cable Marked 10 Foot, D-USB 9-pin Port Terminal Male Adapter Connector Distribution Board, No Soldering Required - Black

Product Features

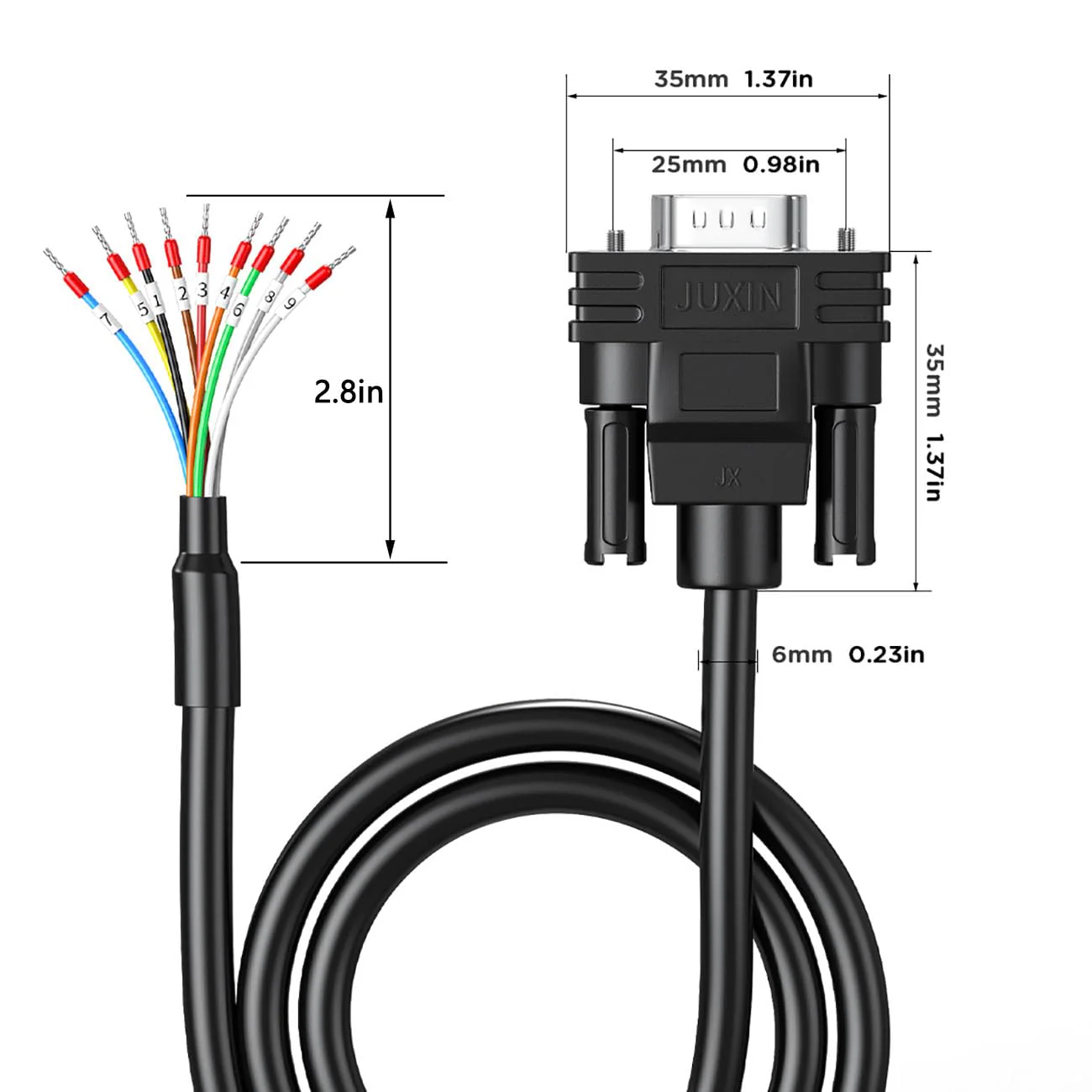

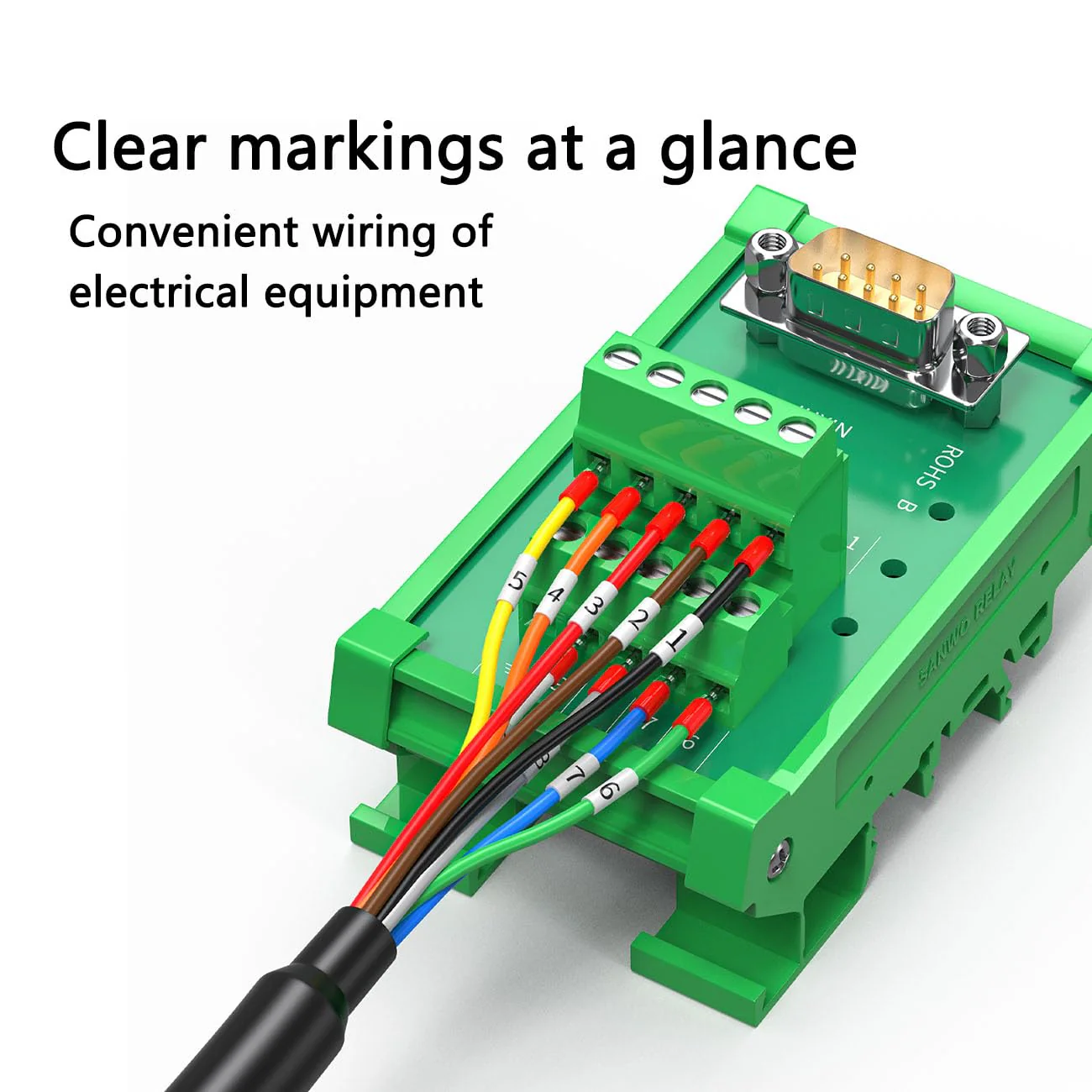

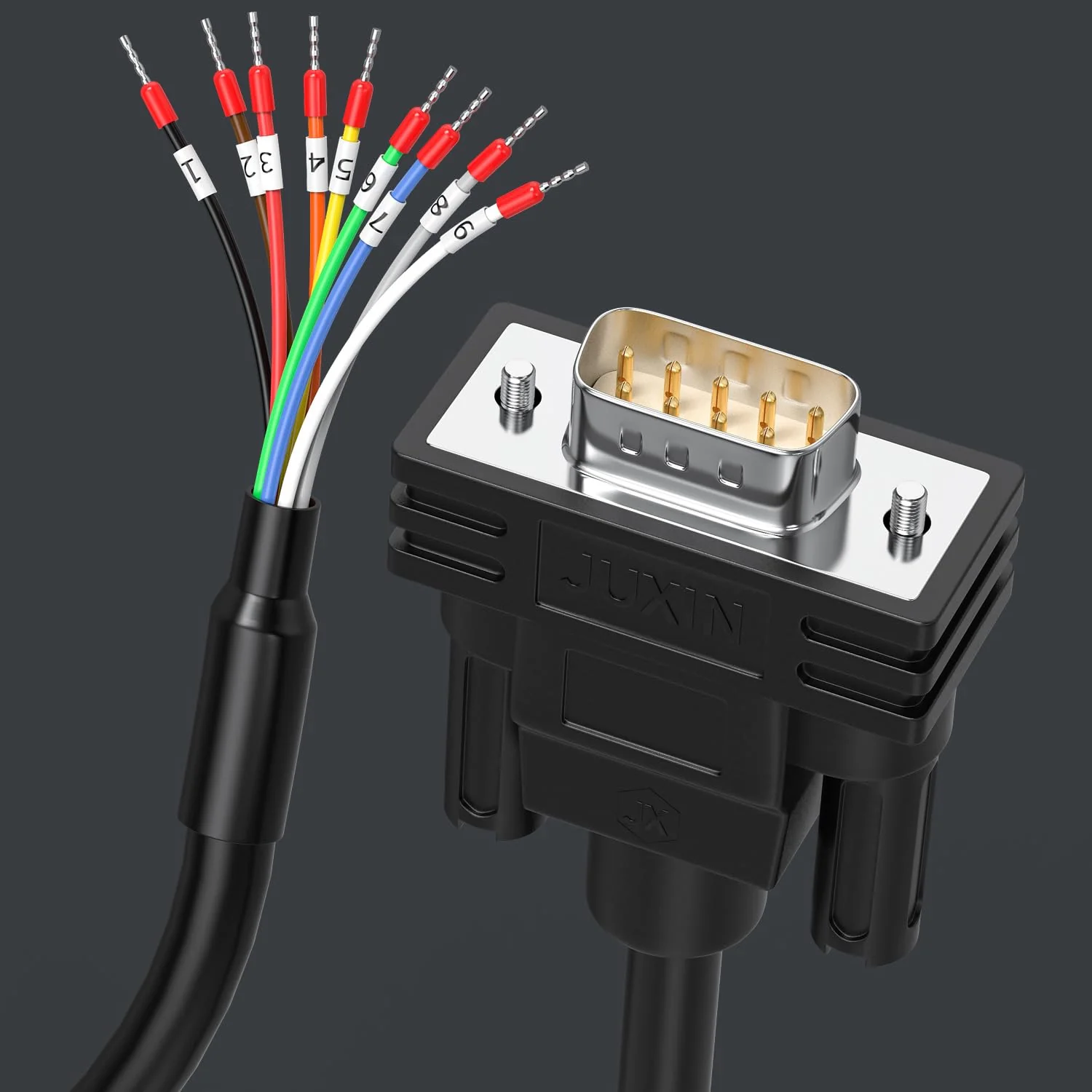

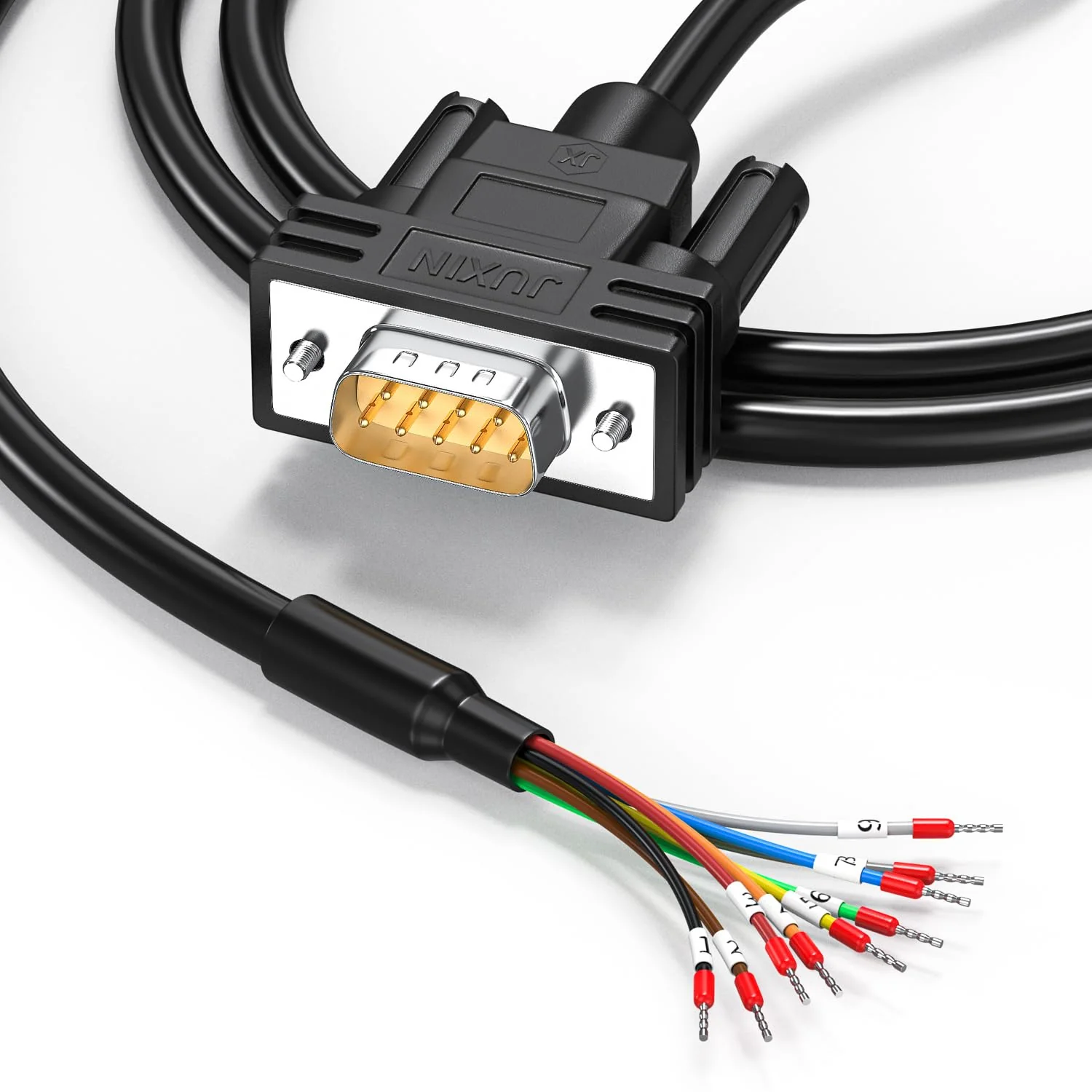

• DB9 male connector to bare wire ,Each wires end is equipped with red cold crimping terminals(Red copper material)and Clear Cable Marker for 1 to 9, which are firmly crimped and do not fall off , Easy to use

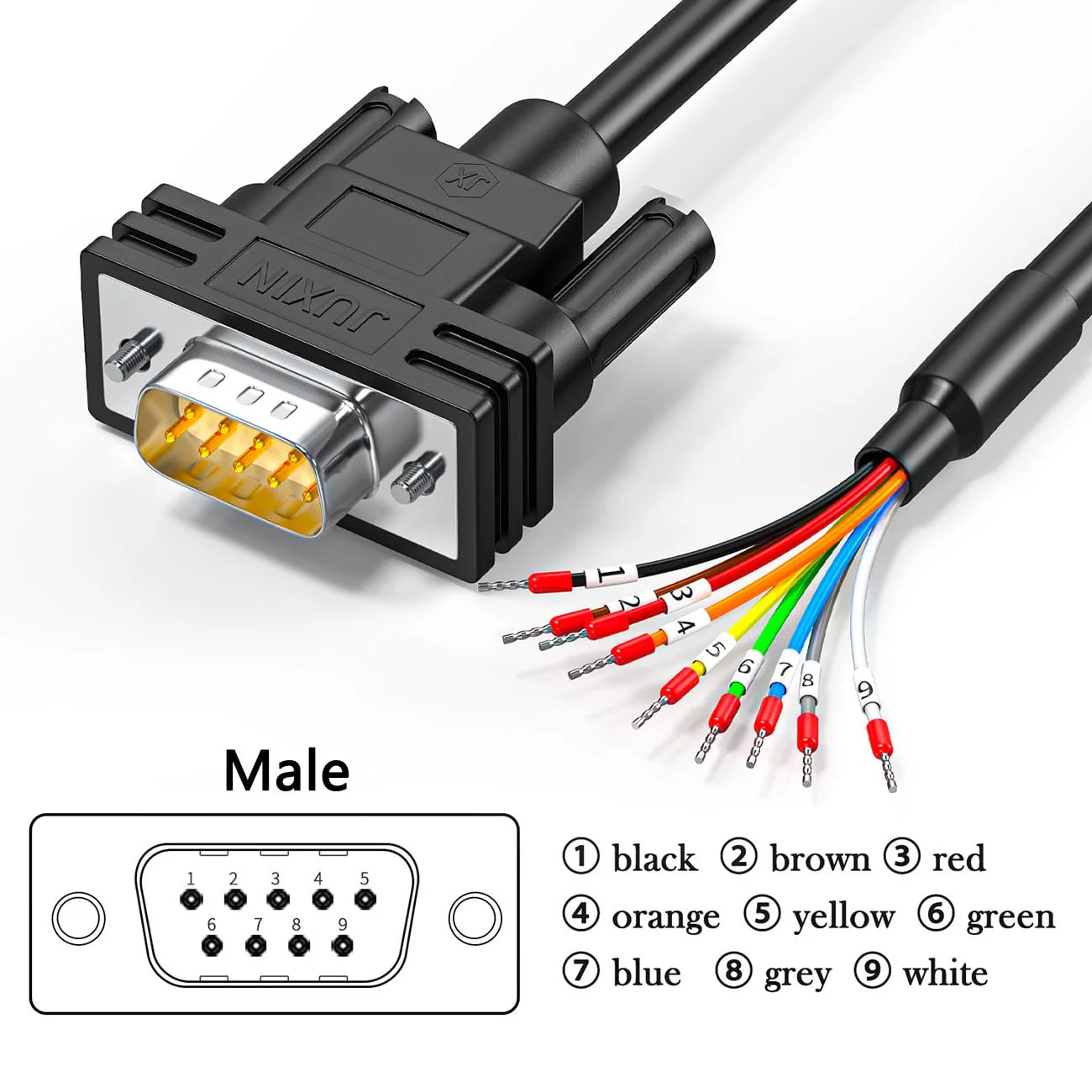

• Multiple communication protocols:DB9 cable Straight-through wiring (i.e. pin 1 to pin 1) design per industry standards, Supports RS232/RS485/RS422 and other communication protocols. 9 Wires Core color : 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-gray, 9-white

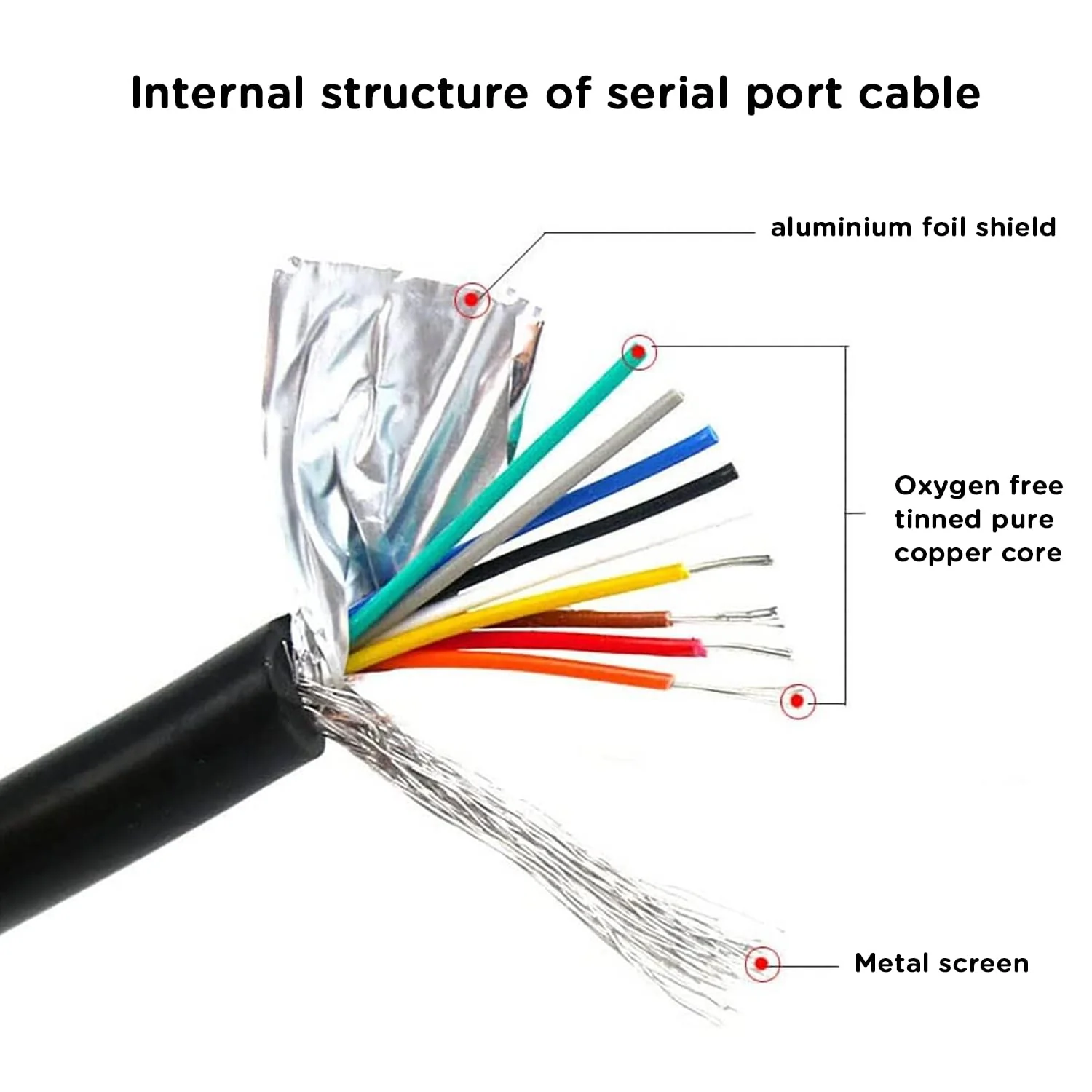

• DB9 Serial Cable wrapped with aluminum foil+high-density woven mesh to form double-layer shielding, with strong anti-interference ability. 9 wires cores are made of 26AWG tinned copper, OD 6.0mm.

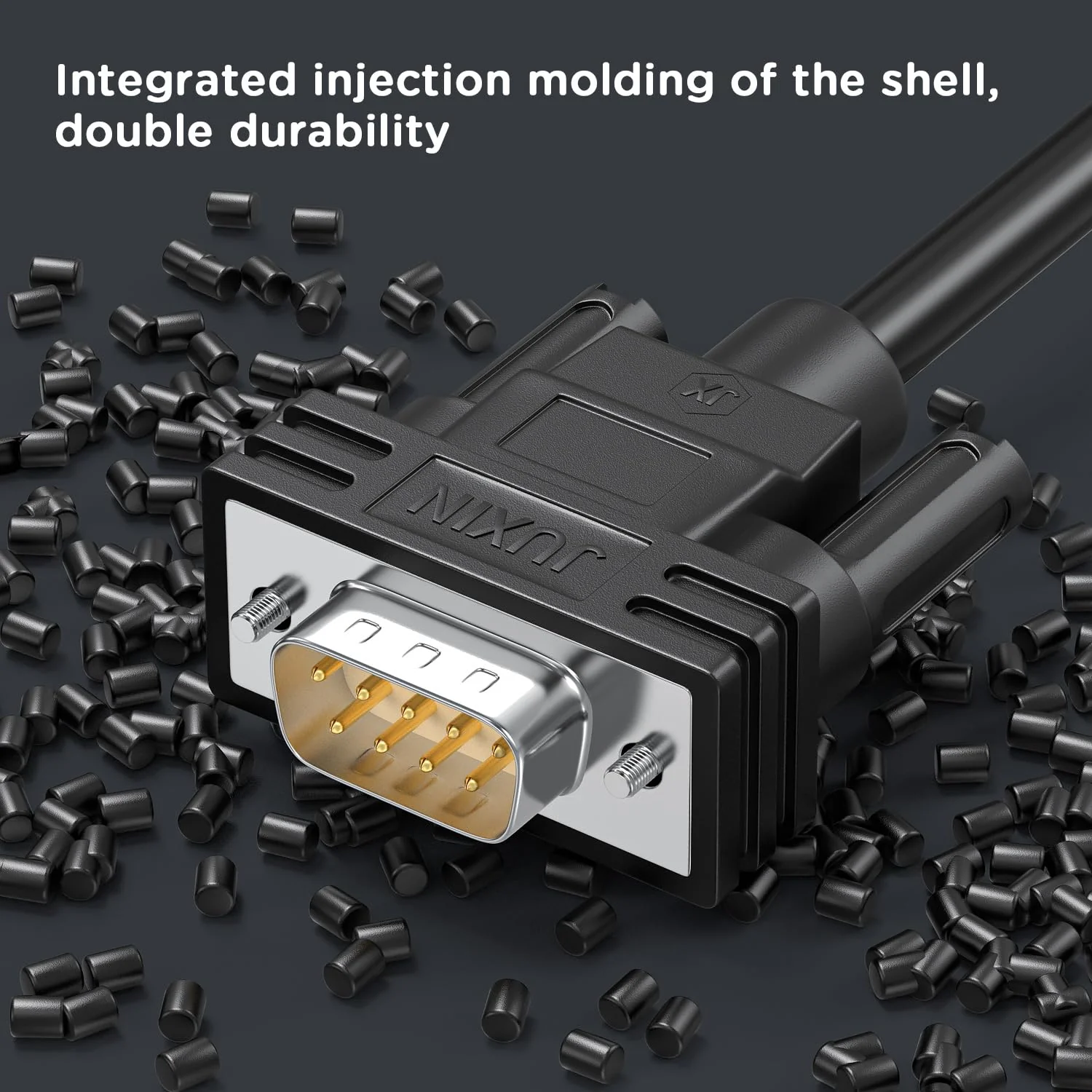

• DB9 pin connector are copper core gold-plated, with good plug resistance and contact. DB9 bare wire adopts black PVC molded and injection molded shell
• DB9 connector is used for automatic control equipment, PLC controllers, touch screens, programmers, data converters, servo motors, automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc.
