DAOKAI XH-M131 Photoresistor Relay Module 12V DC Photoresistor Relay Module Light Control Switch Detection Sensor Automatic Light Control Switch with 24 AWG Wire (5 Pieces)
DAOKAI XH-M131 Photoresistor Relay Module 12V DC Photoresistor Relay Module Light Control Switch Detection Sensor Automatic Light Control Switch with 24 AWG Wire (5 Pieces)
DAOKAI XH-M131 Photoresistor Relay Module 12V DC Photoresistor Relay Module Light Control Switch Detection Sensor Automatic Light Control Switch with 24 AWG Wire (5 Pieces)

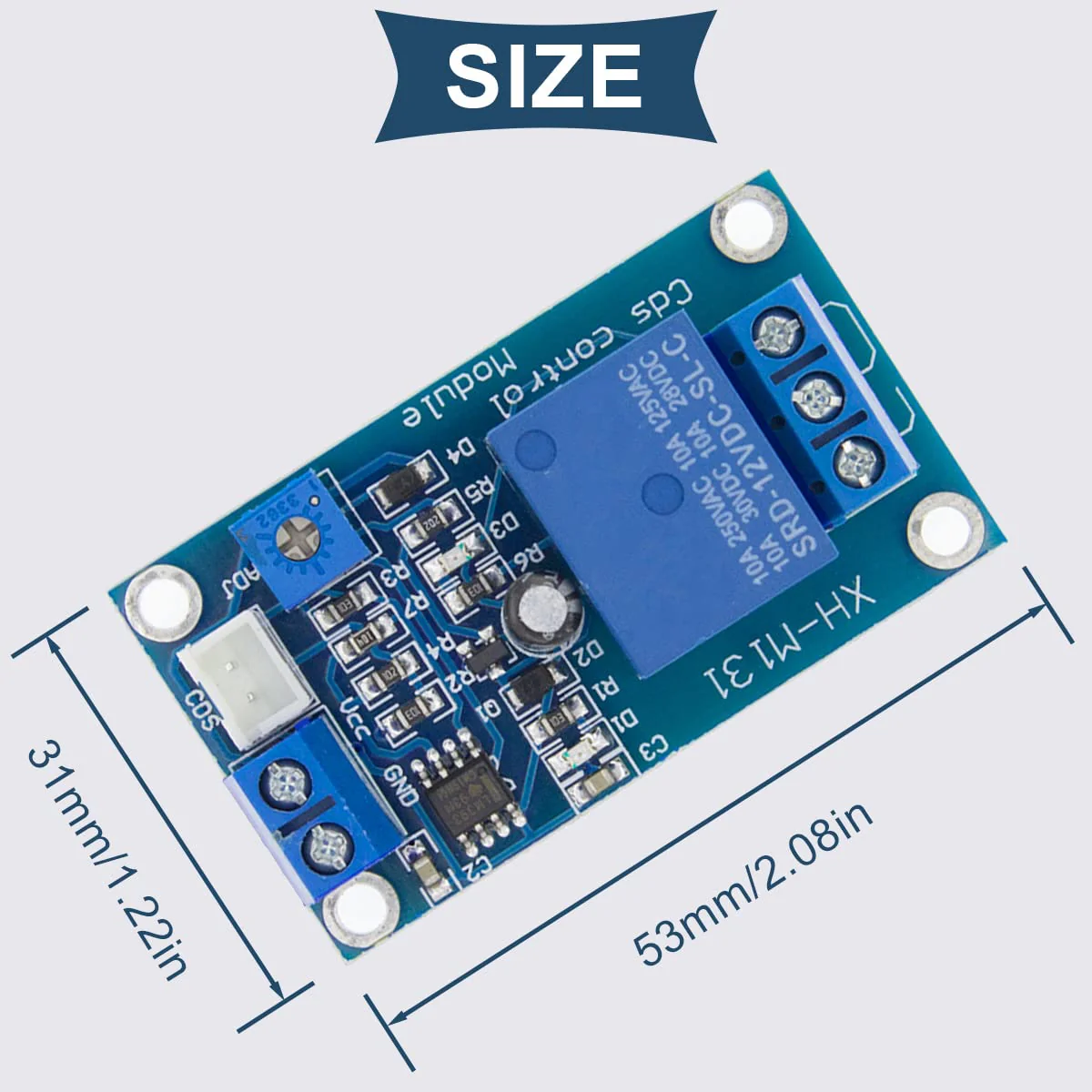

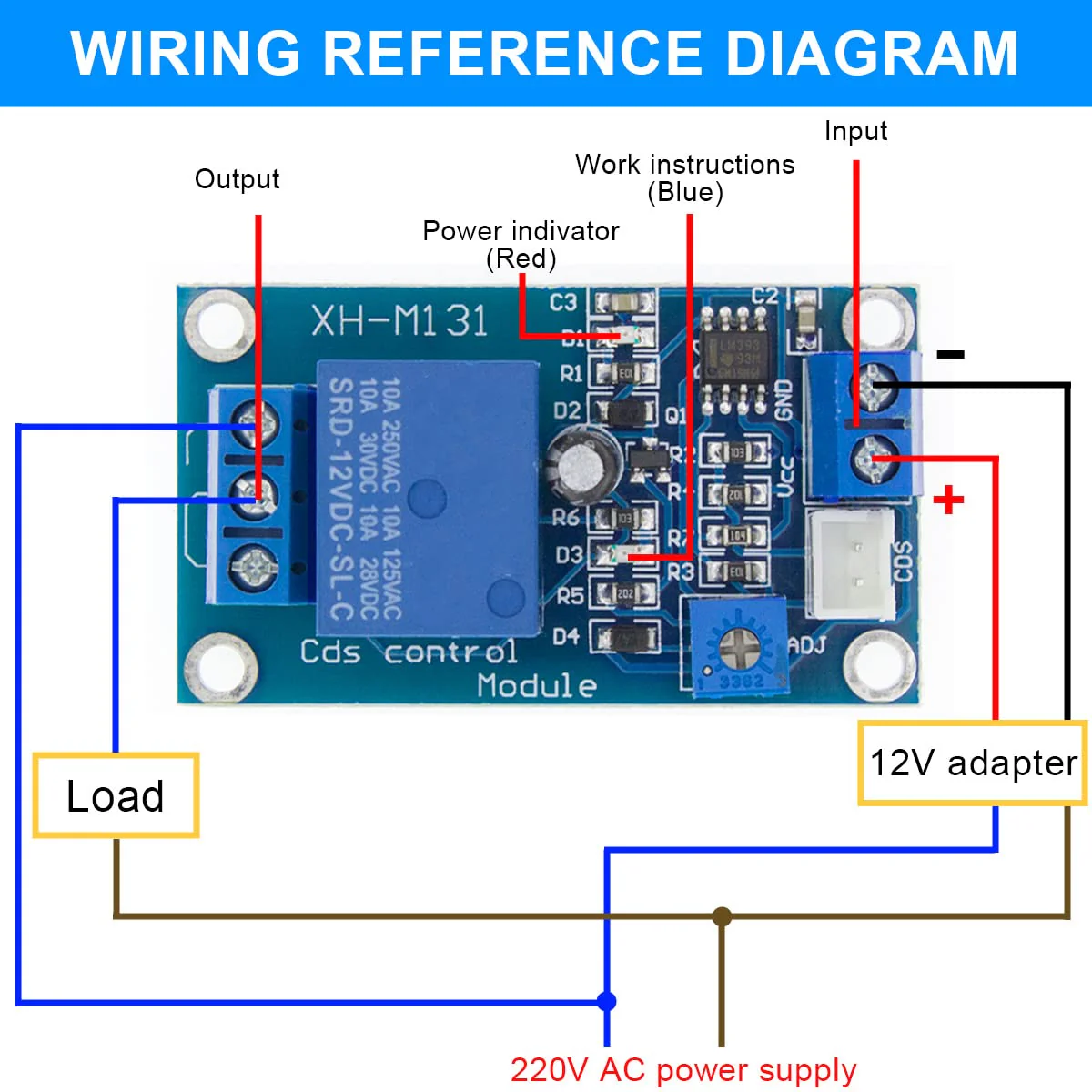

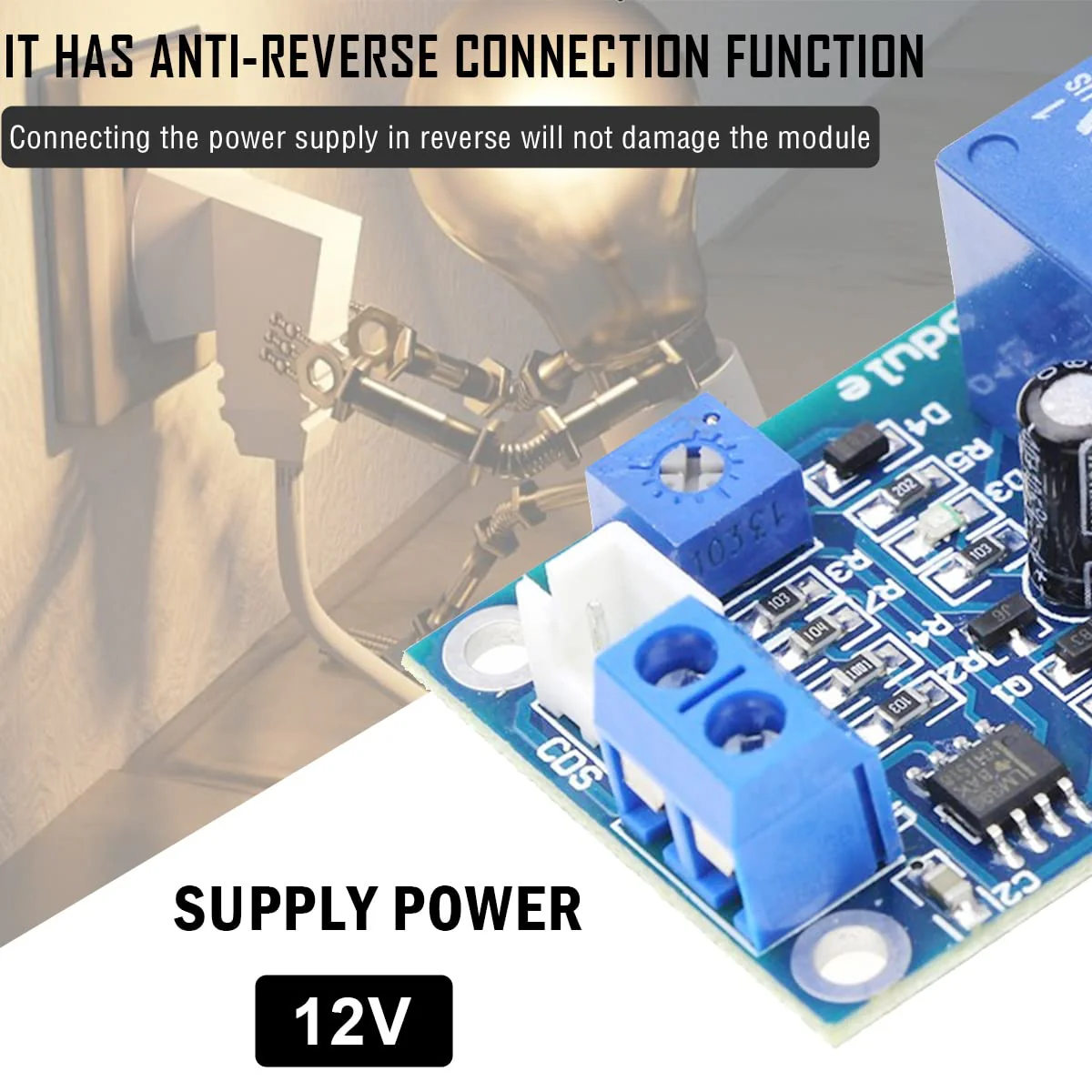

Parameters: Operating voltage: 12 V. Output type: Output switch. Control capacity: maximum 10 A. Detection frequency: 1 MHz. Load capacity: 10 A / AC 250 V or DC up to 30 V. Red LED on: indicate the power on. BLUE LED ON: Relay is working Size: 53x31x19mm/2.08x1.18x0.75in Working temperature: -20 °C ~ +85 °C. Description: 1. The module adopts 12V power supply and has the function of anti-reverse connection, and the reverse connection of the power supply will not damage the module; 2. The maximum load capacity of the normally open interface: AC 0V--125V/20A, DC 0V--14V/20A; the module output has three ports common terminal (COM), normally open (CK), normally closed (CB), three Each port is equivalent to a dual-control switch. When the relay coil is powered, the common terminal is connected to the normally open terminal, and when there is no power, the common terminal is connected to the normally closed terminal; the COM terminal is generally connected to the negative pole of the power supply through the load, and the normally open terminal is connected to the positive pole of the power supply ; 3. The sensitivity can be adjusted by the potentiometer. By adjusting the potentiometer, the threshold value of the start relay can be set. When the light is dark at this threshold value, the module relay is pulled in, and when it is bright at this threshold value, the relay is disconnected Package includes: 5 x 12 V photoresistor modules. 2x50cm/19.68inch 24AWG Cable
Product Features
- Potentiometer indicator description Red light: module operating voltage, blue light: relay power indicator, potentiometer: adjust detection brightness value.
- Function: the photoresistor module is most sensitive to the brightness of the ambient light and is generally used to detect the brightness change of the ambient light.
- Common connection, normally open, normally closed. The three ports correspond to a double control switch. When the relay coil is powered, the common terminal is connected to the normally open port, and if there is no power, the common connector is connected to the normally closed port.

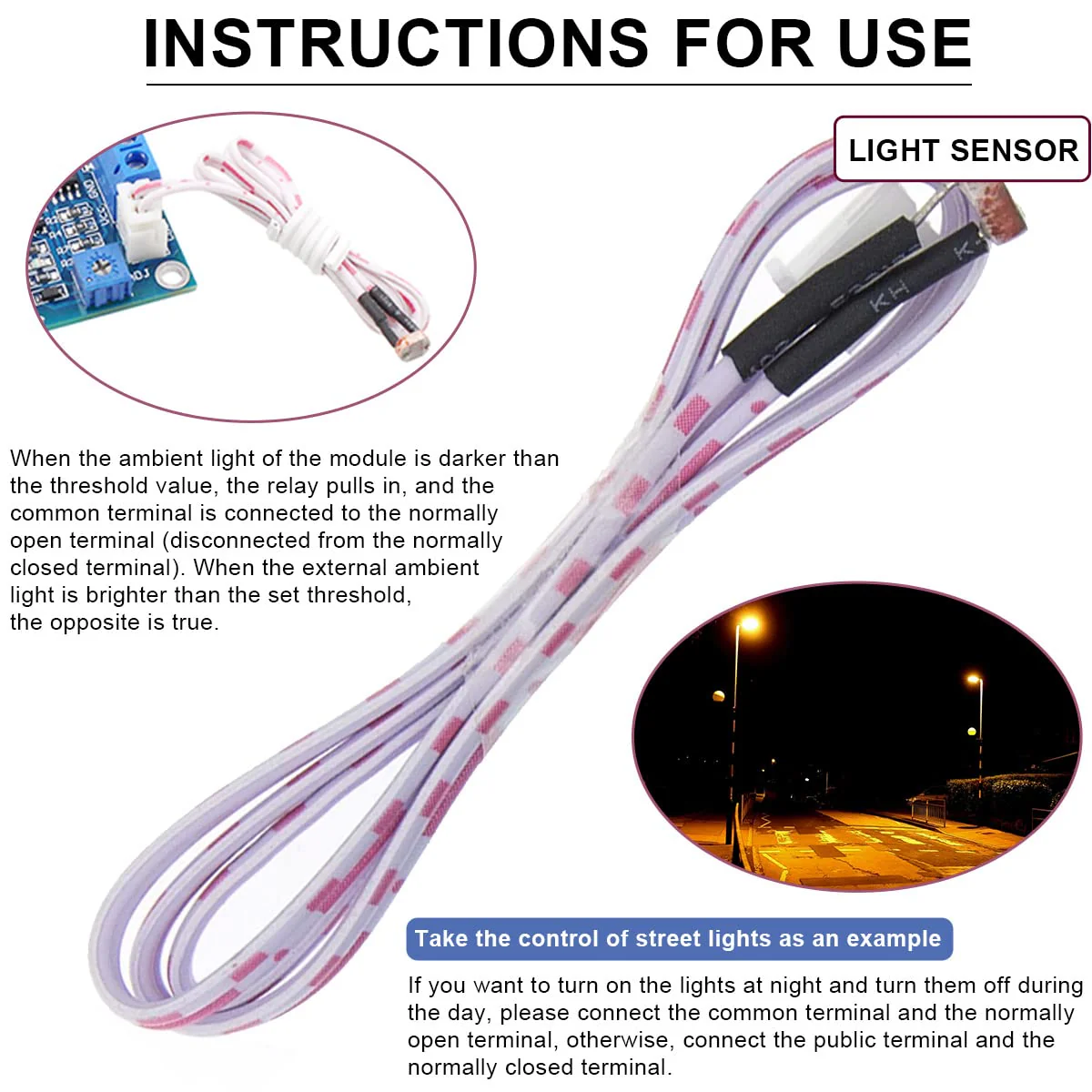

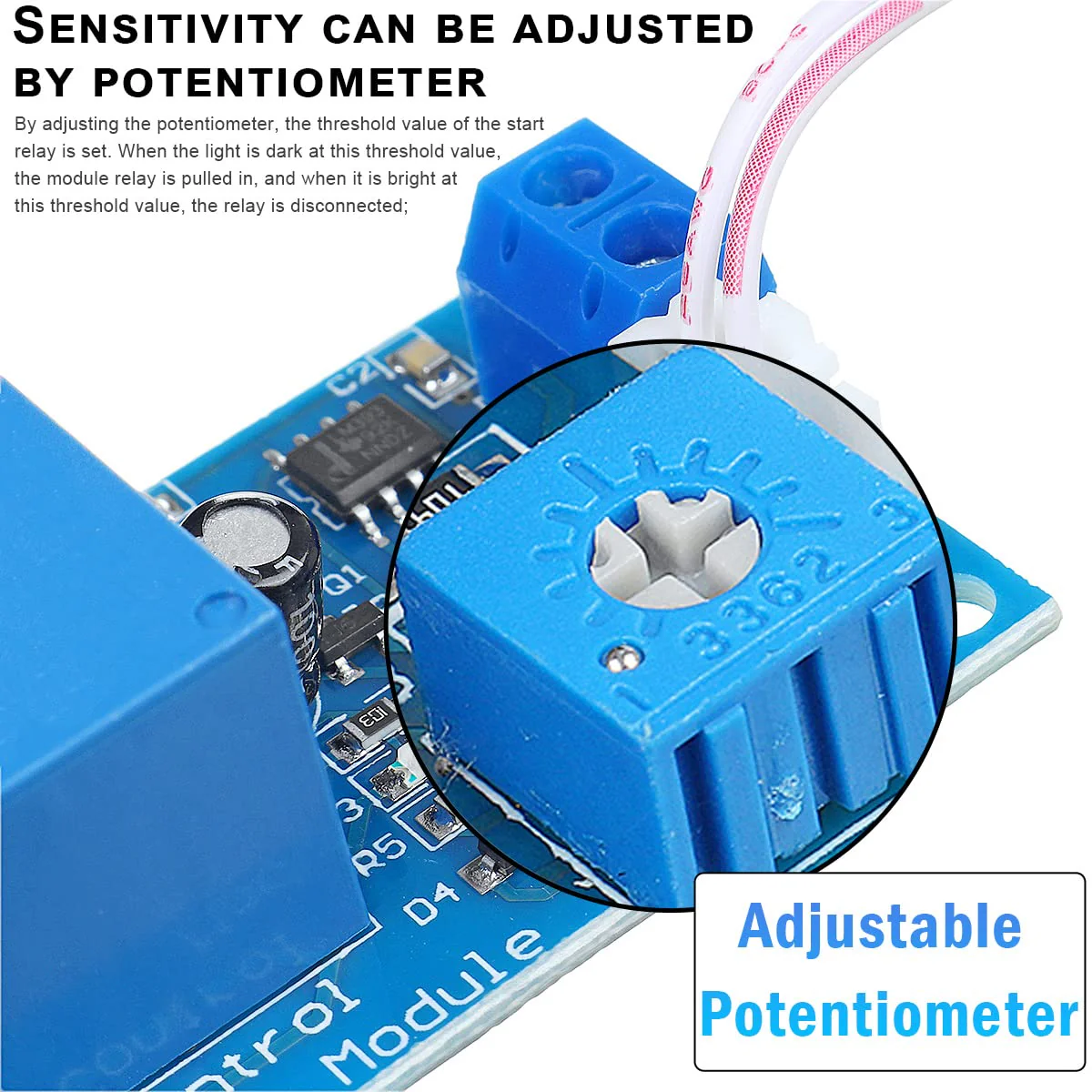

- Sensitivity adjustment: adjust the start relay threshold by adjusting the potentiometer. When the light is dark at this threshold, the relay of the module is attracted, and if it is bright at this threshold, the relay is disconnected.

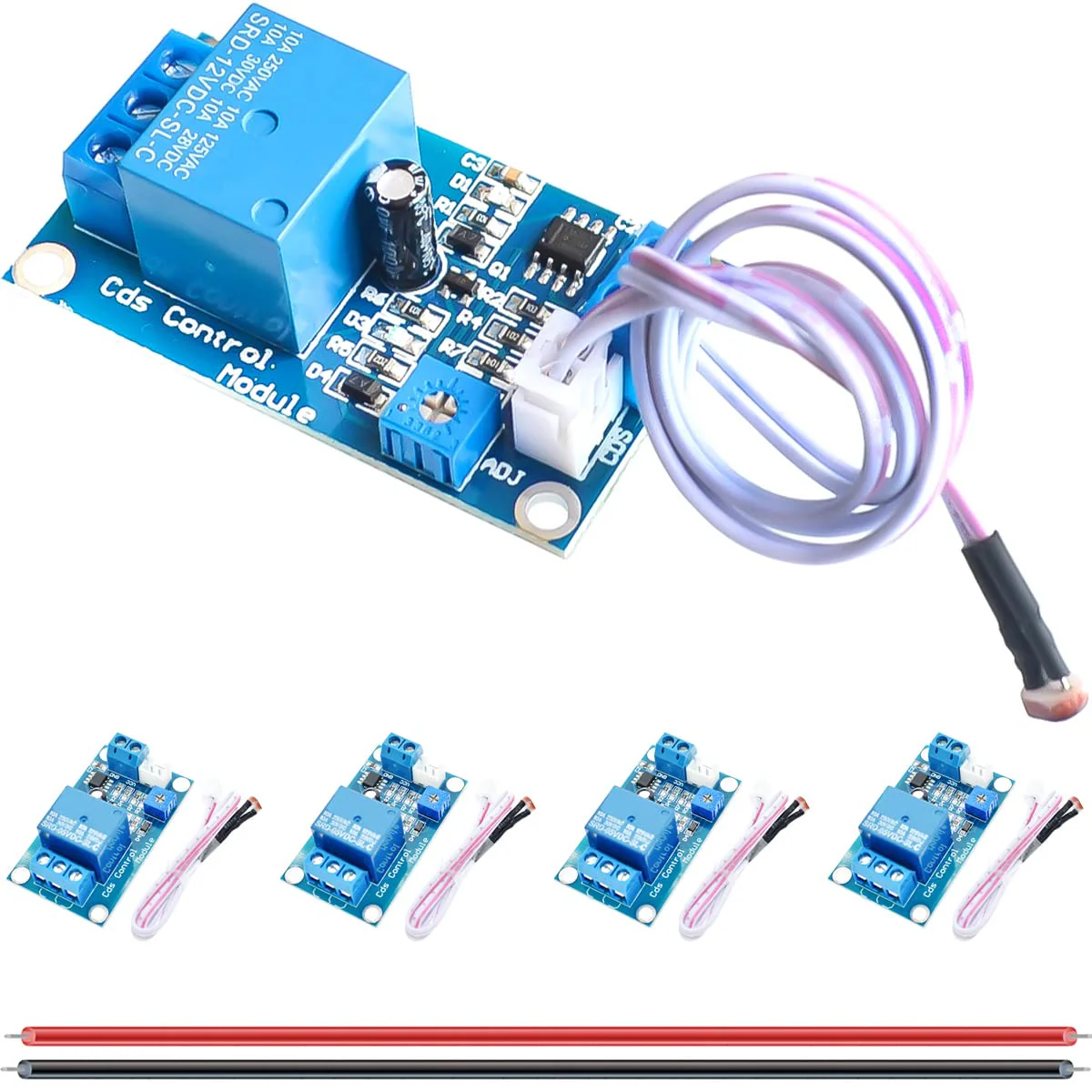

- Package includes you will receive 5 x 12V photoresistor relay module, 2 x 50cm / 19.68 inch 24AWG cable.
More Images
DAOKAI XH-M131 Photoresistor Relay Module 12V DC Photoresistor Relay Module Light Control Switch Detection Sensor Automatic Light Control Switch with 24 AWG Wire (5 Pieces)
DAOKAI XH-M131 Photoresistor Relay Module 12V DC Photoresistor Relay Module Light Control Switch Detection Sensor Automatic Light Control Switch with 24 AWG Wire (5 Pieces)
Parameters: Operating voltage: 12 V. Output type: Output switch. Control capacity: maximum 10 A. Detection frequency: 1 MHz. Load capacity: 10 A / AC 250 V or DC up to 30 V. Red LED on: indicate the power on. BLUE LED ON: Relay is working Size: 53x31x19mm/2.08x1.18x0.75in Working temperature: -20 °C ~ +85 °C. Description: 1. The module adopts 12V power supply and has the function of anti-reverse connection, and the reverse connection of the power supply will not damage the module; 2. The maximum load capacity of the normally open interface: AC 0V--125V/20A, DC 0V--14V/20A; the module output has three ports common terminal (COM), normally open (CK), normally closed (CB), three Each port is equivalent to a dual-control switch. When the relay coil is powered, the common terminal is connected to the normally open terminal, and when there is no power, the common terminal is connected to the normally closed terminal; the COM terminal is generally connected to the negative pole of the power supply through the load, and the normally open terminal is connected to the positive pole of the power supply ; 3. The sensitivity can be adjusted by the potentiometer. By adjusting the potentiometer, the threshold value of the start relay can be set. When the light is dark at this threshold value, the module relay is pulled in, and when it is bright at this threshold value, the relay is disconnected Package includes: 5 x 12 V photoresistor modules. 2x50cm/19.68inch 24AWG Cable
Product Features
- Potentiometer indicator description Red light: module operating voltage, blue light: relay power indicator, potentiometer: adjust detection brightness value.
- Function: the photoresistor module is most sensitive to the brightness of the ambient light and is generally used to detect the brightness change of the ambient light.
- Common connection, normally open, normally closed. The three ports correspond to a double control switch. When the relay coil is powered, the common terminal is connected to the normally open port, and if there is no power, the common connector is connected to the normally closed port.
- Sensitivity adjustment: adjust the start relay threshold by adjusting the potentiometer. When the light is dark at this threshold, the relay of the module is attracted, and if it is bright at this threshold, the relay is disconnected.
- Package includes you will receive 5 x 12V photoresistor relay module, 2 x 50cm / 19.68 inch 24AWG cable.
