DAOKAI SMA to UHF Antenna Adapter Set, PL259 SO239 UHF to SMA FR Coaxial Male to Female Adapter Set 4 Type for Walkie Talkie, Coaxial Cable, FPV
HomeStore

DAOKAI SMA to UHF Antenna Adapter Set, PL259 SO239 UHF to SMA FR Coaxial Male to Female Adapter Set 4 Type for Walkie Talkie, Coaxial Cable, FPV

DAOKAI SMA to UHF Antenna Adapter Set, PL259 SO239 UHF to SMA FR Coaxial Male to Female Adapter Set 4 Type for Walkie Talkie, Coaxial Cable, FPV

DAOKAI SMA to UHF Antenna Adapter Set, PL259 SO239 UHF to SMA FR Coaxial Male to Female Adapter Set 4 Type for Walkie Talkie, Coaxial Cable, FPV

Product information: Outer material: copper, nickel-plated. Inner material: brass, gold-plated. Impedance: 50 ohms, low loss Temperature range: -65°C to +165°C (PE cable: -40°C to +85°C). Mounting type: free hanging. Operating voltage: max. 335 V. Frequency range: DC to 12.4 GHz. Insulation resistance ≥ 5000 MΩ, insertion loss ≤ 0.15 dB/6 GHz. Vibration: MIL-STD-202, Method 213. Application: FPV antennas, extension cables, antenna analyzers, routers, coaxial cables, video surveillance, Wi-Fi radios, radio transceivers LMA, video, telecommunications, wireless and wired devices, antennas, broadcasting, etc. Package includes: 1 SMA Male to UHF Male 1 SMA Male to UHF Female 1 SMA Female to UHF Male 1 SMA Female to UHF Female 1 SMA Male to SMA Male 1 SMA Female to SMA Female

Product Features

  • Compatible: PL259 SO239 to SMA Male For connecting UHF devices to SMA antennas, RF modules, wireless devices, etc.

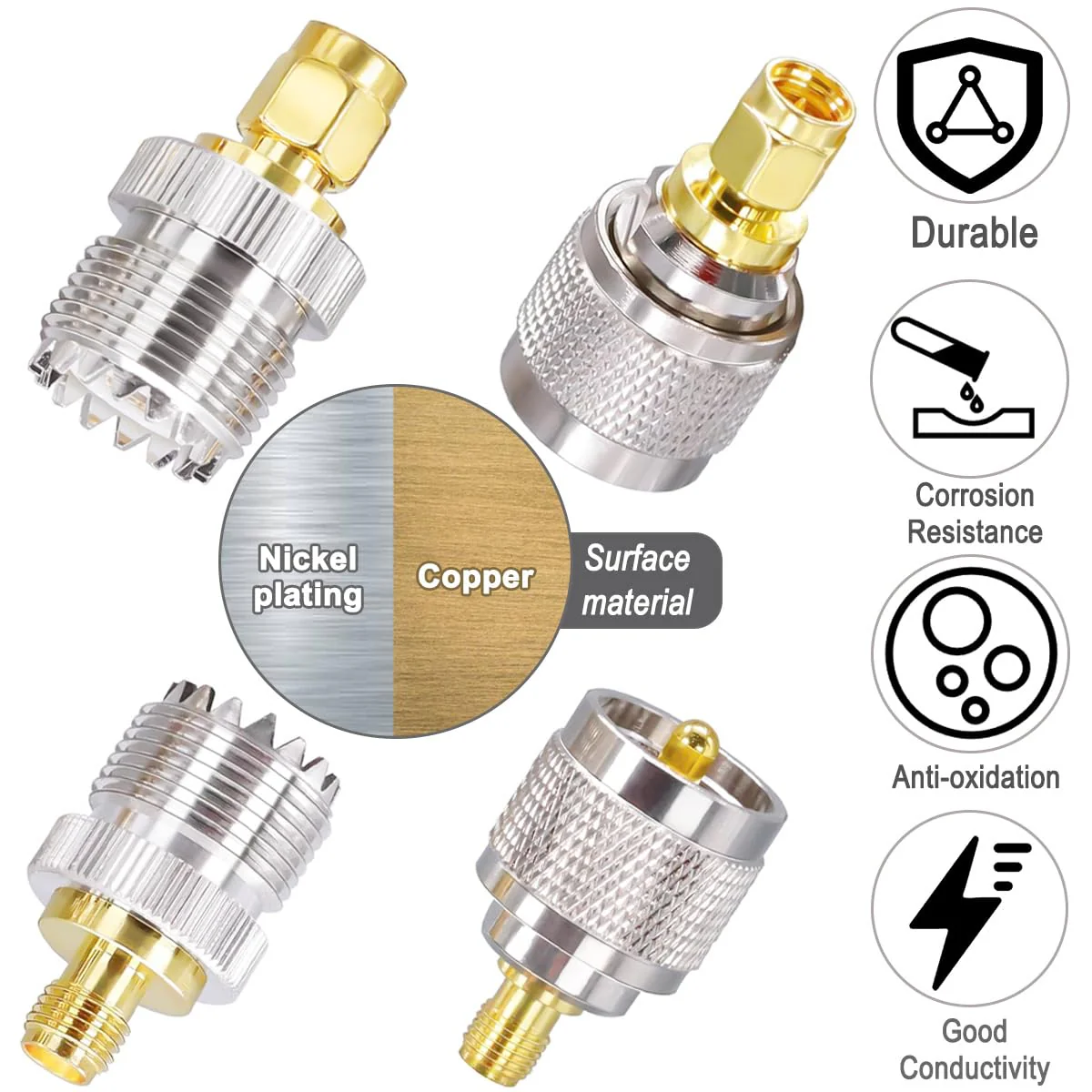

  • HIGH QUALITY: Nickel plated brass body, corrosion and oxidation resistant. The gold-plated inner conductor improves conductivity and reduces signal loss. It does not melt when welding, which achieves a very good effect.
  • FIXED CONNECTION Standard PL259 connector connects firmly to SO239 female connector to prevent loosening and signal loss.
  • Adapt to Various Coaxial Cable: Suitable for common RF coaxial cables such as RG-58, RG-8, RG-213, LMR400, etc.

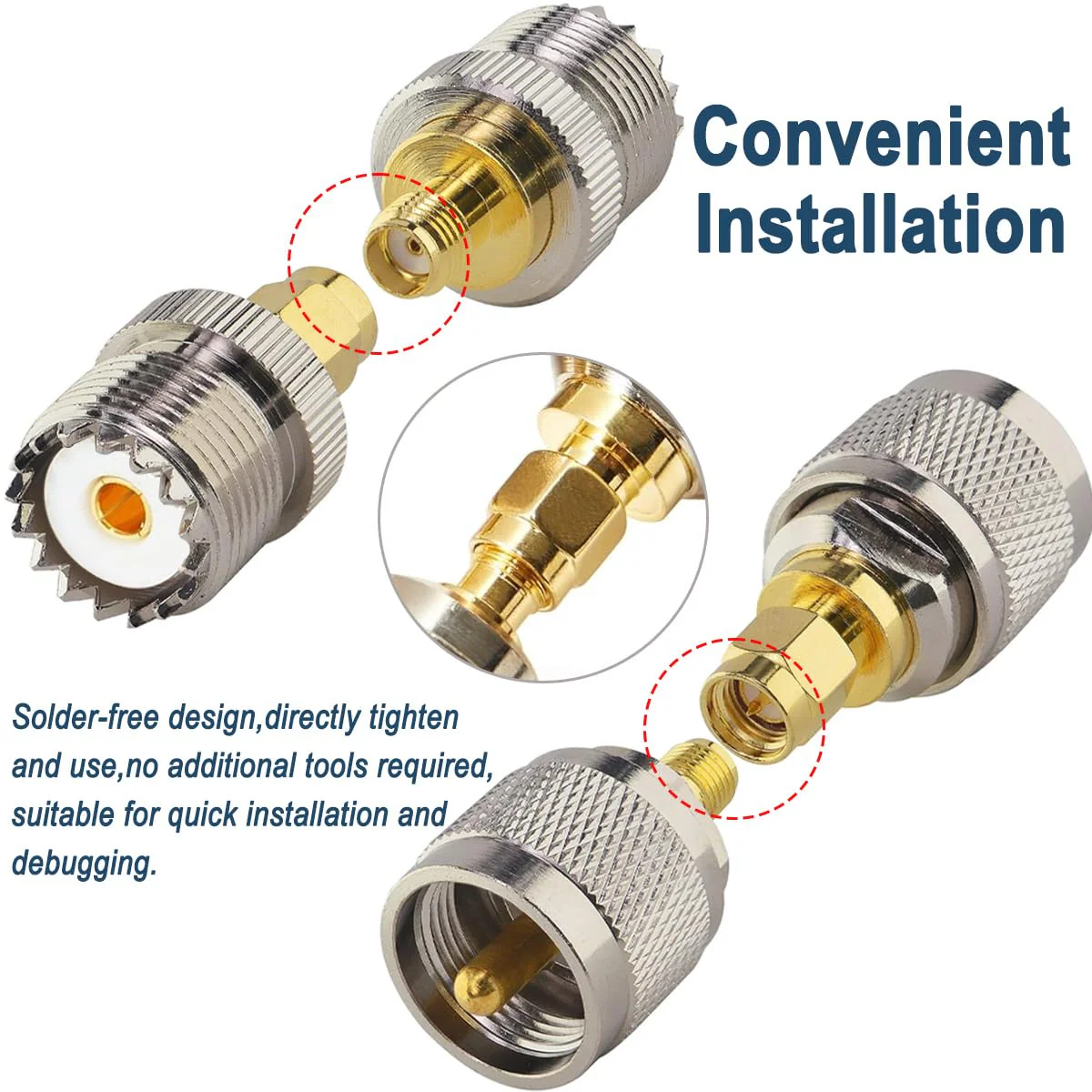

  • Convenient Installation Solderless design, directly tighten and use, no additional tools required, for quick installation and troubleshooting.

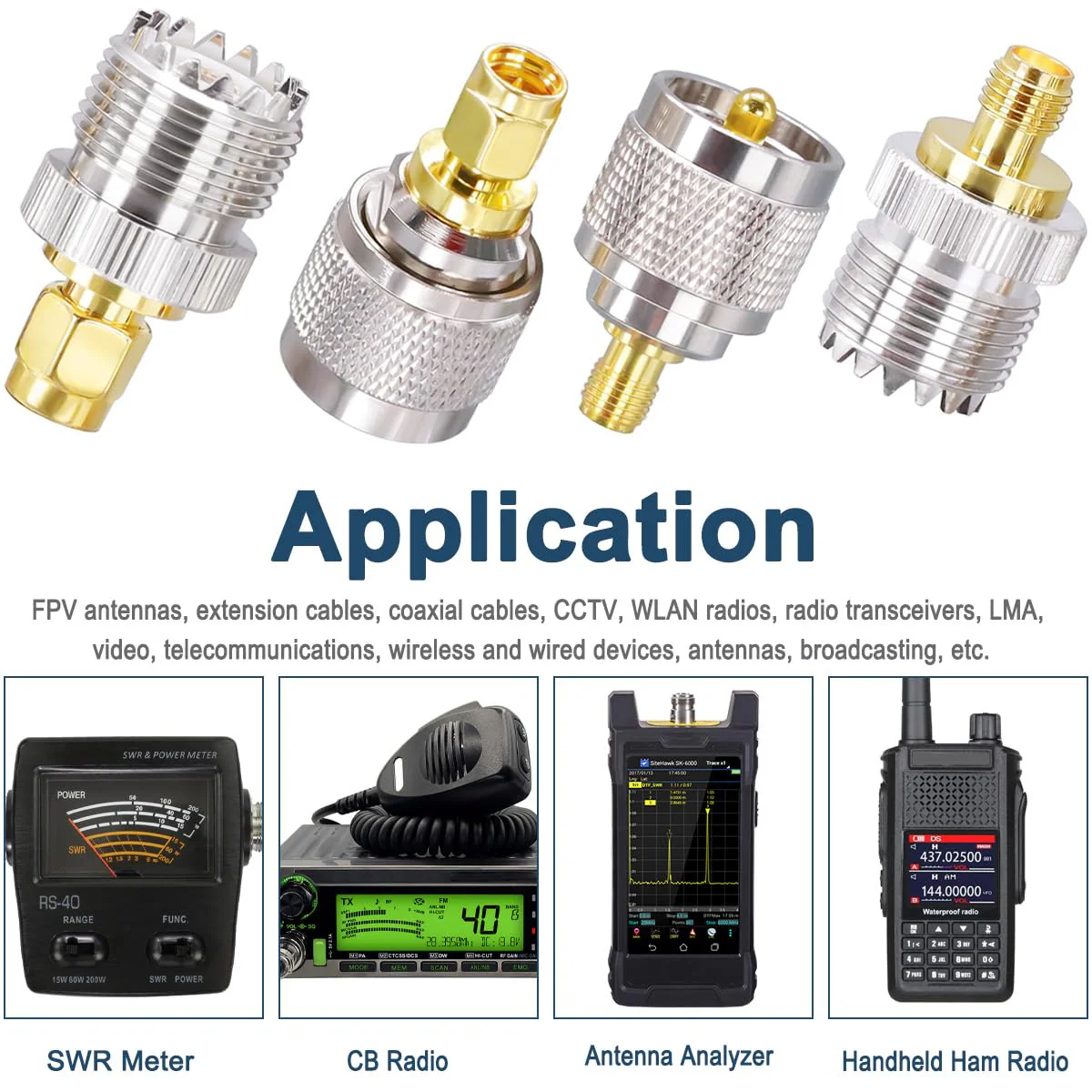

  • Application: FPV antennas, extension cables, coaxial cables, CCTV, Wi-Fi radios, radio transceivers, LMA, video, telecommunications, wireless and wired equipment, antennas, broadcasting, etc.

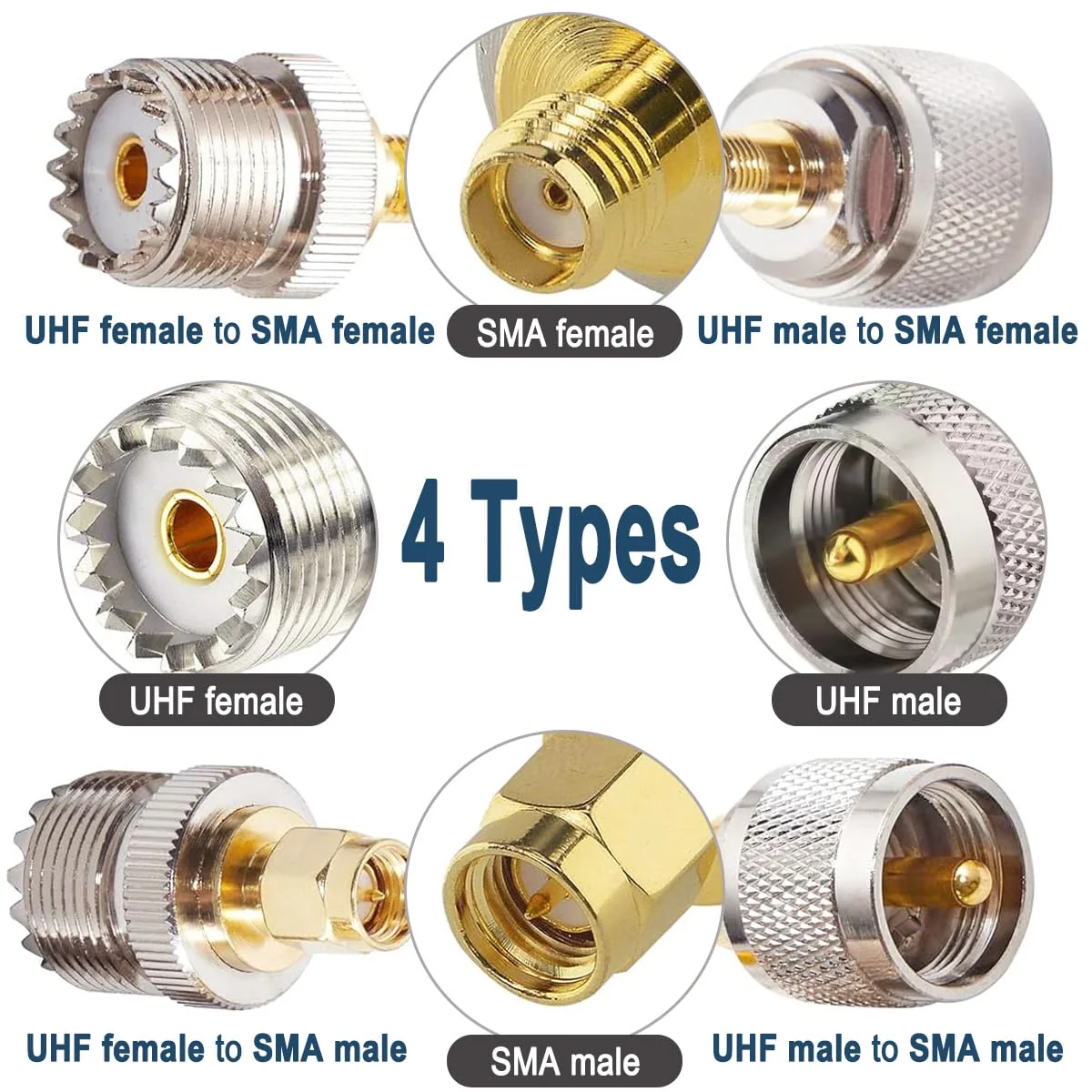

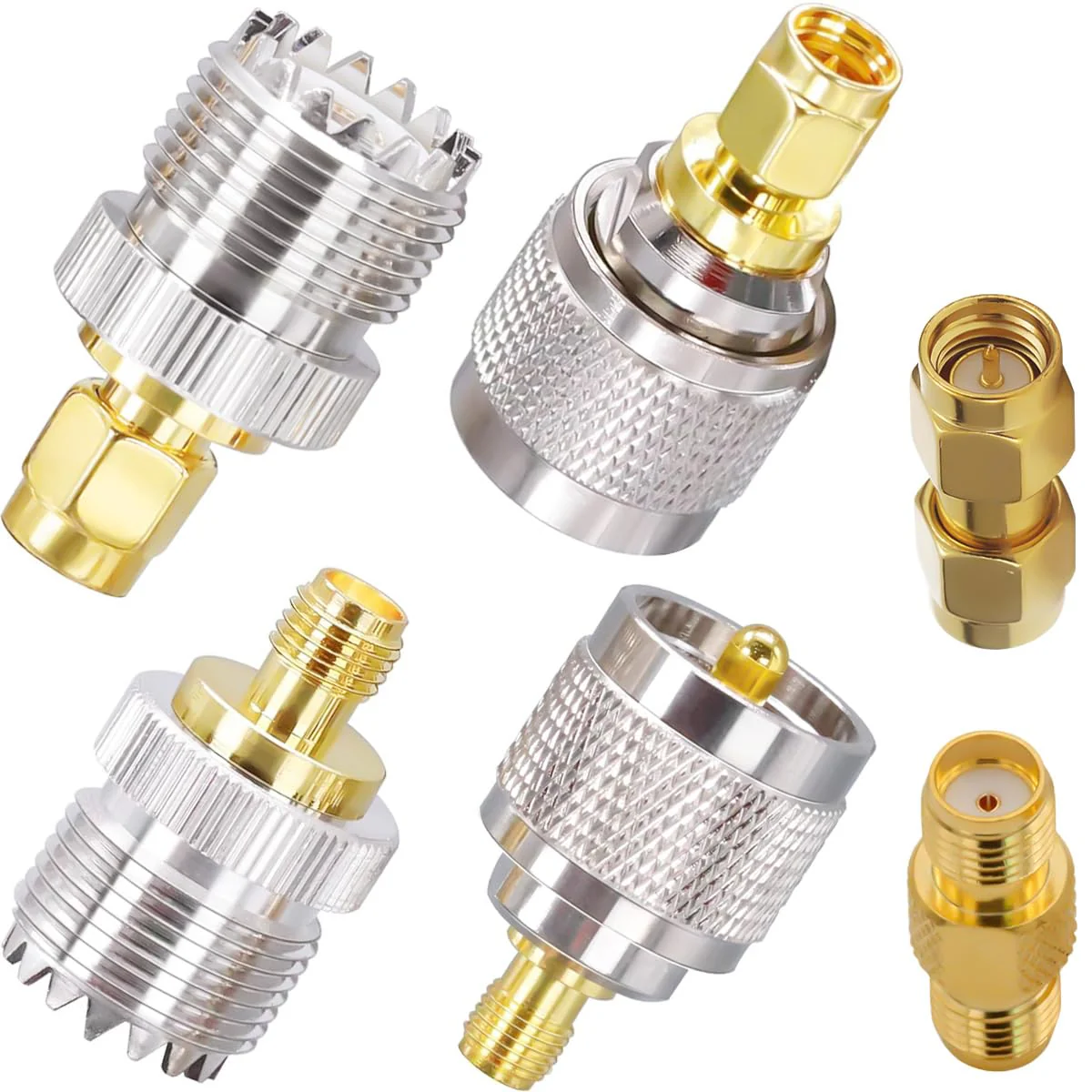

  • PACKAGE INCLUDES 4 SMA to UHF Male (1 SMA Male to UHF Male, 1 SMA Male to UHF Female, 1 SMA Female to UHF Male, 1 SMA Female to UHF Female), 1 SMA Male to SMA Male, 1 SMA Female to SMA Female
$32.45

Original: $92.72

-65%
DAOKAI SMA to UHF Antenna Adapter Set, PL259 SO239 UHF to SMA FR Coaxial Male to Female Adapter Set 4 Type for Walkie Talkie, Coaxial Cable, FPV—

$92.72

$32.45
