DAOKAI NRF24L01 Wireless Transceiver Receiver, Pack of 2 NRF24L01+PA+LNA Wireless RF Transceiver Module with SMA Antenna 2.4 GHz 1100 m + Breadboard Breakout Adapter Board Compatible with NRF24L01
DAOKAI NRF24L01 Wireless Transceiver Receiver, Pack of 2 NRF24L01+PA+LNA Wireless RF Transceiver Module with SMA Antenna 2.4 GHz 1100 m + Breadboard Breakout Adapter Board Compatible with NRF24L01
DAOKAI NRF24L01 Wireless Transceiver Receiver, Pack of 2 NRF24L01+PA+LNA Wireless RF Transceiver Module with SMA Antenna 2.4 GHz 1100 m + Breadboard Breakout Adapter Board Compatible with NRF24L01

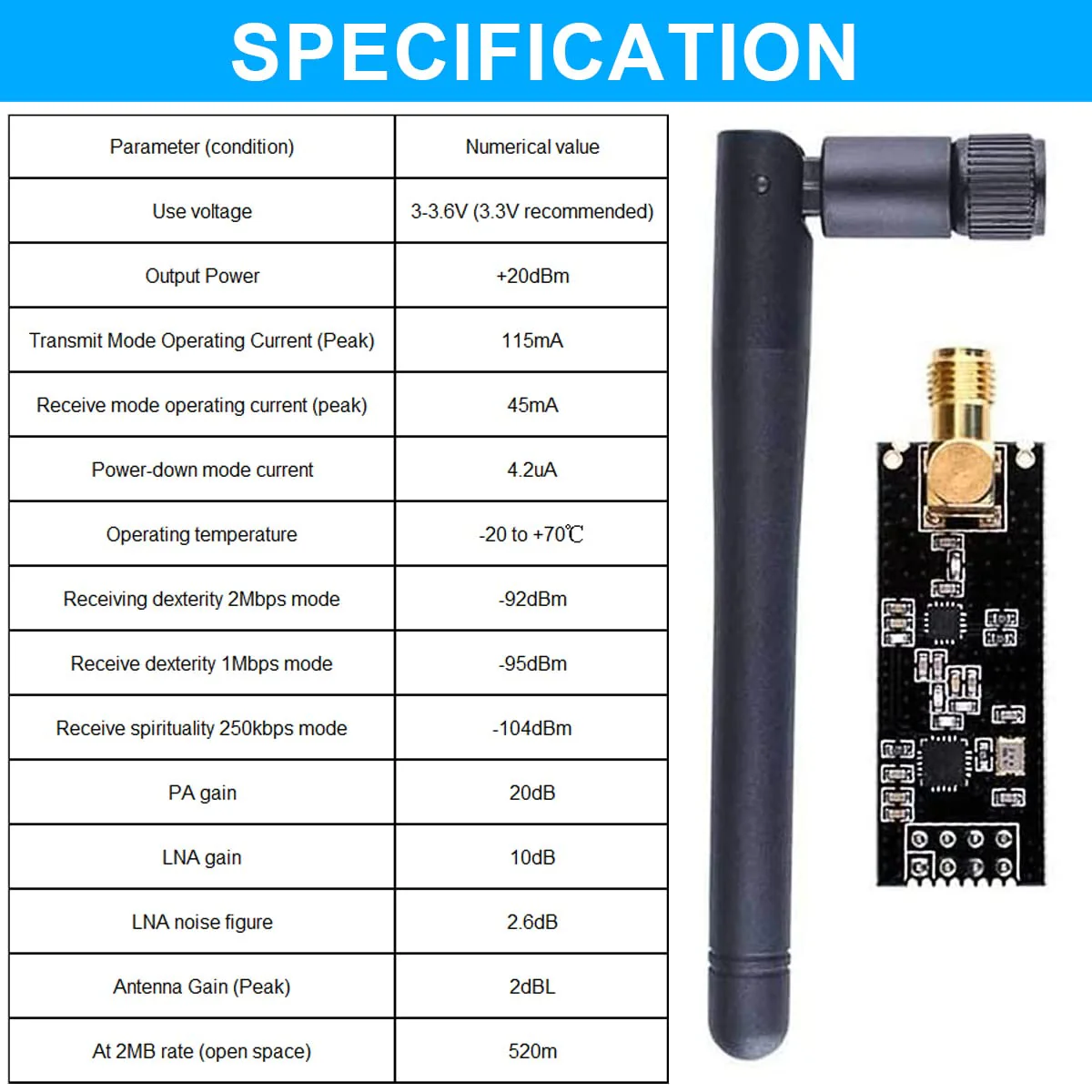

Introductions: 1.A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection. Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps). 2.The on chip voltage regulator accepts supply voltages from 1.9 to 3.6V. The module has 5V tolerant inputs which allows for direct connection of SPI pins to the . 3.Internal filtering results in high margins of meeting RF regulatory standards. The module's radio uses Gaussian Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC). 4.The module includes an Interrupt Request (IRQ) pin which can be used to wake the host microcontroller, (ex:), from sleep when the module receives a transmission providing great power conservation in battery devices. Specifications: NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module: Frequency: 2.4 GHz ~ 2.5 GHz. Operating voltage: 3 ~ 3.6 V. Max current: 115 mA. Multi-frequency: 125 frequency. Support up to six channels of data reception NRF24L01 Wireless Module Breakout Adapter: Pin quantity: 8 pin. Compatible: Arduino and Raspberry Pi. Supply voltage: DC 3.3-9V. Package includes: 2 x NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module 2 x SMA antenna 2.4G 1100 m. 2 x NRF24L01 wireless module breakout adapter. 1 x 16Pin Female to Male Cable
Product Features

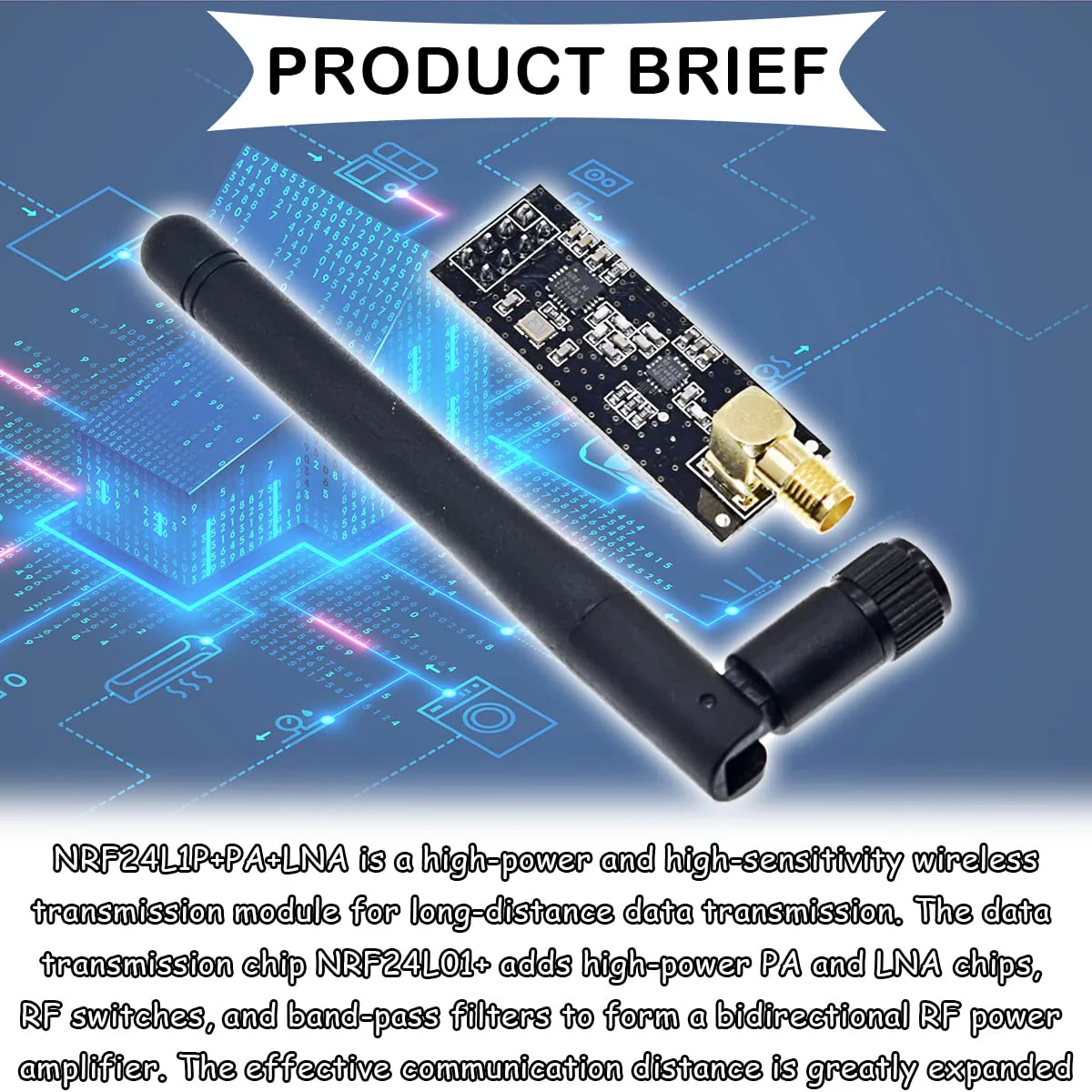

- NRF24L01 + PA + LNA radio module. The powerful chip for wireless data transmission NRF24L01 +, an increase of high-performance PA and LNA chips, RF switches, bandpass filters and other professional fully bidirectional HF, extended the limited communication distance.

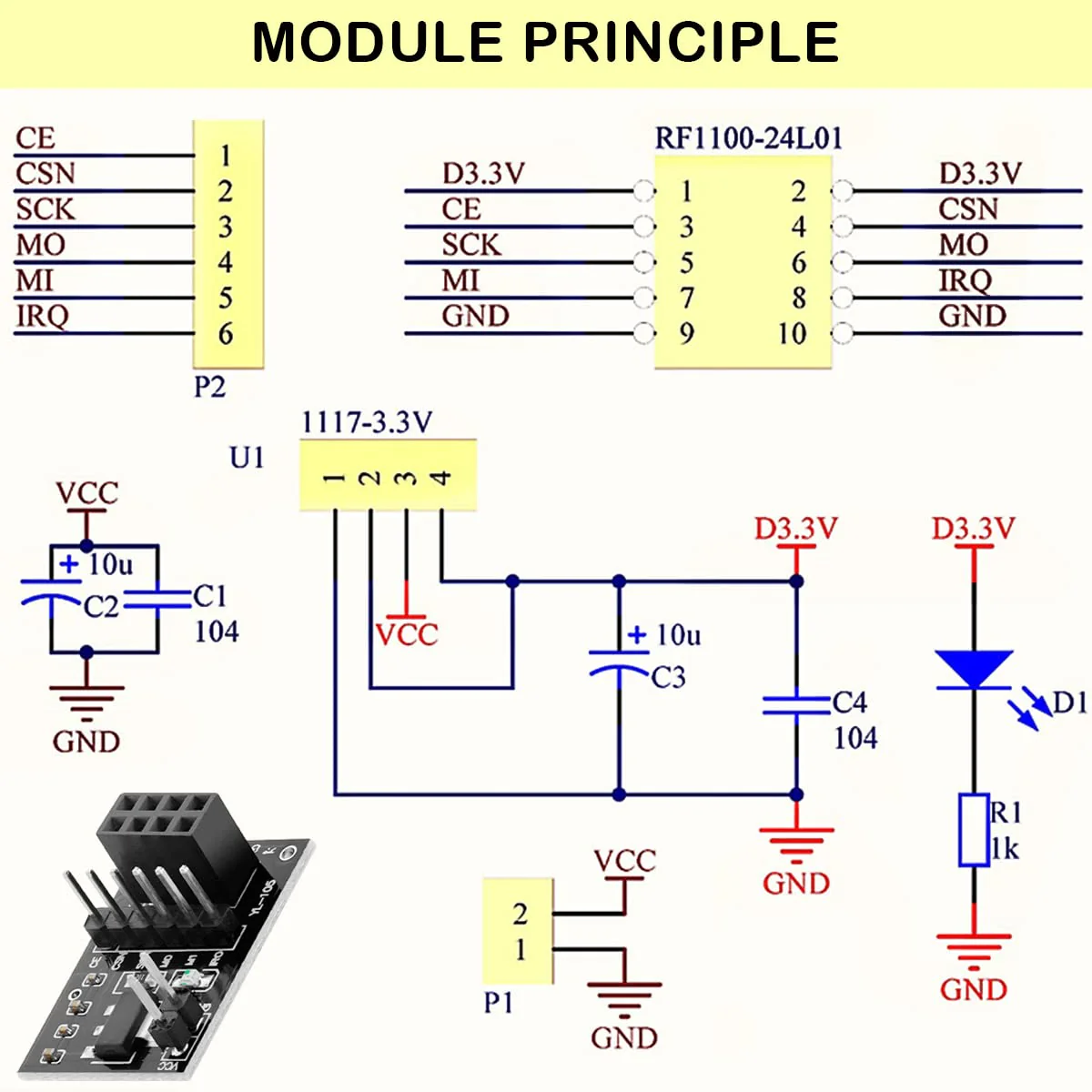

- Wireless module. Small power on SMD LED indicator; the built-in 3.3V voltage regulator accepts the +5V supply of your development board and provides 3.3V for the connected "NRF24L01+" module.

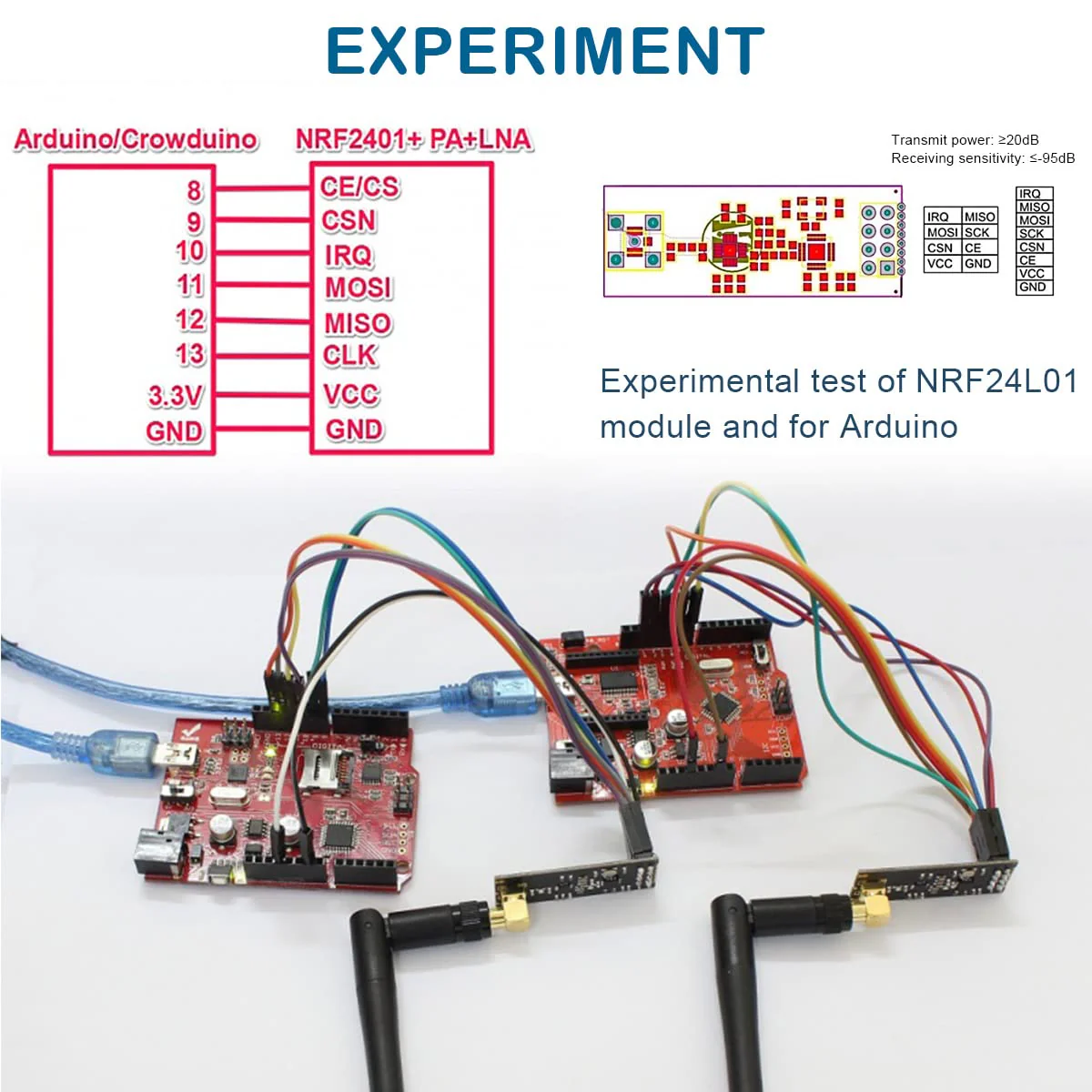

- TestThe NRF24L01 module can be controlled in many ways, one of which is for Arduino or for Crowduino, you can refer to this link for experiments
- Wide applications: it can be used for wireless peripherals, remote control systems such as RC vehicles and consumer remote electronics, wireless voice transmission such as VoIP, wireless sensor networks, wireless networks, home and commercial automation.

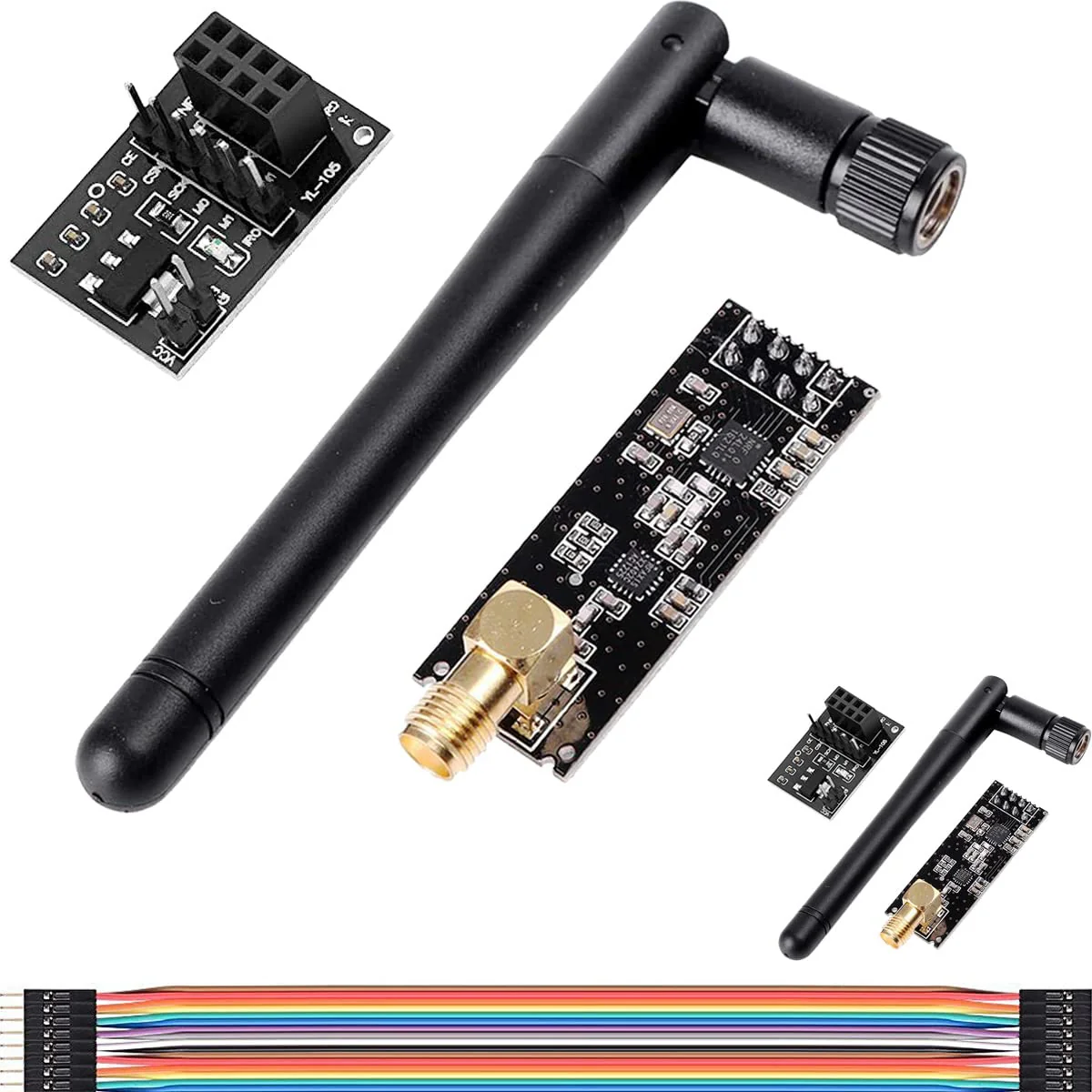

- Package includes 2 x NRF24L01 + PA + LNA wireless transceiver RF transceiver modules, 2 x SMA antenna 2.4G 1100 m, 2 x NRF24L01 wireless module breakout adapter, 1 x 16-pin female to male cable
Original: $89.10
-65%$89.10
$31.18More Images
DAOKAI NRF24L01 Wireless Transceiver Receiver, Pack of 2 NRF24L01+PA+LNA Wireless RF Transceiver Module with SMA Antenna 2.4 GHz 1100 m + Breadboard Breakout Adapter Board Compatible with NRF24L01
DAOKAI NRF24L01 Wireless Transceiver Receiver, Pack of 2 NRF24L01+PA+LNA Wireless RF Transceiver Module with SMA Antenna 2.4 GHz 1100 m + Breadboard Breakout Adapter Board Compatible with NRF24L01
Introductions: 1.A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection. Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps). 2.The on chip voltage regulator accepts supply voltages from 1.9 to 3.6V. The module has 5V tolerant inputs which allows for direct connection of SPI pins to the . 3.Internal filtering results in high margins of meeting RF regulatory standards. The module's radio uses Gaussian Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC). 4.The module includes an Interrupt Request (IRQ) pin which can be used to wake the host microcontroller, (ex:), from sleep when the module receives a transmission providing great power conservation in battery devices. Specifications: NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module: Frequency: 2.4 GHz ~ 2.5 GHz. Operating voltage: 3 ~ 3.6 V. Max current: 115 mA. Multi-frequency: 125 frequency. Support up to six channels of data reception NRF24L01 Wireless Module Breakout Adapter: Pin quantity: 8 pin. Compatible: Arduino and Raspberry Pi. Supply voltage: DC 3.3-9V. Package includes: 2 x NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module 2 x SMA antenna 2.4G 1100 m. 2 x NRF24L01 wireless module breakout adapter. 1 x 16Pin Female to Male Cable
Product Features
- NRF24L01 + PA + LNA radio module. The powerful chip for wireless data transmission NRF24L01 +, an increase of high-performance PA and LNA chips, RF switches, bandpass filters and other professional fully bidirectional HF, extended the limited communication distance.
- Wireless module. Small power on SMD LED indicator; the built-in 3.3V voltage regulator accepts the +5V supply of your development board and provides 3.3V for the connected "NRF24L01+" module.
- TestThe NRF24L01 module can be controlled in many ways, one of which is for Arduino or for Crowduino, you can refer to this link for experiments
- Wide applications: it can be used for wireless peripherals, remote control systems such as RC vehicles and consumer remote electronics, wireless voice transmission such as VoIP, wireless sensor networks, wireless networks, home and commercial automation.
- Package includes 2 x NRF24L01 + PA + LNA wireless transceiver RF transceiver modules, 2 x SMA antenna 2.4G 1100 m, 2 x NRF24L01 wireless module breakout adapter, 1 x 16-pin female to male cable
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DAOKAI NRF24L01 Wireless Transceiver Receiver, Pack of 2 NRF24L01+PA+LNA Wireless RF Transceiver Module with SMA Antenna 2.4 GHz 1100 m + Breadboard Breakout Adapter Board Compatible with NRF24L01
Introductions: 1.A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection. Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps). 2.The on chip voltage regulator accepts supply voltages from 1.9 to 3.6V. The module has 5V tolerant inputs which allows for direct connection of SPI pins to the . 3.Internal filtering results in high margins of meeting RF regulatory standards. The module's radio uses Gaussian Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC). 4.The module includes an Interrupt Request (IRQ) pin which can be used to wake the host microcontroller, (ex:), from sleep when the module receives a transmission providing great power conservation in battery devices. Specifications: NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module: Frequency: 2.4 GHz ~ 2.5 GHz. Operating voltage: 3 ~ 3.6 V. Max current: 115 mA. Multi-frequency: 125 frequency. Support up to six channels of data reception NRF24L01 Wireless Module Breakout Adapter: Pin quantity: 8 pin. Compatible: Arduino and Raspberry Pi. Supply voltage: DC 3.3-9V. Package includes: 2 x NRF24L01+PA+LNA Wireless Transceiver RF Transceiver Module 2 x SMA antenna 2.4G 1100 m. 2 x NRF24L01 wireless module breakout adapter. 1 x 16Pin Female to Male Cable
Product Features
- NRF24L01 + PA + LNA radio module. The powerful chip for wireless data transmission NRF24L01 +, an increase of high-performance PA and LNA chips, RF switches, bandpass filters and other professional fully bidirectional HF, extended the limited communication distance.
- Wireless module. Small power on SMD LED indicator; the built-in 3.3V voltage regulator accepts the +5V supply of your development board and provides 3.3V for the connected "NRF24L01+" module.
- TestThe NRF24L01 module can be controlled in many ways, one of which is for Arduino or for Crowduino, you can refer to this link for experiments
- Wide applications: it can be used for wireless peripherals, remote control systems such as RC vehicles and consumer remote electronics, wireless voice transmission such as VoIP, wireless sensor networks, wireless networks, home and commercial automation.
- Package includes 2 x NRF24L01 + PA + LNA wireless transceiver RF transceiver modules, 2 x SMA antenna 2.4G 1100 m, 2 x NRF24L01 wireless module breakout adapter, 1 x 16-pin female to male cable
