DAOKAI DIY practice board soldering, SMD SMT element welding exercise board, circuit board components, 77 SMD components, 8 categories with tweezers, for experiments

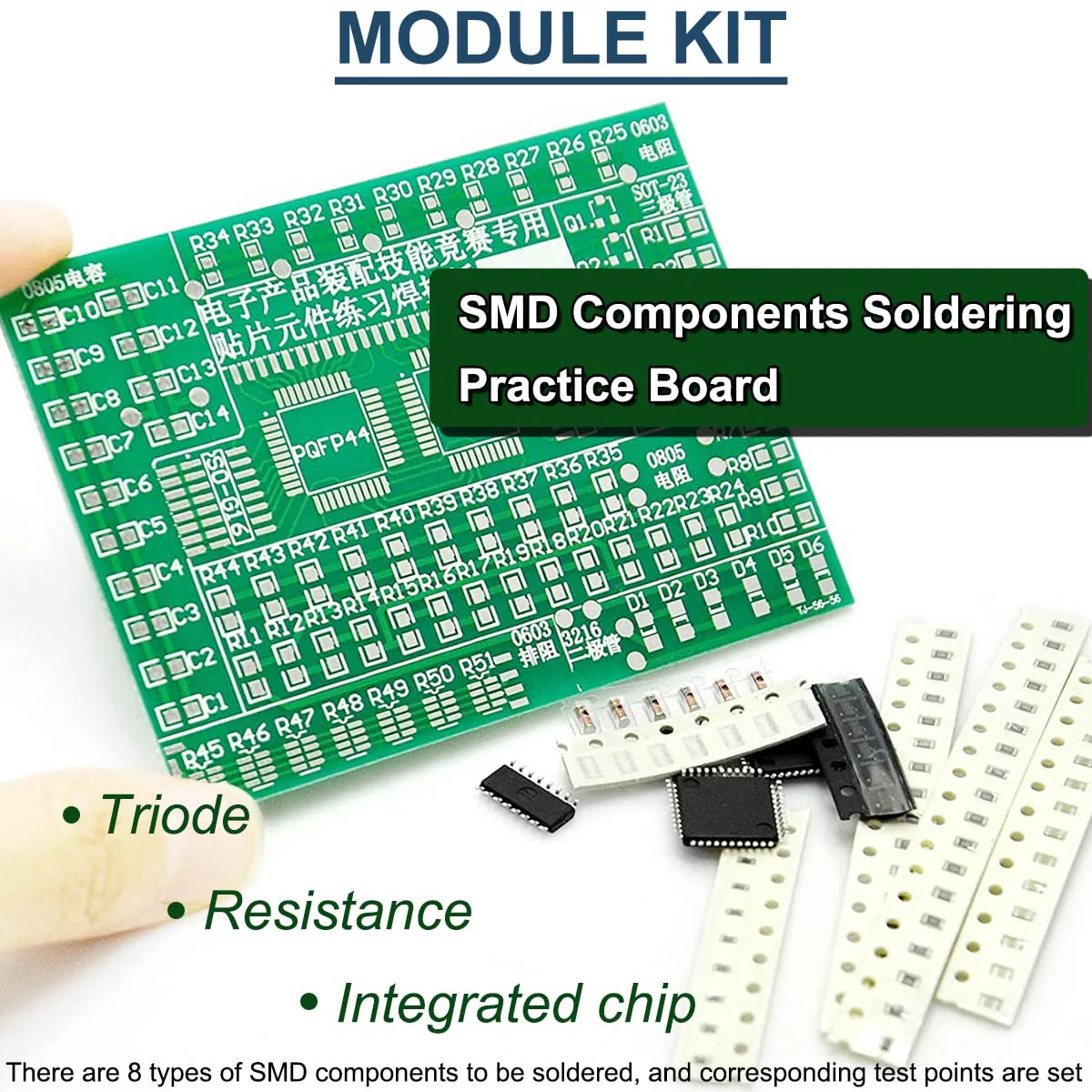

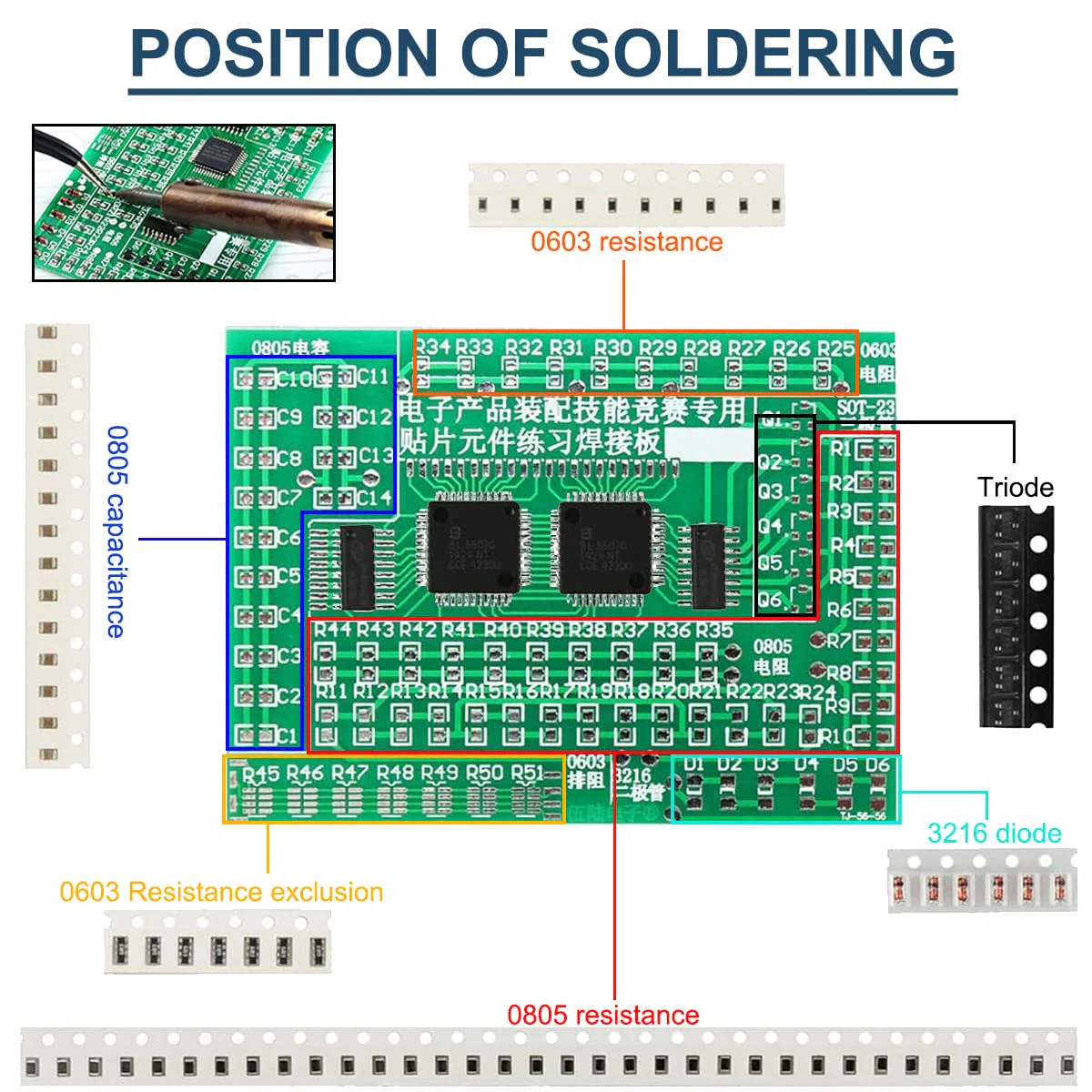

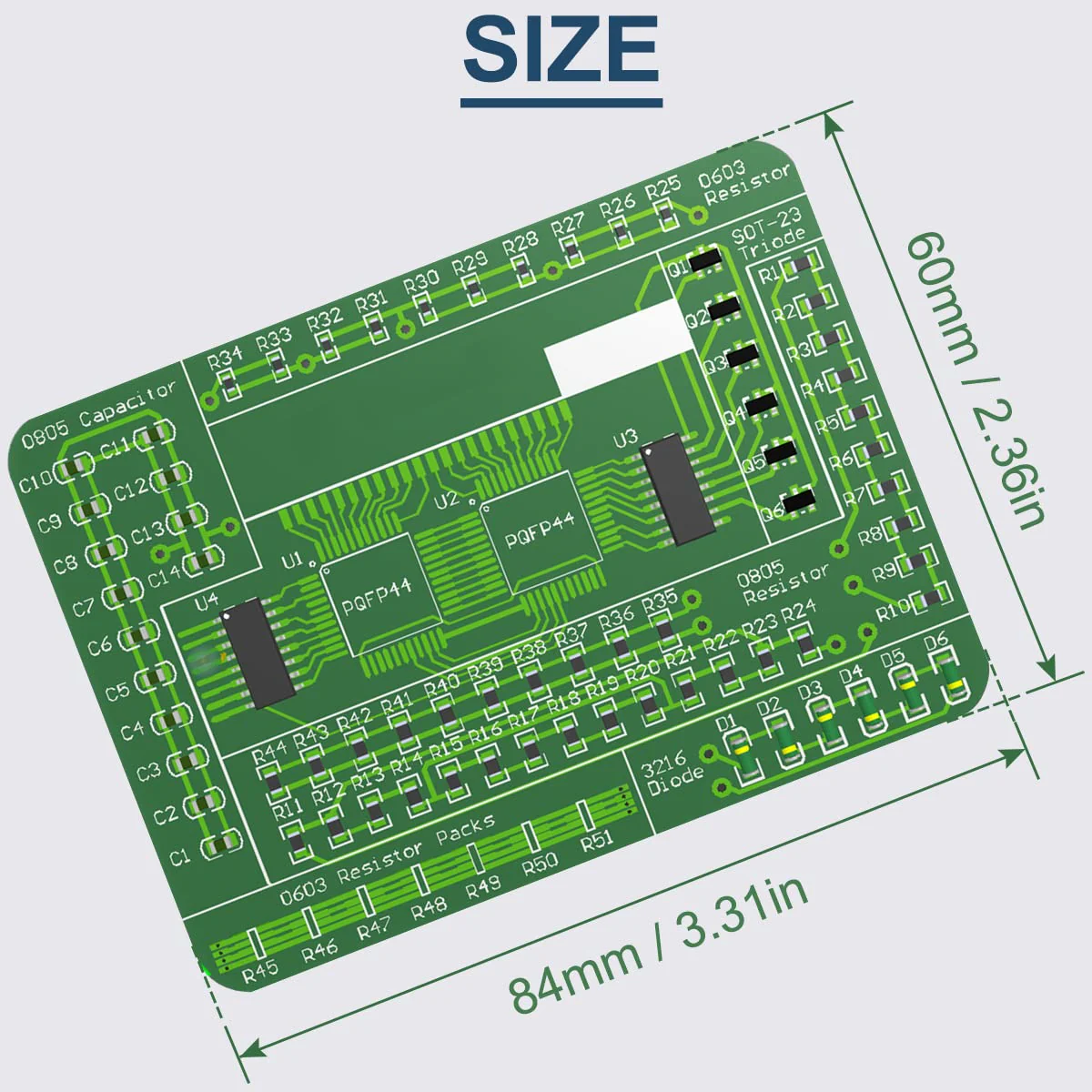

Product introduction: In order to improve the welding skills of electronics majors and electronics enthusiasts, this module specially designed this patch welding practice board, which is intended to improve the welding level and speed. Package includes: 1. PCB blank board (8 x 60 mm/3.31 x 2.36 inch): 1 piece. 2. 0805 resistors: 30 pieces. 3. 0603 resistors: 10 pieces. 4. 0603 8pin resistor network: 7pcs 5. 0805 capacitors: 14 pieces. 6. 3216 diodes: 6 pieces. 7. SOT-23 transistors: 6 pieces. 8. SO14 IC: 2pcs 9. LQFP44 IC: 2pcs 10. Tweezers: 1 piece

Product Features

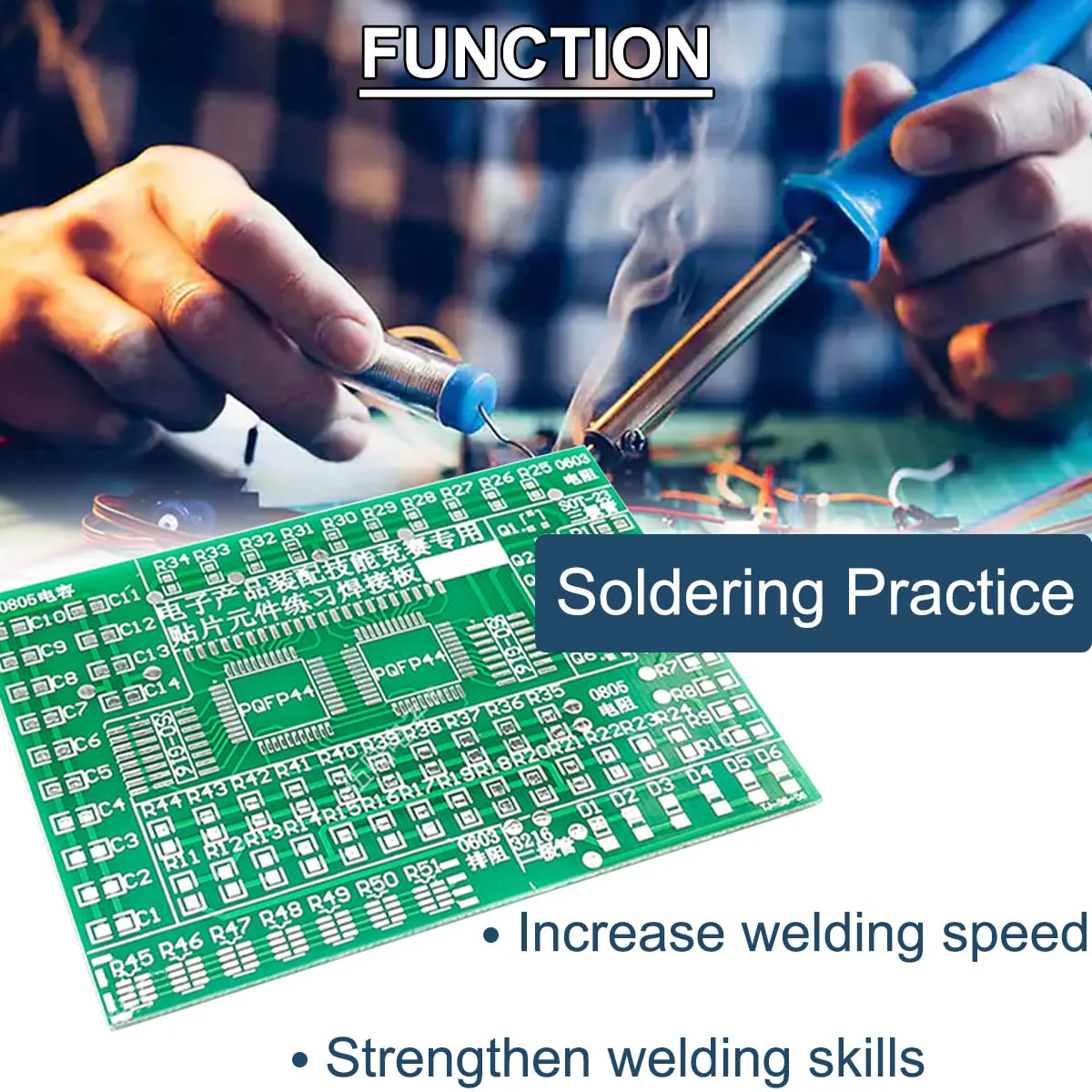

• Product introduction To improve the welding skills of electronics majors and electronics enthusiasts, this product has been specially designed for the patch welding practice board, which is designed to improve the welding level and welding speed. A short introduction to the circuit can be found at this link

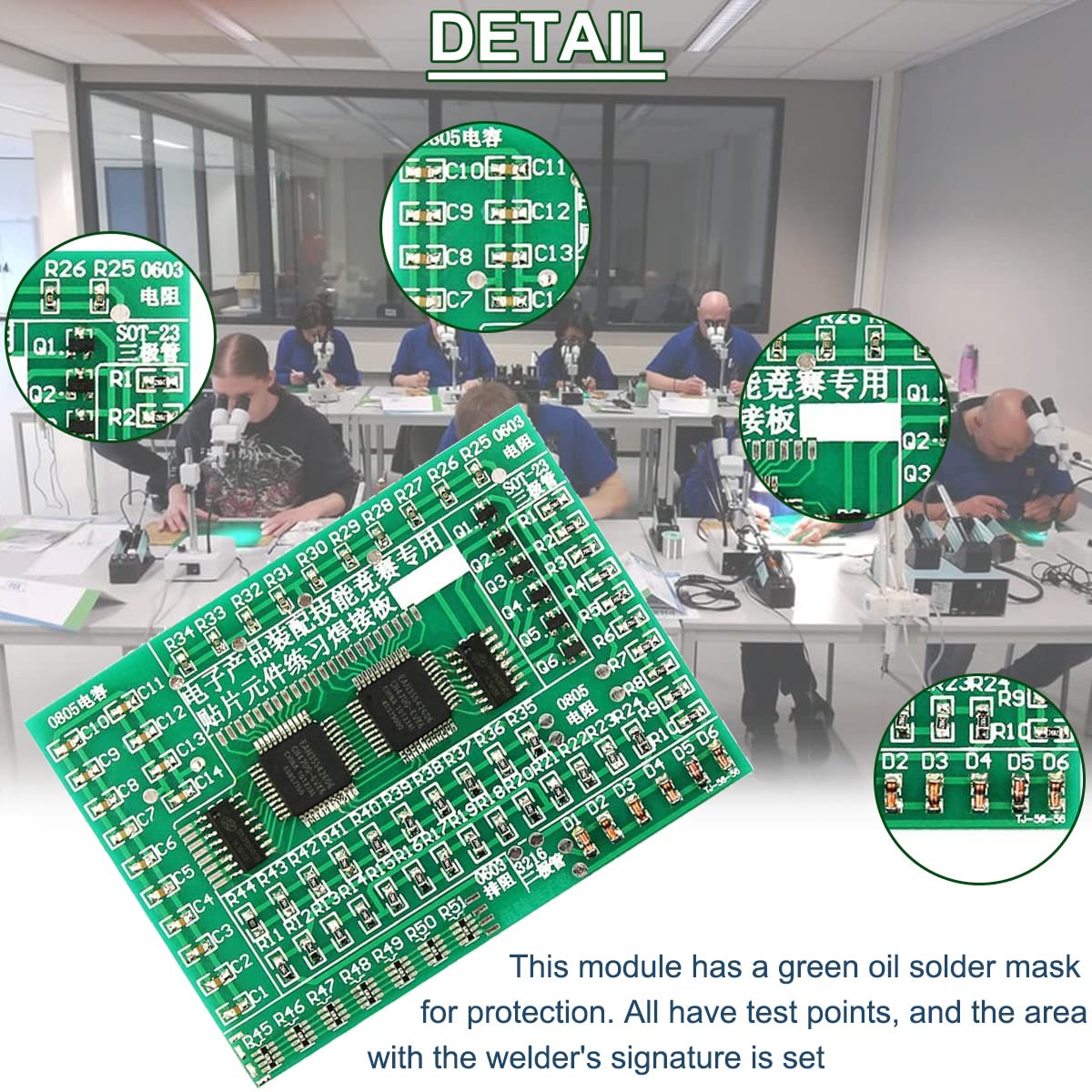

• Plate material can be disassembled and assembled repeatedly. With green oil solder stop varnish to form a protective layer. All with test points, set with signature area of welder.
• Note: This patch welding exercise board is a loose piece, you need to manually weld it yourself. This soldering project requires basic electronics knowledge and practical skills.
• Application Widely used in electrical and electronic technical competitions, competitions in secondary and higher professional groups, vocational training, electronics enthusiasts.

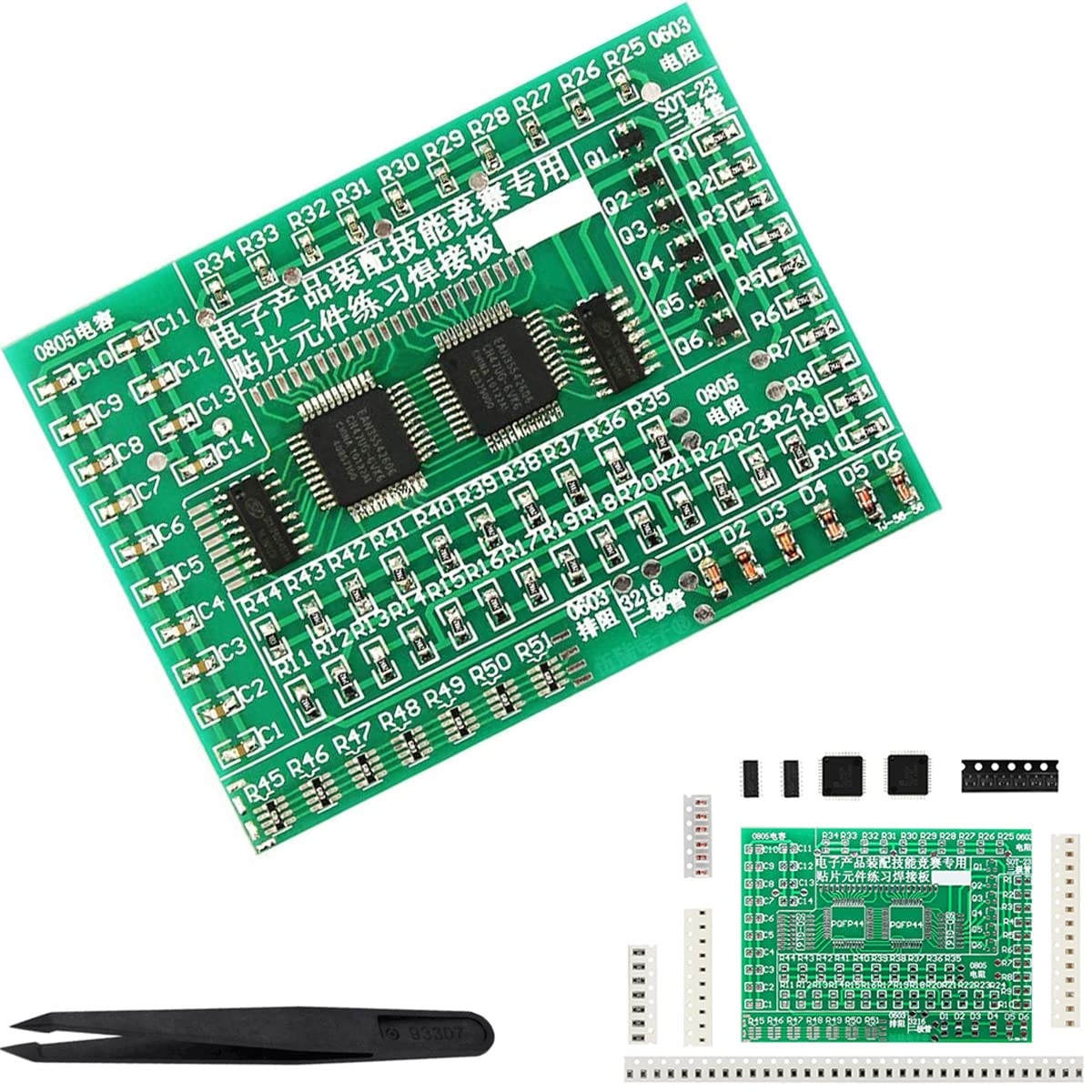

• Package includes you will receive 1 x SMT component soldering exercise DIY electronics kit, 1 x tweezers.
