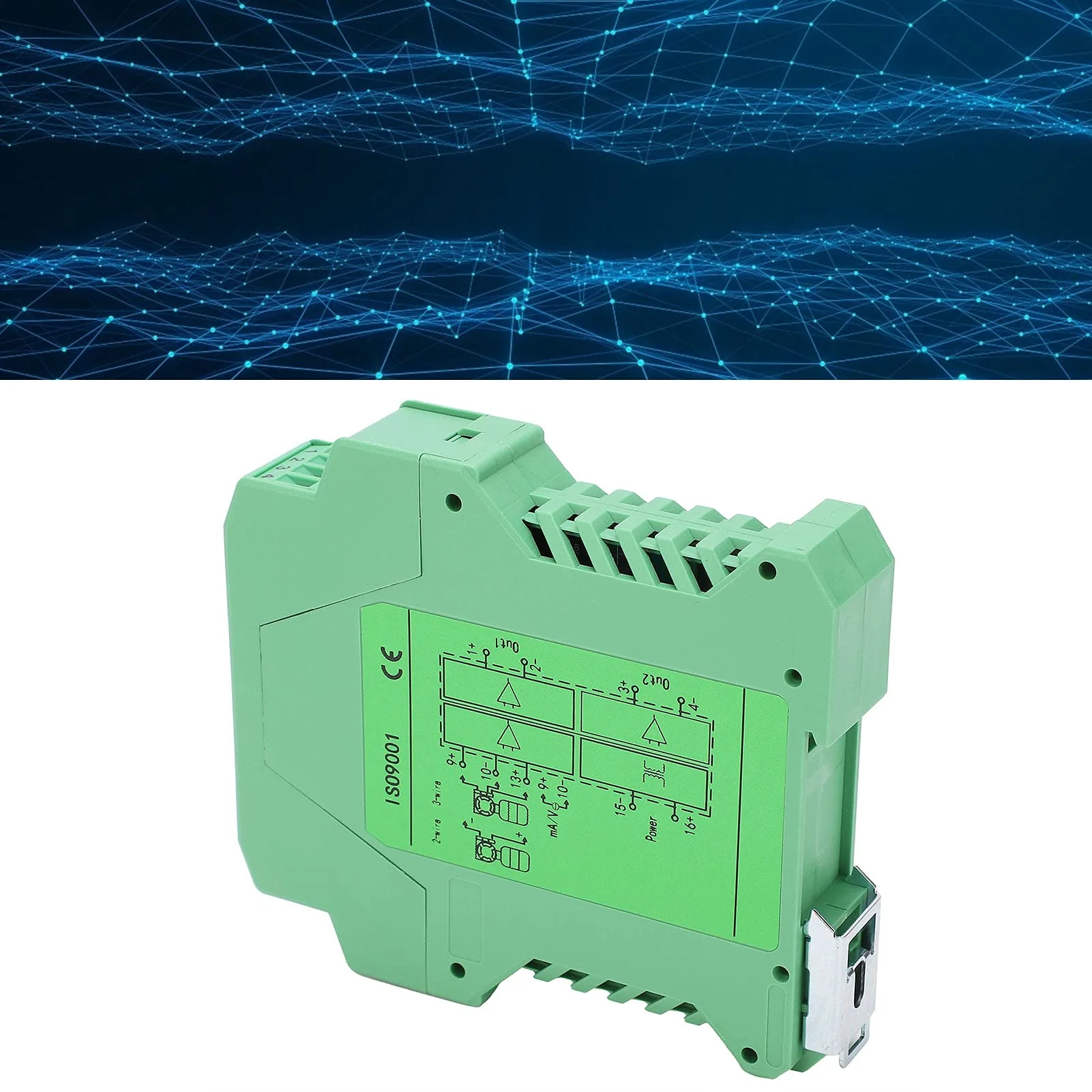

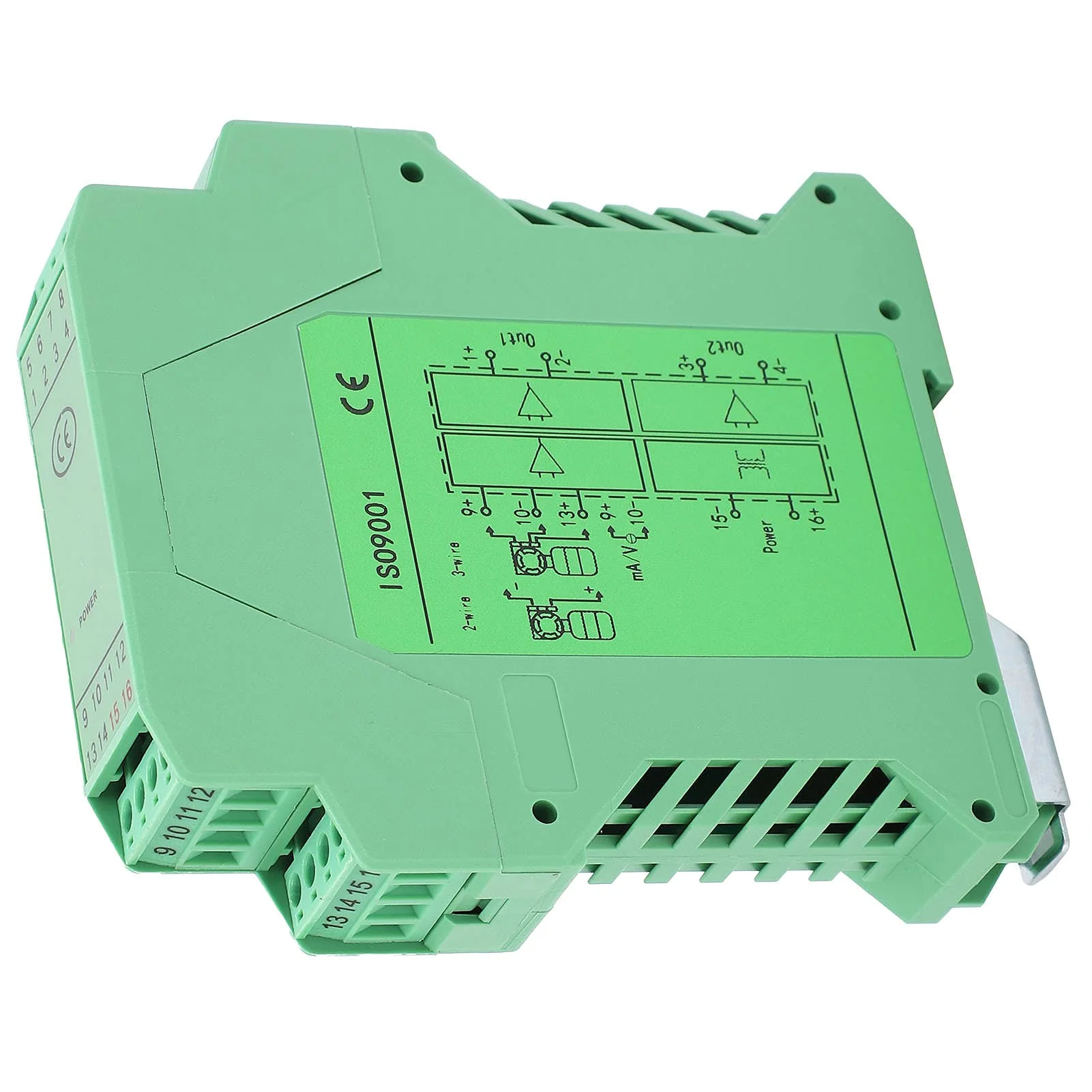

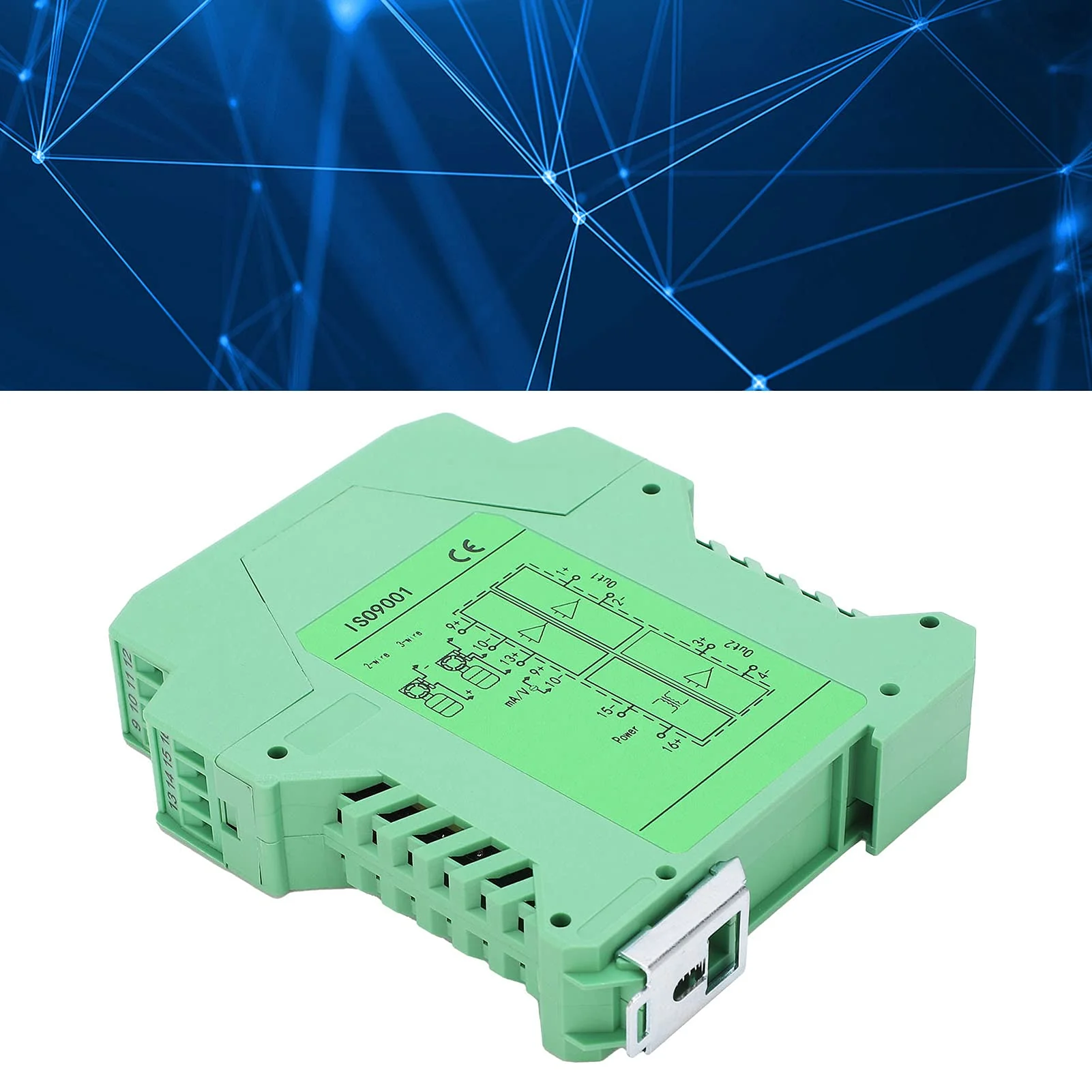

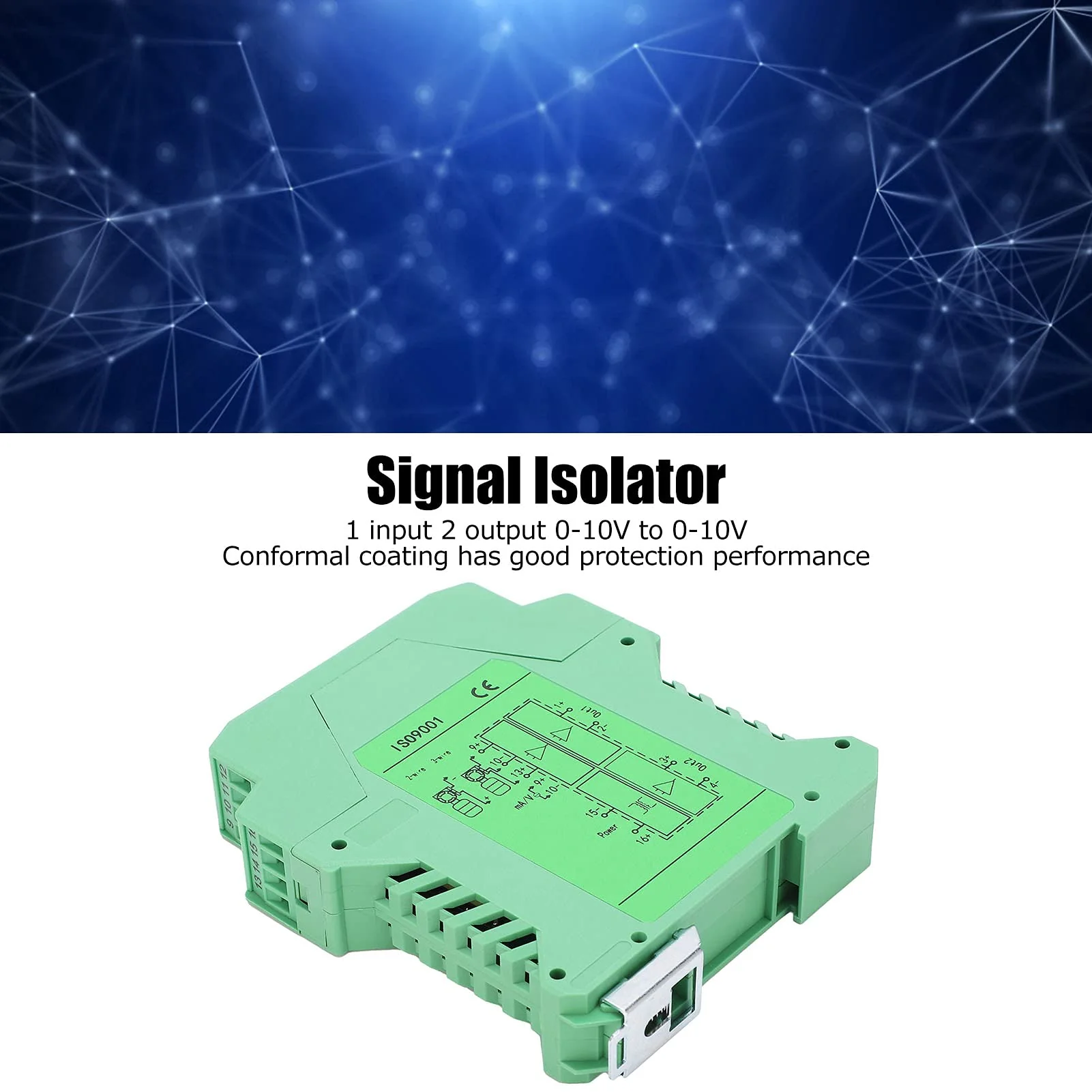

Current Signal Conditioner, 0-10V to 0-10V Highly Reliable Signal Isolator for 2- or 3-Wire Transmitter
Current Signal Conditioner, 0-10V to 0-10V Highly Reliable Signal Isolator for 2- or 3-Wire Transmitter
Current Signal Conditioner, 0-10V to 0-10V Highly Reliable Signal Isolator for 2- or 3-Wire Transmitter

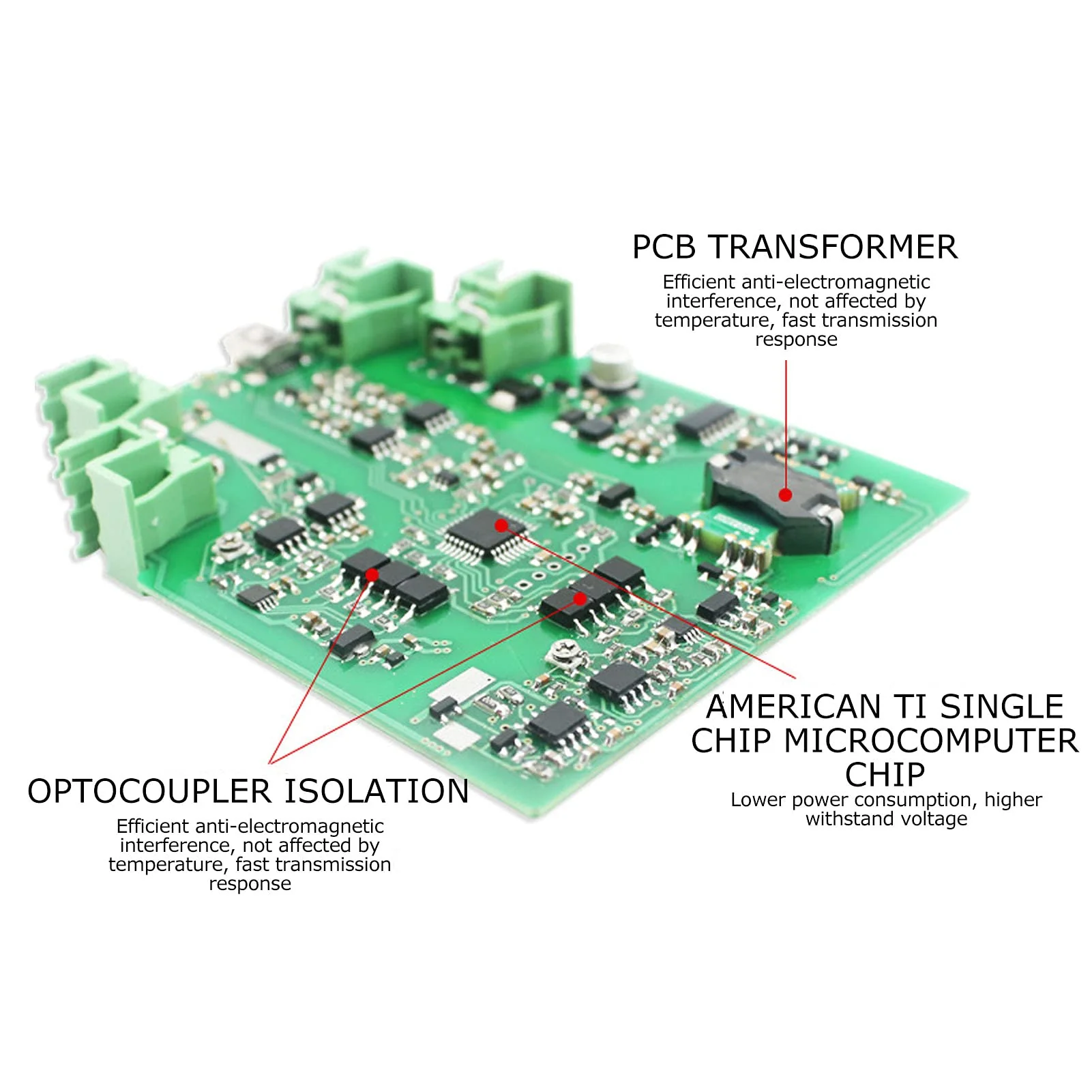

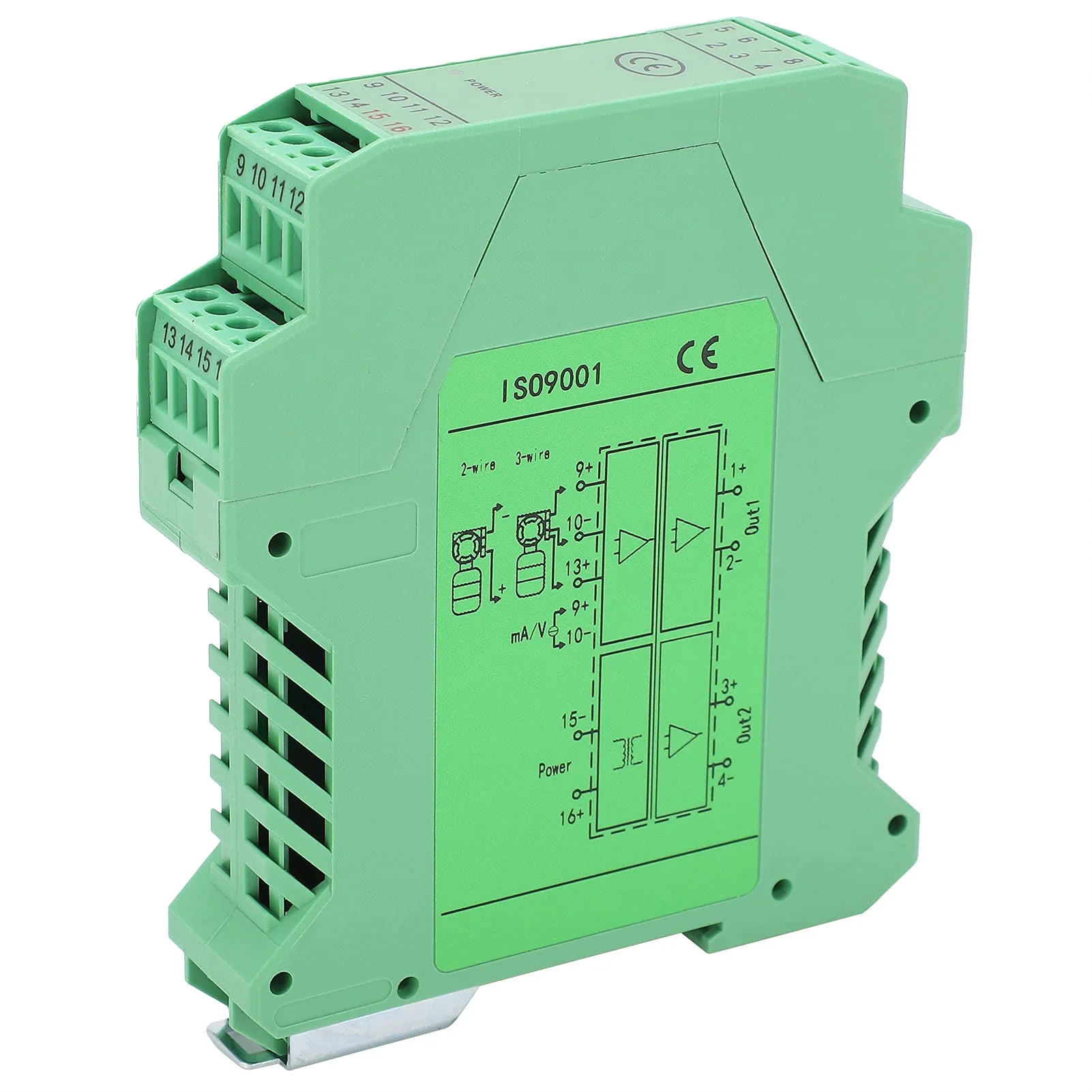

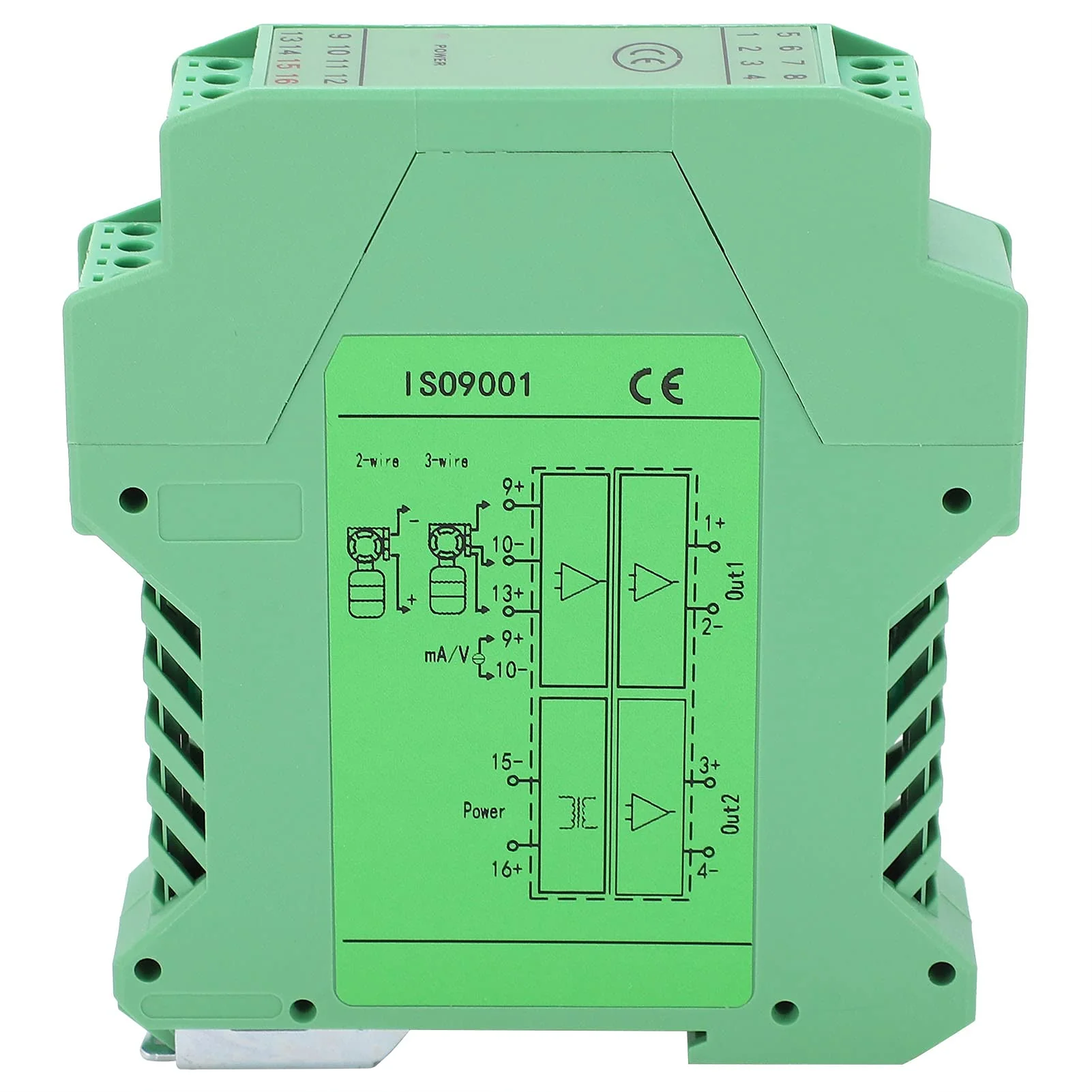

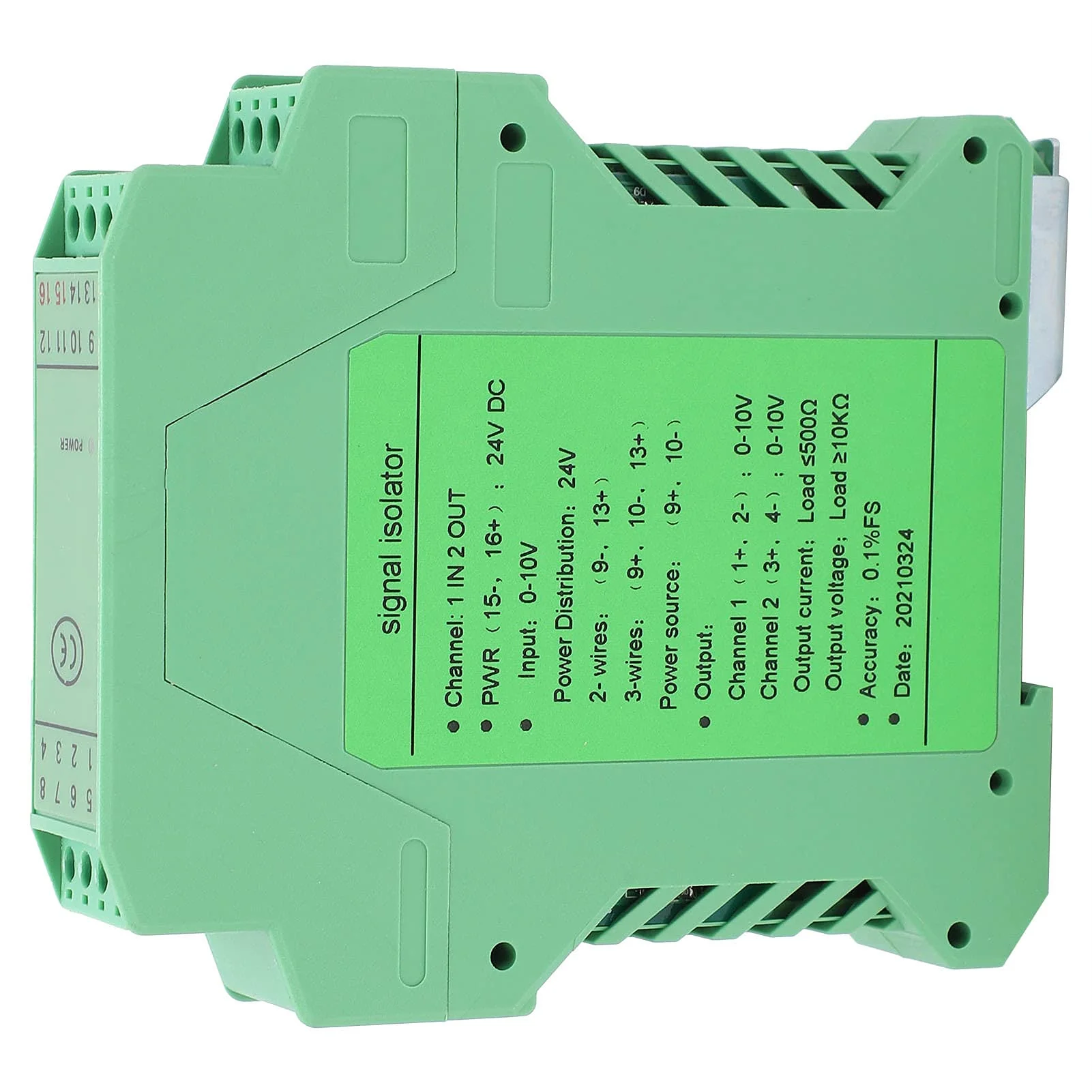

Function: 1. The compliant coating is used to protect PCBs and related equipment from environmental erosion. 2. High-quality ABS material shell, high temperature and impact resistance, can be used for a long time. 3. 35mm standard guide rail installation, easy installation and disassembly and does not take up space. 4. Realize the isolation of input, output, power supply and housing, strong anti-interference ability and high reliability. 5. Has excellent insulation, moisture-proof, leak-proof, anti-vibration, anti-aging, anti-corona performance, etc. Instructions for use: Installation method: 1. Please pay attention to the stability and strength of the bayonet when mounting the 35 mm rail mounting. 2. Please install it as vertically as possible to facilitate heat dissipation inside the device. Specification: Item Type: Signal Isolator Material: ABS Model: GLG Channel: 1 in 2 out. PWR (15-, 16+): 24V DC. Input: 0-10V. Distributor voltage: DC 24 V. 2-wire system: (9-, 13+) 3-conductor: (9+, 10-, 13+) Power supply: (9+, 10-) Output: Channel 1 (1+, 2-): 0-10V. Channel 2 (3+, 4-): 0-10V. Output current: load ≤ 500Ω. Output voltage: load ≥10KΩ. Accuracy: 0.1% FS. Operating temperature range: -20 to +55 °C. Electromagnetic compatibility: Conforms to GB /T 18268 (1EC61326-1) Applicable field device: 2-wire, 3-wire transmitter, power source Product description: DC24V power supply, ensures the isolated energy distribution of the transmitter on site and simultaneously isolates and transmits the current signal generated by the transmitter from
Product Features

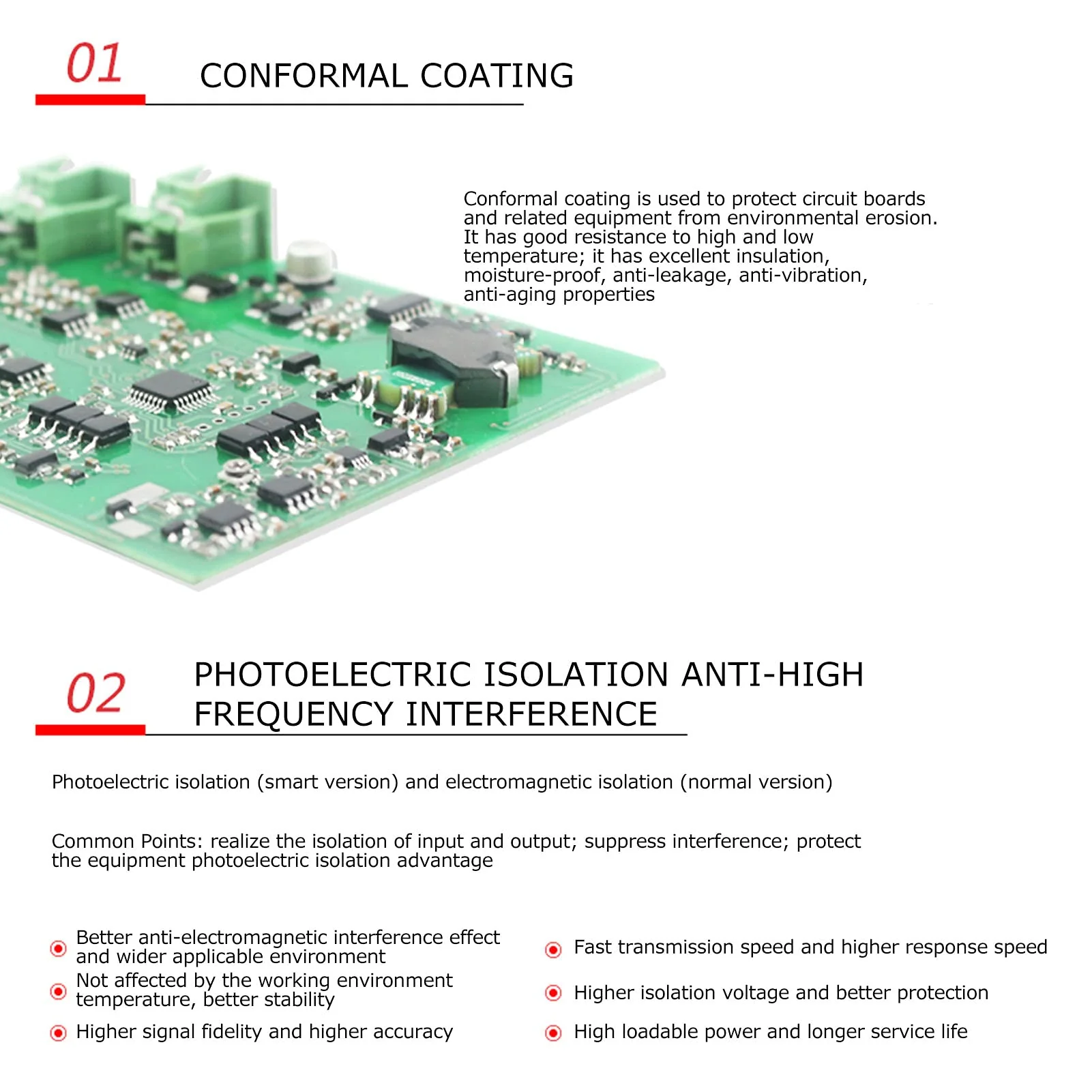

- The compliant coating is used to protect circuit boards and related equipment from environmental erosion.
- High-quality ABS material shell, high temperature and impact resistance, can be used for a long time.
- Realize the isolation of input, output, power supply and housing, strong anti-interference ability and high reliability.
- 35mm standard guide rail installation, easy installation and disassembly and does not take up space.
- Has excellent insulation, moisture-resistant, leak-proof, vibration-inhibiting, ageing-resistant, anti-corona performance, etc.
More Images
Current Signal Conditioner, 0-10V to 0-10V Highly Reliable Signal Isolator for 2- or 3-Wire Transmitter
Current Signal Conditioner, 0-10V to 0-10V Highly Reliable Signal Isolator for 2- or 3-Wire Transmitter
Function: 1. The compliant coating is used to protect PCBs and related equipment from environmental erosion. 2. High-quality ABS material shell, high temperature and impact resistance, can be used for a long time. 3. 35mm standard guide rail installation, easy installation and disassembly and does not take up space. 4. Realize the isolation of input, output, power supply and housing, strong anti-interference ability and high reliability. 5. Has excellent insulation, moisture-proof, leak-proof, anti-vibration, anti-aging, anti-corona performance, etc. Instructions for use: Installation method: 1. Please pay attention to the stability and strength of the bayonet when mounting the 35 mm rail mounting. 2. Please install it as vertically as possible to facilitate heat dissipation inside the device. Specification: Item Type: Signal Isolator Material: ABS Model: GLG Channel: 1 in 2 out. PWR (15-, 16+): 24V DC. Input: 0-10V. Distributor voltage: DC 24 V. 2-wire system: (9-, 13+) 3-conductor: (9+, 10-, 13+) Power supply: (9+, 10-) Output: Channel 1 (1+, 2-): 0-10V. Channel 2 (3+, 4-): 0-10V. Output current: load ≤ 500Ω. Output voltage: load ≥10KΩ. Accuracy: 0.1% FS. Operating temperature range: -20 to +55 °C. Electromagnetic compatibility: Conforms to GB /T 18268 (1EC61326-1) Applicable field device: 2-wire, 3-wire transmitter, power source Product description: DC24V power supply, ensures the isolated energy distribution of the transmitter on site and simultaneously isolates and transmits the current signal generated by the transmitter from
Product Features
- The compliant coating is used to protect circuit boards and related equipment from environmental erosion.
- High-quality ABS material shell, high temperature and impact resistance, can be used for a long time.
- Realize the isolation of input, output, power supply and housing, strong anti-interference ability and high reliability.
- 35mm standard guide rail installation, easy installation and disassembly and does not take up space.
- Has excellent insulation, moisture-resistant, leak-proof, vibration-inhibiting, ageing-resistant, anti-corona performance, etc.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Current Signal Conditioner, 0-10V to 0-10V Highly Reliable Signal Isolator for 2- or 3-Wire Transmitter
Function: 1. The compliant coating is used to protect PCBs and related equipment from environmental erosion. 2. High-quality ABS material shell, high temperature and impact resistance, can be used for a long time. 3. 35mm standard guide rail installation, easy installation and disassembly and does not take up space. 4. Realize the isolation of input, output, power supply and housing, strong anti-interference ability and high reliability. 5. Has excellent insulation, moisture-proof, leak-proof, anti-vibration, anti-aging, anti-corona performance, etc. Instructions for use: Installation method: 1. Please pay attention to the stability and strength of the bayonet when mounting the 35 mm rail mounting. 2. Please install it as vertically as possible to facilitate heat dissipation inside the device. Specification: Item Type: Signal Isolator Material: ABS Model: GLG Channel: 1 in 2 out. PWR (15-, 16+): 24V DC. Input: 0-10V. Distributor voltage: DC 24 V. 2-wire system: (9-, 13+) 3-conductor: (9+, 10-, 13+) Power supply: (9+, 10-) Output: Channel 1 (1+, 2-): 0-10V. Channel 2 (3+, 4-): 0-10V. Output current: load ≤ 500Ω. Output voltage: load ≥10KΩ. Accuracy: 0.1% FS. Operating temperature range: -20 to +55 °C. Electromagnetic compatibility: Conforms to GB /T 18268 (1EC61326-1) Applicable field device: 2-wire, 3-wire transmitter, power source Product description: DC24V power supply, ensures the isolated energy distribution of the transmitter on site and simultaneously isolates and transmits the current signal generated by the transmitter from
Product Features
- The compliant coating is used to protect circuit boards and related equipment from environmental erosion.
- High-quality ABS material shell, high temperature and impact resistance, can be used for a long time.
- Realize the isolation of input, output, power supply and housing, strong anti-interference ability and high reliability.
- 35mm standard guide rail installation, easy installation and disassembly and does not take up space.
- Has excellent insulation, moisture-resistant, leak-proof, vibration-inhibiting, ageing-resistant, anti-corona performance, etc.
