CTRICALVER Laser Module (Light Source Shape: Green Cross) Adjustable Focal Point Kit, 3-5V Industrial Laser Module Diode 2.1mm DC Plug 520nm + Power Supply Kit
CTRICALVER Laser Module (Light Source Shape: Green Cross) Adjustable Focal Point Kit, 3-5V Industrial Laser Module Diode 2.1mm DC Plug 520nm + Power Supply Kit
CTRICALVER Laser Module (Light Source Shape: Green Cross) Adjustable Focal Point Kit, 3-5V Industrial Laser Module Diode 2.1mm DC Plug 520nm + Power Supply Kit

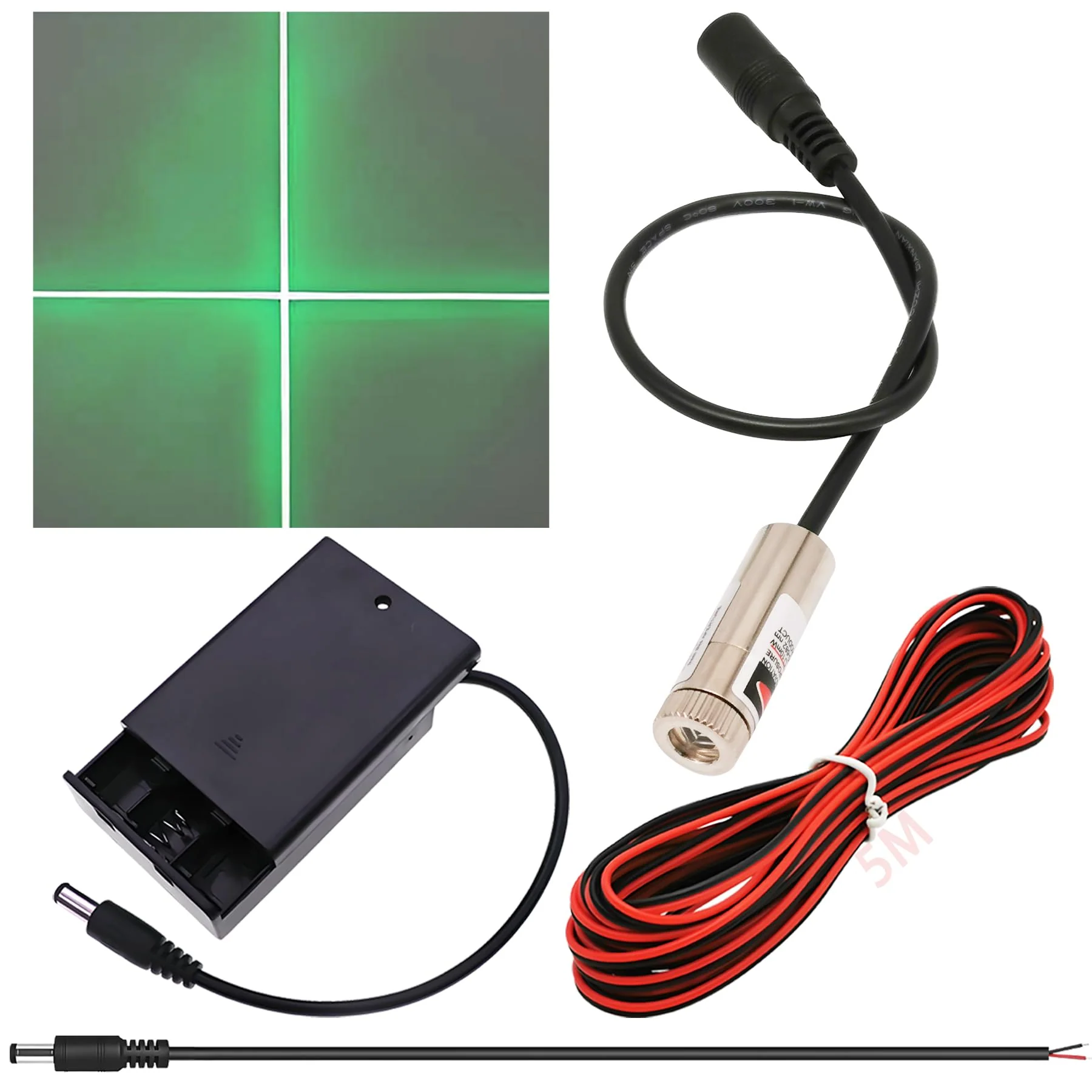

Please note: Laser safety glasses are required to protect your eyes. Make sure the operator has experience in optical DIY or testing. Additional heat dissipation is required during prolonged operation of the laser so that the surface temperature of the module is below 35°C. Functions: No tools required. The module comes with a DC male/female cable - easy to connect and ready to use. The front lens rotates left or right to adjust the spot size to the lighting distance. Metal housing: pressure resistant and corrosion resistant, durable and anti-aging. Each battery compartment has a housing cover for attaching the battery. Package includes: 1 × 520nm Focused Laser Module with DC Female 1 x 4.5 V AA battery compartment with DC plug cable. 1 x two-core cable, 5 m. 1 x DC plug pigtail cable. Specifications: Laser tube material: metal. Dimensions: 12 x 12 x 35 mm. Cable length at the end of the laser head: 29.5 cm Spot mode: cross. Spot focal length: adjustable. Dot color: green Laser wavelength: 520nm Output power: <1mW Current: <130 mA. Operating voltage: 3-5V DC (maximum 5 volts) DC Plug Size: 5.52.1mm Cable length at battery compartment: 17 cm. Battery type: three 1.5V AA batteries (Note: batteries are not included) Customer service: If you have any product defects, please contact us first. Our professional customer service is always at your disposal to solve problems.
Product Features
- Construction: High quality laser diode, light weight, low power consumption; metal housing, durable, high strength, toughness, shatterproof; high quality lens, high brightness, long range; constant current board, cable, low loss, interference-free.
- APPLICATION Used for alignment, adjustment, positioning, measurement and positioning of medical equipment in industry, signal equipment manufacturing, or DIY projects, etc. It can also be used by friends who like to make small products themselves, or by school educational institutions and scientific research institutions for experimental teaching and product development.

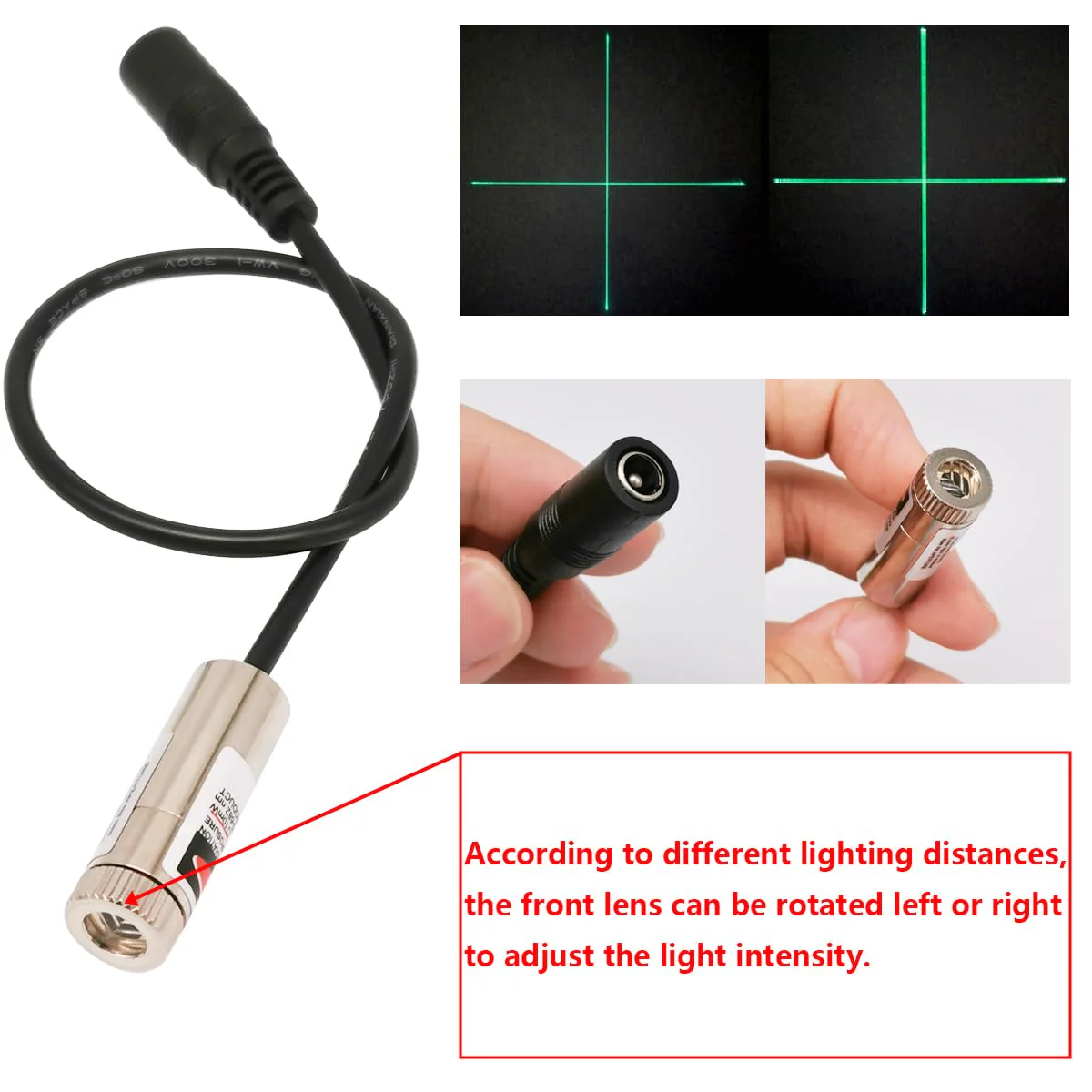

- Features: Light source shape: green cross. Diameter 12mm, length 35mm, compact size, large beam angle, clear light. The front lens can be rotated left and right to adjust the spot size according to the irradiation distance. From 1 mm to several centimetres - for different uses.

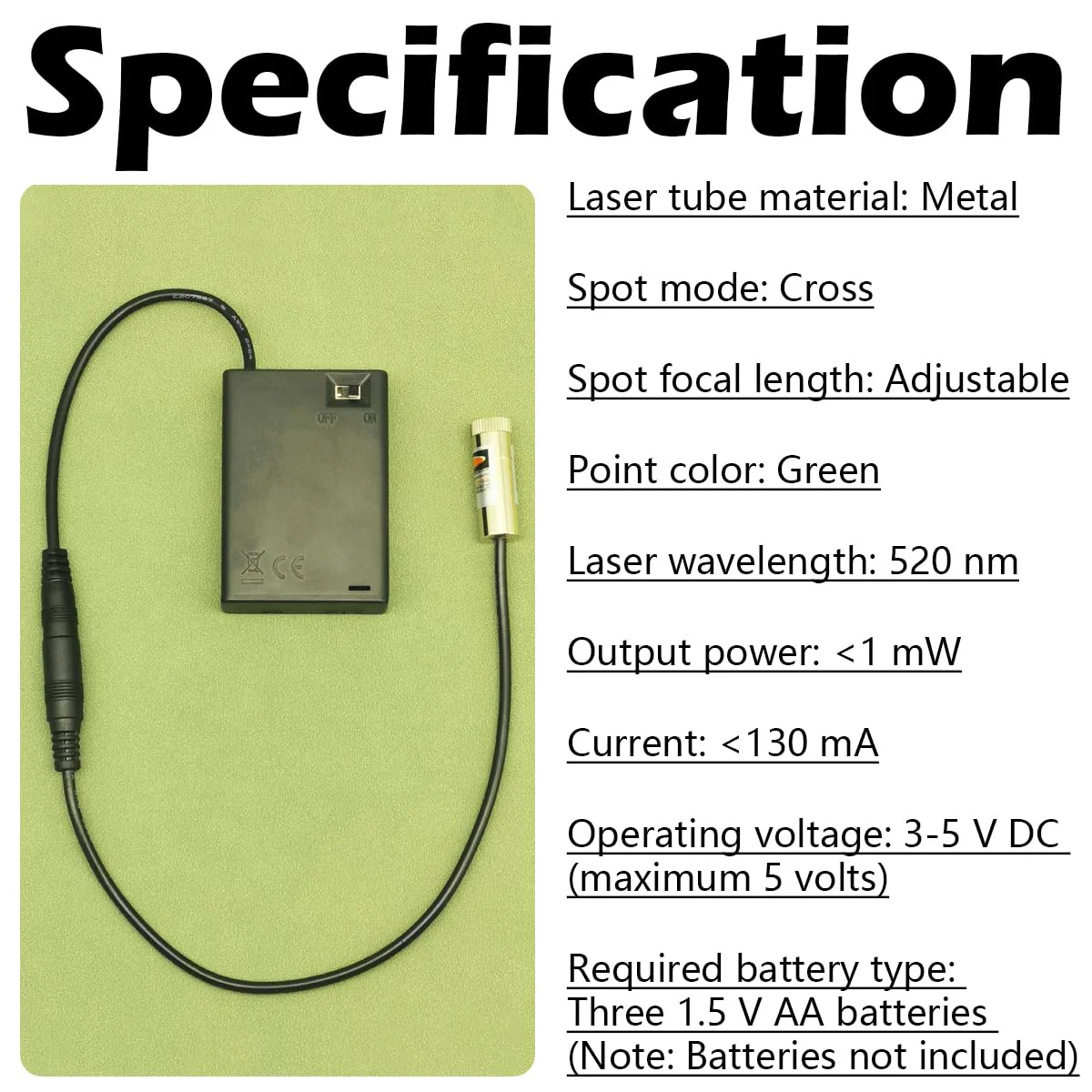

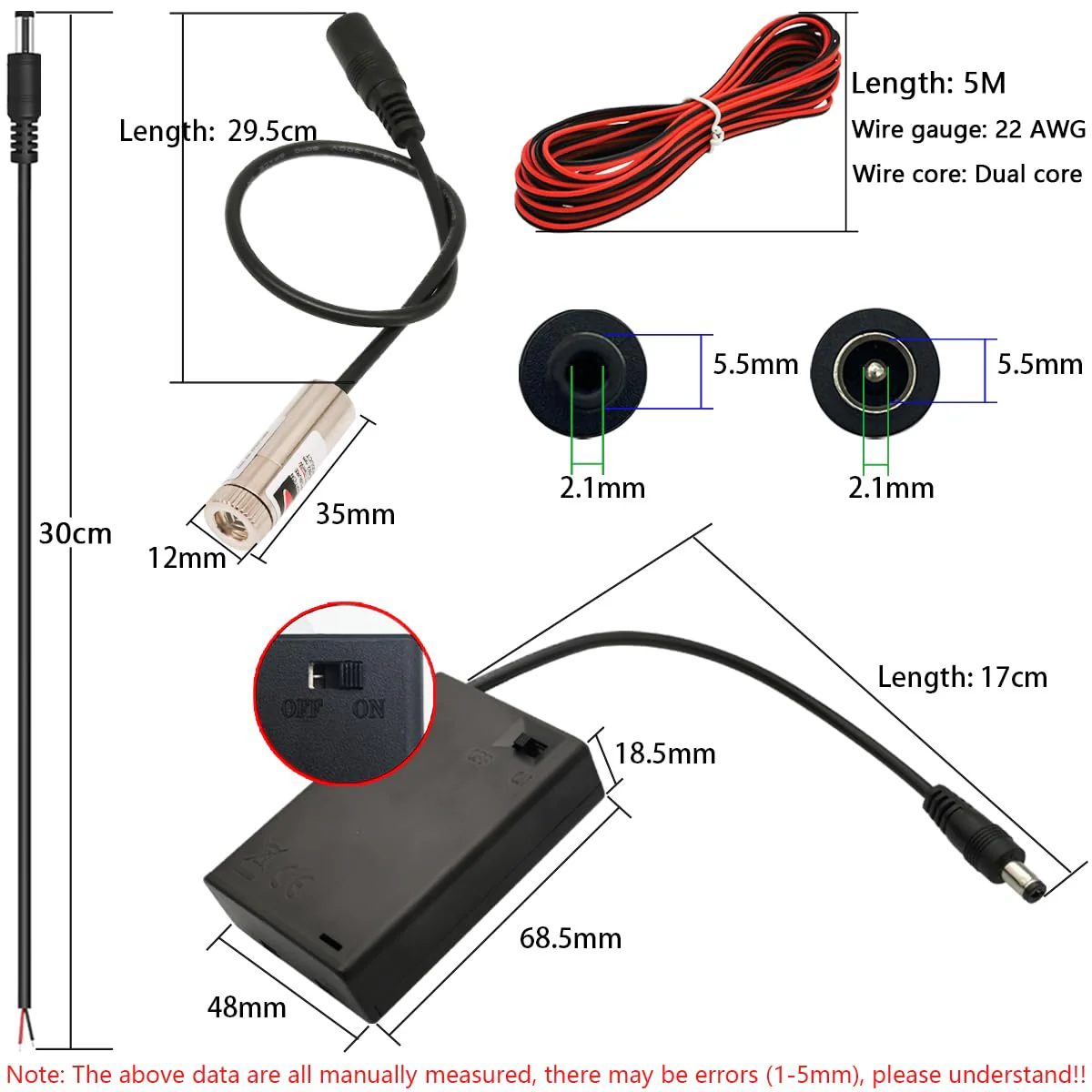

- SPECIFICATIONS Laser Wavelength: 520nm Output Power: <1mW Current: <130mA Working Voltage: 3-5V DC (Max 5 Volts), Length of DC Female Cable at end: 29.5cm, Length of DC Plug Cable at Battery Compartment: 17cm; Dual Core Cable 22AWG x 5m + Dual Core DC Plug .
- The battery compartment has an on/off switch and a spring clamp, so you can easily insert the battery without damaging other parts (Note: this product does not contain batteries). The battery compartment comes with a DC plug cable that can be connected to the socket cable at the end of the laser head. It is easy to carry and can also be used with the included 5 meter dual-core cable and DC plug cable for a more stable installation.
Original: $113.73
-65%$113.73
$39.81More Images
CTRICALVER Laser Module (Light Source Shape: Green Cross) Adjustable Focal Point Kit, 3-5V Industrial Laser Module Diode 2.1mm DC Plug 520nm + Power Supply Kit
CTRICALVER Laser Module (Light Source Shape: Green Cross) Adjustable Focal Point Kit, 3-5V Industrial Laser Module Diode 2.1mm DC Plug 520nm + Power Supply Kit
Please note: Laser safety glasses are required to protect your eyes. Make sure the operator has experience in optical DIY or testing. Additional heat dissipation is required during prolonged operation of the laser so that the surface temperature of the module is below 35°C. Functions: No tools required. The module comes with a DC male/female cable - easy to connect and ready to use. The front lens rotates left or right to adjust the spot size to the lighting distance. Metal housing: pressure resistant and corrosion resistant, durable and anti-aging. Each battery compartment has a housing cover for attaching the battery. Package includes: 1 × 520nm Focused Laser Module with DC Female 1 x 4.5 V AA battery compartment with DC plug cable. 1 x two-core cable, 5 m. 1 x DC plug pigtail cable. Specifications: Laser tube material: metal. Dimensions: 12 x 12 x 35 mm. Cable length at the end of the laser head: 29.5 cm Spot mode: cross. Spot focal length: adjustable. Dot color: green Laser wavelength: 520nm Output power: <1mW Current: <130 mA. Operating voltage: 3-5V DC (maximum 5 volts) DC Plug Size: 5.52.1mm Cable length at battery compartment: 17 cm. Battery type: three 1.5V AA batteries (Note: batteries are not included) Customer service: If you have any product defects, please contact us first. Our professional customer service is always at your disposal to solve problems.
Product Features
- Construction: High quality laser diode, light weight, low power consumption; metal housing, durable, high strength, toughness, shatterproof; high quality lens, high brightness, long range; constant current board, cable, low loss, interference-free.
- APPLICATION Used for alignment, adjustment, positioning, measurement and positioning of medical equipment in industry, signal equipment manufacturing, or DIY projects, etc. It can also be used by friends who like to make small products themselves, or by school educational institutions and scientific research institutions for experimental teaching and product development.
- Features: Light source shape: green cross. Diameter 12mm, length 35mm, compact size, large beam angle, clear light. The front lens can be rotated left and right to adjust the spot size according to the irradiation distance. From 1 mm to several centimetres - for different uses.
- SPECIFICATIONS Laser Wavelength: 520nm Output Power: <1mW Current: <130mA Working Voltage: 3-5V DC (Max 5 Volts), Length of DC Female Cable at end: 29.5cm, Length of DC Plug Cable at Battery Compartment: 17cm; Dual Core Cable 22AWG x 5m + Dual Core DC Plug .
- The battery compartment has an on/off switch and a spring clamp, so you can easily insert the battery without damaging other parts (Note: this product does not contain batteries). The battery compartment comes with a DC plug cable that can be connected to the socket cable at the end of the laser head. It is easy to carry and can also be used with the included 5 meter dual-core cable and DC plug cable for a more stable installation.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
CTRICALVER Laser Module (Light Source Shape: Green Cross) Adjustable Focal Point Kit, 3-5V Industrial Laser Module Diode 2.1mm DC Plug 520nm + Power Supply Kit
Please note: Laser safety glasses are required to protect your eyes. Make sure the operator has experience in optical DIY or testing. Additional heat dissipation is required during prolonged operation of the laser so that the surface temperature of the module is below 35°C. Functions: No tools required. The module comes with a DC male/female cable - easy to connect and ready to use. The front lens rotates left or right to adjust the spot size to the lighting distance. Metal housing: pressure resistant and corrosion resistant, durable and anti-aging. Each battery compartment has a housing cover for attaching the battery. Package includes: 1 × 520nm Focused Laser Module with DC Female 1 x 4.5 V AA battery compartment with DC plug cable. 1 x two-core cable, 5 m. 1 x DC plug pigtail cable. Specifications: Laser tube material: metal. Dimensions: 12 x 12 x 35 mm. Cable length at the end of the laser head: 29.5 cm Spot mode: cross. Spot focal length: adjustable. Dot color: green Laser wavelength: 520nm Output power: <1mW Current: <130 mA. Operating voltage: 3-5V DC (maximum 5 volts) DC Plug Size: 5.52.1mm Cable length at battery compartment: 17 cm. Battery type: three 1.5V AA batteries (Note: batteries are not included) Customer service: If you have any product defects, please contact us first. Our professional customer service is always at your disposal to solve problems.
Product Features
- Construction: High quality laser diode, light weight, low power consumption; metal housing, durable, high strength, toughness, shatterproof; high quality lens, high brightness, long range; constant current board, cable, low loss, interference-free.
- APPLICATION Used for alignment, adjustment, positioning, measurement and positioning of medical equipment in industry, signal equipment manufacturing, or DIY projects, etc. It can also be used by friends who like to make small products themselves, or by school educational institutions and scientific research institutions for experimental teaching and product development.
- Features: Light source shape: green cross. Diameter 12mm, length 35mm, compact size, large beam angle, clear light. The front lens can be rotated left and right to adjust the spot size according to the irradiation distance. From 1 mm to several centimetres - for different uses.
- SPECIFICATIONS Laser Wavelength: 520nm Output Power: <1mW Current: <130mA Working Voltage: 3-5V DC (Max 5 Volts), Length of DC Female Cable at end: 29.5cm, Length of DC Plug Cable at Battery Compartment: 17cm; Dual Core Cable 22AWG x 5m + Dual Core DC Plug .
- The battery compartment has an on/off switch and a spring clamp, so you can easily insert the battery without damaging other parts (Note: this product does not contain batteries). The battery compartment comes with a DC plug cable that can be connected to the socket cable at the end of the laser head. It is easy to carry and can also be used with the included 5 meter dual-core cable and DC plug cable for a more stable installation.
