CPROSP 2-Piece Collecting Rail with Lid 250 A, Power Distribution Rail with 4 x M8 Bolt Connection, Battery Connection Block 5/16 Inches, BusBar Box for Car, RV, Boat, Yacht 250A--4*M8

CPROSP 2-Piece Collecting Rail with Lid 250 A, Power Distribution Rail with 4 x M8 Bolt Connection, Battery Connection Block 5/16 Inches, BusBar Box for Car, RV, Boat, Yacht

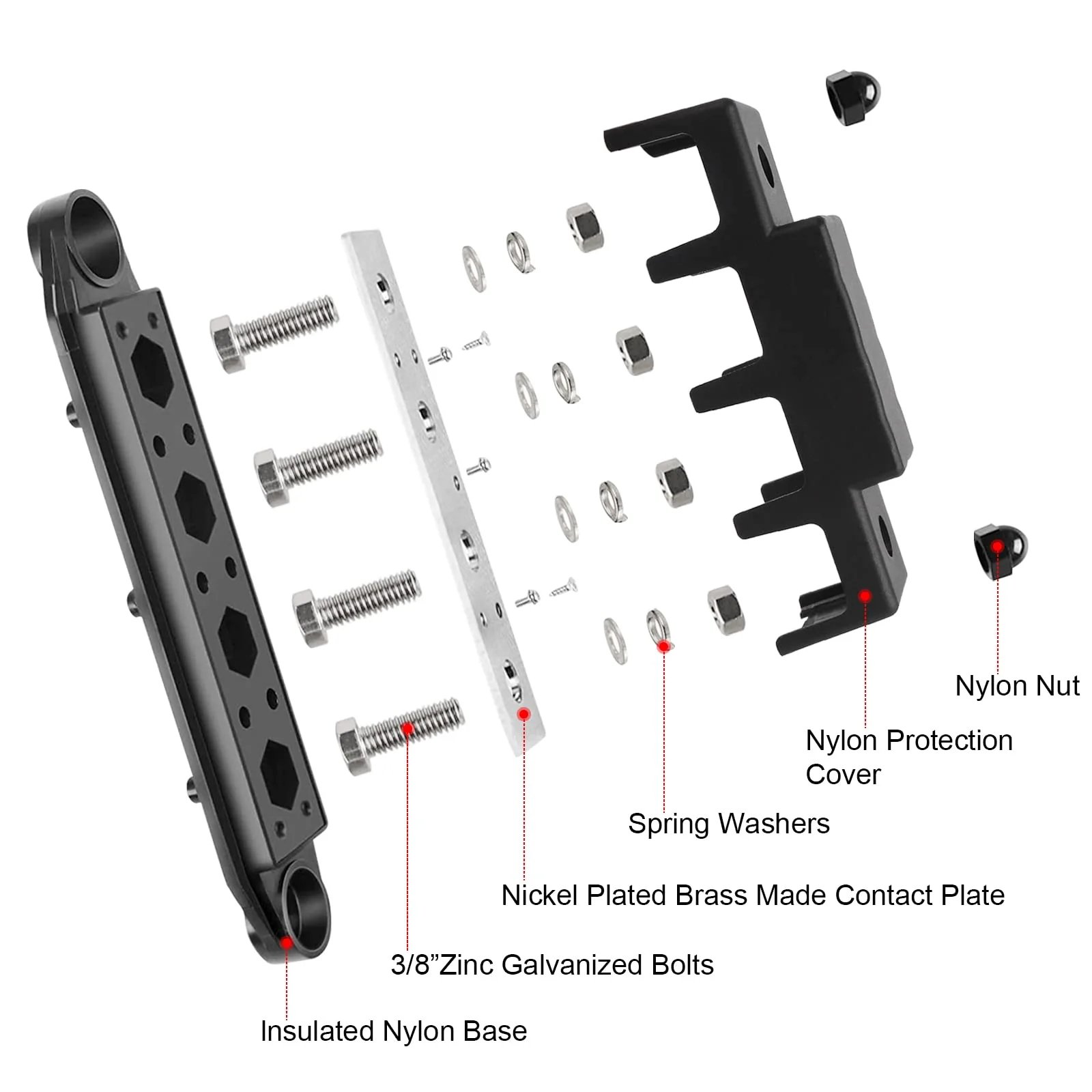

Description: Operating voltage/current --- Maximum voltage: 48V. Max. Continuous Current: 250A Max. Intermittent: 20A per connection (less than 1 minute). Whether you are working on a boat, a car or an RV, we have everything for you. Safely built: the nickel-plated brass busbar plates provide low resistance, maximum conductivity and corrosion protection. The nylon nuts are connected with two external bolts to prevent accidental short circuits. A removable nylon cover prevents metal parts from coming into contact with anything. The insulated nylon base is flame retardant. More efficient power distribution --- Provides multiple ports with large cross section for earthing the battery and multiple ports with smaller cross section for lower voltages. Wide range of uses --- The Mofeez power rail is an excellent circuit collector wiring harness for cars, RVs, yachts, caravans and ships. The power bar holds wide cables securely to keep the wires tidy. High quality for safety The shell is made of flame retardant material, safer than normal plastic. The copper sheet conductor has good electrical conductivity and the nickel plating has better anti-oxidation performance, which makes it more durable. Mounting screw holes. Mount it anywhere with the two screw holes at the end of the terminal. (Self-tapping screws are not included.) Easy connection Simply insert the wire into the ring clamp and pass the screw through the clamp to attach it to the terminal strip. Protective cover. Our power distribution block also includes covers to protect against accidental touching of the terminals. It is safer when the clamps are protected by locking plastic lids.

Product Features

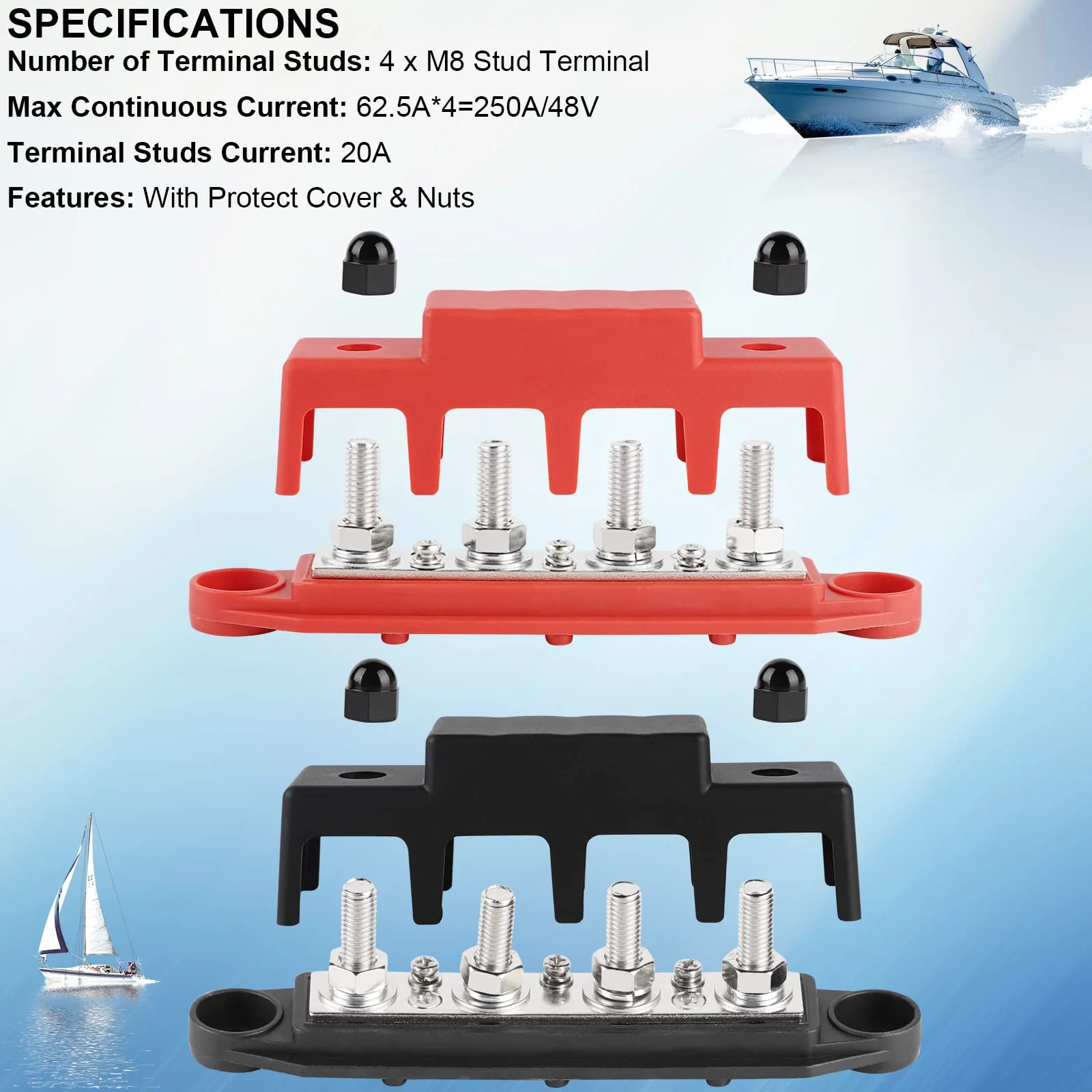

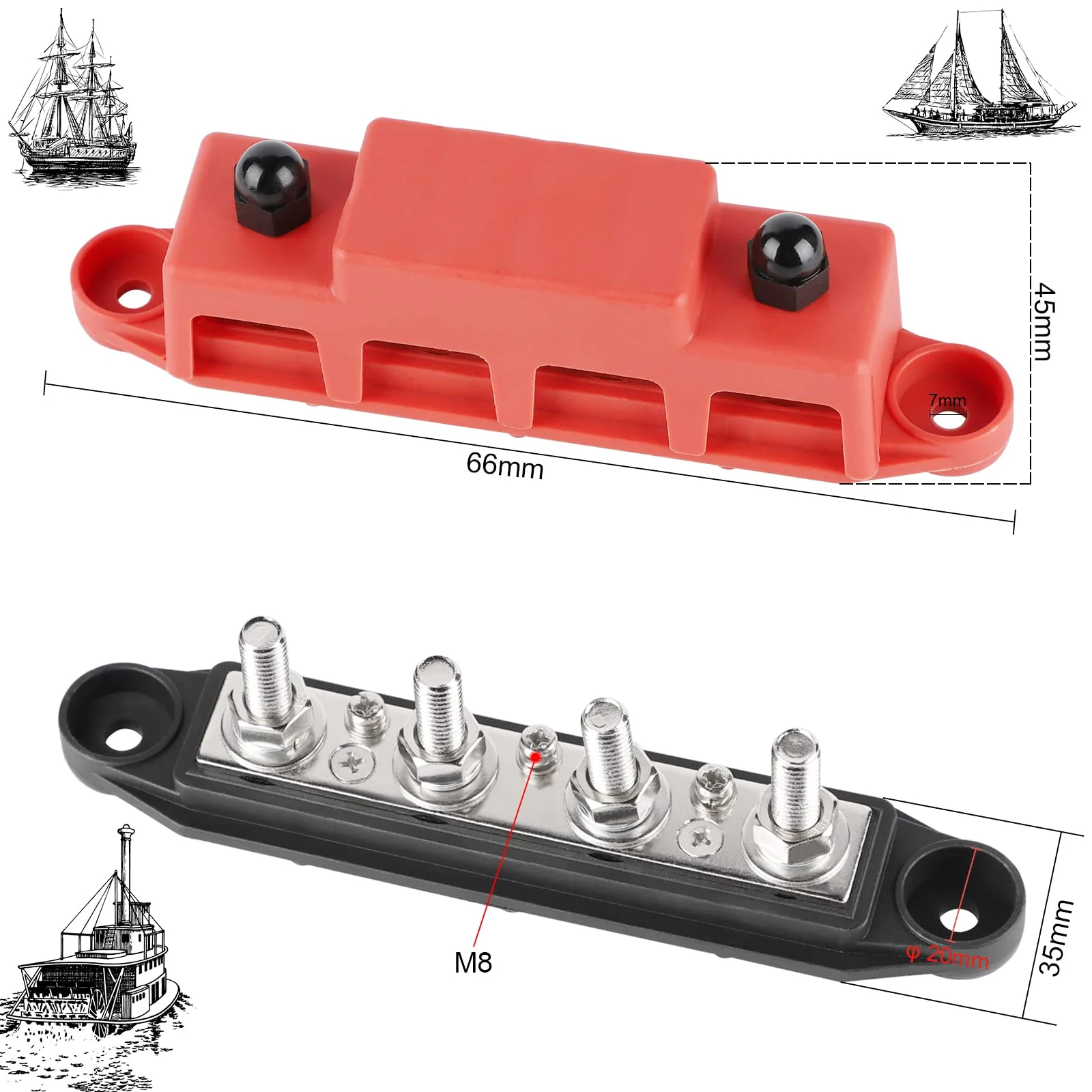

• Power distribution rail: connections: 1 large + 4 small connectors; terminal bolts: 4 x M8. Rated current: 62.5A*4=250A; auxiliary terminal screw: 20A; maximum power: 48V; size: 170mm*44mm.
• Cable distribution: Ideal for automotive, solar and marine applications - Whether you need to consolidate, distribute or protect your electrical system, our power rails are ideal for managing cables and distributing electricity.
• Cable management: the 4-way bus wiring block makes setting up your electrical systems fast, clean and easy.
• Corrosion protection and even current flow: Our busbars are corrosion resistant and designed for high currents. Nickel plated brass contact plate ensures consistent and consistent current flow and stability. Wire up to 4 accessories. Each track terminal block includes a cover to protect the connectors from damage and corrosion.
• Pleasant: Gives any installation in your boat, car or caravan a neat and clean finish.
