CD74HC4067 High Speed CMOS 16 Channel Analyzer Digital Multiplexer Analogue / Digital 2V-6V Pack of 8
CD74HC4067 High Speed CMOS 16 Channel Analyzer Digital Multiplexer Analogue / Digital 2V-6V Pack of 8
CD74HC4067 High Speed CMOS 16 Channel Analyzer Digital Multiplexer Analogue / Digital 2V-6V Pack of 8

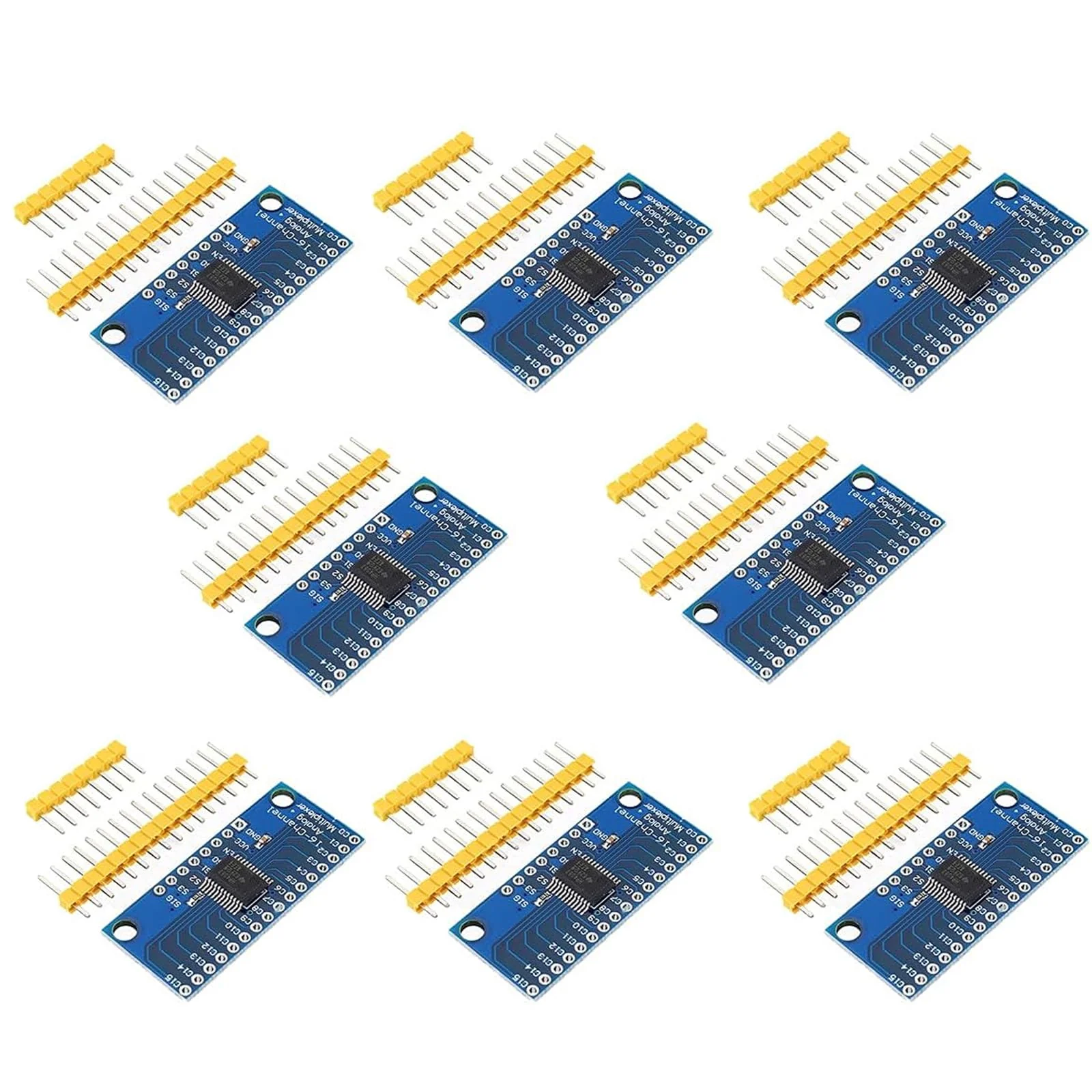

8pcs CD74HC4067 High Speed CMOS 16 Channel Analyzer Digital Multiplexer Analog/Digital 2V-6V
Product Features

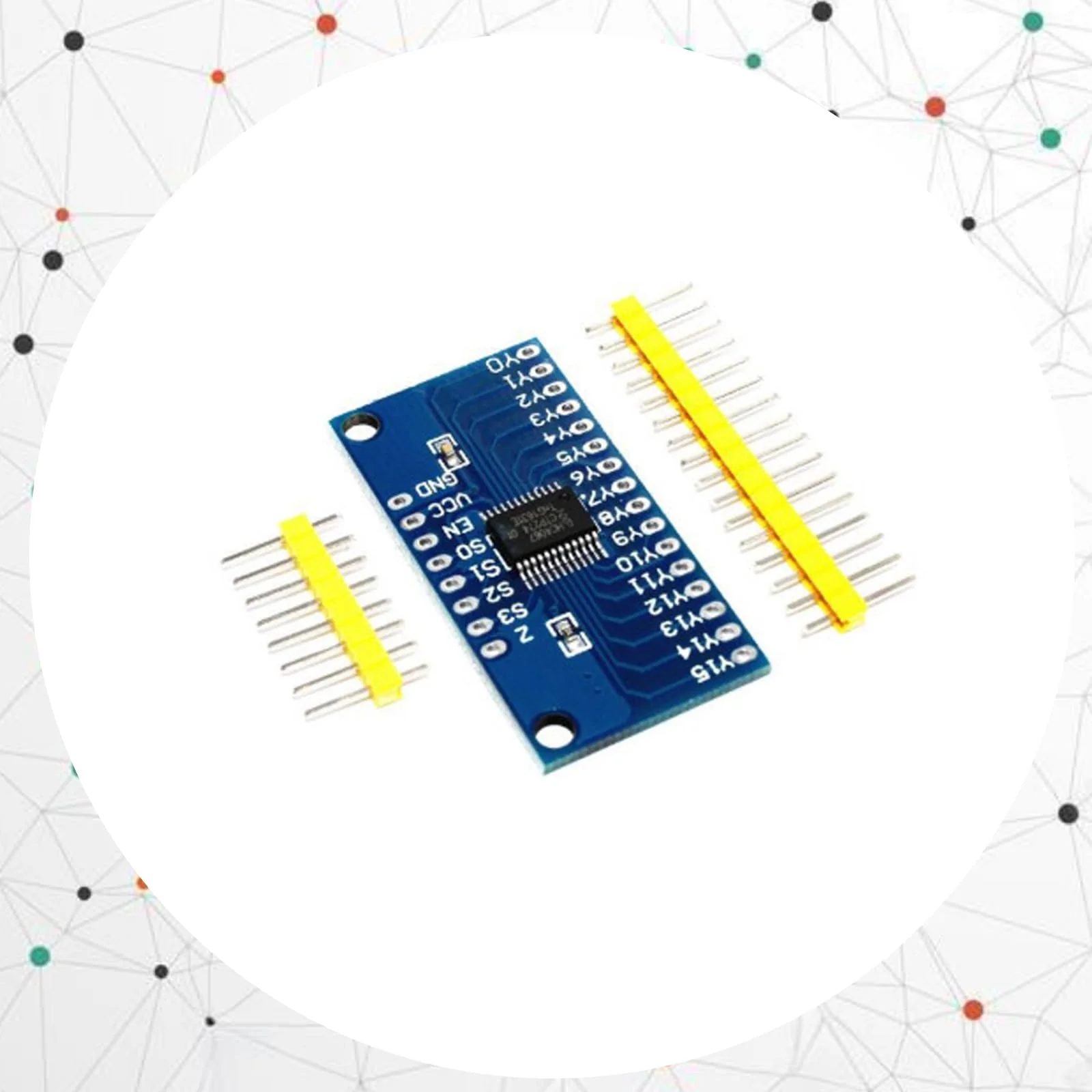

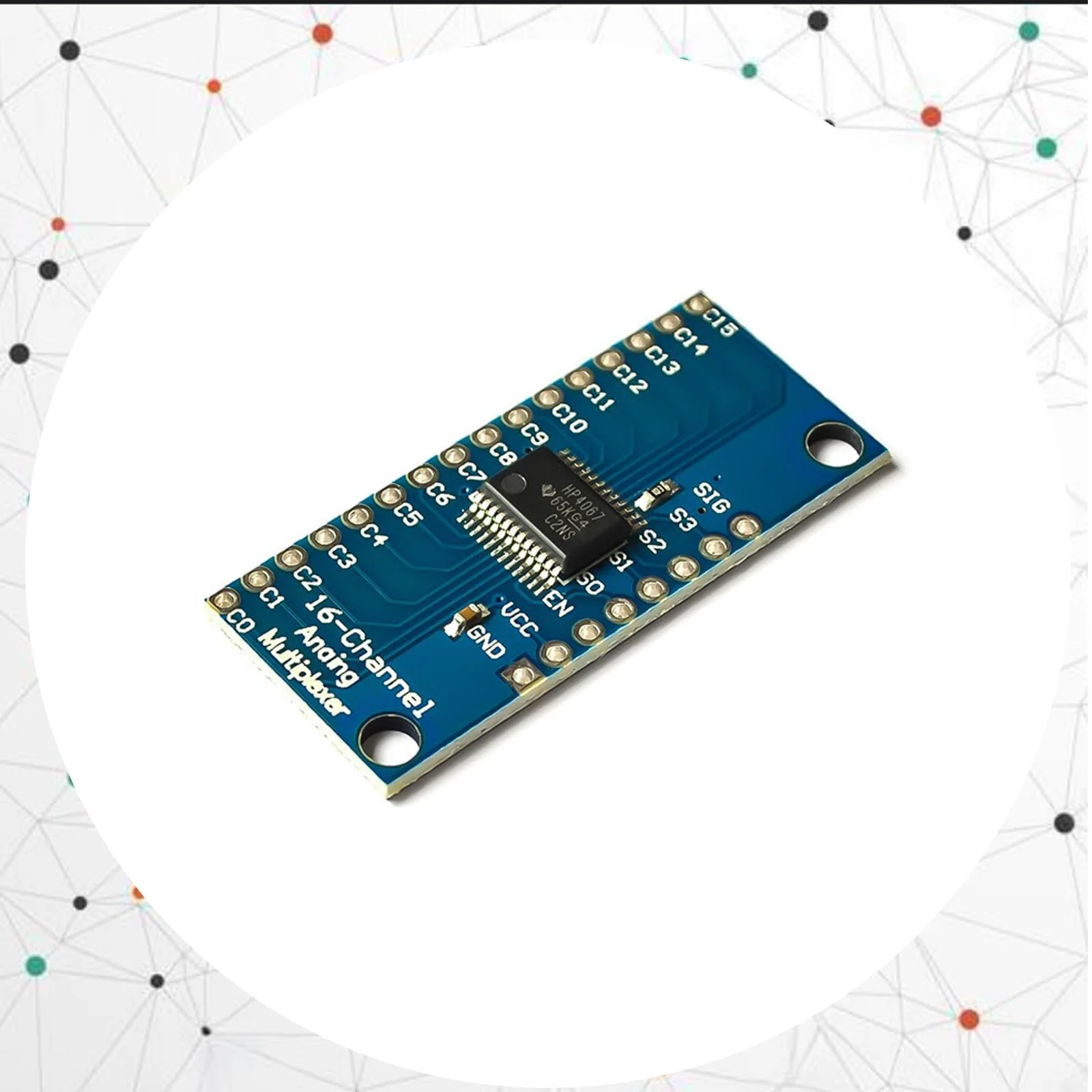

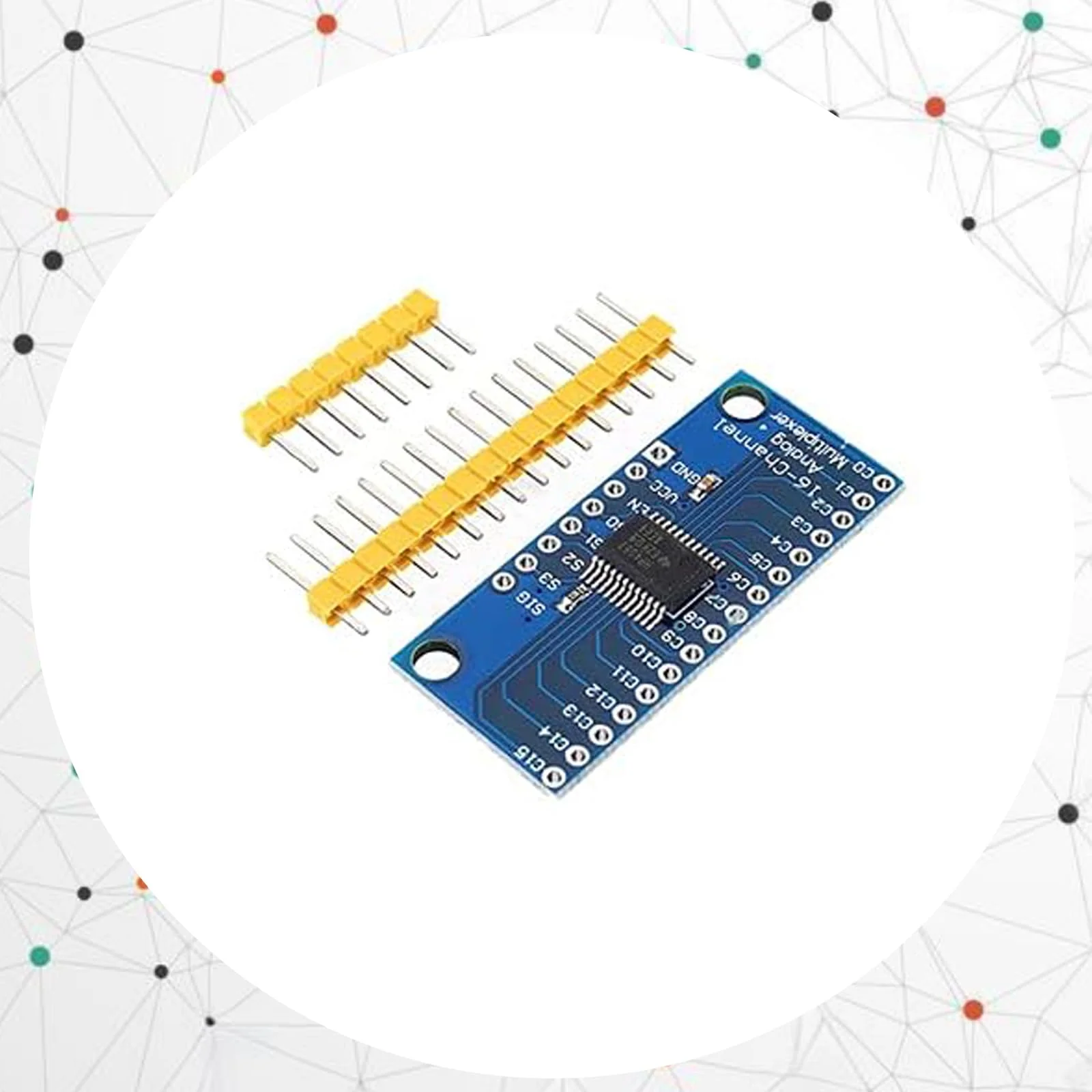

- This is a breakout board for the very handy 16-channel analog/digital multiplexer/demultiplexer CD74HC4067

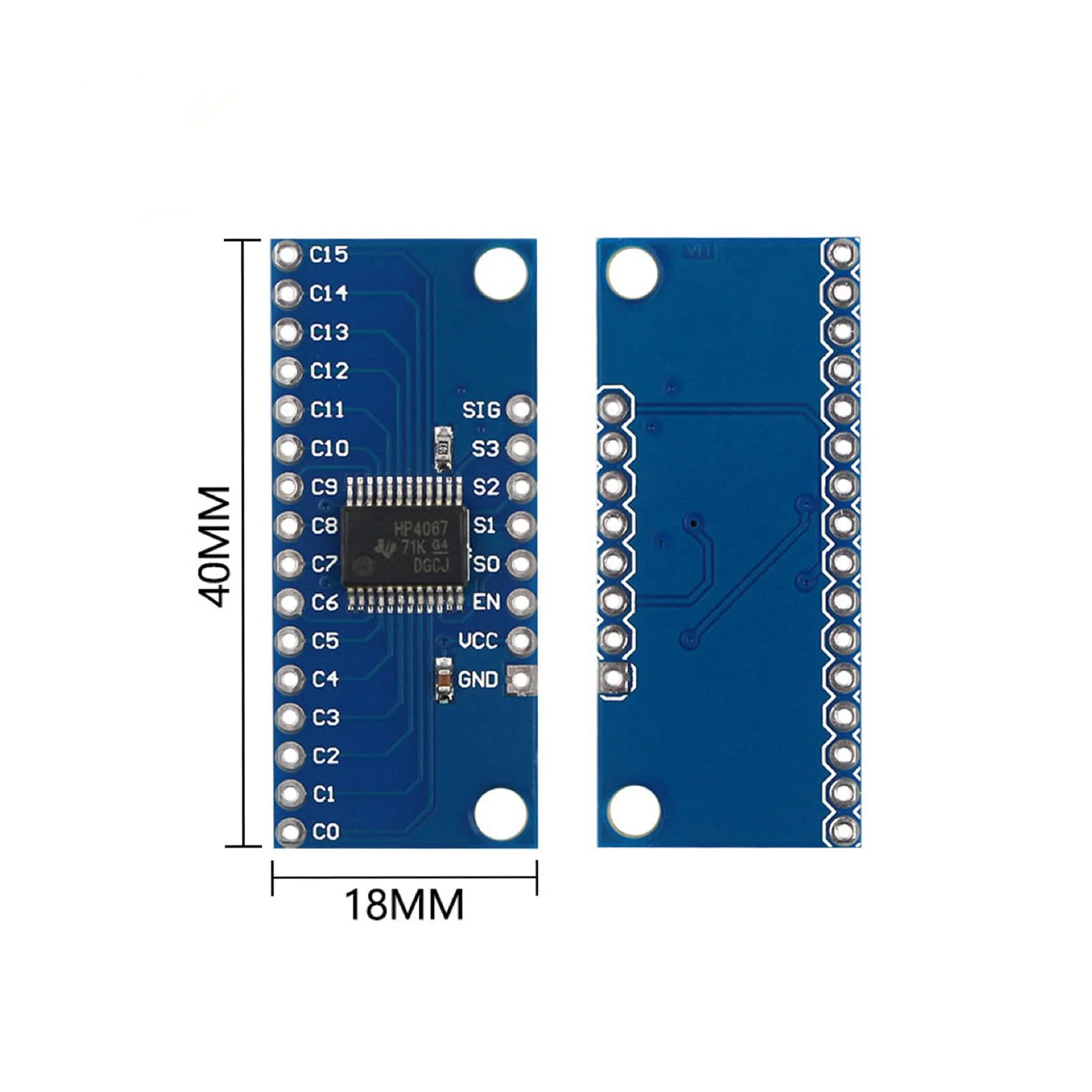

- This chip is like a rotary switch. It internally routes the common pin (COM in the schematic, SIG on the board) to one of the 16-channel pins (CHANxx)
- It works with both digital and analogue signals (the voltage cannot be higher than VCC) and the ports work in both directions. To control it, connect four digital outputs to the address selection pins of the chip (S0-S3) and send it the binary address of the desired channel.
- Use the CD74HC4067 16 channel analog signal switch; Analog signal input: C0-C15 16 channels.
- The internal switches are bidirectional, support voltages between ground and VCC, have a low "on" resistance and low "off" leakage, and to prevent crosstalk, perform "break-before-make" switching. The board also breaks out the chip's "enable" pin, which, when driven up, completely disconnects the common pin
