BuyWeek Photoresistor Relay Module, DC 24 V Light Sensor, Light Detection Switch, Adjustable Delay, Photoresistor Relay Module, Photosensitive Sensor (DC 24 V)
BuyWeek Photoresistor Relay Module, DC 24 V Light Sensor, Light Detection Switch, Adjustable Delay, Photoresistor Relay Module, Photosensitive Sensor (DC 24 V)
BuyWeek Photoresistor Relay Module, DC 24 V Light Sensor, Light Detection Switch, Adjustable Delay, Photoresistor Relay Module, Photosensitive Sensor (DC 24 V)
Specification: Supply voltage (optional): 5V 12V 24V Static current: 12mA 15mA 12mA Maximum power consumption: 72 mA 45 mA 28 mA. Use: 1. Wiring: connect the corresponding DC power supply to DC+ and DC first; 2. Connect the sensor probe and turn it on (make sure the voltage meets the requirements, the polarity cannot be reversed). 3. Delay setting: the time range when plugging the jumper S2 is 1-20 seconds, otherwise the time range is 1-200 seconds. By adjusting the delay potentiometer clockwise, the delay time is extended. When you adjust the sensitivity, you need to set the delay time to the shortest delay time of about 1 second (set counterclockwise for about 10 circles); 4. Sensor sensitivity adjustment: adjust the sensitivity potentiometer to suit the light environment. When the sensor probe is covered by hand, the relay pulls, release the hand and the relay is disconnected, the module has an induction function. By adjusting clockwise, the induction becomes more sensitive. Application: The potentiometer can adjust the detection brightness threshold, if the light is darker than the brightness set by the potentiometer, the relay switch is automatically switched on, can be used as a light detection alarm, light control delay switch, brightness detection switch, can control different street lights (automatically turn on at night), car headlights, stage lighting, LED lighting and traffic light detection switch Package list: 1 x photoresistor relay module
Product Features

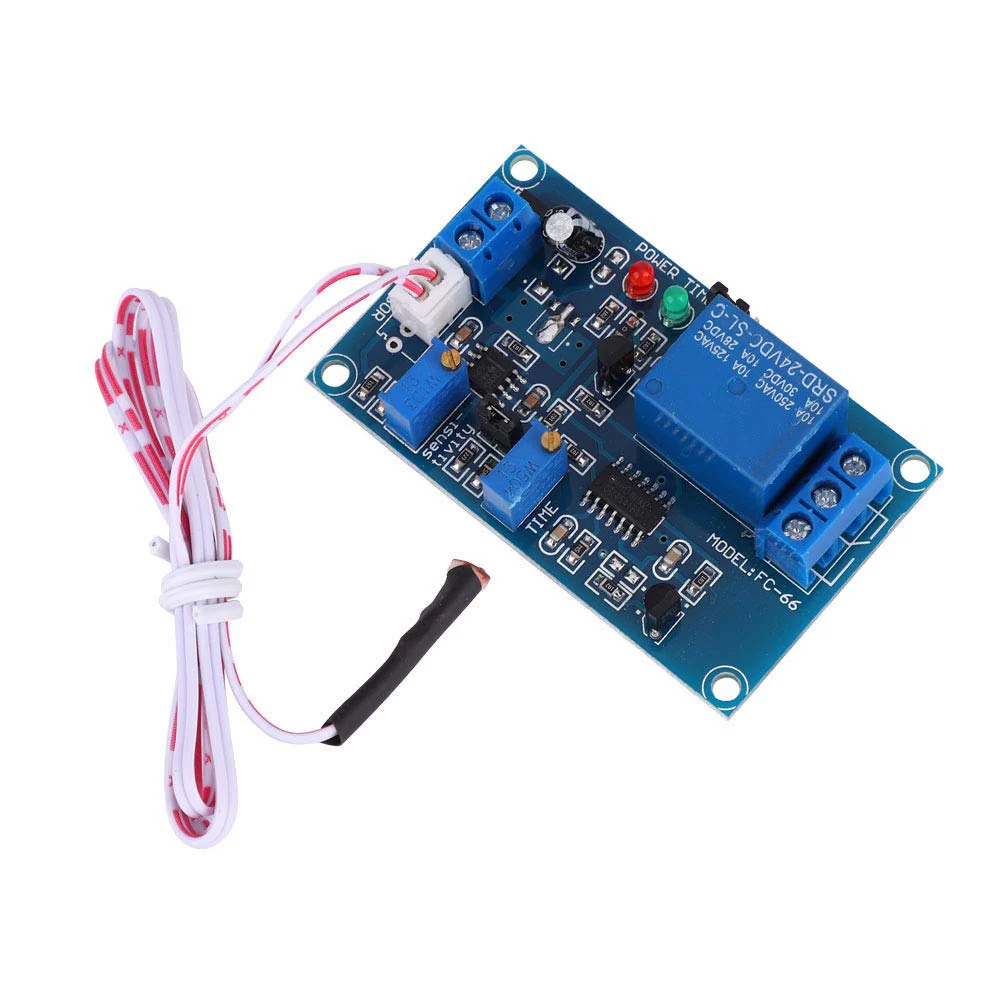

- Excellent quality: the light control switch is controlled by premium chips with stable and reliable quality. The module comes with a 50cm long photoresistance sensor.
- Safe and reliable: the power supply has a diode protection, a filter capacitor, a suppression capacitor and a 7805 voltage regulator chip, which can provide a stable voltage and prevent the module from burning out due to the reverse polarity of the power supply.
- Excellent function: photoresistor relay module with a precisely adjustable potentiometer for better adjustment of sensitivity and delay time.
- Adjustable delay: power indicator and relay tightening indicator. The delay time can be adjusted to solve the flashing problem of the relay at the critical point of the light.
- Very practical: the light detection module is equipped with a high-performance relay to control the load up to a current of 10 A.
Original: $86.20
-65%$86.20
$30.17More Images
BuyWeek Photoresistor Relay Module, DC 24 V Light Sensor, Light Detection Switch, Adjustable Delay, Photoresistor Relay Module, Photosensitive Sensor (DC 24 V)
BuyWeek Photoresistor Relay Module, DC 24 V Light Sensor, Light Detection Switch, Adjustable Delay, Photoresistor Relay Module, Photosensitive Sensor (DC 24 V)
Specification: Supply voltage (optional): 5V 12V 24V Static current: 12mA 15mA 12mA Maximum power consumption: 72 mA 45 mA 28 mA. Use: 1. Wiring: connect the corresponding DC power supply to DC+ and DC first; 2. Connect the sensor probe and turn it on (make sure the voltage meets the requirements, the polarity cannot be reversed). 3. Delay setting: the time range when plugging the jumper S2 is 1-20 seconds, otherwise the time range is 1-200 seconds. By adjusting the delay potentiometer clockwise, the delay time is extended. When you adjust the sensitivity, you need to set the delay time to the shortest delay time of about 1 second (set counterclockwise for about 10 circles); 4. Sensor sensitivity adjustment: adjust the sensitivity potentiometer to suit the light environment. When the sensor probe is covered by hand, the relay pulls, release the hand and the relay is disconnected, the module has an induction function. By adjusting clockwise, the induction becomes more sensitive. Application: The potentiometer can adjust the detection brightness threshold, if the light is darker than the brightness set by the potentiometer, the relay switch is automatically switched on, can be used as a light detection alarm, light control delay switch, brightness detection switch, can control different street lights (automatically turn on at night), car headlights, stage lighting, LED lighting and traffic light detection switch Package list: 1 x photoresistor relay module
Product Features
- Excellent quality: the light control switch is controlled by premium chips with stable and reliable quality. The module comes with a 50cm long photoresistance sensor.
- Safe and reliable: the power supply has a diode protection, a filter capacitor, a suppression capacitor and a 7805 voltage regulator chip, which can provide a stable voltage and prevent the module from burning out due to the reverse polarity of the power supply.
- Excellent function: photoresistor relay module with a precisely adjustable potentiometer for better adjustment of sensitivity and delay time.
- Adjustable delay: power indicator and relay tightening indicator. The delay time can be adjusted to solve the flashing problem of the relay at the critical point of the light.
- Very practical: the light detection module is equipped with a high-performance relay to control the load up to a current of 10 A.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BuyWeek Photoresistor Relay Module, DC 24 V Light Sensor, Light Detection Switch, Adjustable Delay, Photoresistor Relay Module, Photosensitive Sensor (DC 24 V)
Specification: Supply voltage (optional): 5V 12V 24V Static current: 12mA 15mA 12mA Maximum power consumption: 72 mA 45 mA 28 mA. Use: 1. Wiring: connect the corresponding DC power supply to DC+ and DC first; 2. Connect the sensor probe and turn it on (make sure the voltage meets the requirements, the polarity cannot be reversed). 3. Delay setting: the time range when plugging the jumper S2 is 1-20 seconds, otherwise the time range is 1-200 seconds. By adjusting the delay potentiometer clockwise, the delay time is extended. When you adjust the sensitivity, you need to set the delay time to the shortest delay time of about 1 second (set counterclockwise for about 10 circles); 4. Sensor sensitivity adjustment: adjust the sensitivity potentiometer to suit the light environment. When the sensor probe is covered by hand, the relay pulls, release the hand and the relay is disconnected, the module has an induction function. By adjusting clockwise, the induction becomes more sensitive. Application: The potentiometer can adjust the detection brightness threshold, if the light is darker than the brightness set by the potentiometer, the relay switch is automatically switched on, can be used as a light detection alarm, light control delay switch, brightness detection switch, can control different street lights (automatically turn on at night), car headlights, stage lighting, LED lighting and traffic light detection switch Package list: 1 x photoresistor relay module
Product Features
- Excellent quality: the light control switch is controlled by premium chips with stable and reliable quality. The module comes with a 50cm long photoresistance sensor.
- Safe and reliable: the power supply has a diode protection, a filter capacitor, a suppression capacitor and a 7805 voltage regulator chip, which can provide a stable voltage and prevent the module from burning out due to the reverse polarity of the power supply.
- Excellent function: photoresistor relay module with a precisely adjustable potentiometer for better adjustment of sensitivity and delay time.
- Adjustable delay: power indicator and relay tightening indicator. The delay time can be adjusted to solve the flashing problem of the relay at the critical point of the light.
- Very practical: the light detection module is equipped with a high-performance relay to control the load up to a current of 10 A.
