Buck Converter Pack of 8 Mini Step Down Converter Module, Step Down Converter Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Buck Converter Pack of 8 Mini Step Down Converter Module, Step Down Converter Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Buck Converter Pack of 8 Mini Step Down Converter Module, Step Down Converter Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter

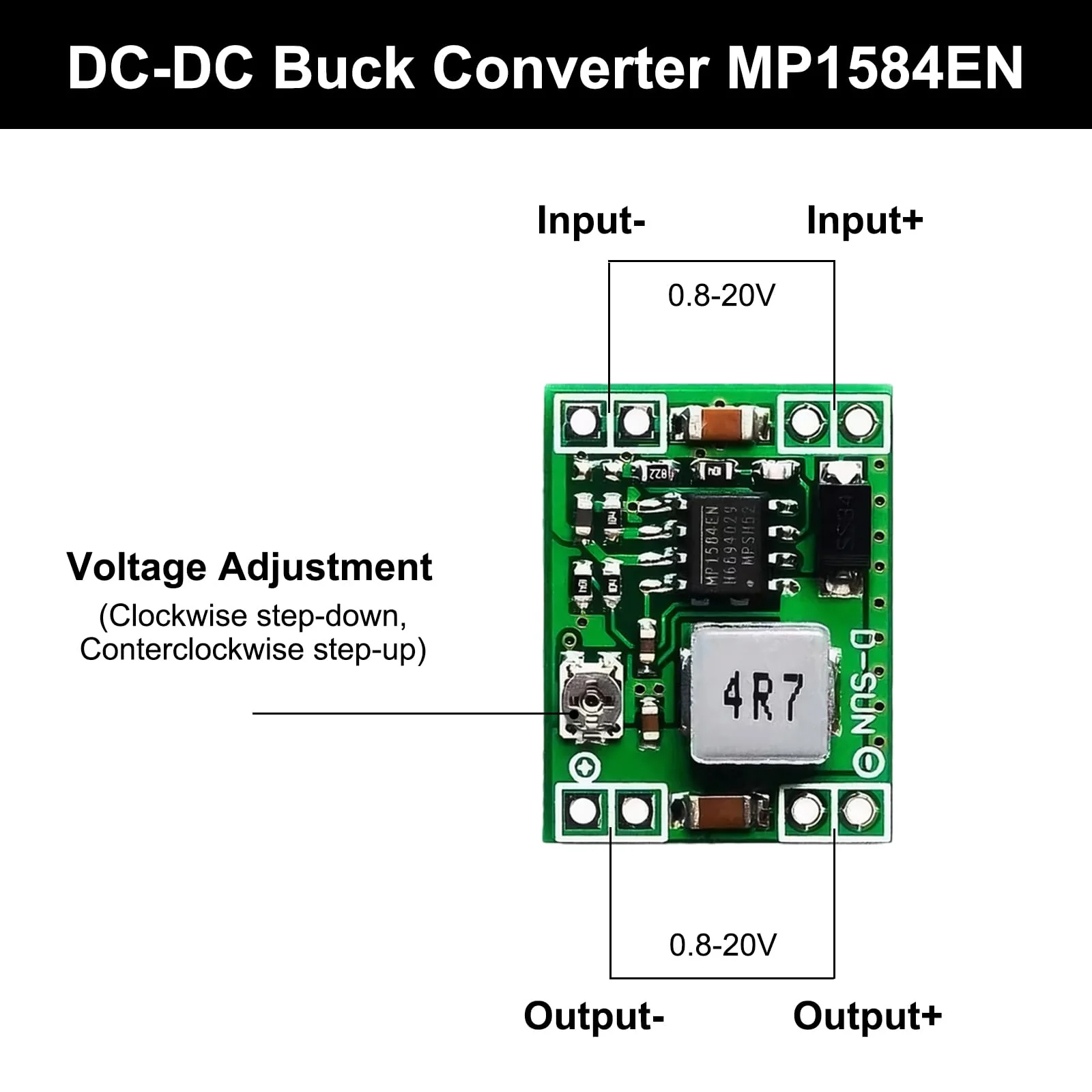

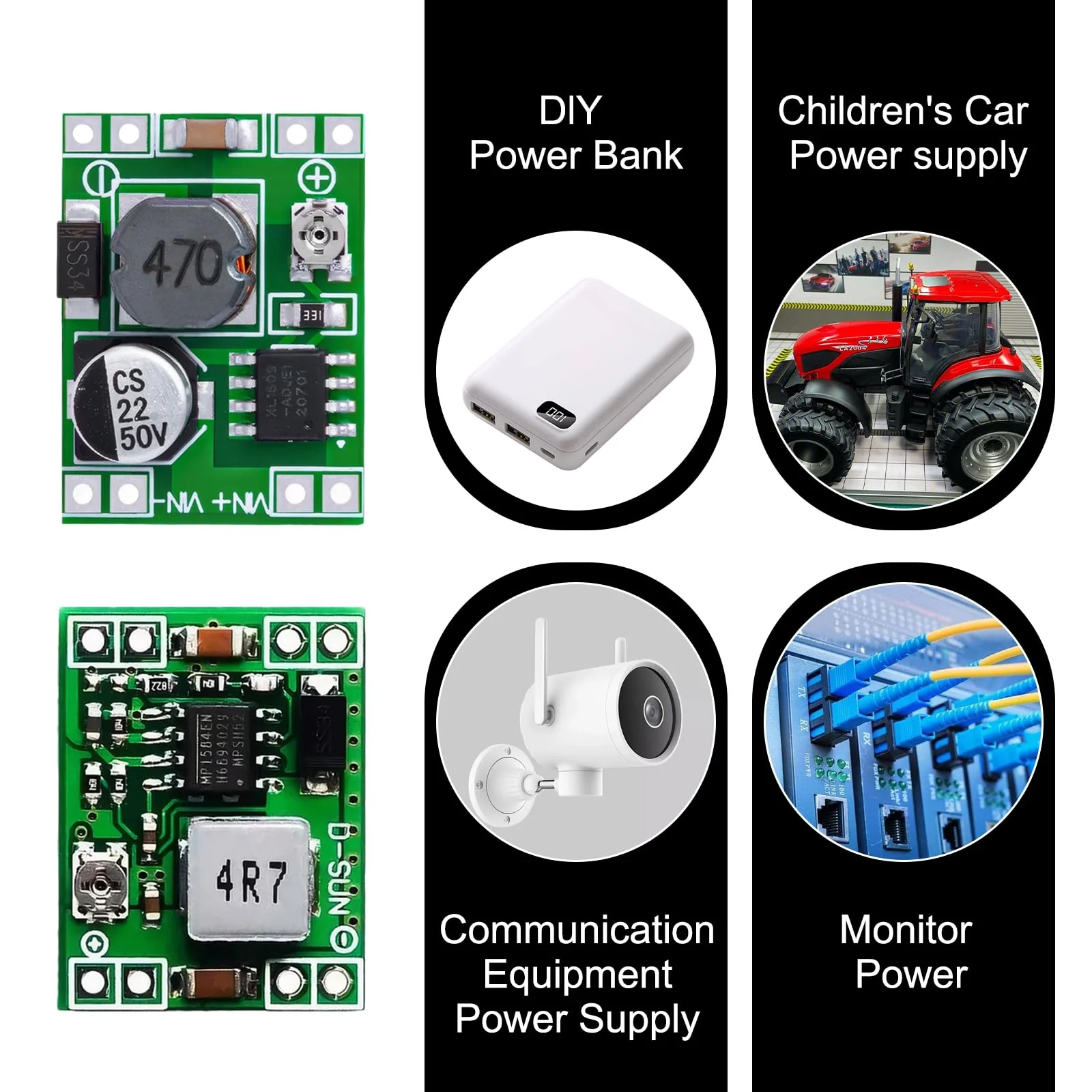

Voltage adjustment: - Use a multimeter to measure the output voltage simultaneously while adjusting the potentiometer with a screwdriver. - Fine adjustments allow precise output voltages. IMPORTANT: - Avoid short circuits at the output. - Make sure the output voltage is stable before using the module. Areas of use: Ideal for applications that require compact and lightweight solutions: - DIY power banks. - Monitoring power supply. - Power supply for children's vehicles. - Camera and vehicle power supply. - Communication devices - Model aircraft and other scenarios with strict requirements for volume and weight. Package includes: 8 x step-down converter module. Note: - Pay attention to the correct polarity of the connectors (positive/negative). - Additional cooling is recommended for long-term operation at high current. - Avoid operation with light load (less than 10% of output power) or without load. - If the output voltage remains the same as the input voltage, turn the potentiometer clockwise more than 10 turns. - This module is a step-down converter: it is used exclusively for voltage reduction. The output voltage must always be lower than the input voltage.
Product Features

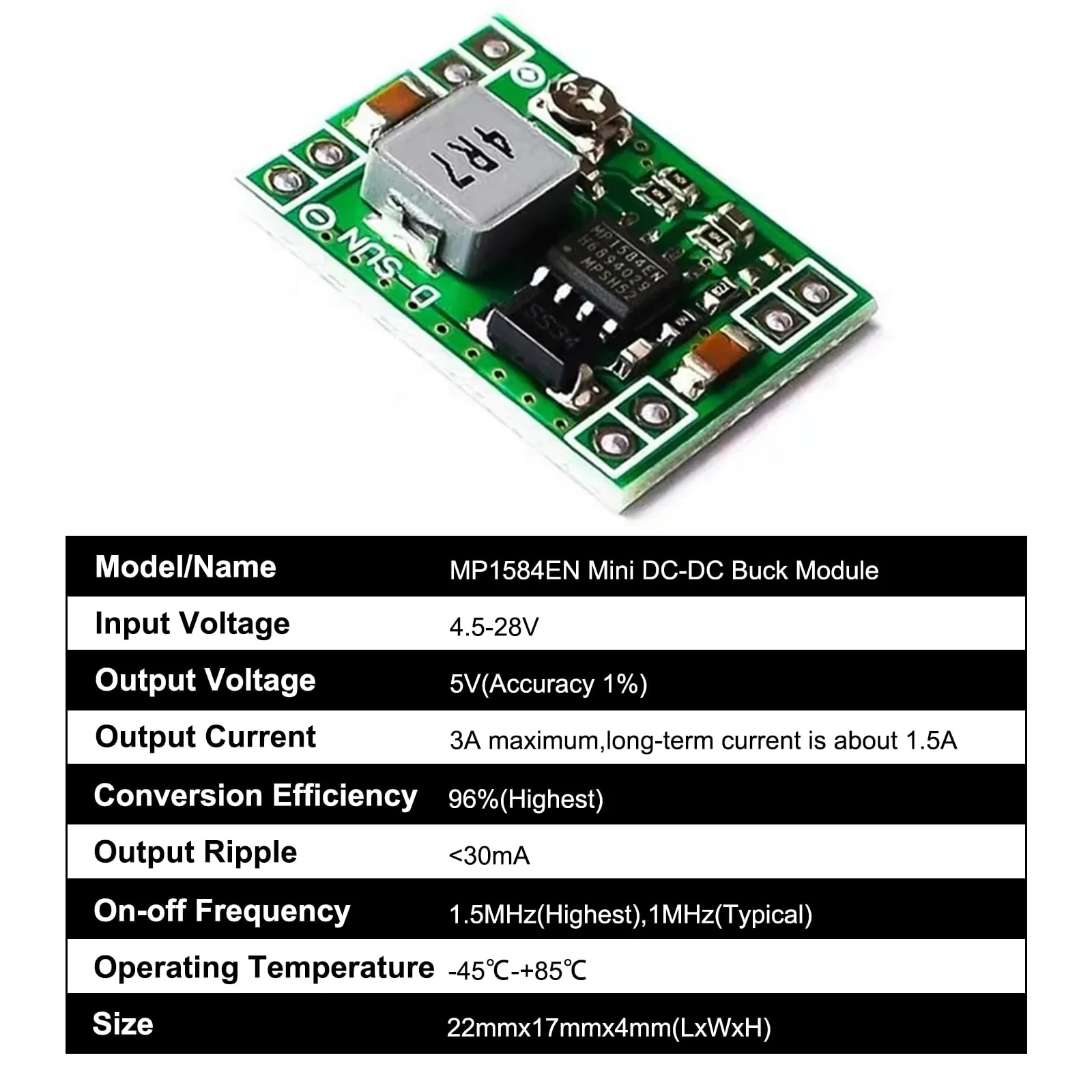

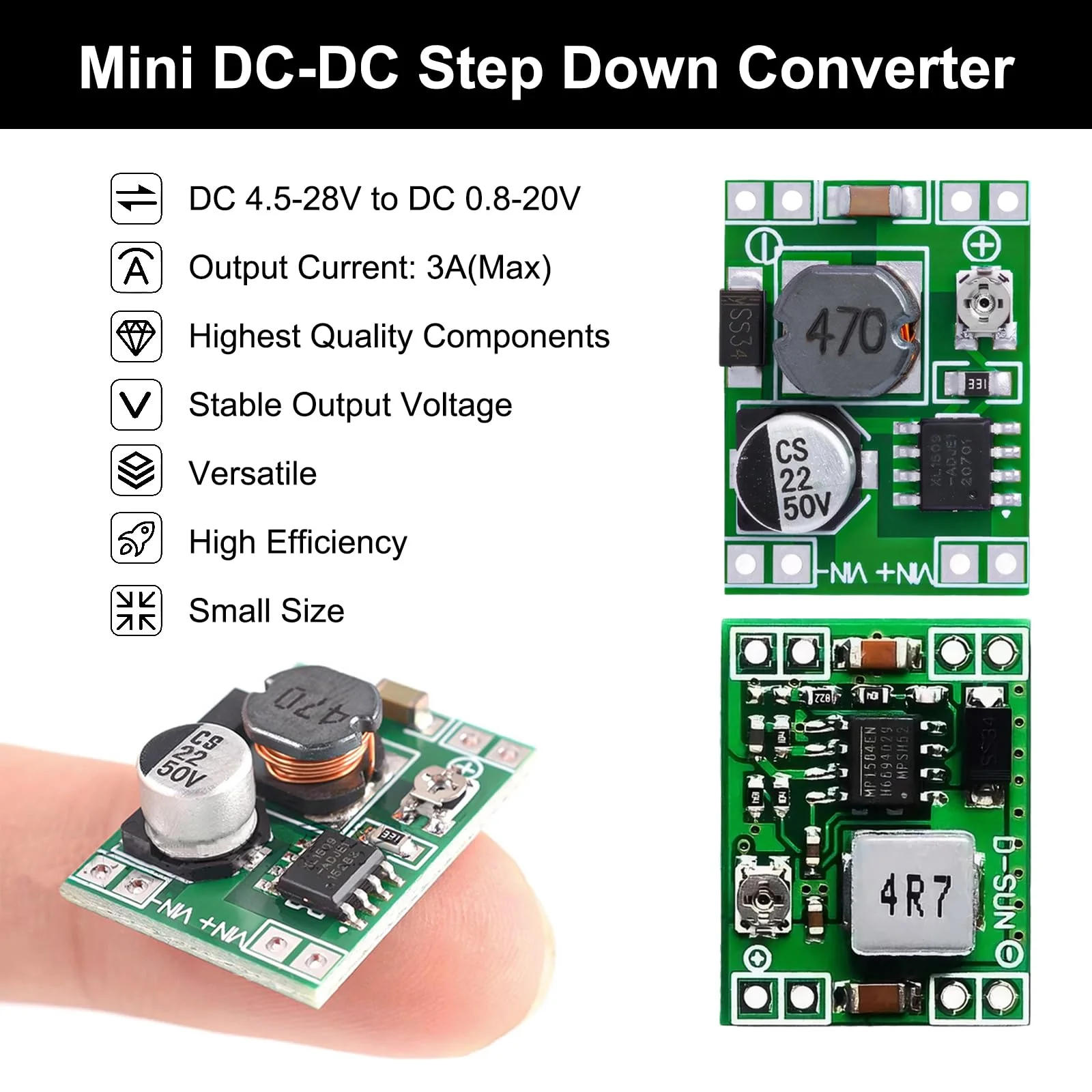

- Adjustable Output VoltageInput voltage: 4.5V to 28V; Output voltage: 0.8V to 20V (adjustable); Output current: maximum 3A, recommended below 2.5A; Conversion efficiency: up to 92%; Output ripple: less than 30mV; Switching frequency: maximum 1.5MHz, typical 1 MHz. DC 3.2 V to 46 V, input voltage must be higher (1.5 V) than the output voltage
- Miniatured design: the output voltage can be adjusted via an external resistance network, providing the flexibility to meet different power requirements. Mini DC DC down module with a size of only 22mm x 17mm x 4mm. Perfect for applications with limited space, such as Aviation models, DIY power banks, surveillance systems, communication devices and much more.
- High performance: the step-down converter module works with high efficiency and minimal ripple, provides excellent voltage control during load changes and supports loads up to 3A. Step down converter integrated switching and control circuit, standard housing, beginner-friendly, full documentation for easy troubleshooting.
- Wide range of applications: the buck converter module with an input voltage range of 4.5 V to 28 V, the module is suitable for numerous applications, including those with high input voltages, such as in automotive technology. Buck converter is suitable for various applications such as LED lighting, drones and aerial photography and supports input voltages from 4.5 V to 40 V.
- Safety and usage instructionsOperating temperature: -45C to 85C. Please note that the input and output ports must not be swapped to avoid damage. Avoid operation with light or without load (below 10% of output). The DC converter does not support continuous currents above 3A and may need to be used with a heat sink or a higher current version if a high current application is required.
Original: $84.03
-65%$84.03
$29.41More Images
Buck Converter Pack of 8 Mini Step Down Converter Module, Step Down Converter Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Buck Converter Pack of 8 Mini Step Down Converter Module, Step Down Converter Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Voltage adjustment: - Use a multimeter to measure the output voltage simultaneously while adjusting the potentiometer with a screwdriver. - Fine adjustments allow precise output voltages. IMPORTANT: - Avoid short circuits at the output. - Make sure the output voltage is stable before using the module. Areas of use: Ideal for applications that require compact and lightweight solutions: - DIY power banks. - Monitoring power supply. - Power supply for children's vehicles. - Camera and vehicle power supply. - Communication devices - Model aircraft and other scenarios with strict requirements for volume and weight. Package includes: 8 x step-down converter module. Note: - Pay attention to the correct polarity of the connectors (positive/negative). - Additional cooling is recommended for long-term operation at high current. - Avoid operation with light load (less than 10% of output power) or without load. - If the output voltage remains the same as the input voltage, turn the potentiometer clockwise more than 10 turns. - This module is a step-down converter: it is used exclusively for voltage reduction. The output voltage must always be lower than the input voltage.
Product Features
- Adjustable Output VoltageInput voltage: 4.5V to 28V; Output voltage: 0.8V to 20V (adjustable); Output current: maximum 3A, recommended below 2.5A; Conversion efficiency: up to 92%; Output ripple: less than 30mV; Switching frequency: maximum 1.5MHz, typical 1 MHz. DC 3.2 V to 46 V, input voltage must be higher (1.5 V) than the output voltage
- Miniatured design: the output voltage can be adjusted via an external resistance network, providing the flexibility to meet different power requirements. Mini DC DC down module with a size of only 22mm x 17mm x 4mm. Perfect for applications with limited space, such as Aviation models, DIY power banks, surveillance systems, communication devices and much more.
- High performance: the step-down converter module works with high efficiency and minimal ripple, provides excellent voltage control during load changes and supports loads up to 3A. Step down converter integrated switching and control circuit, standard housing, beginner-friendly, full documentation for easy troubleshooting.
- Wide range of applications: the buck converter module with an input voltage range of 4.5 V to 28 V, the module is suitable for numerous applications, including those with high input voltages, such as in automotive technology. Buck converter is suitable for various applications such as LED lighting, drones and aerial photography and supports input voltages from 4.5 V to 40 V.
- Safety and usage instructionsOperating temperature: -45C to 85C. Please note that the input and output ports must not be swapped to avoid damage. Avoid operation with light or without load (below 10% of output). The DC converter does not support continuous currents above 3A and may need to be used with a heat sink or a higher current version if a high current application is required.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Buck Converter Pack of 8 Mini Step Down Converter Module, Step Down Converter Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
Voltage adjustment: - Use a multimeter to measure the output voltage simultaneously while adjusting the potentiometer with a screwdriver. - Fine adjustments allow precise output voltages. IMPORTANT: - Avoid short circuits at the output. - Make sure the output voltage is stable before using the module. Areas of use: Ideal for applications that require compact and lightweight solutions: - DIY power banks. - Monitoring power supply. - Power supply for children's vehicles. - Camera and vehicle power supply. - Communication devices - Model aircraft and other scenarios with strict requirements for volume and weight. Package includes: 8 x step-down converter module. Note: - Pay attention to the correct polarity of the connectors (positive/negative). - Additional cooling is recommended for long-term operation at high current. - Avoid operation with light load (less than 10% of output power) or without load. - If the output voltage remains the same as the input voltage, turn the potentiometer clockwise more than 10 turns. - This module is a step-down converter: it is used exclusively for voltage reduction. The output voltage must always be lower than the input voltage.
Product Features
- Adjustable Output VoltageInput voltage: 4.5V to 28V; Output voltage: 0.8V to 20V (adjustable); Output current: maximum 3A, recommended below 2.5A; Conversion efficiency: up to 92%; Output ripple: less than 30mV; Switching frequency: maximum 1.5MHz, typical 1 MHz. DC 3.2 V to 46 V, input voltage must be higher (1.5 V) than the output voltage
- Miniatured design: the output voltage can be adjusted via an external resistance network, providing the flexibility to meet different power requirements. Mini DC DC down module with a size of only 22mm x 17mm x 4mm. Perfect for applications with limited space, such as Aviation models, DIY power banks, surveillance systems, communication devices and much more.
- High performance: the step-down converter module works with high efficiency and minimal ripple, provides excellent voltage control during load changes and supports loads up to 3A. Step down converter integrated switching and control circuit, standard housing, beginner-friendly, full documentation for easy troubleshooting.
- Wide range of applications: the buck converter module with an input voltage range of 4.5 V to 28 V, the module is suitable for numerous applications, including those with high input voltages, such as in automotive technology. Buck converter is suitable for various applications such as LED lighting, drones and aerial photography and supports input voltages from 4.5 V to 40 V.
- Safety and usage instructionsOperating temperature: -45C to 85C. Please note that the input and output ports must not be swapped to avoid damage. Avoid operation with light or without load (below 10% of output). The DC converter does not support continuous currents above 3A and may need to be used with a heat sink or a higher current version if a high current application is required.
