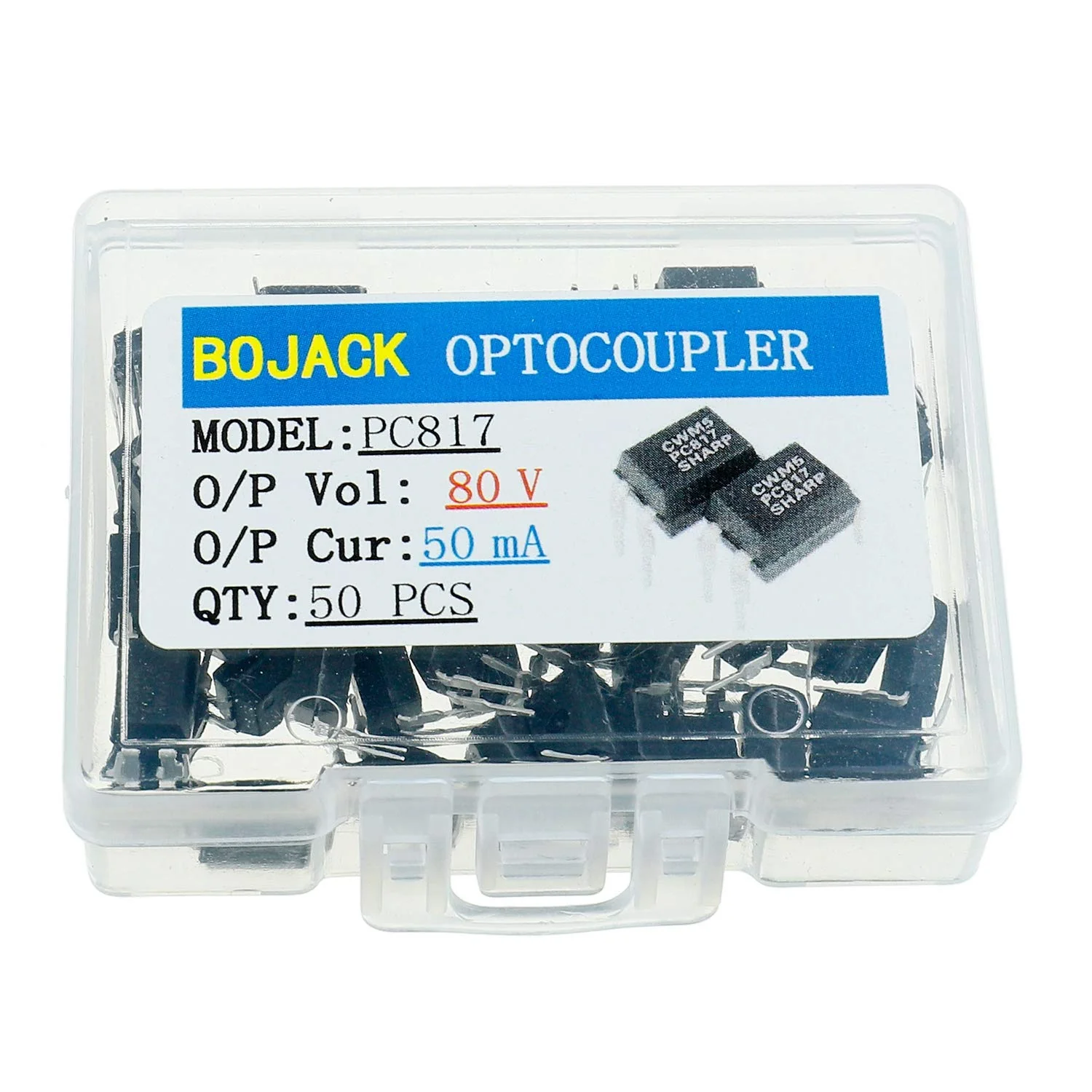

BOJACK PC817 Optocoupler DIP Installation PC817C 2.54mm Pitch 4 Pin DIP-4 (Pack of 50)
BOJACK PC817 Optocoupler DIP Installation PC817C 2.54mm Pitch 4 Pin DIP-4 (Pack of 50)

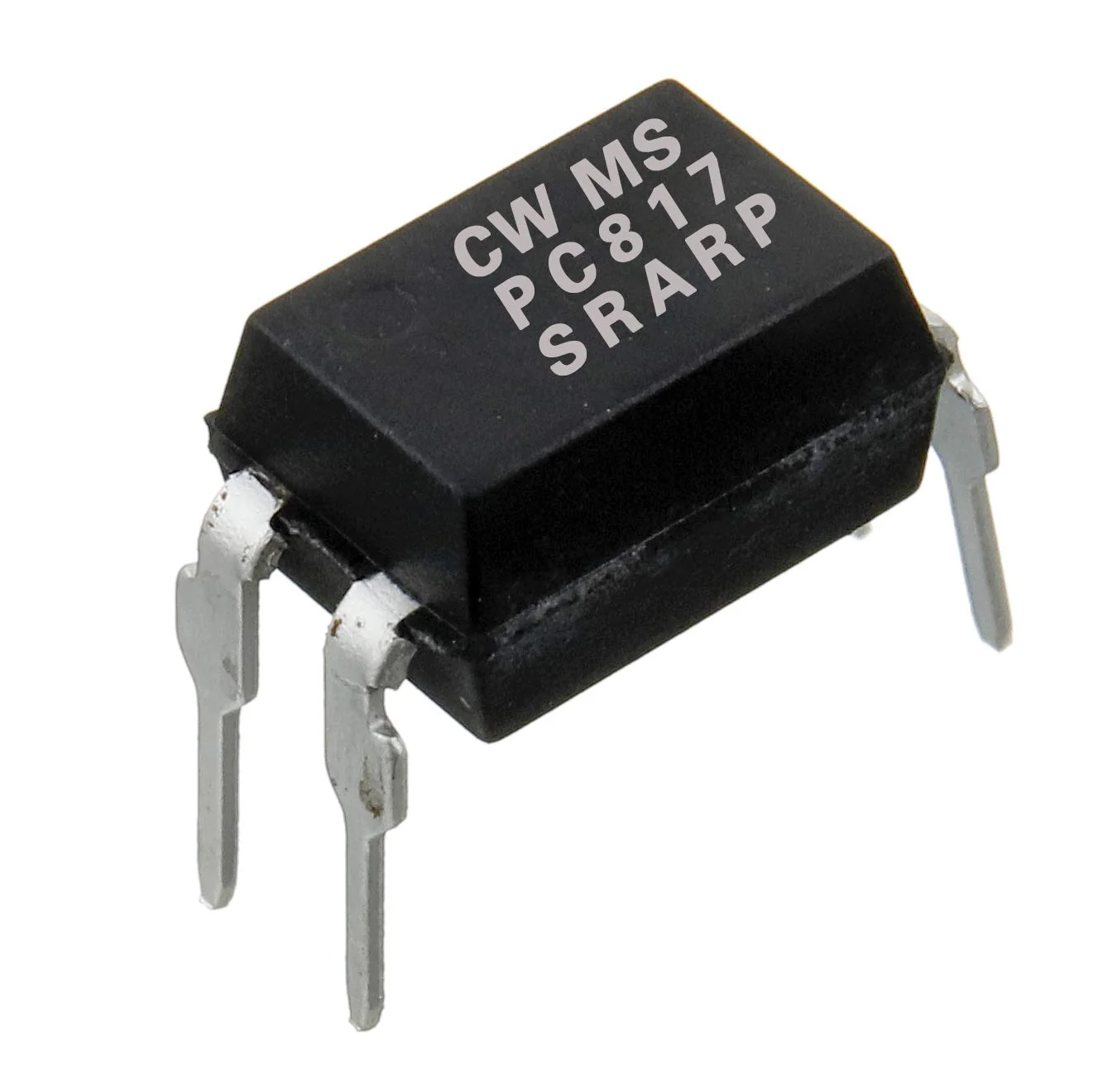

Electrical parameters: PC817: single channel compact dual-in-line photo coupler Current transfer rate: (CTR: at least 50%, IF = 5 mA, V CE = 5 V). The high insulation voltage between input and output is 5000V RMS value. Forward current (ICEO): 50 mA. Forward peak current (ICE max): 1A. Blocking voltage: 6 V. Power consumption: 70 mW. Collector emitter voltage: 35 V. Emitter collector voltage: 6 V. Collector current: 50 mA. Collector power consumption: 150mW Total power consumption: 200 mW. Working temperature: -30 ℃ ~ + 100 ℃. Collector-emitter saturation voltage: 0.1V (typical value)
Product Features
- Photocoupler output type: Photo Transistor
- Number of pins: 4
- Needle spacing: 2.54 mm

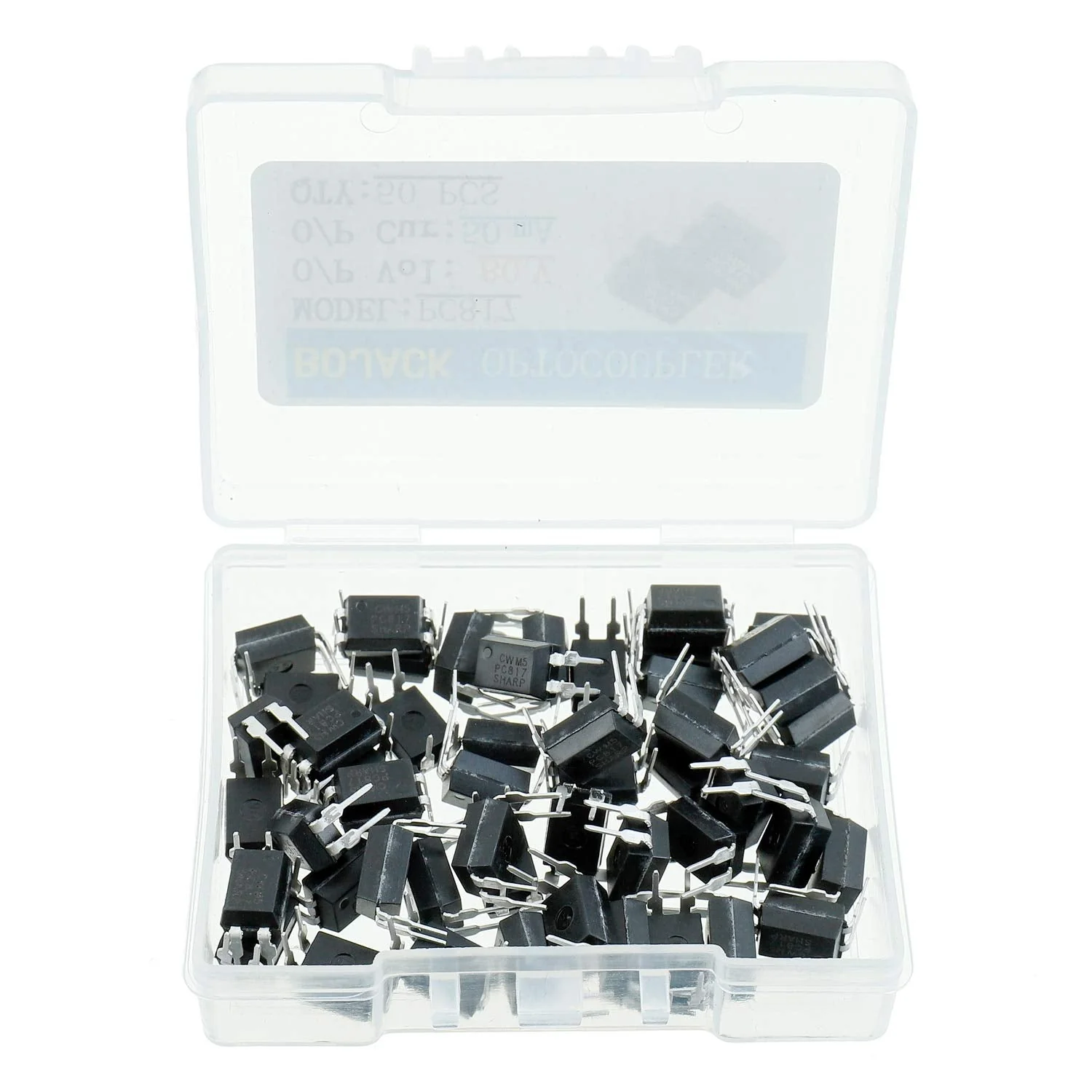

- Package quantity: 100 pieces, packed in a durable and resealable plastic box.
- APPLICATION The PC817 photocoupler is widely used in computer terminals, SCR system devices, meters, photocopiers, automatic ticketing and household appliances
