BME 5V Altimeter Module Binghe Pack of 2 BME High Precision Atmospheric Pressure Sensor Module IIC I2C SPI Interface DC 1.8-5V Compatible with Arduino Rasp-Pi
BME 5V Altimeter Module Binghe Pack of 2 BME High Precision Atmospheric Pressure Sensor Module IIC I2C SPI Interface DC 1.8-5V Compatible with Arduino Rasp-Pi
BME 5V Altimeter Module Binghe Pack of 2 BME High Precision Atmospheric Pressure Sensor Module IIC I2C SPI Interface DC 1.8-5V Compatible with Arduino Rasp-Pi

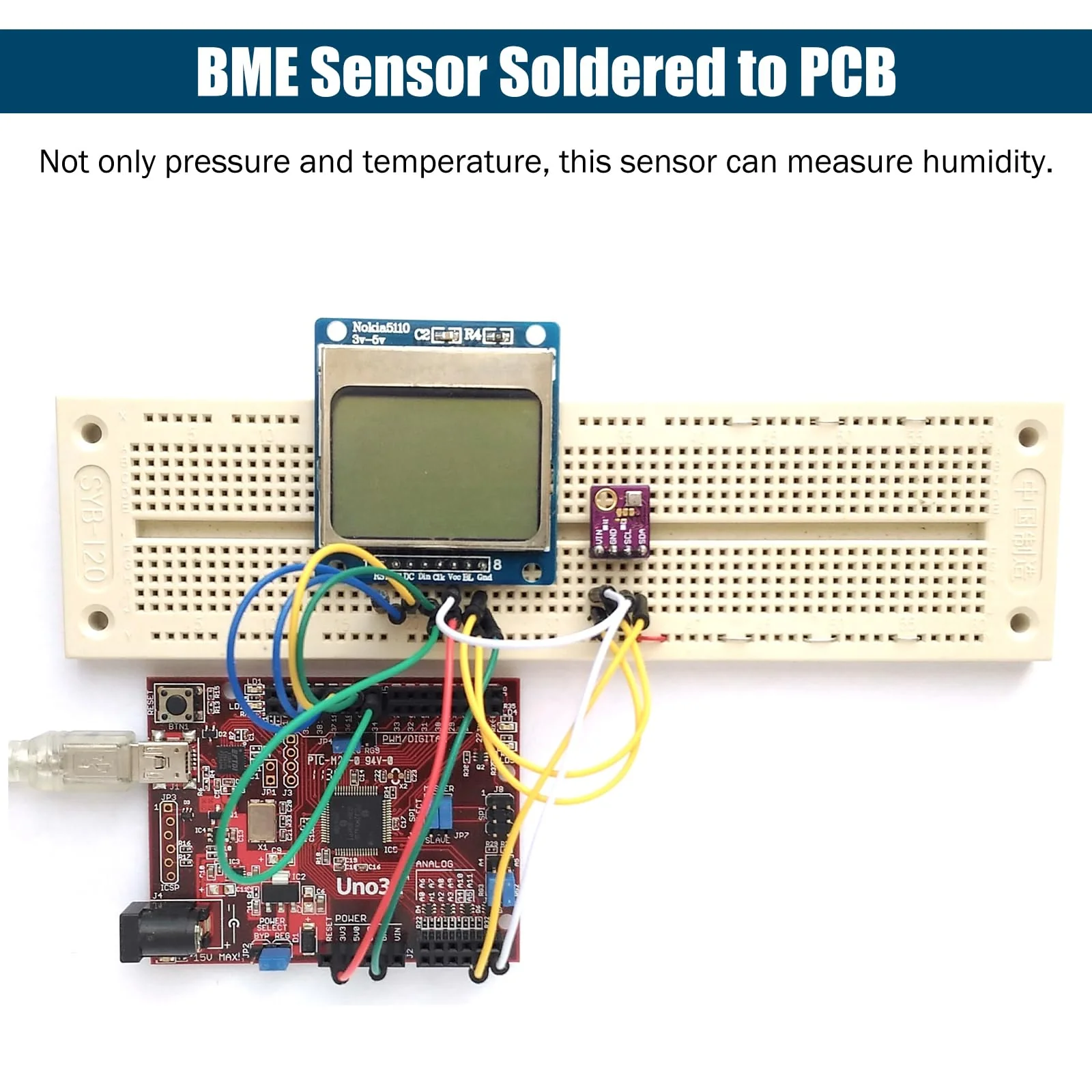

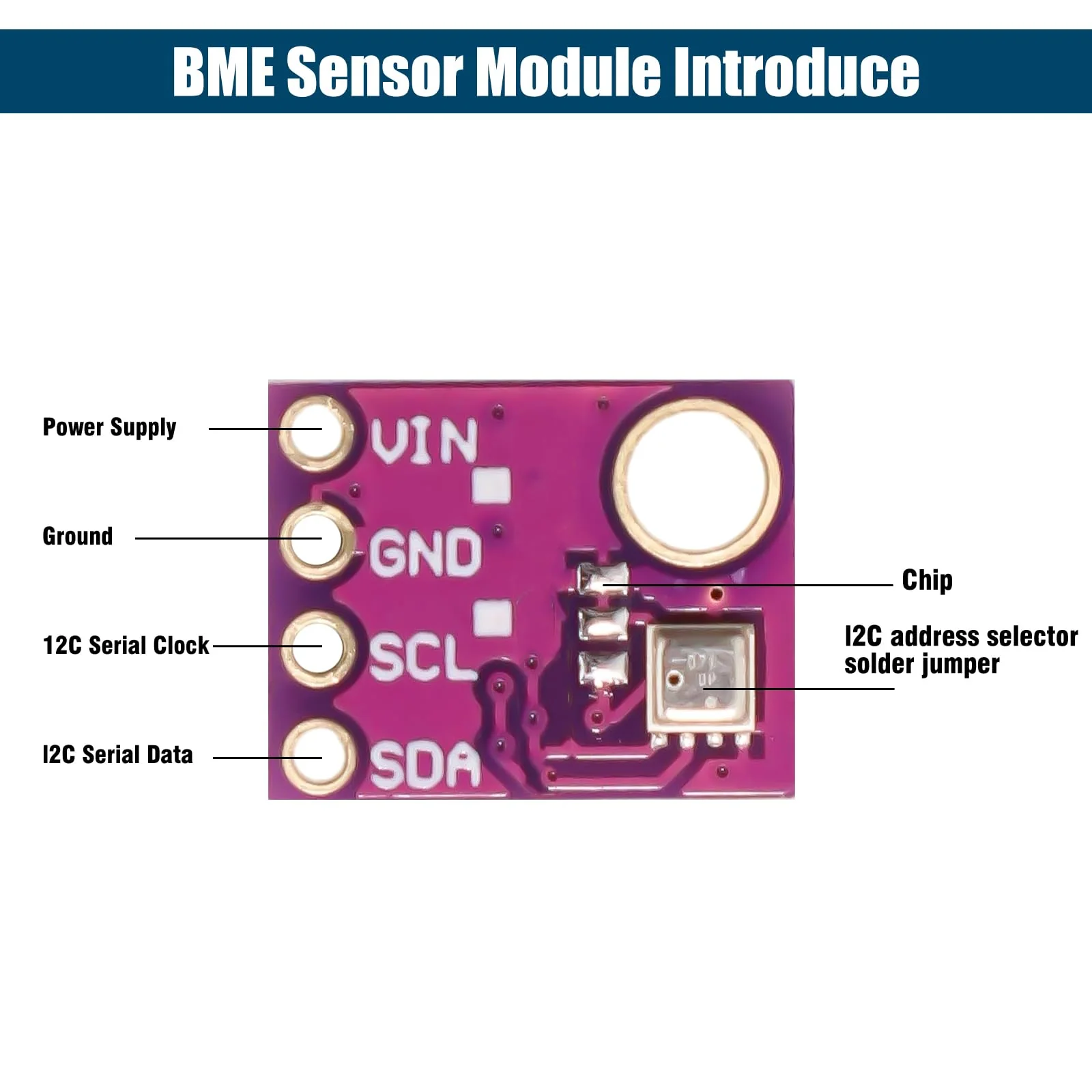

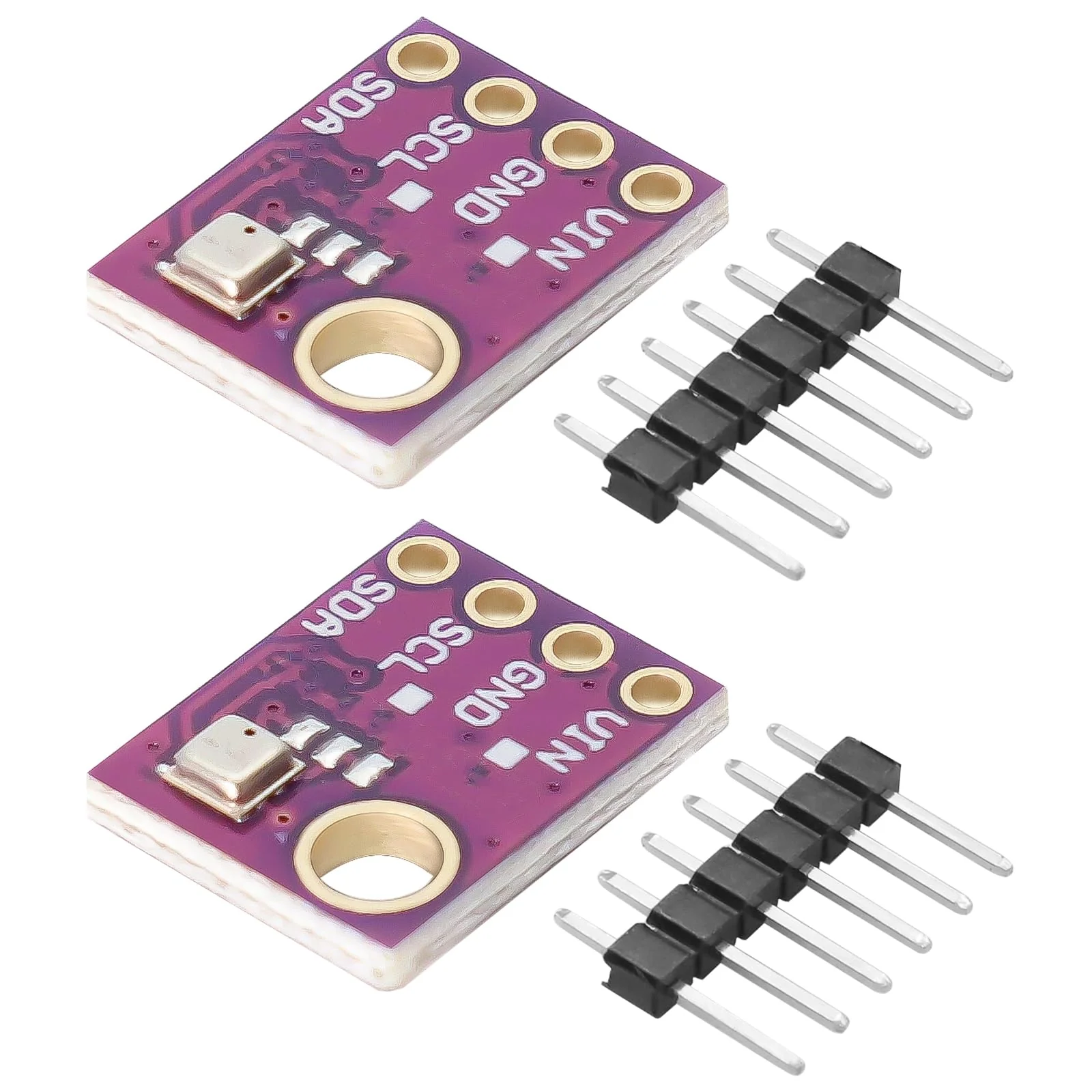

Description: GY-BME is a high-precision 5V atmospheric pressure sensor module, which can also be used as an altimeter module. BME, the sensor, is soldered to the board. This sensor can not only measure pressure and temperature, but also moisture. It uses I2C and SPI interfaces (supports 3-wire and 4-wire SPI). Product specifications: Supply voltage: 1.8 - 5 V DC. Interfaces: I2C (up to 3.4MHz), SPI (up to 10MHz) Operating range: Temperature: -40°C + 85°C. Humidity: 0-100 percent. Pressure: 300-1100 hPa. Resolution: Temperature: 0.01°C. Humidity: 0.008 percent. Pressure: 0.18 Pa. Measuring Accuracy: Temperature: + -1°C. Humidity: + -3 percent. Pressure: + -1Pa. I2C Address SDO LOW: 0x76 SDO high: 0 x 77. Product includes: 2 x BME 5V high-precision atmospheric pressure sensor modules.
Product Features
- High-precision measurements: GY-BME uses advanced digital temperature, humidity and pressure sensor technology, which allows high-precision measurements.

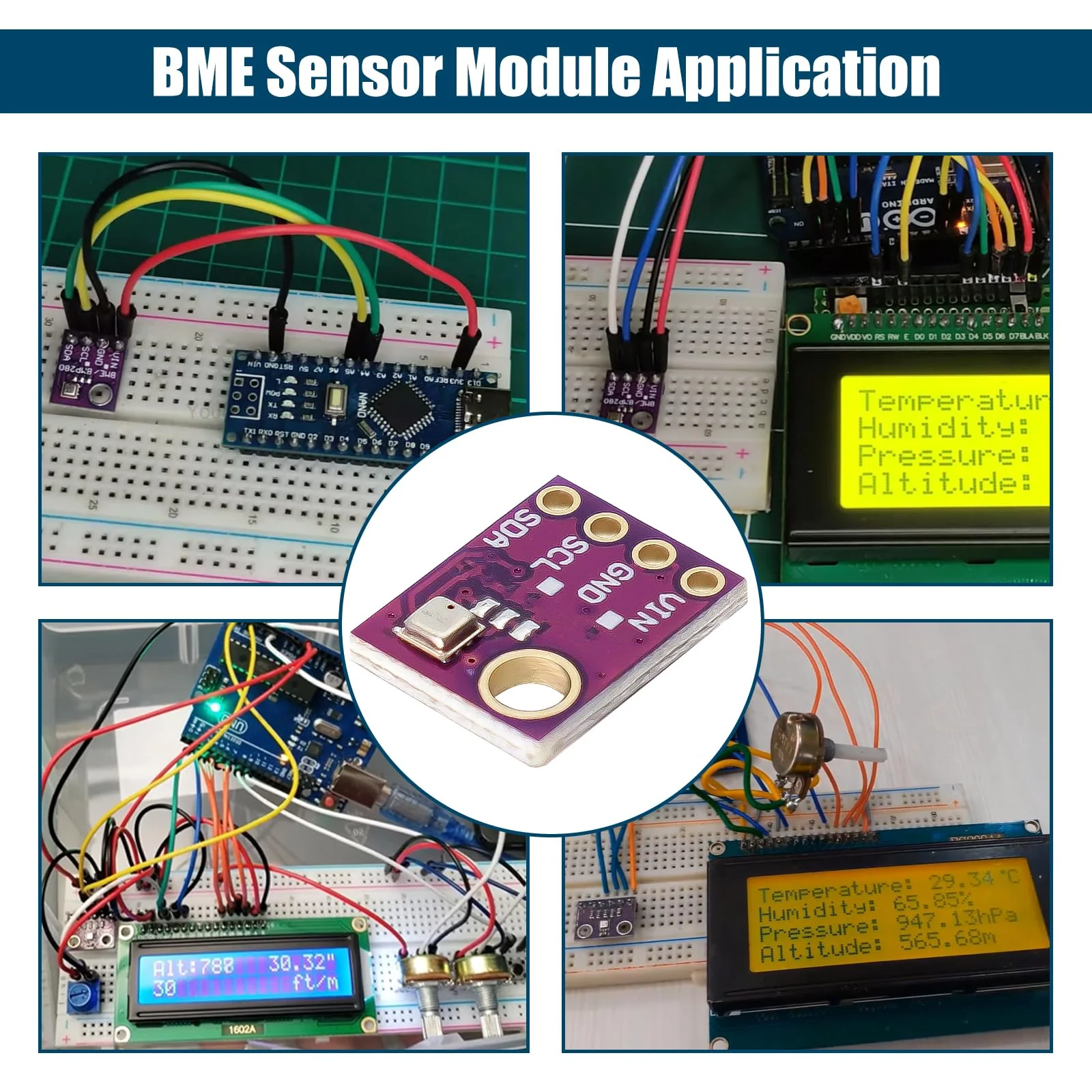

- Versatile applications: compatible with Arduino, suitable for a wide range of applications, including weather observation, indoor environment monitoring, smart home, drones and more.
- Wide operating range: operating temperature range from -40C to +85C, humidity range from 0% to 100% and pressure range from 300hPa to 1100hPa, BME adapts to different environmental conditions.
- Low power consumption: BME with an operating current of only 3.6 A and a standby current of 0.1 A, ideal for battery-operated applications.
- Multiple interfaces support: BME altimeter modules support both I2C and SPI communication interfaces, which makes it easier to connect to different microcontrollers and microprocessors.
More Images
BME 5V Altimeter Module Binghe Pack of 2 BME High Precision Atmospheric Pressure Sensor Module IIC I2C SPI Interface DC 1.8-5V Compatible with Arduino Rasp-Pi
BME 5V Altimeter Module Binghe Pack of 2 BME High Precision Atmospheric Pressure Sensor Module IIC I2C SPI Interface DC 1.8-5V Compatible with Arduino Rasp-Pi
Description: GY-BME is a high-precision 5V atmospheric pressure sensor module, which can also be used as an altimeter module. BME, the sensor, is soldered to the board. This sensor can not only measure pressure and temperature, but also moisture. It uses I2C and SPI interfaces (supports 3-wire and 4-wire SPI). Product specifications: Supply voltage: 1.8 - 5 V DC. Interfaces: I2C (up to 3.4MHz), SPI (up to 10MHz) Operating range: Temperature: -40°C + 85°C. Humidity: 0-100 percent. Pressure: 300-1100 hPa. Resolution: Temperature: 0.01°C. Humidity: 0.008 percent. Pressure: 0.18 Pa. Measuring Accuracy: Temperature: + -1°C. Humidity: + -3 percent. Pressure: + -1Pa. I2C Address SDO LOW: 0x76 SDO high: 0 x 77. Product includes: 2 x BME 5V high-precision atmospheric pressure sensor modules.
Product Features
- High-precision measurements: GY-BME uses advanced digital temperature, humidity and pressure sensor technology, which allows high-precision measurements.
- Versatile applications: compatible with Arduino, suitable for a wide range of applications, including weather observation, indoor environment monitoring, smart home, drones and more.
- Wide operating range: operating temperature range from -40C to +85C, humidity range from 0% to 100% and pressure range from 300hPa to 1100hPa, BME adapts to different environmental conditions.
- Low power consumption: BME with an operating current of only 3.6 A and a standby current of 0.1 A, ideal for battery-operated applications.
- Multiple interfaces support: BME altimeter modules support both I2C and SPI communication interfaces, which makes it easier to connect to different microcontrollers and microprocessors.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BME 5V Altimeter Module Binghe Pack of 2 BME High Precision Atmospheric Pressure Sensor Module IIC I2C SPI Interface DC 1.8-5V Compatible with Arduino Rasp-Pi
Description: GY-BME is a high-precision 5V atmospheric pressure sensor module, which can also be used as an altimeter module. BME, the sensor, is soldered to the board. This sensor can not only measure pressure and temperature, but also moisture. It uses I2C and SPI interfaces (supports 3-wire and 4-wire SPI). Product specifications: Supply voltage: 1.8 - 5 V DC. Interfaces: I2C (up to 3.4MHz), SPI (up to 10MHz) Operating range: Temperature: -40°C + 85°C. Humidity: 0-100 percent. Pressure: 300-1100 hPa. Resolution: Temperature: 0.01°C. Humidity: 0.008 percent. Pressure: 0.18 Pa. Measuring Accuracy: Temperature: + -1°C. Humidity: + -3 percent. Pressure: + -1Pa. I2C Address SDO LOW: 0x76 SDO high: 0 x 77. Product includes: 2 x BME 5V high-precision atmospheric pressure sensor modules.
Product Features
- High-precision measurements: GY-BME uses advanced digital temperature, humidity and pressure sensor technology, which allows high-precision measurements.
- Versatile applications: compatible with Arduino, suitable for a wide range of applications, including weather observation, indoor environment monitoring, smart home, drones and more.
- Wide operating range: operating temperature range from -40C to +85C, humidity range from 0% to 100% and pressure range from 300hPa to 1100hPa, BME adapts to different environmental conditions.
- Low power consumption: BME with an operating current of only 3.6 A and a standby current of 0.1 A, ideal for battery-operated applications.
- Multiple interfaces support: BME altimeter modules support both I2C and SPI communication interfaces, which makes it easier to connect to different microcontrollers and microprocessors.
