Binghe HX711 AD Amplifier Module + 10 kg Weight Sensor HX711 Load Cell Kit High Precision Load Cell Module Compatible with Arduino/Portable Electronic Kitchen Scales
Binghe HX711 AD Amplifier Module + 10 kg Weight Sensor HX711 Load Cell Kit High Precision Load Cell Module Compatible with Arduino/Portable Electronic Kitchen Scales
Binghe HX711 AD Amplifier Module + 10 kg Weight Sensor HX711 Load Cell Kit High Precision Load Cell Module Compatible with Arduino/Portable Electronic Kitchen Scales

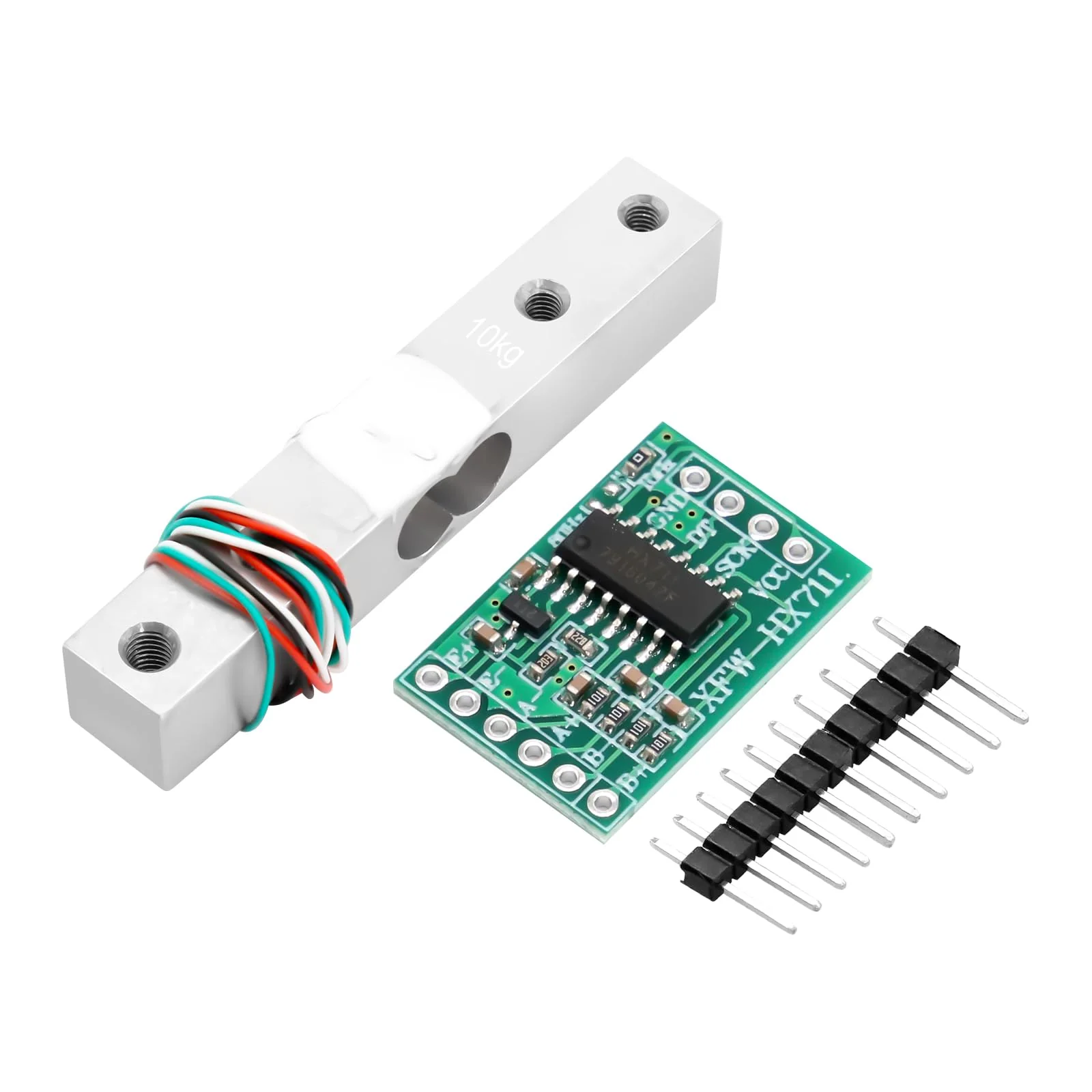

Product overview: The Binghe 10 kg weighing pressure sensor with HX711 module is a high-precision solution developed for small weighing applications. This sensor can measure up to 10 kg and is perfect for use in digital scales and pressure measuring systems. The HX711 module offers a 24-bit A/D conversion that ensures high-precision and low-noise data output. With a sensitivity of 1.0±0.1mv/v and an error range of 0.05%, this sensor provides consistent and stable performance. Technical data: Capacity (kg): 10 kg. Comprehensive error (%F.S): 0.05 Sensitivity (mv/v): 1.0±0.1 Nonlinearity (%F.S): 0.05 Repeatability (%F.S): 0.05 Hysteresis (%F.S): 0.05 Creep (%F.S/3min): 0.05 Zero point drift (%F.S/1min): 0.05 Zero temperature drift (%F.S/10'C): 0.2 Rated output temperature drift (%F.S/10'C): ≤0.15 Zero output (mV/V): ±0.1. Input resistance (Ω): 1000±50 Output resistance (Ω): 1000±50 Insulation resistance (MΩ): ≥2000 (100 VDC). Recommended excitation voltage (V): 5~10. Operating temperature (C): -10~+50 Overload capacity (%F.S): 150 Products included: 1 x 10 kg load cell. 1 x HX711AD module.
Product Features
- 10KG Weighing Capacity: This sensor measures weights up to 10kg, ideal for small weighing applications such as electronic scales and automation systems.

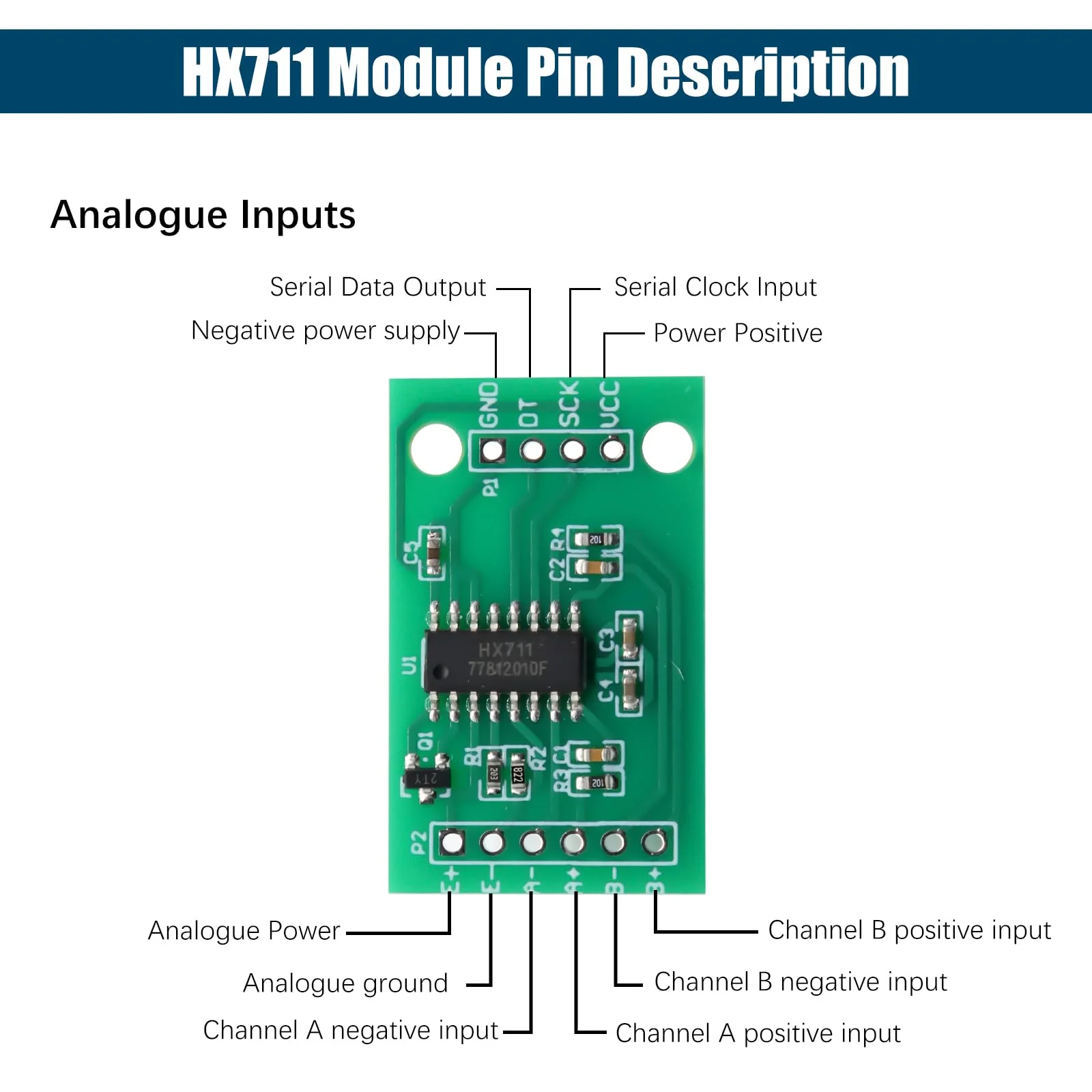

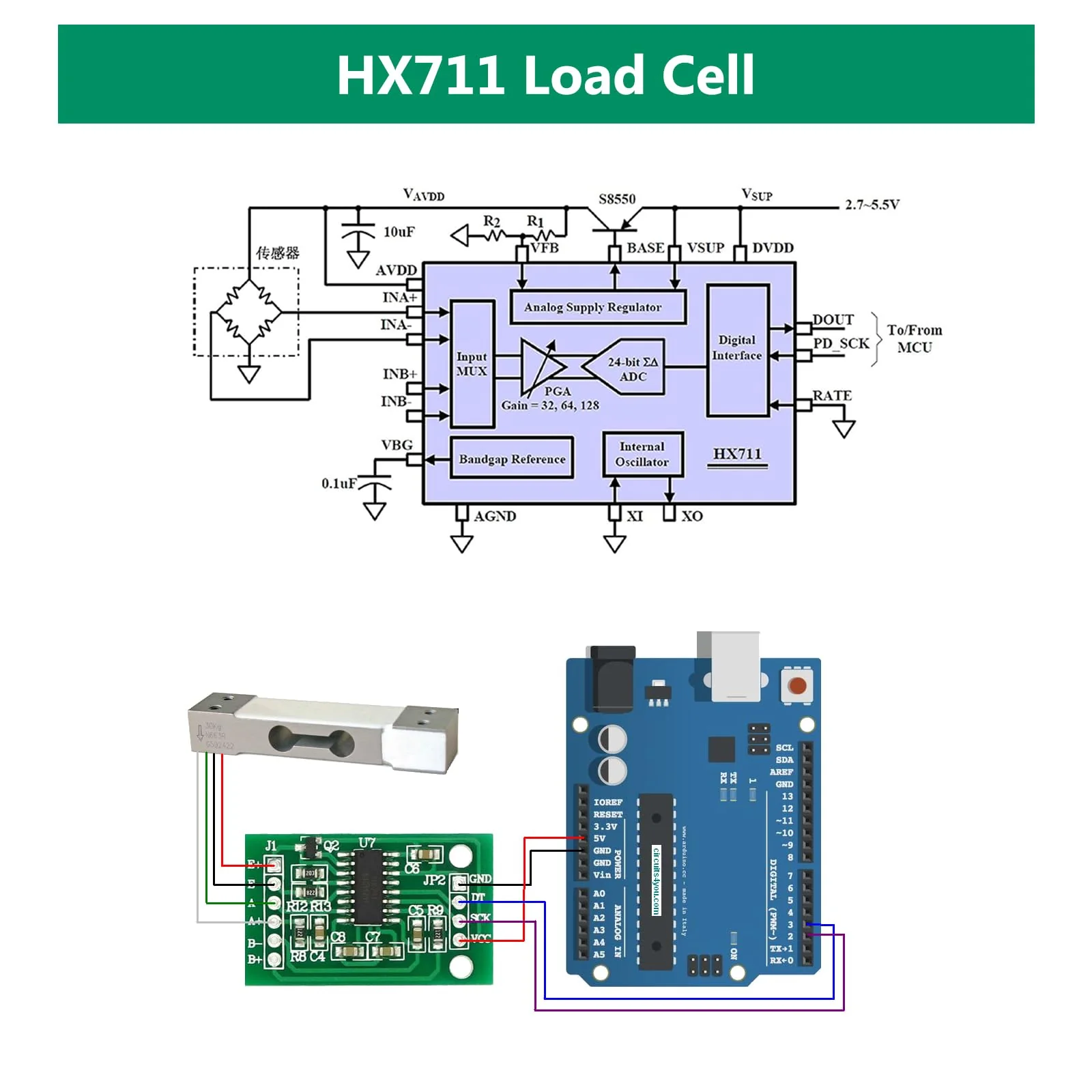

- HX711 Module: Integrated with the HX711 A/D converter module, which enables high-precision 24-bit data conversion for accurate and low-noise weight measurements.
- High sensitivity and stability: the sensor provides a sensitivity of 1.00.1mv/v, with non-linearity, repeatability and hysteresis error all within 0.05%, ensuring long-term stability.

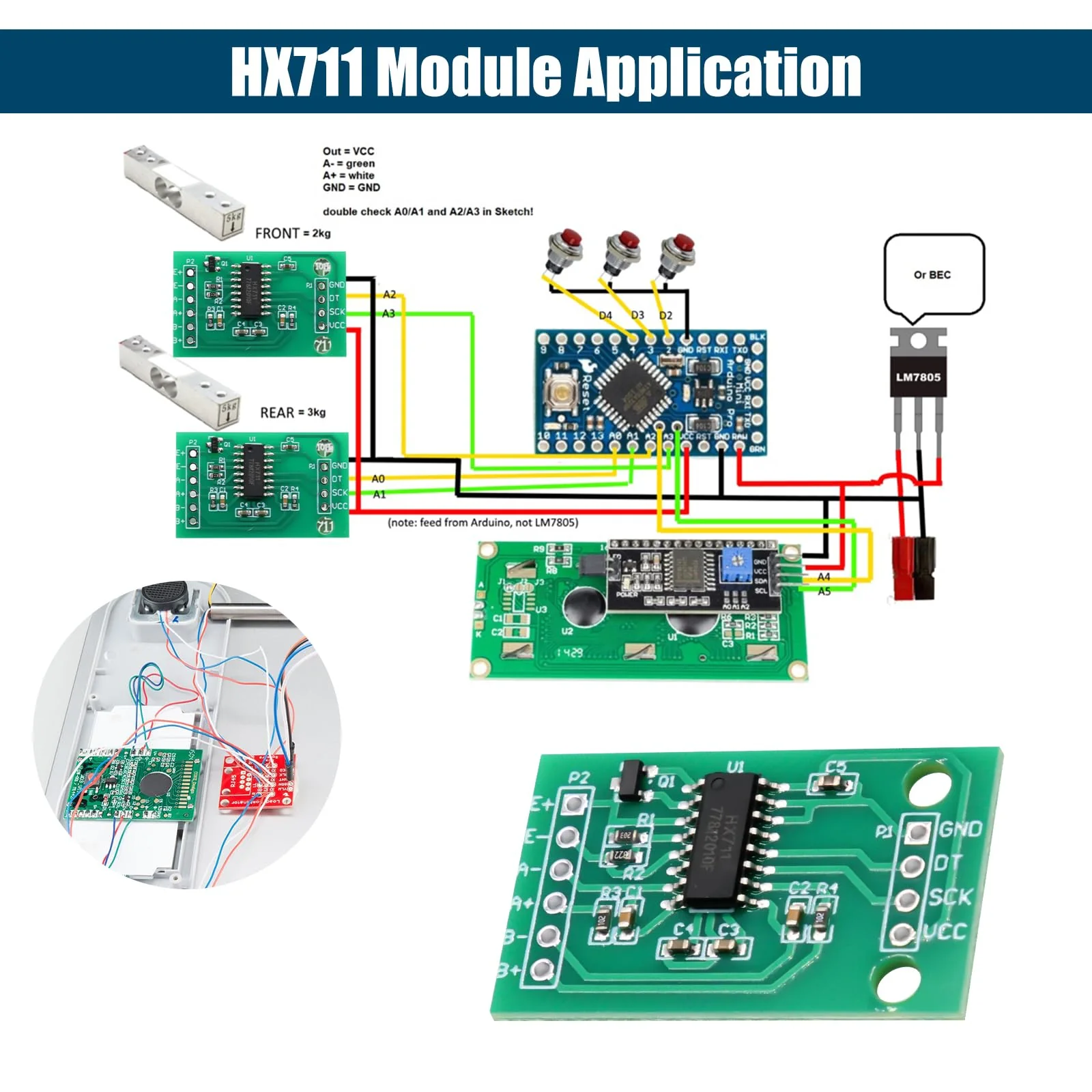

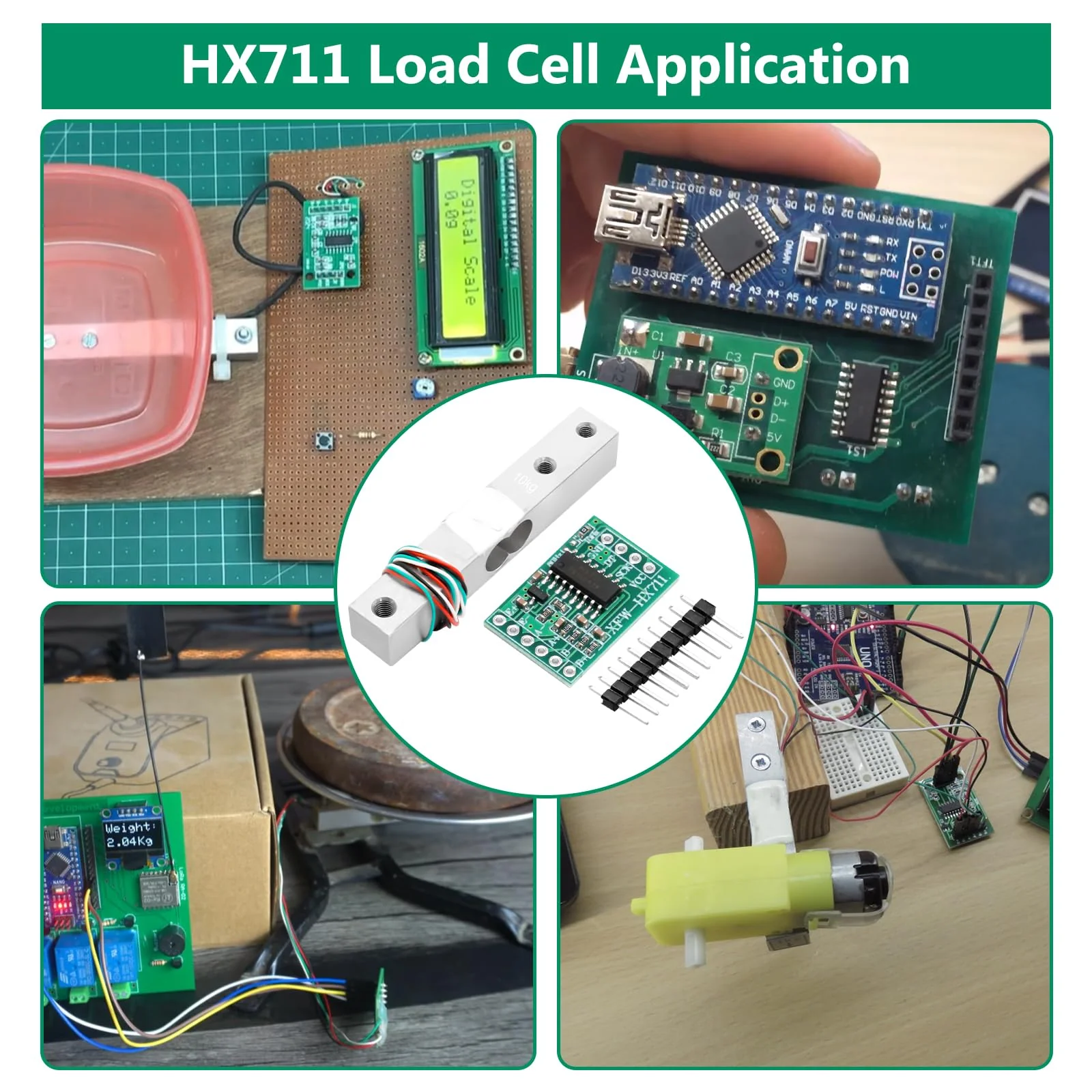

- Compatibility with Arduino:Fully compatible with Arduino and other development boards, suitable for DIY projects such as intelligent weighing systems, automation control and IoT devices.
- Wide operating temperature range: the sensor operates in a wide temperature range from -10C to +50C, suitable for precise measurements in various industrial and domestic environments.
Original: $78.96
-65%$78.96
$27.64More Images
