BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1
HomeStore

BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1

BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1

BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi

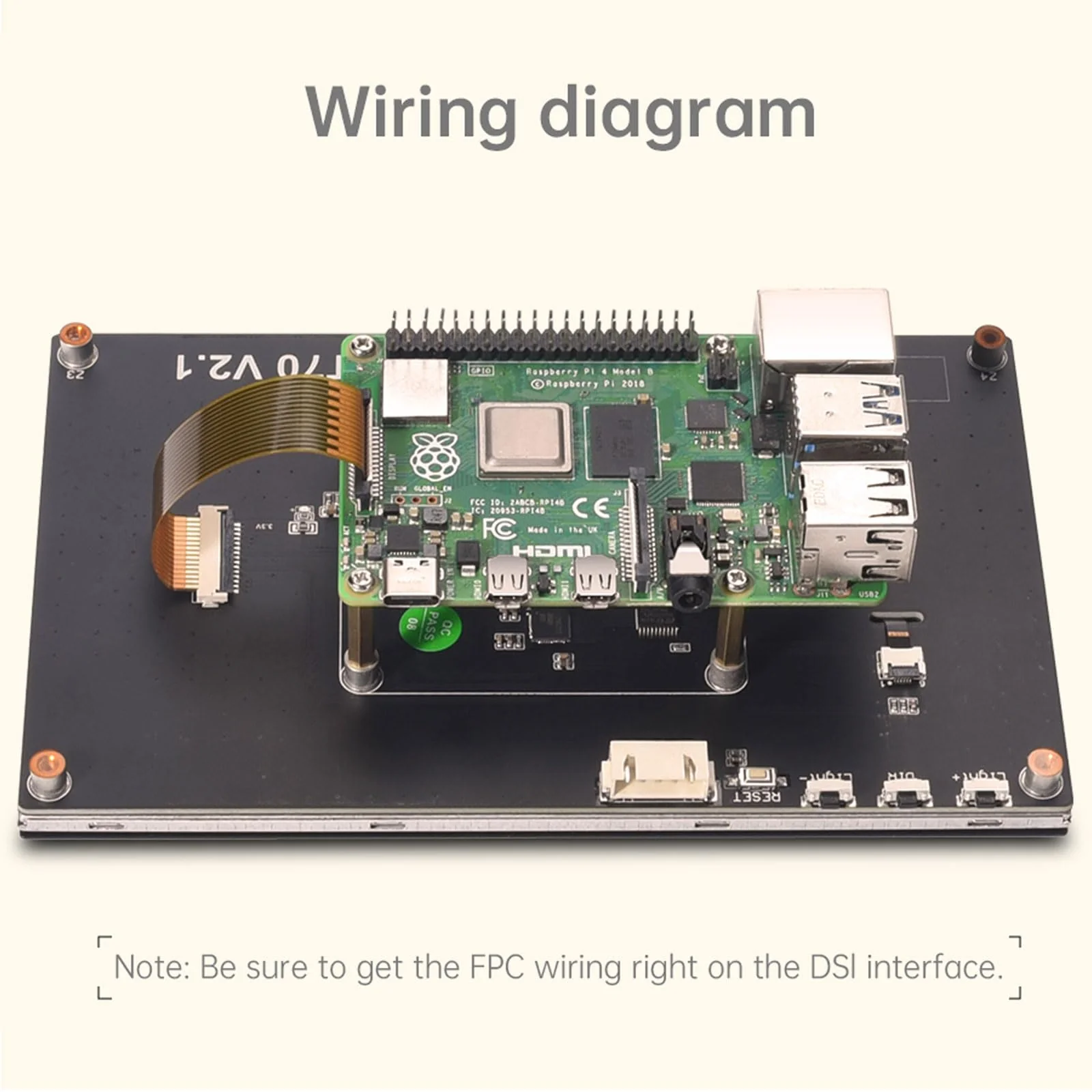

PI-TFT50 V2.1 Technical Specifications: Working Voltage: 3.3V (provided by Raspberry Pi display interface) Maximum Working Current: 320mA Screen Current: 100mA Screen Resolution: 800480 Video Interface: Raspberry Pi DSI Touch Points: 5 points Viewing Angle: 60°/70°/70°/70° RGB888-16 Trillion True Color Refresh Rate: 60Hz Luminous Rate: 280 cd/m2 Working Temperature: -20℃-70℃ Dimensions: 121mm x 76mm Mounting Hole Size: M2.5 Outer Mounting Hole Position: 113mm x 68mm Inner Mounting Hole Position: 58mm x 49m Use Tutorial: The first step is to insert the SD card with the Raspberry-Pi system into the Raspberry-PI. Step 2: Connect the DISPLAY interface of the 5-inch touch screen to the DISPLAY interface on the Raspberry-Pi through the provided FPC cable. Step 3: After powering on the Raspberry-Pi, you can use the 5-inch touch screen.

Product Features

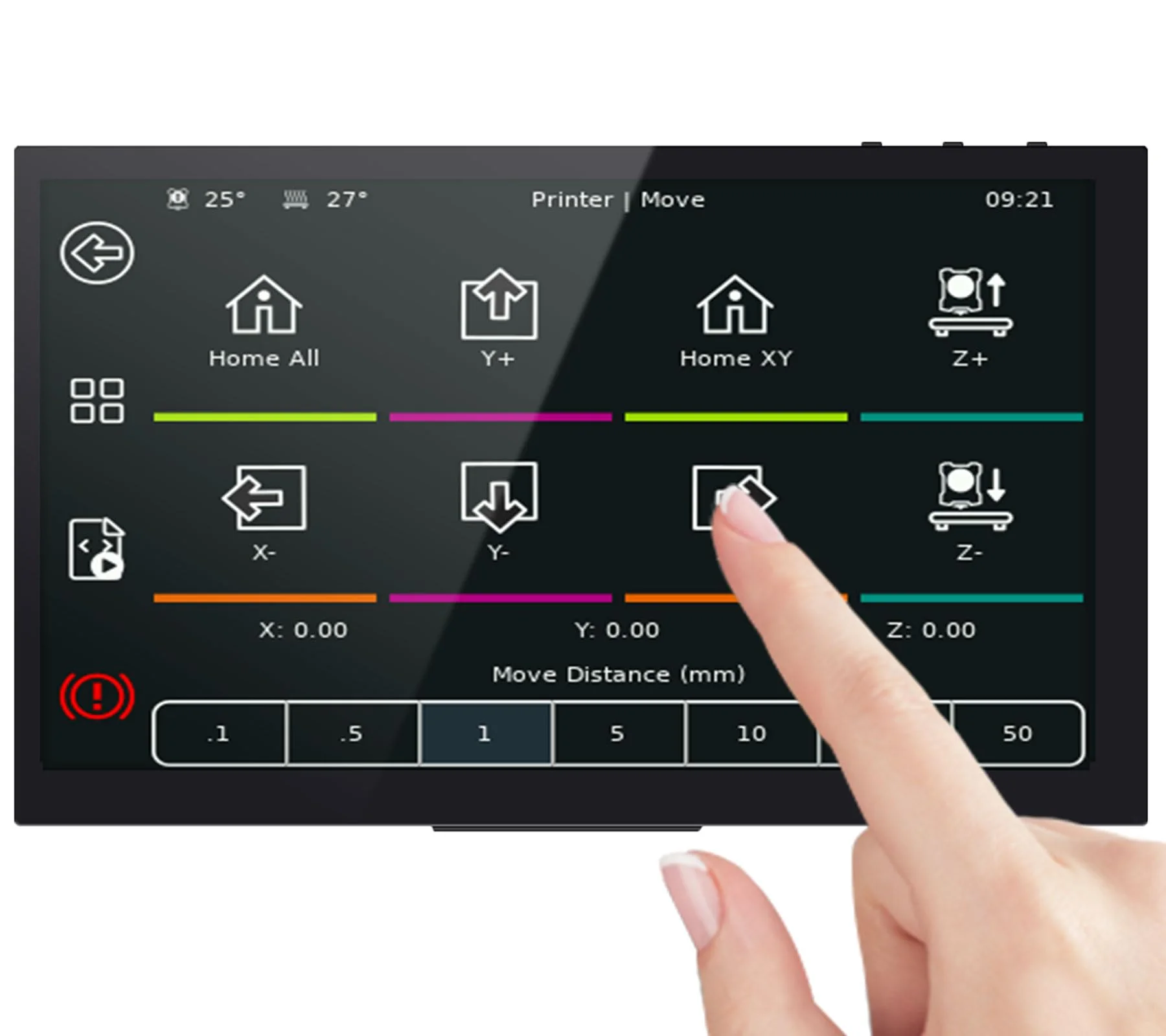

  • This is a 5-inch LCD touch screen with a resolution of 800 x 480 for Raspberry-Pi. The display area can reach 108 x 64.8mm

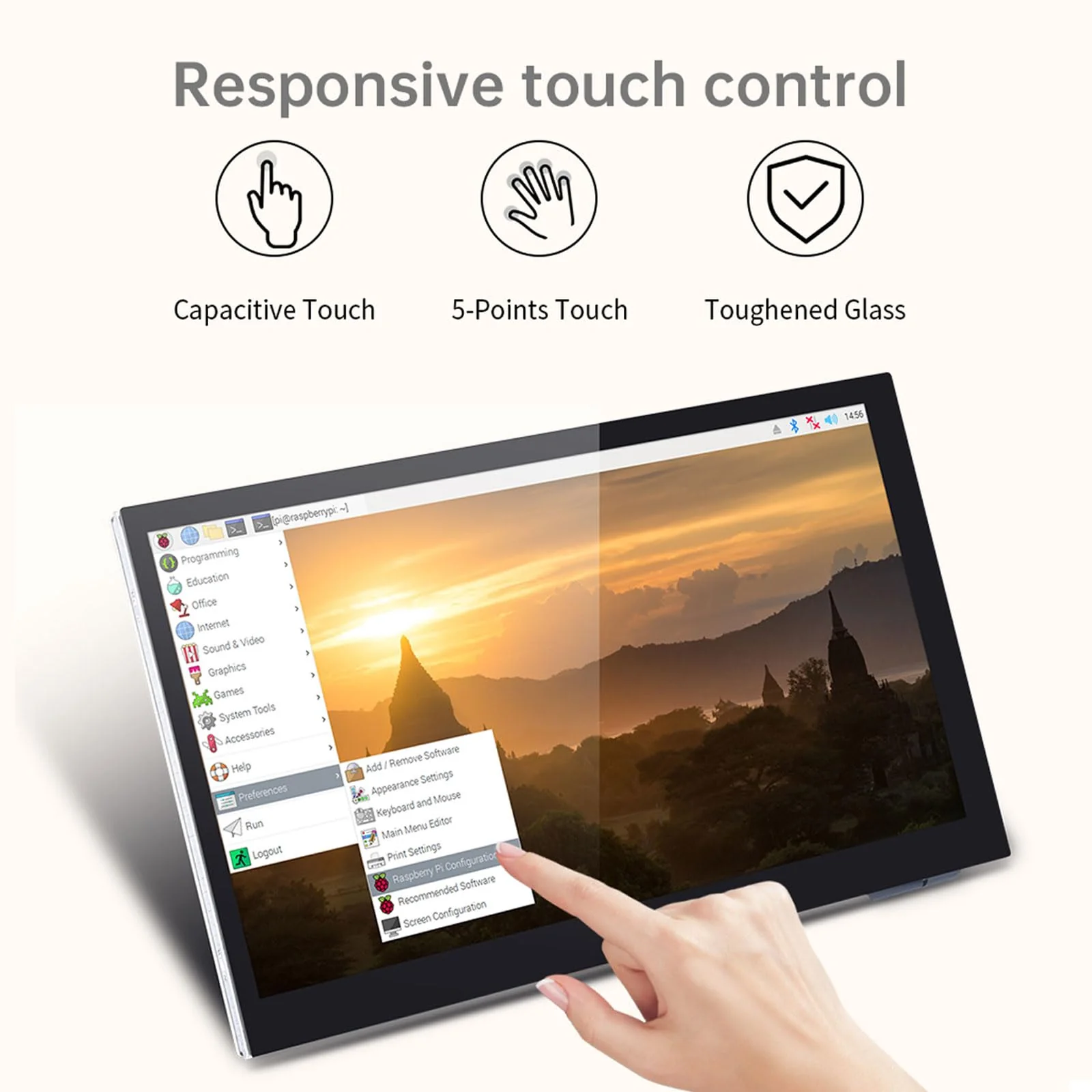

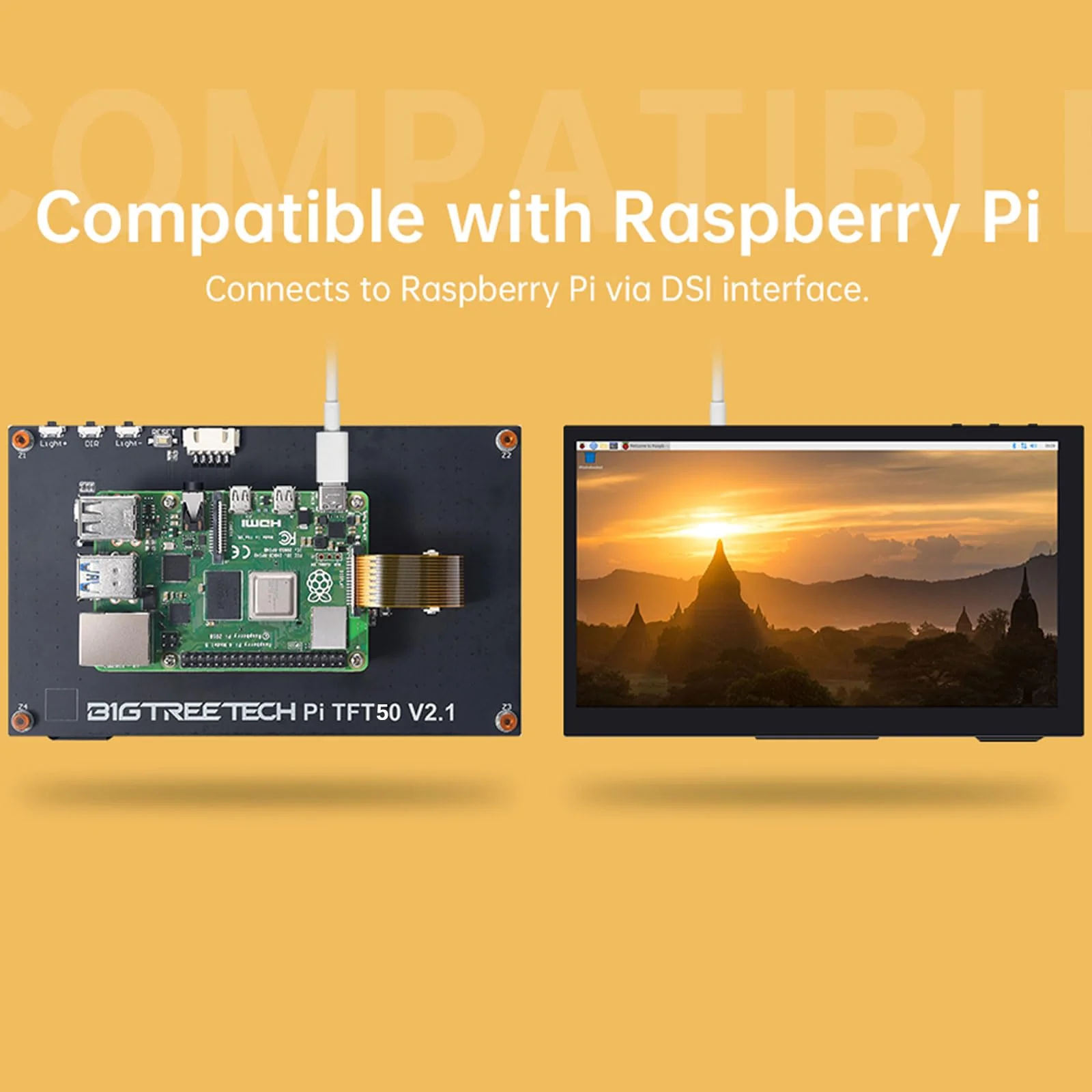

  • Adapt to the Raspberry-Pi DSI display interface, directly driven by DSI; with a capacitive touch panel. Supports 5-point touch

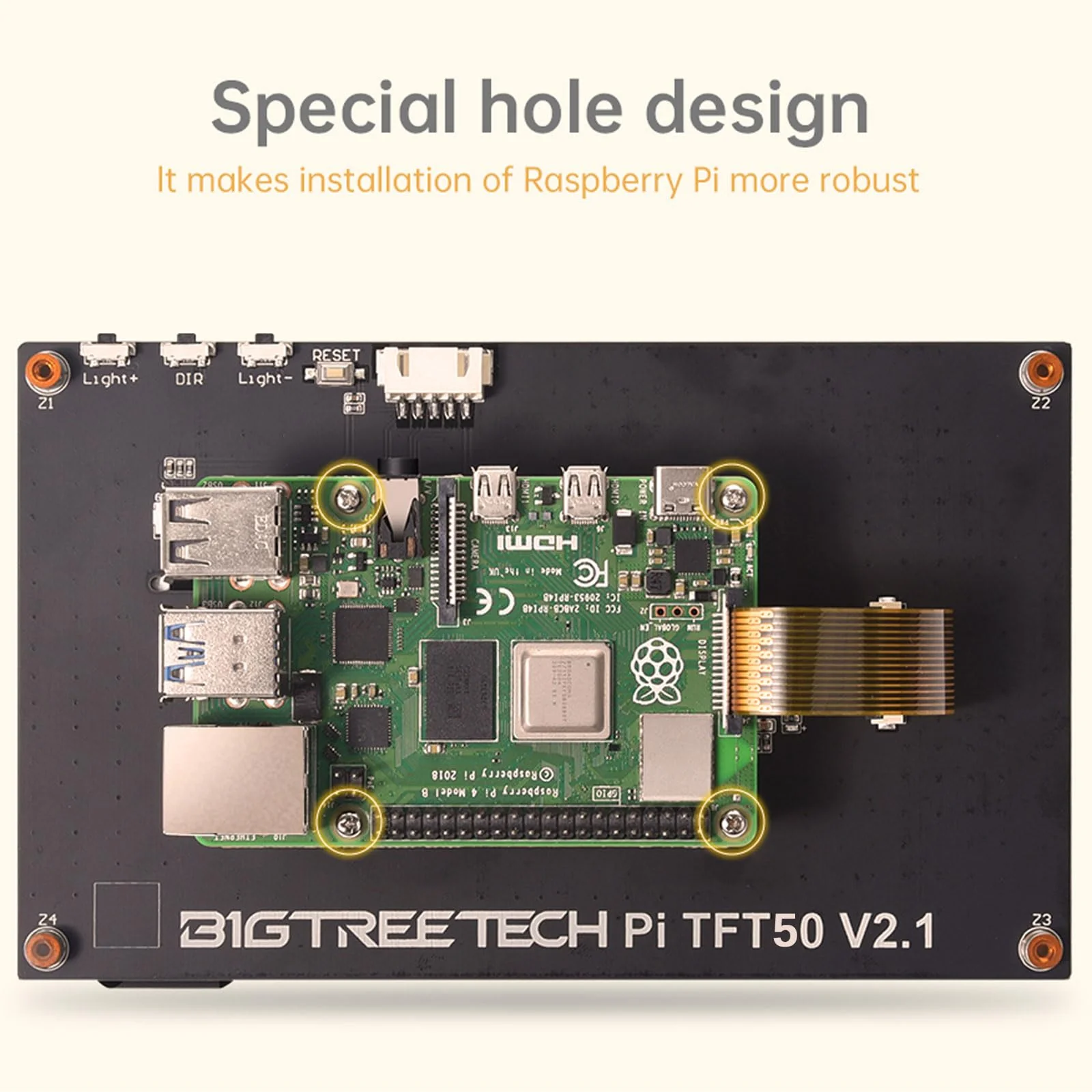

  • The unique hole design on the back allows you to install the Raspberry-Pi directly. PI TFT50 display adopts Raspberry-Pi power supply design, no external power supply is needed
  • The PI TFT50 display supports hardware backlight adjustment, and the backlight brightness can be adjusted by rotating the potentiometer behind the screen
$68.71

Original: $196.31

-65%
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1—

$196.31

$68.71

More Images

BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 2
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 3
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 4
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 5
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 6
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 7
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 8
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 9
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 10
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 11
BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1 - Image 12

BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi Pi TFT50 V2.1

BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi

PI-TFT50 V2.1 Technical Specifications: Working Voltage: 3.3V (provided by Raspberry Pi display interface) Maximum Working Current: 320mA Screen Current: 100mA Screen Resolution: 800480 Video Interface: Raspberry Pi DSI Touch Points: 5 points Viewing Angle: 60°/70°/70°/70° RGB888-16 Trillion True Color Refresh Rate: 60Hz Luminous Rate: 280 cd/m2 Working Temperature: -20℃-70℃ Dimensions: 121mm x 76mm Mounting Hole Size: M2.5 Outer Mounting Hole Position: 113mm x 68mm Inner Mounting Hole Position: 58mm x 49m Use Tutorial: The first step is to insert the SD card with the Raspberry-Pi system into the Raspberry-PI. Step 2: Connect the DISPLAY interface of the 5-inch touch screen to the DISPLAY interface on the Raspberry-Pi through the provided FPC cable. Step 3: After powering on the Raspberry-Pi, you can use the 5-inch touch screen.

Product Features

  • This is a 5-inch LCD touch screen with a resolution of 800 x 480 for Raspberry-Pi. The display area can reach 108 x 64.8mm
  • Adapt to the Raspberry-Pi DSI display interface, directly driven by DSI; with a capacitive touch panel. Supports 5-point touch
  • The unique hole design on the back allows you to install the Raspberry-Pi directly. PI TFT50 display adopts Raspberry-Pi power supply design, no external power supply is needed
  • The PI TFT50 display supports hardware backlight adjustment, and the backlight brightness can be adjusted by rotating the potentiometer behind the screen

Product Information

Shipping & Returns

Description

BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi

PI-TFT50 V2.1 Technical Specifications: Working Voltage: 3.3V (provided by Raspberry Pi display interface) Maximum Working Current: 320mA Screen Current: 100mA Screen Resolution: 800480 Video Interface: Raspberry Pi DSI Touch Points: 5 points Viewing Angle: 60°/70°/70°/70° RGB888-16 Trillion True Color Refresh Rate: 60Hz Luminous Rate: 280 cd/m2 Working Temperature: -20℃-70℃ Dimensions: 121mm x 76mm Mounting Hole Size: M2.5 Outer Mounting Hole Position: 113mm x 68mm Inner Mounting Hole Position: 58mm x 49m Use Tutorial: The first step is to insert the SD card with the Raspberry-Pi system into the Raspberry-PI. Step 2: Connect the DISPLAY interface of the 5-inch touch screen to the DISPLAY interface on the Raspberry-Pi through the provided FPC cable. Step 3: After powering on the Raspberry-Pi, you can use the 5-inch touch screen.

Product Features

  • This is a 5-inch LCD touch screen with a resolution of 800 x 480 for Raspberry-Pi. The display area can reach 108 x 64.8mm
  • Adapt to the Raspberry-Pi DSI display interface, directly driven by DSI; with a capacitive touch panel. Supports 5-point touch
  • The unique hole design on the back allows you to install the Raspberry-Pi directly. PI TFT50 display adopts Raspberry-Pi power supply design, no external power supply is needed
  • The PI TFT50 display supports hardware backlight adjustment, and the backlight brightness can be adjusted by rotating the potentiometer behind the screen
