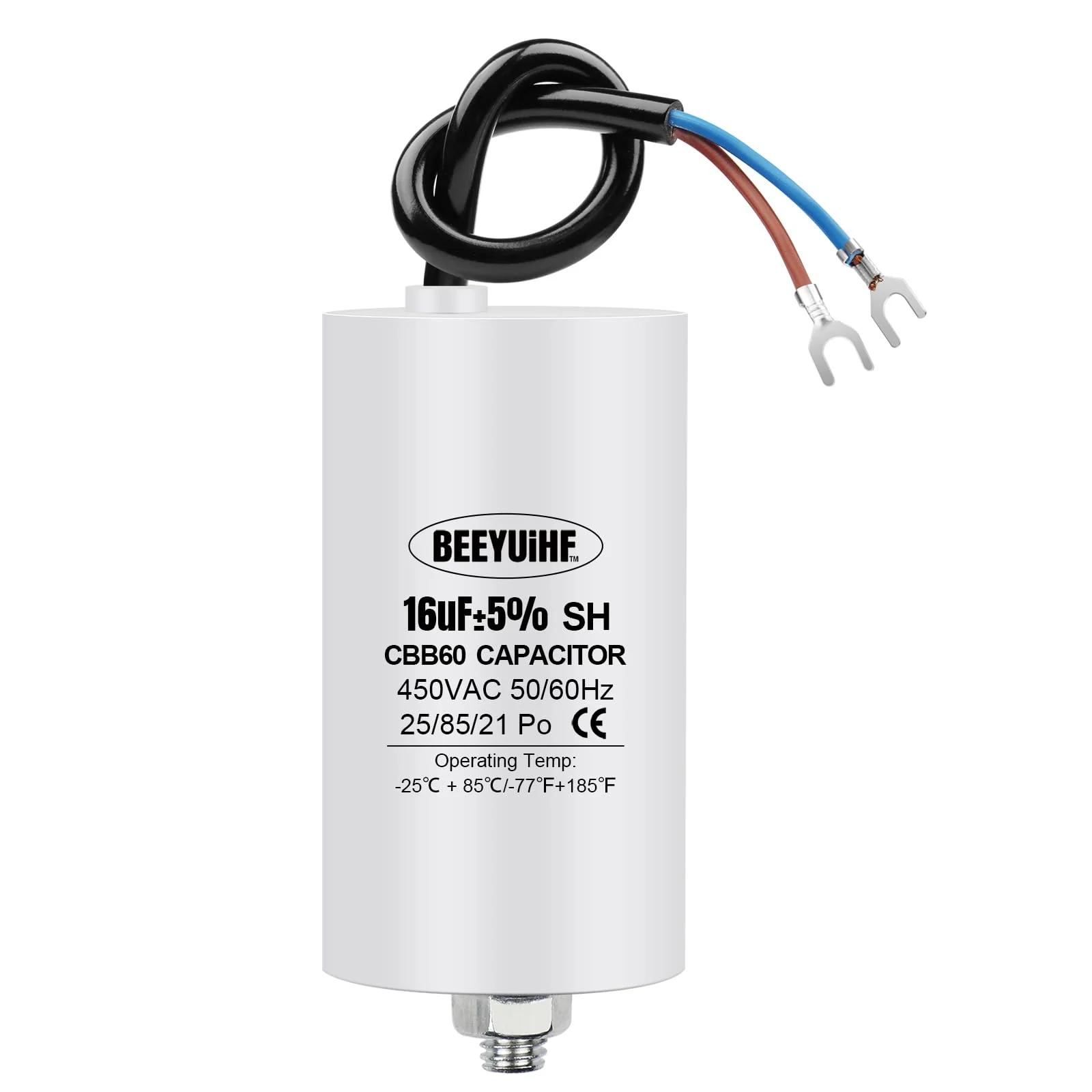

BEEYUIHF CBB60 Motor Capacitor 16µF 450V Capacitor 50/60Hz Starting Capacitor 16uF Motor Running Capacitor with Connection Cable for Electric Motor 40 x 73 mm 16μF / 16uF

BEEYUIHF CBB60 Motor Capacitor 16µF 450V Capacitor 50/60Hz Starting Capacitor 16uF Motor Running Capacitor with Connection Cable for Electric Motor 40 x 73 mm

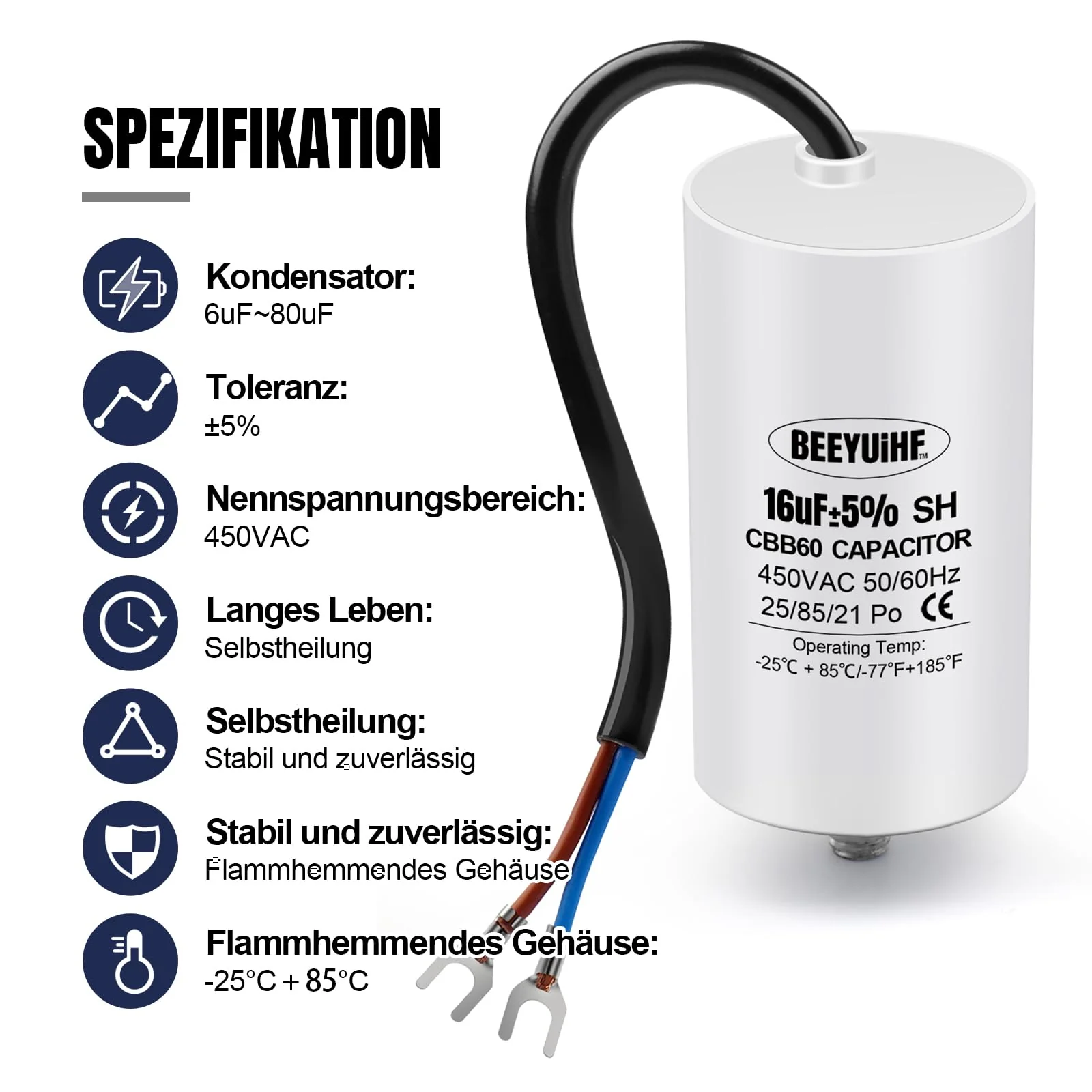

Product Features

• CBB60 motor capacitor: 16uF
• Frequency: 50/60Hz
• Rated voltage: 450 V AC

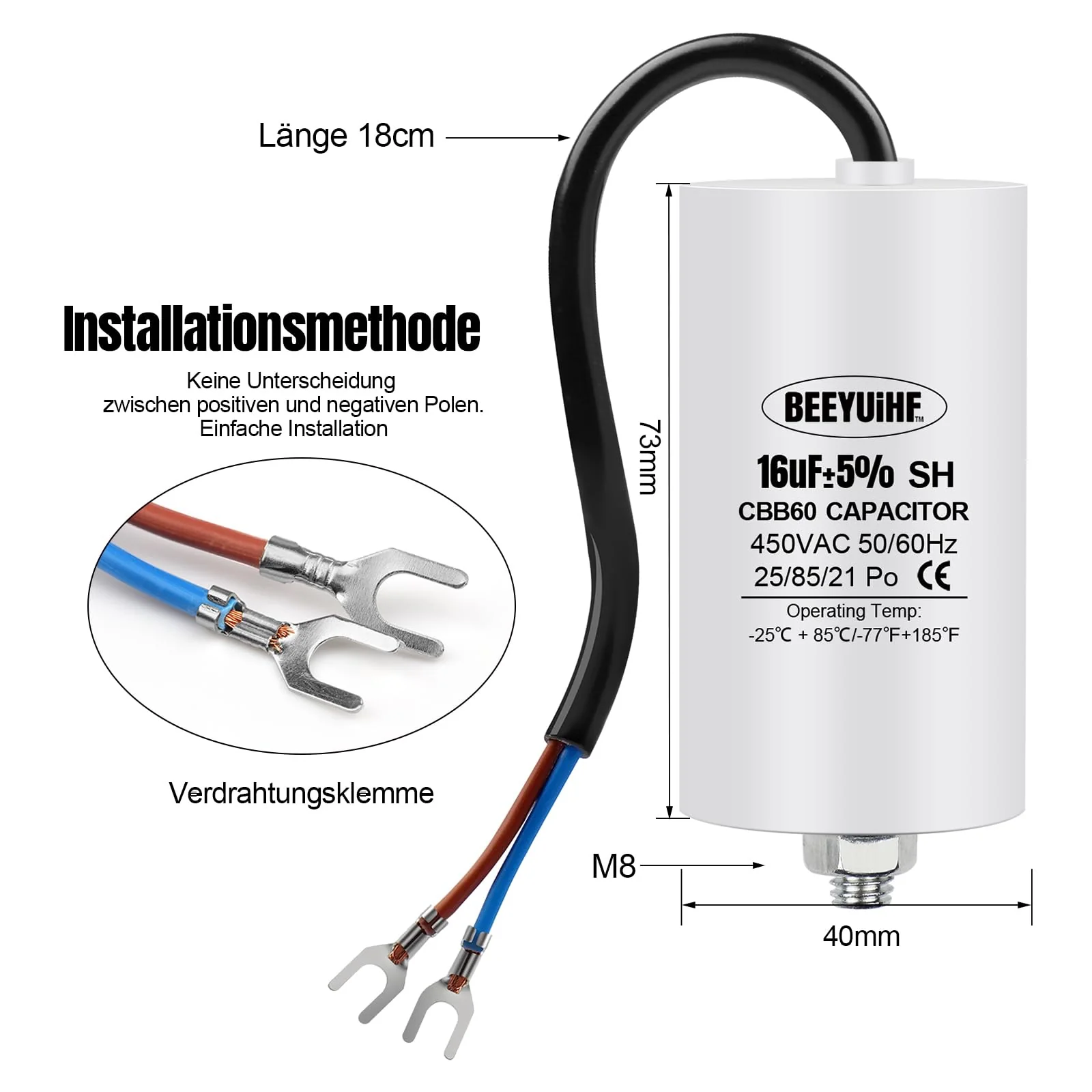

• Size: 40mm x 73mm
• With M8 screw
• Starting capacitor features: good frequency characteristic (wide frequency response), low dielectric loss, high insulation impedance, stable performance, inrush current resistance, high overload capacity and excellent self-regeneration properties.

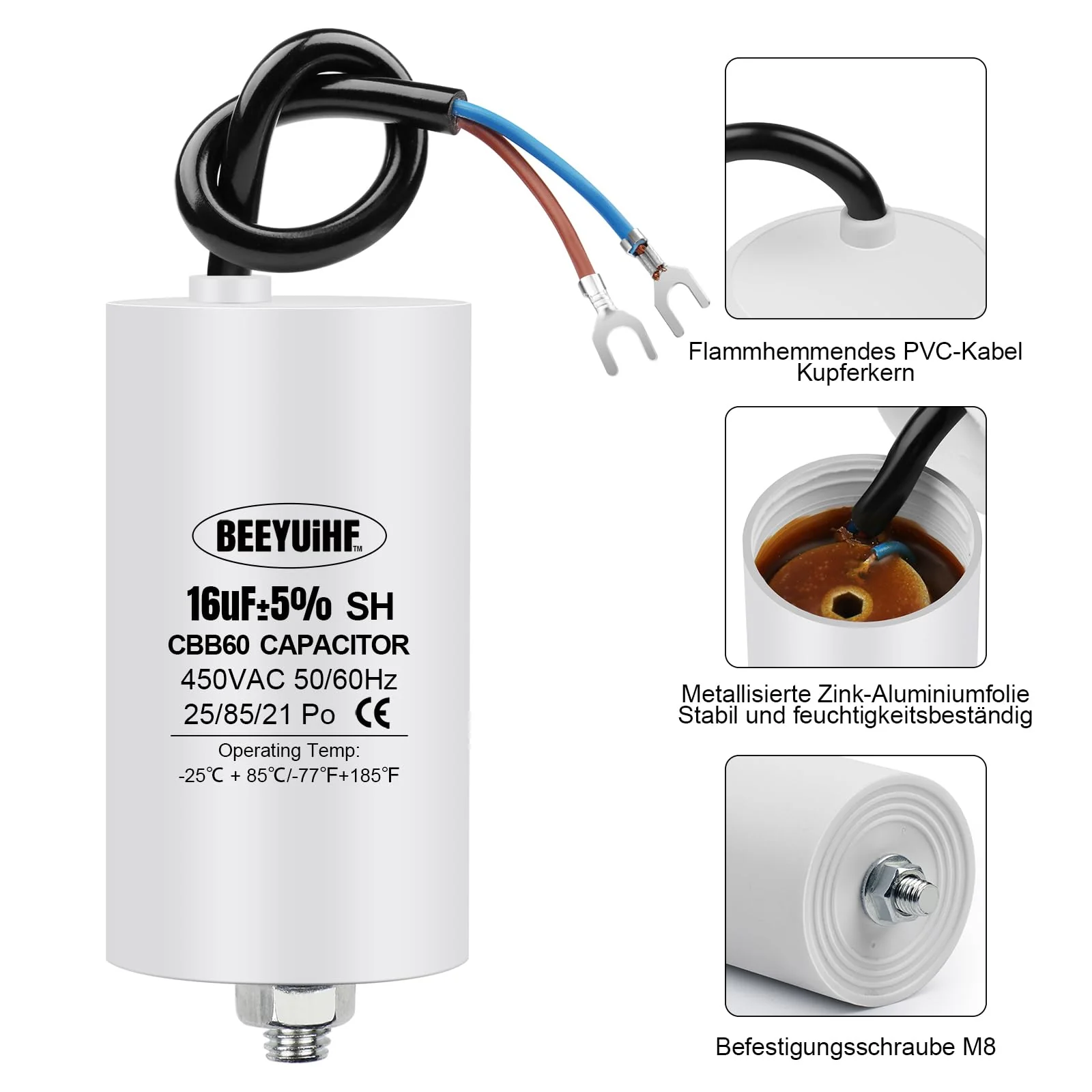

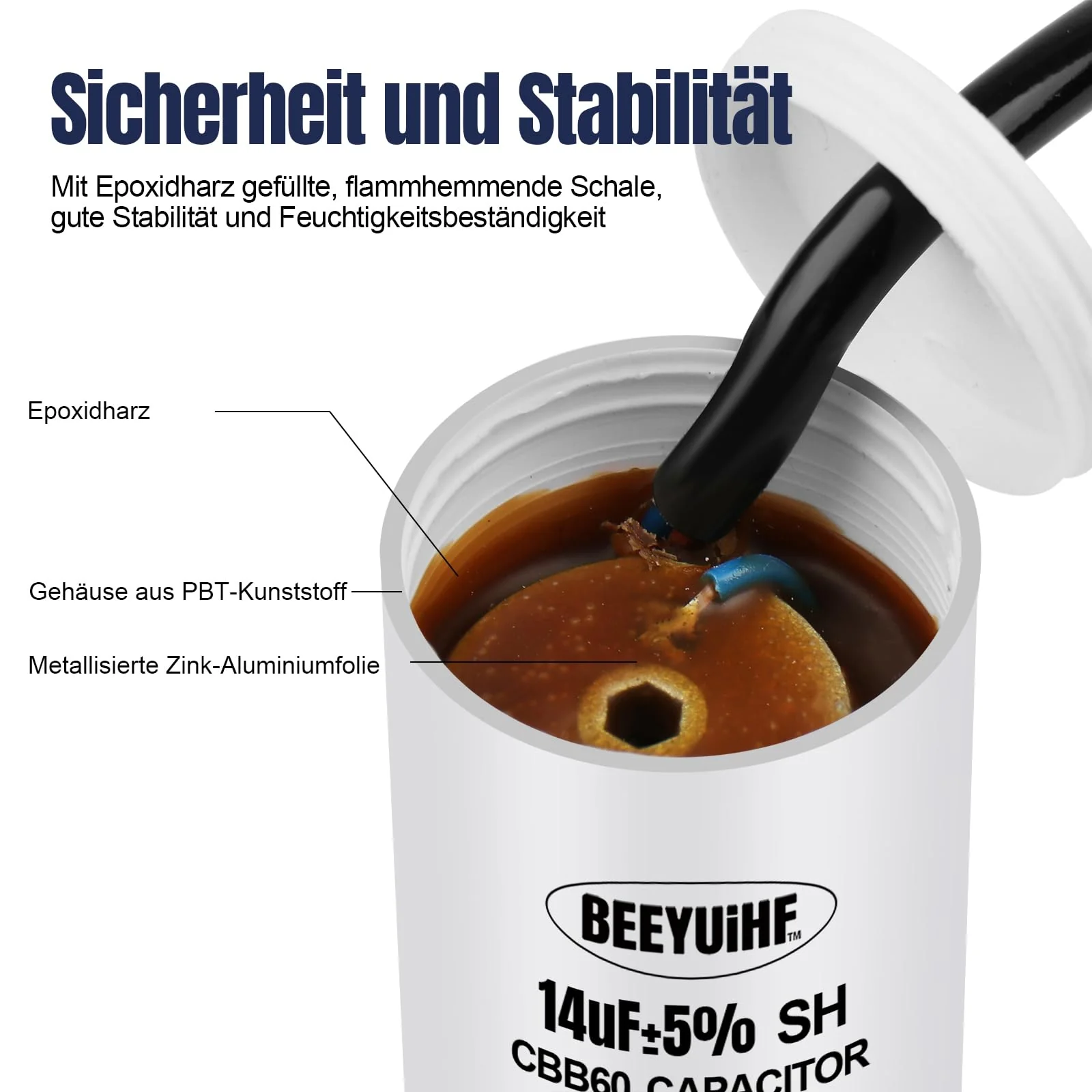

• CBB60 motor capacitor uses a metallized zinc-aluminium film thickened at the edges as electrode and dielectric. Its inner components are embedded in a flame retardant epoxy resin. The start capacitor has a cylindrical shape, a housing made of PBT plastic and a mounting screw on the bottom for good stability and moisture resistance.
• Scope of application: widely used in washing machines, motors, lawn mowers, refrigerators, water pumps, sewing machines, mixers, pasta machines, lamps, etc. with an AC supply frequency of 50/60Hz for starting and operating single-phase motors with relatively low power.
• Easy installation: the starter capacitor comes with 20 cm connection cable and cable lugs for easy installation and handling.
