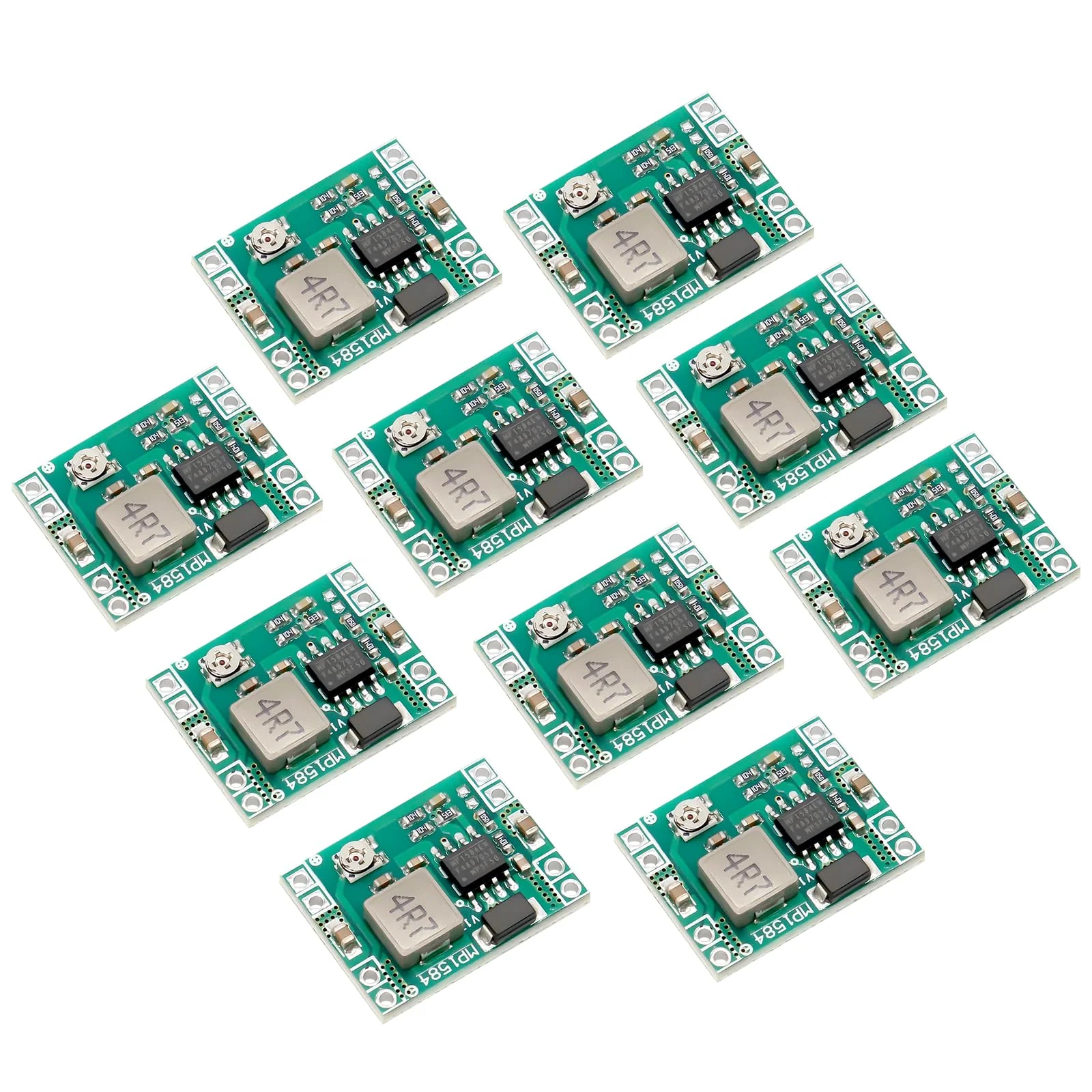

AYWHP MP1584EN Buck Converter DC-DC 3A Power Step Down Module Buck Converter 24V to 12V 9V 5V 3V for Arduino Pack of 10
AYWHP MP1584EN Buck Converter DC-DC 3A Power Step Down Module Buck Converter 24V to 12V 9V 5V 3V for Arduino Pack of 10
AYWHP MP1584EN Buck Converter DC-DC 3A Power Step Down Module Buck Converter 24V to 12V 9V 5V 3V for Arduino Pack of 10

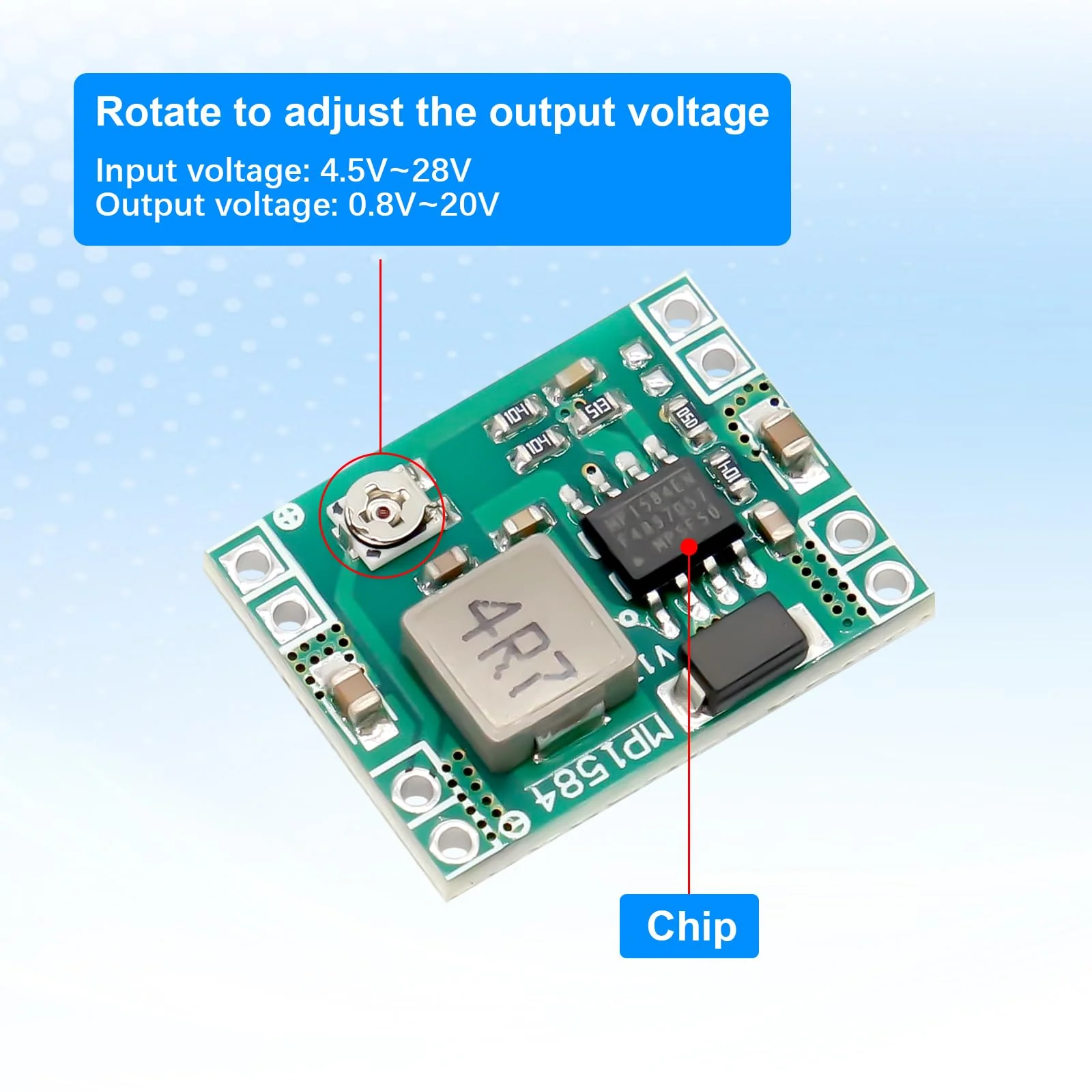

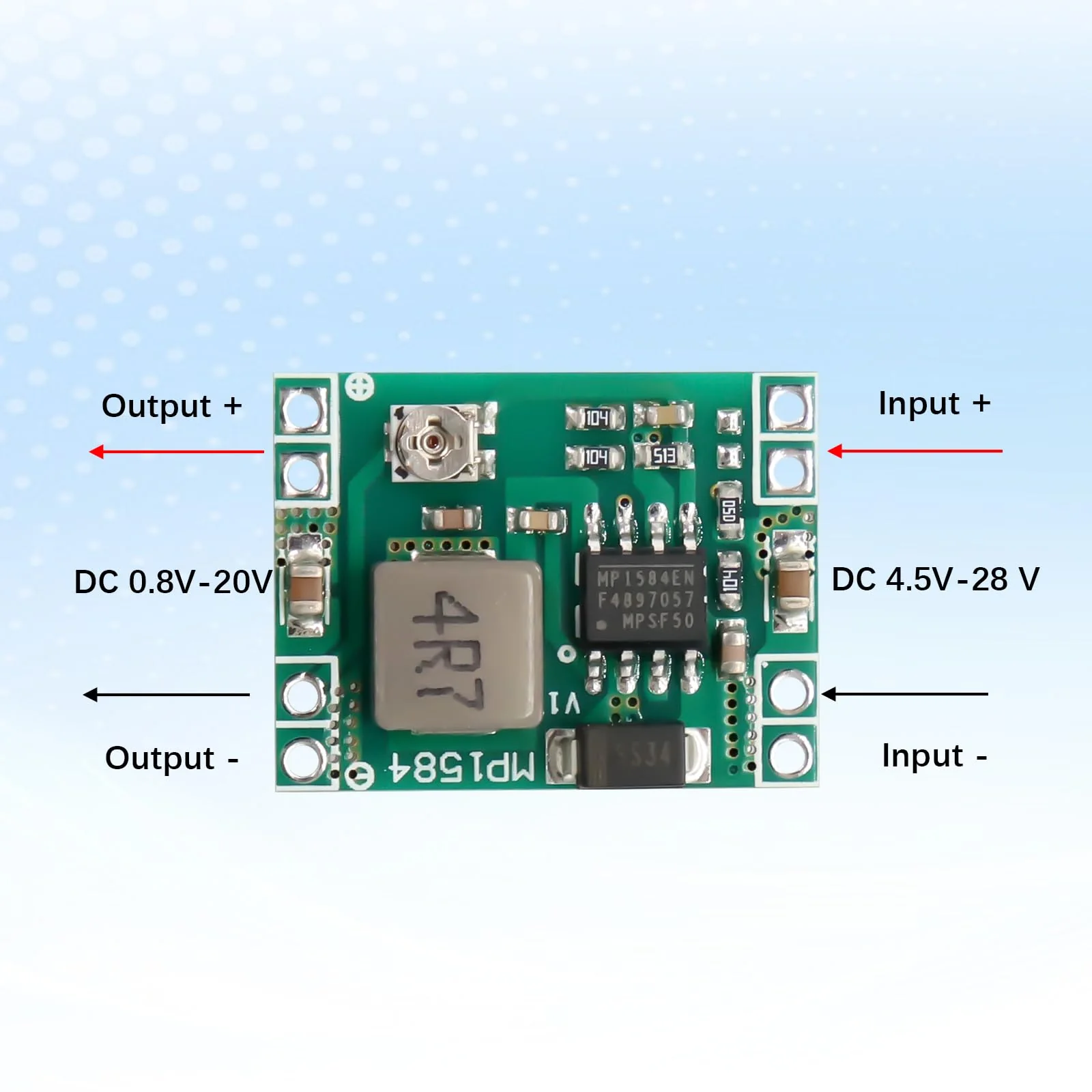

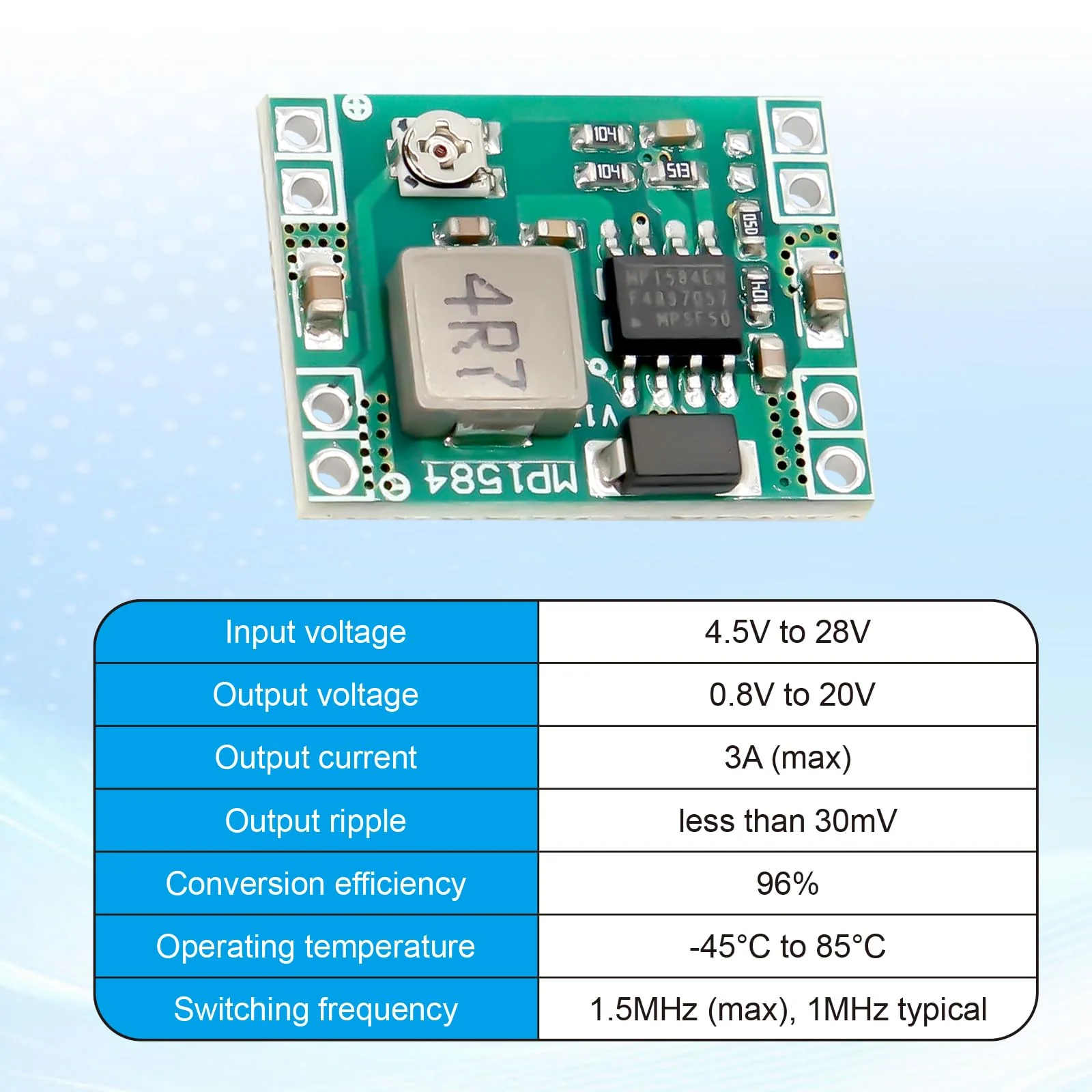

Description: The ultra-compact DC-DC buck module is an ideal power supply solution for a variety of electronics projects. The chip has high performance and multiple protection functions, supports an input voltage range of 4.5 V to 28 V and outputs a stable DC voltage (adjustable from 0.8 V to 20 V). Thanks to its compact size and adjustable output voltage, it is ideal for DIY projects, IoT devices and embedded system development. The step down module is made of high-quality materials and processes to ensure stable operation in different environments. Parameters: Input voltage: 4.5V to 28V. Output voltage: 0.8V to 20V Output Current: 3A (Max) Output ripple: less than 30mV. Conversion efficiency: 96% Operating temperature: -45°C to 85°C. Switching frequency: 1.5MHz (max), typically 1MHz. IN+: Positive Input IN: Negative Input Output +: Positive Output Out: Negative output Attention: This is a buck converter. Use it only as a step-down converter, not as a step up converter. Keep the power below 2.5A and use the heat sink for a long time. Do not interchange the input and output ports. Do not use the device with low charge (less than 10% of the output) or without charging. If the output voltage is always the same as the input voltage. Please turn the potentiometer clockwise 15-20 revolutions first. Specification: Dimensions: 22 x 17 x 4 mm. Material: PCB. Product included: 10 x step down converters.
Product Features
- Input Voltage4.5V to 28V; Output voltage: 0.8V to 20V. Please do not connect the input and output interfaces to be reversed. It is only for voltage reduction and not for voltage increase.
- Output current: 3A (max). Conversion Efficiency: 96% (Max) For prolonged use, make sure that the current is less than 1.5A and use a heat sink.

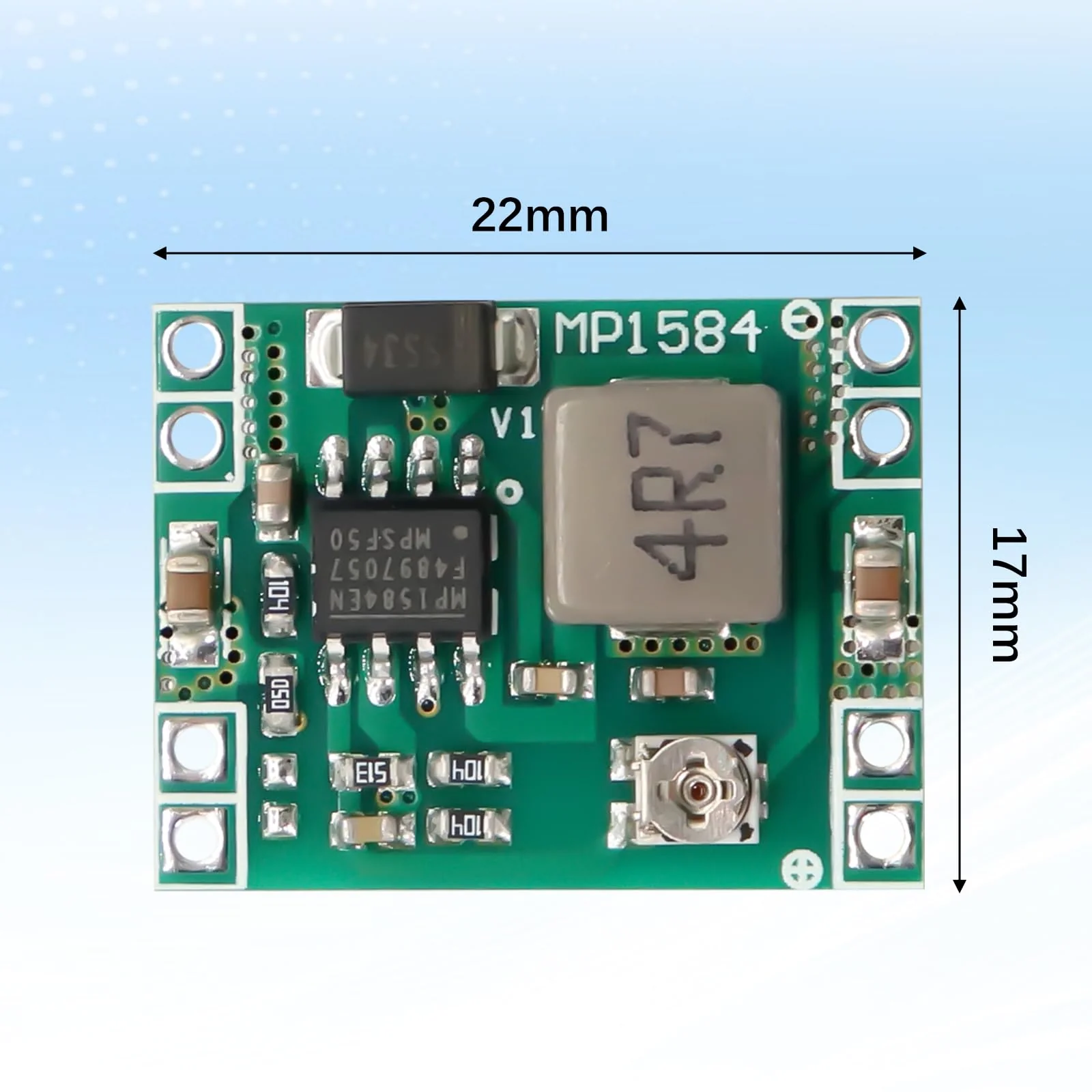

- Ultra small design: Buck converter the size is only 22 mm x 17 mm x 4 mm, so it can be easily embedded in projects with limited space. It is suitable for various occasions with strict requirements for volume and weight (e.g. aviation models, etc.)
- Multiple protection functions: Buck converter provides overcurrent protection, over-temperature protection and short circuit protection to ensure safety and reliability during use.
- Warning: Buck converter do not confuse the positive and negative poles to avoid damage. Do not use the device with low load (less than 10% of the output) or without load.
