APKLVSR 3 x 0.96 Inch OLED Display I2C 128 x 64 Pixel I2C Screen Display Module, 0.96 Inch OLED Display I2C IIC Screen Display Module Compatible with Arduino Raspberry Pi (White) White

APKLVSR 3 x 0.96 Inch OLED Display I2C 128 x 64 Pixel I2C Screen Display Module, 0.96 Inch OLED Display I2C IIC Screen Display Module Compatible with Arduino Raspberry Pi (White)

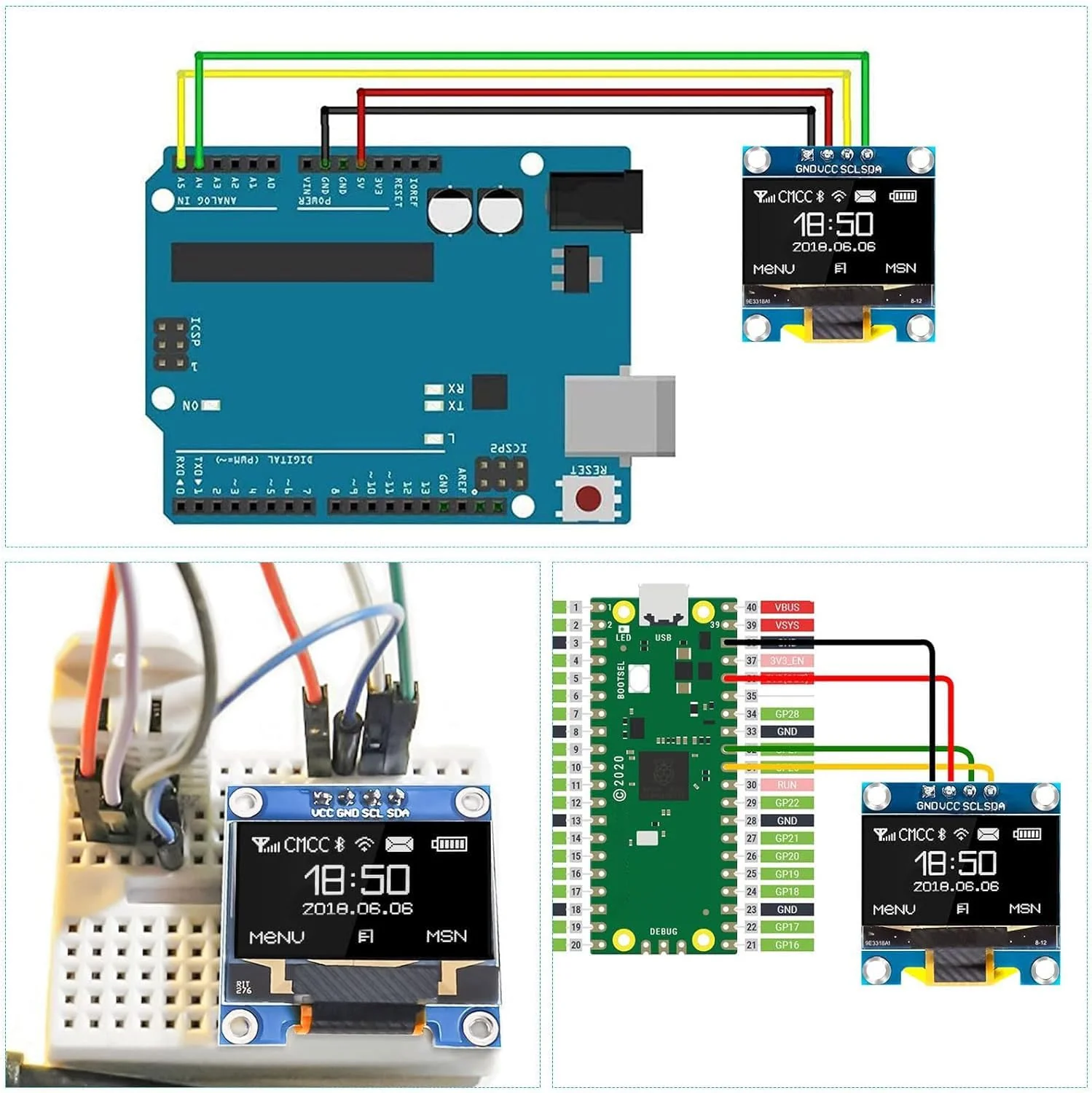

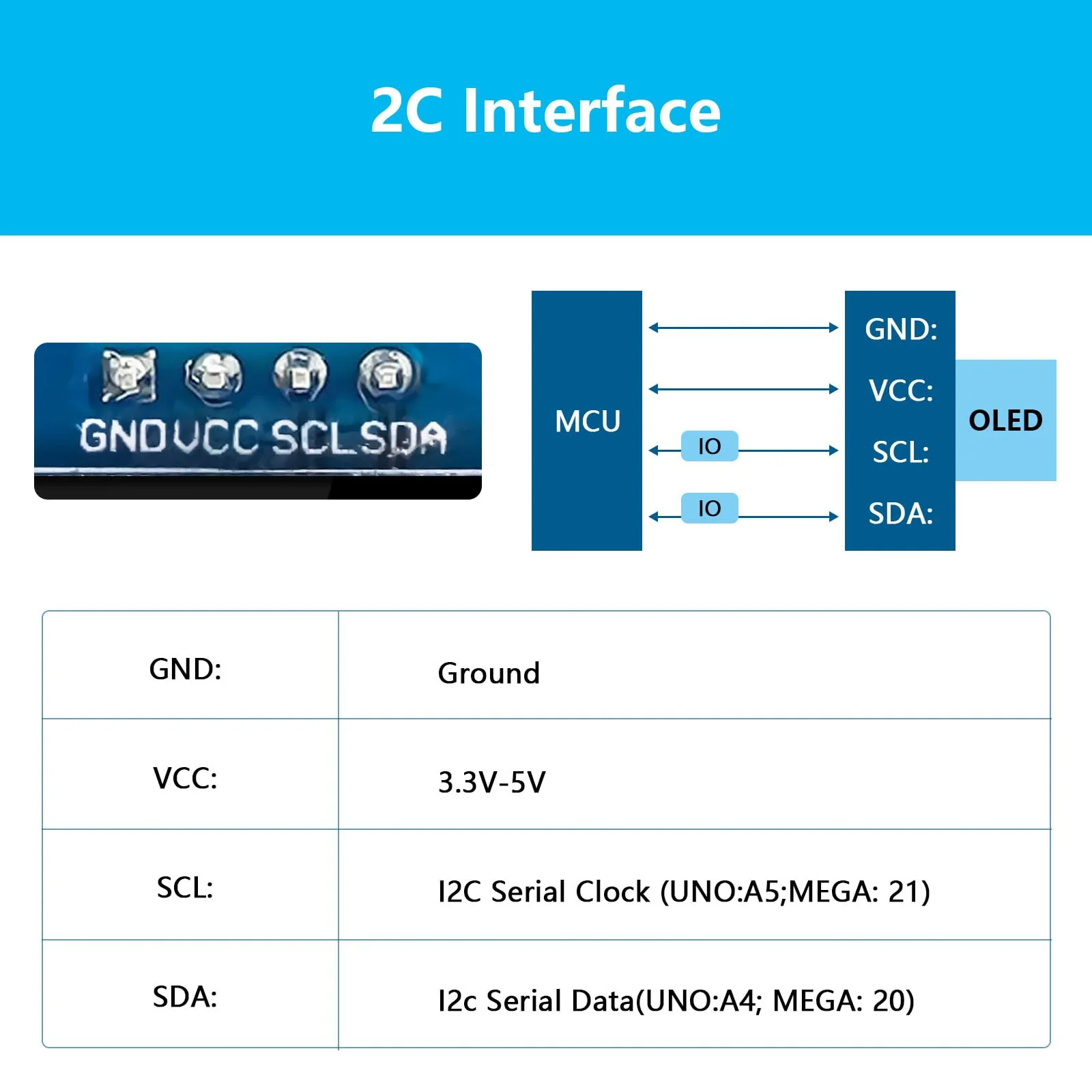

0.96 inch OLED display I2C chip 128 x 64 pixels I2C screen display module with white characters, compatible with Arduino, 4 pin. Size: 0.96 Resolution: 128 x 64. Colour: white. Wide viewing angle: more than 160 degrees. Supported platforms: 51 series, 430 series, STIM32/2, SCR chips Extremely low power consumption: 0.04W in normal operation Supported voltage range: 3.3V-5V DC Working temperature: -30-80 degrees Communication: IIC, only two I/O ports No font: the software uses Word-Modulo Backlight: OLED self-illuminating, no backlight. Interface: Volume: 28.7 mm x 27.8 mm x 4.1 mm. VCC: 3.3-5V GND: mass SCL: Serial Clock SDA: Serial Data How do I connect? GND: DC Negative VCC: DC positive SCL: Serial clock input SDA: Serial data input Applications: MP3, MP4, clock; head-mounted displays Gauges and other smart instruments Design pretty patterns for your beloved electronic devices! Box contents: 3 x 0.96 inch I2C OLED display module. 3 x plastic containers

Product Features

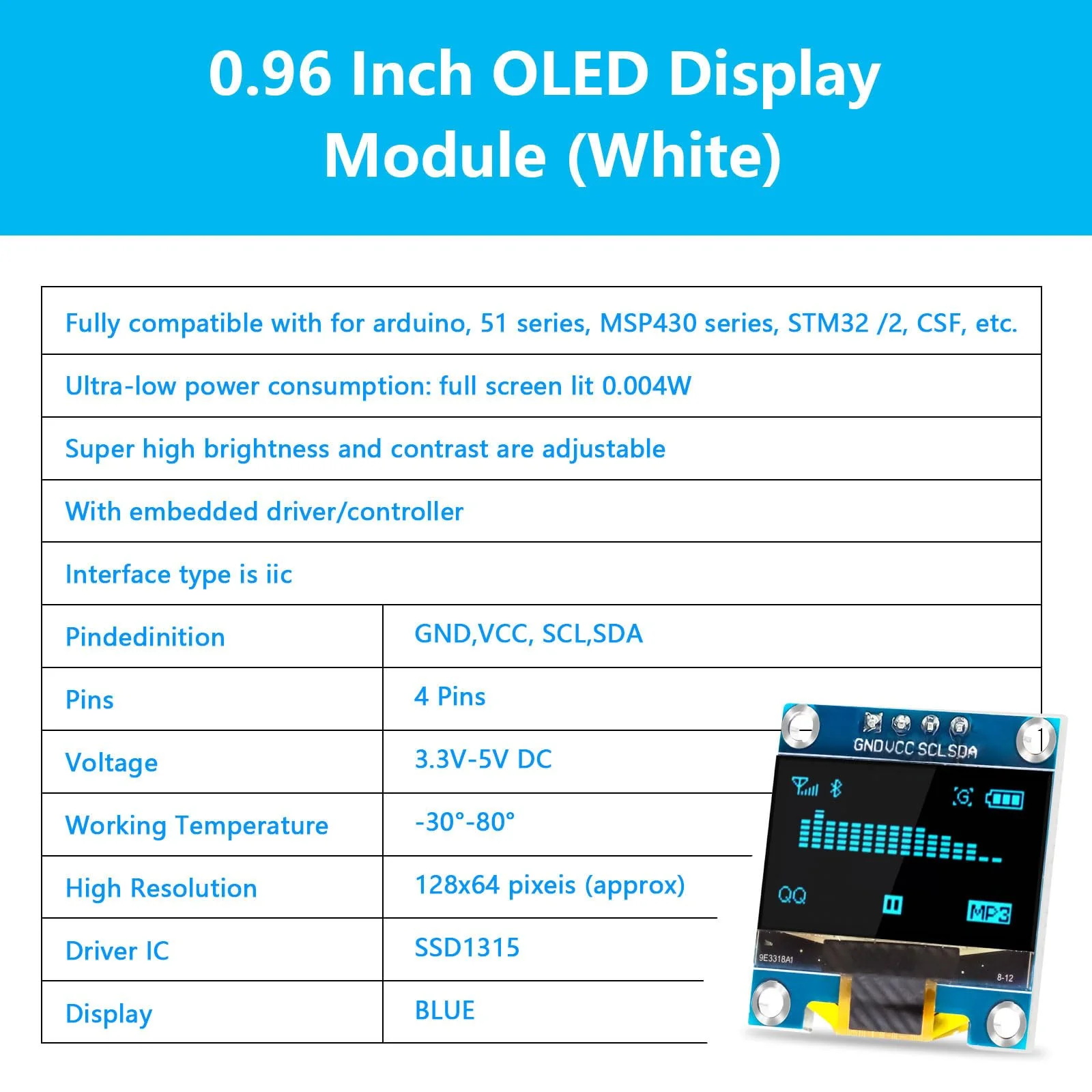

• 0.96 inch, resolution: 128 x 64, wide viewing angle: more than 160 degrees
• Communication: I2C/IIC interface, only need two I/O ports.
• Wide Compatibility This OLED display is widely compatible with Arduino and Mega, Raspberry Pi, 51 series, 430 series, STM32/2, CSR IC etc. 4 male pins allow easy connection.
• Easy to install: 0.96 inch OLED display module with four square holes. Our I2C OLED display module can be installed easily, is really convenient to use and easy to use.
• Do not use the tail light. The display can also illuminate itself. It features extremely high contrast with clear, clear dots and even small fonts are easy to read.
