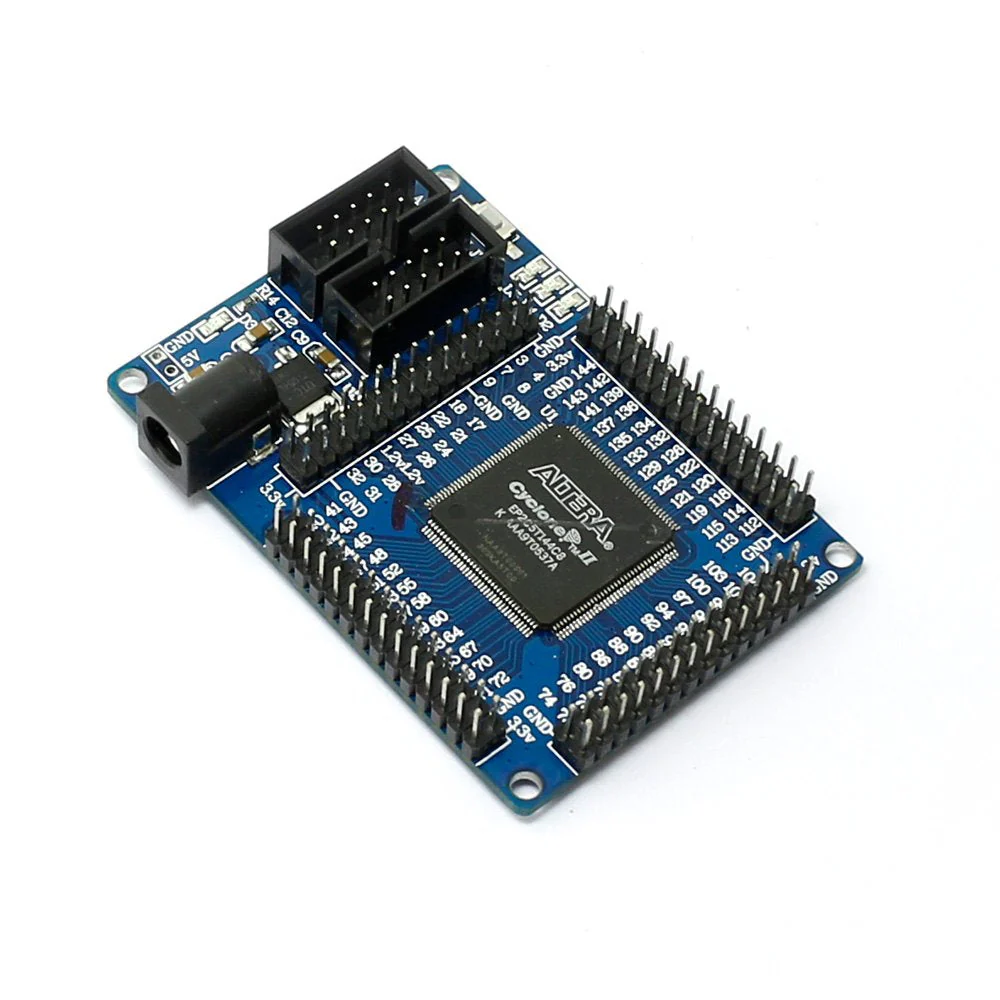

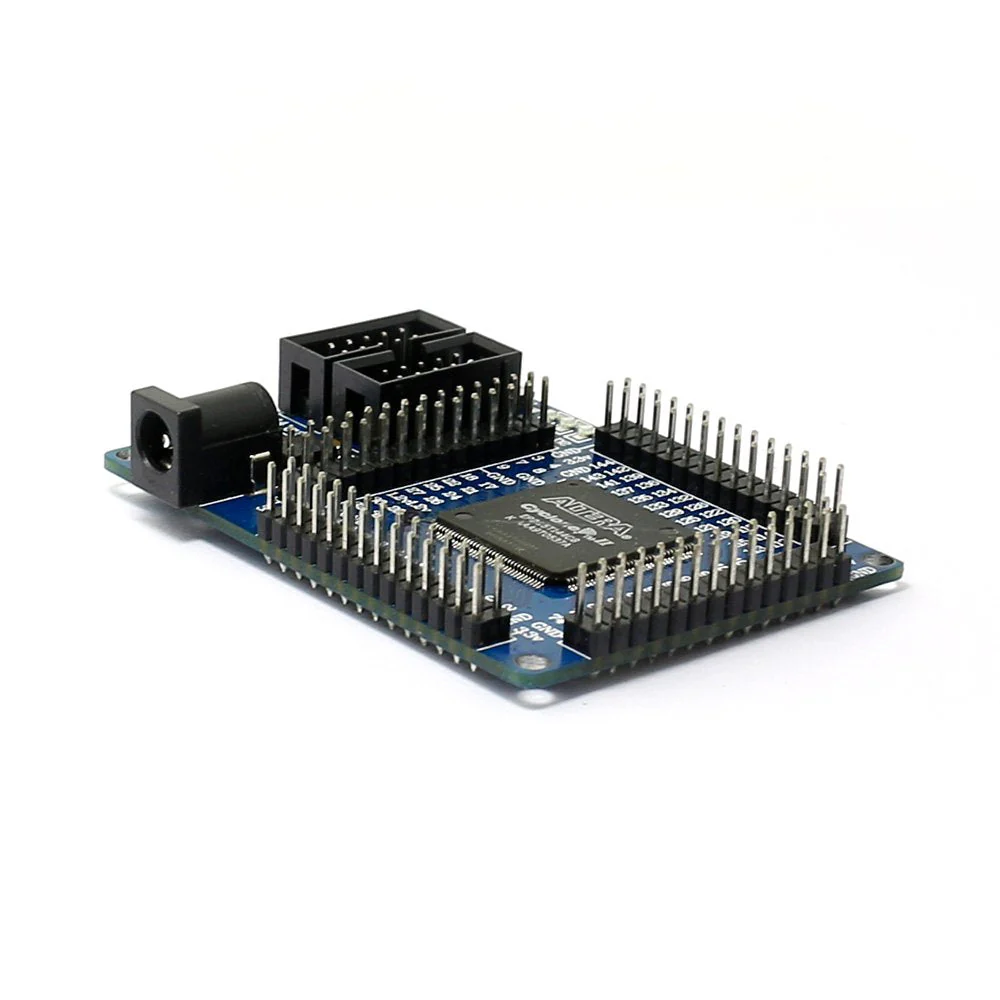

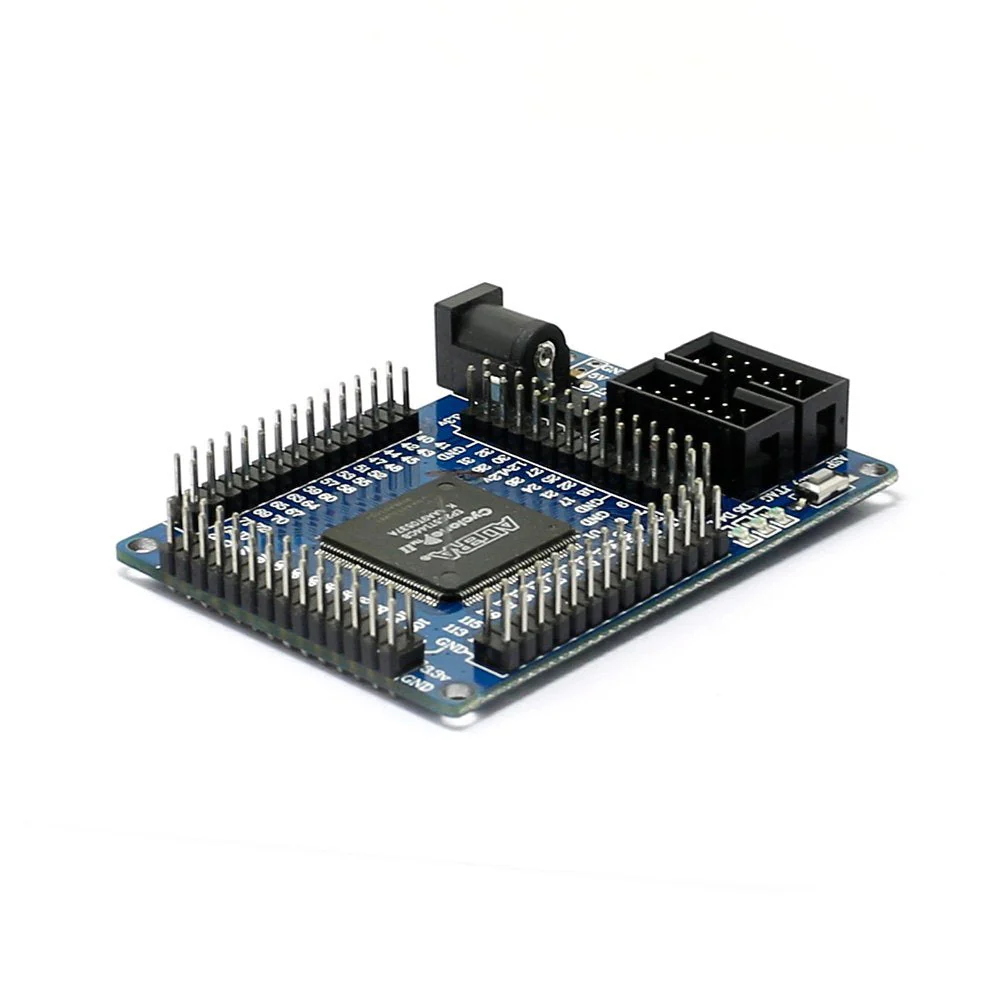

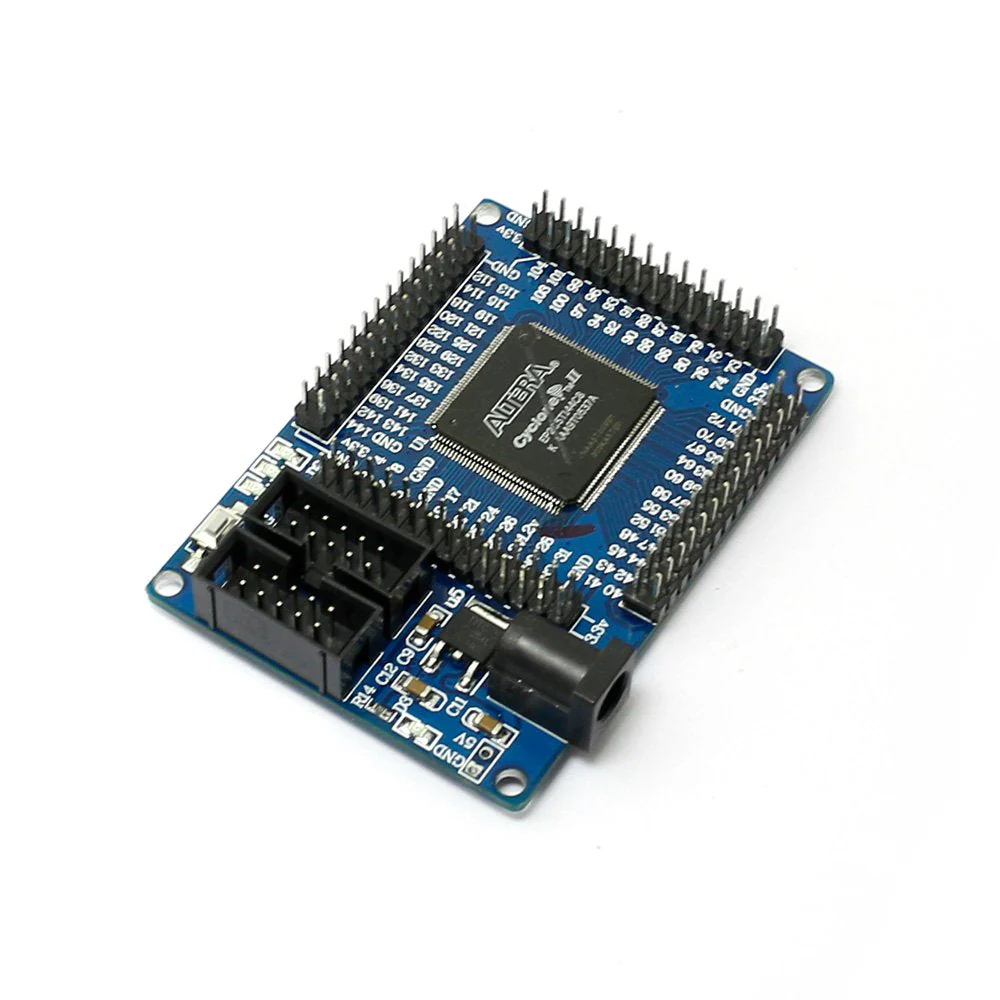

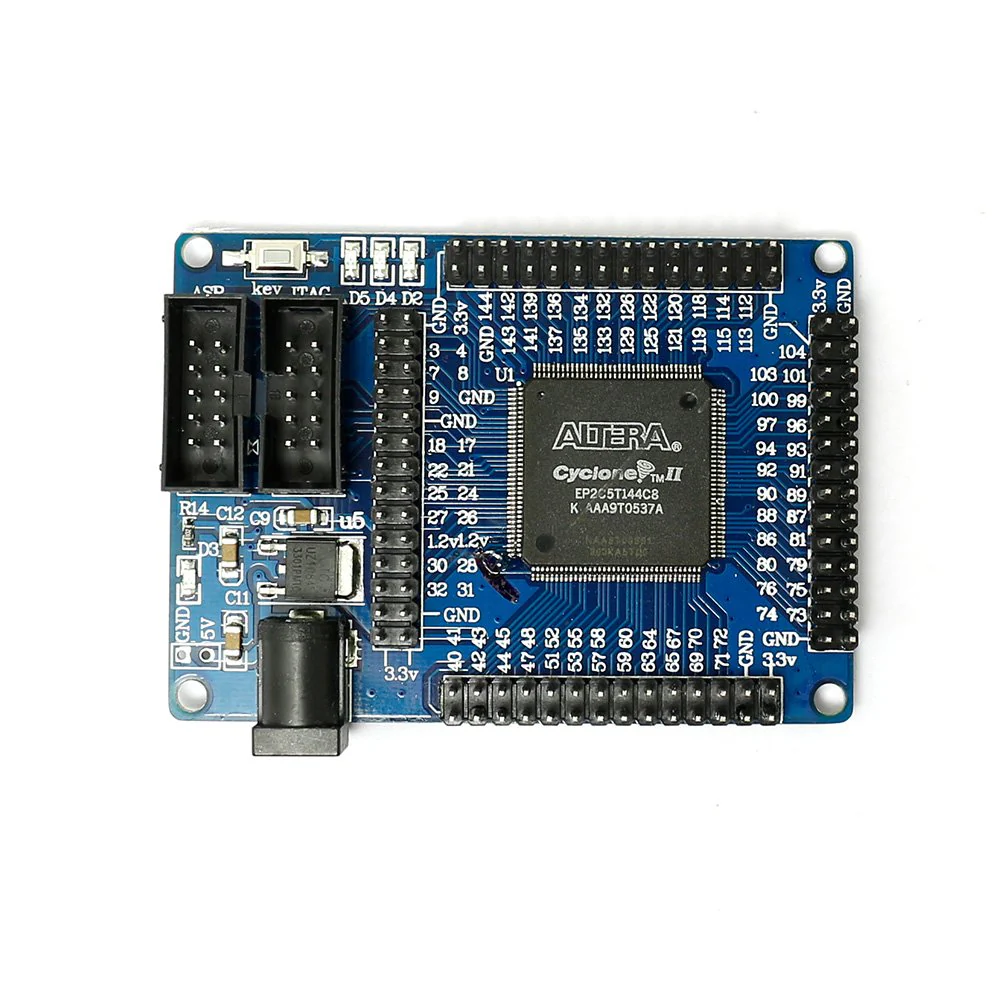

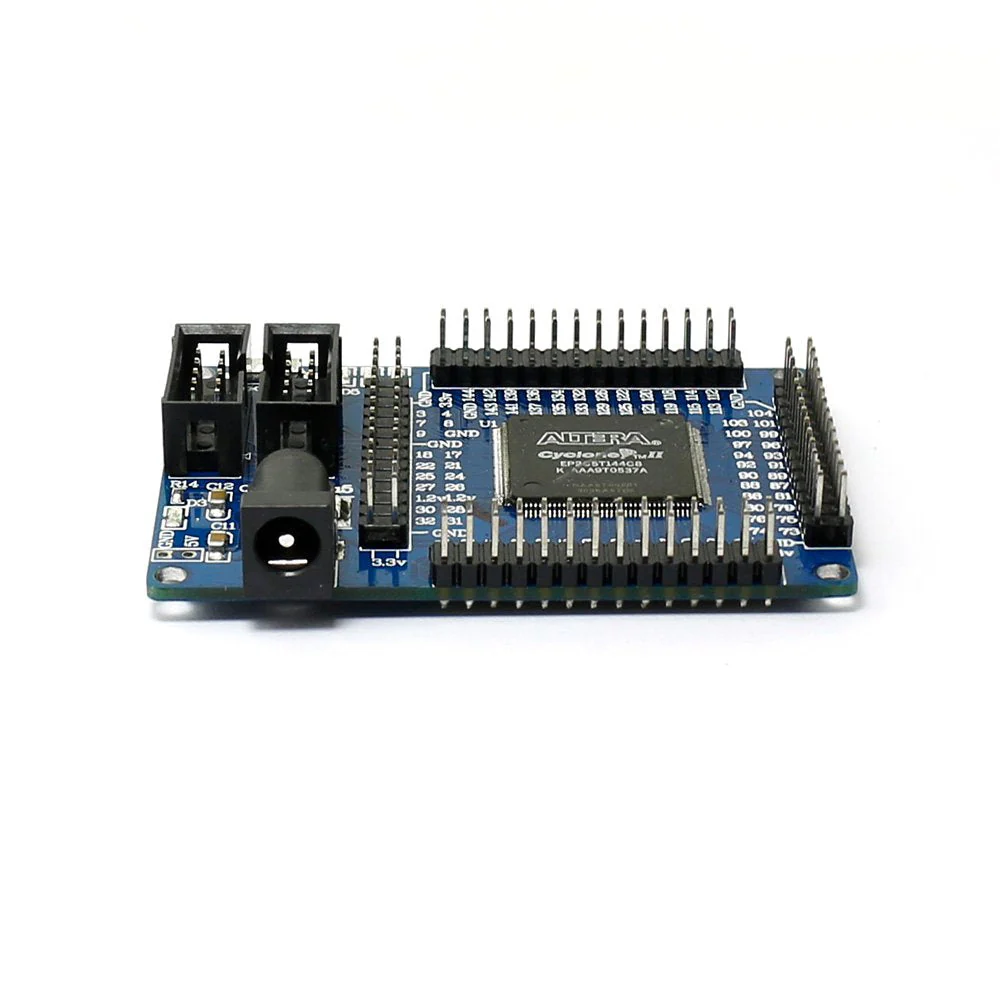

ALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board
ALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board

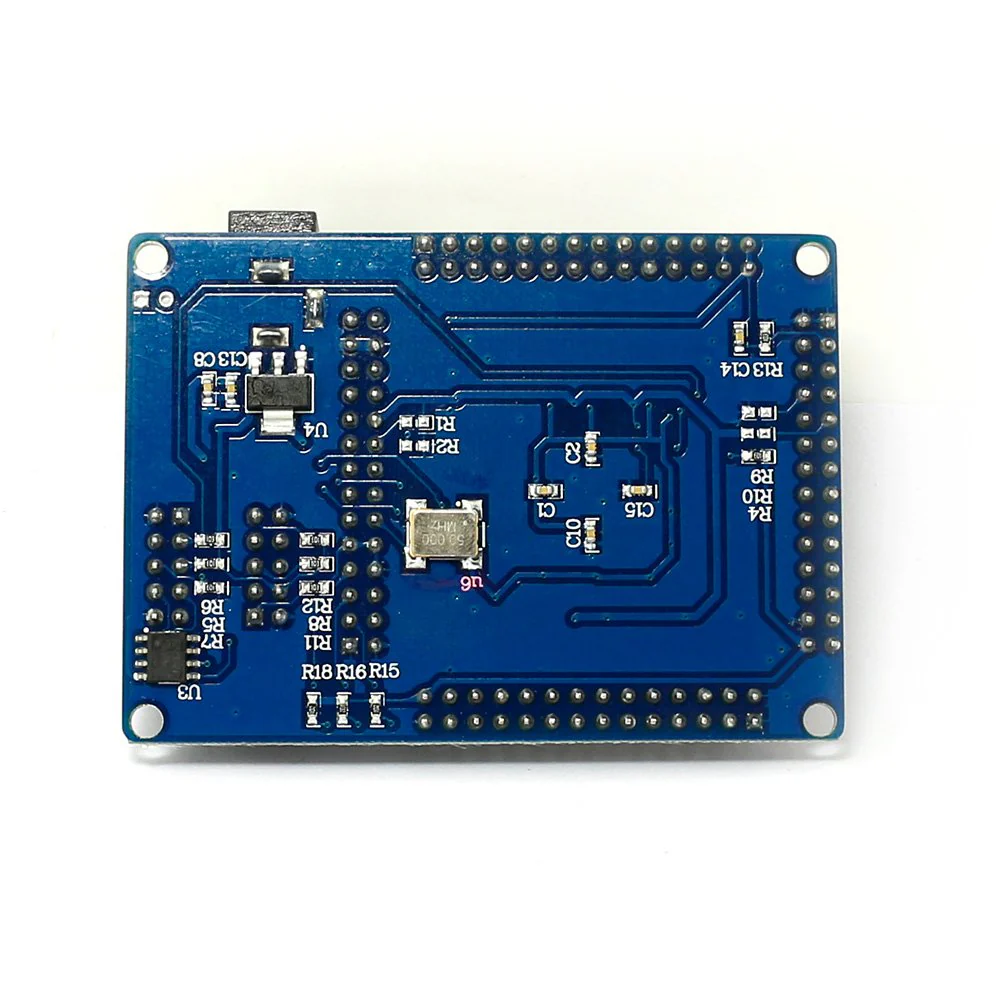

Specification: Hardware configuration: 1 .On-board EP2C5T144 chip. 2 .The configuration EPROM chip using EPCS4, size is 4Mbit 3 .On-board 50M active SMD crystal (the crystal in the back of the board) 4 .Using big power electrical outlet, a single 5V power supply 5 .Panel power indicator and reset switch 6. 3 SMD LEDs on-board can do LED test experiments, more experiments using lead 7. All the IO ports, and clock pins through the pin leads, through these interfaces can be extended to any memory and peripheral 8 .The board high quality tantalum capacitors for power supply filtering Support the development of NiosII embedded CPU Dowload documents: load/ALTERA%20FPGA%20Cyclone%20II%20EP2C5T144%20Minimum%20System%20Development %20Board.rar Feature: 1 .ALTERA company Cyclone II EP2C5T144 chip as the core of the smallest system, the FPGA easily embedded in the actual system 2 .Complete the simple logic control, data acquisition, signal processing, mathematical calculations and other functions 3 .Core board FPGA chip pin all leads directly to the board into the application board, the board's 4.5V power supply can be introduced through the outlet can also be introduced through the row array 5. Very compact size: 6 (cm) 8 (cm) Package: 1ALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board
Product Features
- ALTERA FPGA Cyclone II EP2C5T144 Minimum System Development Board
