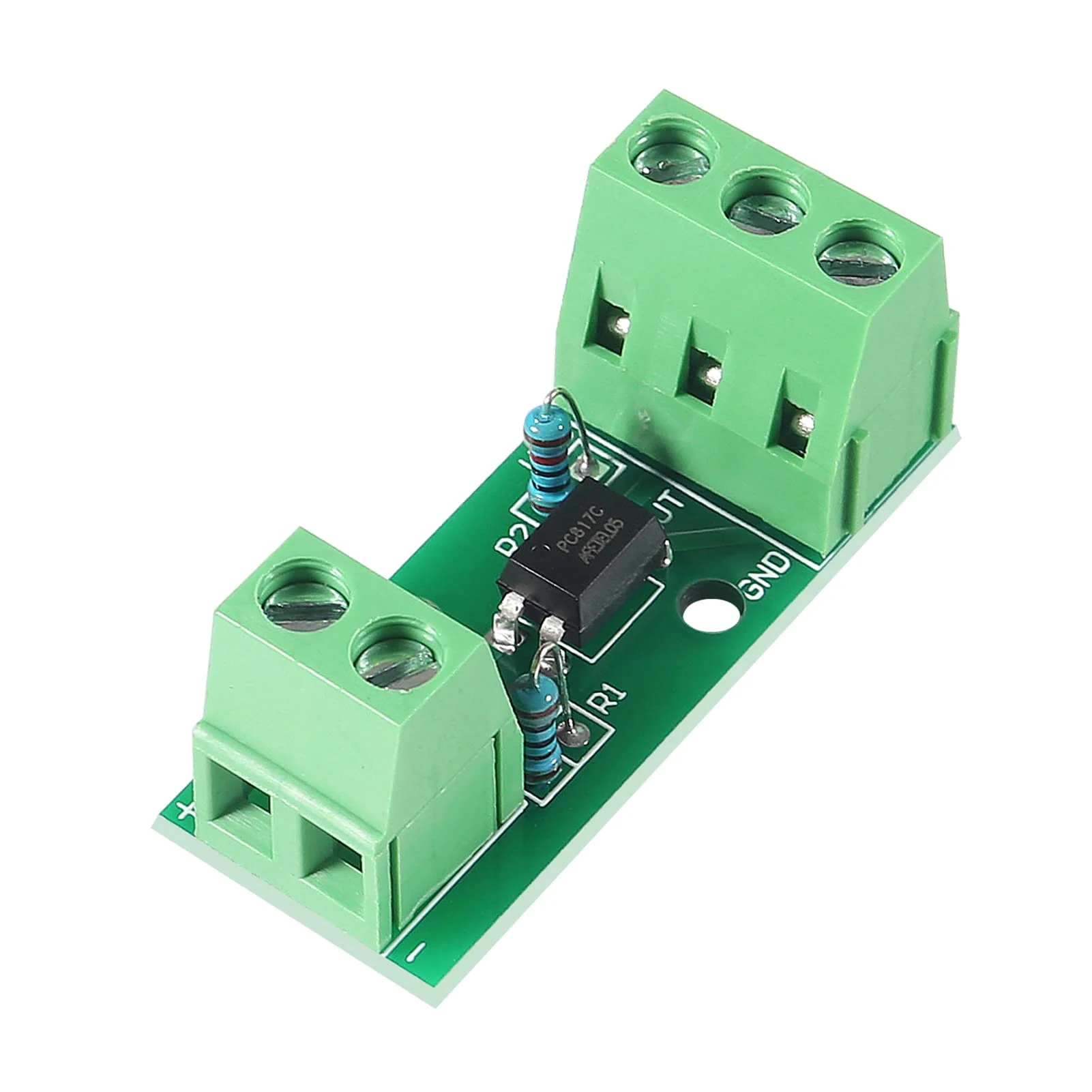

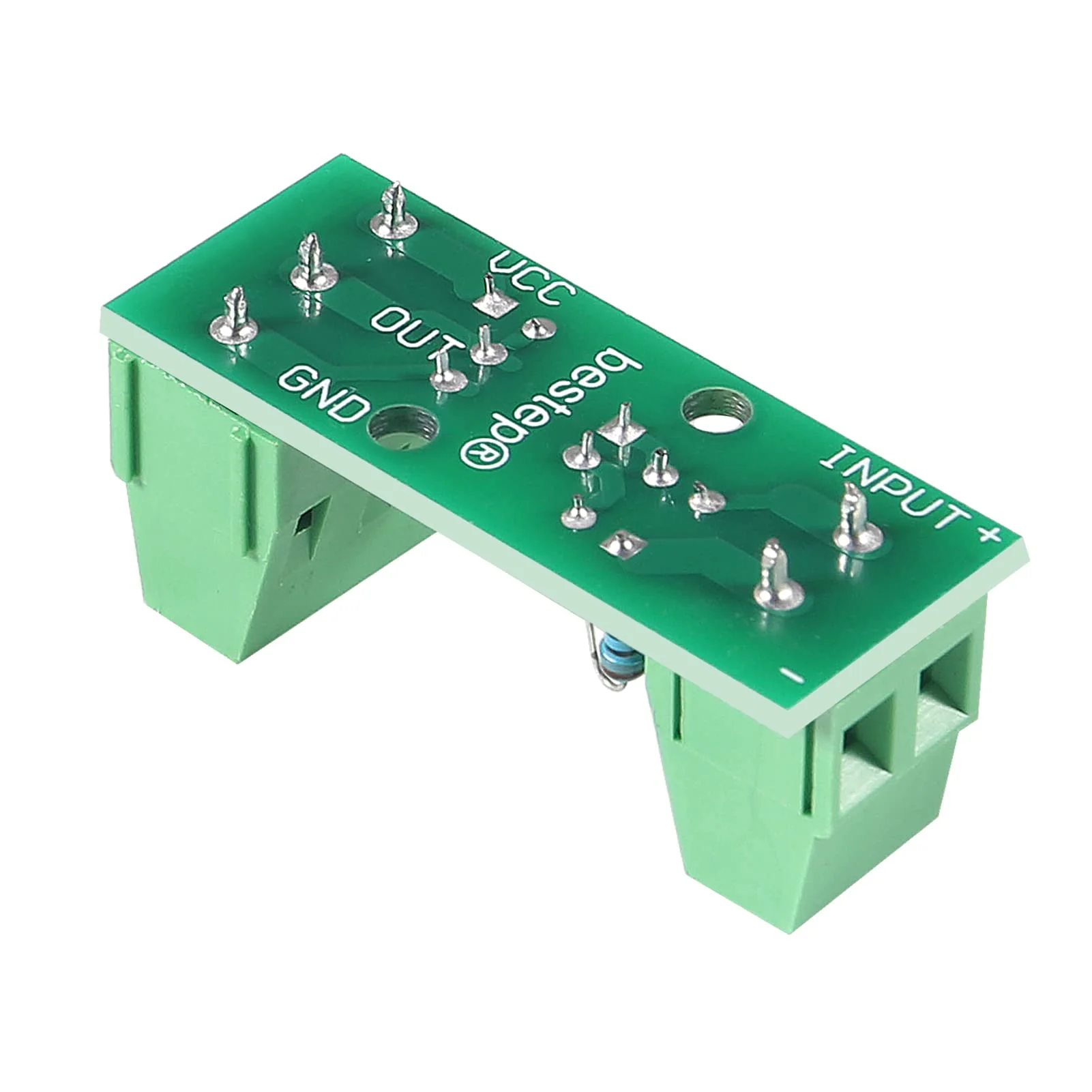

ALMOCN Pack of 4 1 Channel Optocoupler PC817 1 Channel Insulation Board Voltage Converter Adapter Module 3.6-30V Driver Photoelectric Insulated Module (1CH Optocoupler)

ALMOCN Pack of 4 1 Channel Optocoupler PC817 1 Channel Insulation Board Voltage Converter Adapter Module 3.6-30V Driver Photoelectric Insulated Module (1CH Optocoupler)

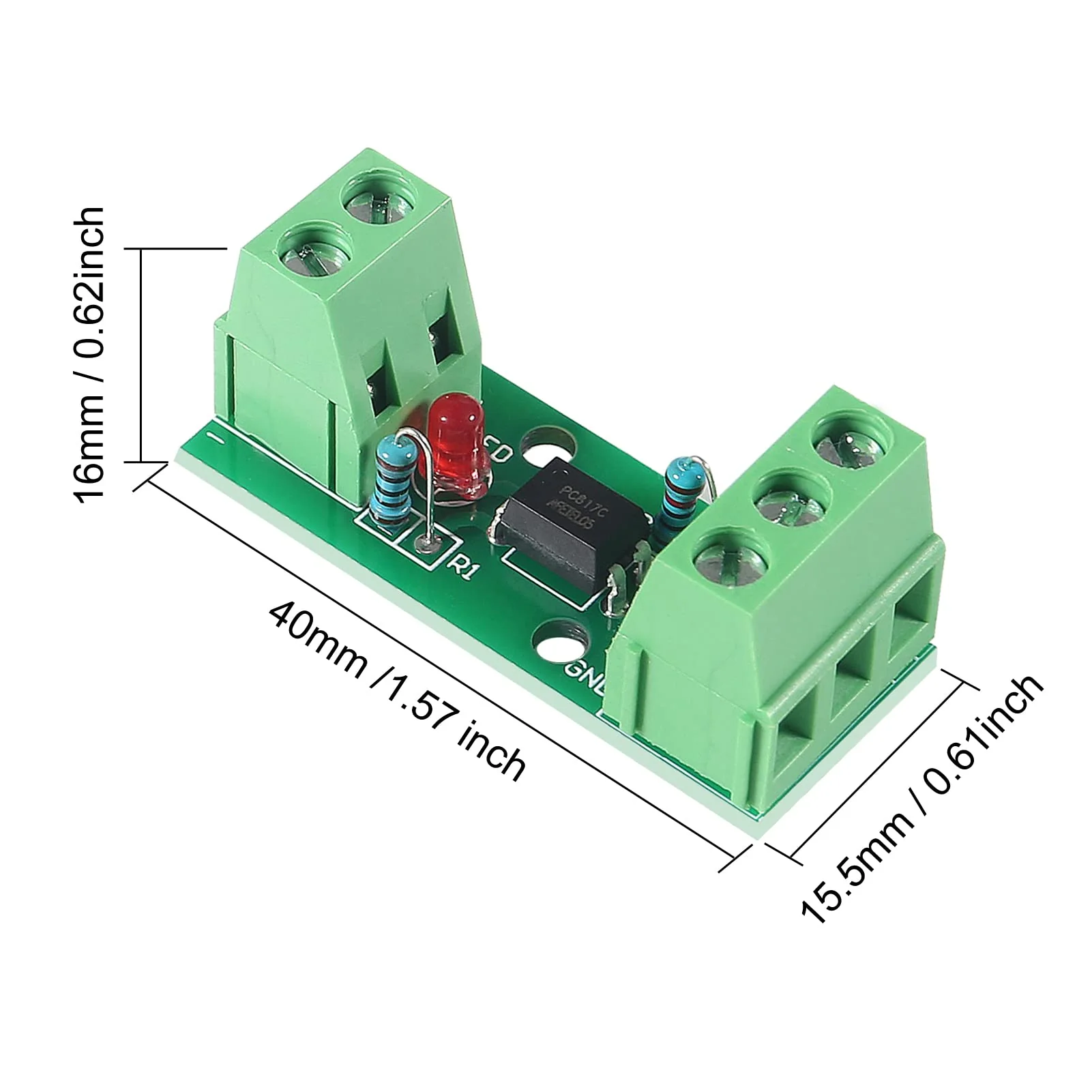

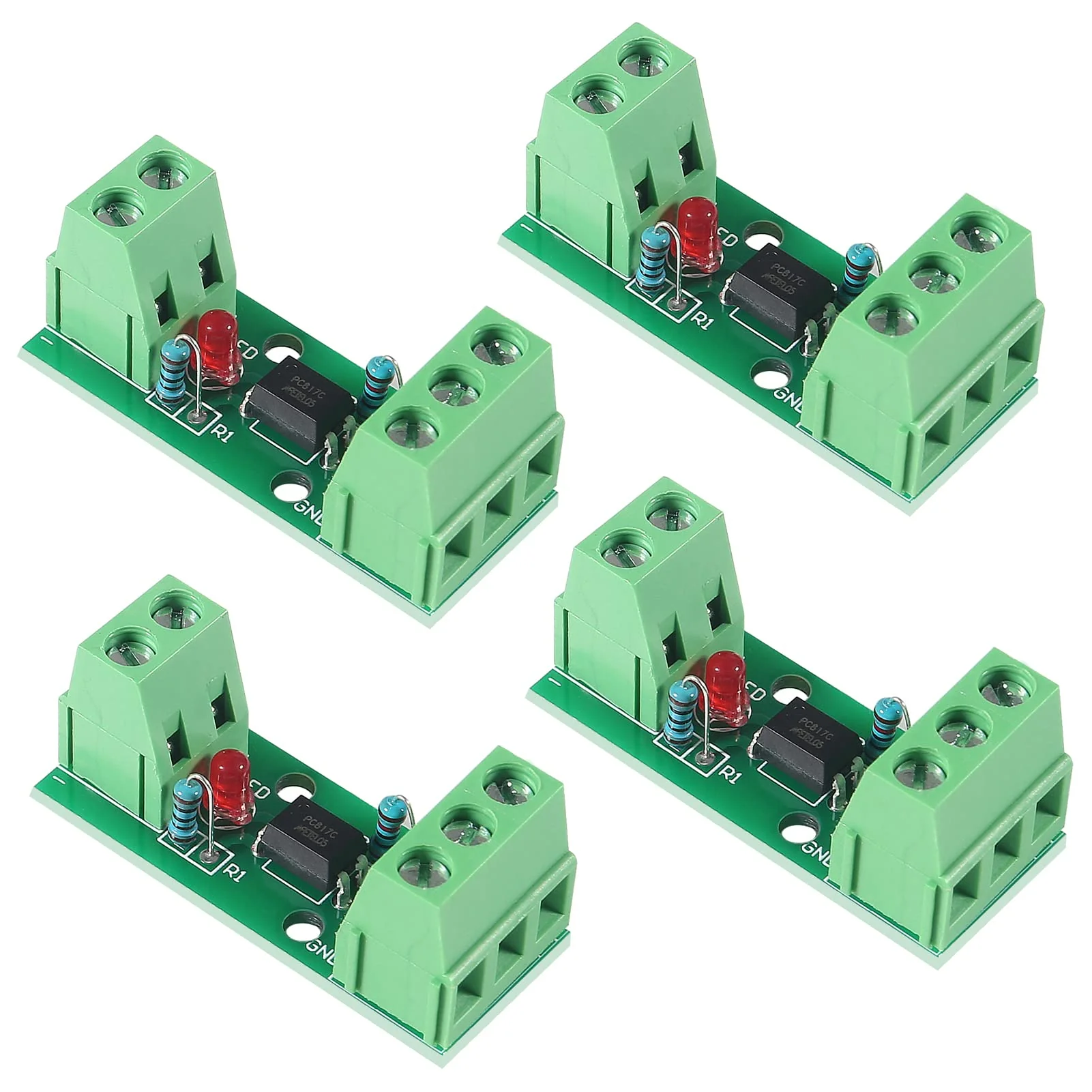

Parameters: Drive terminal signal voltage:3.6-24V Output voltage range: 3.6-30V (Output current depends on the specific situation, but the maximum does not exceed 10MA, the total power is constant, the voltage and current are inversely proportional) Whether the output power is high potential or low potential can be realized by a jumper cap. The 4 channels 817 are separated, can simultaneously control the different voltages, etc. Dimensions: 48mm x 38mm (length and width). Long hole spacing: 42mm Width of side hole spacing: 32 mm. Package includes: 4 x PC817 1 Channel Optocoupler Insulation Plate

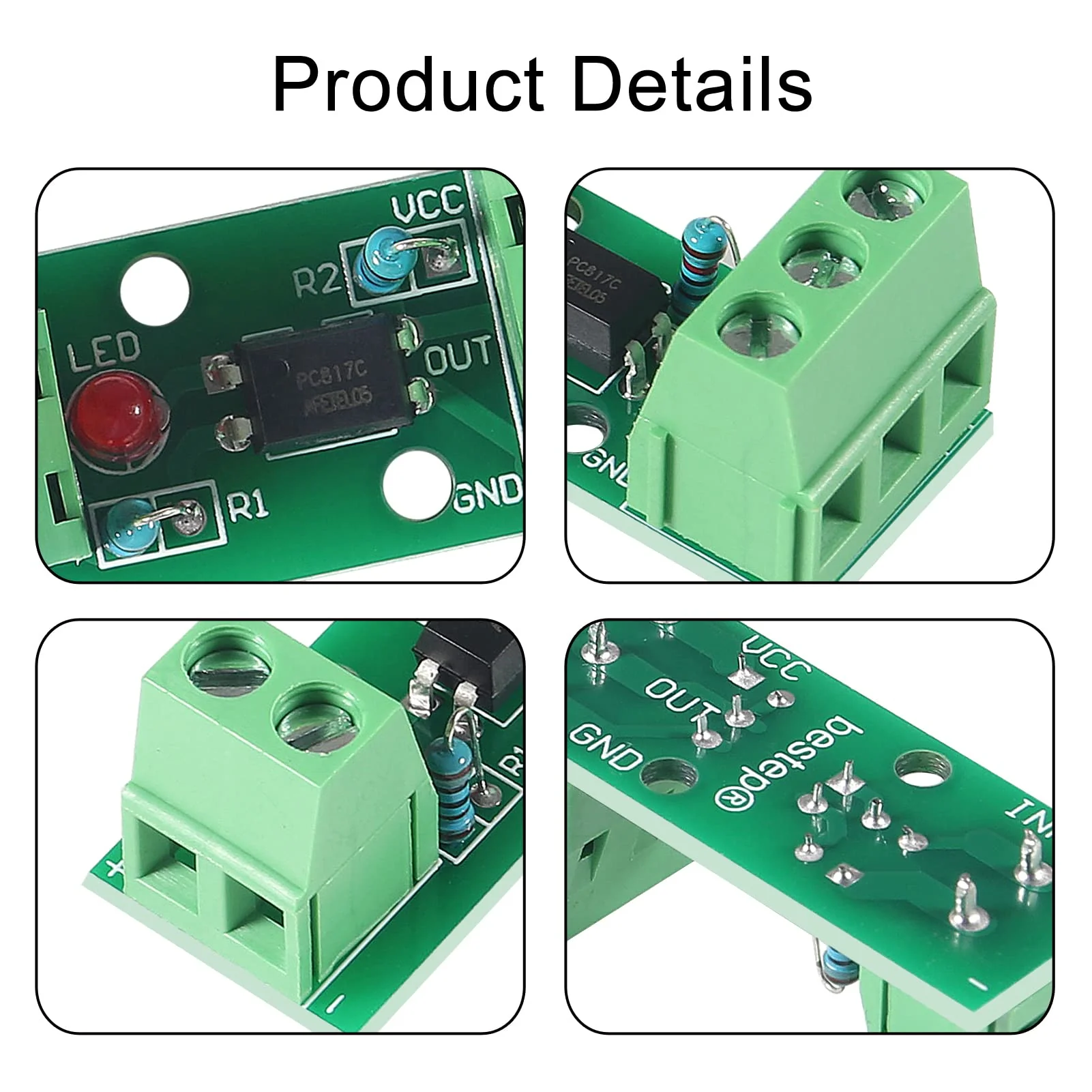

Product Features

• The PC817 optocoupler insulation plate is used when it comes to the need for insulation control and voltage conversion.
• Photoelectric insulation has strong anti-interference ability. Can drive large rear power triodes, MOS tubes, etc. where high voltage driving is required, can also be directly operated 24V low power relay.
• The jumper cap allows you to achieve whether the output power is a high potential or a low output power. The 4th and 817 on the board are independent, which allows for simultaneous control of different voltages.
• If it is a pulse signal, please note that the limit of 817 is below 4 kHz. If the control signal is greater than 4KHz, please do not use this module, it will not work properly.
• Can realize 3.3V or 5V to control the interface of 3.6-30V voltage. After turning on the control terminal, the controlled clamp is also switched on.
