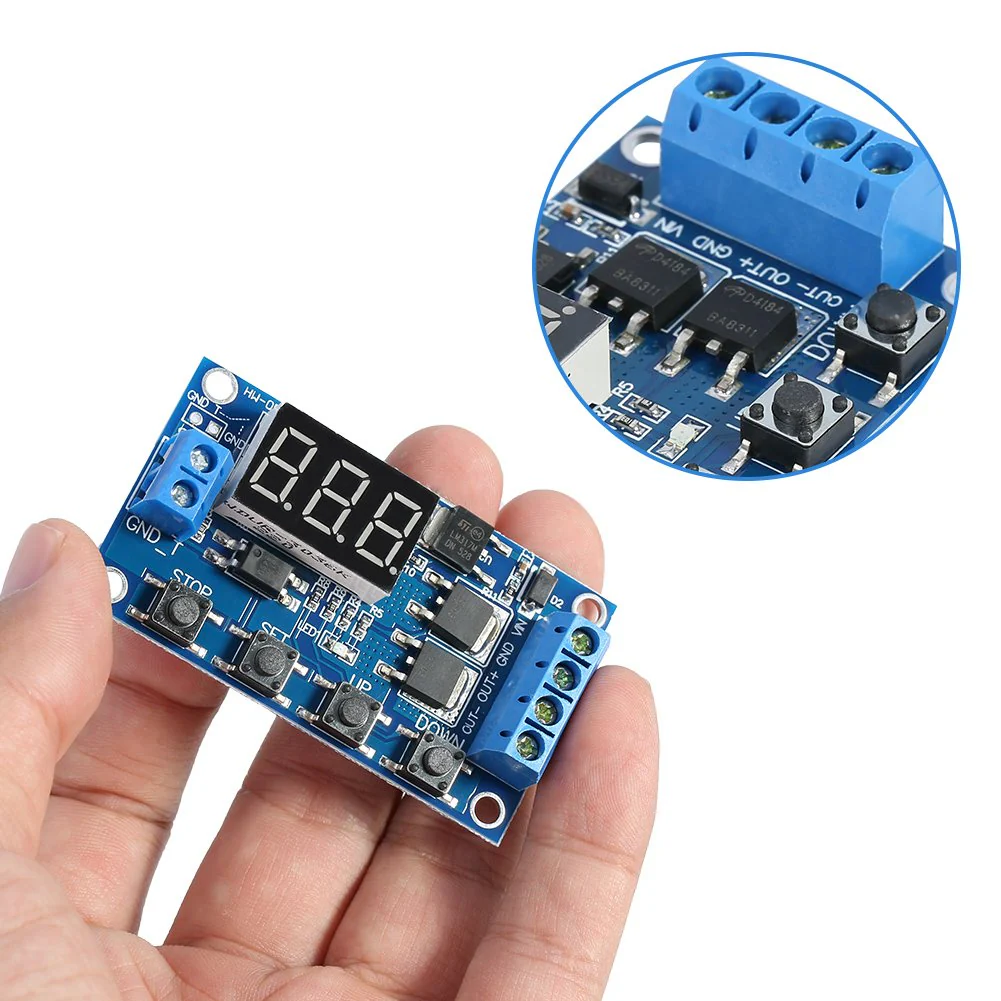

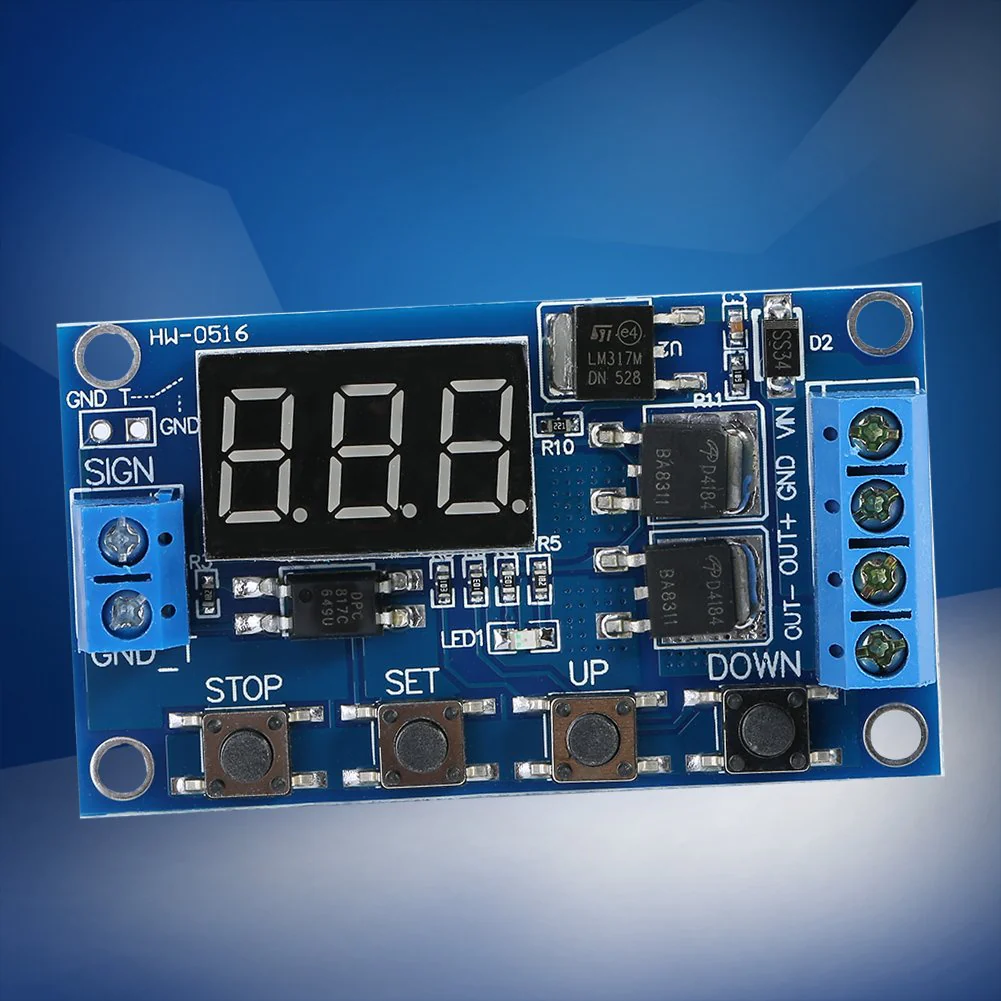

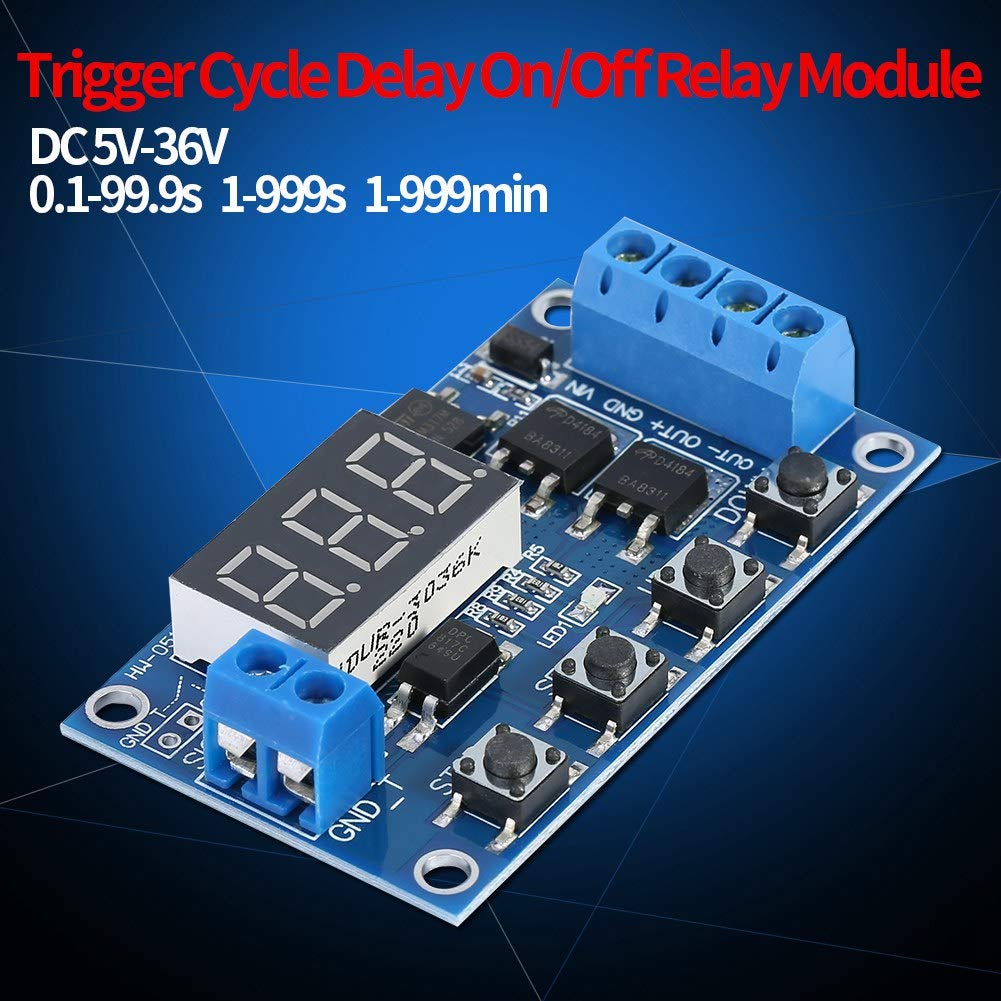

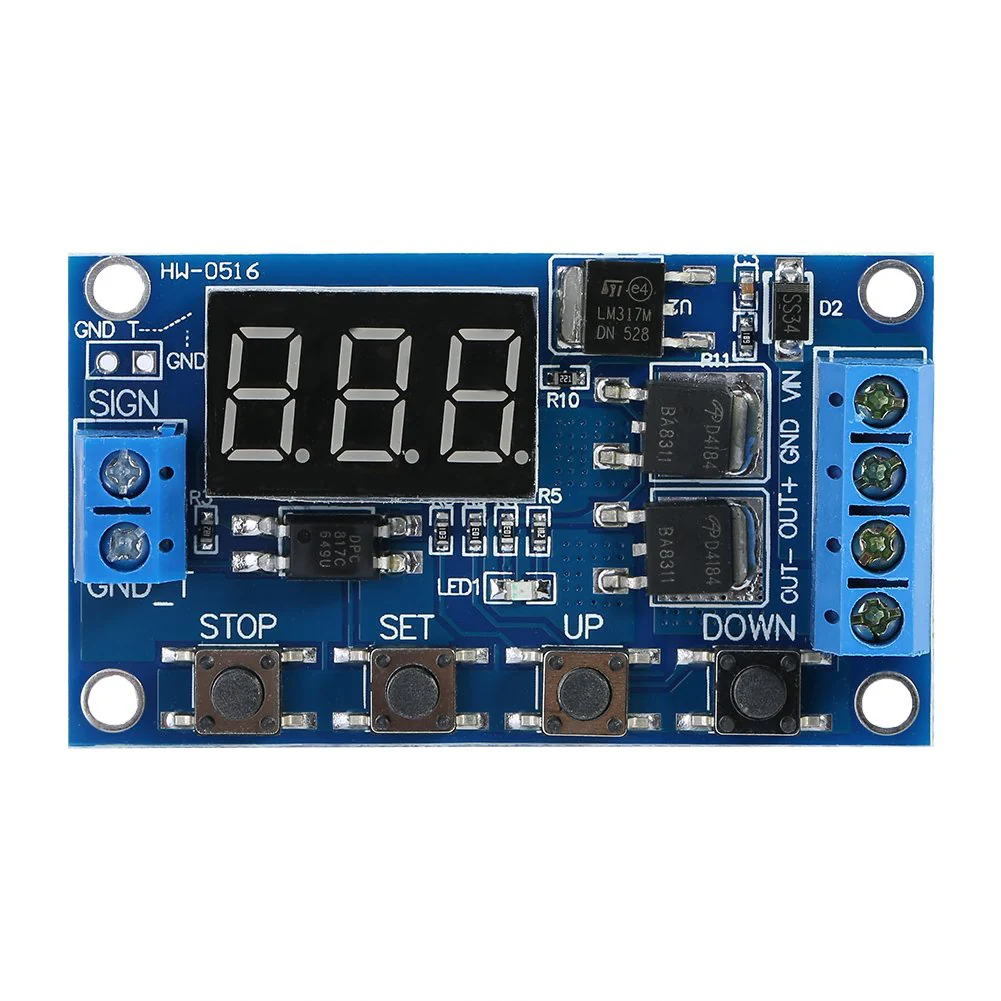

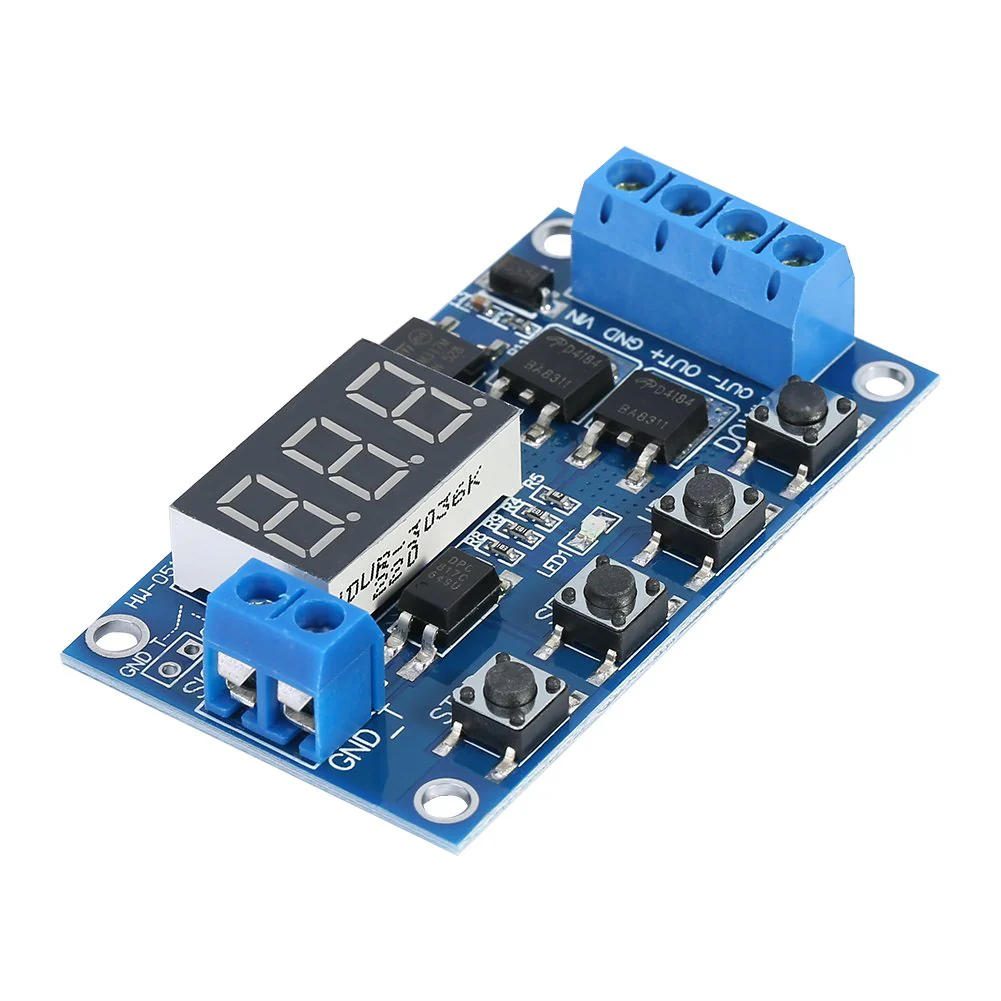

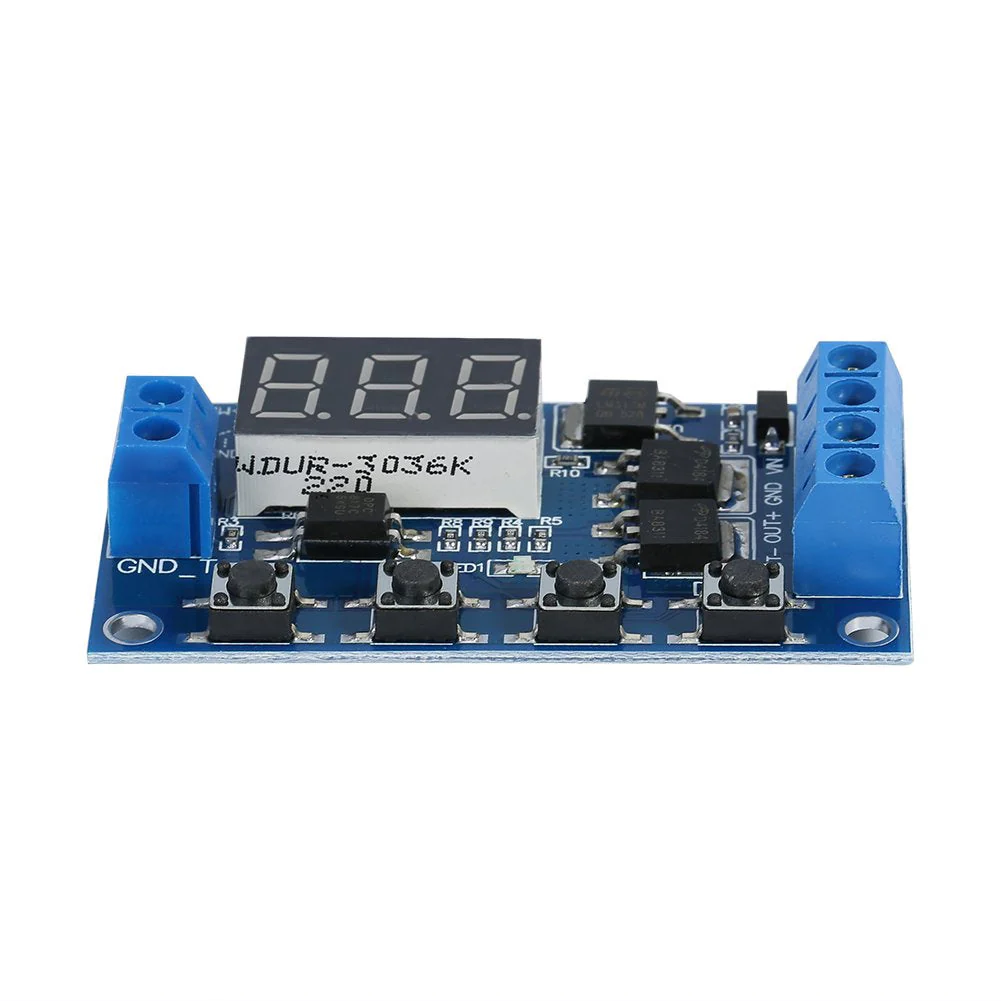

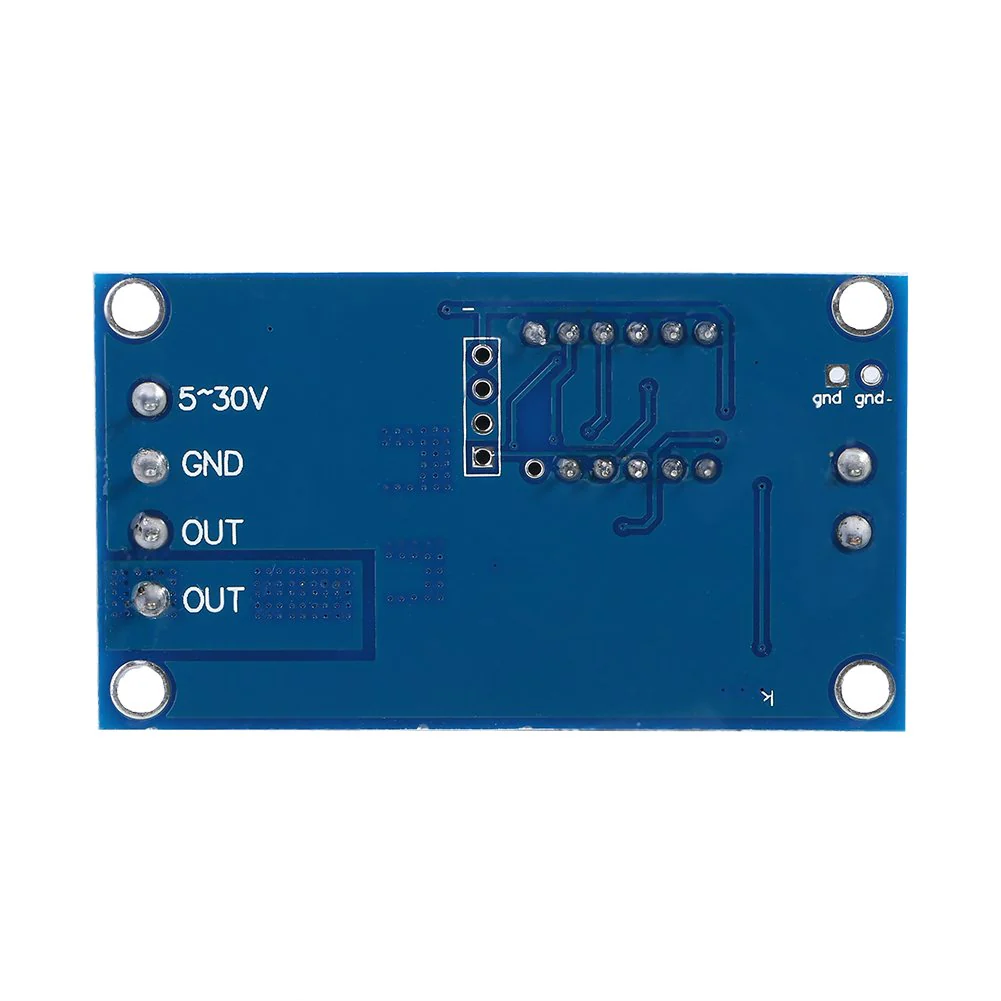

Akozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display
Akozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display
Akozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display

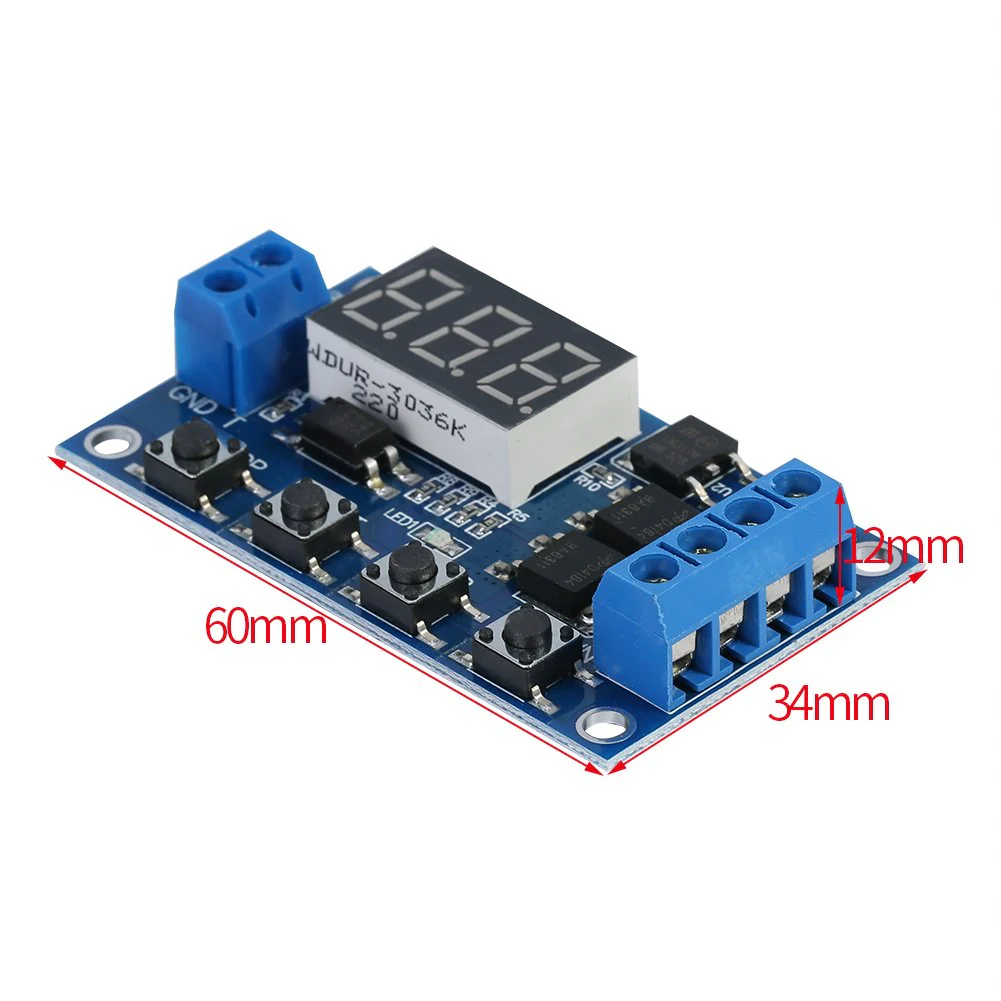

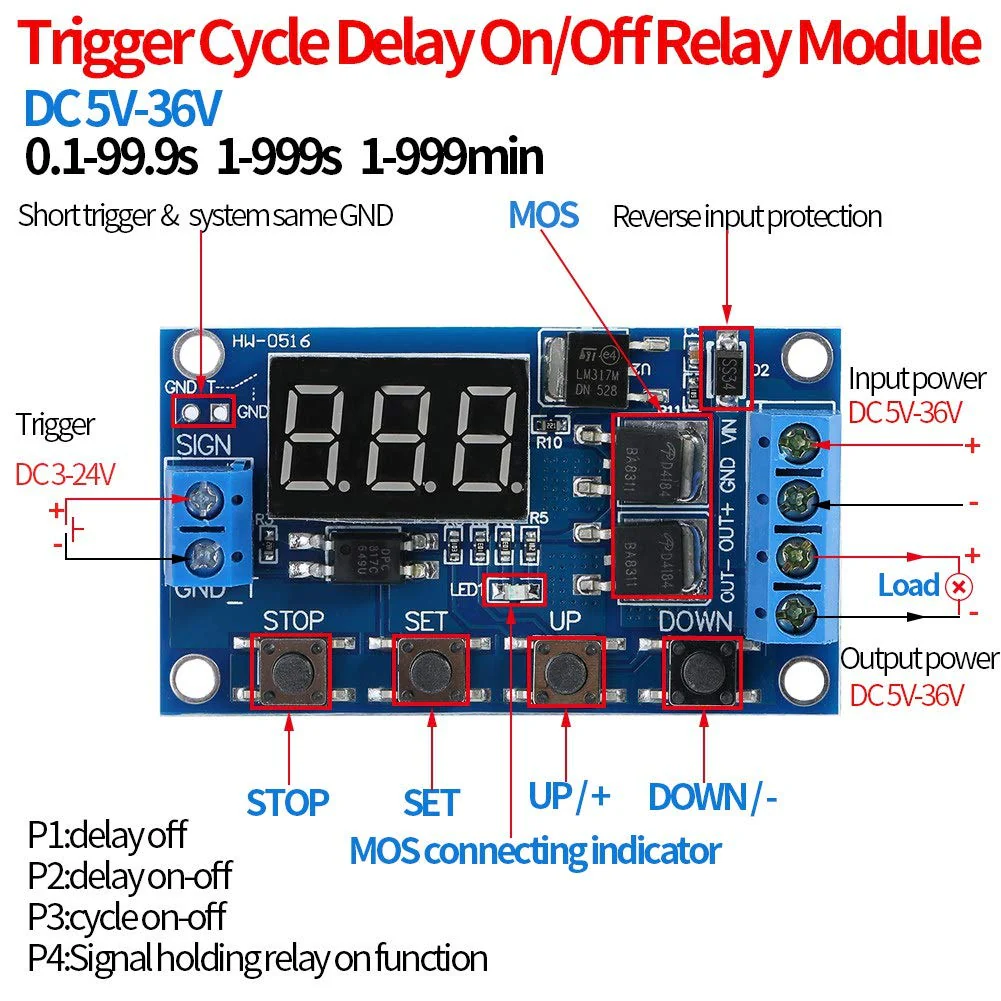

Specifications: Voltage: DC 5V ~ 36V. Trigger signal source: high voltage level trigger (3.0V~24V), signal ground and system ground are not common. Output capacity: DC 5V ~ 36V, at room temperature, continuous current is 15A, power 400W. With improved heat dissipation, the current can be up to 30A. Standby current: 20 mA. Operating current: 50 mA. Working temperature: -40 ~ 85 °C. Clock (time delay) range: 0.1 seconds to 999 minutes. Size: 60 34 12 mm / 2.36 1.33 0.47 inches. How to set the clock range: After setting the parameter value when selecting the mode, press the "STOP" button to adjust the clock range; XXX The last decimal point is on, range: 1 second to 999 seconds. XX. X The penultimate decimal point illuminates, range: 0.1 seconds to 99.9 seconds. X. X. X light up every 3 decimal points, range: 1 minute to 999 minutes. For example, if you want to set "OP" as 3.2 seconds, you need to light up the penultimate decimal point and set the digit display as 03.2. Note: 1. The module is an active output, the output voltage corresponds to the input voltage. 2. "DC +" and "load +" are internally short-circuited (connected), but "DC-" and "load -" cannot be short-circuited, otherwise the load cannot be switched on and off, which corresponds to turning on the load always. Package includes: 1 x timer module
Product Features
- Number of switching times possible
- No noise was made during on/off switching, no sparks and no electromagnetic interference
- Compared to normal electromagnetic relay modules, the delay on/off switch module has a longer service life
- Dual MOS in parallel active output, low internal resistance, larger current, strong power; at room temperature, the operating current is up to 15A, the power up to 400W, which can be used for most devices
- The delay on/off switch module has a wide voltage input of 5V to 36V, which is usually used to control DC motors, lights, LED strips, micro pumps, solenoid valves, etc., very convenient
Original: $80.41
-65%$80.41
$28.14More Images
Akozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display
Akozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display
Specifications: Voltage: DC 5V ~ 36V. Trigger signal source: high voltage level trigger (3.0V~24V), signal ground and system ground are not common. Output capacity: DC 5V ~ 36V, at room temperature, continuous current is 15A, power 400W. With improved heat dissipation, the current can be up to 30A. Standby current: 20 mA. Operating current: 50 mA. Working temperature: -40 ~ 85 °C. Clock (time delay) range: 0.1 seconds to 999 minutes. Size: 60 34 12 mm / 2.36 1.33 0.47 inches. How to set the clock range: After setting the parameter value when selecting the mode, press the "STOP" button to adjust the clock range; XXX The last decimal point is on, range: 1 second to 999 seconds. XX. X The penultimate decimal point illuminates, range: 0.1 seconds to 99.9 seconds. X. X. X light up every 3 decimal points, range: 1 minute to 999 minutes. For example, if you want to set "OP" as 3.2 seconds, you need to light up the penultimate decimal point and set the digit display as 03.2. Note: 1. The module is an active output, the output voltage corresponds to the input voltage. 2. "DC +" and "load +" are internally short-circuited (connected), but "DC-" and "load -" cannot be short-circuited, otherwise the load cannot be switched on and off, which corresponds to turning on the load always. Package includes: 1 x timer module
Product Features
- Number of switching times possible
- No noise was made during on/off switching, no sparks and no electromagnetic interference
- Compared to normal electromagnetic relay modules, the delay on/off switch module has a longer service life
- Dual MOS in parallel active output, low internal resistance, larger current, strong power; at room temperature, the operating current is up to 15A, the power up to 400W, which can be used for most devices
- The delay on/off switch module has a wide voltage input of 5V to 36V, which is usually used to control DC motors, lights, LED strips, micro pumps, solenoid valves, etc., very convenient
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Akozon Timer Module, DC 5V-36V Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display
Specifications: Voltage: DC 5V ~ 36V. Trigger signal source: high voltage level trigger (3.0V~24V), signal ground and system ground are not common. Output capacity: DC 5V ~ 36V, at room temperature, continuous current is 15A, power 400W. With improved heat dissipation, the current can be up to 30A. Standby current: 20 mA. Operating current: 50 mA. Working temperature: -40 ~ 85 °C. Clock (time delay) range: 0.1 seconds to 999 minutes. Size: 60 34 12 mm / 2.36 1.33 0.47 inches. How to set the clock range: After setting the parameter value when selecting the mode, press the "STOP" button to adjust the clock range; XXX The last decimal point is on, range: 1 second to 999 seconds. XX. X The penultimate decimal point illuminates, range: 0.1 seconds to 99.9 seconds. X. X. X light up every 3 decimal points, range: 1 minute to 999 minutes. For example, if you want to set "OP" as 3.2 seconds, you need to light up the penultimate decimal point and set the digit display as 03.2. Note: 1. The module is an active output, the output voltage corresponds to the input voltage. 2. "DC +" and "load +" are internally short-circuited (connected), but "DC-" and "load -" cannot be short-circuited, otherwise the load cannot be switched on and off, which corresponds to turning on the load always. Package includes: 1 x timer module
Product Features
- Number of switching times possible
- No noise was made during on/off switching, no sparks and no electromagnetic interference
- Compared to normal electromagnetic relay modules, the delay on/off switch module has a longer service life
- Dual MOS in parallel active output, low internal resistance, larger current, strong power; at room temperature, the operating current is up to 15A, the power up to 400W, which can be used for most devices
- The delay on/off switch module has a wide voltage input of 5V to 36V, which is usually used to control DC motors, lights, LED strips, micro pumps, solenoid valves, etc., very convenient
