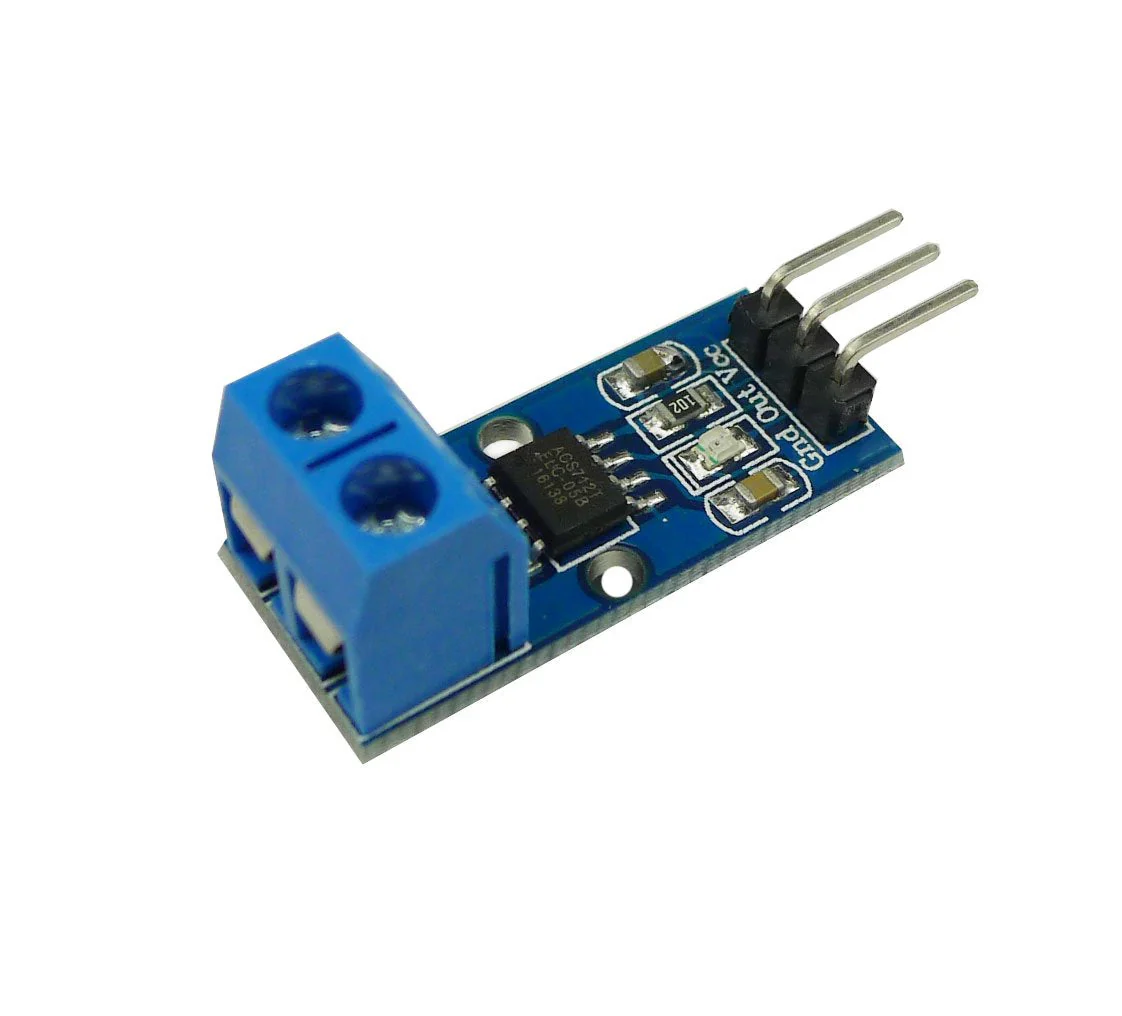

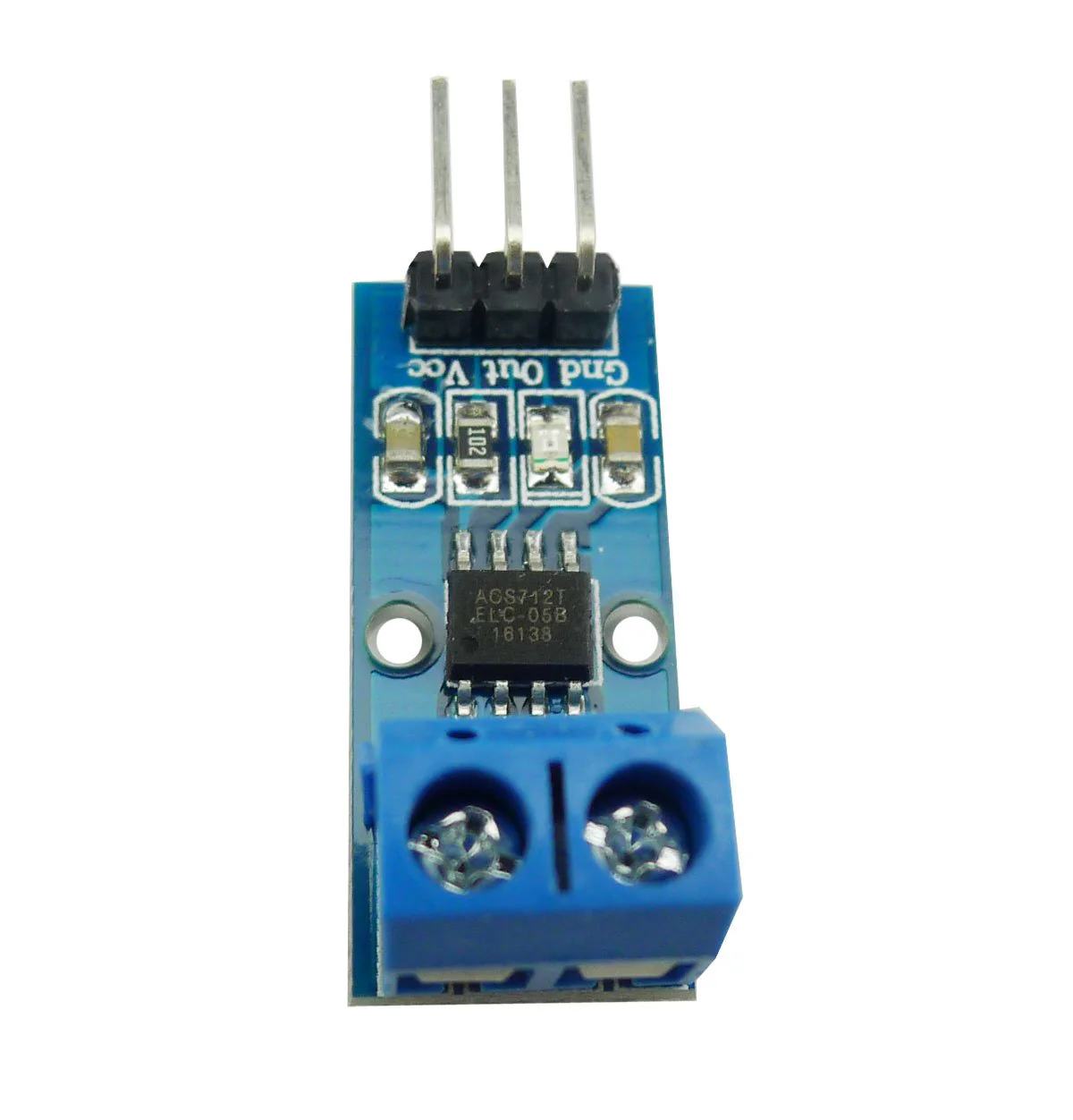

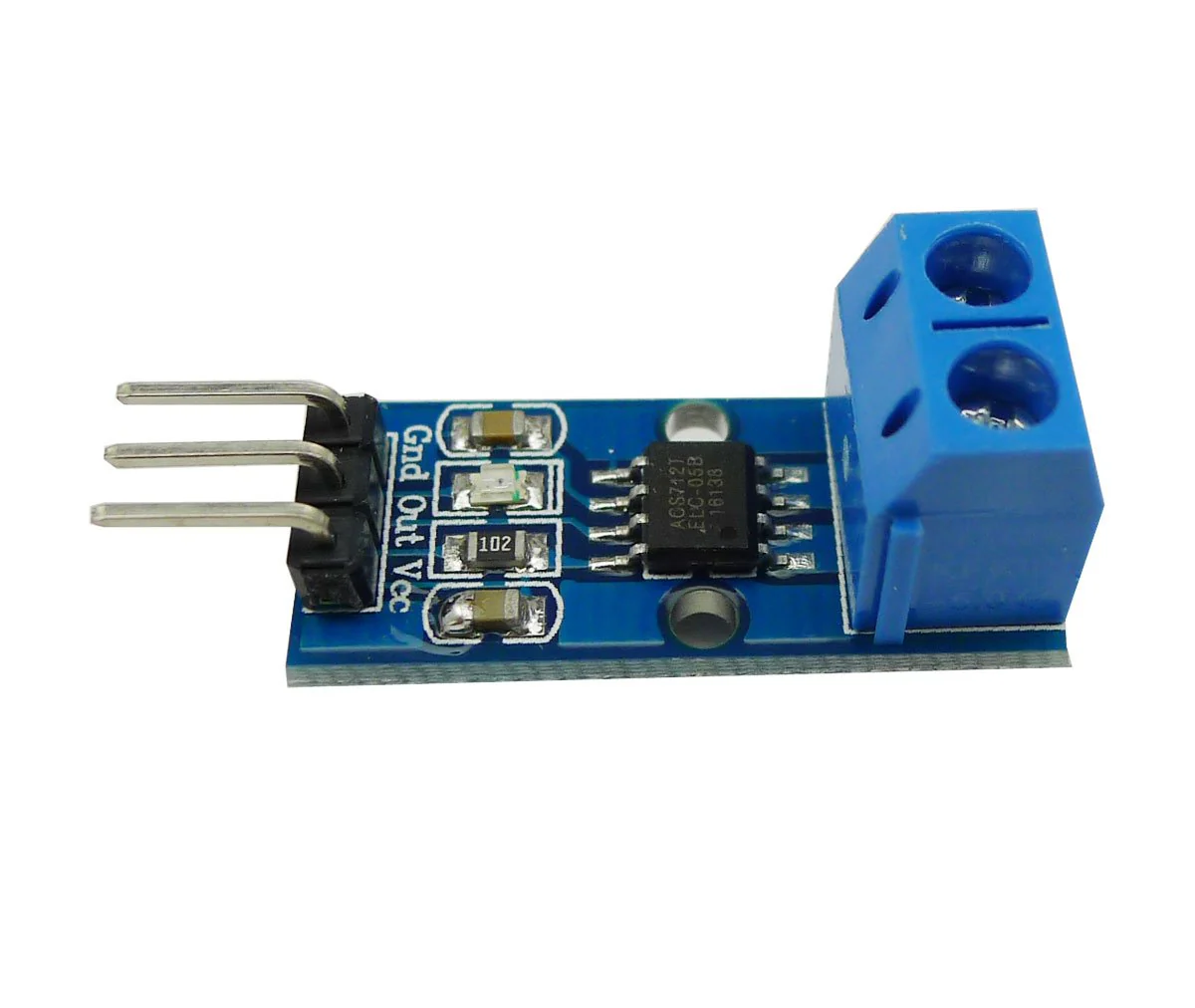

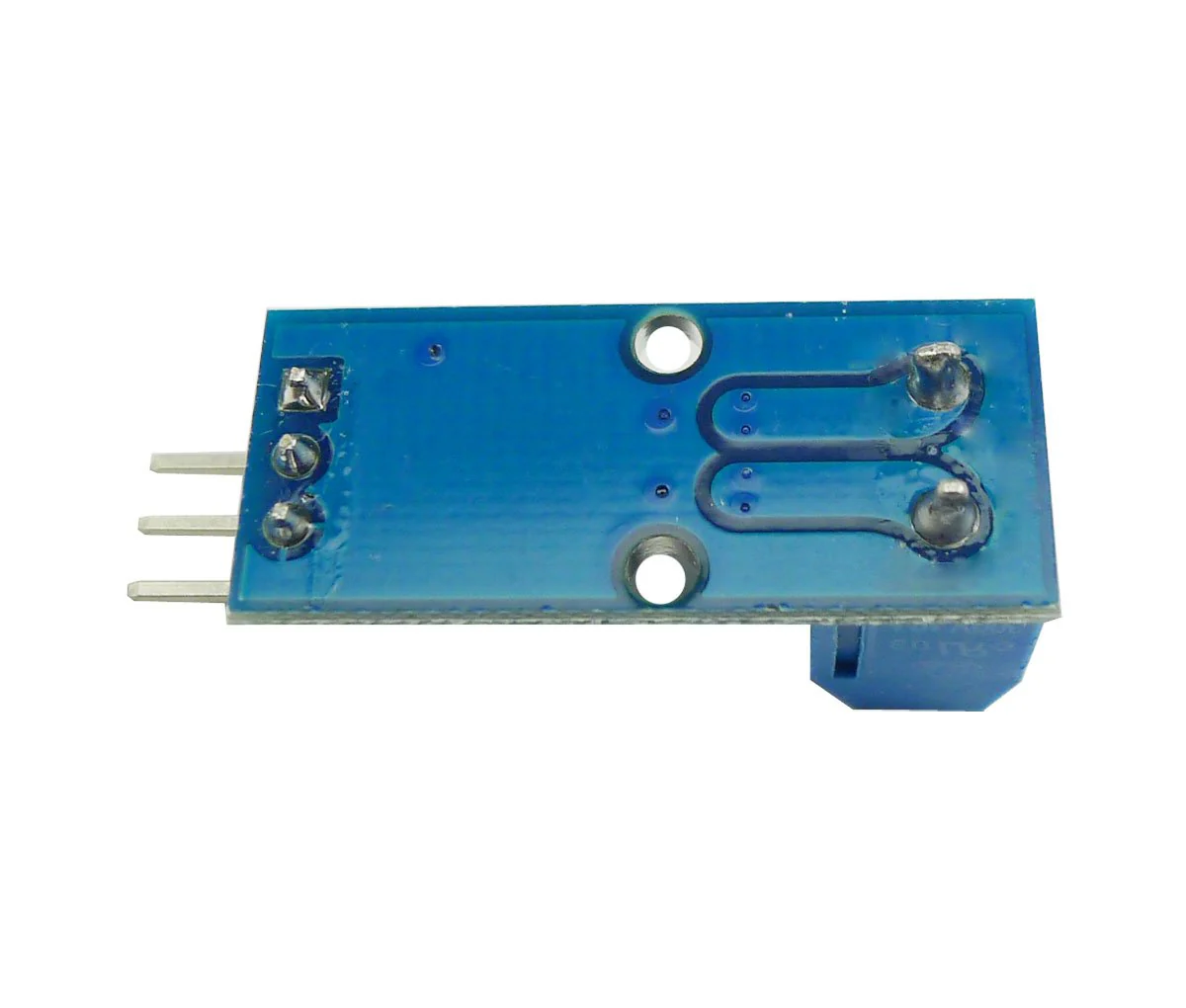

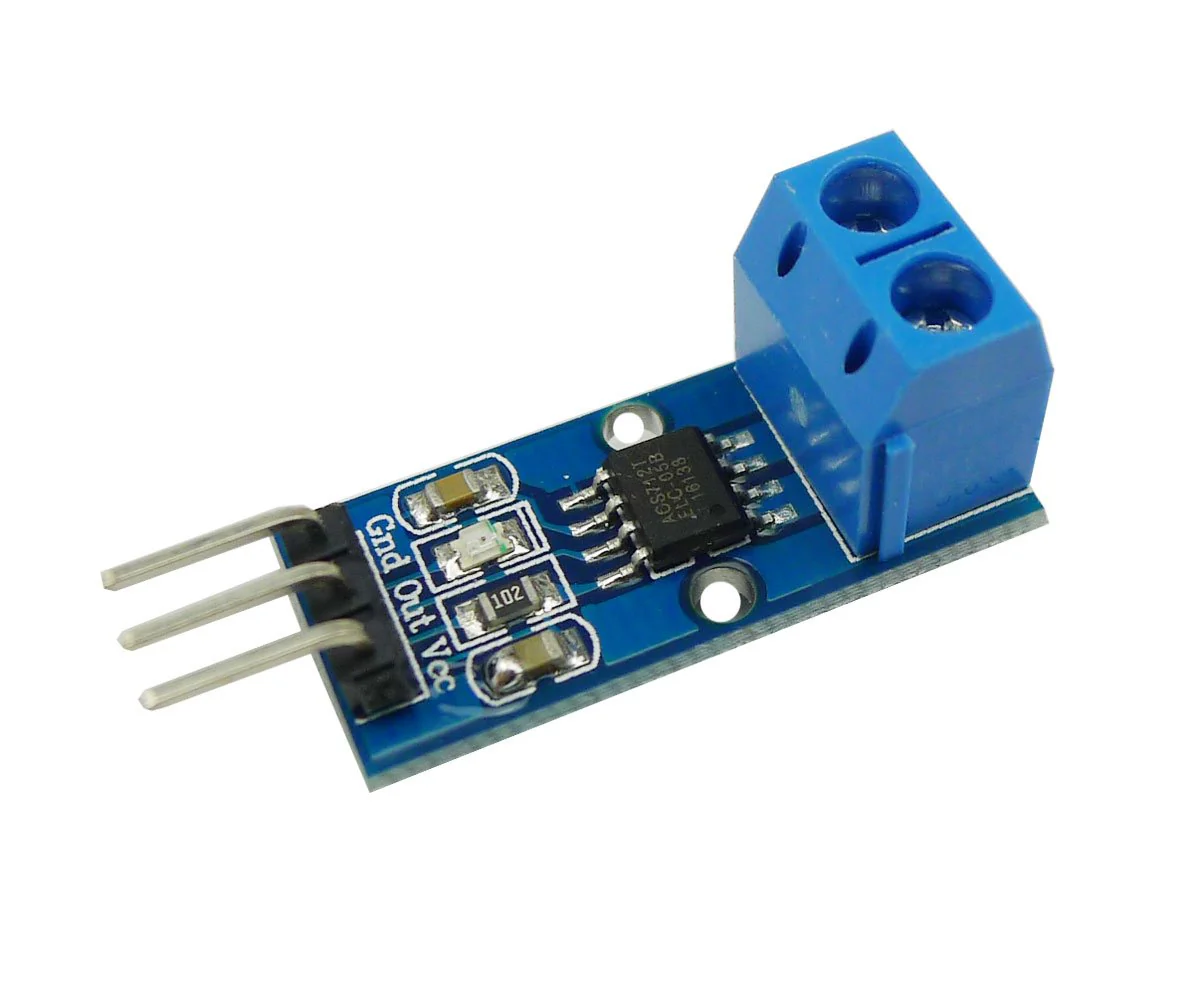

Aihasd Current Sensor ACS712 20 A Range Current Sensor Module f ¨ ¹ R Arduino
Aihasd Current Sensor ACS712 20 A Range Current Sensor Module f ¨ ¹ R Arduino

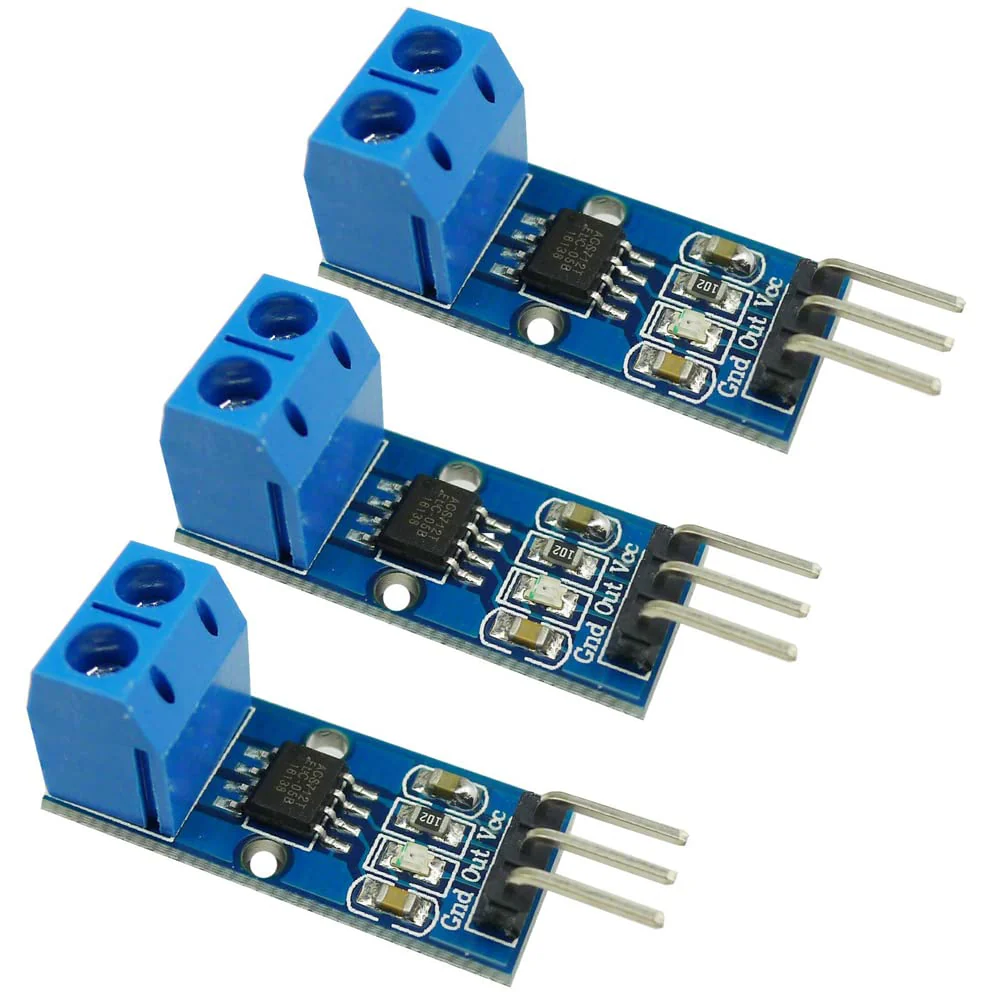

Product description: 1. Current Sensor Chip: ACS712ELC-05B 2. When the current is 0, the output is the current medium voltage, isolated. 3. Pin 5V power supply, built-in power indicator. 4. The module can measure positive and negative 5A current, according to the analogue output 185 mV/A. 5. If no detection current is exceeded, the output voltage is VCC/2. 6. The current to be detected is connected in series to the terminal. 7. PCB Size:31mm13mm 8. Weight: 10.5g Note: ACS712 is based on the principle of Hall detection. Please try to avoid the influence of magnetic field when using. Package includes: 3 x 5A current sensor board current sensor module current sensor module
Product Features
- Name: ACS712 Current Sensor Module, Current Sensor Chip: ACS712ELC-05B
- Pin 5V power supply, built-in power indicator.
- Accuracy range: the module can measure a positive and negative current of 5A, which corresponds to an analogue output of 185 mV/A; IP = 0 A, that is, if no detection current flows, the output voltage is VCC/2.
- Reminder: ACS712 is based on the principle of Hall detection, try to avoid the influence of magnetic fields when you use it.
