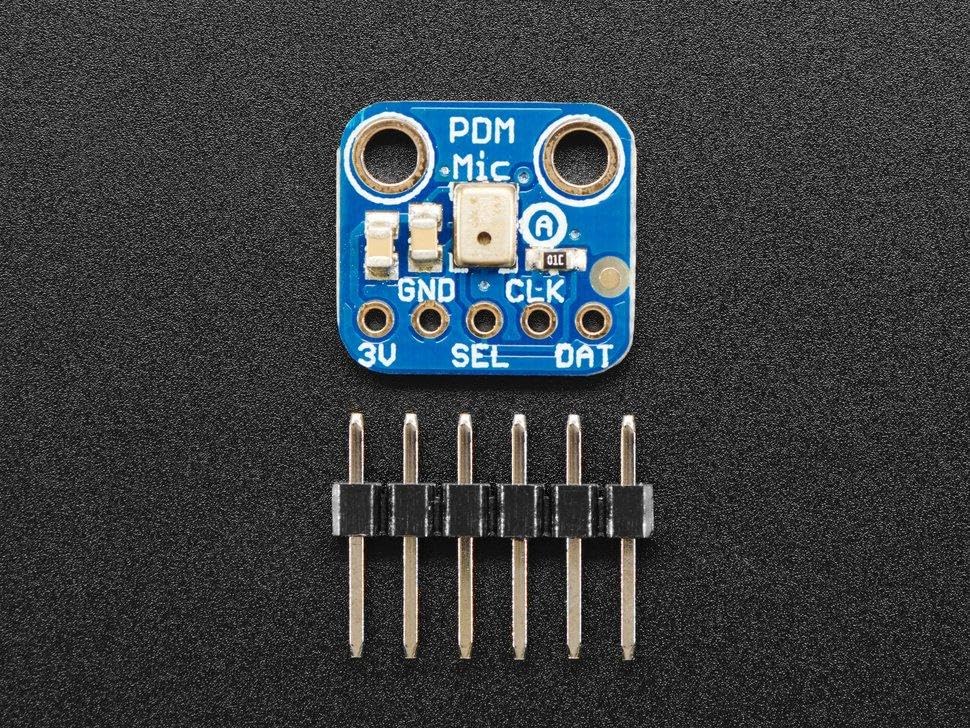

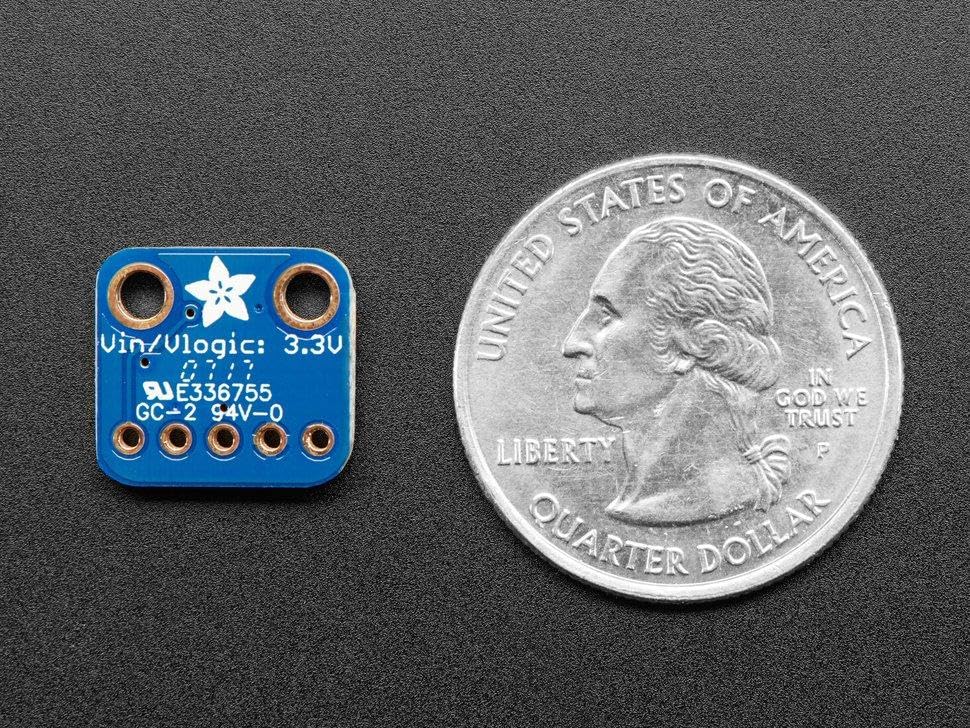

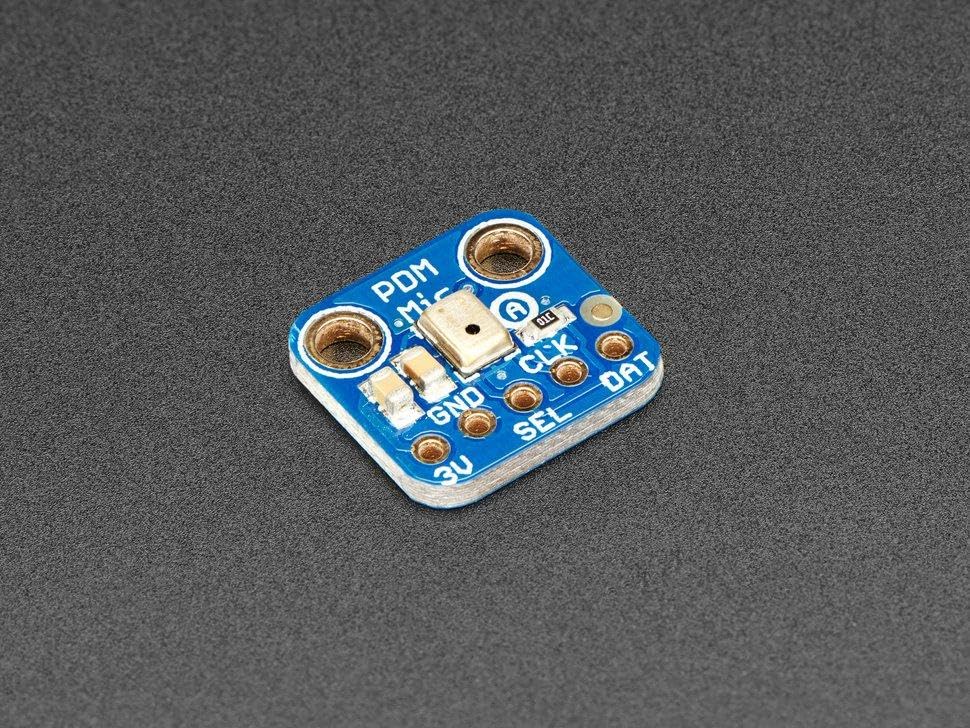

Adafruit MEMS PDM Microphone Description: Here is a pretty exotic microphone found on many finished products, but relatively little as a DIY module. This is not an analog microphone or I2S microphone. This microphone does not deliver an analog output signal like an electret microphone and is therefore ideal for use with microcontrollers without analog input. The output is digital, but it is not PWM or I2S signal. We are talking about PDM output for pulse density modulation. To work properly, your microcontroller must have a PDM input, which is the case with most 32-bit cards currently available. The PDM looks like a 1-bit PWM signal. The module must receive a clock with a frequency between 1 and 3 MHz and as output a square signal synchronized with the clock is obtained. The logical output is 0 or 1 and the square signal gives density to get a corresponding analog value. There are different methods to use these microphones: Your microcontroller has matching inputs and you have a suitable library that converts the data and gives you an analog value (ideal situation) Your microcontroller has matching inputs that give you values you need to convert (there are code examples on the tutorial for ATSAMD21-based cards) Your microcontroller does not have a PDM input, you need to find a way to communicate the microphone with your card (here is an example with an Attiny85). You can also generate the watch yourself, add an analogue filter to the data output and play the analog value. No matter which choice you choose, check the capabilities of your hardware before starting. These PDM microphones can be difficult to master. Technical data: Voltage: 1.8V
