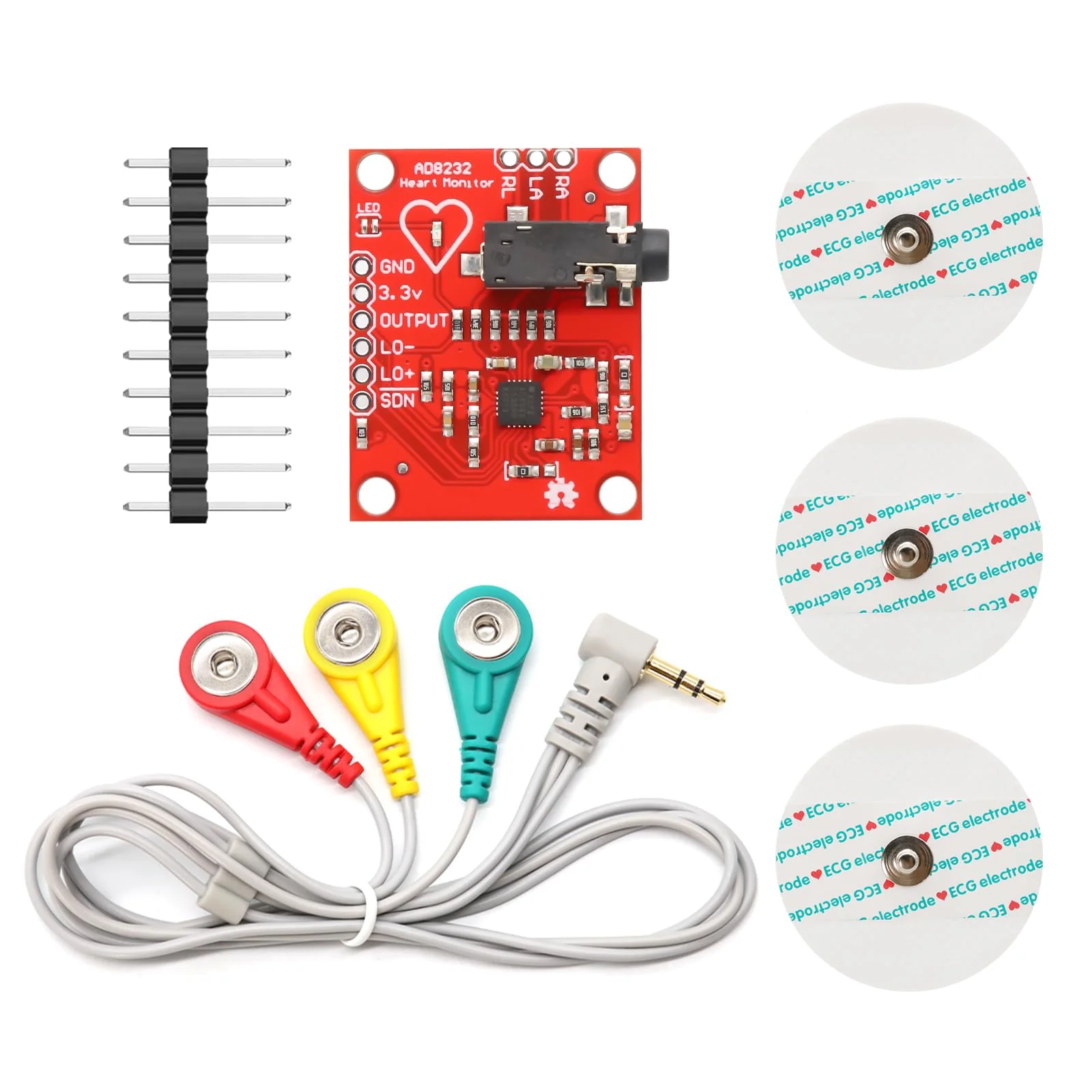

AD8232 ECG Module Kit Binghe AD8232 ECG Measuring Pulse Heart Rate Sensor Module AD8232 ECG Monitoring Sensor ECG Heart Rate Sensor Module with Dupont Cable Compatible with Arduino
AD8232 ECG Module Kit Binghe AD8232 ECG Measuring Pulse Heart Rate Sensor Module AD8232 ECG Monitoring Sensor ECG Heart Rate Sensor Module with Dupont Cable Compatible with Arduino
AD8232 ECG Module Kit Binghe AD8232 ECG Measuring Pulse Heart Rate Sensor Module AD8232 ECG Monitoring Sensor ECG Heart Rate Sensor Module with Dupont Cable Compatible with Arduino

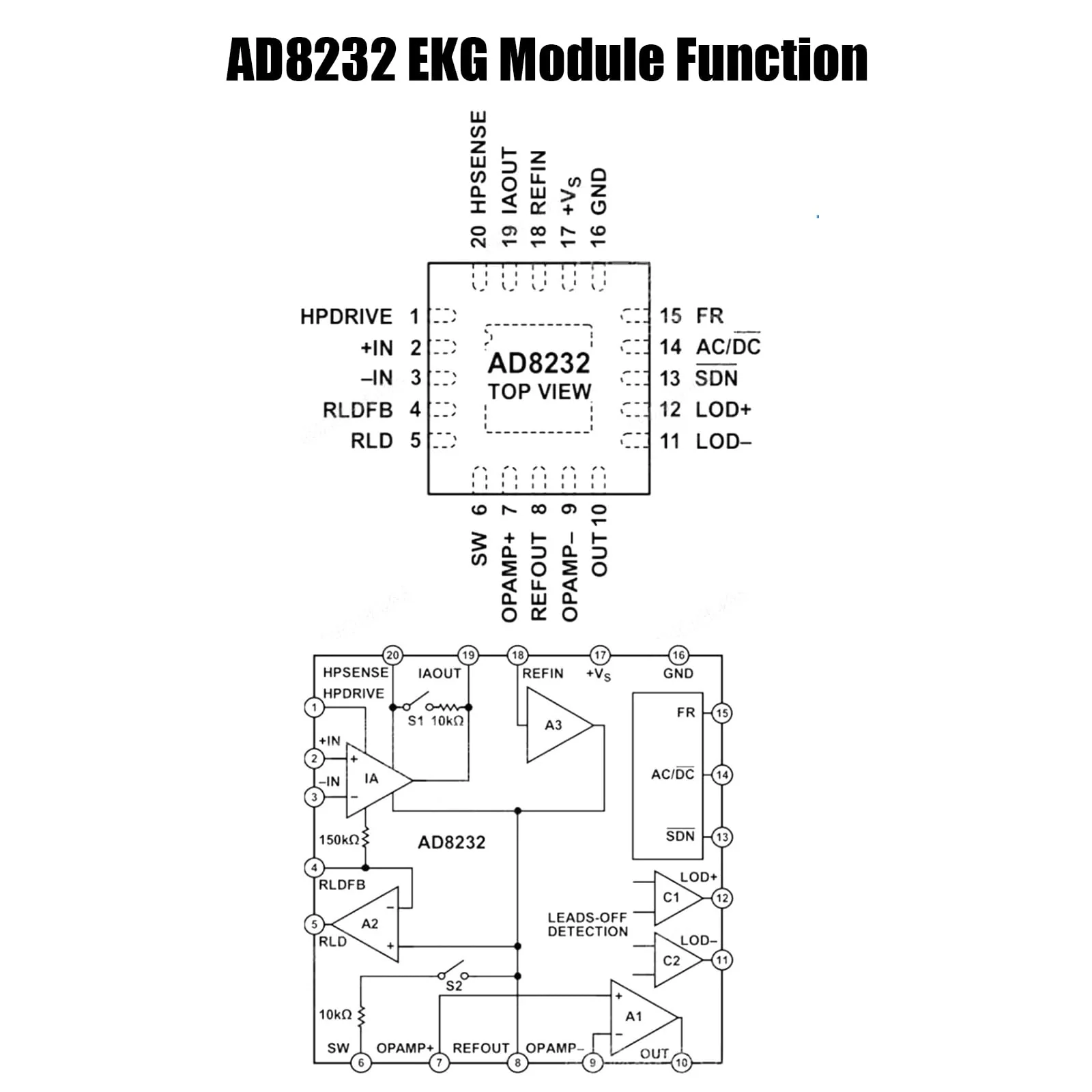

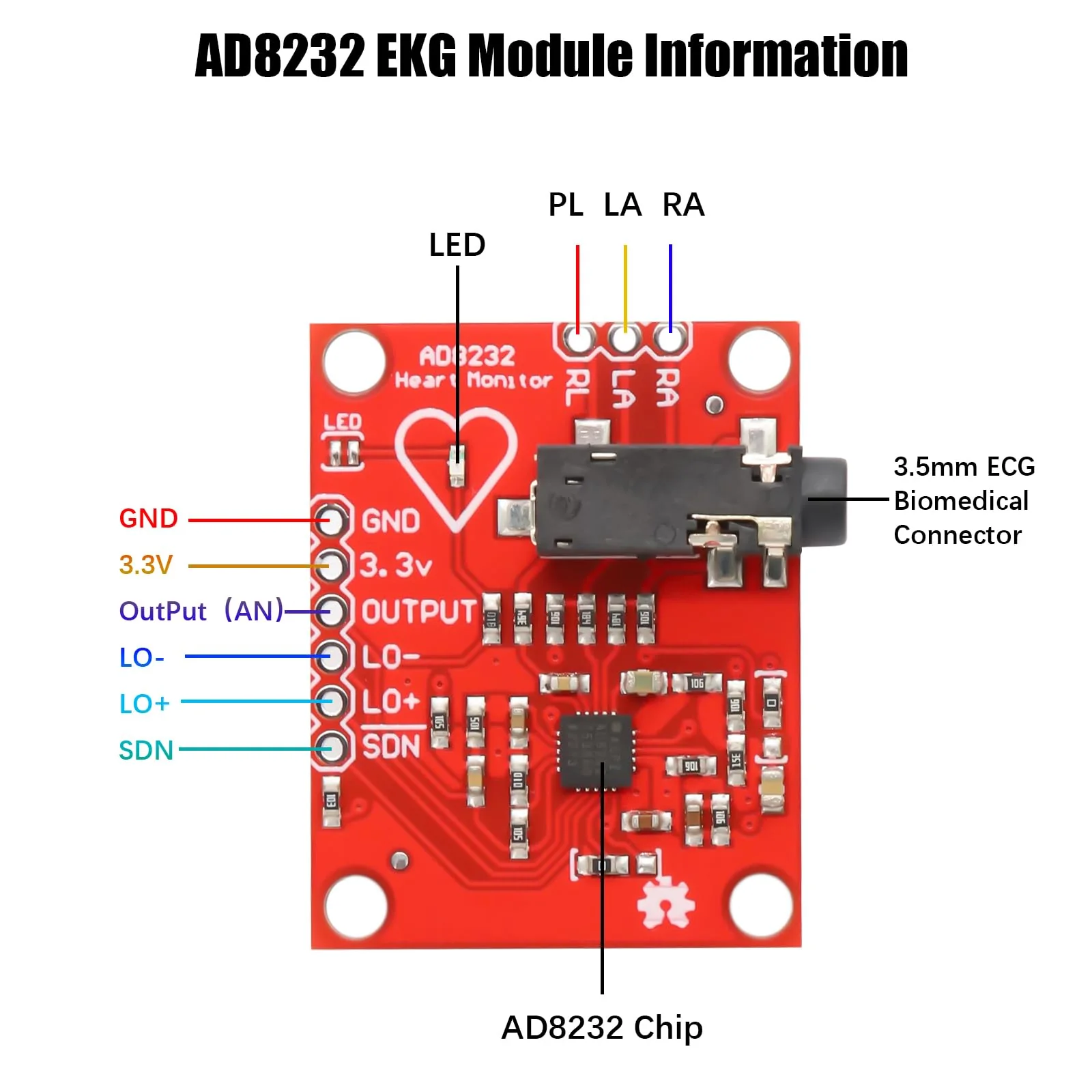

Product overview: The AD8232 is an integrated signal processing module designed for the acquisition and processing of electrocardiograms (ECG) and other bioelectric signals. This AD8232 module efficiently extracts, amplifies and filters weak bioelectrical signals for applications such as fitness and training heart rate monitoring, portable ECG devices, remote health status monitoring and capturing bioelectrical signals. Pin Definitions: HPDRIVE: high pass driver output, connects to the capacitor in the high pass filter +IN: Positive input of instrument amplifier, connects to left arm electrode (LA). -IN: negative input of the instrument amplifier, connects to the electrode of the right arm (RA). RLDFB: feedback input for right leg drive RLD: output for driving the right leg, connects to the electrode of the right leg. SW: pin for quick recovery switch, connects to the output of the second high pass filter OPAMP+: In phase input of the operational amplifier. REFOUT: reference voltage output, used as virtual ground OPAMP: inverting input of the operational amplifier. Out: output of the operational amplifier, output of the processed heart rate signal. LOD: output of the derivative comparator (DC mode). LOD+: output of the derivative comparator (DC mode). SDN: shutdown control input, low level to switch to power saving mode AC/DC: control input for derivation mode. FR: Control input for quick recovery GND: electricity mass. +VS: power supply pin REFIN: reference voltage buffer input IAOUT: Output pin of instrument amplifier HPSENSE: input for high pass detection of the instrument amplifier. Connection steps. 1. Connect the power supply: connect the GND pin of the AD8232 module to the power supply ground and +VS pin connect to the power supply (3.3V or 5V). 2. Connect electrodes: +IN to the electrode of the left arm. -Connect IN to the electrode of the right arm. Connect RLD to the electrode of the right leg. 3. Read signal: Connect OUT pin to Arduino's analogue input pin (e.g. A0). 4. Select working mode: adjust AC/DC and SDN pins according to the application requirements. Package includes: 1 x AD8232 ECG module kit.
Product Features
- Precise ECG signal conditioning: The AD8232 ECG module provides high-precision bioelectric signal processing, ideal for heart rate and ECG monitoring, and filters out motion noise for clear signal output.

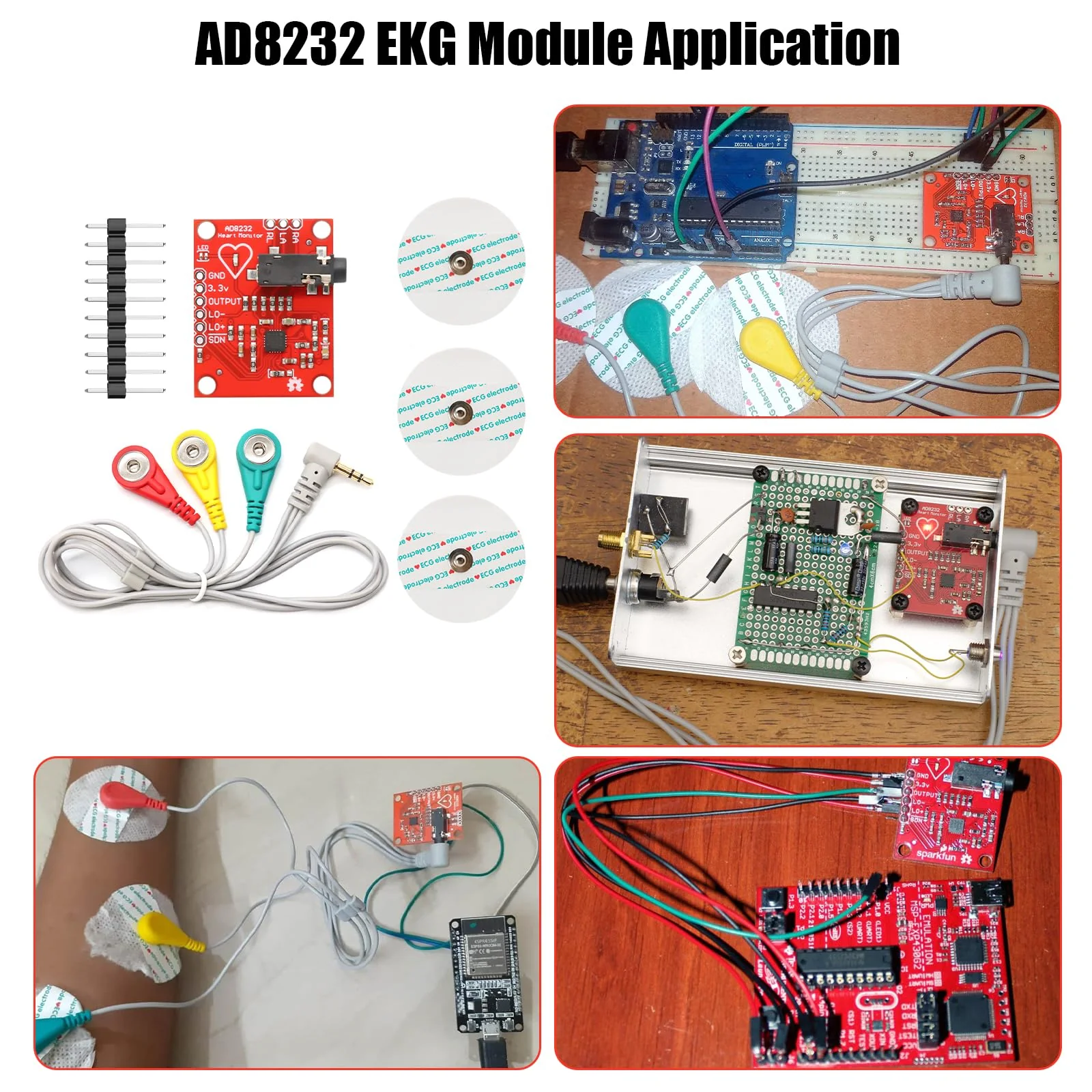

- High compatibility: This AD8232 ECG module is compatible with Arduino and supports bioelectric signal acquisition, activity monitoring and remote health applications, making it reliable for fitness and medical applications.
- Quick recovery function: equipped with an automatic adjustment function, the AD8232 ECG quickly recovers from electrode interruptions and improves stability and continuity of measurement.
- Dual high-pass filter: eliminates motion artifacts and electrode potential drift, AD8232 ECG coupled with an instrument amplifier structure for improved gain and filter efficiency.
- Easy installation and troubleshooting: equipped with barrier connectors for easy circuit integration; open source design allows flexible parameter configuration, ECG module suitable for various applications.
Original: $86.20
-65%$86.20
$30.17More Images
AD8232 ECG Module Kit Binghe AD8232 ECG Measuring Pulse Heart Rate Sensor Module AD8232 ECG Monitoring Sensor ECG Heart Rate Sensor Module with Dupont Cable Compatible with Arduino
AD8232 ECG Module Kit Binghe AD8232 ECG Measuring Pulse Heart Rate Sensor Module AD8232 ECG Monitoring Sensor ECG Heart Rate Sensor Module with Dupont Cable Compatible with Arduino
Product overview: The AD8232 is an integrated signal processing module designed for the acquisition and processing of electrocardiograms (ECG) and other bioelectric signals. This AD8232 module efficiently extracts, amplifies and filters weak bioelectrical signals for applications such as fitness and training heart rate monitoring, portable ECG devices, remote health status monitoring and capturing bioelectrical signals. Pin Definitions: HPDRIVE: high pass driver output, connects to the capacitor in the high pass filter +IN: Positive input of instrument amplifier, connects to left arm electrode (LA). -IN: negative input of the instrument amplifier, connects to the electrode of the right arm (RA). RLDFB: feedback input for right leg drive RLD: output for driving the right leg, connects to the electrode of the right leg. SW: pin for quick recovery switch, connects to the output of the second high pass filter OPAMP+: In phase input of the operational amplifier. REFOUT: reference voltage output, used as virtual ground OPAMP: inverting input of the operational amplifier. Out: output of the operational amplifier, output of the processed heart rate signal. LOD: output of the derivative comparator (DC mode). LOD+: output of the derivative comparator (DC mode). SDN: shutdown control input, low level to switch to power saving mode AC/DC: control input for derivation mode. FR: Control input for quick recovery GND: electricity mass. +VS: power supply pin REFIN: reference voltage buffer input IAOUT: Output pin of instrument amplifier HPSENSE: input for high pass detection of the instrument amplifier. Connection steps. 1. Connect the power supply: connect the GND pin of the AD8232 module to the power supply ground and +VS pin connect to the power supply (3.3V or 5V). 2. Connect electrodes: +IN to the electrode of the left arm. -Connect IN to the electrode of the right arm. Connect RLD to the electrode of the right leg. 3. Read signal: Connect OUT pin to Arduino's analogue input pin (e.g. A0). 4. Select working mode: adjust AC/DC and SDN pins according to the application requirements. Package includes: 1 x AD8232 ECG module kit.
Product Features
- Precise ECG signal conditioning: The AD8232 ECG module provides high-precision bioelectric signal processing, ideal for heart rate and ECG monitoring, and filters out motion noise for clear signal output.
- High compatibility: This AD8232 ECG module is compatible with Arduino and supports bioelectric signal acquisition, activity monitoring and remote health applications, making it reliable for fitness and medical applications.
- Quick recovery function: equipped with an automatic adjustment function, the AD8232 ECG quickly recovers from electrode interruptions and improves stability and continuity of measurement.
- Dual high-pass filter: eliminates motion artifacts and electrode potential drift, AD8232 ECG coupled with an instrument amplifier structure for improved gain and filter efficiency.
- Easy installation and troubleshooting: equipped with barrier connectors for easy circuit integration; open source design allows flexible parameter configuration, ECG module suitable for various applications.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
AD8232 ECG Module Kit Binghe AD8232 ECG Measuring Pulse Heart Rate Sensor Module AD8232 ECG Monitoring Sensor ECG Heart Rate Sensor Module with Dupont Cable Compatible with Arduino
Product overview: The AD8232 is an integrated signal processing module designed for the acquisition and processing of electrocardiograms (ECG) and other bioelectric signals. This AD8232 module efficiently extracts, amplifies and filters weak bioelectrical signals for applications such as fitness and training heart rate monitoring, portable ECG devices, remote health status monitoring and capturing bioelectrical signals. Pin Definitions: HPDRIVE: high pass driver output, connects to the capacitor in the high pass filter +IN: Positive input of instrument amplifier, connects to left arm electrode (LA). -IN: negative input of the instrument amplifier, connects to the electrode of the right arm (RA). RLDFB: feedback input for right leg drive RLD: output for driving the right leg, connects to the electrode of the right leg. SW: pin for quick recovery switch, connects to the output of the second high pass filter OPAMP+: In phase input of the operational amplifier. REFOUT: reference voltage output, used as virtual ground OPAMP: inverting input of the operational amplifier. Out: output of the operational amplifier, output of the processed heart rate signal. LOD: output of the derivative comparator (DC mode). LOD+: output of the derivative comparator (DC mode). SDN: shutdown control input, low level to switch to power saving mode AC/DC: control input for derivation mode. FR: Control input for quick recovery GND: electricity mass. +VS: power supply pin REFIN: reference voltage buffer input IAOUT: Output pin of instrument amplifier HPSENSE: input for high pass detection of the instrument amplifier. Connection steps. 1. Connect the power supply: connect the GND pin of the AD8232 module to the power supply ground and +VS pin connect to the power supply (3.3V or 5V). 2. Connect electrodes: +IN to the electrode of the left arm. -Connect IN to the electrode of the right arm. Connect RLD to the electrode of the right leg. 3. Read signal: Connect OUT pin to Arduino's analogue input pin (e.g. A0). 4. Select working mode: adjust AC/DC and SDN pins according to the application requirements. Package includes: 1 x AD8232 ECG module kit.
Product Features
- Precise ECG signal conditioning: The AD8232 ECG module provides high-precision bioelectric signal processing, ideal for heart rate and ECG monitoring, and filters out motion noise for clear signal output.
- High compatibility: This AD8232 ECG module is compatible with Arduino and supports bioelectric signal acquisition, activity monitoring and remote health applications, making it reliable for fitness and medical applications.
- Quick recovery function: equipped with an automatic adjustment function, the AD8232 ECG quickly recovers from electrode interruptions and improves stability and continuity of measurement.
- Dual high-pass filter: eliminates motion artifacts and electrode potential drift, AD8232 ECG coupled with an instrument amplifier structure for improved gain and filter efficiency.
- Easy installation and troubleshooting: equipped with barrier connectors for easy circuit integration; open source design allows flexible parameter configuration, ECG module suitable for various applications.
